Litex Industries E-CGL52CB5C1 User manual

Installation Guide
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pg. 5
Canopy Assembly. pg. 6
Blade Assembly. pg. 6

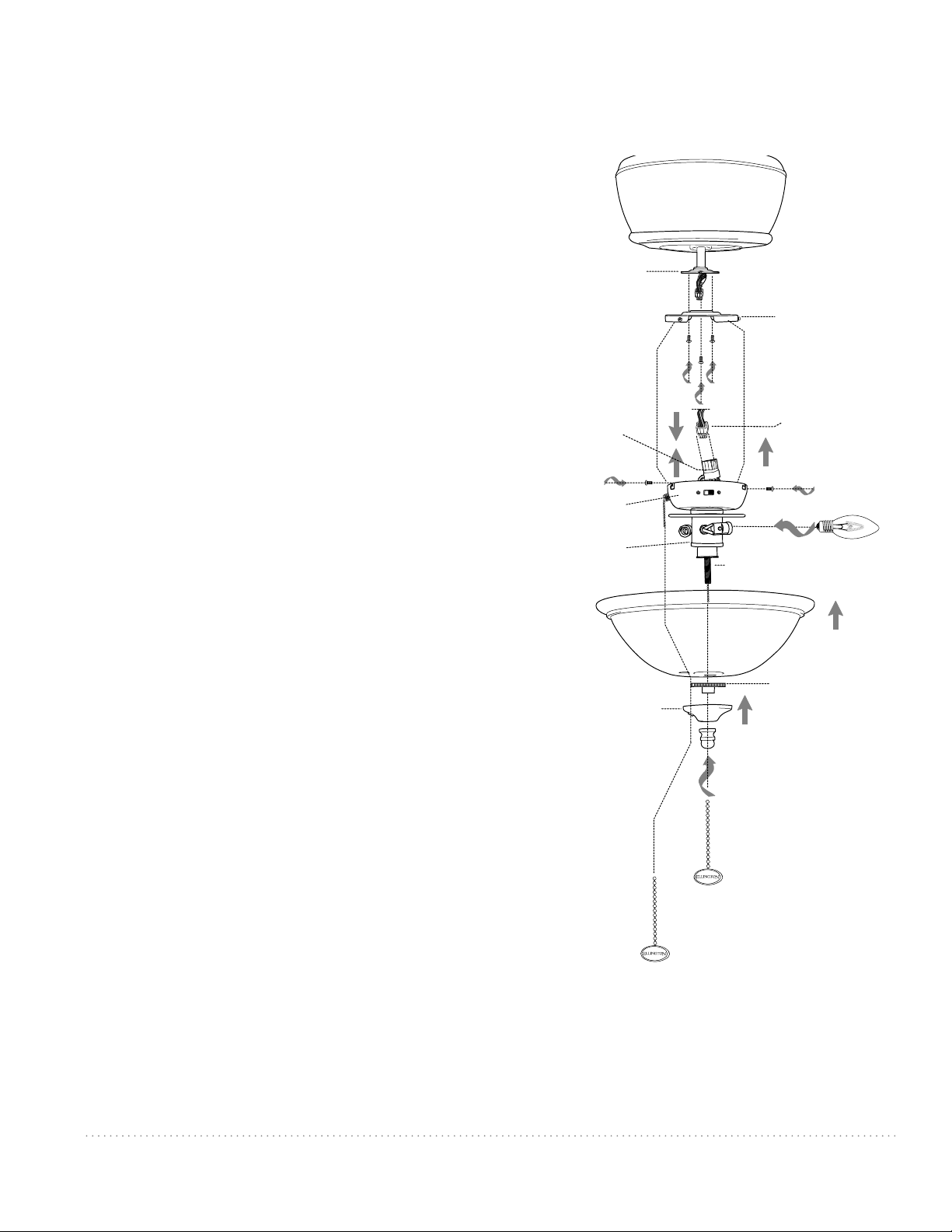

Light Kit Assembly (Optional). pgs. 7 - 8
Testing Your Fan. pg. 8
Troubleshooting. pg. 9
Parts Replacement. pg. 9
Warranty. pg. 9
net weight of fan: 24.03 lb (10.9 kg) PRINTED IN CHINA
For Model:
E-CGL52CB5C1
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
E192641
For
Damp Location
Federal regulations require ceiling fans
with light kits manufactured or imported
after January 1, 2009, to limit total
wattage consumed by the light kit to
190W. Therefore, this fan is equipped
with a wattage limiting device.

SAFETY TIPS.
page 1
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel
before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND
SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code, and
ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are different
colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at least
seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should be
mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 35
pounds (16 kilograms). The outlet box must be supported directly by the building structure. Use only UL
listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked "Acceptable
for Fan Support of 15.9 kg (35 lb) or less," and use the mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are
designed to accept only one 12 gauge house wire and two lead wires from the fan. If your house wire is larger than 12
gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an electrician for
the proper size wire connectors to use.
WARNING: If using this fan in a DAMP location, this fan must be connected to a supply circuit that is protected by a
Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical shock or death.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and
marked suitable for use with the model fan you are installing. Switches must be UL general use switches.
Refer to the instructions packaged with the light kits and switches for proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into
the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control device or
control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan speed will cause a
loud humming noise from fan.] (Note:This fan is suitable for use with remote control approved for DAMP locations.)
8. Do not operate the reverse switch until the fan has come to a complete stop.[Note: If using remote control
with reverse capability, reverse fan blade direction only when on LOW speed.]
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after installation. Do
not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A soft cloth or lightly dampened cloth will
be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than
those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible
conditions and situations that may occur. It must be understood that common sense and caution are necessary
factors in the installation and operation of this fan.

1. Unpacking Your Fan.
2. Parts Inventory.
a. hanging bracket.1 piece
b. yoke cover. 1 piece
c. downrod and hanging ball. 1 piece
d. canopy. 1 piece
e. motor housing. 1 piece
f. switch housing plate. 1 piece
g. blade arm. 5 pieces
h. blade. 10 pieces (5 wood blades for indoor use;
5 weatherproof ABS blades for use in damp location)
i. glass shade. 1 piece
j. light kit fitter. 1 piece
k. threaded washer (pre-attached to light kit fitter).
1 piece
l. finial plate (pre-attached to light kit fitter). 1 piece
mfinial (pre-attached to light kit fitter). 1 piece
n. hardware packs
page 2
a
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
bulbs required:
3 x 40 watt max. candelabra base bulbs
(included)
b
d
g
f
h
j
m
i
k
e
c
l
n
for wood
blades for ABS
blades
wood blades
ABS blades

3. Installation Preparation.
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling.The
hanging length can be extended by purchasing
a longer downrod (0.5in./1.27cm diameter).
Other installation such as flushmount is not
available for this fan.
Vaulted ceiling
angle is not to
exceed 25 degrees.
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7 ft. (2.13m) from the floor and 30in.
(76 cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400
square feet (37.2 square meters).
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters and rated electrical tape.
downrod
installation
flushmount
installation
4. Hanging Bracket Installation.
page 3
ON
OFF
ON
OFF
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
blade edge
7 feet
(2.13m) (76cm)
30
inches
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as this will
support the fan.
hanging bracket
spring washers
outlet box screws
flat washers
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure and
can support the full weight of the fan. Ensure the outlet box is
clearly marked "Suitable for Fan Support." If not, it must be
replaced with an approved outlet box. Failure to do so can
result in serious injury.
CAUTION: Be sure outlet box is grounded properly and that
a ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided with
new or original outlet box.*If installing on a vaulted
ceiling, face opening of hanging bracket towards high
point of ceiling. Arrange electrical wiring around the back
of the hanging bracket and away from the bracket
opening.

NOTE: The important safety precautions and
instructions appearing in the manual are not meant to
cover all possible conditions and situations that may
occur. It must be understood that common sense and
caution are necessary factors in the installation and
operation of this fan.
page 4
5. Fan Assembly.
yoke set screw
downrod
yoke cover
electrical wiring
clip
pin
set screw hole
set screw
hanging ball
stop pin
A
B

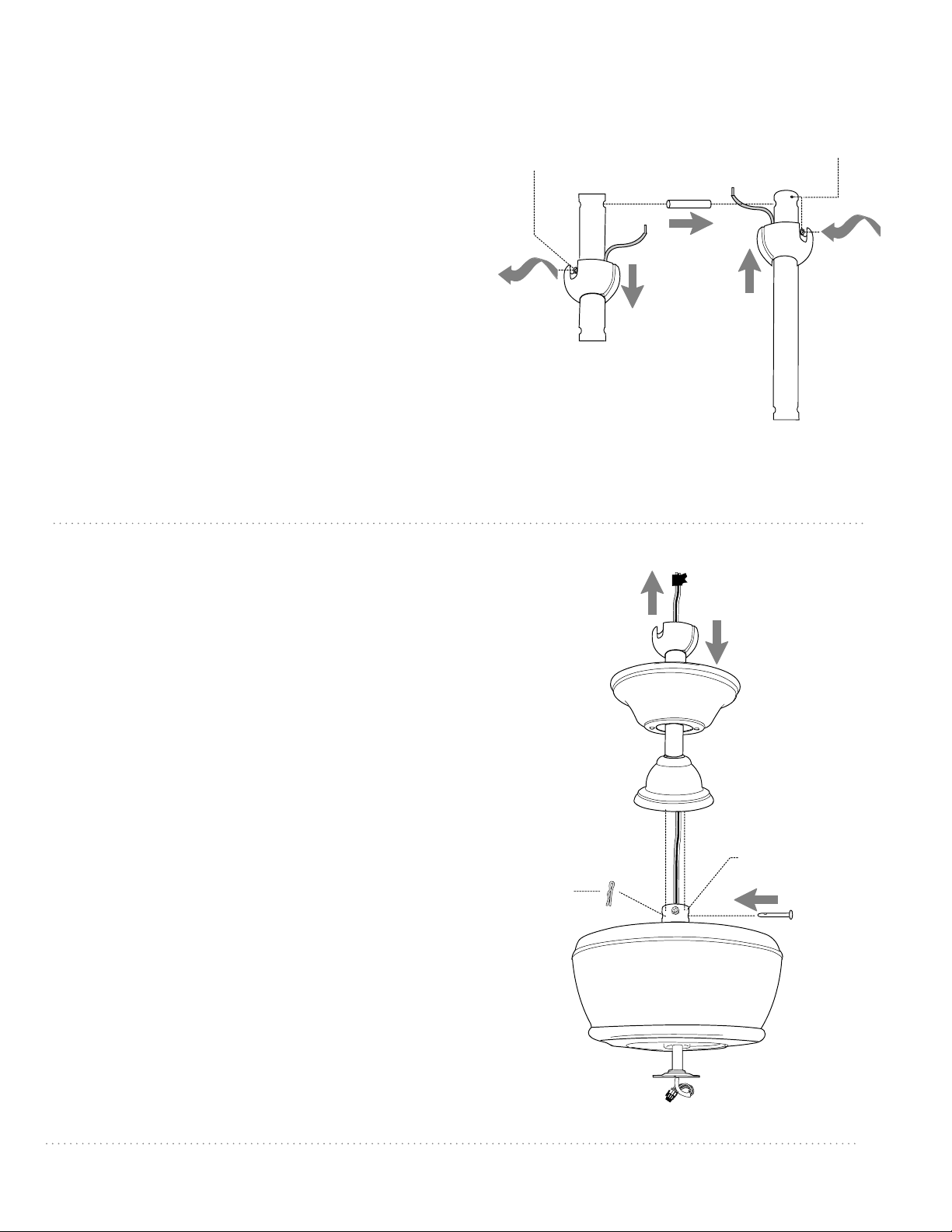

If you wish to extend the hanging length of your
fan, you must remove the hanging ball from the
downrod provided to use with an extended
downrod (sold separately). [If you wish to use the
downrod provided,please proceed to instructions
following the dotted line below.]
To remove hanging ball, loosen set screw on
hanging ball, lower hanging ball and remove stop
pin. Slide hanging ball off the original downrod, A,
and slide it down the longer downrod, B (the top
of the downrod should be noted as having a set
screw hole; use this hole when setting the set
screw). Insert stop pin into top of extended
downrod and raise hanging ball. Be sure stop pin
aligns with slots on the inside of the hanging ball.
Tighten set screw securely.
Tip:To prepare for threading electrical wires
through downrod, apply small piece of electrical
tape to the ends of the electrical wires -- this will
keep the wires together when threading them
through the downrod.
Loosen yoke set screws and nuts on motor
housing yoke and remove pin and clip from motor
housing yoke. Slide downrod through canopy and
yoke cover.
Thread electrical wires through downrod and pull
extra wire slack from the upper end of the
downrod.
Place downrod into the motor housing yoke and
re-insert pin and clip that were previously
removed. Tighten yoke set screws and nuts
securely. Lower yoke cover and canopy to motor
housing.
["Fan Assembly" continued on next page.]
canopy
motor
housing

hanging ball slot
5. Fan Assembly. (cont.)
With the hanging bracket secured to the outlet box
and able to support the fan, you are now ready to
hang your fan. Grab the fan firmly with two hands.
Slide downrod through opening in hanging bracket
and let hanging ball rest on the hanging bracket.Turn
the hanging ball slot until it lines up with the hanging
bracket tab.
WARNING: Failure to align slot in hanging ball with
tab in hanging bracket may result in serious injury or
death.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you once
you are set on the ladder.
page 5
from fan
6.Wiring.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National Electrical
Code.If you are unfamiliar with electrical wiring or if
the house/building wires are different colors than
those referred to below, please use a qualified
electrician.
When downrod is secured in place on the hanging
bracket, electrical wiring can be made as follows:
Connect BLACK and BLUE wire from fan to BLACK
wire from ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire from
ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together
from fan to BARE/GREEN wire from ceiling with
wire connector provided.
If you intend to control the fan light with a
separate light switch connect BLUE wire from fan
to the BLACK (or RED) supply from the
independent switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
This fan is remote control adaptable (remote control
sold separately).
black
black
from ceiling
white
white
blue
black supply wire
ground (green
or bare)
white supply wire
*
ground
(green or bare)
wire
connector
hanging bracket tab

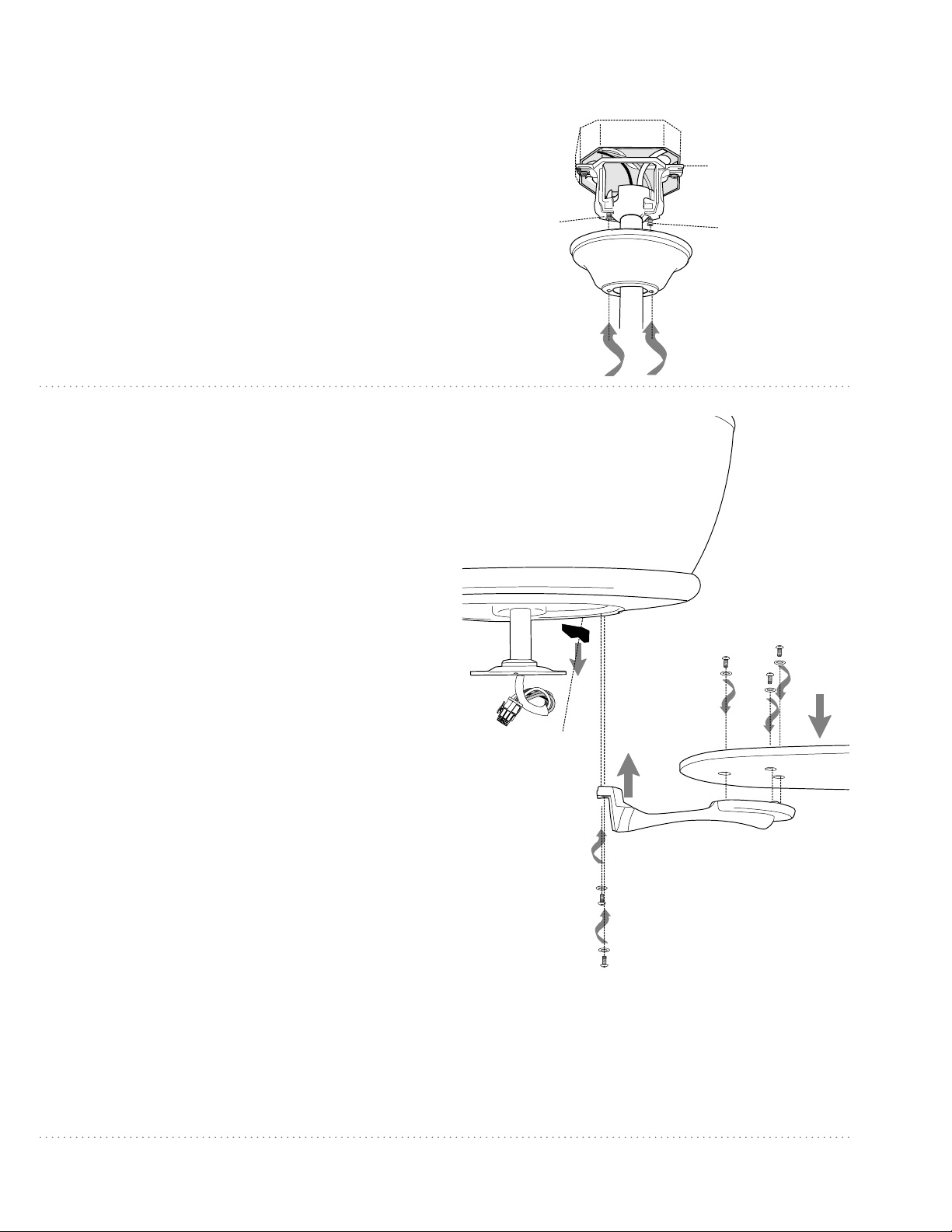

7. Canopy Assembly.
8. Blade Assembly.
motor housing
blade arm
blade
page 6
plastic
motor
lock
Time Saver:Washers for blade screws can be set
on each blade screw prior to installing blades.
If you are installing the fan indoors, use the
wood blades.
If installing the fan in DAMP location, use the
weatherproof ABS blades.
WARNING: Only the weatherproof ABS blades are
approved for use in damp location. Using the
wood blades in a damp location will damage the
blades.
Locate 15 blade attachment screws and washers
in one of the hardware packs. Check labels on
hardware packs for blade attachment screws and
washers and make sure to use the correct blade
attachment screws and washers for the blades
you are using. NOTE: Blade attachment screws for
ABS weatherproof blades are slightly longer
than the blade attachment screws for wood
blades. Hold blade arm up to blade and align
holes. Insert 3 blade attachment screws (along
with washers) with fingers first and then tighten
screws securely with a Phillips screwdriver. Repeat
for the remaining blades.
Remove blade arm screws and lock washers from
fan motor and set aside. If plastic motor locks are
installed with blade arm screws, discard plastic
motor locks (save blade arm screws and lock
washers to secure blade arms). Align blade arm
holes with motor screw holes and attach blade
arm with lock washers and blade arm screws.
Before securing screws permanently, repeat with
remaining blade arms. Secure all screws.
lock washer
blade arm screw
blade attachment
screws and washers
hanging bracket
canopy
screw screw
Locate 2 screws on underside of hanging bracket
and remove screw closest to the open end of the
hanging bracket. Partially loosen the other screw.
Lift canopy to hanging bracket. Place rounded
part of slotted hole in canopy over loosened
screw in hanging bracket and push up.Twist
canopy to lock. Re-insert screw that was removed,
and then tighten both screws securely.

9. Light Kit Assembly (Optional).
page 7
Remove 1 screw from fitter plate (on underside of
motor) and loosen the other 2 screws. Align slotted
holes in switch housing plate with loosened screws in
fitter plate, allowing male plug from motor housing to
come through hole in middle of switch housing plate.
Twist switch housing plate to lock. Re-insert screw that
was previously removed and tighten all 3 screws
securely.
Partially loosen the 3 screws on outer edge of switch
housing plate.
If you wish to use your fan WITH the light kit,
remove finial, finial plate and threaded washer from
threaded rod on light kit fitter. Connect female plug
from light kit fitter to male plug from motor housing.
Be sure that plugs connect completely. Align slotted
holes in switch housing (at top of light kit fitter) with
loosened screws in switch housing plate.Twist switch
housing to lock and securely tighten all 3 screws with
Phillips screwdriver.
Install 3 candelabra base 40 watt max. bulbs
(included).
Important: When replacing bulbs, please allow bulbs
and glass shade to cool down before touching them.
Raise glass shade in order to guide pull chains through
corresponding holes at the bottom of the glass shade.
Align threaded rod on light kit fitter with hole in
middle of glass shade and push up gently allowing
threaded rod to come through hole. Secure the glass
shade with the threaded washer. Do not overtighten
threaded washer as glass may crack or break. Align hole
in center of finial plate with threaded rod, allowing
pull chains to come through appropriate holes in finial
plate, and push up.Thread center pull chain through
hole in finial and secure glass shade to light kit fitter
by tightening finial. Do NOT overtighten finial as glass
may crack or break.
Proceed to Section 10 on the following page to complete
installation WITH light kit. For use of fan without light
kit, continue to the rest of the instructions in Section 9
on the following page.
glass shade
finial
plate
finial
switch
housing
light
kit fitter
male plug
bulb
fitter
plate
switch
housing
plate
female
plug
motor
housing
threaded
rod
pull chain
extensions
threaded washer

9. Light Kit Assembly (Optional). (cont).
page 8
10.Testing Your Fan.
It is recommended that you test fan before finalizing
installation. Restore power from circuit box and light switch (if
applicable). Test fan speeds with the pull chain on switch
housing. Start at the OFF position (no blade movement). First
pull will set the fan to HI. Second pull will set the fan to
MEDIUM. Third pull will set the fan to LOW. Fourth pull will
re-set the fan to OFF setting. If applicable, test light with pull
chain in the middle. If fan and/or light do (does) not function,
please refer to "Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off before moving the reverse switch. Set
reverse switch to recirculate air depending on the season:
- LEFT position in summer (diagram 1)
- RIGHT position in winter (diagram 2)
A ceiling fan will allow you to raise your thermostat setting in
summer and lower your thermostat setting in winter without
feeling a difference in your comfort.
Important: Reverse switch must be set either completely to the
LEFT or completely to the RIGHT for fan to function. If the
reverse switch is set in the middle position (diagram 3), fan will
not operate.
Pull chain extensions supplied or custom pull chain extensions
(sold separately) may be attached to the ends of the pull
chains.
switch housing
center plug
hex nut
lock
washer
light kit fitter
BLACK
WHITE
WHITE
BLUE
If you wish to use the fan WITHOUT the light kit, locate
wires in switch housing (at top of light kit fitter) labeled FOR
LIGHT. Gently pull molex connections apart in order to
disconnect these wires.
Next, remove the hex nut and lock washer from the threaded
rod at the top of the light kit fitter. Unscrew the switch
housing to remove it from the light kit fitter and then gently
feed the BLACK and WHITE wires from the light kit fitter
through the hole in the middle of the switch housing.
Locate plastic cap in one of the hardware packs and place
firmly in hole in middle of switch housing. Connect female
plug from switch housing to male plug from motor housing.
Be sure that plugs connect completely.
Align slotted holes in switch housing with loosened screws in
switch housing plate.Twist switch housing to lock and
securely tighten all 3 screws with Phillips screwdriver.
diagram 1 diagram 2 diagram 3

Troubleshooting. Warranty.
Parts Replacement.
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2.Verify that reverse switch is set completely in either
direction.
3. Check to be sure that fan is wired properly.
Problem: Light kit (optional) not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Check to be sure that wires in canopy are wired properly.
Problem: Fan operates but light fails (if applicable).
Solutions:
1. Check that bulbs are installed correctly.
2.Verify that wires in canopy are wired properly.
3. Replace defective bulbs with same type of bulb.
4.Verify that molex connections in switch housing are
connected properly.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit provided in one of the hardware
packs. If no blade balancing kit is provided, please call
Customer Support,
1-800-527-1292, to request one.
2. Check to be sure set screw(s) on motor housing yoke is
(are) tightened securely.
3. Check to be sure set screw on hanging ball is tightened
securely.
Problem: Lighting source not functioning.
Solution:
Wattage Limiting Device has interrupted the flow of
electricity to the light source. Ensure bulbs total no more
than 190W in the light source.
page 9
LITEX LIFETIME LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship.Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd.We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries.We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: LITEX
INDUSTRIES, LTD. will repair the fan, at no charge to the
original purchaser for labor only, if the fan motor fails to
operate satisfactorily when failure results from normal use.
Parts used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever.This
limitation as to consequential damages shall not apply in
states where prohibited.
For parts and information, please refer to
"Parts Inventory" on page 2.
Customer Support:
1-800-527-1292
