Alphasonik AS26 User manual

AS26 / AS29 / AS68
AS265P / AS268P / AS2629P
FULL RANGE SPEAKERS

ALPHASONIK WAS FOUNDED IN 1976 WITH ONE MISSION,
TO BRING STATE OF THE ART PERFORMANCE TO THE
CAR AUDIO ENTHUSIAST.
In these early years we pioneered such ground-breaking technologies
as amplifier fan cooling and high voltage signal transfer which remain a
benchmark in high-end audio.
Today, the new Alphasonik is committed to pushing the envelope with
regards to technology, quality and value. Our electronics feature
audiophile parts and circuit topology designed to let the full musical
experience come through, loud and clear. Our loudspeakers employ
the latest high technology materials and processes such as carbon
reinforced woven glass and titanium vapor deposition to deliver your
music with tremendous impact, dynamics and resolution.
We stand behind our quality with one of the best warranties in
consumer electronics. Compare Alphasonik car audio products against
anything the competition has to offer. We’re confident you will come to
one conclusion...
ALPHASONIK HAS NO EQUAL.
SETTING THE PACE SINCE 1976

TABLE OF CONTENTS
INTRODUCTION.................................3
FEATURES AND SPECIFICATIONS...........4
CHOOSING A LOCATION.......................5
INSTALLATION.............................6 - 8
MOUNTING DIAGRAM..........................9
TROUBLESHOOTING..........................10
WARNING/DISCLAIMER.......................11
WARRANTY...............................12 - 13
NOTES..........................................14

Thank you for purchasing this Alphasonik product. Alphasonik
products are specically engineered and designed for the mobile audio
environment. This manual contains important information about installation,
set-up procedures and integrating your new Alphasonik product into your
vehicle. With proper care and installation, your new product will provide you
with many years of high performance listening enjoyment. We recommend
having an Authorized Alphasonik Dealer install your new product for optimal
performance and to take advantage of our warranty program. Before
installing your new product, please read through the manual to fully
understand the application.
Before making any electrical connections, make sure that you
disconnect the battery’s ground cable to prevent the possibility of short
circuits or damage to your electronic equipment. If your vehicle’s stereo
(head unit) comes with an Anti-theft code, DO NOT disconnect the battery.
If you have the access code for the stereo (head unit), please refer to the
vehicle’s owner’s manual.
INTRODUCTION
3

FEATURES & SPECIFICATIONS
4
AS26 / AS265P
6.5” SPEAKER
Full Range Speaker System
Power Handling: 35 Watts RMS
Max Power: 350 Watts
Frequency Response: 30Hz – 22kHz
Sensitivity: 93dB
Impedance: 4-Ohm
Polypropylene Cone
Polyetherimide Tweeter
Piezo Tweeter
Cloth Surround
Ferrite Magnet
Mounting Hole: 5.6” (142mm)
Mounting Depth: 2.32” (59mm)
Speaker Diameter: 6.54” (166mm)
AS29
6 x 9” SPEAKER
Full Range Speaker System
Power Handling: 50 Watts RMS
Max Power: 500 Watts
Frequency Response: 28Hz – 22kHz
Sensitivity: 93dB
Impedance: 4-Ohm
Polypropylene Cone
Polyetherimide Tweeter
Piezo Tweeter
Cloth Surround
Ferrite Magnet
Mounting Hole: 6.1 x 8.75”
(155 x 222mm)
Mounting Depth: 3.03” (77mm)
Speaker Diameter: 6.46 x 9.3”
(164 x 236mm)
AS68 / AS268P
6 x 8” SPEAKER
Full Range Speaker System
Power Handling: 35 Watts RMS
Max Power: 350 Watts
Frequency Response: 28Hz – 22kHz
Sensitivity: 92dB
Impedance: 4-Ohm
Polypropylene Cone
Polyetherimide Tweeter
Piezo Tweeter
Cloth Surround
Ferrite Magnet
Mounting Hole: 4.17 x 4.88”
(106 x 124mm)
Mounting Depth: 2.32” (59mm)
Speaker Diameter: 5.7 x 8.03”
(145 x 204mm)

It is always best to plan the complete installation prior to attempting
to install any product. The routing of wires, power connections and mounting
locations should be planned rst. As with any car stereo installation, all work
performed should be checked thoroughly and carefully prior to the operation of
the system.
The placement of your Alphasonik speakers within your vehicle will
greatly affect the overall performance of your audio system. Installation in
every vehicle may not be possible without modications. Factory provided
locations are generally preferable due to ease of installation. In all cases
speakers should be placed in a location free of obstruction by body panels,
window cranks, storage compartments or anything that may hinder the
speaker’s performance. Avoid areas that do not provide a at, sturdy
mounting surface.
Alphasonik speakers are designed to t in almost any factory location.
Again, if at all possible, it is recommended that you use a factory location.
This applies mostly to later model vehicles. For those earlier models that do
not have factory locations or are limited to front locations, it is recommended
that you choose an area with sufcient air space.
If you allow an insufcient amount of air space, the speaker may not
reproduce low frequencies very well. It is recommended to mount the
speakers in door panels, kick panels, rear decks, etc. Ideally, the speaker
should be mounted where it will be in an enclosed airspace, allowing for
extended bass response.
CHOOSING A LOCATION
5

INSTALLATION
NOTE: Alphasonik strongly recommends that you operate your system at
low volume prior to the completed installation of your Alphasonik speakers.
This will allow a test of the speaker before securing it to its permanent
location.
CAUTION: Make sure that all speaker wiring is fully protected from cuts,
tears and possible wear. Any short circuit developing as a result could
severely damage the source unit or possibly the amplier. Make sure all
speaker wires easily reach the speaker terminal with no stress on the wires
or connectors.
MOUNTING:
1. Conrm the mounting location and depth requirements by inspecting the
area where the speaker will be mounted. Most speakers will t into stock
locations on the vehicle, in this case only depth is important.
2. If the location you have picked does require cutting, use the hole cutout
measurement from page 4 and mark the mounting location.
3. If there is a cosmetic panel where the speaker will be mounted, we
recommend using a utility knife to carefully cut a hole in it. Conrm the
cut by placing the speaker in the hole. You may modify the hole as
necessary.
4. If it will be necessary to cut steel, reinstall the cosmetic panel in place
and use the hole you have previously cut as a template. This will help
to insure proper cutting and a good t. Mark the location for the speaker
mounting screws, remove the panel and drill the screw holes. When
nished you may replace the panel.
5. After cutting and drilling all holes, inspect the mounting areas for any
metal burrs or rough edges. File any area that may interfere with the
mounting of the speaker.
6. Clean any metal shavings from the mounting area and check for areas
in which water may enter the speaker cavity. Treat the area for water
protection when necessary.
6

INSTALLATION continued
Make sure your source unit (CD, DVD, etc) is turned off while
connecting the speaker terminals. Turn on the various components and
slowly advance the volume. Remember to check and recheck all connections
to insure proper use.
1. Alphasonik recommends using at least 18-gauge wire with your new
speaker system. Thinner gauge wire may easily be severed and can
cause damage to your system should any bare wire come in contact with
the vehicle’s chassis.
2. Make sure that your audio system is off while installing and connecting
your new Alphasonik speakers. Failure to do so could result in damaging
the speaker beyond repair.
3. Be sure to route the wires to the speakers with the insulated terminals
ending at the speakers. This will insure a good contact with the speaker.
If you need to shorten the speaker lead, do so at the opposite end of the
insulated terminals or the bare end.
4. Be sure the polarity is correct at all times. The speaker leads are
color-coded for negative and positive. Be sure that the leads are
connected to the correct terminal of the speaker.
5. To insure long-term reliability, all bare wires and wire-to-wire connections
should be soldered and insulated with heat shrink or electrician’s tape.
Under no circumstances should you leave any bare wires uncovered, as
this can and will lead to the damage of your speakers.
6. When mounting in a door, it is imperative to have the right amount of
slack in the connecting wire so it does not get crimped or torn when the
door is opened and closed. Avoid areas of the door jam that pinch, this
will cause damage to the speaker over long-term use.
7. Once the speaker wiring is completed you can connect the opposite end
to the source unit or amplier. Again, be sure to observe the correct
polarity. Solder and wrap all stripped connections.
7

INSTALLATION continued
Once you have tested your system and have conrmed that it is
operating properly, turn off your system and prepare for the nal mounting
of the speakers.
1. Position the speaker into the mounting hole and reconrm the
correct mounting location and hole placement. Screw clips are
provided to insure a snug t. Place screw clips over the metal surface
and line up the hole with the hole you have previously drilled. Place the
speaker into the hole, align the mounting holes and proceed to insert
the screws. Be sure to tighten the screws evenly as to not warp the
speaker frame.
2. Turn your system back on and conrm the speaker’s operation, rst at
low volume and then you may increase the volume as you desire.
3. Carefully inspect the speakers surrounding and make sure the area
does not obstruct the mounting of the grill.
8

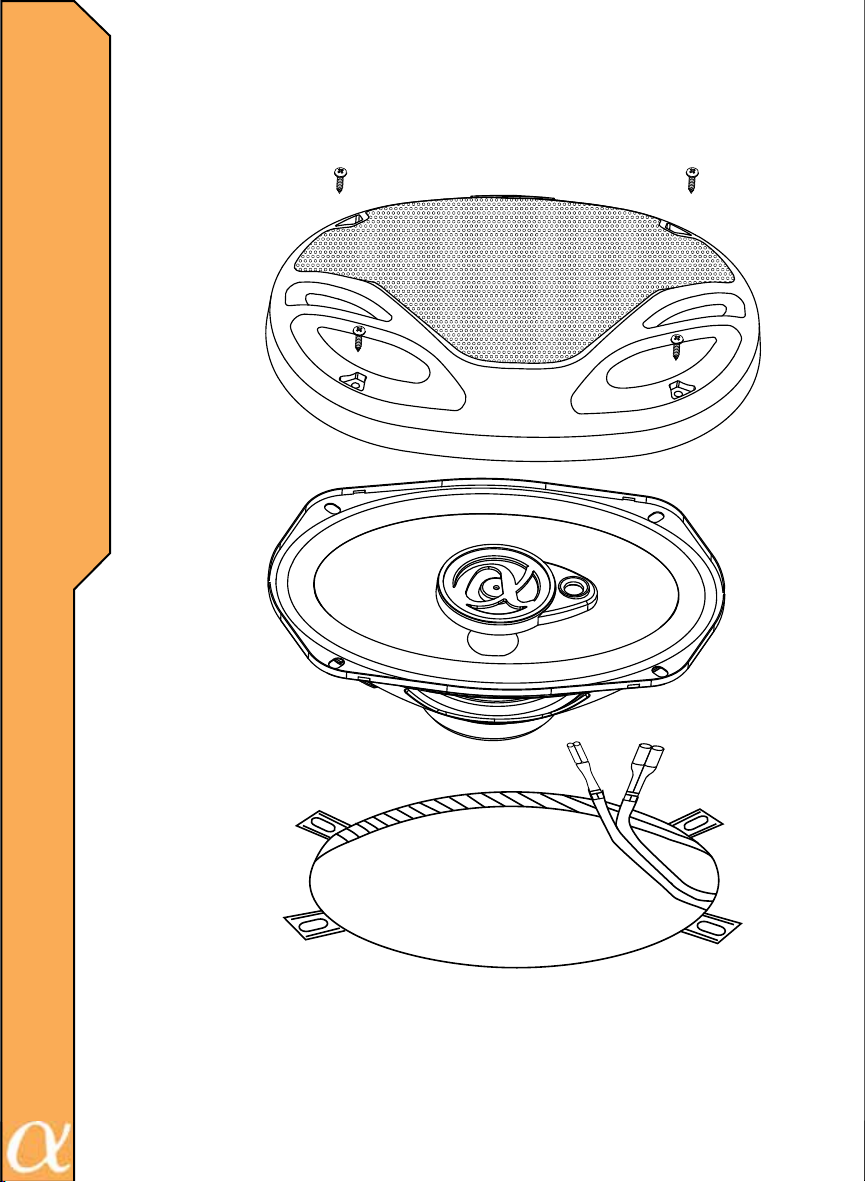

MOUNTING DIAGRAM
9
Screw
Grille
Speed
Clips
Midbass

TROUBLESHOOTING
In the event that your Alphasonik speakers appear to require
service, we ask that you first do a little troubleshooting to determine if
the problem is actually the speaker or a problem located in a different
part of the vehicle such as the amplifier, wiring, fusing or possibly the
source unit.
If your Alphasonik speakers have been installed professionally by
an Authorized Alphasonik Dealer, we recommend that you return to the
Dealer and demonstrate the problem to a qualified installer or repair
technician. If you installed the speakers yourself, use the following
guidelines to help find the problem:
1. No Sound
• Check the source unit or amplifier for power and be sure they are
operating properly.
• Check all signal connections.
• Check for any wiring that may be shorting together or touching the
metal chassis.
• Check all ground connections.
2. Distorted Sound At All Volumes
• Check for bad speaker connections.
• Check wiring for correct polarity.
3. Distorted Sound At High Volumes Only
• Check for loose mounting of the speaker.
• Inspect the speaker for debris in the cone or other obstructions.
4. Poor Bass Response
• Check wiring for correct polarity.
• Check for unstable or loose mounting surface.
• Check Bass and Treble controls at the source unit or amplifiers.
5. Poor High Frequency Response
• Check wiring for correct polarity.
• Check Treble controls or EQ settings.
• Check the Tweeter for possible damage.
10

WARNING & DISCLAIMER
Investigate the layout of your vehicle thoroughly before drilling
or cutting. Take care when you work near the gas tank, gas lines,
hydraulic lines, electrical components and electrical wiring. Do not
use the equipment unmounted. Attach this system securely to prevent
damage, particularly in the event of an accident or aggressive driving.
Do not mount the system so that wire connections are unprotected or
are subjected to pinching or damage from nearby objects. Before
connecting or disconnecting power connections at the system power
terminals, disconnect the +12V DC wire at the battery end. Confirm
that your source unit and other equipment are turned off while
connecting the input terminals. If you need to replace the power fuse,
replace it only with a fuse identical to the provided fuse. Using a fuse
of different type or rating may result in damage to the system, which is
not covered by the manufacturer’s warranty. Do not install any
product where it may be subjected to excessive heat, moisture and
dust or where it may be repeatedly kicked, brushed or bumped. Make
absolutely sure that the terminals for the products are connected to the
proper inputs and outputs from the music source. Never run the
wiring on the outside of the vehicle or under it where it can be damaged
by road hazards or any moving parts of the vehicle. Use existing wire
channels, sills, panels and molding strips inside the vehicle to hide the
wiring for safety and a neat appearance.
DISCLAIMER
IMPORTANT: Never cut any metal that is an integral part of
the vehicle’s safety or structural support system. If you are unsure, it
is best to have the product professionally installed by an Authorized
Alphasonik Dealer. Never sacrifice your safety for sound.
11

WARRANTY
Alphasonik, warrants this product against all defects in material and
workmanship for a period of one (1) year from the date of original
purchase provided it was purchased from an Authorized Alphasonik
Dealer.
The conditions of this warranty and the extent of the responsibility of
Alphasonik, under this warranty are as follows:
1. DATED PROOF OF PURCHASE IS REQUIRED FOR
WARRANTY SERVICE OF THIS PRODUCT. Information about
Alphasonik authorized warranty service may also be obtained at
www.alphasonik.com or by emailing Alphasonik at
[email protected].
2. This warranty will become void if service is performed by any one
other than an approved Alphasonik Warranty Service Center.
3. This warranty does not apply to any product which has been
subjected to misuse, neglect or accident, or which has had the
warranty seal broken, serial number altered, defaced or removed,
or which has been connected, installed adjusted or repaired other
than in accordance with the instructions furnished by Alphasonik.
4. This warranty does not cover car static, electrical interference,
adjustments or labor costs for the removal or reinstallation of the
unit for repair.
5. The sole responsibility of Alphasonik under this warranty shall be
limited to the repair or replacement thereof, at the sole discretion
of Alphasonik.
6. If it becomes necessary to send the product or any defective
part to Alphasonik or an authorized service station, the product
must be shipped in its original or equivalent carton, fully insured,
with shipping charges prepaid. Alphasonik will not assume any
responsibility for any loss or damage incurred in shipping.
12

WARRANTY continued
7. This warranty is not transferable and protects the original
purchaser provided they reside and made their purchase in the
United States. International consumers may contact their local
retailer or distributor for warranty information.
8. ALL IMPLIED WARRANTIES, EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, SHALL HAVE NO
GREATER DURATION THAN THE WARRANTY PERIOD SET
FORTH ABOVE. UNDER NO CIRCUMSTANCES SHALL
ALPHASONIK BE LIABLE FOR ANY LOSS OR DAMAGE,
DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE
OR INABILITY TO USE THE PROUCT. BECAUSE SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR EXCLUSIONS OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, THE ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU.
9. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE.
10. Should you have any difficulties with the performance of this
product during warranty or with any Alphasonik authorized
service center, you may contact Alphasonik by emailing us at
[email protected].
13

NOTES
14
