Alpine CDE-9886R User manual

Designed by ALPINE Japan
68-09359Z33-B
EN
DE
FR
ES
IT
SE
NL
RU
PL
GR
FOR CAR USE ONLY/NUR FÜR AUTOMOBIL GEBRAUCH/POUR APPLICATION AUTOMOBILE UNIQUEMENT/PARA USO EN
AUTOMÓVILES/SOLO PER L’UTILIZZO IN AUTOMOBILE/ENDAST FÖR BILBRUK/ALLEEN VOOR GEBRUIK IN DE AUTO/
ТОЛЬКО
ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ
/ DO UŻYCIA TYLKO W SAMOCHODZIE / ΓΙΑ ΧΡΗΣΗ ΜΟΝΟ ΣΕ ΑΥΤΟΚΙΝΗΤΟ
RDS MP3/WMA/AAC CD Receiver
CDA-9886R
• OWNER’S MANUAL
Please read before using this equipment. • ANVÄNDARHANDLEDNING Innan du använder utrustningen bör du läsa
igenom denna användarhandledning.
• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung
bitte vor Gebrauch des Gerätes.
• GEBRUIKERSHANDLEIDING
Lees deze aanwijzingen aandachtig alvorens
dit toestel te gebruiken.
• MODE D’EMPLOI
Veuillez lire avant d’utiliser cet appareil. •РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ Прочтите настоящее руководство перед
началом использования оборудования.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo. •INSTRUKCJA OBSŁUGI Prosimy zapoznać się z tą instrukcją przed
przystąpieniem do użytkowania urządzenia.
• ISTRUZIONI PER L’USO
Si prega di leggere prima di utilizzare il
attrezzatura.
•ΕΓΧΕΙΡΙ∆ΙΟ ΧΡΗΣΤΗ
Παρακαλούµε διαβάστε το πριν
χρησιµοποιήσετε τη συσκευή.
ALPINE ELECTRONICS MARKETING, INC.
1-1-8 Nishi Gotanda,
Shinagawa-ku,
Tokyo 141-0031, Japan
Phone [phone]
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
777 Supertest Road, Toronto,
Ontario M3J 2M9, Canada
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam
Victoria 3803, Australia
Phone [phone]
ALPINE ELECTRONICS GmbH
Frankfurter Ring 117, 80807 München, Germany
Phone [phone]
ALPINE ELECTRONICS OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Phone [phone]
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
Cedex, France
Phone [phone]
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone [phone]
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone [phone]
ALPINE ELECTRONICS (BENELUX) GmbH
Leuvensesteenweg 510-B6,
1930 Zaventem, Belgium
Phone [phone]
R

ENGLISH
1-EN
Contents
Operating Instructions
WARNING
WARNING ................................................. 3
CAUTION .................................................. 3
PRECAUTIONS ........................................ 3
Getting Started
Accessory List .................................................. 6
Turning Power On and Off ............................... 6
Detaching and Attaching the Front Panel ........ 6
Initial System Start-Up ..................................... 6
Adjusting Volume ............................................. 7
Lowering Volume Quickly ............................... 7
Setting the Time and Calendar ......................... 7
Radio
Listening to Radio ............................................ 7
Presetting Stations Manually ............................ 7
Presetting Stations Automatically .................... 8
Tuning to Preset Stations .................................. 8
Frequency Search Function .............................. 8
RDS
Setting RDS Reception Mode and Receiving
RDS Stations ................................................. 8
Recalling Preset RDS Stations ......................... 9
Receiving RDS Regional (Local) Stations ....... 9
PI SEEK Setting ............................................... 9
Setting PTY31 (Emergency Broadcast)
reception ........................................................ 9
Setting the Time to automatically Adjust ....... 10
Receiving Traffic Information ........................ 10
PTY (Programme Type) Tuning ..................... 10
Receiving Traffic Information While Playing
CD or Radio ................................................ 10
Priority News .................................................. 11
Displaying Radio Text .................................... 11
CD/MP3/WMA/AAC
Playback ......................................................... 12

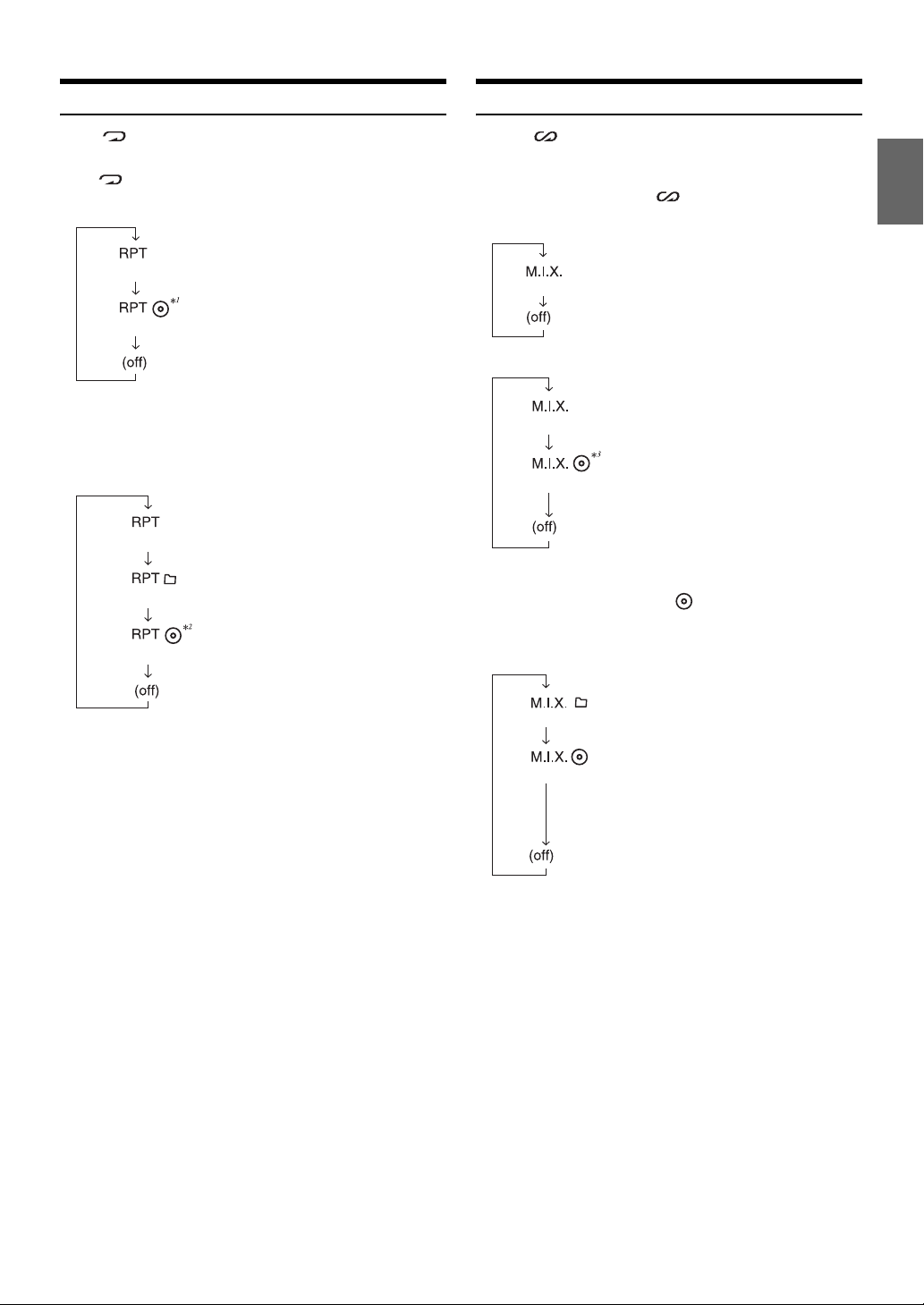

Repeat Play ..................................................... 13
M.I.X. (Random Play) .................................... 13
Searching for CD Text .................................... 14
File/Folder Name Search
(Concerning MP3/WMA/AAC) .................. 14
Quick Search ...................................................14
About MP3/WMA/AAC ................................. 14
Sound Setting
Adjusting Subwoofer Level/Bass Level/Treble
Level/Balance (Between Left and Right)/Fader
(Between Front and Rear)/Auto Volume/
Defeat .......................................................... 16
Setting the Subwoofer Level ........................... 16
Setting the Bass Control ................................. 16
Setting the Bass Centre Frequency............... 16
Setting the Bass Bandwidth.......................... 16
Setting the Bass Level ..................................17
Setting the Treble Control ...............................17
Setting the Treble Centre Frequency............17
Setting the Treble Level ............................... 17
Adjusting the High Pass Filter ........................17
Blackout Mode On and Off ............................ 18
Turning Loudness On/Off ............................... 18
Turning Subwoofer ON/OFF .......................... 18
Setting the Subwoofer System ........................ 18
Other Functions
Displaying the Text ......................................... 19
Displaying Time ............................................. 20
SETUP
Bluetooth Setting
Setting the Bluetooth IN Connection ...............21
General Setting
Birthday Opening Message Setting
(Birthday Set) ...............................................21
Setting the Clock Display (Clock Mode) .........21
Setting of Calendar Display Pattern Switching
(Calendar) .....................................................21
Playing MP3/WMA/AAC Data
(Play Mode) ..................................................21
Sound (Beep) Guide Function ..........................21
Turning Mute Mode On/Off (INT Mute) .........21
Setting the AUX+ Setup Mode .........................21
Setting the AUX+ Level (AUX IN GAIN) .......21
Setting the External Digital Input .....................22
Setting the AUX Mode (V-Link) ......................22
Connecting to an External Amplifier ...............22
Setting the Language Font ................................23
Demonstration ..................................................23
Setting Adaptive Steering Remote Control ......23

2-EN
Display Setting
Changing Lighting Colour ............................... 23
Dimmer Control ............................................... 23
Dimmer Level Setting ...................................... 23
Scroll Type Setting ........................................... 24
Scroll Setting (Text Scroll) .............................. 24
Switching the Character Font ........................... 24
Switching the Animation Display Type
(BGV Select) ................................................ 24
Opening Message ON/OFF Setting ................. 24
USB memory (Optional)
Controlling USB memory (Optional) ............. 24
Playing MP3/WMA/AAC Files with the
USB memory (Optional) ............................. 24
iPod®(Optional)
Playback .......................................................... 25
Searching for a desired Song .......................... 25
Quick Search ................................................... 26
Direct Search Function ................................... 26
Select Playlist/Artist/Album/Genre/
Composer .................................................... 26
Random Play Shuffle (M.I.X.) ....................... 27
Repeat Play ..................................................... 27
Displaying the Text ......................................... 27
IMPRINT Operation (Optional)
Changing MultEQ mode ................................. 28
Adjusting Subwoofer Level/Bass Level/Treble
Level/Fader (Between Front and Rear)/
Balance (Between Left and Right)/Black Out
in MultEQ mode .......................................... 28
Adjusting Sound Setting in Manual Mode ..... 29
Turning Subwoofer ON/OFF ....................... 29
Setting the Subwoofer System ..................... 29
Setting the Subwoofer Phase........................ 29
Setting the Subwoofer Channel
(SUBW. Channel)..................................... 29
Equalizer Presets (Factory’s EQ) ................. 29
Setting the Response Slope for the High
Range Speaker (TW Setup) ...................... 30
Setting the Filter type ................................... 30
Turning Media Xpander ON/OFF................ 30
Setting the MX Level ................................... 30
Setting EQ mode .......................................... 30
Setting the Time Correction Unit
(TCR Parameter)....................................... 30
Blackout Mode On and Off.......................... 30
Sound Field Adjustment............................... 30
Adjusting the Parametric Equalizer Curve ....... 30
Adjusting the Graphic Equalizer Curve ........... 31
Adjusting the Time Correction ........................ 31
Adjusting the Crossover Settings ..................... 31
Storing the Sound Field Adjustment
Settings ......................................................... 32
Recalling the Stored Sound Field Adjustment
Settings ......................................................... 32
About Time Correction ...................................33
About the Crossover ........................................34
About IMPRINT .............................................35
Changer (Optional)
Controlling CD Changer (Optional) ...............36
Playing MP3 Files with the CD Changer
(Optional) .....................................................36
Multi-Changer Selection (Optional) ...............36
Remote Control
Controls on Remote Control ...........................37
Operating the Audio Processor .......................37
Battery Replacement .......................................38
Information
In Case of Difficulty ........................................39
Specifications ..................................................42
Installation and Connections
Warning ...................................................43
Caution ...................................................43
Precautions ............................................43
Installation .......................................................44
Connections .....................................................46

3-EN
Operating Instructions
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should only be
performed after coming to a complete stop. Always stop the vehicle
in a safe location before performing these functions. Failure to do
so may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISES WHILE DRIVING.
Excessive volume levels that obscure sounds such as emergency
vehicle sirens or road warning signals (train crossings, etc.) can be
dangerous and may result in an accident. LISTENING AT LOUD
VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING
DAMAGE.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire,
electric shock or other injury.
DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN
INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the product.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Centre for repairing.
DO NOT MIX NEW BATTERIES WITH OLD BATTERIES.
INSERT WITH THE CORRECT BATTERY POLARITY.
When inserting the batteries, be sure to observe proper polarity (+
and –) as instructed. Rupture or chemical leakage from the battery
may cause fire or personal injury.
PRECAUTIONS
Product Cleaning
Use a soft dry cloth for periodic cleaning of the product. For more
severe stains, please dampen the cloth with water only. Anything
else has the chance of dissolving the paint or damaging the plastic.
Temperature
Be sure the temperature inside the vehicle is between +60°C
(+140°F) and –10°C (+14°F) before turning your unit on.
Moisture Condensation
You may notice the CD playback sound wavering due to
condensation. If this happens, remove the disc from the player and
wait about an hour for the moisture to evaporate.
Damaged Disc
Do not attempt to play cracked, warped, or damaged discs. Playing
a bad disc could severely damage the playback mechanism.
Maintenance
If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.
WARNING
WARNING
This symbol means important instructions.
Failure to heed them can result in serious injury
or death.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.

4-EN
Never Attempt the Following
Do not grip or pull out the disc while it is being pulled back into the
player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power is
off.
Inserting Discs
Your player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc.
“Error” will be displayed on your player if you insert a disc
incorrectly. If “Error” continues to be displayed even though the
disc has been inserted correctly, push the RESET switch with a
pointed object such as a ballpoint pen.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.
New Discs
To prevent the CD from jamming, “Error” is displayed if discs with
irregular surfaces are inserted or if discs are inserted incorrectly.
When a new disc is ejected immediately after initial loading, use
your finger to feel around the inside of the centre hole and outside
edge of the disc. If you feel any small bumps or irregularities, this
could inhibit proper loading of the disc. To remove the bumps, rub
the inside edge of the hole and outside edge of the disc with a
ballpoint pen or other such instrument, then insert the disc again.
Irregular Shaped Discs
Be sure to use round shape discs only for this unit and never use
any special shape discs.
Use of special shape discs may cause damage to the mechanism.
Installation Location
Make sure this unit will not be installed in a location subjected to:
• Direct sun and heat
• High humidity and water
• Excessive dust
• Excessive vibrations
Correct Handling
Do not drop the disc while handling. Hold the disc so you will not
leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.
Disc Cleaning
Fingerprints, dust, or soil on the surface of the disc could cause the
CD player to skip. For routine cleaning, wipe the playing surface
with a clean, soft cloth from the centre of the disc to the outer edge.
If the surface is heavily soiled, dampen a clean, soft cloth in a
solution of mild neutral detergent before cleaning the disc.
Disc Accessories
There are various accessories available on the market for protecting
the disc surface and improving sound quality. However, most of
them will influence the thickness and/or diameter of the disc. Using
such accessories can cause the disc to be out of standard
specifications and may create operational problems. We
recommend not using these accessories on discs played in Alpine
CD players.

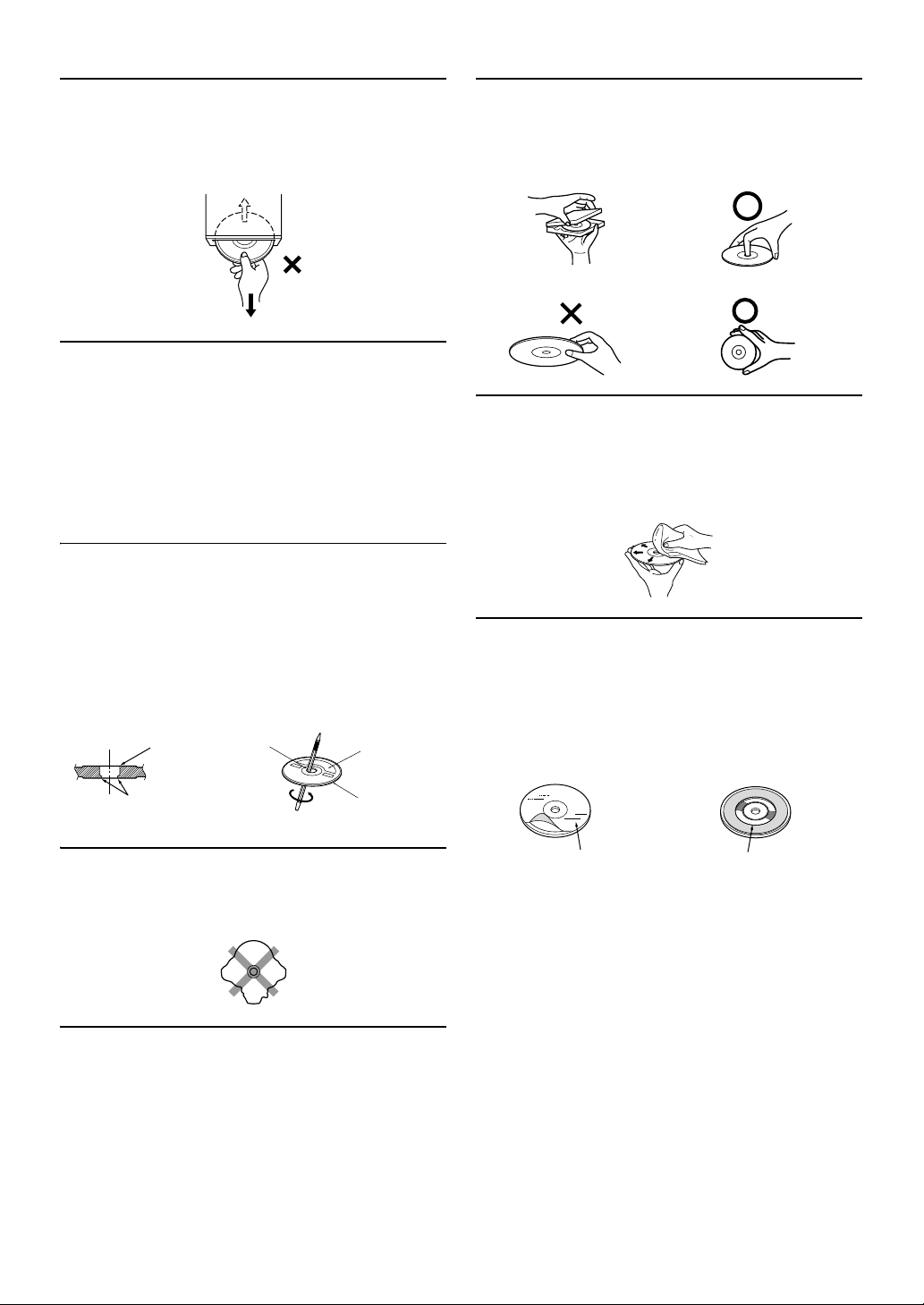

Centre Hole
Bumps
Centre Hole
New Disc
Outside
(Bumps)
CORRECT
INCORRECT CORRECT
Transparent Sheet Disc Stabilizer

5-EN
On handling Compact Discs (CD/CD-R/CD-RW)
• Do not touch the surface.
• Do not expose the disc to direct sunlight.
• Do not affix stickers or labels.
• Clean the disc when it is dusty.
• Make sure that there are no bumps around the disc.
• Do not use commercially available disc accessories.
Do not leave the disc in the car or the unit for a long time. Never
expose the disc to direct sunlight. Heat and humidity may damage
the CD and you may not be able to play it again.
To customers using CD-R/CD-RW
• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalised).
• Finalise the CD-R/CD-RW if necessary, and attempt playback
again.
About media that can be played
Use only compact discs with the label side showing the CD logo
marks below.
If you use unspecified compact discs, correct performance cannot
be guaranteed.
You can play CD-Rs (CD-Recordables)/CD-RWs (CD-ReWritables)
which have been recorded only on audio devices. You can also play
CD-Rs/CD-RWs containing MP3/WMA/AAC formatted audio files.
• Some of the following CDs may not play on this unit:
Flawed CDs, CDs with fingerprints, CDs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), CDs
recorded under unstable conditions, CDs on which a recording
failed or a re-recording was attempted, copy-protected CDs
which do not conform to the audio CD industry standard.
• Use discs with MP3/WMA/AAC files written in a format
compatible with this unit. For details, see pages 14-15.
• ROM data other than audio files contained in a disc will not
produce sound when played back.
Protecting the USB connector
• Only a USB memory can be connected to the USB connector on
this unit. Correct performance using other USB products cannot
be guaranteed.
• If the USB connector is used, be sure to connect it to the unit by
using a USB extension cable (sold separately). A USB hub is not
supported.
• Depending on the connected USB memory device, the unit may
not function or some functions may not be performed.
• The audio file format that can be played back on the unit is
MP3/WMA/AAC.
• Artist/song name, etc., can be displayed, however characters
may not be correctly displayed.
On Handling USB Memory
• To prevent malfunction or damage, note the following points.
Read the USB memory Owner’s Manual thoroughly.
Do not touch the terminals by hand or metal.
Do not subject USB memory to excessive shock.
Do not bend, drop, disassemble, modify or soak in the water.
• Avoid usage or storage in the following locations:
Anywhere in the car exposed to direct sunlight or high
temperatures.
Anywhere the possibility of high humidity or corrosive
substances is present.
• Fix the USB memory in a location where driver operation will
not be hindered.
• USB memory may not function correctly at high or low
temperature.
• Use only certified USB memory. Note that even certified USB
memory, may not function correctly depending on its type or
state.
• USB memory function is not guaranteed. Use USB memory
according to the terms of agreement.
• Depending on the settings of the USB memory type, memory
state or encoding software, the unit may not play back or display
properly.
• A file that is copy-protected (copyright protection) cannot be
played back.
• USB memory may take time to start playback. If there is a
particular file other than audio in the USB memory, it may take
considerable time before the file is played back or searched.
• The unit can play back “mp3,” “wma” or “m4a” file extensions.
• Do not add the above extensions to a file other than audio data.
This non-audio data will not be recognised. The resulting
playback may contain noise that can damage speakers and/or
amplifiers.
• It is recommended to back up important data on a personal
computer.
• Do not remove the USB device while playback is in progress.
Change SOURCE to something other than USB, then remove the
USB device to prevent possible damage to its memory.
•Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
•iPod is a trademark of Apple Inc., registered in the U.S. and
other countries.
•“MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.”
•“Supply of this product only conveys a licence for private, non-
commercial use and does not convey a licence nor imply any
right to use this product in any commercial (i.e. revenue-
generation) real time broadcasting (terrestrial, satellite, cable
and/or any other media), broadcasting/streaming via internet,
intranets and/or other networks or in other electronic content
distribution systems, such as pay-audio or audio-on-demand
applications. An independent licence for such use is required.
For details, please visit http://www.mp3licensing.com”
•Manufactured under licence from Audyssey Laboratories
MultEQ XT is a trademark of Audyssey Laboratories.
CAUTION
Alpine accepts no responsibility for lost data, etc., even if data, etc.,
is lost while using this product.

6-EN
Accessory List
•Head unit ............................................................................1
•Power cable ........................................................................1
•Mounting sleeve.................................................................1
•Carrying case.....................................................................1
•Rubber Cap ........................................................................1
•Hex Bolt ..............................................................................1
•Screw (M5 × 8)....................................................................4
•Remote Control..................................................................1
•Battery (AAA size) .............................................................2
•Owner’s Manual .......................................................... 1 set
Turning Power On and Off
Press SOURCE/ to turn on the unit.
•The unit can be turned on by pressing any other button except
(OPEN).
Press and hold SOURCE/ for at least 2 seconds to turn
off the unit.
•The first time power is turned on, the volume will start from level 12.
Detaching and Attaching the Front Panel
Detaching
1 Turn off the unit power.
2 Press (OPEN) to open the front panel.
To close the front panel, press the left side until it locks as
shown in the figure below.
3 Grasp the front panel firmly, slide to the left ,
and then pull to remove.
•The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
•To protect the front panel, place it in the supplied carrying case.
•When detaching the front panel, do not apply excessive force as it
may result in malfunction.
•Do not leave the front panel open, or drive the car with the panel
open as it may result in an accident or malfunction.
Attaching
1 Insert the right side of the front panel into the main
unit. Align the groove on the front panel with the
projections on the main unit.
2 Push the left side of the front panel until it locks
firmly into the main unit.
•Before attaching the front panel, make sure that there is no dirt or
dust on the connector terminals and no foreign object between the
front panel and the main unit.
•Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Initial System Start-Up
Be sure to press the RESET switch when using the unit for the first
time, after changing the car battery, etc.
1 Turn off the unit power.
2 Press (OPEN) to open the front panel, and then
remove it.
Getting Started
Rotary encoder
(OPEN)
F/SETUP
SOURCE/
MUTE
/ENT
/ESC

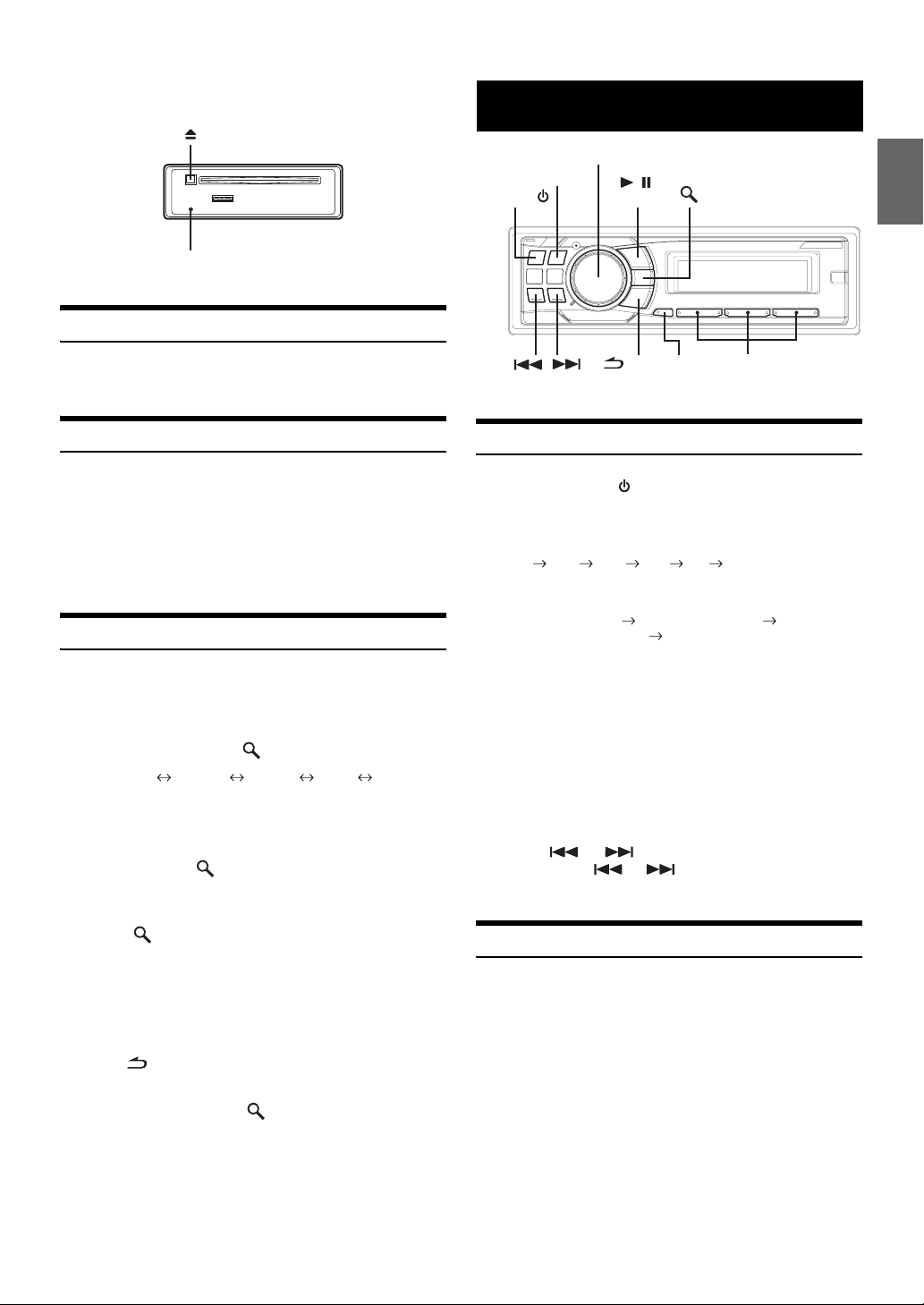

7-EN
3 Press RESET with a ballpoint pen or similar pointed
object.
Adjusting Volume
Turn the Rotary encoder until the desired sound is
obtained.
Lowering Volume Quickly
Activating the Audio Mute function will instantly lower the volume
level by 20 dB.
Press MUTE to activate the MUTE mode.
The audio level will decrease by about 20 dB.
Pressing MUTE again will bring the audio back to its
previous level.
Setting the Time and Calendar
1 Press and hold F/SETUP for at least 2 seconds to
activate the SETUP selection mode
.
2 Turn the Rotary encoder to select the General
mode, and then press /ENT.
Bluetooth*General Display Tuner Bluetooth
* Displayed only when INT Mute is OFF, and the mode is set to other
than Bluetooth Audio.
3 Turn the Rotary encoder to select Clock Adjust,
and then press /ENT.
4 Turn the Rotary encoder to set year.
5 Press /ENT.
6 Repeat steps 4 and 5 above to set month, day, hour
and minute.
7 Press and hold F/SETUP for at least 2 seconds to
return to normal mode.
•Pressing /ESC returns to the previous SETUP mode.
•If no operation is performed for 60 seconds, SETUP is cancelled.
•To synchronise the clock to another clock/watch or radio time
announcement, press and hold /ENT for at least 2 seconds after
setting the “hour”. Minutes will reset to 00. If the display shows over
“30” minutes when you do this, the time will advance one hour.
Listening to Radio
1 Press SOURCE/ to select the TUNER mode.
2 Press BAND/TA repeatedly until the desired radio
band is displayed.
FM1 FM2 FM3 MW LW FM1
3 Press TUNE/A.ME to select the tuning mode.
DX (Distance mode) LOCAL (Local mode)
MANUAL (Manual mode) DX
•The initial mode is Distance mode.
Distance mode:
Both strong and weak stations will be automatically tuned in
(Automatic Seek Tuning).
Local mode:
Only strong stations will be automatically tuned in (Automatic
Seek Tuning).
Manual mode:
The frequency is manually tuned in steps (Manual tuning).
4 Press or to tune in the desired station.
Holding down or will change the frequency
continuously.
Presetting Stations Manually
1 Select the radio band and tune in a desired radio
station you wish to store in the preset memory.
2 Press and hold, for at least 2 seconds, any one of the
preset buttons (1 through 6) into which you wish
to store the station.
The selected station is stored.
The display shows the band, preset number and station
frequency memorized.
•A total of 30 stations can be stored in the preset memory (6 stations
for each band; FM1, FM2, FM3, MW and LW).
•If you store a station in a preset memory which already has a station,
the current station will be cleared and replaced with the new station.
•If the function mode is activated, press F/SETUP to return to preset
mode.
RESET switch
Radio
BAND/TA //
TUNE/A.ME
Rotary encoder
/ENT
Preset buttons
(1 through 6)
/ESC F/SETUP
SOURCE/

8-EN
Presetting Stations Automatically
1 Press BAND/TA repeatedly until the desired radio
band is displayed.
2 Press and hold TUNE/A.ME for at least 2 seconds.
The tuner will automatically seek and store 6 strong stations
in the selected band. They will be stored into preset buttons
1 to 6 in order of signal strength.
When the automatic memory has been completed, the tuner
goes to the station stored in preset location No. 1.
•If no stations are stored, the tuner will return to the original station
you were listening to before the auto memory procedure began.
Tuning to Preset Stations
1 Press BAND/TA repeatedly until the desired band is
displayed.
2 Press any one of the station preset buttons
(1 through 6) that has your desired radio station in
memory.
The display shows the band, preset number and frequency
of the station selected.
•If the function mode is activated, press F/SETUP to return to preset
mode.
Frequency Search Function
You can search for a radio station by its frequency.
1 Press and hold /ENT for at least 2 seconds in
Radio mode to activate Frequency search mode.
2 Turn the Rotary encoder to select the desired
frequency.
3 Press /ENT to receive the selected frequency.
•Press and hold /ESC for at least 2 seconds in the search mode to
cancel. Or, the search mode will be cancelled if no operation is
performed for 10 seconds.
Setting RDS Reception Mode and
Receiving RDS Stations
The RDS (Radio Data System) is a radio information system using the
57 kHz subcarrier of regular FM broadcast. The RDS allows you to
receive a variety of information such as traffic information, station
names, and to automatically re-tune to a stronger transmitter that is
broadcasting the same programme.
1 Press F/SETUP to activate the function mode.
2 Press 1 AF to activate the RDS mode.
3 Press or to tune in the desired RDS
station.
4 Press 1 AF again to deactivate the RDS mode.
5 Press F/SETUP to activate the preset mode.
•When the “Setting PTY31 (Emergency Broadcast) reception” (refer
to page 9) is set to on, if the unit receives the PTY31 (Emergency
Broadcast) signal, the unit will show “ALARM” in the display
automatically.
•Operate the unit while the function mode is activated. If no operation
is performed for 5 seconds, the function mode is cancelled.
The RDS digital data includes the following:
RDS
PI Programme Identification
PS Programme Service Name
AF List of Alternative Frequencies
TP Traffic Programme
TA Traffic Announcement
PTY Programme Type
EON Enhanced Other Networks
1 AF NEWS 2
BAND/TA
Rotary encoder
3 PTY
/ENT /ESC
VIEW
F/SETUP

9-EN
Recalling Preset RDS Stations
1 Press F/SETUP to activate the function mode.
2 Press 1 AF to activate the RDS mode.
3 Press F/SETUP to activate the preset mode.
4 Make sure that the function mode returns to preset
mode, and then press the preset button in which
your desired RDS station is preset.
If the preset station’s signal is weak, the unit automatically
searches and tunes to a stronger station in the AF
(Alternative Frequencies) list.
5 If the preset station and the stations in the AF list
cannot be received:
When the PI SEEK setting is on (refer to “PI SEEK Setting”
on page 9), the unit searches again for a station in the PI
(Programme Identification) list.
If there are still no stations receivable in the area, the unit
displays the frequency of the preset station and the preset
No. disappears.
If the signal level of the Regional (Local) station being tuned
becomes too weak to receive, press the same preset button
to tune in a Regional station in other district.
•For presetting the RDS stations, refer to the Radio Operation section.
The RDS stations can be preset in the FM1, FM2 and FM3 bands
only.
•Operate the unit while the function mode is activated. If no operation
is performed for 5 seconds, the function mode is cancelled.
Receiving RDS Regional (Local)
Stations
1 Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.
2 Turn the Rotary encoder to select the Tuner mode,
and then press /ENT.
Bluetooth General Display Tuner Bluetooth
3 Turn the Rotary encoder to select RDS Regional,
and then press /ENT.
4 Turn the Rotary encoder to select ON or OFF.
In the OFF mode, the unit automatically keeps receiving the
related local RDS station.
5 Press and hold F/SETUP for at least 2 seconds to
return to normal mode.
•Pressing /ESC during the procedure will return to the previous
mode.
•If no operation is performed for 60 seconds in the SETUP mode, the
setting mode is cancelled.
PI SEEK Setting
1 Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.
2 Turn the Rotary encoder to select the Tuner mode,
and then press /ENT.
Bluetooth General Display Tun er Bluetooth
3 Turn the Rotary encoder to select PI Seek, and
then press /ENT.
4 Turn the Rotary encoder to select ON or OFF.
5 Press and hold F/SETUP for at least 2 seconds to
return to normal mode.
•Pressing /ESC during the procedure will return to the previous
mode.
•If no operation is performed for 60 seconds in the SETUP mode, the
setting mode is cancelled.
Setting PTY31 (Emergency Broadcast)
reception
Turn PTY31 (Emergency Broadcast) reception ON/OFF.
1 Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.
2 Turn the Rotary encoder to select the Tuner mode,
and then press /ENT.
Bluetooth General Display Tun er Bluetooth
3 Turn the Rotary encoder to select Alert PTY31, and
then press /ENT.
4 Turn the Rotary encoder to select ON or OFF.
If you set to ON, emergency broadcasts are received
regardless of source. “ALARM” is displayed during
reception.
5 Press and hold F/SETUP for at least 2 seconds to
return to normal mode.
When an emergency broadcast is received, the volume
level will be automatically changed to the memorized level
in the traffic information mode. For details, refer to
“Receiving Traffic Information” on page 10.
•Pressing /ESC during the procedure will return to the previous
mode.
•If no operation is performed for 60 seconds in the SETUP mode, the
setting mode is cancelled.

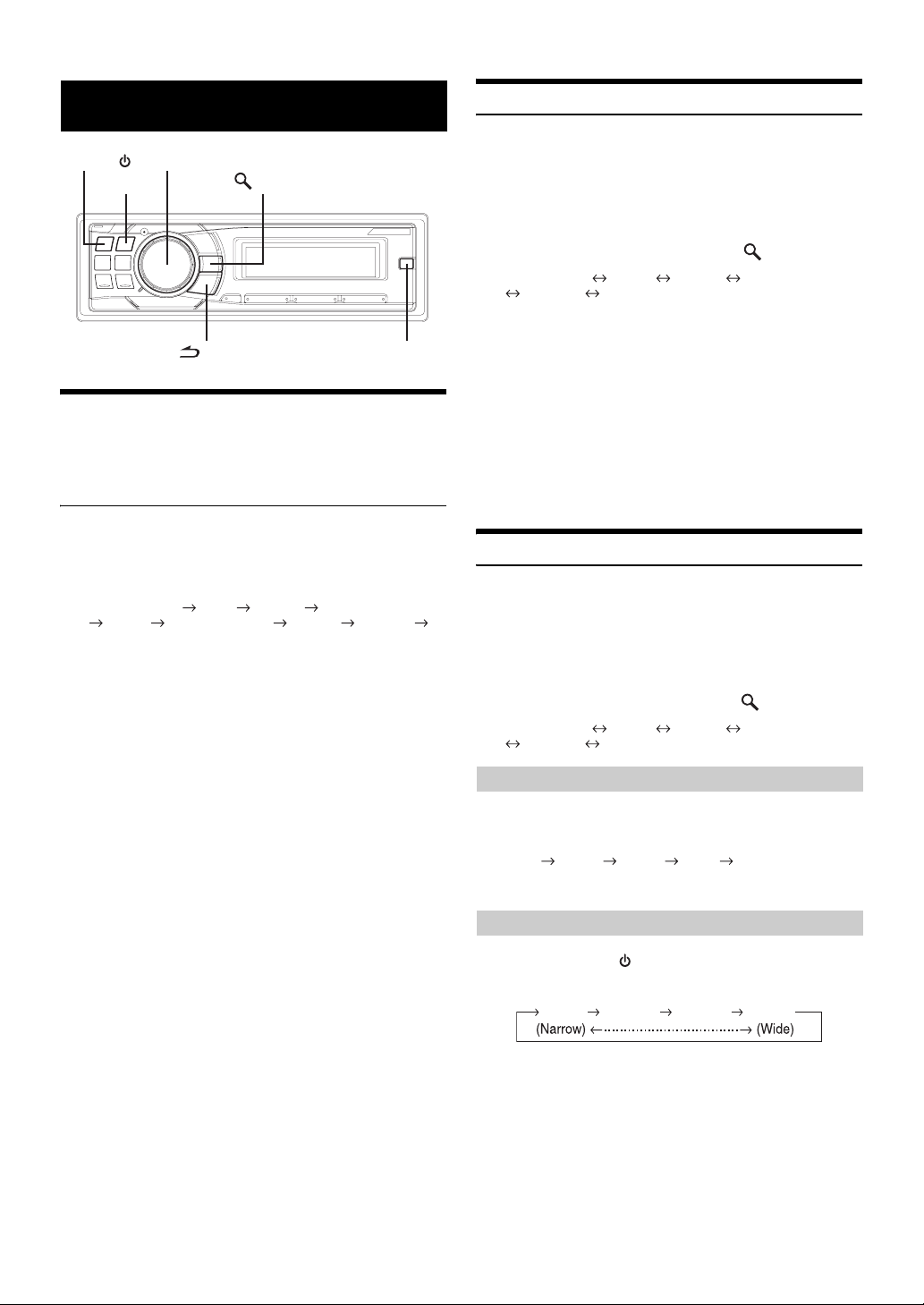

10-EN
Setting the Time to automatically Adjust
When you set to ON, the time is automatically adjusted by RDS data.
1 Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.
2 Turn the Rotary encoder to select the Tuner mode,
and then press /ENT.
Bluetooth General Display Tuner Bluetooth
3 Turn the Rotary encoder to select Auto Clock, and
then press /ENT.
4 Turn the Rotary encoder to select ON or OFF.
5 Press and hold F/SETUP for at least 2 seconds to
return to normal mode.
•Pressing /ESC during the procedure will return to the previous
mode.
•If no operation is performed for 60 seconds in the SETUP mode, the
setting mode is cancelled.
Receiving Traffic Information
1 Press and hold BAND/TA for at least 2 seconds so
that the “TA” indicator lights up.
2 Press or to select your desired traffic
information station.
When a traffic information station is tuned in, the “TP”
indicator lights up.
Traffic information is heard only when it is being broadcast.
If traffic information is not being broadcast, the unit is set in
the standby mode. When a traffic information broadcast
begins, the unit automatically receives it and the display
shows “T. INFO”.
When the traffic information broadcast is over, the unit will
automatically set in the standby mode.
•If the traffic information broadcast signal falls below a certain level,
the unit remains in the receiving mode for 1 minute. If the signal
remains below a certain level for over 1 minute, the “TA” indicator
blinks.
•If you do not want to listen to the traffic information being received,
lightly press BAND/TA to skip that traffic information message. The
TA mode will remain in the ON position to receive the next traffic
information message.
•If the volume level is changed while receiving traffic information, the
changed volume level will be memorized. When traffic information is
received next time, the volume level will be automatically adjusted to
the level memorized.
•In the TA mode, the SEEK tuning selects only the TP stations.
PTY (Programme Type) Tuning
1 Press F/SETUP to activate the function mode.
2 Press 3 PTY to activate the PTY mode, while the
unit is in Radio (FM receiving) mode.
The Programme Type of the station being currently received
will be displayed for 5 seconds.
If there is no receivable PTY broadcast, “NO PTY” will be
displayed for 5 seconds.
If no RDS station can be received, the display shows “NO
PTY”.
•If no operation is performed for 5 seconds after pressing 3 PTY, the
PTY mode will be automatically cancelled.
3 Press or within 5 seconds after activating
the PTY mode to choose the desired programme
type while the PTY (programme type) is being
displayed.
Each press scrolls the programme type by one.
4 Press 3 PTY within 5 seconds after selecting the
programme type to start searching for a station in
the selected programme type.
The chosen programme type display blinks during
searching and lights when a station is found.
If no PTY station is found, “NO PTY” will be displayed for 5
seconds.
5 Press F/SETUP to activate the preset mode.
•Operate the unit while the function mode is activated. If no operation
is performed for 5 seconds, the function mode is cancelled.
Receiving Traffic Information While
Playing CD or Radio
1 Press and hold BAND/TA for at least 2 seconds so
that the “TA” indicator lights up.
2 Press or to select a traffic information
station if necessary.
When a traffic information broadcast starts, the unit
automatically mutes the CD player/changer or the regular
FM broadcast.
When the traffic information broadcast finishes, the unit
automatically returns to the original source play before the
traffic information broadcast began.

11-EN
When traffic information stations cannot be received:
In the tuner mode:
When the TP signal can no longer be received for over 1
minute, the “TA” indicator blinks.
In the CD mode:
When the TP signal can no longer be received, the traffic
information station of another frequency will be selected
automatically.
•The receiver is equipped with the EON (Enhanced Other Networks)
function in order to keep track of additional alternate frequencies to
the AF list. The “EON” indicator lights up while an RDS EON
station is being received. If the station being received does not
broadcast the traffic information, the receiver automatically tunes in
the related station that broadcasts the traffic information when it
occurs.
3 Press and hold BAND/TA for at least 2 seconds to
deactivate the Traffic Information mode.
The “TA” indicator goes out.
Priority News
This function allows you to preset to give priority to the News
programme. You will never miss the News programme as the unit
automatically gives priority to the News programme whenever it begins
broadcasting, and interrupts the programme you are currently listening.
This feature is functional when your unit is set to a mode other than the
LW and MW modes.
1 Press F/SETUP to activate the function mode while
the unit is in Radio (FM receiving) mode.
2 Press NEWS 2 to activate the PRIORITY NEWS
mode.
The “NEWS” indicator appears in the display.
To disable the PRIORITY NEWS function, press NEWS 2.
•In the PRIORITY NEWS function, unlike in the TA function, the
volume does not increase automatically.
3 Press F/SETUP to activate the preset mode, while
the unit is in Radio (FM receiving) mode.
•Operate the unit while the function mode is activated. If no operation
is performed for 5 seconds, the function mode is cancelled.
Displaying Radio Text
Text messages from a radio station can be displayed.
Press VIEW while receiving FM in the radio mode to
select the Radio Text display.
The display will change every time the button is pressed.
If there is PS (Programme Service Name)
* Press and hold VIEW for at least 2 seconds if PS is displayed in the
radio mode, frequency will be displayed for 5 seconds.
If there is no PS (Programme Service Name)
•If there is no receivable text information or the unit cannot receive
text information properly, nothing will be displayed.
PS (Programme Service Name) *
(Blank)
(Blank)
(Blank)
Calendar
Clock
PS (Programme Service Name) *
PTY (Programme Type)
Radio Text
Radio Text PS (Programme Service Name)
*
(Blank)
FREQUENCY
(Blank)
(Blank)
(Blank)
Calendar
Clock
FREQUENCY
PTY (Programme Type)
Radio Text
Radio Text FREQUENCY
(Blank)

12-EN
Playback
1 Press (OPEN).
The front panel will open.
2 Insert a disc with the label side facing up.
The disc will be pulled into the unit automatically.
Close the front panel manually.
When a disc is already inserted, press SOURCE/ to
switch to the DISC mode.
TUNER DISC USB iPod*1/AUX+*2
Bluetooth Audio*3CHANGER*4TUNER
*1Displayed only when the iPod is connected and AUX+Setup is set to
OFF, refer to “Setting the AUX+Setup Mode” (page 21).
*2Displayed only when the AUX+Setup is set to ON, refer to “Setting
the AUX+Setup Mode” (page 21).
*3Displayed only when Bluetooth IN is set to ADAPTER, refer to
“Bluetooth Setting” (page 21).
*4Only when the CD changer is connected.
3 While playing back MP3/WMA/AAC, press or to
select the desired folder.
Pressing and holding or will change folders
continuously.
4 Press or to select the desired track (file).
Returning to the beginning of the current track (file):
Press .
Fast backward:
Press and hold .
Advancing to the beginning of the next track (file):
Press .
Fast forward:
Press and hold .
5 To pause playback, press / .
Pressing /again will resume playback.
6 After pressing (OPEN) to open the front panel,
press to eject the disc.
•Do not remove a CD during its eject cycle. Do not load more than
one disc at a time. A malfunction may result from doing either.
•If the CD does not eject, press and hold for at least 2 seconds.
•The CD-player can play discs containing audio data, MP3 data,
WMA data and AAC data.
•WMA format files that are protected by DRM (Digital Rights
Management), AAC format files that have been purchased from
iTunes Music Store and files that are copy-protected (copyright
protection) cannot be played back on this unit.
•The track display for MP3/WMA/AAC data playback is the file
numbers recorded on the disc.
•The playback time may not be correctly displayed when a VBR
(Variable Bit Rate) recorded file is played back.
MP3/WMA/AAC Play Display
The folder number and file number will be displayed as
described below.
•Press VIEW to switch the display. See “Displaying the Text”
(page 19) for information about display switching.
CD/MP3/WMA/AAC
4 5
(OPEN)
F/SETUP
SOURCE/
/
Rotary encoder
/ENT /ESC
VIEW
Volume level
Folder number
display
Elapsed time
File number display

13-EN
Repeat Play
Press 4 to play back repeatedly the track being played.
The track (file) will be played repeatedly.
Press 4again and select off to deactivate repeat play.
CD mode :
*1When a CD changer is connected.
•If RPT is set to ON during M.I.X. play in CD changer mode, M.I.X.
will apply to the current disc only.
MP3/WMA/AAC mode :
*2When an MP3 compatible CD changer is connected.
•If a CD changer or an MP3 compatible CD changer is connected:
After pressing F/SETUP to select the function mode (RPT/M.I.X.),
perform the operation within 5 seconds.
M.I.X. (Random Play)
Press 5in the play or pause mode.
The tracks (files) on the disc will be played back in random
sequence.
To cancel M.I.X. play, press 5again.
Internal CD mode :
CD Changer mode :
*3When a CD changer equipped with the ALL M.I.X. function is
connected.
•If M.I.X. is set to ON during RPT (REPEAT ALL) play in CD
changer mode, M.I.X. will apply to the current disc only.
MP3/WMA/AAC mode :
*4In the USB mode, all files stored in the USB memory are played back
in random sequence, and the “MIX” indicator lights up.
•When a song is played back during Random (M.I.X.) play in the USB
mode, the song can be played back again randomly even if not all
songs on the USB Memory have been played back.
•If a CD changer or an MP3 compatible CD changer is connected:
After pressing F/SETUP to select the function mode (RPT/M.I.X.),
perform the operation within 5 seconds.
<Repeat One>
<Repeat All>
: Only a track is repeatedly played back.
: A disc is repeatedly played back.
<Repeat Folder>
<Repeat One>
<Repeat All>
: Only a file is repeatedly played back.
: Only files in a folder are repeatedly
played back.
: A disc is repeatedly played back.
<M.I.X. One>
: The tracks are played back in random
sequence.
<M.I.X. One>
<M.I.X. All>
: The tracks are played back in random
sequence.
: The tracks on all the CDs in the current
magazine will be included in the random
playback sequence.
<M.I.X. Folder>
<M.I.X. Disc>
*4
: Only files in a folder are played back in
random sequence.
: Files are played back in random
sequence.
If an MP3 compatible CD changer is
connected, all files in a disc are played
back in random sequence, and
playback shifts to the next disc.

14-EN
Searching for CD Text
On discs utilizing CD Text, songs can be searched and played by using
their recorded titles. For discs without CD Text, searches are made
using the track numbers associated with each song.
1 Press /ENT during play.
This will set the search mode.
2 Turn the Rotary encoder to select the desired
track, and then press /ENT.
This will play the selected track.
•Press and hold /ESC for at least 2 seconds in the search mode to
cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.
•When CD Text Search is made during M.I.X. play, the M.I.X. play
mode will be cancelled.
File/Folder Name Search
(Concerning MP3/WMA/AAC)
Folder and file names may be searched and displayed during playback.
1 During MP3/WMA/AAC playback, press /ENT to
activate the search mode.
2 Turn the Rotary encoder to select Folder Name
Search mode or File Name Search mode, and then
press /ENT.
Folder Name Search mode
3 Turn the Rotary encoder to select the desired folder.
4 Press and hold /ENT for at least 2 seconds to
play back the first file in the selected folder.
•Press and hold /ESC for at least 2 seconds in the search mode to
cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.
•To search for files in the Folder Name Search mode, press /ENT.
Files in the folder may be searched.
•Press /ESC to exit Folder Name Search mode in step 3 in order
to select File Name Search mode.
•The root folder of disc is displayed as blank.
•When Folder Name Search is made during M.I.X. play, the M.I.X.
play mode will be cancelled.
File Name Search mode
3 Press or to select another Folder.
4 Select the desired file by turning the Rotary
encoder.
5 Press /ENT to play back the selected file.
•Press and hold /ESC for at least 2 seconds in the search mode to
cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.
•Press /ESC in the search mode to return to the previous mode.
•When File Name Search is made during M.I.X. play, the M.I.X. play
mode will be cancelled.
Quick Search
You can search for tracks (files).
1 Press and hold /ENT for at least 2 seconds in the
CD/Changer/MP3/WMA/AAC mode to activate Quick
Search mode.
2 Turn the Rotary encoder to select a desired track
(file).
The selected track is played back immediately.
•Press and hold /ESC for at least 2 seconds in the search mode to
cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.
About MP3/WMA/AAC
What is MP3?
MP3, whose official name is “MPEG-1 Audio Layer 3,” is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint activity
institution of the IEC.
MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth their
original size. This is achieved while still maintaining near CD
quality. The MP3 format realises such high compression ratios
by eliminating the sounds that are either inaudible to the human
ear or masked by other sounds.
What is AAC?
AAC is the abbreviation for “Advanced Audio Coding”, and is a
basic format of audio compression used by MPEG2 or MPEG4.
What is WMA?
WMA, or “Windows Media™ Audio,” is compressed audio data.
WMA is similar to MP3 audio data and can achieve CD quality
sound with small file sizes.
Method for creating MP3/WMA/AAC files
Audio data is compressed using software with MP3/WMA/AAC
codecs. For details on creating MP3/WMA/AAC files, refer to the
user’s manual for that software.
MP3/WMA/AAC files that are playable on this device have the
file extensions.
MP3: “mp3”
WMA: “wma” (ver. 7.1, 8 and 9 are supported)
AAC: “m4a”
There are many different versions of the AAC format. Confirm
that the software being used conforms to the acceptable
formats listed above. It’s possible that the format may be
unplayable even though the extension is valid.
Playback of AAC files encoded by iTunes is supported.
CAUTION
Except for private use, duplicating audio data (including MP3/
WMA/AAC data) or distributing, transferring, or copying it,
whether for free or for a fee, without permission of the copyright
holder is strictly prohibited by the Copyright Act and by
international treaty.

15-EN
Supported playback sampling rates and bit rates
MP3
WMA
AAC
This device may not play back correctly depending on sampling
rates.
In the USB mode, the playback time may not be correctly
displayed when a VBR (Variable Bit Rate) recorded file is played
back.
ID3 tags/WMA tags
This device supports ID3 tag v1 and v2, and WMA tag.
If tag data is in an MP3/WMA/AAC file, this device can display
the title (track title), artist name, and album name ID3 tag/WMA
tag data.
This device can only display single-byte alphanumeric
characters (up to 30 for ID3 tags and up to 15 for WMA tags)
and the underscore. For non-supported characters, the display
is blank.
The tag information may not be correctly displayed, depending
on the contents.
Do not make a file’s playback time more than 1 hour.
Playing back MP3/WMA/AAC
MP3/WMA/AAC files are prepared, then written to a CD-R,
CD-RW using CD-R writing software or stored to a USB memory.
A disc can hold up to 510 files/folders (including Root Folders),
and the maximum number of folders is 255. This unit can
recognise at least 100 folders (including root folder) and
100 files per folder stored in USB memory.
Playback may not be performed if a disc or USB memory
exceeds the limitations described above.
Media supported
The media that this device can play back are CD-ROMs, CD-Rs,
and CD-RWs.
This device also can play back USB memory media.
Corresponding File Systems
This device supports discs formatted with ISO9660 Level 1 or
Level 2.
This device can play back discs in Joliet, Romeo, etc., and other
standards that conform to ISO9660. However, sometimes the file
names, folder names, etc., are not displayed correctly.
This device also supports FAT 12/16/32 for USB memory device.
Formats supported
This device supports CD-ROM XA, Mixed Mode CD, Enhanced
CD (CD-Extra) and Multi-Session.
This device cannot correctly play back discs recorded with
Track At Once or packet writing.
Order of files
Files are played back in the order that the writing software writes
them to the disc. Therefore, the playback order may not be what
is expected. Verify the writing order in the software’s
documentation. The playback order of the folders and files is as
follows.
* The folder No./ folder Name will not be displayed if no file is
contained in the folder.
Bit rate
This is the “sound” compression rate specified for encoding. The
higher the bit rate, the higher the sound quality, but also the larger
the files.
Sampling rate
This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1 kHz,
so the sound is sampled (recorded) 44,100 times per second. The
higher the sampling rate, the higher the sound quality, but also the
larger the volume of data.
Encoding
Converting music CDs, WAVE (AIFF) files, and other sound files into
the specified audio compression format.
Tag
Song information such as track titles, artist names, album names,
etc., written into MP3/WMA/AAC files.
Root folder
The root folder (or root directory) is found at the top of the file
system. The root folder contains all folders and files. It is created
automatically for all burned discs.
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,
16 kHz, 12 kHz, 11.025 kHz, 8 kHz
Bit rates: 32 - 320 kbps
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz
Bit rates: 48 - 192 kbps
Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,
16 kHz, 12 kHz, 11.025 kHz, 8 kHz
Bit rates: 16 - 320 kbps
Under the ISO9660 standard, there are some restrictions to
remember.
The maximum nested folder depth is 8 (including the root
directory). The number of characters for a folder/file name is
limited.
Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and ‘_’ (underscore).
Terminology
Root folder
Folder MP3/WMA/AAC File

16-EN
Adjusting Subwoofer Level/Bass Level/
Treble Level/Balance (Between Left and
Right)/Fader (Between Front and Rear)/
Auto Volume/Defeat
1 Press Rotary encoder (AUDIO) repeatedly to
choose the desired mode.
Each press changes the mode as follows:
SUBWOOFER*1BASS TREBLE BALANCE
FADER AUTO VOLUME*2DEFEAT VOLUME
SUBWOOFER
Subwoofer level: 0 ~ +15
Bass level: –7 ~ +7
Treble level: –7 ~ +7
Balance: L15 ~ R15
Fader: R15 ~ F15
Auto Volume: OFF/LOW/MIDDLE/HIGH
Defeat: ON/OFF
Volume: 0 ~ 35
•If no operation is performed for 5 seconds after selecting the
SUBWOOFER, BASS, TREBLE, BALANCE, FADER, AUTO
VOLUME or DEFEAT mode, the unit automatically returns to
normal mode.
*1When the subwoofer mode is set to OFF, its level cannot be adjusted,
refer to “Turning Subwoofer ON/OFF” (page 18).
*2By setting AUTO VOLUME, the unit can automatically adjust
volume to a proper level according to engine/road noise, etc. There
are three volume correction degrees: LOW, MIDDLE and HIGH.
2 Turn the Rotary encoder until the desired sound is
obtained in each mode.
By setting Defeat ON, previously adjusted settings of BASS
and TREBLE will return to the factory defaults.
•Depending on the connected devices, some functions and display
indications do not work.
Setting the Subwoofer Level
You can change the Subwoofer Level to create your own tonal
preference.
1 Press SOUND SETUP to activate the Sound Setting
mode.
2 Turn the Rotary encoder to select the SUBW. Level
Adjustment mode, and then press
/ENT.
SUBW. Level*3Bass*4Treble *4HPF*4
Black Out SUBW. Level
3 Turn the Rotary encoder to select the desired
subwoofer level (0~+15).
•If no operation is performed for 15 seconds, the unit will return to
normal mode automatically.
*3When the subwoofer mode is set to OFF, its level cannot be adjusted,
refer to “Turning Subwoofer ON/OFF” (page 18).
The adjustment can also be made by pressing Rotary encoder
(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble
Level/Balance (Between Left and Right)/Fader (Between Front and
Rear)/Auto Volume/Defeat” (page 16).
*4The function is inoperable when DEFEAT is set to ON.
Setting the Bass Control
You can change the Bass Frequency emphasis to create your own tonal
preference.
1 Press SOUND SETUP to activate the Sound Setting
mode.
2 Turn the Rotary encoder to select the Bass
Adjustment mode, and then press /ENT.
SUBW. Level*5Bass*6Treble *6HPF*6
Black Out SUBW. Level
3 -1 Press BAND/TA to select the desired bass centre
frequency.
80 Hz 100 Hz 200 Hz 60 Hz 80 Hz
Emphasises the displayed bass frequency ranges.
3 -2 Press SOURCE/ to select the desired bass
bandwidth.
Changes the boosted bass bandwidth to wide or narrow. A
wider setting will boost a wide range of frequencies above
and below the centre frequency. A narrower setting will
boost only frequencies near the centre frequency.
Sound Setting
/ENT
BAND/TA
Rotary encoder (AUDIO·LOUD)
SOURCE/
SOUND SETUP
/ESC
Setting the Bass Centre Frequency
Setting the Bass Bandwidth
Q1 Q2 Q3 Q4

17-EN
3 -3*7Turn th e Rotary encoder to select the desired
bass level (–7~+7).
You can emphasise or weaken the bass level.
4 Press and hold /ESC for at least 2 seconds to
return to normal mode.
•If no operation is performed for 15 seconds, the unit will return to
normal mode automatically.
•The bass level settings will be individually memorized for each
source (FM, MW (LW), CD, etc.) until the setting is changed. The
bass frequency and bass bandwidth settings adjusted for one source
are effective for all other sources (FM, MW (LW), CD, etc.).
•Depending on the connected devices, some functions and display
indications do not work. However, Bass Level is still adjustable if an
audio processor with the Bass function is connected.
*5When the subwoofer mode is set to OFF, its level cannot be adjusted,
refer to “Turning Subwoofer ON/OFF” (page 18).
*6The function is inoperable when DEFEAT is set to ON.
*7The adjustment can also be made by pressing Rotary encoder
(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble
Level/Balance (Between Left and Right)/Fader (Between Front and
Rear)/Auto Volume/Defeat” (page 16).
Setting the Treble Control
You can change the Treble Frequency emphasis to create your own tonal
preference.
1 Press SOUND SETUP to activate the Sound Setting
mode.
2 Turn the Rotary encoder to select the Treble
Adjustment mode, and then press /ENT.
SUBW. Level*8Bass*9Treble*9HPF*9
Black Out SUBW. Level
3 -1 Press BAND/TA to select the desired treble centre
frequency.
10 kHz 12.5 kHz 15 kHz 17.5 kHz 10 kHz
Emphasises the displayed treble frequency ranges.
3 -2*10Turn the Rotary encoder to select the desired
treble level (–7~+7).
You can emphasise or weaken the treble level.
4 Press and hold /ESC for at least 2 seconds to
return to normal mode.
•If no operation is performed for 15 seconds, the unit will return to
normal mode automatically.
•The treble level settings will be individually memorized for each
source (FM, MW (LW), CD, etc.) until the setting is changed. The
Treble frequency settings adjusted for one source are effective for all
other sources (FM, MW (LW), CD, etc.).
•Depending on the connected devices, some functions and display
indications do not work. However, Treble Level is still adjustable if
an audio processor with the Treble function is connected.
*8When the subwoofer mode is set to OFF, its level cannot be adjusted,
refer to “Turning Subwoofer ON/OFF” (page 18).
*9The function is inoperable when DEFEAT is set to ON.
*10The adjustment can also be made by pressing Rotary encoder
(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble
Level/Balance (Between Left and Right)/Fader (Between Front and
Rear)/Auto Volume/Defeat” (page 16).
Adjusting the High Pass Filter
The High Pass Filter on this unit can be adjusted to suit your personal
taste.
1 Press SOUND SETUP to activate the Sound Setting
mode.
2 Turn the Rotary encoder to select the High Pass
Filter (HPF) Adjustment mode, and then press
/ENT.
SUBW. Level*11 Bass*12 Treble*12 HPF*12
Black Out SUBW. Level
3 Turn the Rotary encoder to select the High Pass
Filter frequency.
OFF 80 Hz 120 Hz 160 Hz
4 Press and hold /ESC for at least 2 seconds to
return to normal mode.
•If no operation is performed for 15 seconds, the unit will return to
normal mode automatically.
•When an external audio processor is connected, this setting cannot
be made.
*11 When the subwoofer mode is set to OFF, its level cannot be
adjusted, refer to “Turning Subwoofer ON/OFF” (page 18).
*12 The function is inoperable when DEFEAT is set to ON.
Setting the Bass Level
Setting the Treble Centre Frequency
Setting the Treble Level

18-EN
Blackout Mode On and Off
When Blackout mode is turned on, all display indications on this unit
will turn off to reduce power consumption. This additional power
enhances the sound quality.
1 Press SOUND SETUP to activate the Sound Setting
mode.
2 Turn the Rotary encoder to select the Black Out
Adjustment mode, and then press /ENT.
SUBW. Level*13 Bass*14 Treble*14 HPF*14
Black Out SUBW. Level
3 Turn the Rotary encoder to select the Black Out
ON.
OFF (Initial setting) ON
4 Press and hold /ESC for at least 2 seconds to
cancel the Sound Setting mode, then after 5 seconds
the Blackout Mode is actived.
•When Black Out is set to ON, after 5 seconds all display on the unit
will turn off.
•If any button on the unit is pressed during the blackout mode, the
function will be displayed for 5 seconds to show the operation before
returning to Blackout mode.
To cancel Blackout mode, select OFF in step 3.
*13 When the subwoofer mode is set to OFF, its level cannot be
adjusted, refer to “Turning Subwoofer ON/OFF” (page 18).
*14 The function is inoperable when DEFEAT is set to ON.
Turning Loudness On/Off
Loudness introduces a special low-and high-frequency emphasis at low
listening levels. This compensates for the ear’s decreased sensitivity to
bass and treble sound.
Press and hold Rotary encoder ( LOUD ) for at least 2
seconds to activate or deactivate the loudness mode.
“LOUD” indicator lights.
•When an external audio processor is connected, this setting cannot
be made.
•The function is inoperable when DEFEAT is set to ON.
Turning Subwoofer ON/OFF
When the subwoofer is on, you can adjust the subwoofer output level
(refer to page 16).
1 Press and hold SOUND SETUP for at least 2
seconds to activate the Subwoofer selection mode.
2 Turn the Rotary encoder to select the Subwoofer
mode, and then press /ENT.
Subwoofer SUBW. System
3 Turn the Rotary encoder to select Subwoofer ON/
OFF, and then press /ENT.
OFF ON (Initial setting)
4 Press and hold /ESC for at least 2 seconds to
return to normal mode.
•If no operation is performed for 15 seconds, the unit will return to
normal mode automatically.
Setting the Subwoofer System
When the subwoofer is on, you can select either System1 or System2
for the desired subwoofer effect.
1 Press and hold SOUND SETUP for at least 2
seconds to activate the Subwoofer selection mode.
2 Turn the Rotary encoder to select the SUBW.
System mode, and then press /ENT.
Subwoofer SUBW. System
3 Turn the Rotary encoder to select Subwoofer
System, and then press /ENT.
Select either System1 or System2 for the desired subwoofer
effect.
1 (Initial setting) 2
4 Press and hold /ESC for at least 2 seconds to
return to normal mode.
•If no operation is performed for 15 seconds, the unit will return to
normal mode automatically.
•This function is inoperable when Subwoofer is set to OFF.
System1: Subwoofer level changes according the main
volume setting.
System2: Subwoofer level change is different from the main
volume setting. For example, even at low volume
settings, the subwoofer is still audible.
