Alpine iLX-W670 User manual

EN
FR
ES
7-INCH AUDIO/VIDEO RECEIVER
iLX-W670
QUICK REFERENCE GUIDE
GUIDE DE RÉFÉRENCE RAPIDE
GUÍA DE REFERENCIA RÁPIDA
Please register your product at www.alpine-usa.com/registration to protect your purchase.
Enregistrez-vous sur www.alpine-usa.com/registration pour protéger votre achat.
Registre su producto en la dirección www.alpine-usa.com/registration para proteger su
compra.

About the Rules of Bluetooth Electromagnetic Radiation Regulation
USA/Canada
FCC/IC CAUTION
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment complies with FCC/IC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment
has very low levels of RF energy that it deemed to comply without maximum
permissive exposure evaluation (MPE). But it is desirable that it should be installed
and operated keeping the radiator at least 20 cm or more away from person’s body.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées
pour un environnement non contrôlé et respecte les règles les radioélectriques (RF)
de la FCC lignes directrices d’exposition et d’exposition aux fréquences
radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible
qui est considérée conforme sans évaluation de l’exposition maximale autorisée
(MPE). Cependant, il est souhaitable qu’il devrait être installé et utilisé en gardant une
distance de 20 cm ou plus entre le radiateur et le corps humain.

1-EN
IMPORTANT
Please record the serial number of your unit in the space provided below and keep it as a permanent
record.
SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:
For details on all functions, refer to the Owner’s Manual published on our website at
http:// www.alpine-usa.com. If required, an ALPINE dealer will readily provide you with a print out
of the Owner’s Manual published on the website.
Contents
WARNING ................................................................................................................................................................2
CAUTION .................................................................................................................................................................3
Getting Started .....................................................................................................................................................4
Apple CarPlay Operation (Optional)..............................................................................................................6
Android Auto™ (Optional).................................................................................................................................6
Radio Operation ...................................................................................................................................................7
USB Flash drive Operation (Optional)...........................................................................................................7
SiriusXM® Satellite Radio Operation (Optional) ........................................................................................8
iPod mode on iPhone (Optional)....................................................................................................................9
Hands-Free Phone Control .............................................................................................................................10
Camera Operation (Optional)........................................................................................................................11
Installation............................................................................................................................................................12
Connections.........................................................................................................................................................14
Specifications ......................................................................................................................................................16

2-EN
WARNING
WARNING
This symbol means important instructions. Failure
to heed them can result in serious injury or death.
INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER
CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED
AND THE EMERGENCY BRAKE IS APPLIED.
It is dangerous for the driver to watch TV/Video while driving a vehicle.
Installing this product incorrectly enables the driver to watch TV/Video
while driving. This may cause a distraction, preventing the driver from
looking ahead, thus causing an accident. The driver or other people
could be severely injured.
DO NOT WATCH VIDEO WHILE DRIVING.
Watching the video may distract the driver from looking ahead of the
vehicle and cause an accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should only be
performed after coming to a complete stop. Always stop the vehicle in a
safe location before performing these functions. Failure to do so may
result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR
OUTSIDE NOISES WHILE DRIVING.
Excessive volume levels that obscure sounds such as emergency vehicle
sirens or road warning signals (train crossings, etc.) can be dangerous
and may result in an accident. LISTENING AT LOUD VOLUME
LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of the
vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may result
in fire, etc.
KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE REACH
OF CHILDREN.
Swallowing them may result in serious injury. If swallowed, consult a
physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire, electric
shock or other injury.
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire or product
damage.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to electrical
shorts.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual to prevent
obstructions when driving. Cables or wiring that obstruct or hang up on
places such as the steering wheel, gear lever, brake pedals, etc. can be
extremely hazardous.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other equipment.
Doing so will exceed the current carrying capacity of the wire and result
in fire or electric shock.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.
When drilling holes in the chassis for installation, take precautions so as
not to contact, damage or obstruct pipes, fuel lines, tanks or electrical
wiring. Failure to take such precautions may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING
SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for installations
or ground connections. Using such parts could disable control of the
vehicle and cause fire etc.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR
GEARSHIFT.
Doing so may obstruct forward vision or hamper movement etc. and
results in serious accident.

3-EN
CAUTION
This symbol means important instructions. Failure
to heed them can result in injury or material
property damage.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the product.
Return it to your authorized Alpine dealer or the nearest Alpine Service
Center for repairing.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.
The wiring and installation of this unit requires special technical skill
and experience. To ensure safety, always contact the dealer where you
purchased this product to have the work done.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of other than
designated parts may damage this unit internally or may not securely
install the unit in place. This may cause parts to become loose resulting
in hazards or product failure.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED
BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like the seat rails)
or sharp or pointed edges. This will prevent crimping and damage to the
wiring. If wiring passes through a hole in metal, use a rubber grommet
to prevent the wire’s insulation from being cut by the metal edge of the
hole.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR
DUST.
Avoid installing the unit in locations with high incidence of moisture or
dust. Moisture or dust that penetrates into this unit may result in
product failure.

4-EN
Owner’s manual Location of Controls, Turning Power On or Off
Getting Started
Controls Position
The screen design used in the Quick Reference Guide may differ from the actual screen.
/ (DOWN/UP) button
Touch to adjust the volume.
Touch and hold this button for at least 1.7 second to
adjust the volume to maximum or minimum.
(MUTE) button
Touch to activate/deactivate the mute mode.
Touch and hold this button for at least 1.7 second to
display on/off.
(HOME)/(Power Off) button
Activates the HOME screen.
Touch and hold this button for at least 1.7 second to
turn the power off.
(Phone) button
Activates the Phone screen.
button
When phone is connected to CarPlay, touch this button
to activate Siri.
When phone is connected to Android Auto, touch this
button to activate VR.
When Siri is activated, the function of Siri is available
When VR is activated, the VR setting is ON and the
function of VR is available.
When the CarPlay/Android Audio is disconnected, the
operation in this button is invalidate.
When CarPlay/Android Audio is disconnected, touch
and long hold to enter into the Device Searching List
to activate the new device searching.
(Reset) button
Reset & Restart.

5-EN
Turning Power On or Off
1Turn the ignition key to the ACC or ON position.
The system is turned on.
2Touch and hold the (HOME) button for at least 1.7 seconds to turn the power off.
•When the system is used for the first time, the language selection menu is displayed. Select the desired language, and then
touch [OK].
About the HOME Screen
Select a widget on the HOME screen to perform various settings and operations of the function.
1Touch the (HOME) button.
The HOME screen is displayed.
HOME screen example
Radio Displays the Radio main screen.
Apple CarPlay You can use Apple CarPlay.
•If compatible iPhone is not connected to usb, this widget is not available.
Android Auto You can use Android Auto.
•If compatible Android phone is not connected to usb, this widget is not available.
USB You can play back music files, video files and photo files stored in a USB flash drive.
•If a USB flash drive is not connected, this widget is not available.
iPod Displays the iPod main screen.
•If an iPhone is not connected, this widget is not available.
SiriusXM Displays the SiriusXM main screen.
•If a SiriusXM Tuner (Optional) is not connected, this widget is not available.
Bluetooth Audio Displays the Bluetooth audio main screen.
Phone Displays the Phone main screen.
AUX Displays the AUX main screen.
•If there is no input signal on AUX, it will be a black screen.
Camera Displays the Camera main screen.
•If there is no input signal on Camera, it will be a black screen.

6-EN
Owner’s manual Apple CarPlay (Optional)
Apple CarPlay Operation (Optional)
Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do
with your iPhone while driving and puts them right on this unit. You can get directions, make calls, send and
receive messages, and listen to music, all in a way that allows you to stay focused on the road. Just plug in your
iPhone to this unit and go.
1Touch the (HOME) button.
The HOME screen is displayed.
2Touch [Apple CarPlay].
The Apple CarPlay screen is displayed.
•Refer to “Apple CarPlay” in the Owner’s Manual for information on how to operate Apple CarPlay.
Owner’s manual Android Auto™ (Optional)
Android Auto™ (Optional)
Android Auto is designed to make it easier to use apps from your phone while you’re on the road. Navigate with
Google Maps, listen to Playlists or Podcasts from your favorite apps, send messages via voice, and more.
Download the Android Auto App from the Google Play Store before continuing.
1Touch the (HOME) button.
The HOME screen is displayed.
2Touch [Android Auto].
The Android Auto screen is displayed.
•Refer to “Android Auto” in the Owner’s Manual for information on how to operate Android Auto.

7-EN
Owner’s manual Radio
Radio Operation
Band button
Switches a band.
Preset button
Displays the preset stations with a
short touch.
Touch for at least 1.5. second to
memorise the current station as a
preset station.
Plays each preset station for
about 10 seconds
Scan and memorises active
stations automatically
Switch Local mode/Manual
mode/DX mode
Touch [ ] [ ] to select
the station seek up or seek
down respectively
Touch [ ] [ ] to change
the radio frequency up or down
respectively
· Operate in manual mode
•The patterns of some keys in the Quick Reference Guide may differ from the actual screen.
Artwork display
Owner’s manual USB Flash drive Operation (Optional)
USB Flash drive Operation (Optional)
You can play back music files (WAVE.WMA.AAC.MP3.OGG.FLAC.APE), video files (AVI, MPEG 1/2, MPEG4, WMV,
Flash, QuickTime, ASF, Matroska Video, TS Stream, 3GP) and photo files (JPG, JPEG, PNG, BMP) stored in a USB flash
drive on the internal player of this system.
USB Audio main screen example
Information display
Displays the USB List screen
Shuffle mode
[ ] repeat_off,
[ ] repeat_folder,
[ ] repeat_one,
[ ] repeat_all
Pause and Play
Finds the beginning of the
current file/Finds a previous file
within 1 second after playback
starts/Fast-reverses when
touched for at least 2 second
•The patterns of some keys in the Quick Reference Guide may differ from the actual screen.
Elapsed time/Total time for
playing
Finds the beginning of the next
file/Fast-forwards when touched
for at least 2 seconds
Band button
Switches a band.

8-EN
Owner’s manual SiriusXM Satellite Radio Operation (Optional)
SiriusXM® Satellite Radio Operation (Optional)
When an optional SiriusXM Tuner is connected to this unit, the following operations may be performed.
SiriusXM main screen example
•The patterns of some keys in the Quick Reference Guide may differ from the actual screen.
Information display
channel name, Artist Basic,
Song Basic, Cat name
Tune
Select the specified channel
manually
Preset buttons
Displays the preset channels with
a short touch.
Touch for at least 1.5 second to
memorize the current channel as
a preset channel.
Select the channel number
Displays the SiriusXM setup
screen
Displays the SiriusXM List screen
All channel:
Displays all channel
Category:
Select channel category
Tune:
Select the specified channel
manually
Changes to the next channel
Band button
Switches a band.
Changes to the previous channel

9-EN
Searching for a Music File
For example: Searching by Artist name
1Touch [ (Search)] during playback.
2Touch [Artists].
3Touch the desired artist’s name.
4Touch the desired album’s name.
5Touch the desired song’s name.
The selected song is played back.
Artwork display Information display*
*Podcasts mode.
Displays the Music Files screen
Shuffle mode
[ ] repeat_off,
[ ] repeat_one,
[ ] repeat_all
Pause and Play
Finds the beginning of the
current file/Finds a previous file
within 1 second after playback
starts/Fast-reverses when
touched for at least 2 second
Elapsed time/Total time for
playing Repeat mode
Finds the beginning of the next
file/Fast-forwards when touched
for at least 2 seconds
Owner’s manual iPod mode on iPhone (Optional)
iPod mode on iPhone (Optional)
Before using this function, plug in your iPhone using a Lightning-USB cable (supplied with iPhone) to the unit.
The following devices have been tested and shown to work with this unit. Correct function of earlier versions
cannot be guaranteed.
iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14 Plus, iPhone 14, iPhone SE (3rd generation), iPhone 13 Pro Max,
iPhone 13 Pro, iPhone 13, iPhone 13 mini, iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone SE
(2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X,
iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6
iPod main screen example

10-EN
Owner’s manual Bluetooth Setup, Bluetooth Operation
Hands-Free Phone Control
The unit can connect with up to two hands-free phones.
6The device registration is complete.
•You can register up to 5 Bluetooth compatible mobile
phones.
•The Bluetooth registration process differs depending on
the device version and SSP (Simple Secure Pairing). If a 4
or 6 character Numeric Comparison appears on this
system, enter the Numeric Comparison on the Bluetooth
device.
•If a 6 character Passkey appears on this system, make
sure the same passkey is displayed on the Bluetooth
device, and follow the screen.
Answering a Call
1An incoming call triggers the ringtone and
an incoming call display.
2Touch [ ] (Call).
The call starts.
Hanging up the Telephone
1Touch [ ] (End Call).
The call finishes.

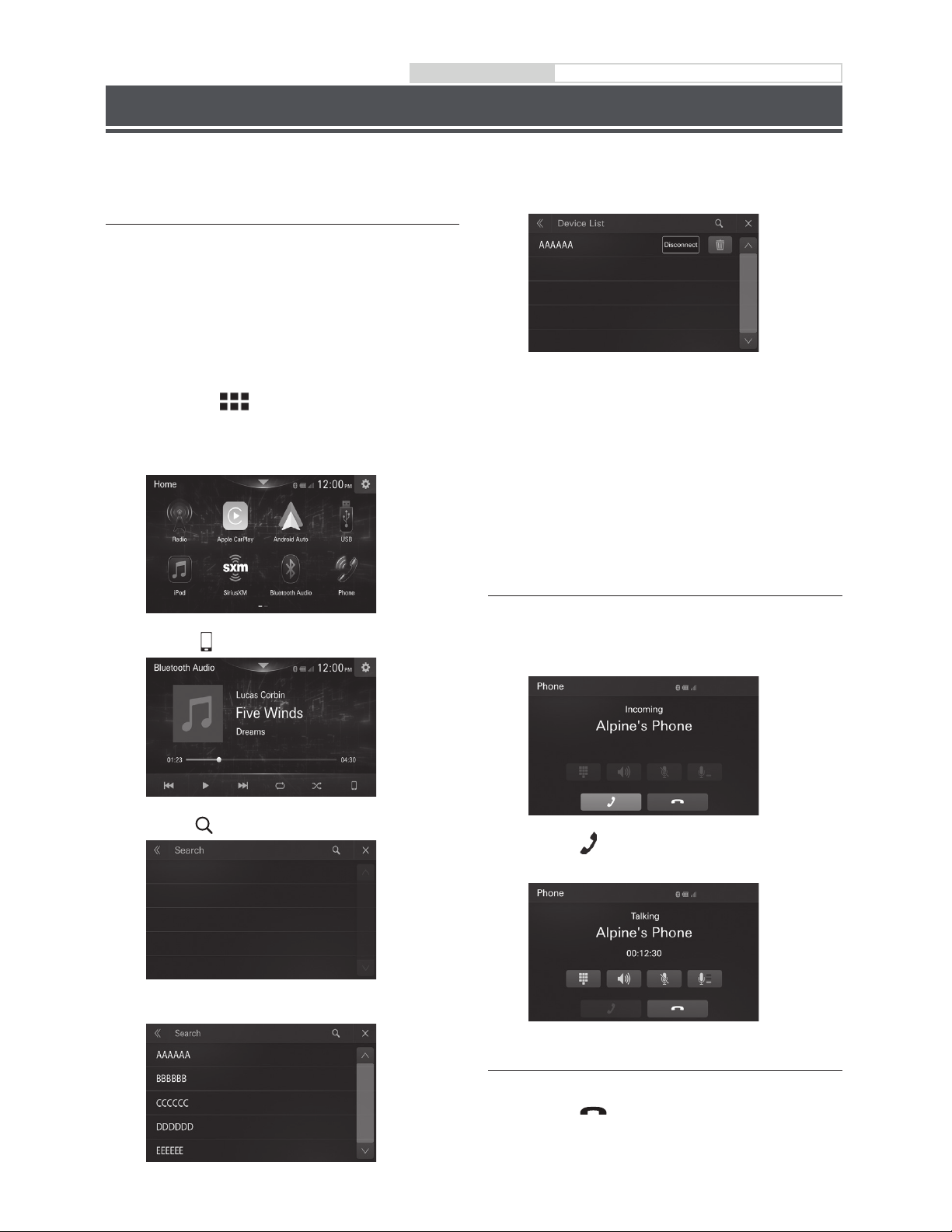

How to connect to a Bluetooth
compatible device (Pairing)
To display the Setup HOME screen:
1. Bring your vehicle to a complete stop at a safe location.
Engage the parking brake.
2. Release the parking brake. (For safety, release the
parking brake while depressing the foot brake pedal).
3. Engage the parking brake again.
•For automatic transmission vehicles, place the
transmission lever in the Park position.
1Touch the (HOME) button.
The HOME screen is displayed.
2Touch [Bluetooth Audio].
3Touch [ ].
4 Touch [ (Search)] to search for a new device.
5 Touch the device you want to connect from the list.

11-EN
Owner’s manual Camera Operation (Optional)
Camera Operation (Optional)
Calling
Entering a Phone Number to Make a Call
1Touch [Keypad].
The number input screen (Keypad) appears.
Touch [ ] to delete an entered number.
2Enter the phone number you wish to call.
•You can enter up to 20 digits.
3Touch [ ] (Call).
The phone call is started.
Making a phone call from the Recent Events list
1Touch [ ] to change to the Recent Events
list screen.
2Touch the name of the contact or number
you want to call.
The phone call is started.
Calling from the Contacts list (Phone Book)
1Touch [ ] to change to the Contacts list
screen.
2Touch the name of the contact or number
you want to call.
3Touch the phone number.
The Phone Operation screen is displayed.
4Touch the number you want to call.
The phone call is started.
Displaying the Camera Image from the
Menu screen
1Touch the (HOME) button.
The HOME screen is displayed.
2Touch [Camera].
Touch the screen while the camera image is being
displayed, and touch [ ] to return to the main
source screen or previous screen.

12-EN
Owner’s manual Installation
Installation
Note on installation
•Install at an angle between horizontal and 30°.
Note that installing at an angle outside of this
range will result in a loss of performance and
possible damage.
0 - 30°
•Do not block the unit’s heat sink, which would
prevent air circulation. If blocked, heat will
accumulate inside the unit and may cause a fire.
Heat sink
Rear of the Unit
Mounting the Microphone
For safe use, make sure of the following:
• Location is stable and firm.
• Driver’s view and operations are not obstructed.
• Microphone is located where the driver’s voice can
be easily picked up (on the sun visor, etc.).
When you speak into the microphone, you should not
have to change your driving posture. This may cause a
distraction, taking your attention away from safely
driving your vehicle. Carefully consider direction and
distance while mounting the microphone. Confirm
that the driver’s voice can be easily picked up at the
selected location.
Cable clamp
(sold separately)
Microphone
Installing the Unit
1Mount the original mounting bracket to
the unit using the supplied screws.
Chassis
Screws (M5 × 8)
(included)
Ground Lead*
Original Mounting Bracket
The original mounting
bracket is not included with
the product.
2Connect all other leads of the unit
according to details described in the
“Connections” (page14).
3Mounting the unit in a car.
To securely connect the ground lead, use an already
installed screw on a metal part of the vehicle (marked
()) or a clean, bare metal spot on the vehicle’s chassis.
•Fix the cables carefully. Do not damage them by tucking
them into movable parts, such as a seat rail, or by
locating them against sharp or pointed edges.

13-EN

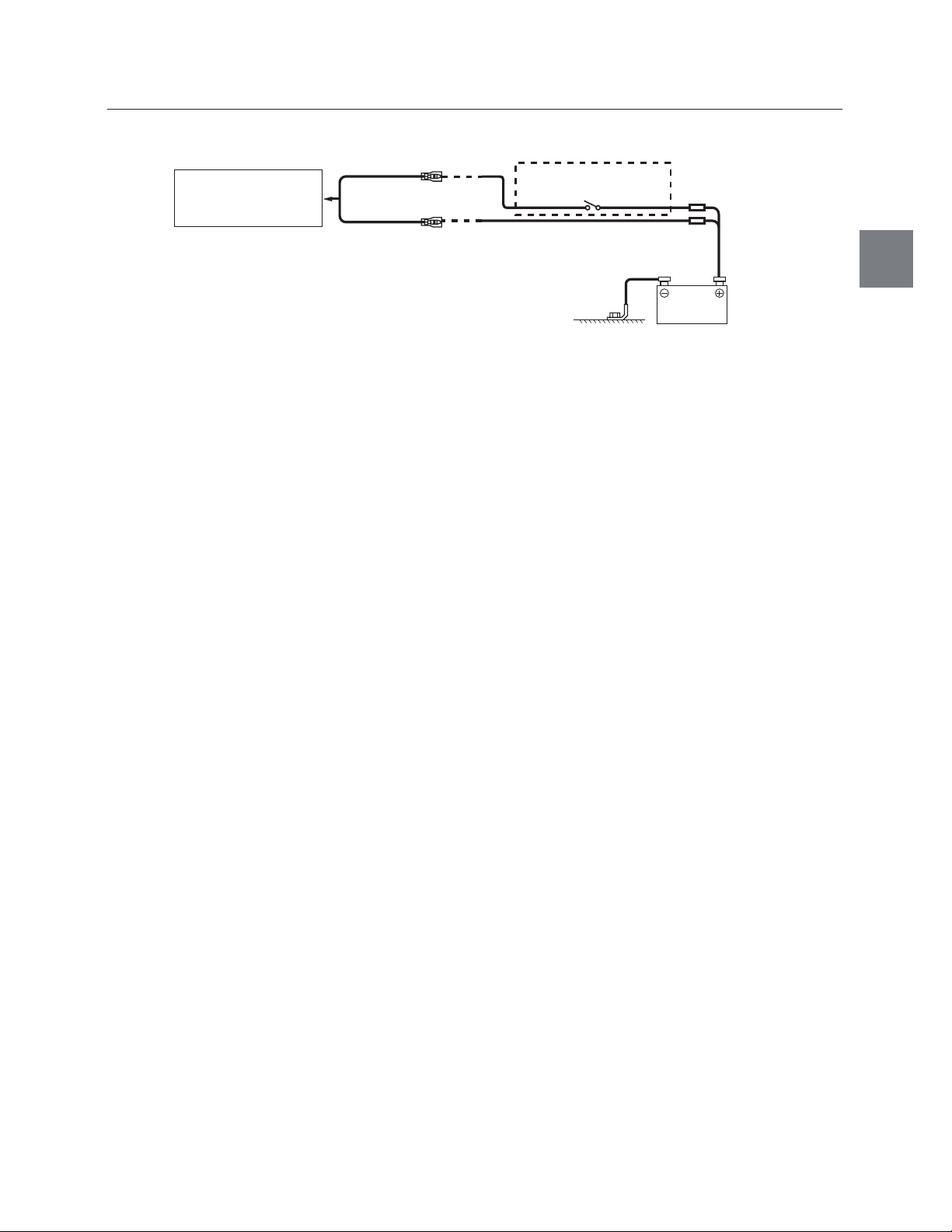

Connection Diagram of SPST Switch (sold separately)
(If the ACC power supply is not available)
Battery
FUSE (20A) (Optional)
FUSE (5A) (Optional)
SPST SW (Optional)
(Yellow)
BATTERY
(Red)
ACC
iLX-W670
• If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold
separately).
• The diagram and the fuse amperage shown above are in the case when iLX-W670 is used individually.
• If the switched power (ignition) lead of the iLX-W670 is connected directly to the positive (+) post of the vehicle’s battery,
the iLX-W670 draws some current (several hundred milliamperes) even when its switch is placed in the OFF position, and
the battery may be discharged.

14-EN
Owner’s manual Connections

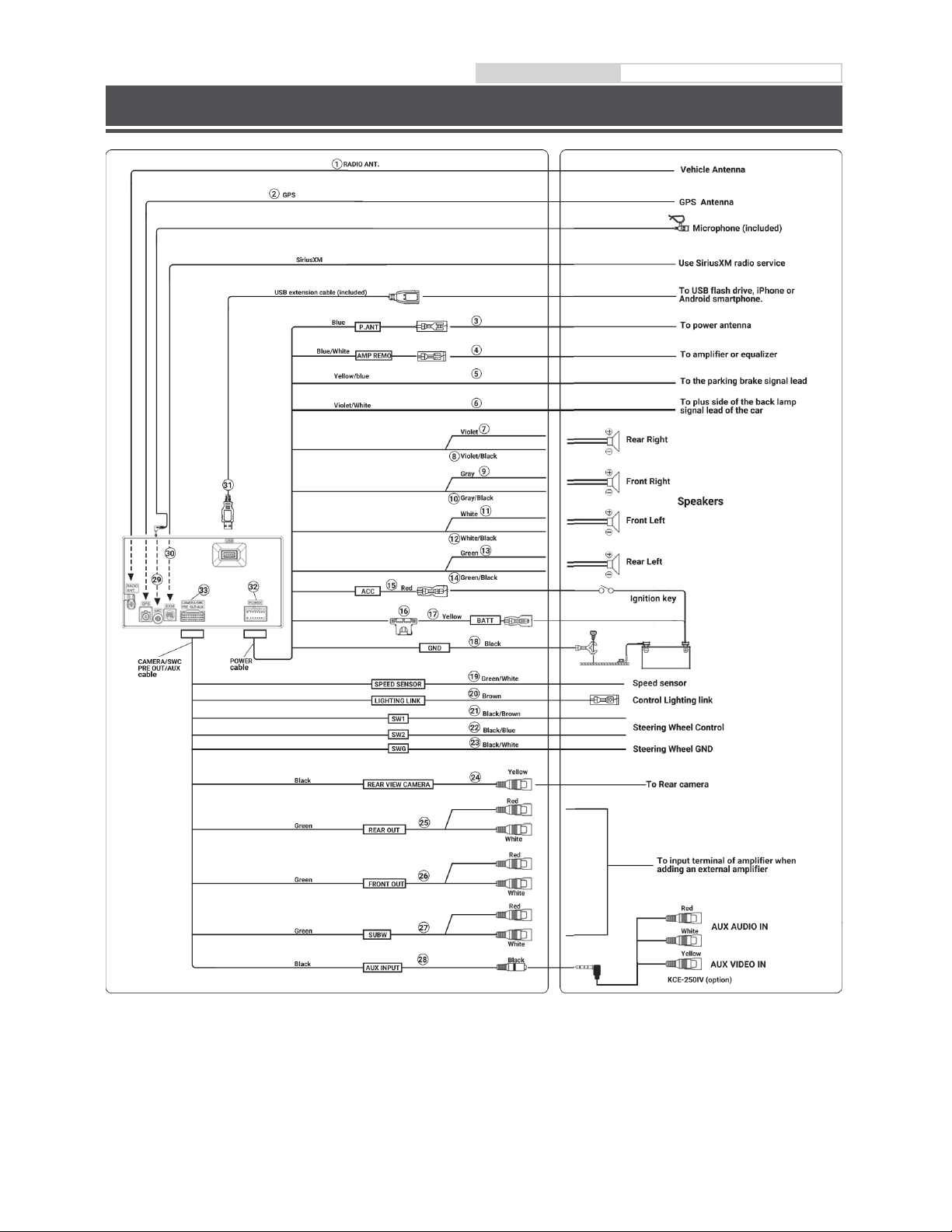

Connections

15-EN
Radio Antenna Receptacle
GPS Antenna Receptacle
Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your power
antenna, if applicable.
• This lead should be used only for controlling the
vehicle’s power antenna. Do not use this lead to turn
on an amplifier or a signal processor, etc.
Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor.
Parking Brake Lead (Yellow/Blue)
Connect this lead to the power supply side of parking
brake switch to transmit the parking brake status
signals to the unit.
Reverse Lead (Violet/White)
Right Rear (+) Speaker Output Lead (Violet)
Right Rear (–) Speaker Output Lead (Violet/Black)
Right Front (+) Speaker Output Lead (Gray)
Right Front (–) Speaker Output Lead (Gray/Black)
Left Front (+) Speaker Output Lead (White)
Left Front (–) Speaker Output Lead (White/Black)
Left Rear (+) Speaker Output Lead (Green)
Left Rear (–) Speaker Output Lead (Green/Black)
Switched Power Lead (Ignition) (Red)
Connect this lead to an open terminal on the vehicle’s
fuse box or another unused power source that
provides (+) 12V only when the ignition is turned on or
in the accessory position.
Fuse Holder (15A)
Battery Lead (Yellow)
Connect this lead to the positive (+) post of the
vehicle’s battery.
Ground Lead (Black)
Connect this lead to a good chassis ground on the
vehicle. Make sure the connection is made to bare
metal and is securely fastened using the sheet metal
screw provided.
SPEED SENSOR (Green/White)
LIGHTING LINK (Brown)
SW1 (Black/Brown)
Steering Wheel Control
SW2 (Black/Blue)
Steering Wheel Control
SWG (Black/White)
Steering Wheel GND
REAR CAMERA Input RCA Connector (Black)
Use when connecting a camera with RCA Output
Connector.
Rear Output RCA Connectors
Can be used as Rear Output RCA Connectors. RED is
right and WHITE is left.
Front Output RCA Connectors
Can be used as Front Output RCA Connectors. RED is
right and WHITE is left.
Subwoofer RCA Connectors
AUX INPUT (Black)
Audio and video input.
MIC Input Connector
To microphone (included)
SiriusXM Tuner Input Connector
To SiriusXM Tuner (sold separately).
• For more information on how to install the SiriusXM
Connect Vehicle tuner, consult the installation guide
included with the tuner.
USB Connector
To USB flash drive, iPhone or Android smartphone.
Power Supply Connector
CAMERA/SWC PRE OUT/AUX

16-EN
• Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the
United States and/or other countries.
• Apple, iPhone, iPod, and Siri are trademarks of Apple Inc.,
registered in the U.S. and other countries. Apple CarPlay is a
trademark of Apple Inc.
• Use of the Made for Apple and Works with Apple badges
means that an accessory has been designed to connect
specifically to the Apple product(s) identified in the Made
for Apple badge and to work specifically with the
technology identified in the Works with Apple badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and
regulatory standards.
• Please note that the use of this accessory with an Apple
product may affect wireless performance.
• Use of the Apple CarPlay logo means that a vehicle user
interface meets Apple performance standards. Apple is not
responsible for the operation of this vehicle or its
compliance with safety and regulatory standards. Please
note that the use of this product with iPhone may affect
wireless performance.
• SiriusXM and all related marks and logos are trademarks of
Sirius XM Radio Inc. All rights reserved.
• Google, Android, Android Auto, Google Play and other
marks are trademarks of Google LLC.
• The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any use
of such marks by Alpine Electronics, Inc. is under license.
• MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson. Supply of this product only
conveys a license for private, non-commercial use and does
not convey a license nor imply any right to use this product
in any commercial (i.e. revenue-generation) real time
broadcasting (terrestrial, satellite, cable and/or any other
media), broadcasting/streaming via internet, intranets and/
or other networks or in other electronic content
distribution systems, such as pay-audio or audio-on-
demand applications. An independent license for such use
is required. For details, please visit
http://www.mp3licensing.com
Owner’s manual Specifications
Specifications
MONITOR SECTION
Screen Size 6.75”
LCD Type Normally white, Transmissive
Operation System a-Si TFT active matrix
Number of Picture Elements 1152000 pcs.
(800 × 480 × 3(RGB))
Effective Number of Picture Elements
99% or more
Illumination System LED
FM TUNER SECTION
Tuning Range 87.7 – 107.9 MHz
Mono Usable Sensitivity <9 dBu (75 ohms)
50 dB Quieting Sensitivity <5 dBu (75 ohms)
Signal-to-Noise Ratio 65 dB
Stereo Separation 35 dB
AM TUNER SECTION
Tuning Range 530 – 1,710 kHz
Usable Sensitivity 34 dBu
USB SECTION
USB requirements USB 2.0
Max. Power Consumption 1,500 mA (CDP Support)
USB Class USB (Play From Device)/
USB (Mass Storage Class)
File System FAT16/32, NTFS
Number of Channels 2-Channels (Stereo)
Frequency Response*1 17 – 20,000 Hz (±1 dB)
Total Harmonic Distortion 0.05% (at 1 kHz)
Dynamic Range 90 dB (at 1 kHz)
Signal-to-Noise Ratio 85 dB
Channel Separation 75 dB (at 1 kHz)
1 Frequency response may differ depending on the encoder
software/bit rate.
Bluetooth SECTION
Bluetooth Specification Bluetooth V5.0
Output Power <+4dBm Ave. (Power class 2)
Profile HFP (Hands-Free Profile)
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio/Video Remote
Control Profile)
GENERAL
Power Requirement 14.4 V DC
(10.8–15.1 V allowable)
Operating temperature -4°F to +140°F
(-20°C to + 60°C)
Power Output 16 W RMS × 4*2
2 Primary amplifier ratings per CEA-2006 Standard
• Power output: measured at 4 Ohms and ≤ 1% THD+N
• S/N: 80 dBA (reference: 1 W into 4 Ohms)
Weight 0.9 kg
Audio output level
Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4V/10k ohms (max.)
CHASSIS SIZE
Width 178 mm
Height 100 mm
Depth 68mm
• Due to continuous product improvement, specifications
and design are subject to change without notice.
• The LCD panel is manufactured using an extremely high
precision manufacturing technology. Its effective pixel
ratio is over 99.99%. This means that there is a
possibility that 0.01% of the pixels could be either always
ON or OFF.

PRODUITS COUVERTS PAR LA GARANTIE
Cette garantie couvre les produits audio de voiture et les accessoires
connexes (« le produit »). Elle ne couvre les produits que dans le pays
où ils ont été achetés.
DURÉE DE LA GARANTIE
Cette garantie est en vigueur pendant un an à partir de la date du
premier achat du client.
PERSONNES PROTÉGÉES PAR LA GARANTIE
Seul l’acheteur original du produit, s’il résisde aux États-Unis, à Porto
Rico ou au Canada, peut se prévaloir de la garantie.
CE QUI EST COUVERT
Cette garantie couvre tous les défauts de matériaux et de fabrication
(pièces et main d’œuvre) du produit.
CE QUI N’EST PAS COUVERT
Cette garantie ne couvre pas ce qui suit:
Les dommages survenus durant le transport des produits
renvoyés à Alpine pour être réparés (les réclamations doivent être
adressées au transporteur);
Les dégâts provoqués par un accident ou une mauvaise
utilisation, y compris des bobines acoustiques grillées suite
à une surexcitation des enceintes (augmentation du niveau
de l’amplificateur jusqu’à atteindre un effet de distorsion
ou d’écrêtage), une défaillance mécanique des enceintes
(perforations, déchirures ou fentes), panneaux LCD fissurés ou
endommagés, disques durs endommagés ou ayant subi une
chute.
Tout dégât provoqué par négligence, usage inapproprié,
mauvaise utilisation ou par le non-respect des instructions
indiquées dans le manuel de l’utilisateur.
Les dommages dus à la force majeure, notamment aux
tremblements de terre, au feu, aux inondations, aux tempêtes ou
aux autres cataclysmes naturels;
Les frais ou les dépenses relatifs à l’enlèvement ou à la
réinstallation du produit;
Les services rendus par une personne, physique ou morale non
autorisée;
Les produits dont le numéro de série a été effacé, modifié ou
retiré;
Les produits qui ont été adaptés ou modifiés sans le
consentement d’Alpine;
Les produits qui ne sont pas distribués par Alpine aux Etats-Unis,
à Porto Rico ou au Canada;
Les produits qui n’ont pas été achetés par l’entremise d’un
concessionnaire Alpine autorisé;
COMMENT SE PRÉVALOIR DE LA GARANTIE
Il vous faut remettre le produit nécessitant des réparations à
un centre de service autorisé Alpine ou à Alpine même et en
assumer les frais de transport. Alpine a le choix entre réparer
le produit ou le remplacer par un produit neuf ou révisé, le
tout sans frais pour vous. Si les réparations sont couvertes par
la garantie et si le produit a été envoyé à un centre de service
Alpine ou à Alpine, le paiement des frais de réexpédition du
produit incombe Alpine.
GARANTIE LIMITÉE
Fidèle à son engagement de ne fournir que des produits de qualité, ALPINE ÉLECTRONIQUE DE L’AMÉRIQUE, INC. (« Alpine ») est heureuse de vous
offrir cette garantie. Nous vous suggérons de le lire attentivement et en entier. Si vous avez la moindre question, veuillez contacter l’un de nos
concessionnaires ou appeler directement Alpine aux numéros listés ci-dessous.
Vous devez donner une description détaillée des problèmes qui
sont à l’origine de votre demande de réparation.
Vous devez joindre la preuve de votre achat du produit.
Vous devez emballer soigneusement le produit pour éviter tout
dommage durant son transport. Pour éviter la perte de l’envoi, il
est conseillé de choisir un transporteur qui propose un service de
suivi des envois.
LIMITATION DES GARANTIES TACITES
LA DURÉE DE TOUTES LES GARANTIES TACITES, Y COMPRIS LA
GARANTIE D’ADAPTATION À L’UTILISATION ET LA GARANTIE DE
QUALITÉ LOYALE ET MARCHANDE, EST LIMITÉE À CELLE DE LA
GARANTIE EXPRESSE DÉTERMINÉE CI-DESSUS. PERSONNE N’EST
AUTORISÉ À ENGAGER AUTREMENT LA RESPONSABILITÉ D’ALPINE EN
VERTU DE LA VENTE D’UN PRODUIT.
EXCLUSIONS DE LA GARANTIE
ALPINE STIPULE EXPRESSÉMENT QU’ELLE N’EST PAS RESPONSABLE
DES DOMMAGES-INTÉRÊTS ET DOMMAGES INDIRECTS PROVOQUÉS
PAR LE PRODUIT. LES DOMMAGES-INTÉRÊTS SONT LES FRAIS DE
TRANSPORT DU PRODUIT VERS UN CENTRE DE SERVICE ALPINE, LA
PERTE DE TEMPS DE L’ACHETEUR ORIGINAL, LA PERTE D’UTILISATION
DU PRODUIT, LES BILLETS D’AUTOBUS, LA LOCATION DE VOITURES ET
TOUS LES AUTRES FRAIS LIÉS À LA GARDE DU PRODUIT.
LES DOMMAGES INDIRECTS SONT LES FRAIS DE RÉPARATION OU DE
REMPLACEMENT D’AUTRES BIENS ENDOMMAGÉS SUITE AU MAUVAIS
FONCTIONNEMENT DU PRODUIT.
LES RECOURS PRÉVUS PAR LES PRÉSENTES EXCLUENT ET
REMPLACENT TOUTE AUTRE FORME DE RECOURS.
LIEN ENTRE LA GARANTIE ET LA LOI
La garantie vous donne des droits spécifiques, mais vous pouvez aussi
jouir d’autres droits, qui varient d’un état ou d’une province à l’autre.
En outre, certains états et certaines provinces interdisent de limiter
la durée des garanties tacites ou d’exclure les dommages accessoires
ou indirects. Dans ce cas, les limites et les exclusions de la garantie
peuvent ne pas s’appliquer à vous.
CLAUSE APPLICABLE AU CANADA SEULEMENT
Pour que la garantie soit valable, il faut qu’un centre d’installation
autorisé ait installé le système audio pour l’auto dans votre véhicule
et qu’il ait ensuite apposé son cachet sur la garantie.
NUMÉROS D’APPEL DU SERVICE À LA CLIENTÈLE
Si vous avez besoin de nos services, veuillez appeler Alpine aux
numéros ci-dessous pour le centre de service autorisé Alpine le plus
proche.
AUDIO DE VOITURE
NAVIGATION
1-800-ALPINE-1 (1-800-257-4631)
1-888-NAV-HELP (1-888-628-4357)
Ou visitez notre site Web à l’adresse http://www.alpine-usa.com
ALPINE ÉLECTRONIQUE DE L’AMÉRIQUE, INC., 1500 Atlantic Blvd, Auburn Hills, Michigan 48326, U.S.A.
N’envoyez aucun produit à ces adresses.
Appelez notre numéro gratuit ou visitez notre site Web si vous recherchez un centre de service.

PRODUCTS COVERED:
This Warranty covers Car Audio Products and Related Accessories
(“the product”). Products purchased in the Canada are covered only
in the Canada. Products purchased in the U.S.A. are covered only in
the U.S.A.
LENGTH OF WARRANTY:
This Warranty is in effect for one year from the date of the first
consumer purchase.
WHO IS COVERED:
This Warranty only covers the original purchaser of the product, who
must reside in the United States, Puerto Rico or Canada.
WHAT IS COVERED:
This Warranty covers defects in materials or workmanship (parts and
labor) in the product.
WHAT IS NOT COVERED:
This Warranty does not cover the following:
Damage occurring during shipment of the product to Alpine for
repair (claims must be presented to the carrier).
Damage caused by accident or abuse, including burned voice
coils caused by over-driving the speaker (amplifier level is turned
up and driven into distortion or clipping). Speaker mechanical
failure (e.g. punctures, tears or rips). Cracked or damaged LCD
panels. Dropped or damaged hard drives.
Damage caused by negligence, misuse, improper operation or
failure to follow instructions contained in the Owner’s manual.
Damage caused by act of God, including without limitation,
earthquake, fire, flood, storms or other acts of nature.
Any cost or expense related to the removal or reinstallation of
the product.
Service performed by an unauthorized person, company or
association.
Any product which has the serial number defaced, altered or
removed.
Any product which has been adjusted, altered or modified
without Alpine’s consent.
Any product not distributed by Alpine within the United States,
Puerto Rico or Canada.
Any product not purchased from an Authorized Alpine Dealer.
HOW TO OBTAIN WARRANTY SERVICE:
You are responsible for delivery of the product to an Authorized
Alpine Service Center or Alpine for repair and for payment of any
initial shipping charges. Alpine will, at its option, repair or replace
the product with a new or reconditioned product without
charge. If the repairs are covered by the warranty, and if the
product was shipped to an Authorized Alpine Service Center or
Alpine, Alpine will pay the return shipping charges.
You should provide a detailed description of the problem(s) for
which service is required.
You must supply proof of your purchase of the product.
You must package the product securely to avoid damage during
shipment. To prevent lost packages it is recommended to use a
carrier that provides a tracking service.
LIMITED WARRANTY
ALPINE ELECTRONICS OF AMERICA, INC. (“Alpine”), is dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that
you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed
below.
HOW WE LIMIT IMPLIED WARRANTIES:
ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND
MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF
THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS
AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE OF THE PRODUCT.
HOW WE EXCLUDE CERTAIN DAMAGES:
ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND
CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM
“INCIDENTAL DAMAGES”REFERS TO EXPENSES OF TRANSPORTING
THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE
ORIGINAL PURCHASER’S TIME, LOSS OF THE USE OF THE PRODUCT,
BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE
AND CUSTODY OF THE PRODUCT. THE TERM “CONSEQUENTIAL
DAMAGES”REFERS TO THE COST OF REPAIRING OR REPLACING OTHER
PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT
WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY
ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.
HOW STATE/PROVINCIAL LAW RELATES TO THE
WARRANTY:
This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state and province to province.
In addition, some states/provinces do not allow limitations on how
long an implied warranty lasts, and some do not allow the exclusion
or limitation of incidental or consequential damages. Accordingly,
limitations as to these matters contained herein may not apply to you.
IN CANADA ONLY:
This Warranty is not valid unless your Alpine car audio product has
been installed in your vehicle by an Authorized Installation Center,
and this warranty stamped upon installation by the installation center.
HOW TO CONTACT CUSTOMER SERVICE:
Should the product require service, please call the following number
for your nearest Authorized Alpine Service Center.
CAR AUDIO
NAVIGATION
1-800-ALPINE-1 (1-800-257-4631)
1-888-NAV-HELP (1-888-628-4357)
Or visit our website at; http://www.alpine-usa.com
ALPINE ELECTRONICS OF AMERICA, INC., 1500 Atlantic Blvd, Auburn Hills, Michigan 48326, U.S.A.
Do not send products to this address.
Call the toll free telephone number or visit the website to locate a service center.
