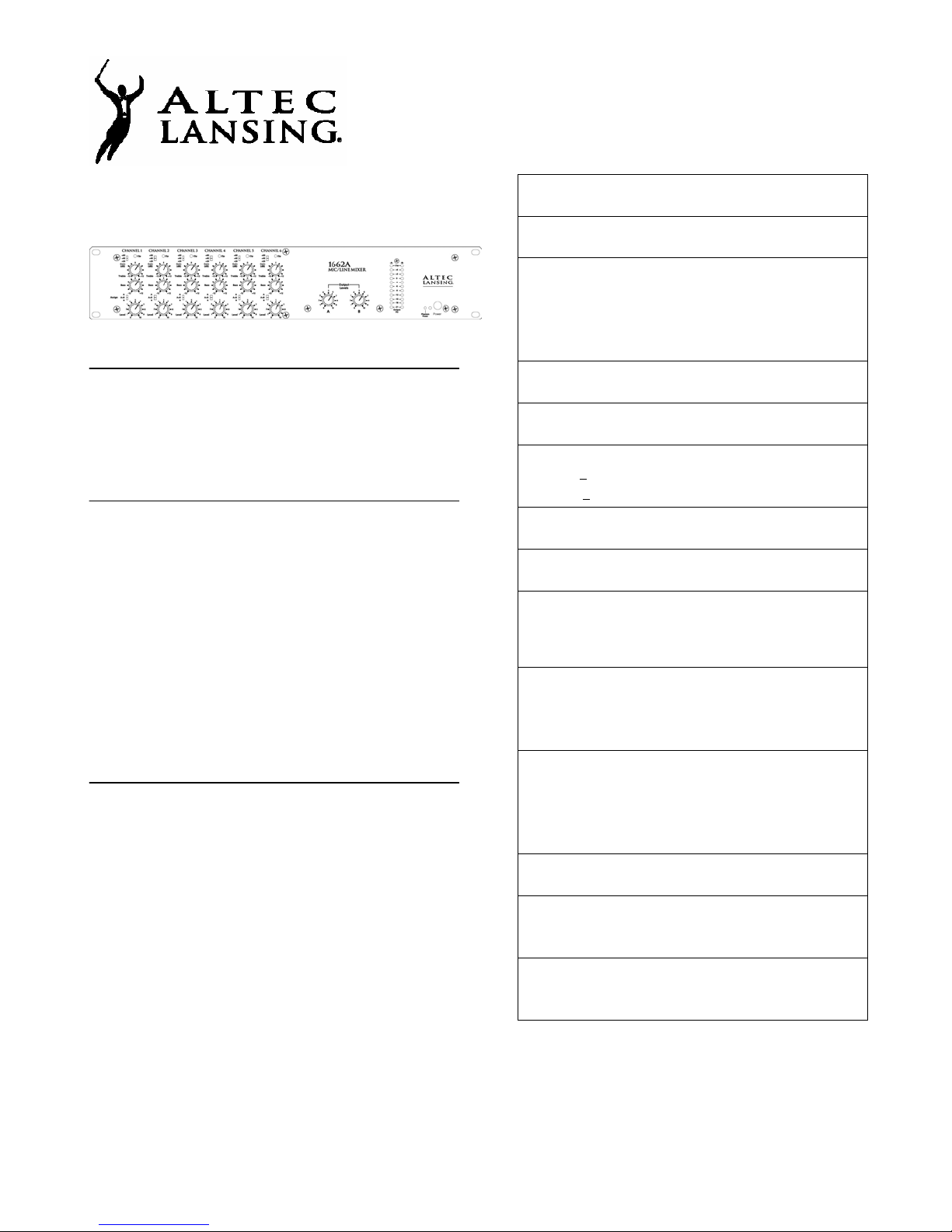

1662A
Rack Mount Mic/Line Mixer
FEATURES – THE ALTEC LANSING DIFFERENCE
•6 Mic/Line Inputs
•Stereo Summing on Inputs 5 & 6
•Studio Quality Microphone Preamps
•Bass & Treble Controls on each Input
•Dual Outputs (selectable)
•19” Rack Mount, 2RU
GENERAL PRODUCT DESCRIPTION
Altec Lansing’s 1662A mic/line mixer is a professional, studio
quality solution for your permanent install mixing needs. The
1662A features six (6) microphone or line inputs with 20dB pad,
TRS insert, and +48V phantom power. Each input channel has
up to 60dB input gain, separate bass & treble controls, an output
assign switch for sending signal to either or both outputs, and a
level control. Stereo summing inputs on channels 5 & 6 provide
a convenient way to add typical program sources from DVD, CD,
or tape. The summing inputs can be connected for stereo-to-
mono or stereo-to-stereo operation. A full 11-segment LED
array indicates levels on output A and B. Outputs are active
servo-balanced.
Mic/line inputs and main outputs use Euroblock connectors,
allowing bare wire to be easily connected to the mixer without
soldering.
APPLICATIONS
The 1662A is useful for most sound reinforcement or public
address needs. It is perfect for school gymnasiums, meeting
rooms, Houses of Worship, lecture halls, and auditoriums. The
1662A can be set up as two mixers in projects where budget is
tight. It can also be a stereo mixer for small, portable systems.
GENERAL SPECIFICATIONS
TOTAL HARMONIC DISTORTION:
<0.01% @ +4dBu . . . 20Hz – 20kHz
INTERMODULATION DISTORSION (SMPTE IM)
<0.01% @ +4dBu . . . 20Hz – 20kHz
HUM & NOISE (20Hz – 20kHz noise bandwidth)
<-127dBu equivalent input hum and noise
<-98dBu residual output noise; all level controls at min.
<-95dBu main outputs; Master / all Channel levels at min.
<-74dBu main outputs; Master / all Channel levels at nom
MAXIMUM VOLTAGE GAIN:
+84dB . . . Mic/Line Input-to-Main Output
FREQUENCY RESPONSE
+0.5/-1.0dB . . . 20Hz – 20kHz
EQUALIZATION:
Low . . . +12dB at 90Hz (shelving)
High . . . +12dB at 8kHz (shelving)
CROSSTALK:
<-70dB . . . Adjacent Inputs, 20Hz – 20kHz
VU METERS
Main Outputs . . . -21 to +6 VU (0VU = +4dBu)
PEAK INDICATORS
Peak clip indicator on each input channel and main
outputs;
Illuminates 3dB below clipping
MAXIMUM LEVELS
Input Level, +20dB gain, pad in . . . +22dBu
RCA Input Level . . . +10dBu
Output Level . . . +23dBu
PHANTOM POWER
+48VDC applied to all mic inputs, switchable on rear panel.
Maximum total current draw = 60ma
Maximum single channel current draw = 10ma
Gradual power-up and down to eliminate “pops”
DIMENSIONS
19”W x 3.5”H x 6.6”D (48.3cm x 8.9cm x 16.8cm)
WEIGHT
12lbs (5.4kg) . . . shipping weight
10lbs (4.5kg) . . . net weight
POWER REQUIREMENTS
120VAC nominal, 93 VAC min, 50 – 60 Hz, 20 watts
(240 VAC available)
* unless otherwise stated, specification conditions are:
150 ohm source, Gain switch set at “+40”, all other controls
set at nominal.

© 2003 Altec Lansing Professional y1000 W. Wilshire Blvd., Suite 362 yOklahoma City, Oklahoma 73116
Phone: [phone] yFax: 1.405.848.3217 yEmail: proin[email protected]
1662A Revision01
1 2 3 4
1662A Mixer
Gymnasium
MicMic 1/4"RCA
Custom Panel
4200A
DS912-8A
Rear Panel View
ARCHITECT’S AND ENGINEER’S SPECIFICATIONS
The unit shall be a six input mixer with two selectable outputs. Each input channel shall have a switch to select
output A, A+B or B and a level control on the front panel. Each input channel shall have bass & treble controls
located on the front panel. These controls shall consist of high and low shelving points fixed at 90Hz and 8kHz
with 12dB of boost or cut. On the back panel each input channel shall have a 20dB pad, an in/out insert point
on a ¼” TRS connector, and a Euroblock connector for balanced microphone and line inputs. +48VDC phantom
power for each input must be available (back panel switch).
Each of the two outputs shall have a level control on the front panel and a Euroblock connector on the back.
The outputs shall be active servo balanced.
The mixer unit shall be no higher than two rack spaces and must be fully covered with a five year warranty. The
dimensions shall be 19 inches (48.3cm) wide by 3.5 inches (8.9cm) high by 6.6 inches (16.8cm) deep. The
mixer shall weigh 10 pounds (4.5 kg). The mixer shall be the Altec Lansing Professional model 1662A.
As we are continually striving to improve Altec Lansing products, specifications are subject to change without notice.
VISIT WWW.ALTECPRO.COM FOR
•Specification sheets in .pdf format. Download page 1 of the specification sheet for your submittals.
•One paragraph A&E Specifications in .doc format
