1. Introduction
1.1 Introduction to CVSDIHD-6G
Thanks for purchasing this 6G SDI to HDMI converter! This converter is designed to
convert a SDI input at resolution up to 4K@30Hz 4:4:4 to a HDMI output at maximum
resolution of 4K@30Hz. It has the ability to extract the audio from the SDI signal and
output either stereo analog audio orAES/EBU digital audio, and equipped with SDI
output for connecting SDI display to view the original SDI content. It features an 8-pin
DIP switch to lock or unlock the audio control buttons on the top panel, or to select one
of the external audio options.
1.2 Features
Compatible with SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video signals.
SDI inputs and output resolution is up to 4K@30Hz 4:4:4.
HDMI output resolution is up to 4K@30Hz.
Features SDI output to be connected SDI display for mirrored output.
Supports balanced L/R analog audio or AES/EBU audio outputs.
Features an 8-pin DIP switch on side panel for buttons locking or unlocking and
audio input switching.
Supports firmware update.
1.3 Package List
1x CVSDIHD-6G 6G SDI to HDMI Converter
1xAC power adapter (12V DC, 1A)
4x Plastic feet
1x User manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

Altimium
www.altimium.com
6G SDI to HDMI Converter
2. Specification
Video Input
Input
(2) SDI
Input Connector
(2) BNC
Video Output
Output
(1) HDMI; (1) SDI
Output Connector
(1) 19-pin type-A female HDMI; (1) BNC
Video General
SDI Standard
SD-SDI (standardized in SMPTE 259M);
HD-SDI (standardized in SMPTE 292M);
3G-SDI (standardized in SMPTE 424M);
6G-SDI (standardized in SMPTE ST-2081)
SDI Input Video Resolution
Up to 4K@30Hz 4:4:4 RGB 8bit
SDI Output Video Resolution
Up to 4K@30Hz 4:4:4 RGB 8bit
HDMI Output Video Resolution
Up to 4K@30Hz 8bit
HDMI Standard
1.4
HDCP Version
2.2
Audio Output
Output (1) L-ANALOG or AES/EBU; (1) R-ANALOG;
(1) Embedded HDMI Audio
Output Connector
(2) TRS
Analog Audio Format
PCM
Digital Audio Format
AES/EBU
Embedded HDMI Audio Format
PCM
Frequency Response
20 Hz to 20 kHz, ±3dB
Control
Control Part (1) 8-pin DIP switch; (4) Black Buttons;
(1) Micro USB for Firmware Updating
General
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25~ +70℃
Relative Humility
10%-90%
Maximum Power Consumption
11 watts
Input Power
12V DC 1A
AC Adapter Input Power
100 ~ 240V AC, 50/60 Hz
Dimensions (W*H*D)
120mm x 30mm x 100mm
Net Weight
317g

Altimium
www.altimium.com
6G SDI to HDMI Converter
3. Panel Description
3.1 Front Panel

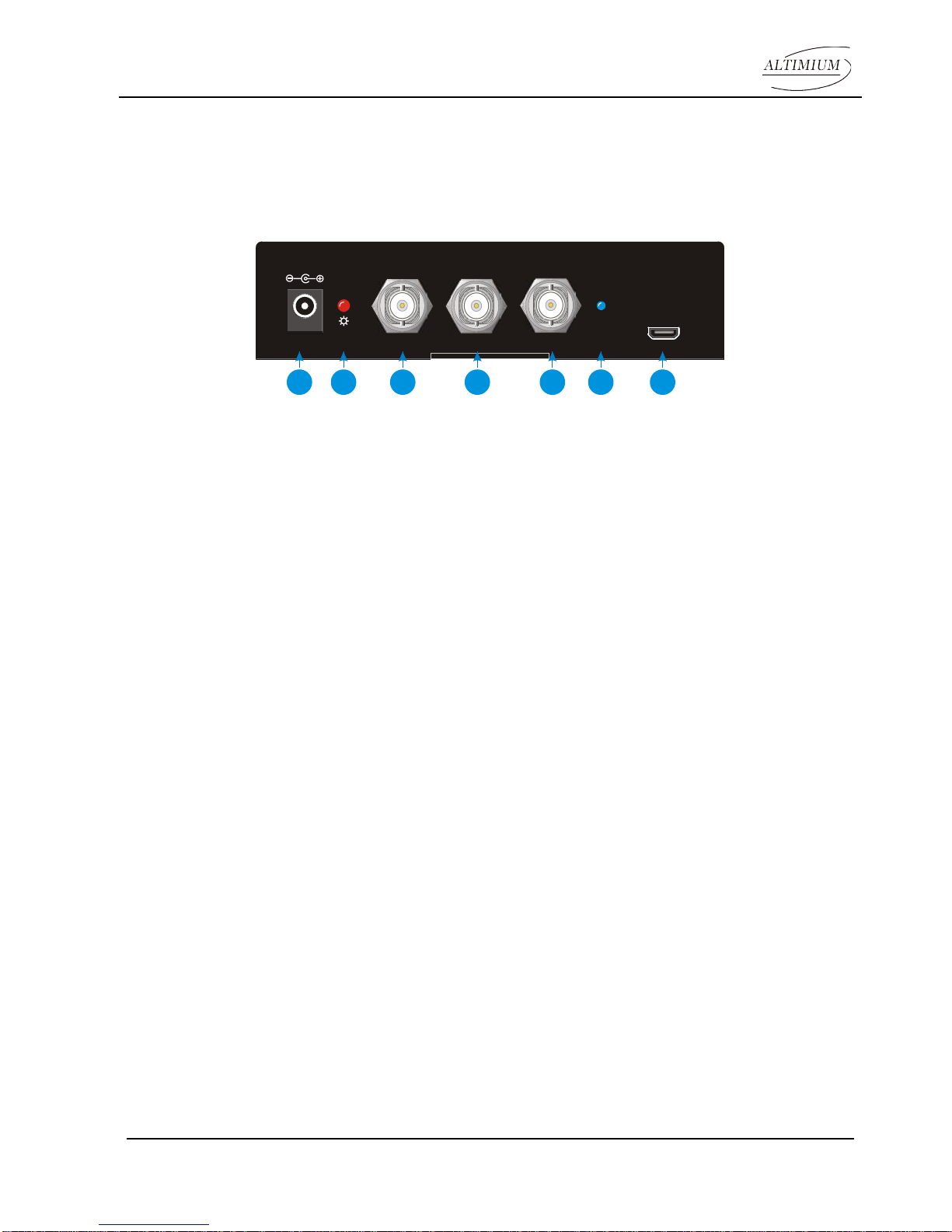

①DC 12V: DC barrel connector for AC power adapter.
②POWER LED: The LED illuminates red when power is on.
③SDI IN 1: Primary SDI input port for connecting SDI source devices.
④SDI IN 2: Redundant SDI input port is designed for alternative.
⑤SDI OUT: SDI output port for connecting SDI display.
⑥SDI SOURCE LED:
Illuminates blue when the input signal comes from SDI IN 1 port.
Blinks blue when the input signal comes from SDI IN 2 port.
⑦FW: Micro USB port for firmware update.
DC 12V SDI IN 1 SDI OUT
FW
SDI IN 2
124
357
6

Altimium
www.altimium.com
6G SDI to HDMI Converter
3.2 Rear Panel
①HDMI OUT: HDMI output port for connecting HDMI display.
②AUDIO LED: Illuminates blue when the SDI input signal with audio signal.
③L-ANALOG or AES/EBU: TRS audio socket for balanced left channel analog audio
or AES/EBU digital audio output.
④R-ANALOG: TRS audio socket for balanced right channel analog audio output.
3.3 Side Panel
①8-pin DIP switch for buttons locking or unlocking and audio input switching.
When in the lower (1) position, the switch represents “ON”, while putting the switch
in the upper (0) position represents “OFF”.
Note: The DIP switches status and its corresponding setting can find at the chapter of
5.Switches Operation.
HDMI OUT
ANALOG or
AES/EBU
L - R - ANALOG
1234
→
0
1
1

Altimium
www.altimium.com
6G SDI to HDMI Converter
3.4 Top Panel
①AUDIO: Press the button repeatedly to cycle select analog left, analog right channel,
analog stereo, or AES/EBU digital audio. These three blue LEDs has four status:
AES/EBU L R Description
ON OFF OFF AES/EBU digital audio is selected.
OFF ON OFF Left channel analog audio is selected.
OFF OFF ON Right channel analog audio is selected.
OFF ON ON Left and right channel stereo analog
audio is selected.
②VOLUME: Press the up or down direction button to increase or decrease the
selected output audio.
③MUTE: Press the button to mute or unmute all audio.
AES/EBU
L
R
AUDIO
VOLUME
MUTE
6G SDI to HDMI Converter
1
2
3

Altimium
www.altimium.com
6G SDI to HDMI Converter
4. System Connection
4.1 Usage Precaution
Verify all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.

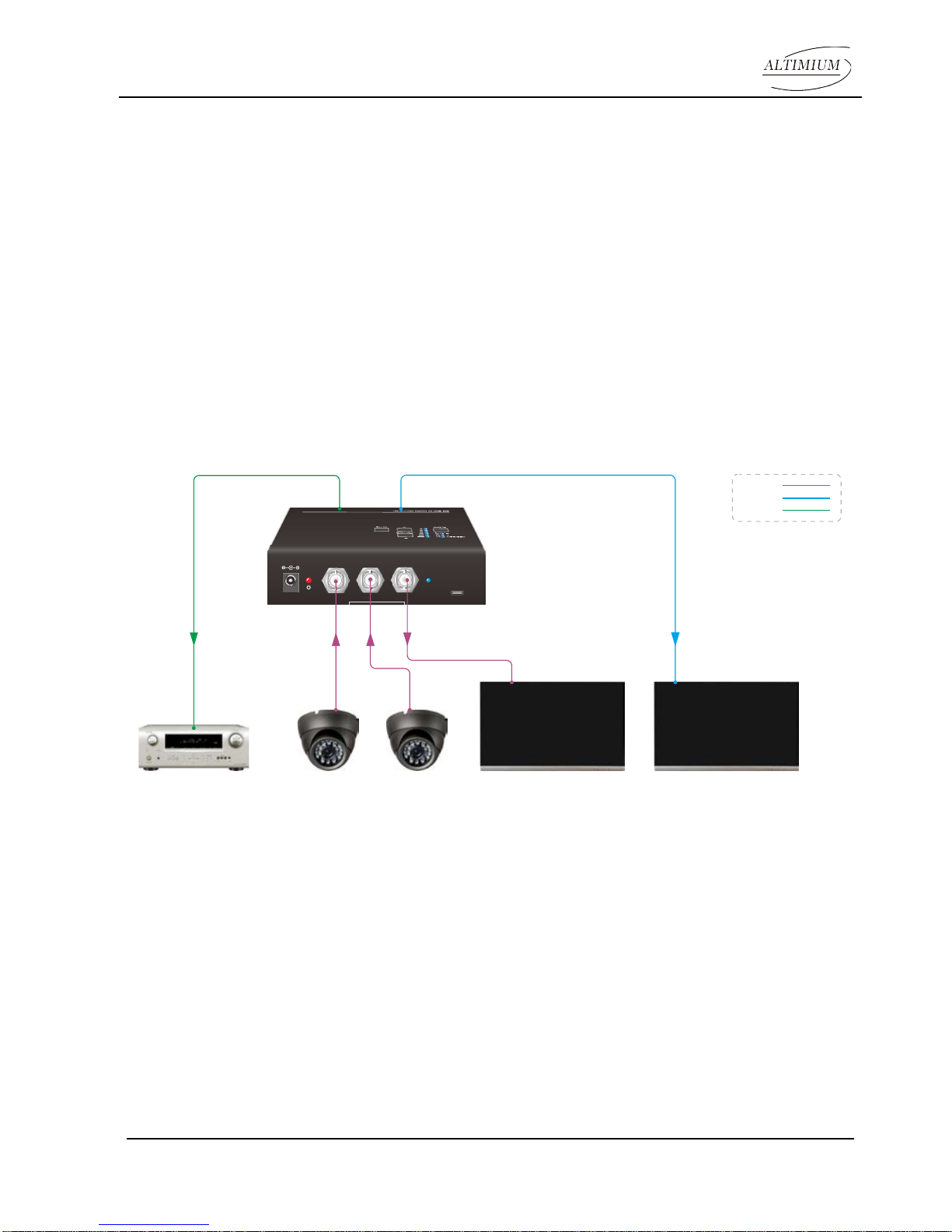

4.2 System Diagram
SDI Display
Amplifier
HDMI:
SDI:
Audio:
DC 12V
SDI IN 1 SDI OUT
FW
SDI IN 2
HDMI DisplayCamera Camera

Altimium
www.altimium.com
6G SDI to HDMI Converter
5. Switches Operation
The 8-pin DIP switch on side panel (Please refer to 3.3 Side Panel) provide the
following settings:
The DIP switches status and its corresponding settings are shown at the back of
product.
Switch 8 - ANALOG AUDIO, AES/EBU AUDIO
Put switch 8 on “OFF” to select balanced analog audio, or to “ON” for digital AES/EBU
audio input.
Switch 6 –BUTTONS LOCKING or UNLOCKING
Put switch 6 on “ON” to lock buttons on top panel, or to “OFF” for unlocking.
Switch 2, 3, 4 - SDI AUDIO DE-EMBED BIT 1, BIT 2, BIT 3
Switches 2, 3 and 4 are grouped together to provide 8 different ON/OFF combinations
which allows eight independent pair of audio channels to be de-embedded from SDI
input to HDMI, analog orAES/EBU audio output.
ON
OFF 1 2 3 4 5 67 8
AES/EBU AUDIO
ANALOG AUDIO
LOCK
UNLOCKSDI AUDIO DE-EMBED
BIT 1 BIT 2 BIT 3

Altimium
www.altimium.com
6G SDI to HDMI Converter
Setting example:
Put switches 2, 3, 4 and 8 on “OFF” position to de-embed SDI audio channels 1 and 2
and output to analog.
The switches status and its corresponding SDI audio selection are shown in the
following table:
Audio
Channels Switch 2 Switch 3 Switch 4 Switch Diagram
1 and 2 OFF OFF OFF
3 and 4 ON OFF OFF
5 and 6 OFF ON OFF
7 and 8 ON ON OFF
9 and 10 OFF OFF ON
11 and 12 ON OFF ON
13 and 14 OFF ON ON
15 and 16 ON ON ON

Altimium
www.altimium.com
6G SDI to HDMI Converter

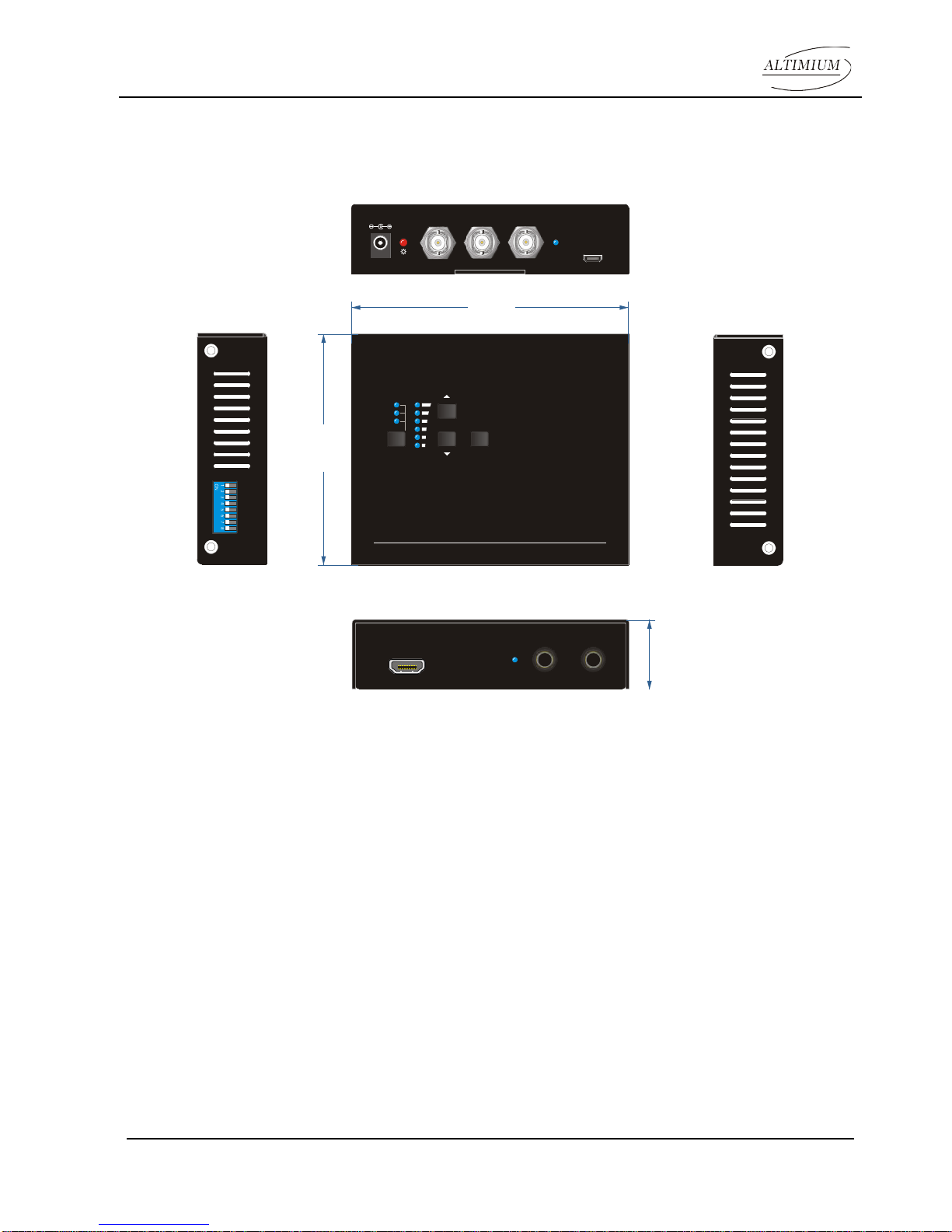

6. Panel Drawing
HDMI OUT
ANALOG or
AES/EBU
L - R - ANALOG
DC 12V
SDI IN 1 SDI OUT
FW
SDI IN 2
AES/EBU
L
R
AUDIO
VOLUME
MUTE
6G SDI to HDMI Converter
→
0 1
120 mm
100 mm
30 mm

Altimium
www.altimium.com
6G SDI to HDMI Converter
7. Troubleshooting & Maintenance
Problems Potential Causes Solutions
Output image with
snowflake.
Bad quality of the connecting
cable. Try another high-quality cable.
Fail or loose connection.
Make sure the connection is
good.
No output image
when switching.
No signal at the input / output
end.
Check with oscilloscope or
multimeter if there is any signal
at the input/ output end.
Fail or loose connection.
Make sure the connection is
good.
The product is broken.
Send it to authorized dealer for
repairing.
POWER
indicator
doesn’t work or no
respond to any
operation.
Fail connection of power
cord. Make sure the power cord connection is good.
Note: If your problem still remaining after following the above troubleshooting steps,
please contact your local dealer or distributor for further assistance.

Altimium
www.altimium.com
6G SDI to HDMI Converter
8. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed three years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusions:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty coverage
at the sole condition that the defeat has been clearly defined, and upon reception of
the documents or copy of invoice, indicating the date of purchase, the type of
product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor.

ALTIMIUM
587 Avenue Blaise Pascal
77550 MOISSY-CRAMAYEL
Tél : [phone]
Fax: [phone]
Mail: [e-mail]
Web: www.altimium.com
