Altimium SP2H2A-H2 User manual

SP2H2A-H2
HDMI 2.0 1x2 Splitter with Audio Breakout
All Rights Reserved
Version: SP2H2A-H2_2018V1.0
User Manual

Altimium
www.altimium.com
HDMI 2.0 1x2 Splitter with Audio Breakout
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
January, 2018. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Altimium
www.altimium.com
HDMI 2.0 1x2 Splitter with Audio Breakout
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI 2.0 1x2 Splitter with Audio Breakout
Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Packing List.......................................................................................................2
2. Specification ...............................................................................................................3
3. Panel Description........................................................................................................4
3.1 Front Panel........................................................................................................4
3.2 Rear Panel.........................................................................................................4
4. System Connection.....................................................................................................5
4.1 Usage Precautions............................................................................................5
4.2 System Diagram................................................................................................5
5. EDID Management.....................................................................................................6
6. Firmware Upgrade......................................................................................................7
7. Panel Drawing ............................................................................................................8
8. Troubleshooting & Maintenance .................................................................................9
9. Customer Service.....................................................................................................10

HDMI 2.0 1x2 Splitter with Audio Breakout
1
1. Product Introduction
Thanks for purchasing this one input to two output HDMI2.0 Splitter. The splitter
supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel
audio formats. In addition to passing EDID information from the display, there are
multiple built-in EDID settings to simplify the installation. The splitter can de-embed
digital stereo audio to two analog audio outputs to provide audio sources for existing
audio systems. Two-way CEC is designed to control source devices and displays by
using one of IR remotes.
Moreover, the splitter supports convenient firmware update through Micro-USB port.
The splitter also provides LEDs on the front of the product indicating the state of the
connections into and out of the unit.
1.1 Features
Splits a single HDMI input to two HDMI outputs.
Supports video resolution up to 4K@60Hz 4:4:4.
Fully compliant with the HDMI 2.0 and HDCP2.2 specifications.
18Gbps high bandwidth.
Features 3.5mm mini jack and 3-pin Euroblock/phoenix connector for audio
de-embedded.
Features smart EDID management: multiple preset and customized setting allowed.
Supports two-way CEC control.
Supports Hot-plugging.
Provides four LEDs to indicate the current operating status and to assist
troubleshooting an installation.
Micro-USB port for convenient firmware upgrade.

HDMI 2.0 1x2 Splitter with Audio Breakout
2
1.2 Packing List
1x HDMI 2.0 1x2 Splitter
2x Mounting Ears with 4 Screws
4x Plastic Cushions
1x 3-pin Euroblock/phoenix Connector
1x Power Adapter (5V DC 2A)
1x User Manual
Note:Please contact your distributor immediately if any damage or defect in the
components is found.

HDMI 2.0 1x2 Splitter with Audio Breakout
3
2. Specification
Video Input
Input
(1) HDMI
Input Connector
(1) Female type A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.2
Video Output
Output
(2) HDMI
Output Connector (2) Female type A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
Audio
Output
(2) Audio outputs
Output Connector
(1) 3.5mm mini stereo audio jack
(1) 3-pin Euroblock/phoenix connector
Audio Format
PCM
Audio Output Impedance
70 Ohms
Frequency Response
20Hz ~ 20kHz, ±3dB
General
Bandwidth
18Gbps
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10%-90%
Power Supply
Input:100V~240V AC; Output: 5V DC 2A
Power Consumption
6W(Max)
Dimension (W*H*D)
170mm x 20mm x 100mm
Net Weight
225g

HDMI 2.0 1x2 Splitter with Audio Breakout
4

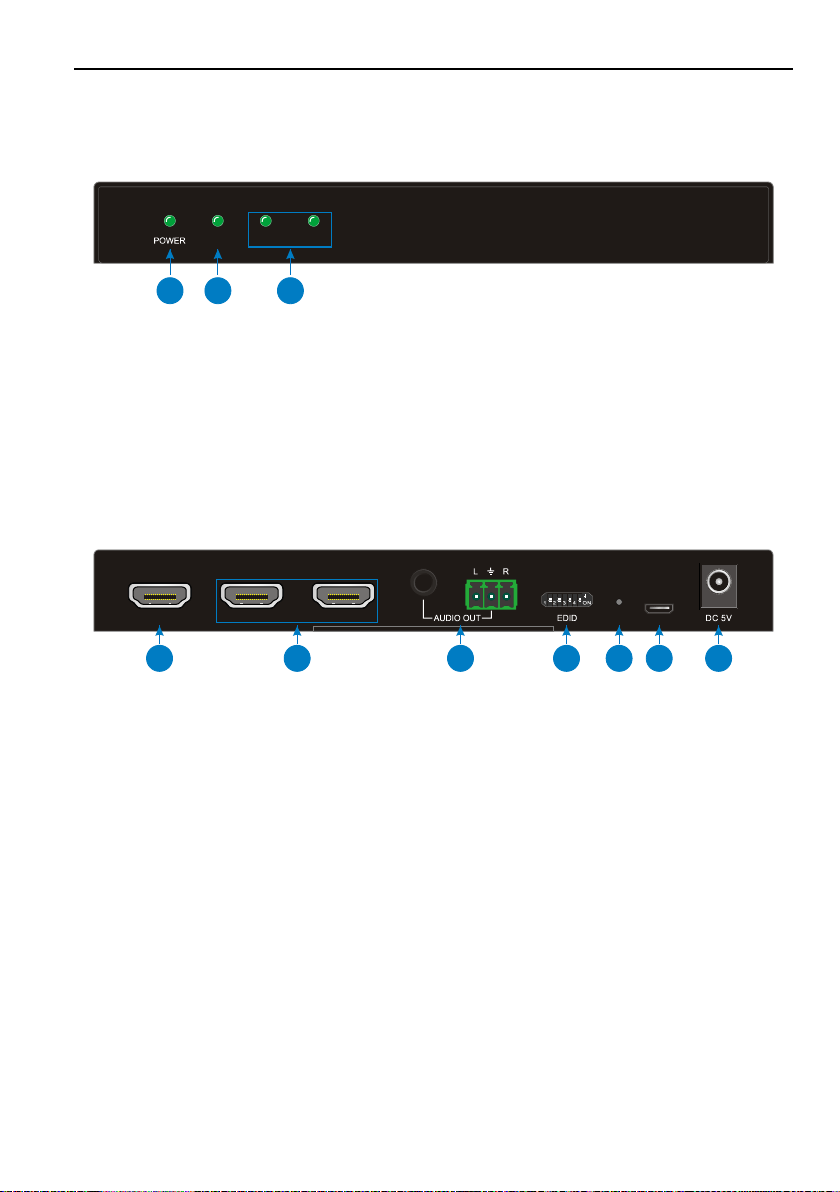

3. Panel Description
3.1 Front Panel
①Power LED: The LED illuminates green when power is applied.
②INPUT LED: The LED illuminates green when there is an input signal present.
③OUT 1 ~ OUT 2 LED: The LED illuminates green when there is HDMI output on the
corresponding channel.
3.2 Rear Panel
①IN:Type A female HDMI input port to connect HDMI source.
②OUT 1 and OUT 2: Two Type A female HDMI output ports to connect HDMI
displays.
③AUDIO OUT: 3.5mm mini jack and 3-pin Euroblock/phoenix connector for analog
audio output.
④EDID: 4-pin DIP switch for EDID setting.
⑤Pinhole button for EDID setting.
⑥Micro-USB port for firmware upgrade.
⑦DC 5V: DC barrel port to connect a 5 VDCAC power adapter.
OUT 1 OUT 2IN
123
OUT 1 OUT 2IN
1234567

HDMI 2.0 1x2 Splitter with Audio Breakout
5
4. System Connection
4.1 Usage Precautions
Verify all components and accessories included before installation.
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
4.2 System Diagram
The following diagram illustrates typical input and output connections that can be
utilized with the splitter:
4K Blu-ray Display Display Speaker
HDMI:
AUDIO:

HDMI 2.0 1x2 Splitter with Audio Breakout
6
5. EDID Management
The Extended Display Identification Data (EDID) is used by the source device to match
its video resolution with the connected display.
Predefined EDID settings

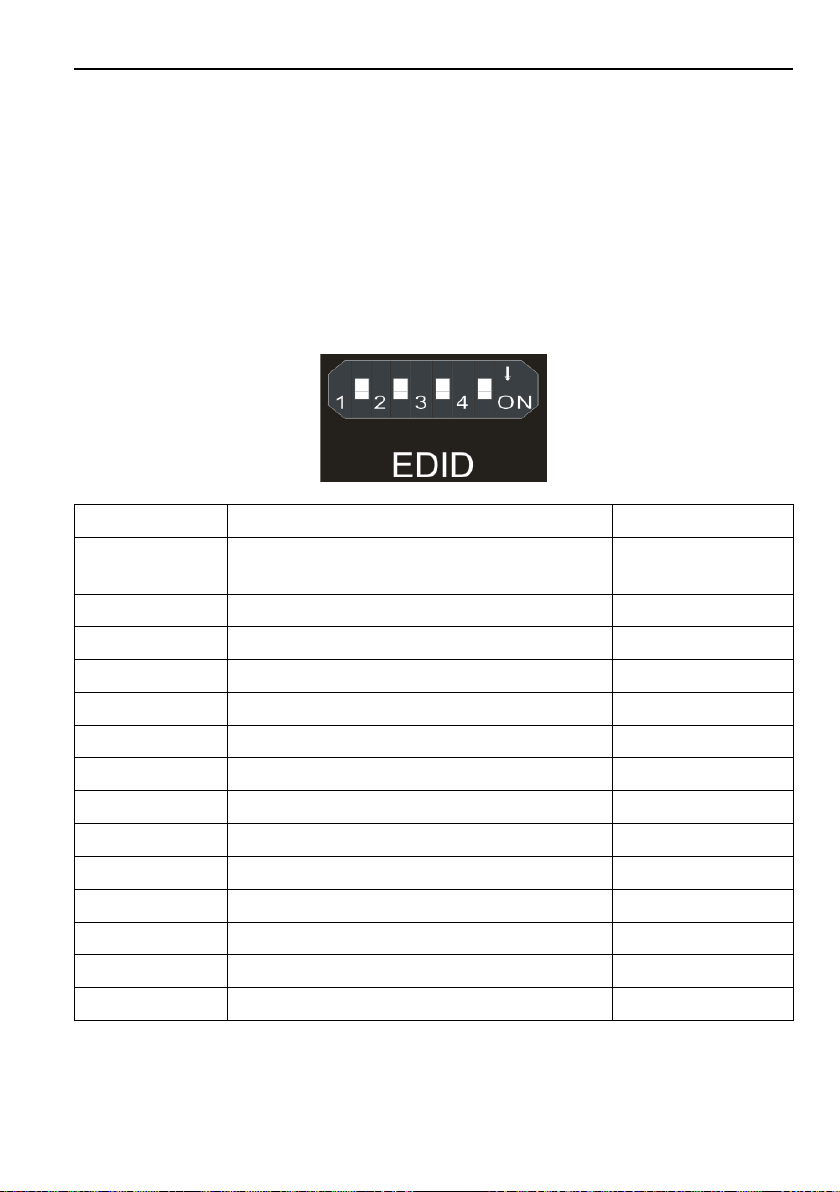

The 4-pin DIP switch on the rear panel can be used to set the EDID to a fixed value. Use
the following table to determine the settings for the 4-pin DIP switch for specific video
resolution and audio capabilities. When in the lower (ON) position, each switch
represents “1”, it represents “0” when setting the switch in the upper position.
Switch Status Video Resolution Audio Format
0000
1920x1080p@60Hz 4:4:4 RGB 8bit (Factory
default) Stereo
0001 1920x1080p@60Hz 4:4:4 RGB 8bit High Definition
0010
1920x1080p@60Hz 4:4:4 RGB 12bit
Stereo
0011
1920x1080p@60Hz 4:4:4 RGB 12bit
High Definition
0100
3840x2160p@60Hz 4:2:0 RGB 12bit
Stereo
0101
3840x2160p@60Hz 4:2:0 RGB 12bit
High Definition
0110
3840x2160p@60Hz 4:4:4 RGB 12bit HDR
Stereo
0111
3840x2160p@60Hz 4:4:4 RGB 12bit HDR
High Definition
1000
1280x800p@60Hz 4:4:4 RGB 8bit
Stereo
1001
1920x1200p@60Hz 4:4:4 RGB 8bit
Stereo
1010
2560x1600p@60Hz 4:4:4 RGB 8bit
Stereo
1011 1280x720p@60Hz DVI No audio
1100
1920x1080p@60Hz DVI
No audio
1101
3840x2160p@60Hz DVI
No audio

HDMI 2.0 1x2 Splitter with Audio Breakout
7
EDID data transfer
Please follow the procedure as below to allow the source device to obtain its EDID data
from the display which is connected to the OUT 1 port:
1) Set the 4-pin DIP switch to status “1110”.
2) Connect the source device to IN port, and connect the display to the OUT 1 port.
3) Long-press the pinhole at least five seconds on the rear panel until the input LED
blinks up to indicate the splitter enter into EDID copy mode.
4) When successfully copy the EDID data from the OUT 1 port to the input source, the
input LED will blinks three times. If that fails, the copy process will repeat 5 times or
less. If it still fails, the input LED will go out and the source device still save the
previous EDID data.
6. Firmware Upgrade
Please follow the steps as below to upgrade firmware by the Micro-USB port on the rear
panel:
1) Connect the splitter to the PC with USB cable, and then power on the splitter. The
PC will automatically detect a U-disk named of “BOOTDISK”.
2) Double-click the U-disk, a file named of “READY.TXT” would be showed.
3) Directly copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk.
4) Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the firmware was updated successfully. If not, the
firmware updating is fail, the name of upgrade file (.bin) should be confirm again, and
then follow the above steps to update again.
5) Remove the USB cable after firmware updating.

HDMI 2.0 1x2 Splitter with Audio Breakout
8
7. Panel Drawing
HDMI 2.0 1x2 Splitter withAudio Breakout
170.00 mm
20.30 mm
100.00 mm
OUT 1 OUT 2IN
OUT 1 OUT 2
IN

HDMI 2.0 1x2 Splitter with Audio Breakout
9
8. Troubleshooting & Maintenance
Problems Potential Causes Solutions
Colour losing or no video
signal output in HDMI
display.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
The display is not
compatible with the present
output resolution.
Make sure the resolution of
the display(s) is compatible
with the present resolution.
No HDMI signal output in
the splitter while local
HDMI input is in normal
working state.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
Splash screen in output
devices.
Poor quality of the
connecting cable.
Change for another cable of
good quality.
Static becomes stronger
when connecting the
video connectors.
Bad grounding.
Check the grounding and
make sure it is connected
well.
Note: If your problem still remaining after following the above troubleshooting steps,
please contact your local dealer or distributor for further assistance.

HDMI 2.0 1x2 Splitter with Audio Breakout
10
9. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed 3 (three) years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusions:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty coverage
at the sole condition that the defeat has been clearly defined, and upon reception of
the documents or copy of invoice, indicating the date of purchase, the type of
product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor.

ALTIMIUM
587 Avenue Blaise Pascal
77550 MOISSY-CRAMAYEL
Tél : [phone]
Fax: [phone]
Mail: [email protected]
Web: www.altimium.com
