Altimium SCA31TGB User manual

SCA31TGB
Extender Scaler 3x1 + 1
All Rights Reserved
Version: SCA31TGB _2019V1.0
User Manual

Extender Scaler 3x1 + 1
www.altimium.com

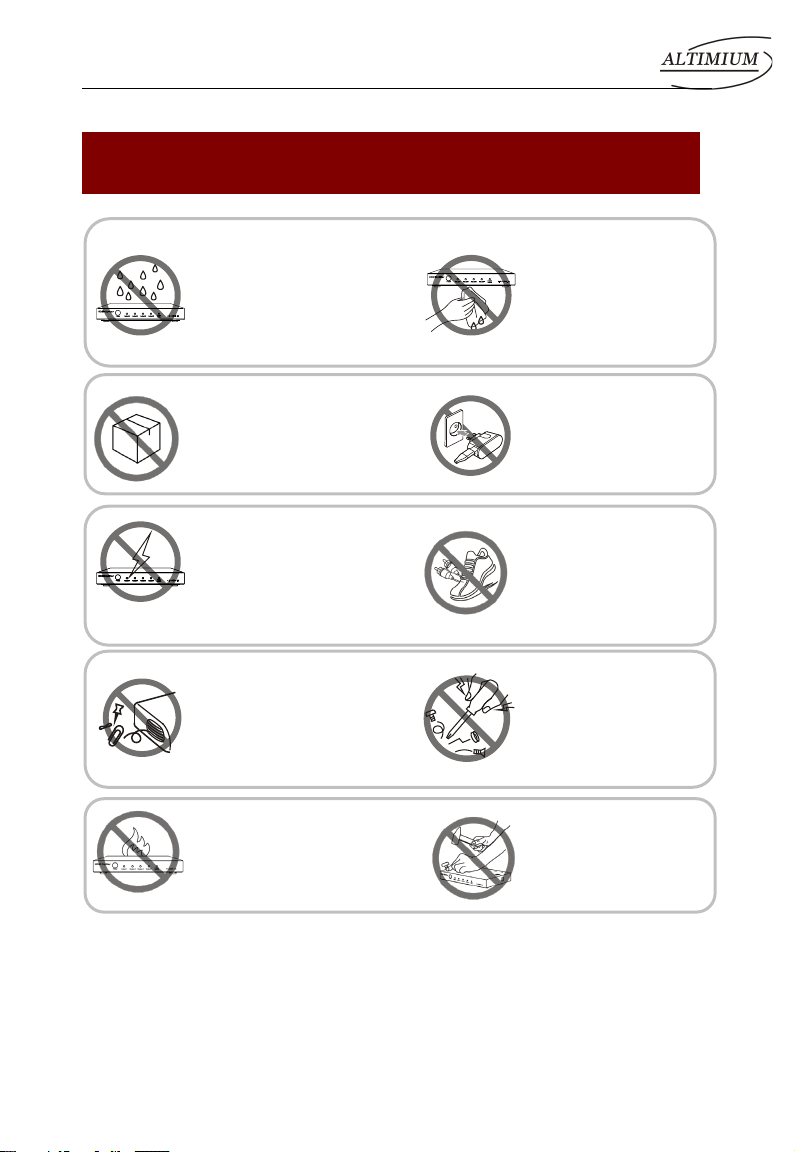

Important Safety Instructions
1. Do not expose this apparatus to
rain, moisture, dripping or
splashing and that no objects filled
with liquids, such as vases, shall be
placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit in
a bookcase, built-in cabinet or in
another confined space. Ensure the
unit is well ventilated.
3.
To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct the
unit’s ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
5. Do not place sources of naked
flames, such as lighted candles, on
the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Extender Scaler 3x1 + 1
www.altimium.com
Table of Contents
Introduction...................................................................................................... 2
Overview................................................................................................... 2
Features ................................................................................................... 3
Package Contents .................................................................................... 4
Specifications............................................................................................ 5
Transmitter ........................................................................................ 5
Receiver ............................................................................................ 6
Panel Layout............................................................................................. 9
Transmitter ........................................................................................ 9
Receiver .......................................................................................... 11
Connections and Installations ........................................................................ 14
Input Source Switch....................................................................................... 16
Auto Switch ..................................................................................... 16
Manual Button Switch...................................................................... 16
API Command Control................................................................................... 17
Trouble Shooting............................................................................................ 26
Steps of Regular Troubleshooting Routine ...................................... 26
Warranty Terms and Conditions..................................................................... 27

Extender Scaler 3x1 + 1
www.altimium.com
Introduction
Overview
SCA31TGB is an advanced switching extender set featuring four inputs and
UHD scaler. The included transmitter offers two HDMI inputs and one VGA
input with stereo audio, and the receiver offers an HDMI input, enabling an
additional AV source to be connected at the display location. The transmitter
supports HDBT output up to 230ft/70m at 1080P and up to 131ft /40m at
4K@60Hz (YUV 4:2:0) over a CATX cable. The receiver supports the stereo
audio de-embedding output from the HDMI output and connection with the
audio system, such as an amplifier. Built-in scaler with resolutions up to
4K@60Hz YUV 4:4:4 ensures the optimal image quality for video signal output,
and matches the native resolution of the display.
This extender set allows automatic and manual button switch among all inputs.
It features CEC controller to automatically turn on/off the display by
auto-detecting signal input. It also supports RS232 control to power on/off the
display such as projector, and relay control to turn on/off projection screen via
API commands. Its one way PoH enables the transmitter to receive power from
the power-on receiver; only one power supply is needed.
SCA31TGB simplifies system integration in classrooms and small offices, and
facilitates installation under conference tables and in lecterns, providing
localized presentation switching support over long distances.

Extender Scaler 3x1 + 1
www.altimium.com
Features
Two HDMI and one VGA inputs included on transmitter
One HDMI input, one HDMI output along with one analog audio output
included on receiver
HDMI inputs support resolutions up to 4K@60Hz YUV 4:2:0 and HDCP
2.2; VGA input supports resolutions up to 1920 x 1200@60Hz
Built-in 4K@60Hz YUV 4:4:4 scaler to match the native resolution of the
display
Supports automatic and manual button switch among all inputs
Via a Cat 6a/7 cable, signal transmission up to 131ft/40m at 4K@60Hz
(YUV 4:2:0) and 230ft/70m at 1080P
Via a Cat 5e/6 cable, signal transmission up to 115ft/35m at 4K@60Hz
(YUV 4:2:0) and 197ft/60m at 1080P
HDMI audio de-embedded output with analog stereo
Provides Telnet API control and configuration
One-way PoH enables the transmitter to receive power from the power-on
receiver (no additional power supply required at transmitter)
Supports automatic CEC and API command to power on/off the display
device
Supports RELAY control to automatically turn on/off the projection screen

Extender Scaler 3x1 + 1
www.altimium.com
Package Contents
Before you start the installation of the product, please check the package
contents as below:
SCA31TGB (Transmitter Receiver Set) x1
DC 12V 3A Power Supply x1
Phoenix Male Connector (3.5mm, 3 Pins) x5
Mounting Bracket x4

Extender Scaler 3x1 + 1
www.altimium.com
Specifications
Transmitter
Technical
Input 2 x HDMI, 1 x VGA
Input Signal Type
HDMI with 4K (4K@60Hz YUV 420), HDCP
2.2
VGA
Input / Output Resolution
Supported
VGA:
800x6008, 1024x7688, 1280x7688, 1280x8008,
1280x9608, 1280x10248, 1360x7688, 1366x7688,
1440x9008, 1600x9008, 1600x12008,
1680x10508, 1920x12008
HDMI:
800x6008, 1024x7688, 1280x7208, 1280x7688,
1280x8008, 1280x9608, 1280x10248, 1360x7688,
1366x7688, 1440x9008, 1600x9008, 1600x12008,
1680x10508, 1920x10808, 1920x12008,
3840x2160P2,3,5,8(YUV4:2:0),
4096x2160P2,3,5,8(YUV4:2:0)
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz,
5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
Output 1x HDBT
Output Signal Type HDBT
Audio Format PCM 2.0
Control Method Button and serial control

Extender Scaler 3x1 + 1
www.altimium.com
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection ±8kV(Air-gap discharge)/
±4kV(Contact discharge)
Power Supply DC 12V 3A
Power Consumption
(Max)
3.75W (2K Full loaded);
4.45W (4K Full loaded)
Device Dimension
(W x H x D)
194.7mm x 20mm x 94mm/
7.67” x 0.79” x 3.7”
Product Weight 0.5kg/1.10lb
Certification CE, FCC
Receiver
Technical
Input 1 x HDBT, 1 x HDMI
Input Signal Type
HDBT port: HDBT
HDMI port: HDMI, HDCP 2.2
Input Resolution
Supported
VGA:
800x6008, 1024x7688, 1280x7688, 1280x8008,
1280x9608, 1280x10248, 1360x7688, 1366x7688,
1440x9008, 1600x9008, 1600x12008,
1680x10508, 1920x12008
HDMI:
800x6008, 1024x7688, 1280x7208, 1280x7688,
1280x8008, 1280x9608, 1280x10248, 1360x7688,
1366x7688, 1440x9008, 1600x9008, 1600x12008,

Extender Scaler 3x1 + 1
www.altimium.com
1680x10508, 1920x10808, 1920x12008,
3840x2160P2,3,5,8(YUV4:2:0),
4096x2160P2,3,5,8(YUV4:2:0)
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz,
5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
Output 1x HDMI
Output Signal Type HDMI, HDCP 2.2
Output Resolution
Supported
1024x7688, 1280x7208, 1280x8008, 1280x10248,
1920x10808, 1920x12008, 3840x2160P5,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz,
5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
Audio De-embedding
Output Format Stereo audio
Control Method Button, telnet and serial control
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection ±8kV(Air-gap discharge)/
±4kV(Contact discharge)
Power Supply DC 12V 3A

Extender Scaler 3x1 + 1
www.altimium.com
Power Consumption
(Max)
2K Full loaded:
RX powers TX: 18.95W
Powers TX and RX separately: 12.15W
4K Full loaded:
RX powers TX: 21.55W
Powers TX and RX separately: 13.95W
Device Dimension
(W x H x D)
223.2mm x 25mm x 154.2mm/
8.79” x 0.98” x 6.07”
Product Weight 0.94kg/2.07lb
Certification CE, FCC
Cable Specifications:
Note: Altimium recommends the use of T568B straight-through Category
cables.
Cable Type Range Supported Video
HDMI
Input: 49ft/15m
Output: 33ft/10m
1080P@60Hz
Input: 33ft/10m 4K@60Hz 4:2:0 8bit
Output: 16ft/5m 4K@60Hz 4:4:4 8bit
CAT5e/CAT6
197ft/60m 1080P@60Hz 36 bpp
115ft/35m
1080P@60Hz 48 bpp
1080P@60Hz 3D
4K@60Hz 4:2:0 8bit
CAT6a/CAT7
230ft/70m 1080P@60Hz 36 bpp
131ft/40m
1080P@60Hz 48 bpp
1080P@60Hz 3D
4K@60Hz 4:2:0 8bit

Extender Scaler 3x1 + 1
www.altimium.com
Panel Layout
Transmitter
Front Panel
3
1246
5
No. Name Description
1 VGA IN Connect to the VGA source.
2 AUDIO IN Audio input, embedded with the VGA source.
3 HDMI IN 1-2 Connect to the HDMI source.
4 RS232 For API command control
5 HDBT OUT Connect to the receiver via a CATX cable.
6 DC 12V
Connect to DC 12V power supply.
Note: When receiver is powered on, the
connected transmitter requires no additional
power adapter.
Rear Panel
12345678910 11 12 13

Extender Scaler 3x1 + 1
www.altimium.com
No. Name Description
1 FW UPDATE Connect to a PC for firmware update or API
command control.
2 POWER LED
(Red)
On: The transmitter is powered on.
Off: The transmitter is powered off.
3 STATUS LED
(Blue)
Blinking:The transmitter is working properly.
Off: The transmitter is not working properly.
4 HDCP LED
(Green)
On: HDCP protected content is being transmitted.
Blinking: Non-HDCP protected content is being
transmitted.
Off: No content is being transmitted.
5 LINK LED
(Green)
On: The link between transmitter and receiver is
normal.
Blinking: The link between transmitter and
receiver is abnormal.
Off: No link
6 AUTO LED
(Blue)
On: Input auto switch function is activated.
Off: Input auto switch function is inactivated.
7 AUTO Button Press to activate/inactivate auto switch function.
8 VGA IN LED
Solid violet: The input has signal and is selected.
Solid orange: The input has signal but is not
selected.
Solid blue: The input has no signal but is
selected.
Off: The input has no signal and is not selected.
9 VGA IN Button Press to select the VGA input.
10 HDMI IN1 LED
Solid violet: The input has signal and is selected.
Solid orange: The input has signal but is not
selected.
Solid blue: The input has no signal but is

Extender Scaler 3x1 + 1
www.altimium.com
No. Name Description
selected.
Off: The input has no signal and is not selected.
11 HDMI IN1 Button Press to select the HDMI input 1.
12 HDMI IN2 LED
Solid violet: The input has signal and is selected.
Solid orange: The input has signal but is not
selected.
Solid blue: The input has no signal but is
selected.
Off: The input has no signal and is not selected.
13 HDMI IN2 Button Press to select the HDMI input 2.
Receiver
Front Panel
1234 5 6 7 8
No. Name Description
1 LAN Connect to a PC for Telnet API command control.
2 HDBT IN Connect to the transmitter via a CATX cable.
3 HDMI IN Connect to the HDMI source.
4 HDMI OUT Connect to the HDMI display.
5 AUDIO OUT Connect to the audio receiver for HDMI audio
de-embedding output such as amplifier.
6 RS232 Connect to the display device for RS232 control.
7 RELAY 1-2 Connect to the projection screen for API command
control.

Extender Scaler 3x1 + 1
www.altimium.com
No. Name Description
8 DC 12V Connect to DC 12V power supply.
Rear Panel
1 2 3 4 5 6 7 8 9 10 11 12 13
No. Name Description
1 FW UPDATE Connect to a PC for firmware update or API
command control.
2 POWER LED
(Red)
On: The receiver is powered on.
Off: The receiver is powered off.
3 SCALER LED
(Blue)
Blinking: The scaler module is working properly.
Off: The scaler module is not working properly.
4 STATUS LED
(Blue)
Blinking: The receiver is working properly.
Off: The receiver is not working properly.
5 HDCP LED
(Green)
On: HDCP protected content is being transmitted.
Blinking: Non-HDCP protected content is being
transmitted.
Off: No content is being transmitted.
6 LINK LED
(Green)
On: The link between transmitter and receiver is
normal.
Blinking: The link between transmitter and
receiver is abnormal.
Off: No link
7 AUTO LED
(Blue)
On: Input auto switch function is activated
(default).

Extender Scaler 3x1 + 1
www.altimium.com
No. Name Description
Off: Input auto switch function is inactivated.
8 AUTO Button Press to activate/inactivate auto switch function.
9 HDBT IN LED
Solid violet: The input has signal and is selected.
Solid orange: The input has signal but is not
selected.
Solid blue: The input has no signal but is
selected.
Off: The input has no signal and is not selected.
10 HDBT IN Button Press to select HDBT input.
11 HDMI IN LED
Solid violet: The input has signal and is selected.
Solid orange: The input has signal but is not
selected.
Solid blue: The input has no signal but is
selected.
Off: The input has no signal and is not selected.
12 HDMI IN
Button Press to select HDMI input.
13 SCALER
UPDATE For scaler module update

Extender Scaler 3x1 + 1
www.altimium.com
Connections and Installations
1. Connect the VGA (such as PC) and HDMI sources (such as Blu-ray player,
Apple TV, 4K media player, etc) to the VGA IN, AUDIO IN and HDMI IN
ports of the transmitter respectively.
2. Connect the HDBT OUT of the transmitter to the HDBT IN of the receiver
via a qualified CAT5e/6/6a/7 cable.
3. Connect an HDMI source (such as BYOD system) to the HDMI IN port of
the receiver.
4. Connect the HDMI display device (such as projector) to the HDMI OUT of
the receiver.
5. Connect an audio receiver to the AUDIO OUT of the receiver.
6. Connect the projection screen to the RELAY1 and RELAY2 of the receiver
to control the screen.
7. Connect a PC to the LAN port of the receiver for Telnet control.
8. Connect the included DC 12V power supply to the receiver. One-way PoH
enables the power to be sent from receiver to transmitter along a single
CATX cable, and no additional power adapter is required at the
transmitter.

Extender Scaler 3x1 + 1
www.altimium.com
PC STBBlu-rayplayer
Transmitter
Receiver
BYOD
Projection ScreenProjector
BYOD System
Amplifier
PC
VGA IN AUDIO IN HDMI IN
HDMI IN HDMI OUT AUDIO OUT
HDMI IN
CATX Cable
Telnet Control RELAY RELAY

Extender Scaler 3x1 + 1
www.altimium.com
Input Source Switch
This extender set supports auto and manual button switch between the
HDBT and HDMI inputs.
Auto Switch
Press AUTO button, auto switch function will be activated immediately.
Priority: HDMI 1 > HDMI 2 > VGA (for transmitter); HDBT > HDMI (for
receiver).
1. When multiple sources are inserted, power on all devices, the input in
top priority will be selected.
2. When a source is removed, the input will be switched to the source in
top priority automatically.
3. When a new source is inserted, the input will be switched to the new
source automatically.
Note: The auto switch function will be activated by default once all devices
are powered on.
Manual Button Switch
Users can manually switch to specific inputs among the multiple sources by
pressing the corresponding buttons on the rear panel of both units (see
buttons in red frames above). When the manual switch function is triggered,
the auto switch function will be inactivated simultaneously.

Extender Scaler 3x1 + 1
www.altimium.com
API Command Control
SCA31TGB support API command control via RS232, FW UPDATE and LAN
ports.
Example:
To power on/off the connected display like projector in real time via API
commands, here list the following steps for users’ reference.
1. Connection
Control at transmitter
Connect a PC to the RS232/FW UPDATE port of the transmitter, and
connect a projector to the RS232 port of any other HDBT receiver.
UPDATENORMAL
IR IN IR OUT RS232 HDMI OUT
HDBT IN
TX RX G
PC
Transmitter EX0301-N001-000
Receiver
Projector
HDMI IN
HDMI OUT
CATX Cable
HDBT OUT
RS232
RS232 Cable
RS232 Cable

Extender Scaler 3x1 + 1
www.altimium.com
Control at receiver
Connect a PC to the LAN/FW UPDATE port, and a projector to the
RS232 port of receiver
Receiver
Projector
PC
HDMI IN HDMI OUTTelnet Control RS232 Cable
Blu-rayPlayer
2. Set serial port parameters
Suppose the RS232 control codes for your connected projector are as
follows,
Baudrate: 9600
Power on: 50 57 52 20 4F 4E 0D 0A
Power off: 50 57 52 20 4F 46 46 0D 0A
First, open your serial debugging tool in the PC, set the UART baudrate
to 9600.
Control at transmitter: enter command “SET UART_INFO 9600 tx”
and end it up with CR/LF, click “Send”.
