Altimium CVSH2 User manual

CVSH2
SDI to HDMI Converter
All Rights Reserved
Version: CVSH2_ 2016V1.1
User Manual

SDI to HDMI Converter
Altimium www.altimium.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till December 2016. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All product function is valid till 2016-12-2.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

SDI to HDMI Converter
Altimium www.altimium.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

SDI to HDMI Converter
Altimium www.altimium.com
Table of Contents
1. Introduction ........................................................................................................1
1.1. Introduction to CVSH2 ...................................................................................1
1.2. Features.........................................................................................................1
1.3. Package Contents..........................................................................................1
2. Product Appearance...........................................................................................2
3. System Connection............................................................................................3
3.1. System Diagram.............................................................................................3
3.2. Connection Procedure ...................................................................................3
4. Specification.......................................................................................................4
5. Special Functions Introduction ...........................................................................5
5.1. Looping Output Function Introduction............................................................5
5.2. SDI Signal Modes Introduction.......................................................................5
6. Panel Drawing....................................................................................................6
7. Troubleshooting & Maintenance.........................................................................7
8. Safety Operation Guide......................................................................................8
9. After-sales Service.............................................................................................9

SDI to HDMI Converter
Altimium 1 www.altimium.com
1. Introduction
1.1. Introduction to CVSH2
CVSH2 is specialized in converting SDI input signal to HDMI or DVI output signal, and it
can transmit digital audio signal via the optical fiber.
Integrated with 3G/HD/SD receiver and HDMI encoder, CVSH2 can turn the 3G/HD/SD
signal to HDMI/DVI signal easily. At the same time, CVSH2 can separate the audio
signal from the 3G/HD/SD signal, and send it to the HDMI output port, that makes the
sound perfectly synchronize with the images.
CVSH2 is a green low energy consumption product that deserves owning it. It has a
good application in different places, including classroom, small meeting room, lecture
hall, bar, pub etc.
1.2. Features
HDTV compatible with High Definition Transmission resolution up to 1920*1080
(max).
Bandwidth: 2.97Gbps
With one analog audio output, and one SPDIF (digital audio) output which is
transmitted via the optical fiber.
Support with different SDI modes: including 3G, HD, and SD.
Output signal can be set to HDMI/DVI signal.
Supports various output resolution.
Looping output function is supported.
Supports fault diagnosis and local monitoring, with LEDs indicate the real-time
running state.
Full aluminum metal jacket, fits for wall mounting or desktop mounting.
1.3. Package Contents
1 x CVSH2
1 x Power Adapter (DC 5V, 3A)
2 x Mounting Ears (Separated from the SDI to HDMI converter)
4 x Screws (KM 3*6mm, stainless steel)
1 x User Manual
Note：Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

SDI to HDMI Converter
Altimium 2 www.altimium.com
2. Product Appearance
SDI LOOPSDI IN
11
2 2
3 3
44
55
66
7 7

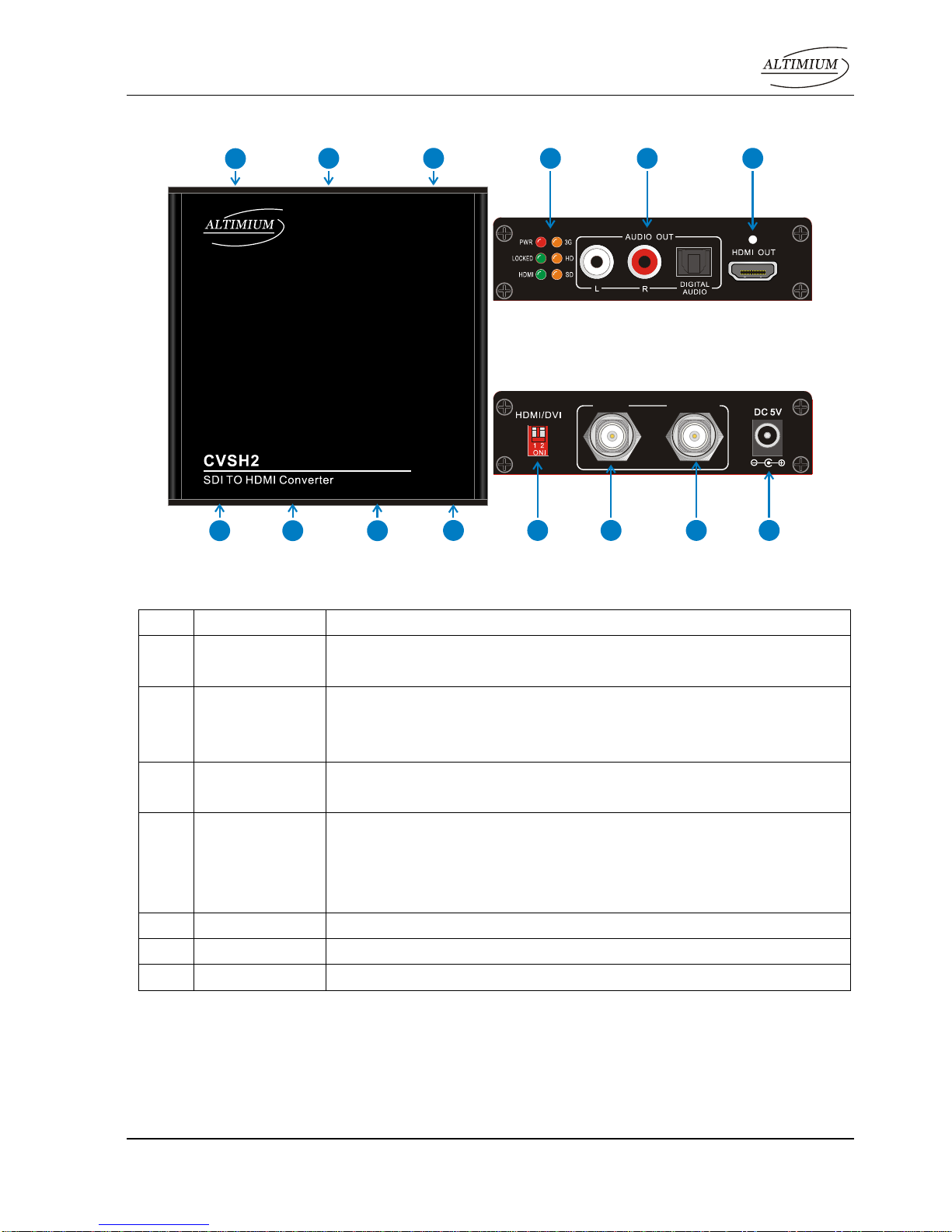

Figure 1 Product Appearance
Detailed Connection Instructions:
Notes: Please connect the cables reference to Figure 1. The LEDs indicated
information is showed as below.
PWR: Power indicator, turns red when normal power on, and turns off when power off.
LOCKED: Check if there is input signal, flashes when there inputs a signal, and keep
on when the signal is locked.
No.
Module
Function
①
LED
Check if the system is working in a normal state, and feed
back the abnormal information in time.
②
AUDIO OUT
Audio output port, with left and right audio channel for mono
output. Using single mode optical fiber for long distance
digital audio transmission.
③
HDMI OUT
Video output port, output the signal after turning the SDI
signals to HDMI/DVI signal via this port.
④
Dial Switch
Selector switch of HDMI and DVI output selection.
Turn the key 1 to the upside, output HDMI signal.
Turn the key 1to the underside, output DVI signal.
Key 2is kept for future extending or updating.
⑤
SDI IN
SDI signal input port, use to access stable SDI source signal.
⑥
SDI LOOP
Looping output SDI signal.
⑦
DC 5V
Port for accessing power supply, DC 5V.

SDI to HDMI Converter
Altimium 3 www.altimium.com
HDMI: The LED turns green when output HDMI signal, and turns off when output DVI
signal.
3G: Turns on when detects a 3G high definition signal.
HD: Turns on when detects a HD signal.
SD: Turns on when detects a SD signal.
3. System Connection
3.1. System Diagram
Figure 2 System Diagram
3.2. Connection Procedure
Please reference to the system diagram before your system installation. A detailed
installation procedure is showed as follows.
Step1.Connect the input SDI signal (such as SDI camera) to the SDI IN port on the rear
panel of CVSH2 by using a SDI cable.
If you need two outputs, please connect the SDI LOOP port on the rear panel of
this CVSH2 to the SDI IN port on another CVSH2 by using another SDI cable.
Step2.If long distance audio transmission is requested, please connect the DIGITAL
AUDIO output port to the optic-fiber accepter (SPDIF decoding included) by
using an optical fiber.
Step3.Use an audio cable to connect the L&Rof the AUDIO OUT port with audio
device to output analog audio.
Step4.Use a HDMI cable to connect HDMI OUT port of CVSH2 with a display device
to output the HDMI signal.
Note: Please make sure that all the fibers are connected before accessing the power.

SDI to HDMI Converter
Altimium 4 www.altimium.com
4. Specification
Video Input
Video Output
Input
1 SDI
Output
1 SDI, 1 HDMI
Input Connector
1 BNC
Output
Connector
1 BNC
1 HDMI Female
Input Signal
SD/HD/3G SDI
Output Signal
SD/HD/3G SDI
HDMI/DVI
Video General
Resolution
Range
1080P, 1920*1080;
1080I, 1920*1080; 720P,
1280*720; 480I (NTSC),
576I (PAI).
Maximum
Data Speed
2.97Gbps
Maximum Pixel
Clock
148.5MHz
Video
Impedance
75Ω
Gain
0dB
I/O Level
0.5V~2.0Vp-p
HDCP
Compliant with HDCP.
Audio Input
Audio Output
Input
1 SDI
Output
2 stereo audio
1 digital audio
Input Connector
1 BNC
Output
Connector
1 RCA
SPF fiber connector
Input
Impedance
>10KΩ
Output
Impedance
50Ω/stereo
Audio General
Stereo Channel
Separation
>80dB@1KHz
Frequency
Response
20Hz ~ 20KHz
CMRR
>90dB@20Hz~20KHz
General
Temperature
-20 ~ +70℃
Humidity
10% ~ 90%
Power Supply
DC5V
Power
Consumption
65W
Case
Dimension
W100 x H100 x D26 mm
Product
Weight
0.4Kg

SDI to HDMI Converter
Altimium 5 www.altimium.com
5. Special Functions Introduction
5.1. Looping Output Function Introduction
Looping output function is supported in CVSH2, showed in Figure 3. In this mode, the
signal pass through the SDI IN port to the SDI LOOP port of the first converter, and the
SDI LOOP output port can be connected to the SDI IN port of the next converter, and so
on. Finally it makes a looping output. In this way, one input signal can be allocated to
several outputs. This is a good solution for a single input with lots of display devices.
Note: With 3G-SDI signal, only two converters can be used in a looping connection.
Figure 3 Looping Output Connection
5.2. SDI Signal Modes Introduction
The converter supports three SDI signal modes, includes 3G, HD and SD. The
corresponding resolution and frequency of these three modes are showed as follows.
3G mode: 1080P @60Hz/59.94Hz, 1080P @50Hz/49.95Hz
The resolution of HD mode is showed in the table below.
No.
Resolution
1
1080I @60Hz/59.94Hz
2
1080I @50Hz/49.95Hz
3
1080P @30Hz/29.97Hz
4
1080P @25Hz/24.975Hz
5
1080P @24Hz/23.976Hz
6
720P @60Hz/59.94Hz
7
720P @50Hz/49.95Hz
SD mode: 480I @60Hz, 576I @50Hz

SDI to HDMI Converter
Altimium 6 www.altimium.com
6. Panel Drawing
SDI LOOPSDI IN
100 mm 100 mm
26 mm
100 mm
26 mm
100 mm
Figure 4 Panel Drawing

SDI to HDMI Converter
Altimium 7 www.altimium.com
7. Troubleshooting & Maintenance
1) When images of terminal unit output with ghost, such as the projector output with
ghost. Generally this is not a unit faulty, this may be caused by an incorrect setting
on the projector or a bad quality of cable. Please check the projector’s setting or try
another high quality connection cable.
2) When there is a color losing or no video signal output, please check the input and
output end connections of the cables.
3) When there is no output images:
Check if there is any signal at the input.
Check if there is any signal at the output.
We can check these by using an oscilloscope or a multimeter. If there is no signal
input/output, maybe the input/output cables broken or the connectors loosen,
please change for another cable.
If not the problem mentioned above, probably there is something broken inside
the unit, please send it to the dealer for repairing.
4) Before using the converter, please make sure that all cables (such as audio cables,
fiber etc.) are connected well before accessing the power of the product.
5) If the POWER indicator doesn’t work or no respond to any operation, please make
sure the power cord connection is good.
6) If the output image is interfered, please make sure the system is grounded well.
7) If the static becomes stronger when connecting the audio or video connectors, it
probably due to bad grounding, please check the grounding and make sure it
connected well, otherwise it would damage the converter.

SDI to HDMI Converter
Altimium 8 www.altimium.com
8. Safety Operation Guide
In order to guarantee the reliable operation of the equipments and safety of the staff,
please abide by the following proceeding in installation, using and maintenance:
1) The system must be earthed properly. Please do not use two blades plugs and
ensure the alternating power supply ranged from 100v to 240v and from 50Hz to
60Hz.
2) Do not put the device in a place of too hot or too cold.
3) As the power generating heat when running, the working environment should be
maintained fine ventilation, in case of damage caused by overheat.
4) Cut off the general power switch in humid weather or left unused for long time.
5) Before following operation, ensure that the alternating current wire is pull out of the
power supply:
Take off or reship any components of the equipment.
Take off or rejoin any pin or other link of the equipment.
6) As to non-professional or without permission, please DO NOT try to open the
casing of the equipment, DO NOT repair it on your own, in case of accident or
increasing the damage of the equipment.
7) DO NOT splash any chemistry substance or liquid in the equipment or around.

SDI to HDMI Converter
Altimium 9 www.altimium.com
9. After-sales Service
1) If there appear some problems when running CVSH2, please check and deal with
the problems reference to this user manual. Any transport costs are borne by the
users during the warranty.
2) You can email to our after-sales department or make a call, please tell us the
following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
3) We offer products for all three-year warranty, which starts from the first day you buy
this product (The purchase invoice shall prevail).
4) Any problem is same with one of the following cases listed, we will not offer warranty
service but offer for charge.
Beyond the warranty.
Damage due to incorrectly usage, keeping or repairing.
Damage due to device assembly operations by the maintenance company
non-assigned.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the model
of the product for repairing or had been altered.
Damage caused by force majeure.

ALTIMIUM
587 Avenue Blaise Pascal
77550 MOISSY-CRAMAYEL
Tél : [phone]
Fax: [phone]
Mail: [email protected]
Web: www.altimium.com
