Altimium IPC-500 User manual
IPC-500
Contrôleur IP Streaming
All Rights Reserved
Version: IPC-500V1.0.1
Manuel d'utilisation
Important Safety Instructions
1. Do not expose this apparatus to
rain, moisture, dripping or
splashing and that no objects filled
with liquids, such as vases, shall be
placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit in
a bookcase, built-in cabinet or in
another confined space. Ensure the
unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct the
unit’s ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or otherapparatus
(including amplifiers) that produce
heat.
5. Do not place sources of naked
flames, such as lighted candles,on
the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the powercord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.
01.64.13.31.00 1 www.altimium.com
Contrôleur IP Streaming
Table of Contents
Introduction...................................................................................................................................... 2
Overview .................................................................................................................................. 2
Features .................................................................................................................................... 3
Package Contents.................................................................................................................. 4
Specifications.......................................................................................................................... 5
Panel Description................................................................................................................... 7
Front Panel ..................................................................................................................... 7
Rear Panel ....................................................................................................................... 8
Warranty Terms and Conditions ............................................................................................... 11
01.64.13.31.00 2 www.altimium.com
Contrôleur IP Streaming
Introduction
Overview
IPC-500 (hereinafter referred to as IP controller) is an IP control box
that is used as an A/V control device for controlling,
configuring and managing encoders and decoders on the local
area network.
It integrates two Ethernet ports and two RS232 ports,
offering integration-friendly control features——LAN (Web GUI &
Telnet).
It also can be used with a third party controller to provide a
simple, flexible control and management options.
IP controller can automatically search and display encoders
and decoders.
It is designed to be compatible with the configuration file
from PC configurator (HDMI over IP Console) and use the
imported configuration file to perform operations on encoders
and decoders such as matrix and video wall.
01.64.13.31.00 3 www.altimium.com
Contrôleur IP Streaming
Features
IP control via LAN (Web GUI & Telnet) and a third partycontroller
Features two Ethernet ports and two RS232 ports
Discover encoders and decoders automatically
Supports matrix switching between encoders and decoders
Compatible with the configuration file from PC configurator to
quickly perform operations on encoders and decoders, such as
matrix and video wall
Web configuration page
01.64.13.31.00 5 www.altimium.com
Contrôleur IP Streaming
Specifications
Technical
I/O Connections
1x LAN1 (AV/POE) (10/100 Mbps)
1 x LAN2 (C) (10/100 Mbps)
2x RS232
LED 1 x STATUS LED
1 x POWER LED
Button 1 x RESET Button
Control Method LAN (Web GUI & Telnet), RS232 and a third
party controller
General
Power Supply 12 VDC 1 A
Power Consumption
4.5 W Max. (without outputting 12 V 0.5
A using RS232 port)
10.5 W Max. (with outputting 12 V 0.5 A
using RS232 port)
Operating
Temperature
32°F ~ 113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Surge Protection
Voltage: ±1000 V
(Tested ten times respectively for the
positive and negative voltages)
ESD Protection Human body model:
01.64.13.31.00 6 www.altimium.com
Contrôleur IP Streaming
General
±8kV (air-gap discharge)
±4kV (contact discharge)
Product Dimension
(W x H x D)
93.2 mm x 26 mm x 138.7 mm
3.67'' x 1.02'' x 5.46''
Case Dimension
(W x H x D)
170 mm x 80 mm x 250 mm
6.69'' x 3.15'' x 9.84''
Weight 0.38 kg / 0.84 lbs (without accessories)
Certification CE, FCC, RoHS compliant
01.64.13.31.00 7 www.altimium.com
Contrôleur IP Streaming
Panel Description

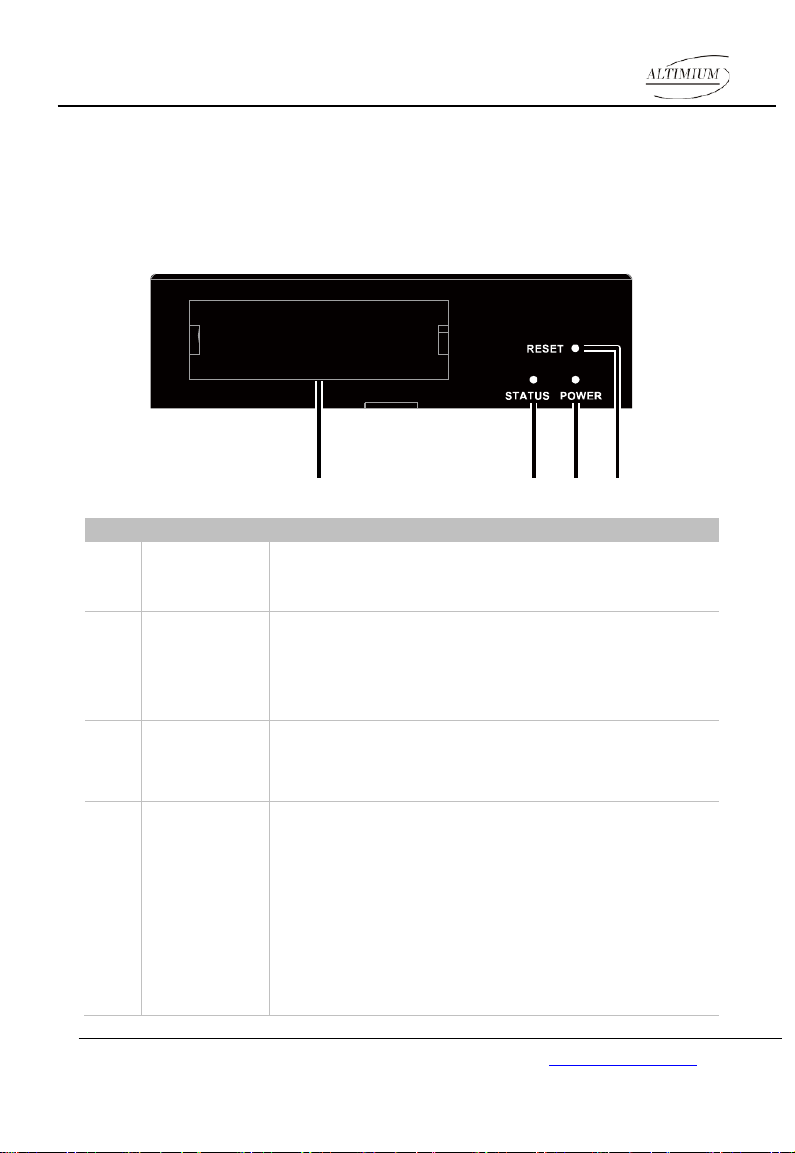

Front Panel
1 2 3 4
No.
Name
Description
1Label Card
Location
Inserts a supplied label card intended for writing
short notes such as an IP address.
2STATUS
LED
Blue: when IP controller is working properly.
Off: when IP controller is powered off or is
booting.
3
POWER
LED
Red: when IP controller is powered on.
Off: when IP controller is powered off.
4RESET
When IP controller is powered on, use a pointed
stylus to hold down RESET button for five or
more seconds, and then release it. It will reboot
and restore to its default settings.
Note: When the default settings are restored,
your custom data is lost. Therefore, exercise
caution when using the RESET button.
01.64.13.31.00 8 www.altimium.com
Contrôleur IP Streaming
Rear Panel
1 2 3
No. Name Description
1 x LAN1 (AV/POE):
Connects to a switch for communication with
encoders and decoders on the same network.
Default protocol:
IP Address 169.254.1.1
Subnet Mask 255.255.0.0
Gateway 169.254.1.254
DHCP Off
1 RJ45 ports Link speed and
duplex level Autodetected
Ethernet port indicators :
Green Link LED: this green colored LED lights
when IP controller actively communicates with a
network.
Amber Activity LED: this amber colored LED
flickers as IP controller is connected to a
network.
01.64.13.31.00 9 www.altimium.com
Contrôleur IP Streaming
No.
Name
Description
1x LAN2 (C):
Connects toa third party controller
for controlling, configuring and managing
IPC-500 encoders and decoders through
LAN control (Web GUI & Telnet).
Default protocol:
IP Address 192.168.11.243
Subnet Mask 255.255.0.0
Gateway 192.168.11.1
DHCP Off
Link speed and duplex
level Autodetected
Ethernet port indicators
: same as
above.
Note:
Only LAN1 (AV/POE) port supports PoE.You
can connect it to a PoE switch to receive
power, eliminating the need for a nearby
power outlet.
We would recommend that you power IP
controller using either a power adapter or a
PoE switch instead of using both them atthe
same time. For example, if you want to use a
power adapter, ensure that PoE function of
the connected LAN port in the switch is
disabled or a non-PoE switch is used.
01.64.13.31.00 10
www.altimium.com
Contrôleur IP Streaming
No.
Name
Description
2RS232 ports
Left (DEBUG): Pins TX, RX, G are used for device
troubleshooting only.
RS232 parameters:
Baud Rate 115 200 bps
Data Bits 8 bits
Parity None
Stop Bits 1
Middle (Control): Pins G, RX, TX are used for
controlling, configuring and managing IP
controller, encoders and decoders through
RS232 software or a third party controller.
RS232 parameters:
Baud Rate 9 600 bps
Data Bits 8 bits
Parity None
Stop Bits 1
Right (Power): Pins G, 12V are used for
providing a 12 VDC 0.5 A output.
Note: Please connect the correct pins for device
debug and control. When IP controller is
powered by a power adapter, if you connect
control terminal to control port after first
connection with the debug port, you need to
reboot IP controller for device control process.
3DC 12V Connects to a supplied 12 VDC 1 A power
adapter.
01.64.13.31.00 11
www.altimium.com
Contrôleur IP Streaming
Warranty Terms and Conditions
For the following cases ALTIMIUM shall charge for the service(s)
claimed for the products if the product is still remediable and the
warranty card becomes unenforceable or inapplicable.
1. The original serial number (specified by ALTIMIUM) labeled on
the product has been removed, erased, replaced, defaced or is
illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired,
dismantled or altered by anyone that is not from a ALTIMIUM
authorized service partner. The defects are caused by the fact
that the product is used or handled improperly, roughly or not as
instructed in the applicable User Guide.
4. The defects are caused by any force majeure including but not
limited to accidents, fire, earthquake, lightning, tsunami andwar.
5. The service, configuration and gifts promised by salesman only
but not covered by normal contract.
6. ALTIMIUM preserves the right for interpretation of these cases
above and to make changes to them at any time without notice.
