Altinex Tilt 'N Plug Interconnect Box TNP100-HB User manual

DESIGNER SOLUTIONS
MANUAL PART NUMBER: 400-0208-001
TNP100-HB
Tilt ‘N Plug™ Interconnect Box
USER'S GUIDE

DESIGNER SOLUTIONS
1
TABLE OF CONTENTS
Page
PRECAUTIONS / SAFETY WARNINGS............. 2
GENERAL....................................................... 2
INSTALLATION............................................... 2
CLEANING...................................................... 2
FCC / CE NOTICE........................................... 2
ABOUT YOUR TNP100-HB................................ 3
TECHNICAL SPECIFICATIONS......................... 3
TNP100-HB DIMENSIONS................................. 4
DIAGRAMS1A-1D........................................... 4
DESCRIPTION DIAGRAM.................................. 5
DIAGRAM 2..................................................... 5
APPLICATION DIAGRAM................................... 5
DIAGRAM 3..................................................... 5
DIAGRAM 4..................................................... 6
DIAGRAM 5..................................................... 7
INSTALLATION .................................................. 8
OPERATION....................................................... 9
FREQUENTLY ASKED QUESTIONS (FAQ)...... 9
ACCESSORIES................................................ 10
TROUBLESHOOTING GUIDE.......................... 10
ALTINEX POLICY............................................. 11
LIMITED WARRANTY................................... 11
RETURN POLICY.......................................... 11
CONTACT INFORMATION............................ 11

DESIGNER SOLUTIONS
2

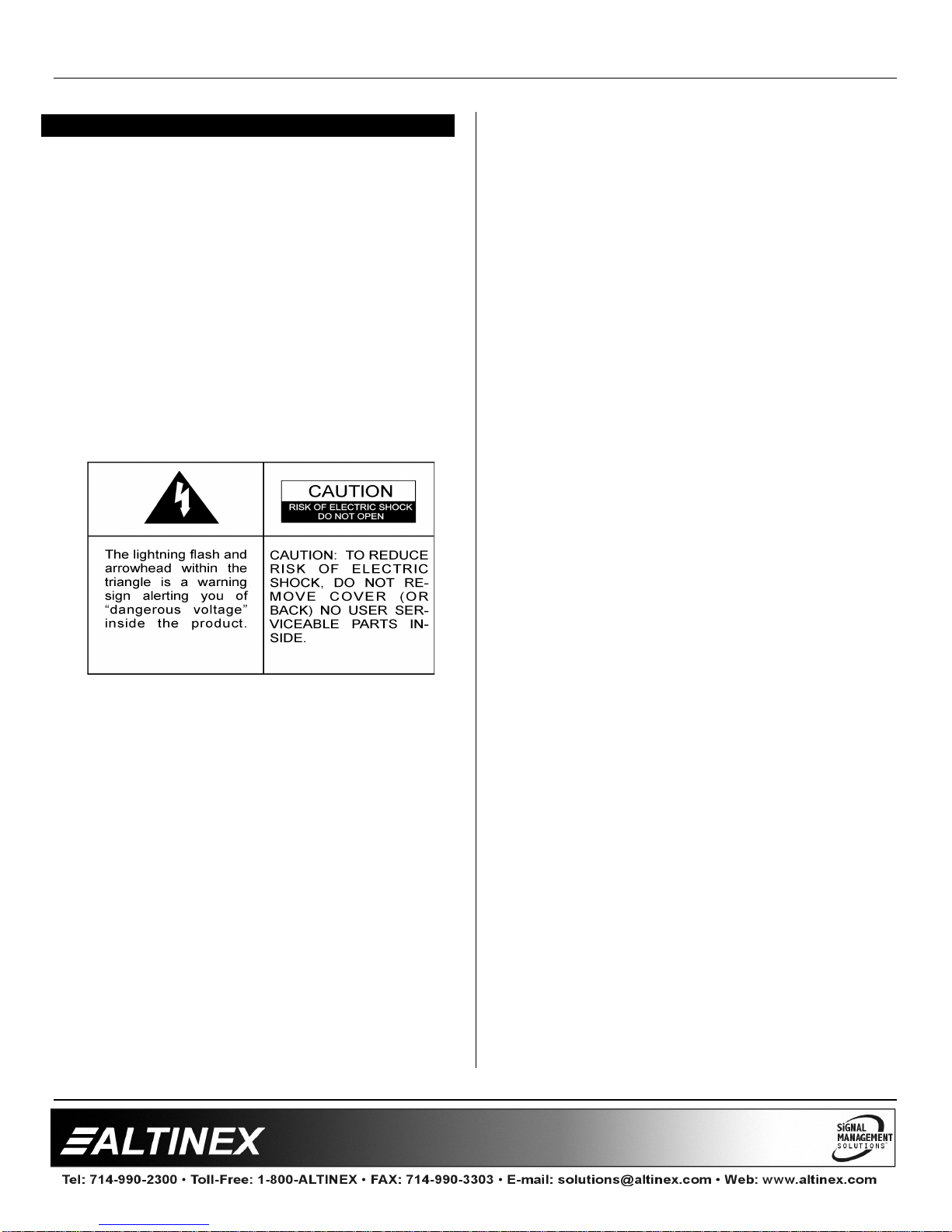

PRECAUTIONS / SAFETY WARNINGS 1
Please read this manual carefully before using your
TNP100-HB Interconnect Box. Keep this manual
handy for future reference. These safety instructions
are to ensure the long life of yourTNP100-HB and to
prevent fire and shock hazard. Please read them
carefully and heed all warnings.
1.1 GENERAL
•Unauthorized personnel shall not open the
unit since there are high-voltage
components inside.
•Qualified ALTINEX service personnel, or
their authorized representativesmust
perform all service.
1.2 INSTALLATION
•For best results, place the TNP100-HB
Interconnect Box in a dry area away from
dust and moisture.
•To prevent fire or shock, do not expose this
unit to rain or moisture. Do not place the
TNP100-HB Interconnect Box in direct
sunlight, near heaters or heat radiating
appliances, or near any liquid. Exposure to
direct sunlight, smoke, or steam can harm
internal components.
•Handle the TNP100-HB Interconnect Box
carefully. Dropping or jarring can damage
internal components.
•Never place fingers inside the opening on
each side of the unit. This action could
cause serious injury because of the sharp
edges insideof the TNP100-HB.
•Do not place heavy objects on top of the
TNP100-HB.Do not use excessive force to
push down on the top of the unit.
•To turn off the main power, disconnect the
power cord, which powers the power socket
on the TNP100-HB pop up panel.The
power outlet socket should be installed as
near to the equipment as possible, and
should be easily accessible.
•We recommend using wall outlets with a
Ground Fault Circuit Interrupter (GFCI) for
maximum protection.
•Install all cables according to the
instructions. Do not force or pull out any
cable or power cord that is attached to the
TNP100-HB Interconnect Box.
1.3 CLEANING
•Surfaces should be cleaned with a dry
cloth. Never use strong detergents or
solvents, such as alcohol or thinner. Do not
use a wet cloth or water to clean the unit.
1.4 FCC / CE NOTICE
•This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
•This equipment has been tested and found
to comply with the limits for a Class A
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.

DESIGNER SOLUTIONS
3
Operation of this equipment in a residential
area is likely to cause harmful interference
in which case the user will be required to
correct the interference at his own
expense.
•Any changes or modifications to the unit
not expressly approved by ALTINEX, Inc.
could void the user’s authority to operate
the equipment.
ABOUT YOUR TNP100-HB 2
The TNP100-HB is designed for installation into a
conference room table. The TNP100-HB Tilt ‘N
Plug™ Interconnect Box provides a means of
connecting audio, video, control,and computer video
sources into a presentation system. It is ideal for use
together with ALTINEX computer video interfaces.
The TNP100-HB Tilt ‘N Plug™Interconnect Box can
eitherpop up and“tilt”toa raised position to provide
access to the connectors or it can be lowered into a
table when not in use. A pneumatic shock inside the
TNP100-HB’s tower type construction applies
pressure to the panel mechanism, making it easy to
raise and secure the unit firmly in an open position.
Also, for safety, the chassis of the TNP100-HB is
connected to the ground pin of the power plug.
The Tilt ‘N Plug™Interconnect Box has one input
plate on the front panel of the unit. The standard
plate offers Computer Video (15-pin HD);Audio
(Stereo Mini), Modem (RJ-11), Network (RJ-45) and
Microphone (XLR 4-pin) input connections. All
signals are passed through to a set of female
connectors or cables. Several optional connectors
can be substituted for the standard set of
connectors. For additional information regarding
optional connectors, contact the ALTINEX Sales
Department.
The Tilt ‘N Plug™Interconnect Box is designed for
use with tables ranging from one to three inches
thick. The Tilt ‘N Plug™comes in a standard matte
black color; however, it can be finished to match the
table. This is available on a custom per order basis
at an additional charge.
TECHNICAL SPECIFICATIONS 3
FEATURES/
DESCRIPTION TNP100-HB
GENERAL
Front Panel
Standard
Configuration
Connectors
Faceplate Cable end
under table
Power
1 outlet with one
circuit breaker 1 plug with 6ft cord
Computer Video 1 15-pin HD-F 1 15-pin HD-F
Audio 1 3.5mm stereo
female jack 1 3.5mm stereo male plug
Telephone 1RJ-11 F
(6-position) 1 RJ-11-M (6-position)
Network 1RJ-45-F
(8-position) 1 RJ-45-M (8-position)
Microphone XLR 4-pin male
receptacle XLR 4-pin female plug
Table 1. TNP100-HB General
MECHANICAL TNP100-HB
Width (inches) 6.03in (153mm)
Height (closed) 4.79in (122mm)
Height (opened) 8.05in (205mm)
Depth (inches) 7.56in (192mm)
Finish Flat Black
T°Operating 10°C-35°C
T°Maximum 50°C
Humidity 90%non-condensing
Table 2. TNP100-HB Mechanical
ELECTRICAL TNP100-HB
Power
Power Rating (pass through
connector) 90-140 VAC, 5Amps Max
Table 3. TNP100-HB Electrical

DESIGNER SOLUTIONS
4
TNP100-HB DIMENSIONS 4
Diagrams: 1A, 1B, 1C, & 1D

DESIGNER SOLUTIONS
5
DESCRIPTION DIAGRAM 5
Diagram 2: TNP100-HB Faceplate
APPLICATION DIAGRAM 6
Diagram 3: Application

DESIGNER SOLUTIONS
6
Diagram 4: Final Installation

DESIGNER SOLUTIONS
7
Diagram 5: Table Cutout Requirements

DESIGNER SOLUTIONS
8
INSTALLATION 7
Step 1.Cut an opening into the table’s surface.
Refer to diagram 5on page 7of the
manual for table cutout requirements.
Note: The table can be 3 inches or thinner
in thickness. Always confirm dimensions
before cutting to insure that specifications
have not changed.
Step 2.Insert the TNP100-HB into the opening in
the table.
Step 3.Place the support brackets under thetable
and place them between the support
mount grooves on the side of theTNP100-
HB unit. Attach the brackets to the groove
at the desired height and secure them to
the bottom of the table using the 6-32
screw. There are two support brackets,
one for each side of the unit. (See Figure
1)
Figure 1: Attachment of the TNP100 -HB to the
table using support brackets and set screws
Step 4.Secure the cables by using the provided
cable clamp (See Figure 2). Pass the
power cord from the bottom of thehousing
and attach it to the table using the cable
clamp supplied with the TNP100-HB unit.
Do not keep the cord too tight or too loose
(See Diagram 4, page 6).
Figure 2: Cable Clamp
Step 5. Connect the appropriate cables with the
correct input connectors. There are
connections for Computer Video (15-pin
HD), Audio (Stereo Mini), Modem (RJ-11),
Network (RJ-45) and Microphone (XLR 4-
pin) on the front panel.
Step 6.Once you have applied power and
connected the proper cableson the bottom
of the unit, you may raise the unit. To raise
the TNP100-HB into position, lift the top by
pulling upward at the notch in the top plate.
Step 7.To lower the unit, push on the top of the
TNP100-HB until it fits into place.
For more information, please refer to the FAQ
Section or the Troubleshooting Guide.

DESIGNER SOLUTIONS
9
OPERATION 8
The TNP100-HB unit will operate successfully as
long as all cables are attached properly and other
technical specifications are maintained.
FREQUENTLY ASKED QUESTIONS (FAQ) 9
No: Question Answer
1. What happens if
the spring
breaks?
The unit will not stay
open.
2. What do I do if
the TNP100-HB
won’t stay open?
Replace the gas spring.
Call ALTINEX for service
information.
3. How much room
is taken up on
the underside of
the table?
The unit is 4.5 inches
deep maximum below
the table; to this
dimension add about 2.5
inches for cable
clearance.
4. What if my table
is thicker than 3
inches?
Then the area under the
table near theTNP100-
HB must be reduced to 3
inches of thickness.
5. Does ALTINEX
honor any
warranty on field
modifications?
Anything modified by
non-ALTINEX personnel
is not covered by
warranty.

DESIGNER SOLUTIONS
10
ACCESSORIES 10
Model No. Description
LABELS
MS8301LB Input/Output Labels
COVERS
CVR1001 Cover for PNP/TNP Cutouts
VGA MALE TO MALE (HD-15) HIGH RESOLUTION
CABLE
CB37xxMR xx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft
VGA MALE TO FEMALE (HD-15) HIGH
RESOLUTION CABLE
CB39xxMR xx = available length of 3ft, 6ft, 15ft, 25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
SUPER HIGH RESOLUTION PLENUM-FLEX MULTI-
CHANNEL COAX CABLE
VGA MALE TO VGA MALE (HD-15)
CB5000PL-
5VMxxxVM
xxx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
SUPER HIGH RESOLUTION PLENUM-FLEX MULTI-
CHANNEL COAX CABLE
VGA MALE TO VGA FEMALE (HD-15)
CB5000PL-
5VMxxxVF
xxx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
TROUBLESHOOTING GUIDE 11
The supplied TNP100-HB unit was carefully tested
and no problems were detected;however, we
would like to offer the following suggestions:
•If there is no power, check to see if the circuit
breaker is tripped.
•Please make sure that the highest quality
video, audio, network, and telephone cablesor
connectorsare used.
•Make sure that no cable or power cord is
damaged or pinched.If there has been
damage, then do not use theTNP100-HB unit.
Immediately contact the ALTINEX Customer
Service Department to have the unit repaired.

DESIGNER SOLUTIONS
11
ALTINEX POLICY 12
12.1 LIMITED WARRANTY
ALTINEX warrants that its products and cables
are free from defects in materials under normal
use and service. This warranty is limited to
repairing at company’s factory any part or parts
of the product, which upon company’s
examination shall disclose to be, thus defective.
Products considered defective should be
returned to company with transportation charges
pre-paid within 2 years (90 days for cables) from
date of shipment to the purchaser. The warranty
is expressly instead of all other warranties
expressed or implied. ALTINEX neither assumes
nor authorizes any other person to assume for it
any other liability concerning the sale of the
products. This warranty shall not apply to any
product that shall have been repaired or altered
outside of company’s factory in any way so as, in
its judgment, to affect its stability or reliability, or
that has been subject to misuse, negligence,or
accident.
12.2 RETURN POLICY
It is very important to ALTINEX that you receive
all products that you have ordered and that this
product meets your expectations. In the unlikely
event that an ALTINEX product needs to be
returned,please follow thepolicies below:
ALTINEX will accept all product returns for a
period of 30 days from authorized ALTINEX
dealers in an unopened package.
If a product has been opened, the restocking
fees will apply. For the restocking fee, please
contact an ALTINEXSales Representative.
If the product is in your possession for more than
30 days,the restocking fees will apply.
ALTINEX will not accept any returns on cablesor
custom products.
If your product is in warranty and needs service,
contact the ALTINEX Sales Department for an
RMA (Return Material Authorization). Products
returned without an RMA number may
experience a delay in service.
If your product is out of warranty and needs
service, contact the ALTINEX Sales Department
for an RMA (Return Material Authorization).
Products returned without an RMA number may
experience a delay in service. The service
charges will be quoted to you before the actual
repairs are done.
12.3 CONTACT INFORMATION
ALTINEX, INC.
592 Apollo Street
Brea, CA 92821 USA
TEL: [phone]
TOLL FREE: 1-800-ALTINEX
WEB: www.altinex.com
E-MAIL: [email protected]
FAX: [phone]
