Altis ICONA User manual

ICONA USER MANUAL
Read all instruction carefully before use this product. Retain
this owner’s manual for the future’s reference
!

1
SAFETY PRECAUTION
Warning: Now here we suggest that you should consult with your physician or health professional before
starting your workout, especially for the age up to 35 old or once-health problem people. We take no
responsible for any troubles or hurts if you don’t following our specification. Treadmill will be carefully
assembled and covered the motor shield, then connect to the power.
ATTENTION:
1. Ensuring the safety clamps were attached to the clothing or belts before using the treadmill.
2. Please do not insert any items to any part of the equipments, which would damage the equipment.
3. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always stand
on the foot rails on the sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing that
may be caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6. Keep the children and pets away from the treadmill while starting workout.
7. Don’t exercise in 40-Mints after dinner.
8. The equipment is suitable for adults, Juveniles need be accompanied with adults while workout.
9. You must hold on to the handrails until you become comfortable and familiar with the treadmill at your
first start the workout.
10. Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean
and flat, drying. Prohibiting the other purpose using, only for workout.
11. Please purchase the power-line to the distributor or contact with our company directly, for the
power-line only equip to the treadmill.
12.If the treadmill should suddenly increase in speed due to an electronics failure or the speed being
inadvertently increased, the treadmill will come to a sudden stop when the pull pin is disengaged from
the console.
13. Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do not put
any heavy thing on cable or put the cable near the heat source; forbid using socket with several holes,
these may cause fire or people may be hurt by the power.
14. Cut off the power when the equipment is not used. When the power is cut off , do not pull the power
line to keep the wire unbroken. Insert the plug to the socket with the safety ground circuit, for the
power-line is professional equipment .You must contact with the professional people directly while the
line is damaged.
15. This Treadmill only for home-using.

2
ASSEMBLY INSTRUCTIONS
When you open the carton, and you will find the below parts in the carton
Part List:
FIXING TOOLS:
5#Allen Wrench 5mm 1pcs、
Wrench screw Driver S=13、14、15 1pcs
Notice: Do not get through power before complete assembly.
NO.
DES.
Specification
Nos.
NO.
DES.
Specification
Nos.
1
Main frame
1
70
Oil Bottle
1
40
5# Allen Wrench
5mm
1
84
Twister
1
55
Bolt
M8*45
2
82
Massager assemblies
1
51
Bolt
M8*16
10
80
Massager support frame
1
47
Screw
M8
2
81
Massager fix frame
1
68
Arc washer
8
14
85
Foam
4
83
Massager belt
1
59
Screw
ST4.2*19
4
43
Safety key
1
73
Left Base Cover
1
39
Wrench Screw Driver
S=13,14,15
1
72
Right Base Cover
1

3

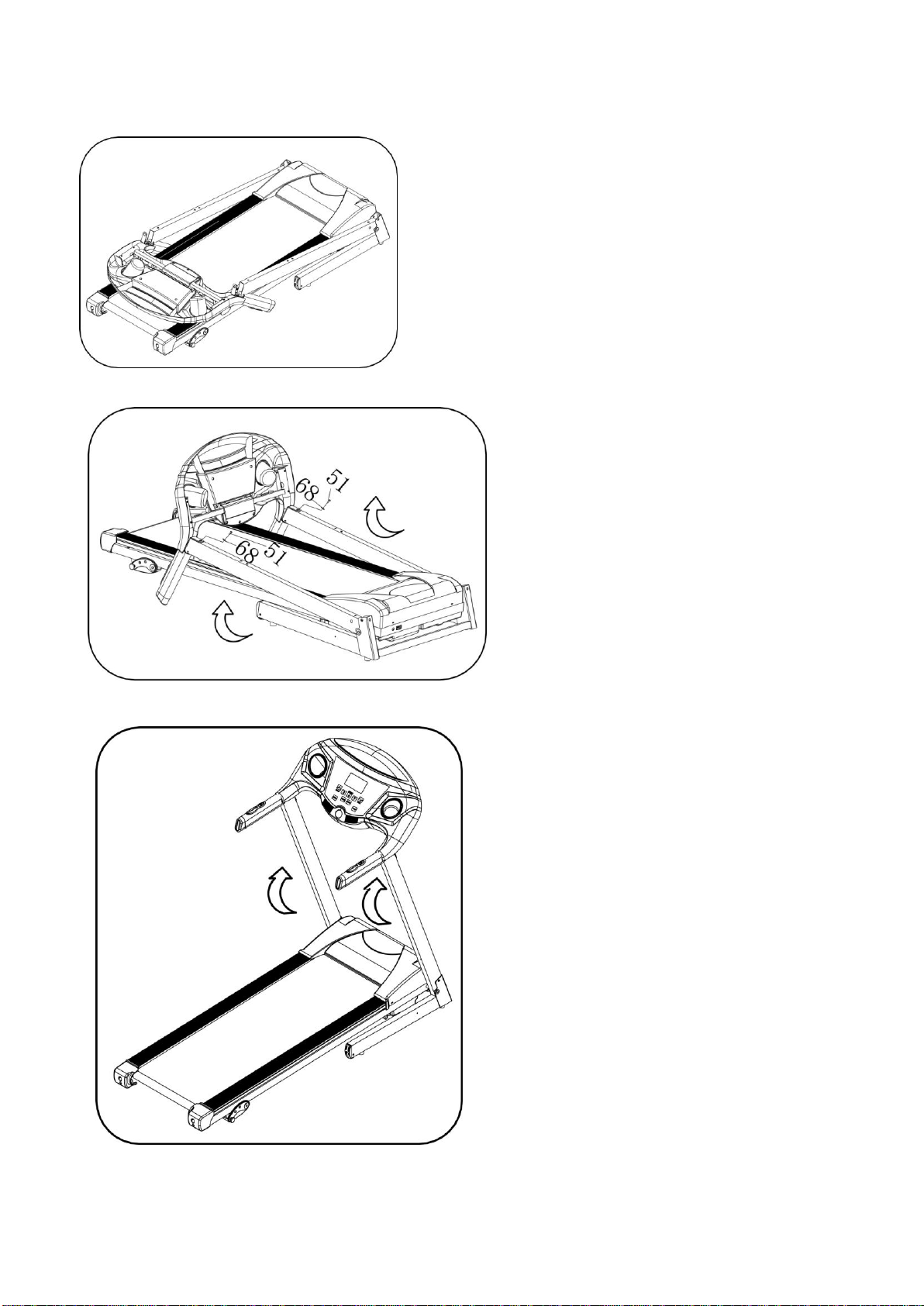

STEP 1:
STEP 2:
STEP 3:
Open the carton, get out the above spare
parts, and put the Main Frame onto the
level ground.
Push up the Computer and upright.
Notice: Support the upright with hand,
avoid falling down to have any hurt.
1.Push up the Computer and L& R upright
as the arrow position.
2.Screw off the M8*16 bolt(51) and Arc
washer（68）from right upright.
3.Use the 5# Allen wrench, M8*16
bolt(51) and Arc washer（68）, fix the
computer frame onto the right and left
upright.
Notice: the wire in the upright can not be
pressed and pls check and make sure the
wire is connected well. hold the upright
and computer by hand, that they will not
fall down escaping any hurt.

4

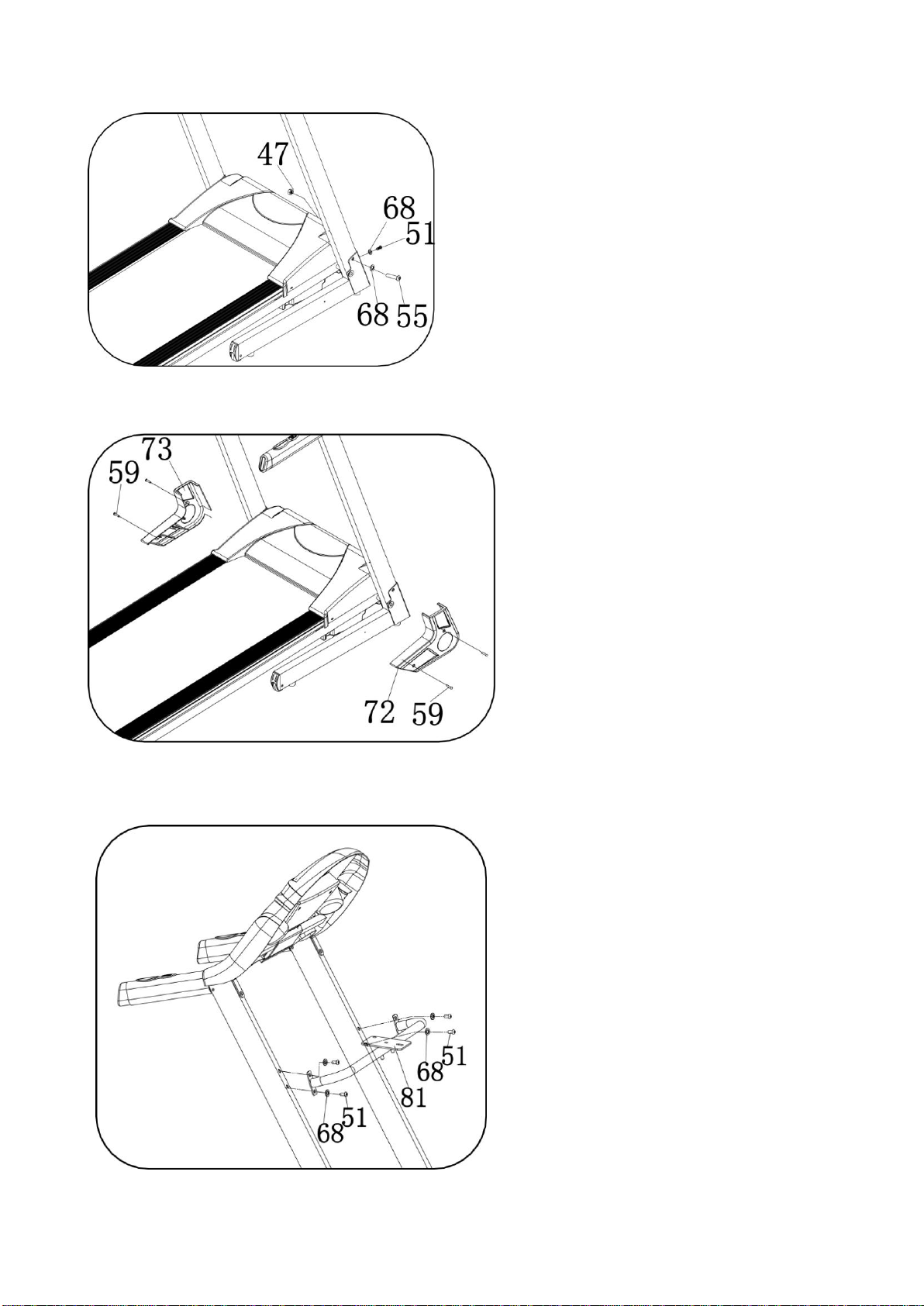

STEP 4:
STEP 5:
STEP 6:
1.Use the 5# Allen wrench，fix the right
upright onto the base frame with M8*45
screw(55), arc washer（68）, and screw
(47)
And then fix the right upright onto the
base frame with screw M8*16(51)
and arc washer（68）.
Same way to fix the left upright onto the
base frame.
1.Use the 5# Allen wrench,screw
M8*16(51), lock washer （68 ）fix the
massager fixing frame (81) on both
upright.
Use Wrench Screw Driver(39) and screw
ST4.2*19(59), fix the Left Base Cover(73)
and Right Base Cover(72) on both upright.

5
STEP 7:
STEP 8:
STEP 9:
1.Use the 5# Allen wrench and Wrench
screw Drive,screw M8*16(51), lock washer
（68）fix one side of massager support
frame (80) on the frame.
2.Use Wrench screw Drive, bolt M8(47), lock
washer（68）fix the other side of massager
support frame (80) on the massager fixing
frame.
Screw off three bolt, flat washer, spring
washer(64,65,87) on massager head(82).
Then use wrench screw drive fix the
massager head on massager fixing
fame(81) by the screwed off bolt, flat
washer and spring washer.
1. Cover the foam (85) into the Massager
support frame (80)

6

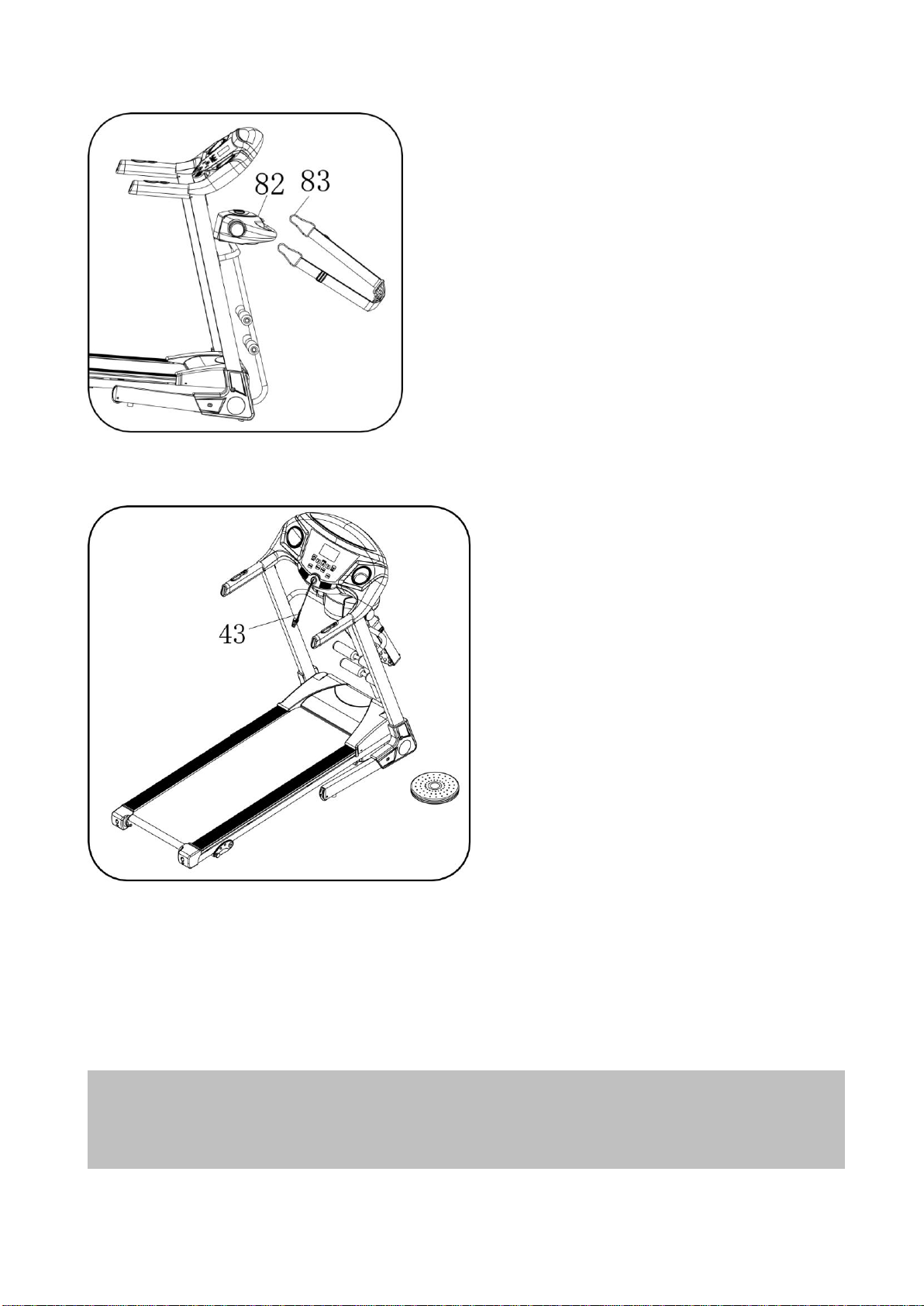

STEP 10:
STEP 11:
1. Hand the massager belt(83) on the
massager head(82).
Put the safety key (43) on the
computer,and put the twister on the
right or left of treadmill.
ATTENTION：Please confirm complete assembly as the require above and lock all the bolt. Do the
following operation after checking everything is OK. Before you use the treadmill, please read the
instruction
carefully.

7

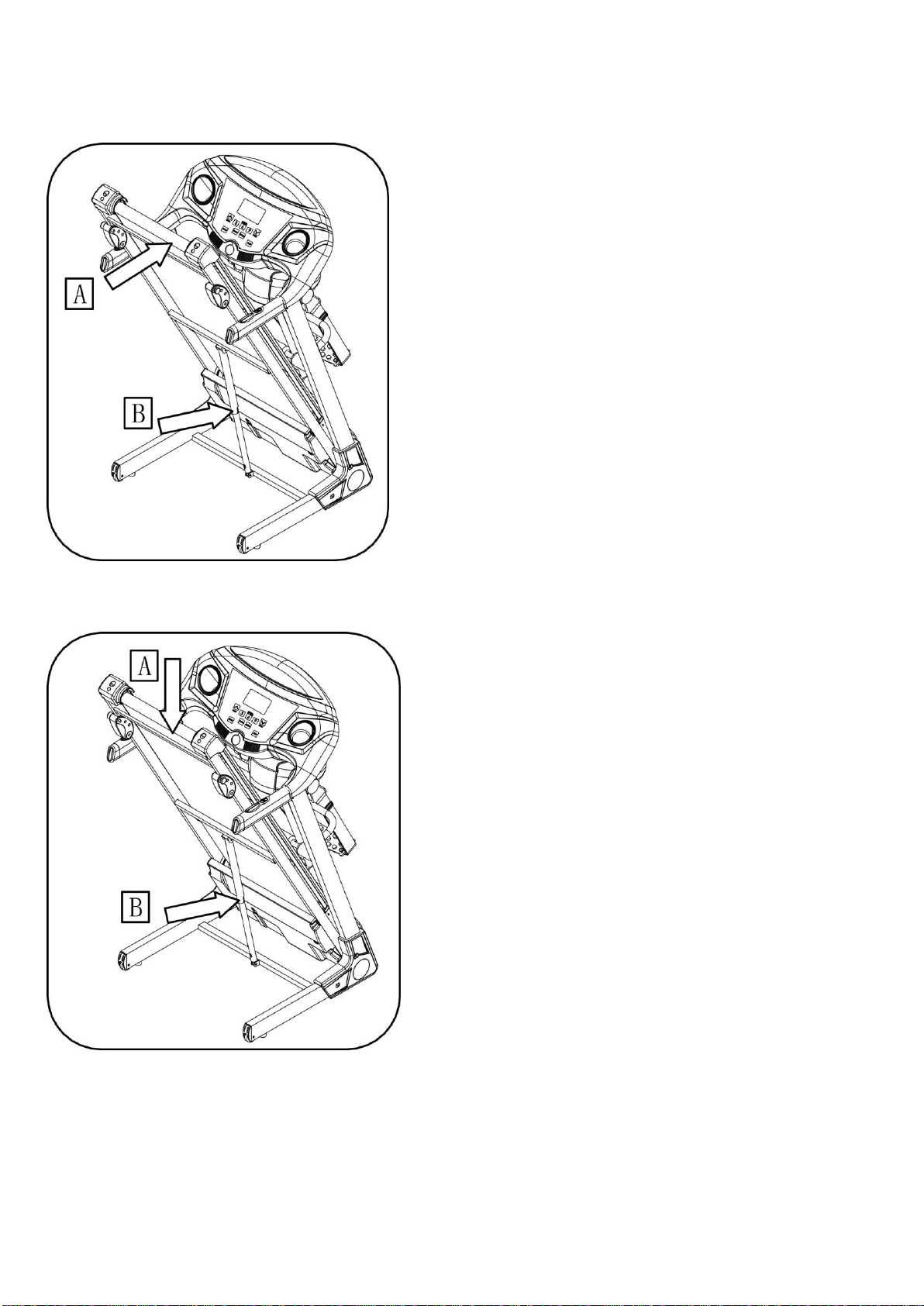

Pulling up:
Pulling down:
Pull up the base frame at position A, till
hearing the sound that the air pressure bar
B is locked into the round tube.
Support place A with hand , kick the place of
air pressure bar, then the base frame will fall
down automatically ( Please keep anybody
and any pet away the machine when falling
down).

8
TECHNICAL PARAMETER
GROUNDING METHOD
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product –if it will not fit the outlet, have a proper
outlet installed by a qualified electrician. This product is for use on a nominal 220~240 volt circuit and has a
grounding plug that looks like the plug illustrated in sketch A in following figure. Make that the product is
connected to an outlet having the same configuration as the plug. No adapter should be used with this
product.
BUILT UP SIZE(mm)
1689*690*1341mm
POWER
As the rating label showing
FOLDABLE
SIZE(mm)
928*690*1452mm
Maximum output
power
As the rating label showing
RUNNING BOARD
SIZE(mm)
420*1250mm
SPEED RANGE
0.8-14KM/H
NET WEIGHT
58KG
1 LCD WINDOW
WITH BLUE
BACKGROUND
Speed, Time, Distance, Calories, Pulse

9
OPERATION GUIDE
LCD WINDOW DISPLAY:
1.Speed window show current speed values, the speed range is 0.8-14.0KM/H.
2.Time window show running time. Time ranges from 0:00-99:59.
3. CAL/DIST window show the calorie consumption or the running distance. When in standby or running
state,it will show the calorie consumption or the running distance every other 5 seconds.
4. “PULSE” window show the heart beating. When runner hold the handpulse sensor, the window will show
the heart beating value.(The value only for your reference an it can’t be refered as medical data ).
5. ”PROG” window show the built-in program.When in manual mode,it will show “---“.
FUNCTION KEYS
1. ”MODE “ is for mode selection button. Press this button to circulate selected :Manual Mode -->Time
Countdown Mode -->Distance Countdown Mode --> Calorie Countdown Mode.
2. “PROG key: under standby state, press this key to set circulate selected: “Manual Mode”, “P01-->P12”, FAT.
P01-P12 is built-in programs
FAT is body fat testing mode.
3. “START” is activate key .When power on and safety key put on the computer correctly , press this
button can start the treadmill.
4. “STOP” is cease key. press button in the running will stop the motor running
5. “SPEED+” “SPEED-“ are speed adjustment key. Adjust speed fast or slow when excising. Set parameter
when stopped. The adjustment rang is 0.1KM every time, when keep pressing the key over 0.5 second, it will

10
automatic increases or decreases.
6. “SPEED: 3. 6. 9” are shortcut keys for speed which can set the speed quickly.
QUICK START( MANUAL MODE)
1. Turn on the power switch, put the safety key on computer panel correctly.
2. Press “START” key, the window will display: 3-2-1, a buzzer will sound, at the same time, the treadmill will
run at the lowest speed.
3. Press “SPEED+”、“SPEED -”to adjust speed as necessary after starting the treadmill.
OPERATING DURING RUNNING
1. Press “speed-“ will decrease the treadmill’s running speed.
2. Press “speed+“ will increase the treadmill’s running speed.
3. Press “stop”, the treadmill will slow down until stop.
4. When runner hold the handle bar with hand pulse 6 seconds, it will show the heartbeat data.
MANUAL MODE
1. Under standby mode, press “START”, the treadmill start run at speed 0.8km/h, other windows start counr
from zero, press “speed+”, “speed-”to adjust speed.
2. Under standby mode, press “mode” to enter time countdown mode, “TIME” window flicker, press
“speed+”,“speed-”to set running time, the range is 5:00-99:00.
3. Under time countdown mode, press “mode” to enter dictance countdown mode, the “DIS” window flicker,
press “speed+”, “speed-”to set distance, the range is 0.50-99.50.
4. Under dictance countdown mode, press “mode” to enter calorie countdown mode, the “CAL” wiindow
flicker, press “speed+”, “speed-”to set distance, the range is 10.0-995.0.
5. Select one of three countdown mode then press START, the treadmill will run in 3 seconds. Press“SPEED+”、
“SPEED -”to adjust speed. Press STOP to stop running.
BUILT-IN PROGRAM
The treadmill is with 12 programs from P01 to P12. Uder ready state, press “PROGRAM”, the window show
“P1-P12”. After choose your favor mode, time window will flicker and show the setting time, press “SPEED+”,
“SPEED-” to set running time. Then press ”START” to start the program. The built-in program divide into 20
sections. Per running time=setting time/20. When enter the next time section, you will hear “Bi-Bi- Bi-”. The
speed will change by programs. During that, you can adjust the speed by pressing “SPEED+”, “SPEED -”. But
when enter to next time section, the speed will the same as last time section. Finishing the program, the
system will sound as “B i-B i- B I”. The treadmill slow down till show “END”. It will enter standby mode in 5
seconds.

11
PROGRAM SCHEDULE
TIME
PROGRAM
To set time / 20 time = running time of each period
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P1
SPEED
2
3
3
4
5
3
4
5
5
3
4
5
4
4
4
2
3
3
5
3
P2
SPEED
2
4
4
5
6
4
6
6
6
4
5
6
4
4
4
2
2
5
4
2
P3
SPEED
2
4
4
6
6
4
7
7
7
4
7
7
4
4
4
2
4
5
3
2
P4
SPEED
3
5
5
6
7
7
5
7
7
8
8
5
9
5
5
6
6
4
4
3
P5
SPEED
2
4
4
5
6
7
7
5
6
7
8
8
5
4
3
3
6
5
4
2
P6
SPEED
2
4
4
4
5
6
8
8
6
7
8
8
6
4
4
2
5
4
3
2
P7
SPEED
2
3
3
3
4
5
3
4
5
3
4
5
3
3
3
6
6
5
3
3
P8
SPEED
2
3
3
6
7
7
4
6
7
4
6
7
4
4
4
2
3
4
4
2
P9
SPEED
2
4
4
7
7
4
7
8
4
8
9
9
4
4
4
5
6
3
3
2
P10
SPEED
2
4
5
6
7
5
4
6
8
8
6
6
5
4
4
2
4
4
3
3
P11
SPEED
2
5
8
10
7
7
10
10
7
7
10
10
5
5
9
9
5
5
4
3
P12
SPEED
3
4
9
9
5
9
5
8
5
9
7
5
5
7
9
9
5
7
6
3
BODY FAT TEST
Under standby mode, continued to press the button to enter the program's index (FAT) detection
capabilities, Press “mode” button into -1-, -2-, -3-, -4-, -5- interface (-1- gender, -2- age, -3-, height, -4-
weight, and -5- constitution, to detect), press "speed+", “speed-” could adjust the 01-04 parameters setting,
(the following table for reference), press “mode” button after setting, into -5- body test interface, hands
clasped hand pulse about 5 seconds will show you the health index and view your weight and height is
whether or not. Constitution index (fat) is evaluating a person in height and weight and is not in proportion,
fat applicable to any male and female, and together with other health indicators for the adjustment of the
weight of fat. the ideal fat should be between 20 and 25, if less than 19 means too thin, if it were,
sandwiched between 26 and 29 means overweight, and if more than 30 that are fat. (the data for reference
only and cannot be treated as medical data.)
-1-
Sex
0= male
1= female
-2-
Age
10------99
-3-
Hight
100----240
-4-
Weight
20-----160
-5-
FAT
≤19
Underweight
FAT
=(20---25)
Normalweight
FAT
=(26---29)
Overweight
FAT
≥30
Obesity

12
VALUE RANGE
SAFETY KEY FUNCTION
In any state, pull off safety key can stop the treadmill emergently, speed window shows "OFF", and buzz
BI-BI-BI sound will be heard. Put on safety key correctly, the treadmill will enter into standby mode and wait
for new direct.
POWER SAVE MODE
This system has function of saving power, if no instruction input under 10 minutes, the system will be into
power saving mode, shut down display automatically, press any key can resurrects system.
MP3 FUNCTION
After electrify connected MP3 or other audio equipment,the computer can play music. The sound control is
in the audio equipment, please pay attention to control the sound lest affect sound quality and built-in
audio circuits.
POWER OFF
At any time you can close the treadmill by turn off the power, so won’t damage the treadmill.
ATTENTION
1. Check the power on line and safety key is effective before exercise.
2. You can pull out the safety key, if any dangerous condition occurs while exercise, then the treadmill will
stop immediately ;Attach the magnet end of the safety pulling rope to the computer, the treadmill will be at
the begin of running.
3. Contact with the distributor directly if there are any problems on the machine Never try
to demolition or fix up the equipment by yourself except for the professional.
CONSOLE SIMPLE TROUBLE SHOOTING METHOD
RANGE
DEFAULT
MODE
DEFAULT
PROGRAM
SET RANGE
SPEED
0.8KMH—14KMH
--------
--------
--------
TIME
0:00—99:59
30:00
30:00
5:00---99:00
DISTANCE
0.00KM—99.9KM
1.00KM
--------
0.5KM—99.5KM
CALORIES
0Kcl—999Kcl
50Kcl
--------
10Kcl—995Kcl

13
1. Probable reason for computer not workable after power start: The wire from computer to bottom control
board didn’t connected well or the transformer was burnt out. Check the each wire from computer to
control board, make sure they are connected well. If the wire is destroyed , change it. If the above can not
settle the problem, try to change a good transformer.
2. Display E01: Message failure. Probable reason: The wires from computer and bottom control board didn’t
connect well, please check each wire. If the wire was destroyed, change a good one.
3. Display E02: Burst clash. Check the power is right, if not, use correct power to test; Check if the bottom
control was burnt out, change a good one; reconnect the motor wire.Check the motor,or change a good
one
4. Display E05 overcurrent protection. the reason is overloading of power, starting the system
self-protection, or the parts of machine being stocked, result to motor power off; re-setting the panel and
press “START”. Inspecting whether the smell of burning of motor or the sound of voltage , exchange the
motor, or the controller; checking the power voltage whether normal or not , testing the voltage with usual
value.
5. If the motor can not work after pressing START button, the probable reason: the motor wire is broken;
the safety pipe is broken or fell; motor wire is not connected well; IGBT on bottom control board is burnt
out. Test the above reasons and change the relevant part.
EXERCISE INSTRUCTIONS
WARM UP STAGE
If you are over 35 years old, or not very healthy, also it’s your first time exercise, please consult with
your doctor or professional person.
Before you use the motorized treadmill, please learn how to control the machine, know well how to
start, stop, adjust the speed and so on, don’t stand on the machine at this time. After that, you can use the
machine. Stand on anti-slip pad both sides and handle the handle bar with your both hands. Keep the
machine at the low speed about 1.6~3.2 km/h, then test the running machine by one foot, after get used to
the speed, then you can run on the machine and you can add the speed between 3 and 5 km/h. Keep the
speed about 10 minutes, then stop the machine.
EXERCISE STAGE
Learn how to adjust the speed and incline before using. Walk about 1 km at stable velocity and write
down the time, it will take you about 15-25 minutes. If walk at 4.8 km/h, it will take you about 12 minutes in
1 km. If you feel comfortable at the stable velocity, you can add the speed and incline, after 30 minutes, you
can have good exercise. At this stage, you can not add the speed or incline too much at one time, it can
keep you feel comfortable.

14
EXERCISE INTENSITY
Warm up at the speed 4.8 km/h in 2 minutes, then add the speed to 5.3 km/h and keep walking in 2
minutes, then add to 5.8km/h and walk in 2 minutes. After that, add up 0.3 km/h in each 2 minutes, until
rapid breath but not feel comfortable
Calorie burning---the best effective way
Warm-up for 5mints by the velocity:4-4.8KM/H, then slowly increase the speed by
0.3KM/H/2Mints ,until up to the stable speed which you feel is comfortable for 45Mints.For improving the
intensity of movement, you can maintain the speed during 1H of TV program, then increase the speed by
0.3KM/H each Advertisement interval time, after that return to the original speed . You can acquaint the
best efficiency of workout for calorie burning during the advertisement time and subsequent heart
frequency increasing time. Finally , you should slow down the speed step by step for 4Mints.
EXERCISE FREQUENCY:
The cycle time: 3-5times/Week, 15-60mints/Times.Make up the schedule of workout scientific, not
only for your hobby. You can control the running intensity through adjusting the velocity and incline of
treadmill. We suggest that you don’t set the incline at first; improve the incline is the effective way to
strengthen the exercise’s intensity.
Consult with your physician or health professional before starting your workout. The professional
people can help you make up the suitable exercise time-chart according to your age and health condition,
determine the velocity of movement, the intensity of exercise. Please stop at once, If you feel chest
tightness, chest pain, irregular heart beat, breath difficulty, dizziness or other discomfort during exercise.
You should consult with your physician or health professional as keep going.
You can choose the normal walking speed or the jogging speed ,if you always take workout with
treadmill.
If you don’t have enough experiences or confirm the testing velocity ,you can follow the instruction :
Speed 1-3.0KM/H not well physical
Speed 3.0-4.5KM/H less movement and workout
Speed 4.5-6.0KM/H normal walking
Speed 6.0-7.5KM/H Fast walking
Speed 7.5-9.0KM/H Jogging
Speed 9.0-12.0KM/H intermediate speed walking
Speed 12.0-14.5M/H well experiences of running
Speed 14.5-16.0KM/H excellent runner
Attention: The velocity of movement ≤6KM/H, the normal walking; The velocity of movement ≥8.0KM/H,
the runner.

15
WARM-UP INSTRUCTION
Before exercise, it is better to do stretching
exercises . Warm muscles stretch more easily, so
the first of 5 ~ 10 minutes to warm up. Then in
accordance with the following methods to stop
and do stretching exercises - do five times, each
leg every time 10 seconds or more time to do it
again after the end of the exercise.
1. Down the stretch: knees slightly curved, the
body bent forward slowly, so that the back and
shoulders relaxed, hands try to touch your toes.
Maintain 10 to 15 seconds, then relax. Repeat
three times to do (see Figure l).
2. Hamstring stretch: sitting on the clean seat, put
one leg straight. Inward close to the other leg to
make it close to the inside leg straight. hand try to
touch the toes. Maintain 10 to 15 seconds, then
relax. Repeat for each leg do three times (see
Figure 2).
3. Legs and feet tendon stretch: two on the Rotary
wall or tree stand, one foot in the post. Keep legs
straight and heel to tilt the direction of the wall or
tree. Maintain 10 to 15 seconds, then relax.
Repeat for each leg do three times
(see Figure 3).
4 quadriceps stretch: the left hand wall or table Fu
master balance, and then stretched his right hand
back
5.Sartorius muscle (inner thigh muscles) stretch:
Foot In contrast, the knee outward to sit down.
The hands grasp the feet to the groin pull.
Maintain 10 to 15 seconds, then relax. Repeat
three times
(see Figure 5).

16
RUNNING BELT ADJUSTMENT
Warning: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR
SERVICING THE UNIT.
Clean: General cleaning or the unit will greatly prolong the treadmill.
Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the
walking belt and also the side rails. This reduces the build up of foreign material underneath the walking
belt by wearing the clean running shoes.
Warning: Always unplug the treadmill from the electrical outlet before removing the motor cover. At least
once a year remove the motor cover and vacuum under the motor cover.
RUNNING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck friction
may play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We
recommend a periodic inspection of the deck. You need contact with our service center if you find the
damage of the deck.
We recommend lubrication of the deck according to the following timetable:
Light user (less than 3 hours/ week) annually
Medium user (3-5 hours/ week) every six months
Heavy user (more than 5 hours/ week) every three months
We recommend that you buy the lubrication from our distributor or directly to our company.
Attention: Any repair need the professional technician.
1, We suggest that you should cut off the power for 10Mints after keep running 2HS ,so that it’s good for
maintain the treadmill.
2,For avoiding the slipping during running , the belt not too loose; for avoiding the more abrasion between
the roller and belt and maintain the machine’s good running ,the belt not too tight. You can adjust the
distance between plates and belt , the belt be away from the plates about 50-75mm on both sides ,if the
best not too tight and loose.

17
CENTER THE RUNNING BELT
●Place treadmill on a level surface. Run Treadmill at
approximately 6-8KM/H, checking the running
condition.
If the belt has drifted to the right, pull out of the
save clock and switch, turn the right adjusting bolt
1/4 turn clockwise, then start running until
centering the belt. PIC A
If the belt has drifted to the left ,pull out of the
safety clock and switch, turn the left adjusting bolt
1/4 turn clockwise ,then start running until
centering the belt .PIC B
Timely adjust the tightness of the belt ,for the
looseness after a period of time running. Pull out of
the safety clock and switch , turn the left and right
adjusting bolt 1/4 turn clockwise ,then re-start
running, confirm the belt-tightness until the belt be
right tightness. PIC C

18

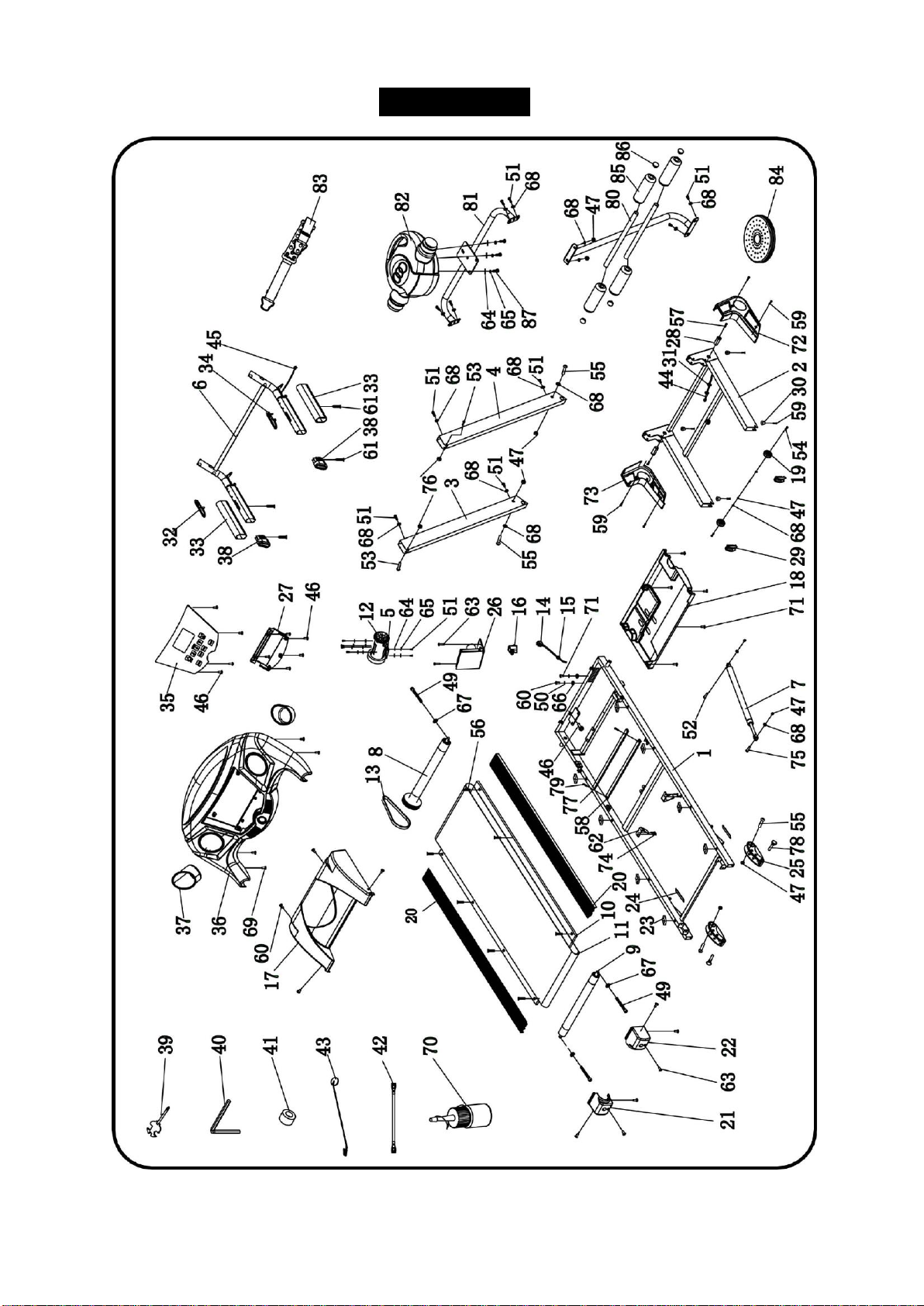

EXPLODED DRAWING

19
PARTS LIST
No.
Item
Spec.
No.
No.
Item
Spec.
No.
1
Main Frame
1
44
Computer Bottom
Wire
1
2
Base Frame
1
45
Computer Up Wire
1
3
Left Upright bracket
1
46
Screw
ST4.2*13
9
4
Right Upright bracket
1
47
Bolt
M8
10
5
Motor Bracket
1
48
Bolt
M8*25
1
6
Computer frame
1
49
Bolt
M6*55
3
7
Cylinder
1
50
Standard spring
washer
5
2
8
Front Roller
1
51
Bolt
M8*16
16
9
Back Roller
1
52
Bolt
M8*25
20
1
10
Running deck
1
53
Bolt
M6*37 15
2
11
Running belt
1
54
Bolt
M8*40 20
2
12
DC Motor
1
55
Bolt
M8*45 20
4
13
Motor belt
1
56
Bolt
M6*35
8
14
Standard power cord
1
57
Bolt
M10*55
35
2
15
Power bushing
1
58
Reinforcement Tube
1
16
Switch
1
59
Screw
ST4.2*19
8
17
Motor Cover
1
60
Bolt
M5*8
6
18
Motor Bottom Cover
1
61
Screw
ST4.2*55
4
19
Transport wheels
2
62
Guide Belt Hook
2
63
Screw
ST4.2*19
8
64
Flat washer
8
6
20
Side Rail
2
65
Standard spring
washer
8
6
21
Left Back End Cover
1
66
Lock Washer
5
2
22
Right Back End Cover
1
67
Lock Waher
6
3
23
Rubber pad
8
68
Lock Washer
8
20
24
Rubber pad 2
2
69
Screw
ST4.2*20
4
25
Adjustable foot pad
2
70
Silicon oil
1
26
Control Board
1
71
Screw
ST4.2*12
5
27
Seal Panel
1
72
Right Upright Cover
1
28
Rotating casing
2
73
Left Upright Cover
1
29
Wheel covers
2
74
Screw
ST4.2*12
4
30
Foot pad
4
75
Bolt
M8*42
20
1
31
Ring Protecting Wire Plug
2
76
Bolt
M6
2
32
Handle Pulse With
Start/Stop
1
77
EVA Pad
450*20*7
1
33
Foam
2
78
Fix Pin
2
34
Handle Pulse With Speed
1
79
Bolt
M6*16
2
35
Computer
1
80
Massager Support
Frame
1
