Altis OSCAR User manual

OSCAR MOTORIZED TREADMILL USER MANUAL
Special tips:
1. Before installation and operation, please read this operation manual carefully.
2. Please save this manual for future reference.
3. Product may vary slightly from the item pictured due to model upgrades

IMPORTANT SAFETY INSTRUCTIONS
Danger–To reduce the risk of electric shock disconnect your treadmill from the electrical outlet
prior to cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING
IMPORPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
1) Install the treadmill on a flat level surface with access to a suitable voltage, grounded
outlet.
2) Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet
and treadmill may result.
3) Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between
the rear of the treadmill and any fixed object.
4) Place your unit on a solid, level surface when in use.
5) Never allow children on or near the treadmill.
6) When running, make sure the plastic clip is fastened on your clothing. It is for your safety,
should you fall or move too far back on the treadmill.
7) Keep hands away from all moving parts.
8) Never operate the treadmill if it has a damaged cord or plug.
9) Keep the cord away from heated surfaces.
10) Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly flammable environment.
11) Never drop or insert any object into any openings.
12) To disconnect, turn all controls to the off position, remove the safety key, and then remove
the plug from the outlet.
13) The pulse sensors are not medical devices. Various factors, including the user’s movement,
may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
14) Use handrails provided; they are for your safety.
15) Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
16) Allowed temperature: 5 to 40 degrees.
Remove the safety key after use to prevent unauthorized treadmill operation.
WARNING - Read all instructions before using this treadmill. It is important your treadmill
receives regular maintenance to prolong its useful life. Failing to regularly maintain your
treadmill may void your warranty.

IMPORTANT ELECTRICAL INFORMATION
WARNING!
1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the
power cord away from any moving part of the treadmill including the elevation mechanism
and transport wheels.
2) NEVER operate treadmill on Generator or UPS power supply.
3) NEVER remove any cover without first disconnecting AC power.
4) NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use
outdoors, near a pool, or in any other high humidity environment.
IMPORTANT OPERATION INSTRUCTIONS
1) Insert the power plug into the socket directly.
2) Be sure to read the entire manual before operating your machine.
3) Understand that changes in speed and incline do not occur immediately. Set your desired
speed on the computer console and release the adjustment key. The computer will obey
the command gradually.
4) Use caution while participating in other activities while walking on your treadmill; such as
watching television, reading, etc. These distractions may cause you to lose balance or stray
from walking in the centre of the belt; which may result in serious injury.
5) In order to prevent losing balance and suffering unexpected injury, NEVER mount or
dismount the treadmill while the belt is moving. This unit starts with a very low speed.
Simply standing on the belt during slow acceleration is proper after you have learned to
operate this machine.
6) Always hold on to handrail while making control changes.
7) A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Insert the safety key will reset the
display.
8) Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure.
9) This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety, Children should be supervised to ensure that they do not play with the
appliance.
10) Please consult your doctor at first before running, if you have one of the following diseases:
a.Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other
chronic diseases, complication disease.
b.If you are over 35 years old and heavier than common weight.
c. Women in pregnant or in breasting period.
11) Please stop exercising immediately and consult your doctor when you feel giddy, surfeit,
thorax ache or other symptoms.

12) Please drink adequate water after taking exercises on our treadmill for more than 20
minutes.
Warning: Now here we suggest that you should consult with your physician or health professional
before starting your workout, especially for the age up to 35 old or once-health problem people.
We take no responsible for any troubles or hurts if you don’t following our specification. Treadmill
will be carefully assembled and covered the motor shield, then connect to the power.
ASSEMBLY INSTRUCTIONS
When you open the carton, you will find the below spare parts:
SPARE PARTS LIST:
NO.
DES.
Specification
Nos.
NO.
DES.
specification
Nos.
1
main frame
1
101
Lock washer
8
10
11
lock washer
S=13、14、15
1
12
5# Allen Wrench
5mm
1
80
Bolt
M8*10
10
94
Screw
ST4.2*12
4
38
Right handle bar cover L
1
39
Right handlebar cover
R
1
56
Left handle bar cover L
1
57
Left handlebar cover
R
1

FIXING TOOLS:
5#ALLEN WRENCH 5mm 1pcs、
WRENCH W/SCREW DRIVER S=13、14、15 1pcs
Notice: Do not get through power before complete assembly

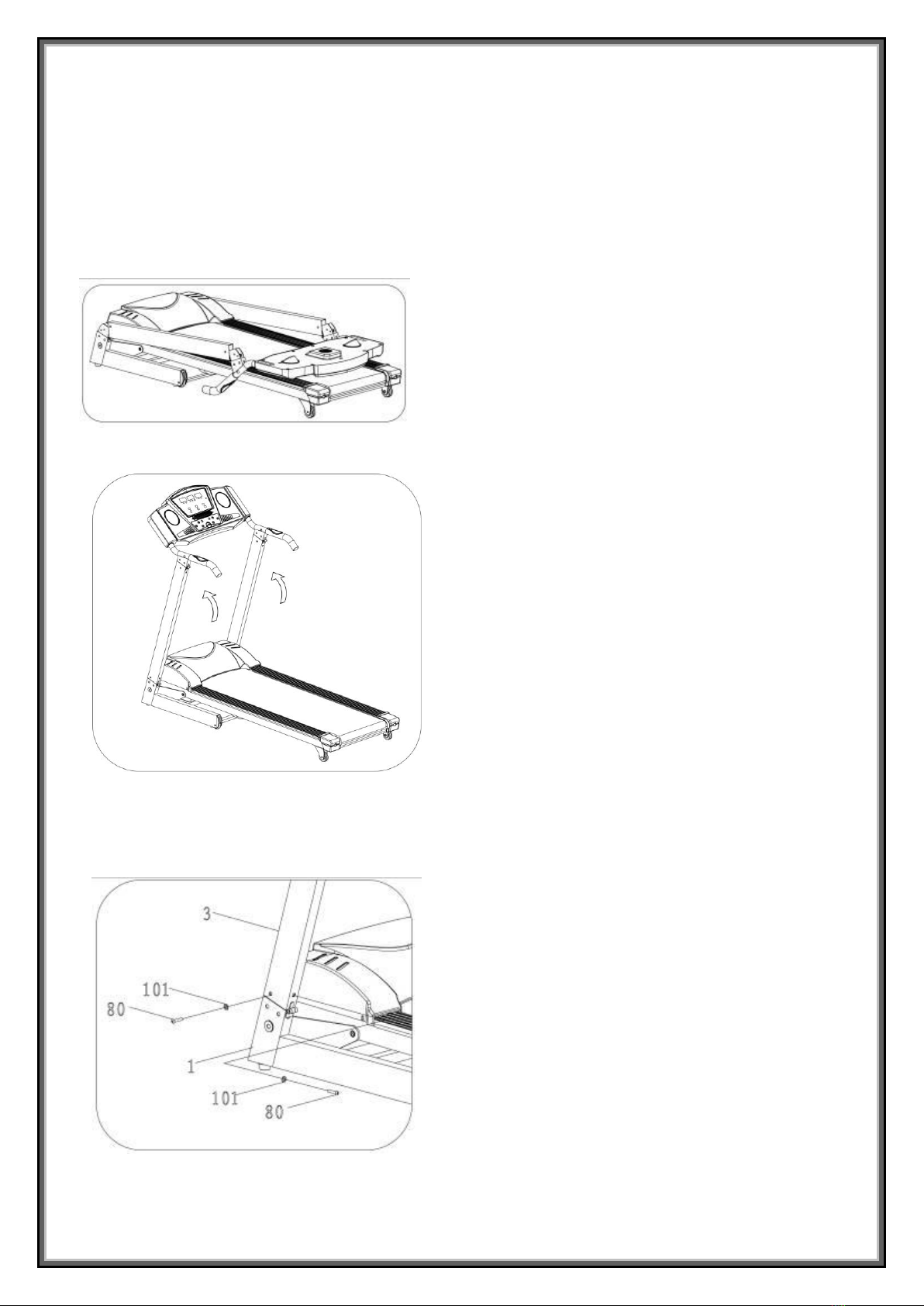

ASSEMBLY STEP ONE:
ASSEMBLY STEP TWO:
ASSEMBLY STEP THREE:
Open the carton,get out the above
spare parts,put the MAIN FRAME on
the ground.
Pull up the computer and upright as
arrow direction.
Notice: When you pull up them, make
sure the upright not press the wires in
upright; keep touch the upright and
computer by hand, that they will not
fall down escaping any hurt.
Use the 5# allen wrench, drill through the
bolt (80) to Lock washer(101), then lock the
Left upright (3) onto MAIN FRAME (1)
Notice: Support the Left upright with hand,
avoid falling down to have any hurt.

ASSEMBLY STEP FOUR:
ASSEMBLY STEP FIVE:
ASSEMBLY STEP SIX:
Use the 5# allen wrench, drill through
the bolt (80) to Lock washer(101),
then lock the Right upright (4) onto
MAIN FRAME (1)
Use the 5# allen wrench, drill through
the bolt (80) to Lock washer(101),
then lock the COMPUTER (42) onto
R&L upright (3,4).
With ST4.2*12 Screw(94),Insert the
UPRIGHT COVER(56、57、38、39)
onto the L&R handle bar.
4

FOLDING INSTRUCTION
PULLING UP:
PULLING DOWN:
Support place A with hand, then pull
up following the arrow direction, till
hearing the sound that the cylinder
(B) is locked into the round tube
Support place A with hand , kick the
place B of air pressure bar, then the
base frame will fall down automaticlly
A
B
A
B

TECHNICAL PARAMETER
BUILT UP SIZE(mm)
1585*715*1315
INCLINE
0-12
FOLDABLE IZE(mm)
910*715*1470
SPEED RANGE
1.0-16KM/h
RUNNING SURFACE
SIZE(mm)
1250*450
DISPLAY
SPEED 、TIME、INCLINE、DISTANCE、CALORIES 、PULSE
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
OPERATION GUIDE
WINDOW DISPLAY:
1. ” INCLINE/PULSE” window: Display the runner heart beat and incline. Show the incline, the
incline range is 0-12 level; When the runner holds handle pulse with two hands, the system can
calculate the runner’s heart beat and show in this window, the range is 50-200 beats/min ( this
data is just for reference, can not be as the medical data).

2. ” TIME/CALORIES/DISTANCE” window: Display running time. Display the exercise time positive
direction clock from 0:00-99:59 ,when count to 99:59, the machine will stop smoothly and show
‘ End ‘, then enter into initial situation after 5 seconds; When count down, it will show from the
setting time to 0:00, when down to 0:00 , the machine will stop smoothly and show ‘ End ’, and will
enter into the initial situation.
Display runner’s calories worked out. it will count from 0 to 999, when up to 999, it will count again
from 0; when count down, it will count from the setting data to 0, when down to 0, the machine
will stop smoothly and show ‘ End ’, and enter into the situation waiting for operation after 5
seconds.
Display the running distance, Display the exercise time positive direction clock from 0:00-99:9,
when up to 99.9, it will count again from 0; When count down, it will show from setting data to 0;
When down to 0, the machine will stop smoothly and show ‘ End ’, enter into the initial situation
after 5 seconds.
3.“ SPEED “ window: Display the speed, the speed range is 1--16km/h, 1 grid means 1 km/h.
BUTTON FUNCTION:
1、“PROGRAM” Button:When the treadmill is not running, press the button can circle choose and
setupthe exercise time and program from “0 :00” 、
“ P1-P2-P3-P4-P5-P6-P7-P8-P9-P10-P11-P12-FAT”. Manual mode is the default program,the
default speed in kilometer is 1KM/H. (0:00 is manual mode,pre-set program :P1-P12 )
2、“MODE” Button:Press this button to choose circle modes: “0:00” “15:00”、“1.0”、“50” (“0:
00” is manual model, “15:00” is the time count down, “1.0” is distance count down and “50”
calorie count down); when you choose every mode,you can press the speed button and incline
button to set count,after that ,press the START button to start this treadmill.
3、“START”button:when start the power and attach the magnet end of the safety pulling rope to
the computer. Press the button at any time, it can start motor.
4、“STOP”button: press this button while running,it can stop motor and set program default;
5、“SPEED+”、“SPEED-” Button:set default count;to adjust speed when treadmill start,the scope
is 0.1km/hypo in kilometer. Press the button more than 0.5 seconds,will be up or down
duratively.
6. “INCLINE+”、“INCLINE-” Button: set the default incline; to adjust incline when treadmill start, the
scope is 1 section;
7. “SPEED:WALK、JOG、RUN” speed shortcut button:set the speed quickly
8. “INCL:LOW、MID、HIGH”incline shortcut button: set the incline quickly

9. Fan button:open or stop the fan (Optional)
START-UP QUICKLY(MANUAL)
1. Open the power switch, attach the magnet end of the safety pulling rope to the computer.
2. Press STATR/STOP button,the system will enter into 3 seconds count down, the buzzer will make
sound and the time window display count down, the speed will run 1.0km/hour after 3
seconds.
3. After start-up, you can use “SPEED+”、“SPEED -”to adjust the speed up or down; use
“INCLINE+”、“INCLINE -” to adjust the incline up or down.
THE OPERATION OF EXERCISE PROCESS:
1. Press speed-down will reduce the running speed.
2. Press speed-up will increase the running speed.
3. Press incline down will reduce the incline section.
4. Press incline up will increase the incline section.
5. Press STOP will reduce until it stopped.
6. When the user hold the hand pulse by both hand, the computer will show the user’s pulse data
after 5 seconds.
MANUAL MODE:
1. If you do not make any setting and press START button directly, the treadmill will start to run
from the speed 1.0km/h, incline 0. The other windows will start to count from positive direction
from windows default, press “SPEED+”, “SPEED-”change the speed, press “INCLINE+”、“INCLINE
-”to change the incline;
2. set up the Time, press “MODE” button to enter into time count down, the TIME window will
display“15:00” and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、“INCLINE –“ to set up the
time what you need. The setting range is 5:00-99:00.
3.In Time setting model, press “ MODE “ button to enter into distance count down, the DISTANCE
window will display “1.0” and glittering. Press “SPEED+”, “SPEED-”, “INCLINE+”、“INCLINE –“ to
set up the distance what you need. The setting range is 0.5—99.9.
4、To set up the Calories, press “MODE” button to enter into calories count down, the CAL
window will display “50’ and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、“INCLINE –“ to
set up the calories what you need. The setting range is 10-999.
5、When setting is finished, press “START” button to start up, the treadmill will run after 3 seconds,

press “SPEED+”, “SPEED-”, “INCLINE+”、“INCLINE –“ to adjust the speed and the incline; press
the STOP, the treadmill will stop.
MANUAL MODE:
1. If you do not make any setting and press START button directly, the treadmill will start to run
from the speed 1.0km/h, incline 0. The other windows will start to count from positive direction
from windows default, press “SPEED+”, “SPEED-”change the speed, press “INCLINE+”、“INCLINE
-”to change the incline;
2. set up the Time, press “MODE” button to enter into time count down, the TIME window will
display“15:00” and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、“INCLINE –“ to set up the
time what you need. The setting range is 5:00-99:00.
3.In Time setting model, press “ MODE “ button to enter into distance count down, the DISTANCE
window will display “1.0” and glittering. Press “SPEED+”, “SPEED-”, “INCLINE+”、“INCLINE –“ to set
up the distance what you need. The setting range is 0.5—99.9.
4、To set up the Calories, press “MODE” button to enter into calories count down, the CAL
window will display “50’ and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、“INCLINE –“ to
set up the calories what you need. The setting range is 10-999.
5、When setting is finished, press “START” button to start up, the treadmill will run after 3 seconds,
press “SPEED+”, “SPEED-”, “INCLINE+”、“INCLINE –“ to adjust the speed and the incline; press
the STOP, the treadmill will stop.
INNER INSTALL PROGRAM
Press “PROGRAM” button PULSE window will display P1-P12 to choose the program you like.
Setting of running time, then the TIME window display glittering. Display the advance setting
time10:00, press “SPEED+”, “SPEED-”, “INCLINE+”、“INCLINE –“ to set up the exercise time what
you need. Press “START” button to start the inner install program, the inner install program is
divided into 10 sect. Each exercise time=the setting time/10. When the system enter into the next
sect will make 3 sound “B—B—“ and the speed will be changed according to the setting program,
then press “SPEED+”, “SPEED-”, “INCLINE+”、“INCLINE –“ to change the SPEED and INCLINE,
When the program enter next sect will come back to the current speed and incline, and run the
one program, the system will make 3 sound “B—B—“ and change to the manual program
automatically.

PROGRAM EXERCISE CHART
Each program will divide into 10 grades for the exercise time and each time section has the speed
and incline accordingly.
Time Program
TIME INTERVAL
1
2
3
4
5
6
7
8
9
10
P1
SPEED
2
4
3
4
3
5
4
2
5
3
INCLINE
1
2
3
3
1
2
2
3
2
2
P2
SPEED
2
5
4
6
4
6
4
2
4
2
INCLINE
1
2
3
3
2
2
3
4
2
2
P3
SPEED
2
5
4
5
4
5
4
2
3
2
INCLINE
1
2
2
3
1
2
2
2
2
1
P4
SPEED
3
6
7
5
8
5
9
6
4
3
INCLINE
2
2
3
3
2
2
4
6
2
2
P5
SPEED
3
6
7
5
8
6
7
6
4
3
INCLINE
1
2
4
3
2
2
4
5
2
1
P6
SPEED
2
8
6
4
5
9
7
5
4
3
INCLINE
2
2
6
2
3
4
2
2
2
1
P7
SPEED
2
6
7
4
4
7
4
2
4
2
INCLINE
4
5
6
6
9
9
10
12
6
3
P8
SPEED
2
4
6
8
7
8
6
2
3
2
INCLINE
3
5
4
4
3
4
4
3
3
2
P9
SPEED
2
4
5
5
6
5
6
3
3
2
INCLINE
3
5
3
4
2
3
4
2
3
2
P10
SPEED
2
3
5
3
3
5
3
6
3
3
INCLINE
4
4
3
6
7
8
8
6
3
3
P11
SPEED
2
5
8
10
6
9
5
3
2
2
INCLINE
1
3
5
8
10
7
6
3
2
3
P12
SPEED
2
5
5
4
4
6
4
2
3
4
INCLINE
3
5
6
7
12
9
11
11
6
3
RANGE OF PROGRAM
PROGRAM
BEGIN
SET UP RANGE
DISPLAY RANGE
TIME(MIN:SECOND)
0:00
15:00
5:00-99:00
0:00-99:59
INCLINE(LEVEL)
0
0
0-12
0-12
SPEED(K/h)
1.0
1.0
1.0-16
1.0-16
DISTANCE(K)
0
1.0
0.5-99.9
0.00-99.9
PULSE(hypo/min)
P
N/A
N/A
50-200
CALORIE(THERM)
0
50
10-999
0-999

BODY TESTER:
At the beginning stage, press “ PROGRAM” continuely to select FAT “ MODE “ enter F-1、F-2、F-3、
F-4、F-5 ( F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 BODY FAT ),
Press “SPEED+”、“SPEED -” to set F-1 –F4 ( refer to the following chart), after that, press “ MODE”
to set F-5, grasp the hand pulse, the window will display your body quality index after 3 senconds.
The body quality index is to test the relation between height and weight. The body FAT suits for
any male and female, to adjust the weight according it together with other body quality index. The
idea FAT should be 20-25, if under 19, it means too thin. If between 25 and 29, it means
overweight, if over 30, it means obesity. ( The data is just for reference, can not be as medicinal
data)
F-1
Sex
01 male
02 female
F-2
Age
10------99
F-3
Height
100----200
F-4
Weight
20-----150
F-5
FAT
≤19
Underweight
FAT
=(20---25)
Normalweight
FAT
=(26---29)
Overweight
SAFETY LOCK FUNCTION:
Pull out the safety pulling rope, then the treadmill will stop immediately. All the windows
display“―――”,the buzzer will make 3 sound “B—B—”,now the treadmill must be stop. Attach
the magnet end of the safety pulling rope to the computer, the treadmill will be at the beginning of
running.
SAVE ON POWER FUNCTION:
The system is with saving on power function, at the state of waiting for operation, if without any
operate, the saving on power function will be available after 10 mins, the display will be closed
up. You can press any button to wake up the display.
MP3 FUNCTION
When the power on, Contacting the external MP3 equipment, the computer will play. The voice is
adjustable from operate the external MP3 equipment, the voice should be adjusted on the proper
section to protect the computer loudhailer.
POWER OFF:
Colse up the power: You can close up the power to stop the treadmill, it won’t be damaged at any
time.

CAUTION:
1. We recommend that you maintain a slow speed at the beginning of a session and hold on to
the handrails until you become comfortable and familiar with the treadmill.
2. Attach the magnet end of the safety pulling rope to the computer and also attach the clip of
the safety pulling rope to your clothing.
3. To end your workout safely, press the STOP button or pull out the safety pulling rope, then the
treadmill will stop immediately.
EXERCISE INSTRUCTIONS
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will
also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as
shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your
muscles into a stretch - if it hurts, STOP.
2. The Exercise Phase
This is the stage where you put the effort in. After regular use , the muscles in your legs will
become Stronger. Work to your but it is very important to maintain a steady tempo throughout.

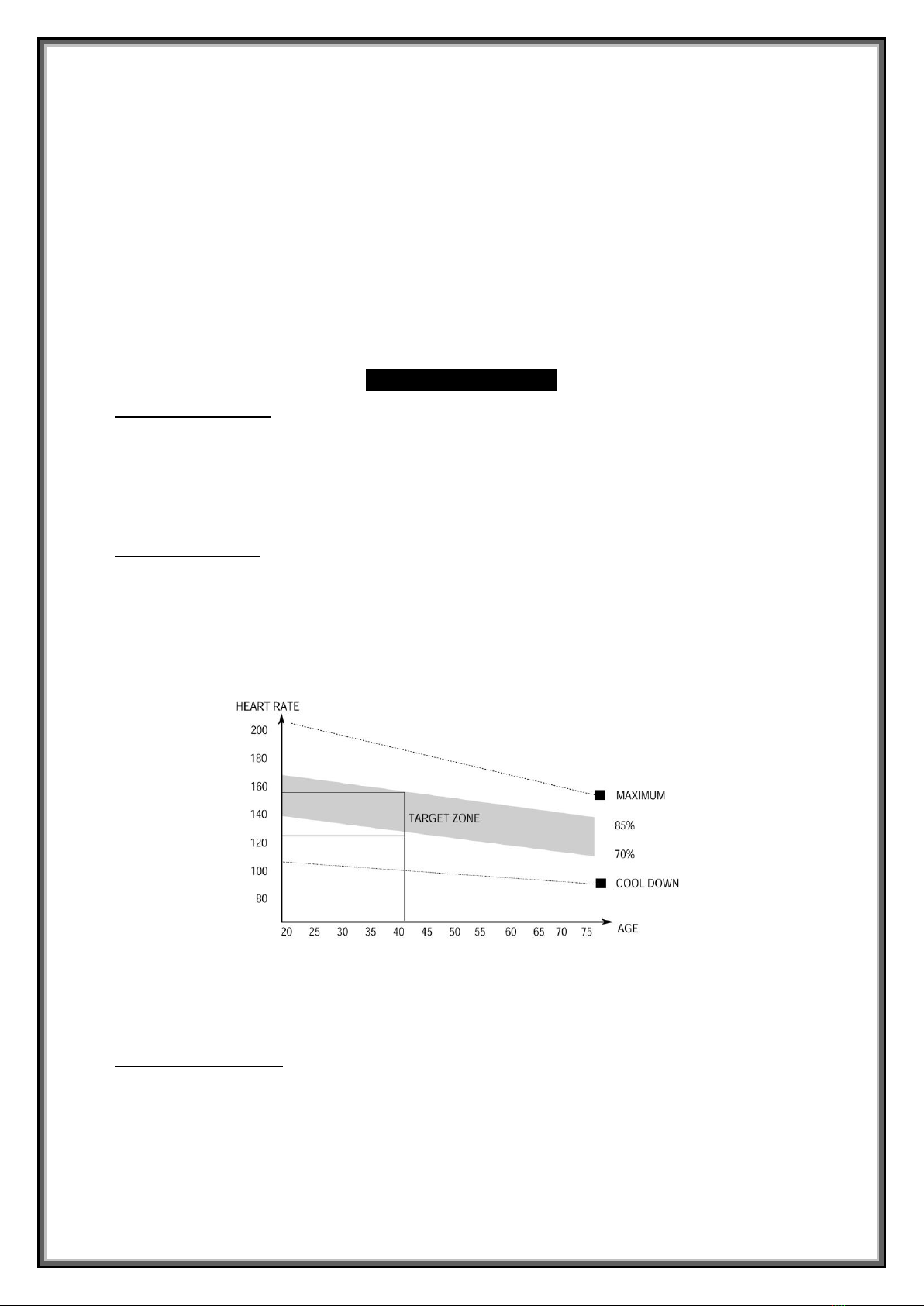

The rate of work should be sufficient to raise your heart beat into the target zone shown on the
graph below.
This stage should last for a minimum of 12 minutes though most people
start at about 15-20 minutes
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the
warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching
exercises should now be repeated, again remembering not to force or jerk your muscles into the
stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three

times a week, and if possible space your workouts evenly throughout the week.
To tone muscle while on your Treadmill you will need to have the resistance set quite high.
This will put more strain on our leg muscles and may mean you cannot train for as long as you
would like. If you are also trying to improve your fitness you need to alter your training program.
You should train as normal during the warm up and cool down phases, but towards the end of the
exercise phase you should increase resistance, making your legs work harden than normal. You
may have to reduce your speed to keep your heart rate in the target zone.
The important factor here is the amount of effort you put in. The harder and longer you work the
more calories you will burn. Effectively this is the same as if you were training to improve your
fitness, the difference is the goal.
MAINTENANCE INSTRUCTIONS
WALKING BELT CENTERING AND TENSION ADJUSTMENT
DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and
excessive roller wear.

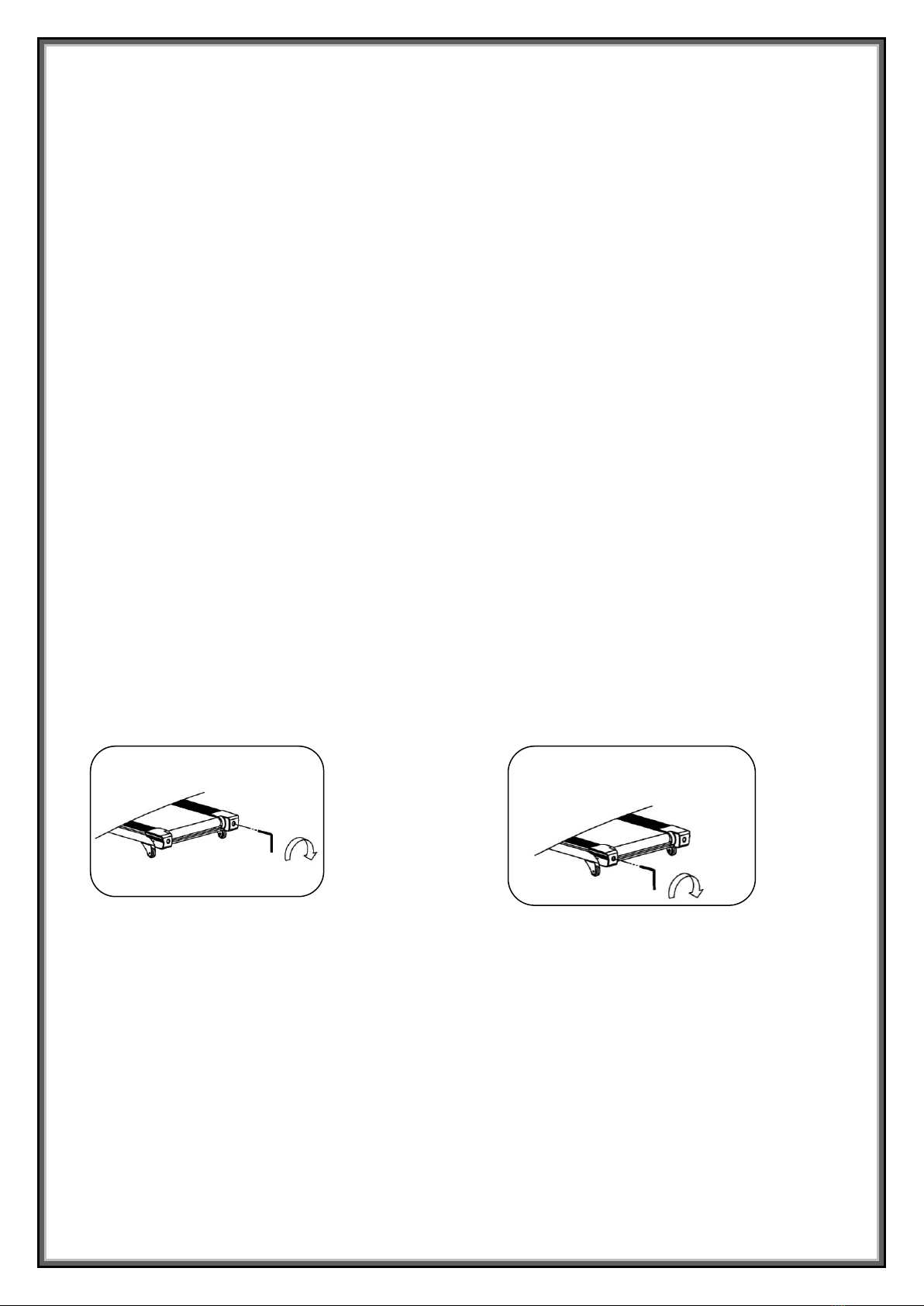

TO CENTER WALKING BELT:
● Place treadmill on a level surface
● Run treadmill at approximately 3.5 mph
● If the belt has drifted to the right, turn the right adjusting bolt 1/2 turn clockwise and the left
adjusting bolt 1/2 turn counterclockwise
● If the belt has drifted to the left, turn the left adjusting bolt 1/2 turn clockwise and the right
adjusting bolt 1/2 turn clockwise and the right adjusting bolt 1/2 turn counterclockwise
Picture A If the belts has drifted to the RIGHT Picture B If the belts has drifted to the LEFT
WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING
OR SERVICING THE UNIT.
CLEANING
General cleaning or the unit will greatly prolong the treadmill.Keep treadmill clean by dusting
regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also
the side rails. This reduces the build up of foreign material underneath the walking belt.
The top of the belt may be cleaned with a wet, soapy cloth. Be careful to keep liquid away from

inside the motorized treadmill frame or from underneath the belt. Warning:Always unplug the
treadmill from the electrical outlet before removing the motor cover. At least once a year remove
the motor cover and vacuum under the motor cover.
WALKING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck
friction may play a major role in the function and life of your treadmill, thus requiring periodic
lubrication. We recommend a periodic inspection of the deck.
We recommend lubrication of the deck according to the following timetable:
Light user (less than 3 hours/ week) every three weeks
Medium user (3-5 hours/ week) every two weeks
Heavy user (more than 5 hours/ week) every week

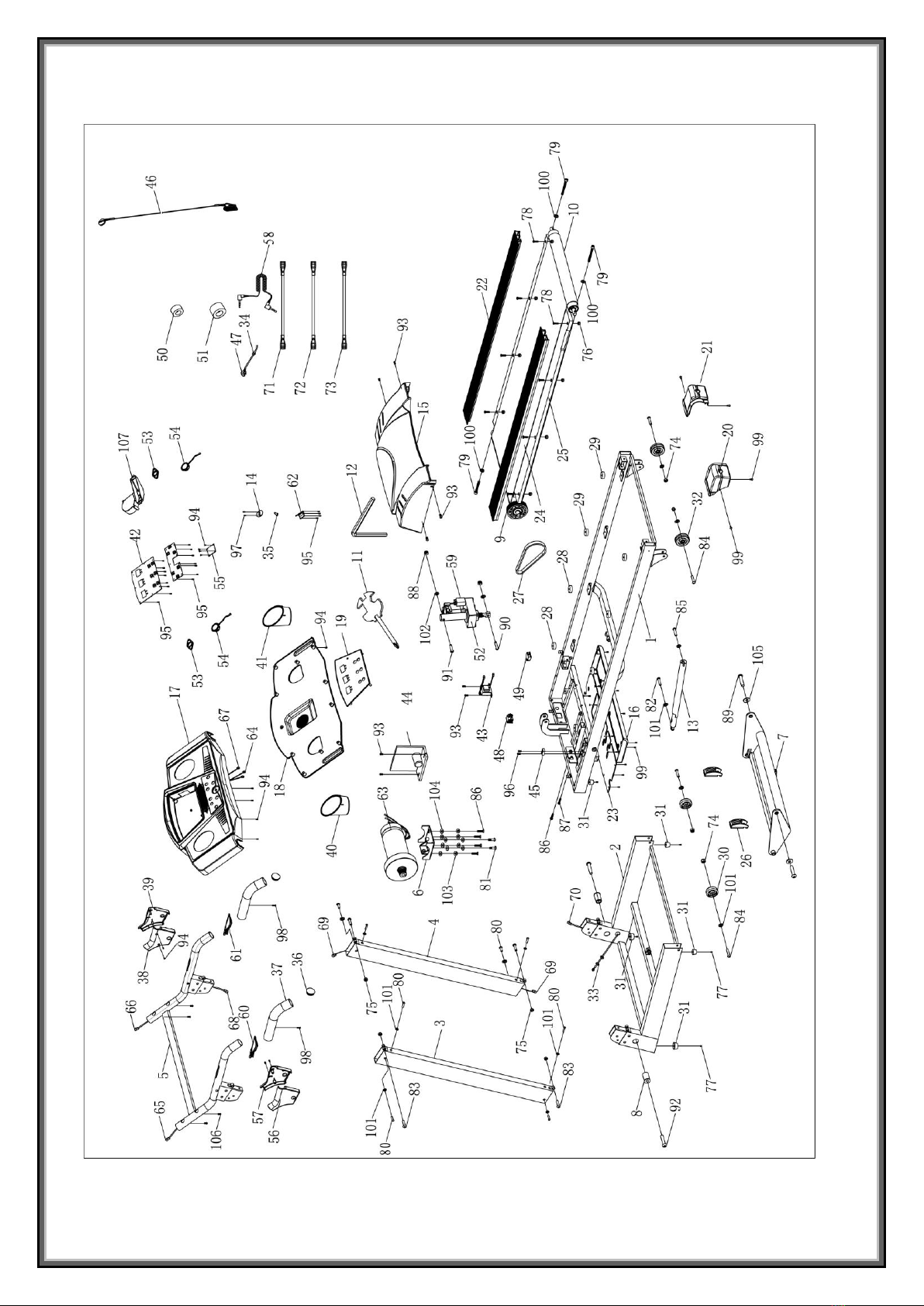

EXPLODED DRAWING

PARTS LIST:
#.
DESCRIPTION
REMARK
QTY
#.
DESCRIPTION
REMARK
QTY
1
MAIN FRAME
1
38
LEFT HANDLEBAR
COVER L
1
2
BASE FRAME
1
39
LEFT HANDLEBAR
COVER R
1
3
LEFT UPRIGHT
1
40
LEFT BOTTLE
BRACKET
1
4
RIGHT UPRIGHT
1
41
RIGHT BOTTLE
BRACKET
1
5
COMPUTER BRACKET
1
42
COMPUTER
1
6
MOTOR BRACKET
1
43
TRANSFORMER
1
7
INCLINE MOTOR
BRACKET
1
44
CONTROL BOARD
1
8
TURNING BUSHING
2
45
MAGNETIC SENSOR
1
9
FRONT ROLLER
1
46
SAFETY KEY
1
10
REAR ROLLER
1
47
POWER WIRE
1
11
WRENCH W/SCREW
DRIVER
S=13、14、15
1
48
SQUARE SWITCH
1
12
5#ALLEN WRENCH
5mm
1
49
OVERLOAD
PROTECTER
1
13
CYLINDER
1
50
MAGNETIC CORE
1
14
SAFETY KEY IRON SLIP
1
51
MAGNETIC RING
1
15
MOTOR TOP COVER
1
52
INCLINE MOTOR
1
16
MOTOR BOTTOM COVER
1
53
SPEAKER PLASTIC
BOARD
(OPTIONAL)
2
17
COMPUTER TOP COVER
1
54
SPEAKER
(OPTIONAL)
2
18
COMPUTER BOTTOM
COVER
1
55
AMPLIFIER BOARD
(OPTIONAL)
1
19
COMPUTER PANEL
1
56
RIGHT HANDLEBAR
COVER L
1
20
LEFT BACK COVER
1
57
RIGHT HANDLEBAR
COVER R
1
21
RIGHT BACK COVER
1
58
MP3 CONNECT WIRE
(OPTIONAL)
1
22
SIDE RAIL
2
59
FAN
(OPTIONAL)
1
23
BOTTOM COVER BOARD
1
60
PULSE WITH INCLINE
1
24
RUNNING BELT
1
61
PULSE WITH SPEED
1
25
RUNNING BOARD
1
62
SWITCH BOARD
1

26
WHEEL COVER
2
63
DC MOTOR
1
27
MOTOR BELT
1
64
PULSE UP WIRE
1
28
BLUE CUSHION PAD
4
65
PULE WITH SWITCH
UP WIRE
1
29
BLACK CUSHION PAD
4
66
PULSE SPEED UP
WIRE
1
30
TRANSPORT WHEEL
2
67
COMPUTER UP WIRE
1
1
31
FOOT PAD
6
68
COMPUTER UP WIRE
1
32
ADJUSTABLE WHEEL
2
69
COMPUTER MIDDLE
WIRE
1
33
RING PROTECTING WIRE
PLUG
2
70
COMPUTER
BOTTOM WIRE
1
34
POWER WIRE BUCKLE
1
71
AC SINGLE LINE
BROWN 150
1
35
SAFETY KEY SPRING BALL
1
72
AC SINGLE LINE
BLUE 150
1
36
INNER END CAP
2
73
AC SINGLE LINE
BROWN 150
1
37
FOAM
2
74
LOCK NUT
M8
6
75
WELDING LOCK NUT
M8
4
97
SCREW
ST2.9*8
2
76
LOCK NUT
M6
8
98
SCREW
ST4.0*25
2
77
BOLT
M5*16
6
99
SCREW
ST4.2*12
(OPTIONAL)
18
78
BOLT
M6*35
8
100
LOCK WASHER
6
3
79
BOLT
M6*55
3
101
LOCK WASHER
8
16
80
BOLT
M8*10
10
102
LOCK WASHER
10
2
81
BOLT
M8*25 L15
2
103
SPRING WASHER
8
6
82
BOLT
M8*30 L15
1
104
FLAT WASHER
8
7
83
BOLT
M8*32 L15
4
105
FLAT WASHER
10
2
84
BOLT
M8*40 L20
4
106
BOLT
M6*15
4
85
BOLT
M8*42 L20
1
107
FAN
(OPTIONAL)
1
86
BOLT
M8*30
5
87
BOLT
M8*35
1
88
LOCK NUT
M10
2
89
BOLT
M10*20 L15
2
90
BOLT
M10*30 L15
1
91
BOLT
M10*50 L20
1
92
BOLT
M10*55
2
93
BOLT
M5*8
9
94
SCREW
ST4.2*12
21
95
SCREW
ST2.9*6.5
19
96
SCREW
ST2.9*8
2

TROUBLESHOOTING GUIDE
1、Probable reason for computer not workable after power start: The wire from computer to
bottom control board didn’t connected well or the transformer was burnt out. Check the each wire
from computer to control board, make sure they are connected well. If the wire is destroyed ,
change it. If the above can not settle the problem, try to change a good transformer.
2、E01: Message failure. Probable reason: The wires from computer and bottom control board
didn’t connect well, please check each wire. If the wire was destroyed, change a good one.
3、E02: Burst clash. Check the power is right, if not, use correct power to test; Check if the bottom
control was burnt out, change a good one; reconnect the motor wire.
4、E03: No sensor signal. Sensor wire badness, change good wire; It is no use for the motor
magnetic, change the magnetic or reset the magnetic;
5.E04: Incline learning defeated, Check VR wire of incline motor whether connect well. If not,
reconnect VR to make it firm; Check AC wire of motor whether connect well, and AC wire of motor
whether insert well with correct sign of control board; Check connection line of motor whether is
destroyed, exchange it or incline motor. And press “learning” botton of bottom control board to
relearn after checked everything is well.
6、E05: Current overload protecting. Over rated loaded or the motor is stuck, cause excessive
current, machine will start self-protecting system. Adjust the machine and restart; Check if the
motor has noise from motor or if the motor / bottom control board were burnt out, if burnt out,
change good motor and bottom control; Use right voltage.
7、If the motor can not work after pressing START button, the probable reason: the motor wire is
broken; the safety pipe is broken or fell; motor wire is not conneted well; IGBT on bottom
control board is burnt out. Test the above reasons and change the relevant part.
Table of contents
Other Altis Treadmill manuals
