Altronix TROVE T1KE34V User manual

T1KE34V
4 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove1 enclosure with TLU1 backplane
- One (1) AL600XB220 - Power Supply/Charger
- One (1) ACM4 - Fused Access Power Controller
T1KE38V
8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove1 enclosure with TLU1 backplane
- One (1) AL600XB220 - Power Supply/Charger
- Two (2) ACM4 - Fused Access Power Controllers
T2KE3316V
16 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TLU2 backplane
- Two (2) AL600XB220 - Power Supply/Charger
- Two (2) ACM8 - Fused Access Power Controllers
T1KE34DV
4 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove1 enclosure with TLU1 backplane
- One (1) AL600XB220 - Power Supply/Charger
- One (1) ACM4CB - PTC Access Power Controller
T1KE38DV
8 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove1 enclosure with TLU1 backplane
- One (1) AL600XB220 - Power Supply/Charger
- Two (2) ACM4CB - PTC Access Power Controllers
T2KE3316DV
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TLU2 backplane
- Two (2) AL600XB220 - Power Supply/Charger
- Two (2) ACM8CB - PTC Access Power Controllers
Altronix/Kisi Kits
Models Include:
Installation Guide
Access & Power Integration
Rev. 122221
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
All registered trademarks are property of their respective owners. More than just power.™

- 2 - Trove KE XBV Kits Installation Guide
Overview:
Altronix Trove Kisi kits are pre-assembled and consist of Trove1LU1 or Trove2LU2 enclosure/backplane with factory installed Altronix power
supply/charger(s) and sub-assemblies. Trove Kisi kits also accommodates up to four (4) Kisi Pro Controllers for up to sixteen (16) doors in a
single enclosure.

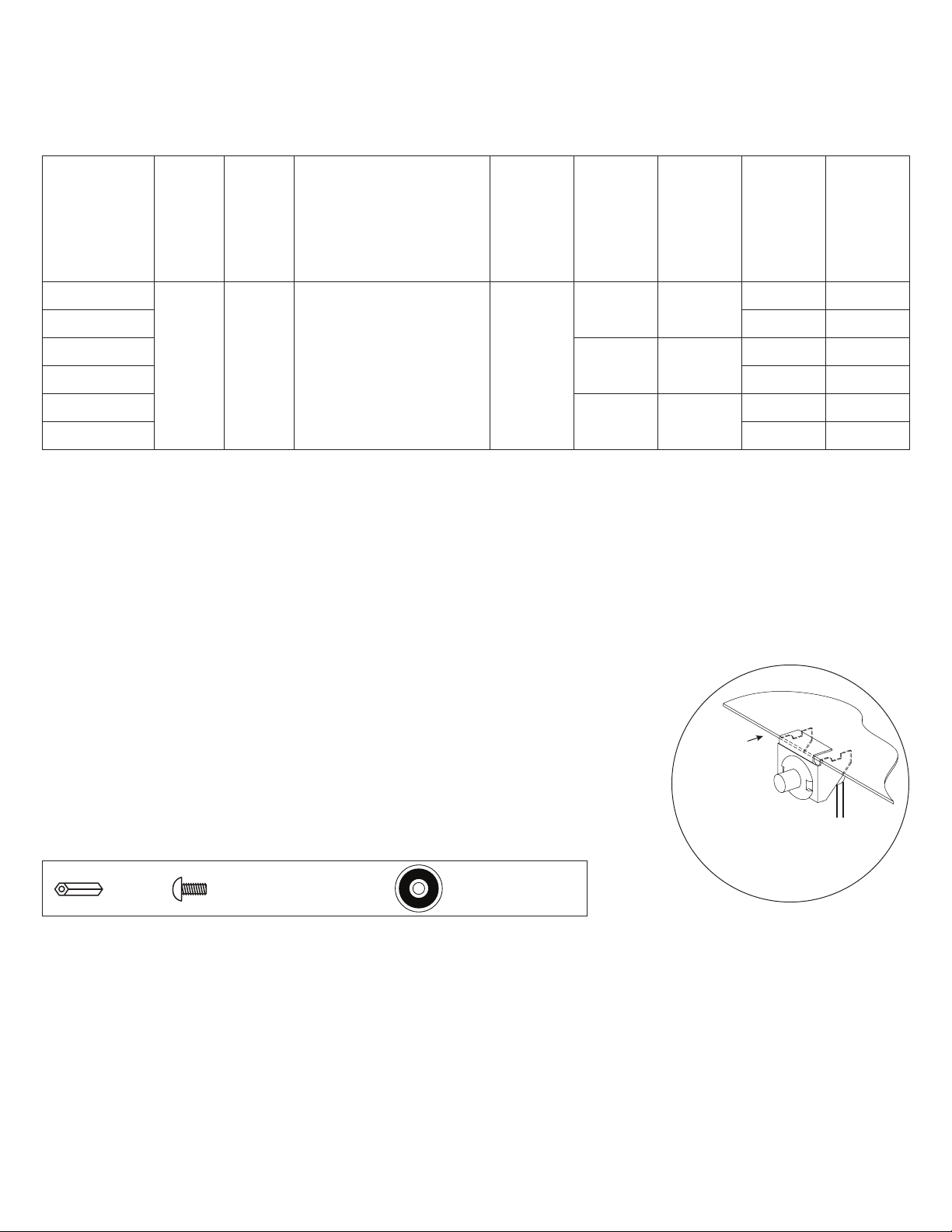

Configuration Chart:
Altronix
Model
Number
220VAC
60Hz
Input
Current
(A)
Power
Supply
Board
Input
Fuse
Rating
Maximum Supply
Current for Main Output on
Power Supply board(s)
and ACM4/ACM8 Access
Power Controllers’ outputs
Nominal
DC
Output
Voltage
Range
(VDC)
Fail-Safe/
Fail-Secure
Outputs
ACM4(CB)/
ACM8(CB)
Board
Input
Fuse
Rating
ACM4/
ACM8
Board
Output
Fuse
Rating
ACM4CB/
ACM8CB
Board
Output
PTC
Rating
T1KE34V
1.5 5A/
250V 24VDC @ 5.7A 20.17-26.4
4 10A/32V 3A/32V –
T1KE34DV –2.5A
T1KE38V 8 10A/32V 3A/32V –
T1KE38DV –2.5A
T2KE3316V 16 10A/250V 3.5A/250V –
T2KE3316DV –2.5A
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having juris-
diction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners
and screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the two/three upper
screws, level and secure. Mark the position of the lower two/three holes. Remove the enclosure. Drill the lower holes and
install the two/three fasteners. Place the enclosure’s upper keyholes over the two/three upper screws. Install the two/three lower
screws and make sure to tighten all screws refer to pages 6-7.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent)
in desired location, opposite hinge. Slide the tamper switch bracket onto the edge
of the enclosure, approximately 2” from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device. To activate alarm signal
open the door of the enclosure.
4. Mount Kisi Pro Controllers to TLU1 or TLU2 backplane, refer to pages 3-5.
5. Refer to the XBV Power Supply/Charger Installation Guide for AL600XB220
and corresponding Sub-Assembly Installation Guides for ACM4(CB) and ACM8(CB) for
further installation instructions.
Hardware:
Fig. 1
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Edge of
Enclosure
Enclosure
Spacer | 5/16” Pan Head Screw | Mounting Magnet

Trove KE XBV Kits Installation Guide - 3 -
T1KE34V and T1KE34DV: Configuration of Kisi Pro Controllers:
1. Fasten mounting magnets (provided) to Kisi Pro Controllers with screws and spacers (provided) using the controllers’ mounting holes
(Fig. 2, pg. 3).
2. Attach mounting magnets to TLU1 in the approximate position as shown below (Fig. 2a, pg. 3).
Note: Kisi Pro Controllers should be properly oriented.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
3. Fasten TLU1 backplane to Trove1 enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Kisi Pem Mounting
Pro Controller A
Fig. 2 - T1KE34(D)V Configuration
TRG
TRIGGER
INPUT
ACM4
ACCESS POWER
CONTROLLER
LED1 LED2 LED3 LED4
MAIN
OUTPUT 1
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3
IN GND
1
IN GND
2
IN GND
3
IN GND
4
OUTPUT 4
-- +
CONTROL
-- +
POWER
+INP- T +RET-
INTERFACE
NO C NC
FACP
A
L G N
AC DC BAT
+ BAT - + DC -
NC C NO NC C NOBAT FAIL AC FAIL
Altronix
AL600ULXB
Altronix ACM4(CB)
Spacer
Backplane
Access
Controller
Pan Head
Screw
Pan Head
Screw
Mounting
Magnet
Fig. 2a
Altronix
AL600XB220

- 4 - Trove KE XBV Kits Installation Guide
T1KE38V and T1KE38DV: Configuration of Kisi Pro Controllers:
1. Fasten mounting magnets (provided) to Kisi Pro Controllers with screws and spacers (provided) using the controllers’ mounting holes
(Fig. 3, pg. 4).
2. Attach mounting magnets to TLU1 in the approximate position as shown below (Fig. 3a, pg. 4).
Note: Kisi Pro Controllers should be properly oriented.
Please make sure that they are mounted correctly, as shown in Fig. 3 below.
3. Fasten TLU1 backplane to Trove1 enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Kisi Pem Mounting
Pro Controller A
Fig. 3 - T1KE38(D)V Configuration
TRG
TRIGGER
INPUT
ACM4
ACCESS POWER
CONTROLLER
LED1 LED2 LED3 LED4
MAIN
OUTPUT 1
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3
IN GND
1
IN GND
2
IN GND
3
IN GND
4
OUTPUT 4
-- +
CONTROL
-- +
POWER
+INP- T +RET-
INTERFACE
NO C NC
FACP
TRG
TRIGGER
INPUT
ACM4
ACCESS POWER
CONTROLLER
LED1 LED2 LED3 LED4
MAIN
OUTPUT 1
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3
IN GND
1
IN GND
2
IN GND
3
IN GND
4
OUTPUT 4
-- +
CONTROL
-- +
POWER
+INP- T +RET-
INTERFACE
NO C NC
FACP
L G N
AC DC BAT
+ BAT - + DC -
NC C NO NC C NOBAT FAIL AC FAIL
Altronix
AL600ULXB
Altronix ACM4(CB)
Altronix ACM4(CB)
AA
Spacer
Backplane
Access
Controller
Pan Head
Screw
Pan Head
Screw
Mounting
Magnet
Fig. 3a
Altronix
AL600XB220

Trove KE XBV Kits Installation Guide - 5 -
T2KE3316V and T2KE3316DV: Configuration of Kisi Pro Controllers:
1. Fasten mounting magnets (provided) to Kisi Pro Controllers with screws and spacers (provided) using the controllers’ mounting holes
(Fig. 4, pg. 5).
2. Attach mounting magnets to TLU2 in the approximate position as shown below (Fig. 4a, pg. 5).
Note: Kisi Pro Controllers should be properly oriented.
Please make sure that they are mounted correctly, as shown in Fig. 4 below.
3. Fasten TLU2 backplane to Trove2 enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Kisi Pem Mounting
Pro Controller A
Fig. 4 - T2KE3316(D)V Configuration
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
F1 F2 F3 F4 F5 F6 F7 F8
TRG
FACP
1 2 3 4
ON
1 2 3 4
ON
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
F1 F2 F3 F4 F5 F6 F7 F8
TRG
FACP
1 2 3 4
ON
1 2 3 4
ON
Altronix AL600ULXB
Altronix AL600ULXB
Altronix ACM8(CB)
Altronix ACM8(CB)
A
A
A
A
BAT FAIL NC C NO NC C NO AC FAIL
AC DC BAT
+BAT- + DC -
L G N
OFF - 24V
ON - 12V
ON
BAT FAIL NC C NO NC C NO AC FAIL
AC DC BAT
+BAT- + DC -
L G N
OFF - 24V
ON - 12V
ON
Spacer
Backplane
Access
Controller
Pan Head
Screw
Pan Head
Screw
Mounting
Magnet
Fig. 4a
Altronix AL600XB220
Altronix AL600XB220

- 6 - Trove KE XBV Kits Installation Guide

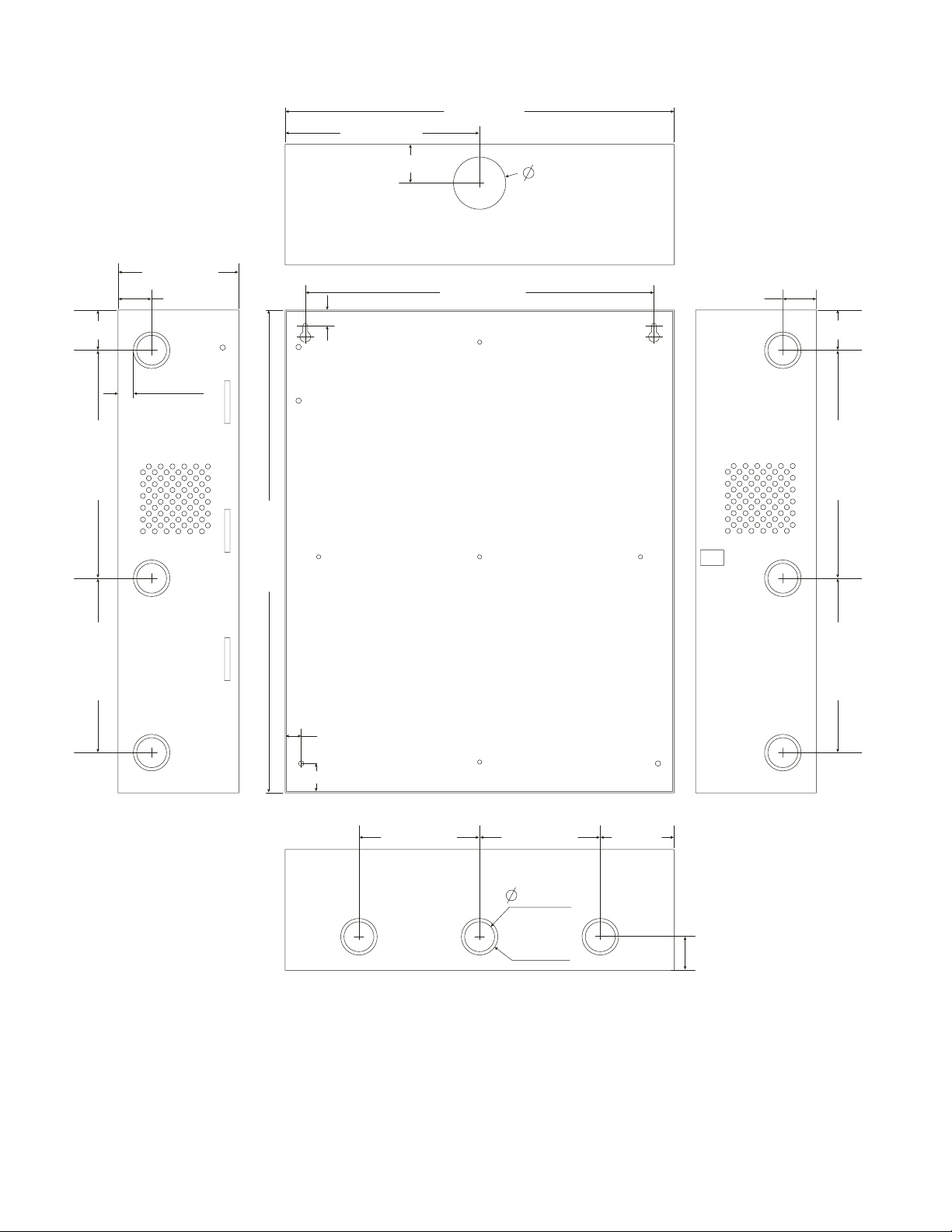

T1KE34(D)V and T1KE38(D)V Enclosure Dimensions (H x W x D approximate):
18” x 14.5” x 4.625” (457mm x 368mm x 118mm)
4.5” (114.3mm) 4.5” (114.3mm) 2.75”
(69.9mm)
1.115” (28.3mm)
1.36” (34.5mm)
1.25” (31.8mm) 1.25” (31.8mm)
1.5” (38.1mm)
8.5” (215.9mm)6.5” (165.1mm)
1.5” (38.1mm)
8.5” (215.9mm)6.5” (165.1mm)
4.5” (114.3mm)
13.0” (330.2mm)
0.6” (15.2mm)
14.5” (321.3mm)
1.45” (36.8mm)
7.25” (184.2mm)
1.95” (49.5mm)
1.1” (27.9mm)
0.6” (15.2mm)
0.57” (14.5mm)
18.0” (457.2mm)
1.25” (31.8mm)

Trove KE XBV Kits Installation Guide - 7 -

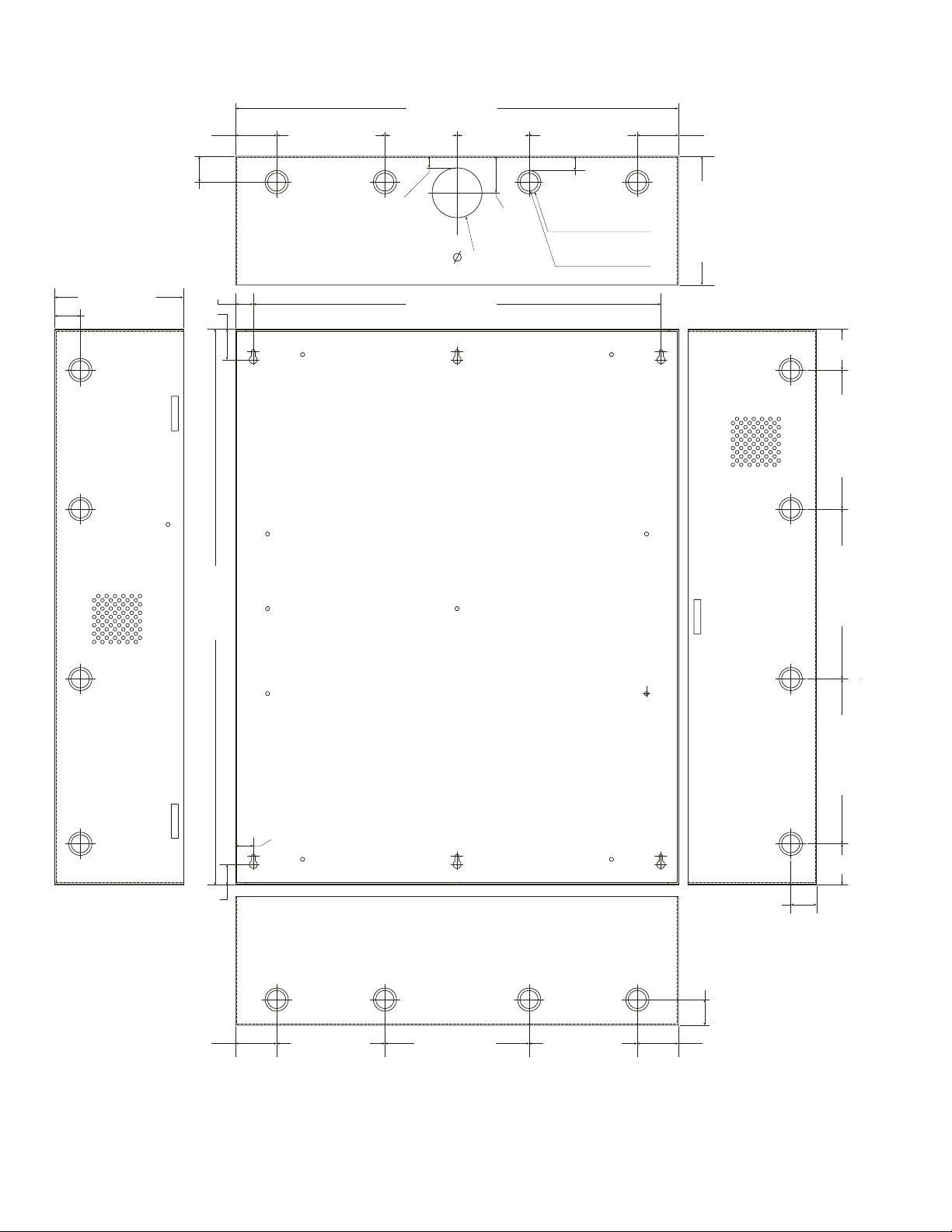

T2KE3316(D)V Enclosure Dimensions (H x W x D approximate):
27.25” x 21.5” x 6.5” (692.2mm x 552.5mm x 165.1mm)
6.75” (171.5mm)8.25” (209.5mm)
8.00” (203.2mm)
2.00” (50.8mm)
2.00” (50.8mm)
1.25” (31.8mm)
1.25” (31.8mm)
5.25” (133.4mm) 5.25” (133.4mm)7.00” (177.8mm)
1.25” (31.8mm)
6.25” (158.8mm) 19.80” (502.9mm)
1.00” (25.4mm)
27” (685.8mm)
1.5”
(38.1mm)
2.00” (50.8mm) 2.00” (50.8mm)
3.5”(88.9mm) 3.5”(88.9mm)
21.50” (546.1mm)
5.25” (133.35mm) 5.25” (133.35mm)
6.25” (158.8mm)
1.25”
(31.8mm)
0.85” (21.6mm)
0.5625” (14.3mm)
2.415” (61.3mm)
0.685” (17.4mm)
1.77”
(45mm)
0.885” (22.5mm)
1.125” (28.3mm)
Knockouts
2.00” (50.8mm) 2.00” (50.8mm)

- 8 - Trove KE XBV Kits Installation Guide
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: [phone] | fax: [phone]
web site: www.altronix.com | e-mail: [email protected] | Lifetime Warranty.
IITrove KE XBV Kits K17V MEMBER
Notes:
