Altronix Trove3M3V Kit Series User manual

T3MK75F16V
16 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- One (1) eFlow104NBV - Power Supply/Charger
- One (1) eFlow102NBV - Power Supply/Charger
- Two (2) ACM8 - Fuse Protected Access Power Controllers
- One (1) PD8UL - Fuse Protected Power Distribution Module
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
T3MK77F16V
16 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- Two (2) eFlow104NBV - Power Supply/Chargers
- Two (2) ACM8 - Fuse Protected Access Power Controllers
- Two (2) PD8UL - Fuse Protected Power Distribution Modules
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
T3MK75F16DV
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- One (1) eFlow104NBV - Power Supply/Charger
- One (1) eFlow102NBV - Power Supply/Charger
- Two (2) ACM8CB - PTC Protected Access Power Controllers
- One (1) PD8ULCB - PTC Protected Power Distribution Module
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
T3MK77F16DV
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- Two (2) eFlow104NBV - Power Supply/Chargers
- Two (2) ACM8CB - PTC Protected Access Power Controllers
- Two (2) PD8ULCB - PTC Protected Power Distribution Modules
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
Rev. T3MKV030320
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
All registered trademarks are property of their respective owners. More than just power.™
Installation Guide
Access & Power Integration
Altronix/Trove3 Mercury Kits
Models Include:
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

- 2 - Trove3 Mercury V Kits Installation Guide
Overview:
Altronix Trove Mercury kits are pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power supply/
charger(s) and sub-assemblies. These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a
single enclosure.

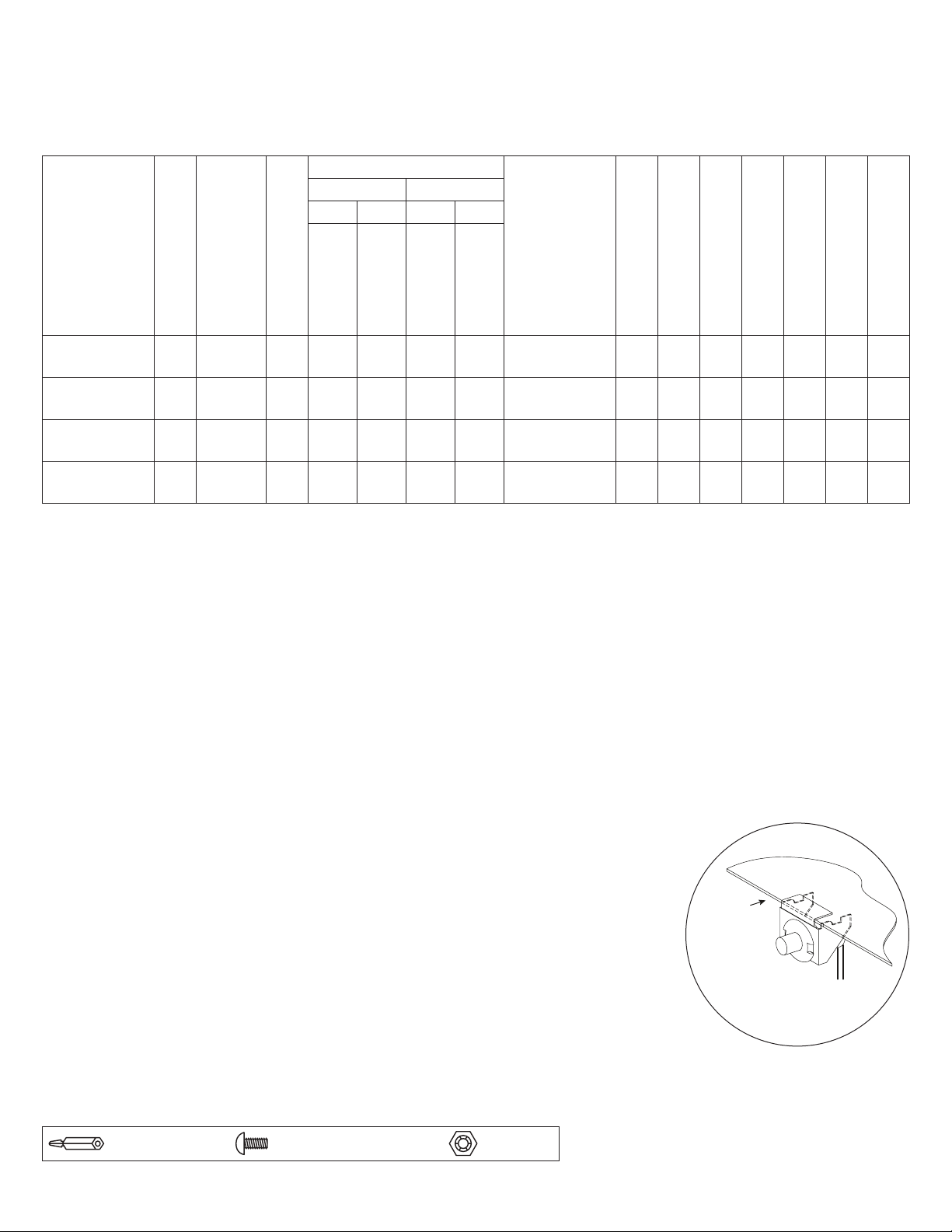

Configuration Chart:
Altronix
Model Number 220VAC 50/60Hz Input Current (A) Power Supply Board Input Fuse Rating Power Supply Board Battery Fuse Rating
Nominal DC Output Voltage
Maximum
Supply
Current for
Main and Aux.
Outputs on Power
Supply board and
ACM8(CB) Access
Power Controller’s
outputs Fail-Safe/Fail-Secure or Dry Form “C” Outputs Current Per ACM8(CB) Output (A) ACM8(CB) Board Input Fuse Rating ACM8 Board Output Fuse Rating ACM8CB Board Output PTC Rating PD8UL Board Output Fuse Rating PD8ULCB Board Output Fuse Rating
Power Supply 1 Power Supply 2
[DC] [Aux] [DC] [Aux]
Output Range (VDC) Output Range (VDC) Output Range (VDC) Output Range (VDC)
T3MK75F16V 4.8 6.3A/250V
5A/250V
15A/
32V
20.17-
26.4
20.28-
26.4
9.7-
13.2
10.03-
13.2
12VDC @ 9.3A
24VDC @ 9.2A 16 2.5 10A/ 250V
2.5A/
250V –3.5A/ 250V –
T3MK75F16DV 4.8 6.3A/250V
5A/250V
15A/
32V
20.17-
26.4
20.28-
26.4
9.7-
13.2
10.03-
13.2
12VDC @ 9.3A
24VDC @ 9.2A 16 2.5 10A/ 250V – 2A – 2.5A
T3MK77F16V 5.4 6.3A/
250V
15A/
32V
20.17-
26.4
20.28-
26.4
20.17-
26.4
20.28-
26.4 24VDC @ 9.2A 16 2.5 10A/ 250V
2.5A/
250V –3.5A/ 250V –
T3MK77F16DV 5.4 6.3A/
250V
15A/
32V
20.17-
26.4
20.28-
26.4
20.17-
26.4
20.28-
26.4 24VDC @ 9.2A 16 2.5 10A/ 250V – 2A – 2.5A
Hardware and Accessories:
• Two (2) tamper switches (Altronix Model TS112 or equivalent).
• Cam lock.
• Battery leads.
Mechanical:
• 16 Gauge enclosure with ample knockouts for convenient access.
• Enclosure Dimensions (H x W x D): 36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm).
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws
in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the three upper screws, level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install
the three fasteners. Place the enclosure’s upper keyholes over the three upper screws.
Install the three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired location,
opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2”
from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input
or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4. Mount Mercury boards to backplane, refer to pg. 3, 4.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NBV, eFlow102NBV
and corresponding Sub-Assembly Installation Guides for PD8UL(CB) and ACM8(CB) for
further installation instructions.
6. Position Mercury access controller module over corresponding spacers and depress onto
snap on spacers (Fig. 2-3, pg. 3-4).
7. Mount backplane to enclosure with hardware.
Hardware:
Fig. 1
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
Edge of
Enclosure
Enclosure
Snap On Spacer | 5/16” Pan Head Screw | Lock Nut

Trove3 Mercury V Kits Installation Guide - 3 -

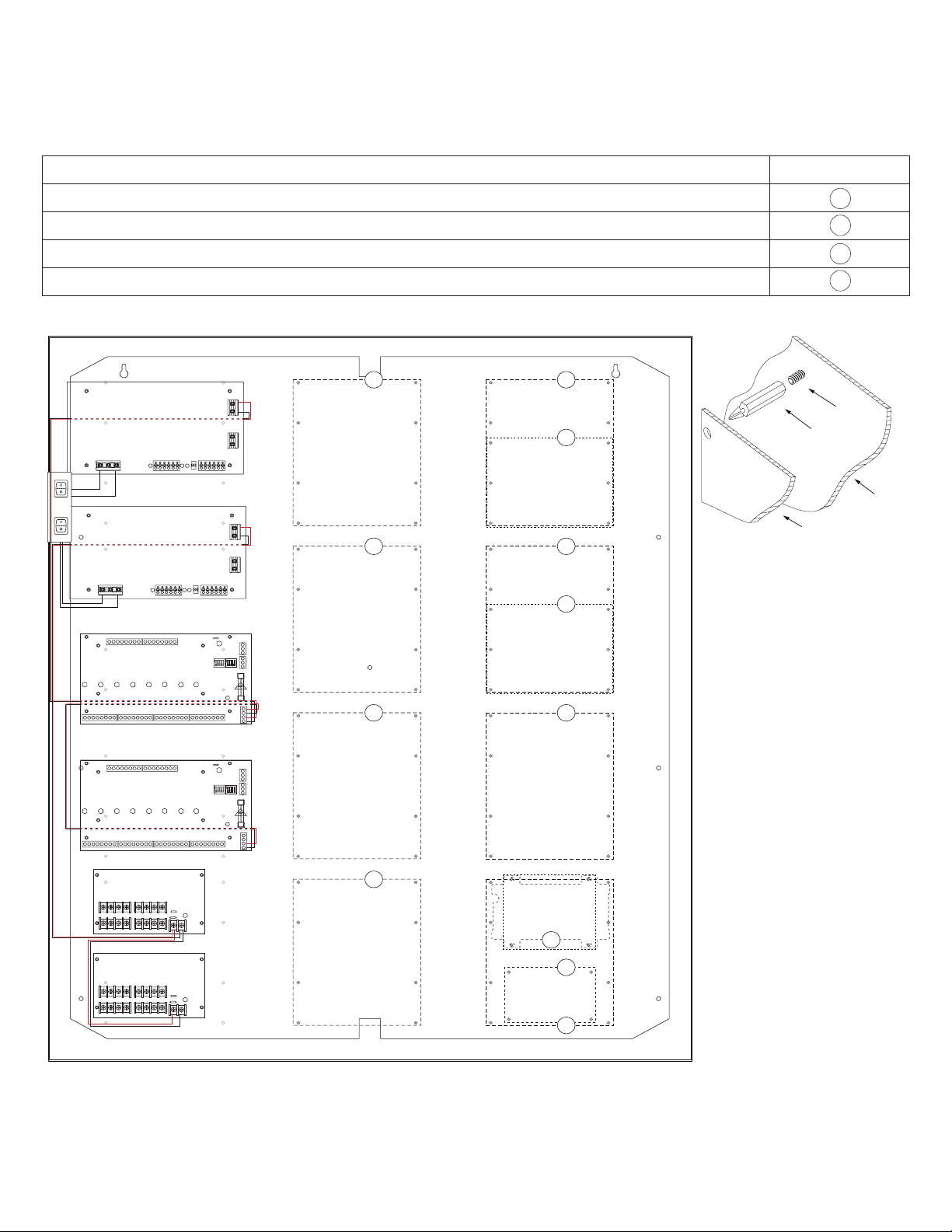

T3MK75F16V and T3MK75F16DV: Configuration of Mercury Boards:
1. Fasten snap on spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller Pem Mounting
EP1502, MR52, MR16IN, MR16OUT A
EP2500, MUX8 B
EP1501, MR51e C
MR52 D
Fig. 2
D
B
B
A
A
A
A
A
A
A
A
C
– DC +– BAT +
L G N
Altronix eFlow104NBV
NC C NO NC C NO
AC FAIL BAT FAIL
TRIGGER EOL
SUPERVISED
AC DCAC1 NO GND
RESET +AUX -
--- BAT +
L G N
1min enable
2hr disable
--- DC +
RSB2
Altronix
PD8UL
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NOCOM NC C NO COM NC C NOCOM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
P N
R1 LED
Altronix PD8UL(CB)
Altronix ACM8(CB)
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
Altronix ACM8(CB)
Altronix eFlow102NBV
Snap On
Spacer
Mercury Board
Backplane
Pem
Fig. 2a

- 4 - Trove3 Mercury V Kits Installation Guide
T3MK77F16V and T3MK77F16DV: Configuration of Mercury Boards on TM3:
1. Fasten snap on spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 3, pg. 4).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 3a, pg. 4).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller Pem Mounting
EP1502, MR52, MR16IN, MR16OUT A
EP2500, MUX8 B
EP1501, MR51e C
MR52 D
Fig. 3
D
B
B
A
A
A
A
A
A
A
A
C
Altronix eFlow104NBV
– DC +– BAT +
L G N
Altronix eFlow104NBV
– DC +– BAT +
L G N
RSB2
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
P N
R1
LED
Altronix PD8UL(CB)
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
P N
R1
LED
Altronix PD8UL(CB)
Altronix ACM8(CB)
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
Altronix ACM8(CB)
Snap On
Spacer
Mercury Board
Backplane
Pem
Fig. 3a

Trove3 Mercury V Kits Installation Guide - 5 -
Notes:

- 6 - Trove3 Mercury V Kits Installation Guide
eFlow Power Supply/Chargers can be Controlled and Monitored while
Reporting Power/Diagnostics from Anywhere over the Network...
LINQ2 Mounts Inside any Trove Enclosure
LINQ2 - Network Communication Module
LINQ2 provides remote IP access to real-time data from eFlow power supply/chargers to help keep systems up
and running at optimal levels. It facilitates fast and easy installation and set-up, minimizes system downtime,
and eliminates unnecessary service calls, which helps reduce Total Cost of Ownership (TCO) - as well as creat-
ing a new source of Recurring Monthly Revenue (RMR).
LINQ2
Features:
- UL Listed in the U.S. and Canada.
- Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN.
- Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change,
output state change and unit temperature.
- Access control and user managment: Restrict read/write, Restrict users to specific resources
- Two (2) integral network controlled Form “C” Relays.
- Three (3) programmable input triggers: Control relays and power supplies via external hardware sources.
- Email and Windows Dashboard notifications
- Event log tracks history.
- Secure Socket Layer (SSL).
- Programmable via USB or web browser - includes operating software and 6 ft. USB cable.
LINQ2 Module
Altronix eFlow
Power Supply
Network Connection:
Installation, Programming
and Monitoring

Trove3 Mercury V Kits Installation Guide - 7 -

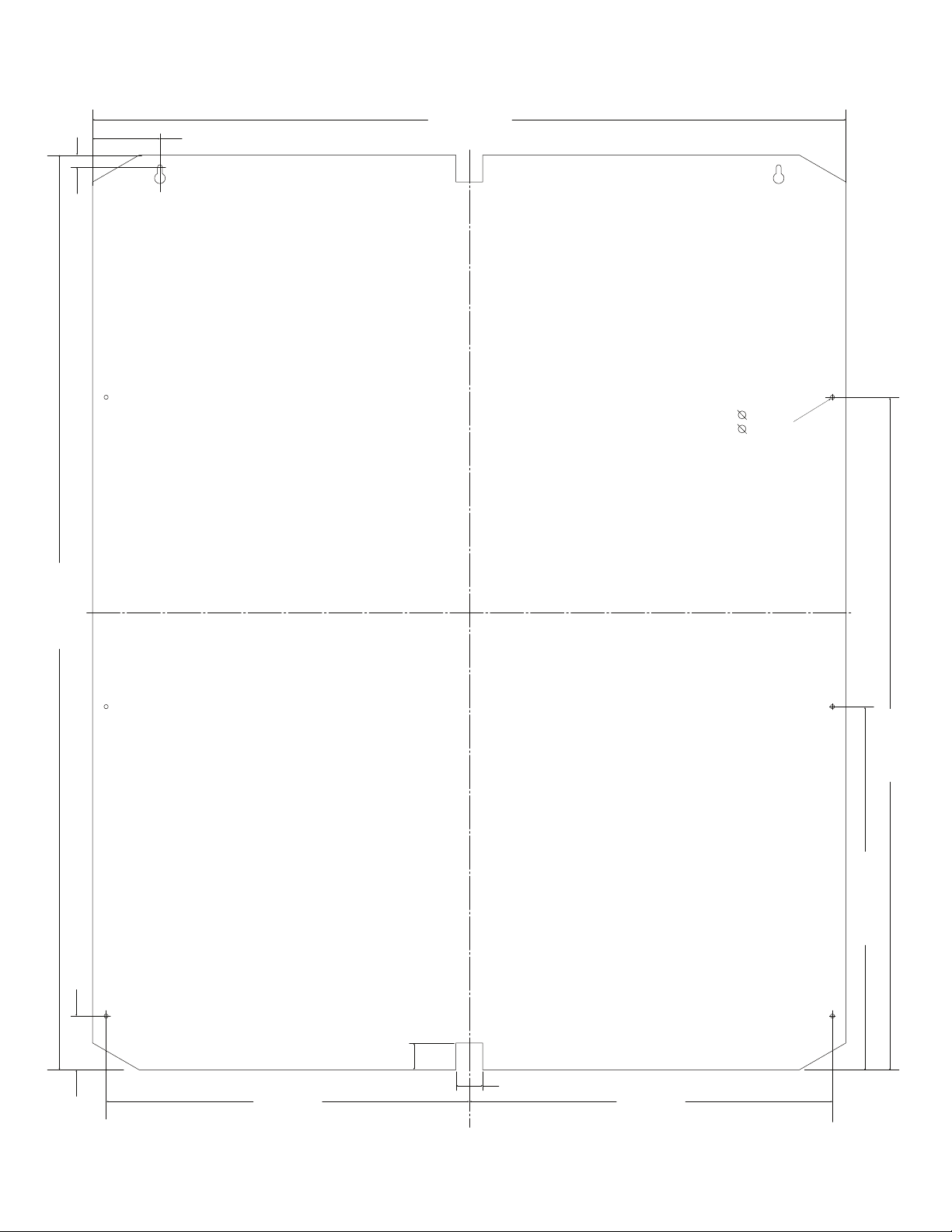

TM3 Dimensions
34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm)
0.45” (11.4mm)
2.5” (63.5mm)
2” (50.8mm)
13.5”
(342.9mm)
13.5”
(342.9mm)
13.5” (342.9mm)
25” (635mm)
0.156”
( 3.96mm)
1.0” (25.4mm)
1.0” (25.4mm)
34” (863.6mm)
28” (711.2mm)

- 8 - Trove3 Mercury V Kits Installation Guide

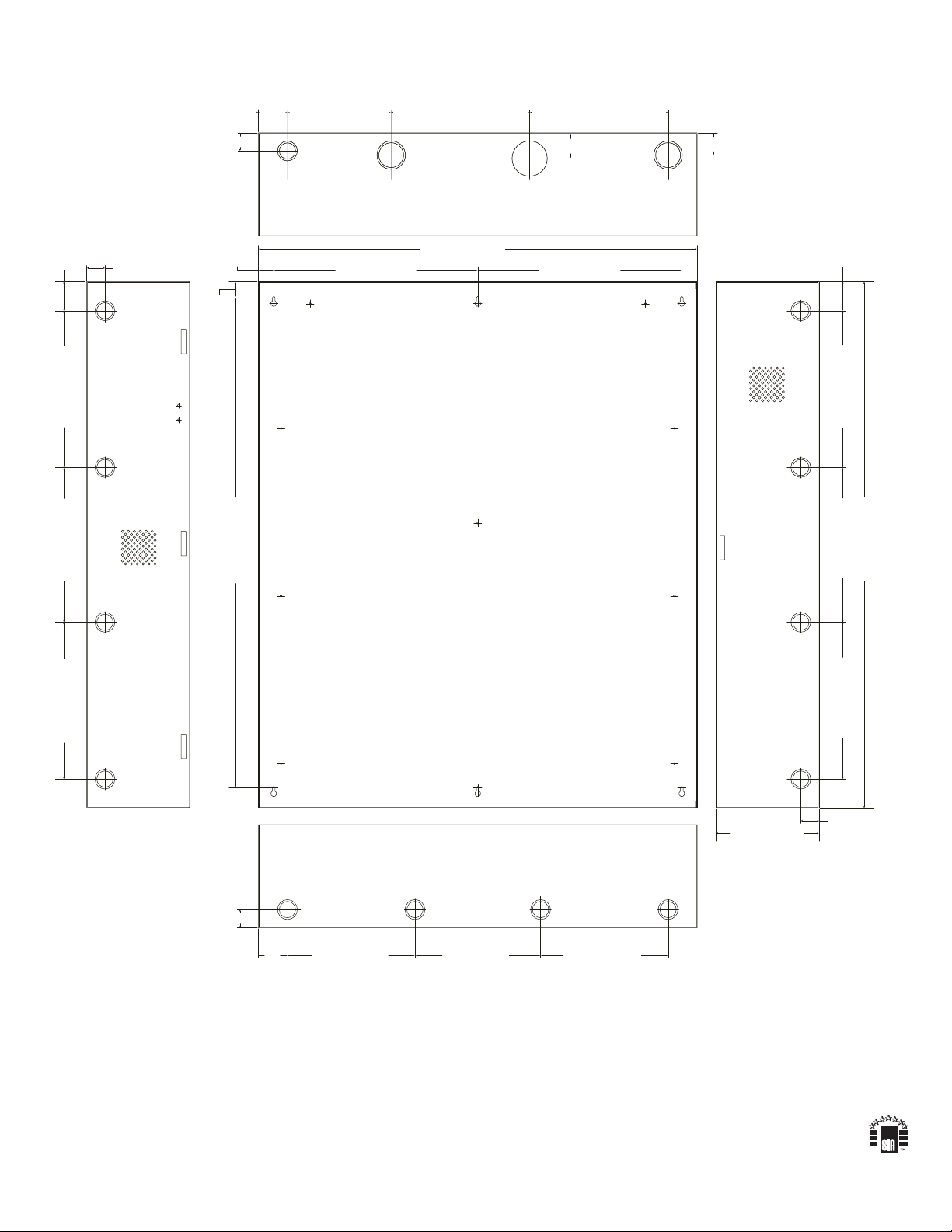

Trove3 Enclosure Dimensions (H x W x D approximate):
36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)
G
G
2”
(50.8mm)
8.75” (222.3mm) 8.75” (222.3mm)
8.62” (219mm)
7.06” (179.3mm)
1.25” (31.8mm)
1.25” (31.8mm)
2.00” (50.8mm) 7.12” (222.3mm) 9.5” (241.3mm) 9.5” (241.3mm)
30.12” (768.1mm)
14.01” (355.9mm) 14.01” (355.9mm)
1.25” (31.8mm) 1.55” (39.4mm)
1.78” (45.2mm)
1.25” (31.8mm)
1.07”
(27.2mm)
1.10” (27.9mm)
2” (50.8mm)
10.75” (273.1mm)10.75” (273.1mm) 10.62” (269.8mm)
2.00” (50.8mm)10.75” (273.1mm)10.75” (273.1mm) 10.62” (269.8mm)
36.12” (917.5mm) 33.63” (854.2mm)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: [phone] | fax: [phone]
web site: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
IITrove3M3V Kit Series J05U
MEMBER
