ALTUS DV 1170 User manual

DV 1170
Dryer
User Manual
干衣机
用户手册

Please read this user manual first!
Thank you for prefering a Altus product. We hope that your product which has been
manufactured with high quality and technology will give you the best results. We advise you
to read through this manual and the other accompanying documentation carefully before
using your product and keep it for future reference. If you transfer the product to someone
else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Read the instructions.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are manufactured from recyclable materials
in accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
2960311242_EN/040517.1627

3 / EN
Dryer / User Manual
1 Important instructions for safety and
environment
This section contains safety instructions that will help
protect from risk of personal injury or property damage.
Failure to follow these instructions shall void any warranty.
1.1 General safety
•The dryer can be used by children at and above 8
years old and by persons whose physical, sensory or
mental capabilities were not fully developed or who
lack experience and knowledge provided that they are
supervised or trained on the safe usage of the product
and the risks it brings out. Children should not play with
the product. Cleaning and maintenance works should not
be performed by children unless they are supervised by
someone.
•Children of less than 3 years should be kept away unless
continously supervised.
•Adjustable feet should not be removed. The gap between
the dryer and the floor should not be reduced with
materials such as carpet, wood and tape. This will cause
problems with the dryer.
•Always have the installation and repairing procedures
carried out by the Authorized Service. Manufacturer shall
not be held liable for damages that may arise from
procedures carried out by unauthorized persons.
•Never wash the dryer by spraying or pouring water onto
it! There is the risk of electric shock!
1.1.1 Electrical safety
AElectrical safety instructions should be followed
while electrical connection is made during the
installation.

4 / EN Dryer / User Manual
AThe appliance must not be supplied through an
external switching device, such as a timer,or
connected to a circuit that is regularly switched on
and off by utility.
•Connect the dryer to a grounded outlet protected by
a fuse at the value specified on the type label. Have
the grounding installation performed by a qualified
electrician. Our company shall not be liable for any
damages that will arise when the dryer is used without
grounding in accordance with the local regulations.
•The voltage and allowed fuse protection is stated on the
type label plate.
•The voltage specified on the type label must be equal to
your mains voltage.
•Unplug the dryer when it is not in use.
•Unplug the dryer from the mains during installation,
maintenance, cleaning and repair works.
•Do not touch the plug with wet hands! Never unplug by
pulling on the cable, always pull out by grabbing the
plug.
•Do not use extension cords, multi-plugs or adaptors to
connect the dryer to power supply in order to decrease
the risk of fire and electric shock.
•Power cable plug must be easily accessible after
installation.
BDamaged mains cable should be changed notifying
the Authorized Service.
BIf the dryer is faulty, it must not be operated unless
it is repaired by an authorized service agent! There
is the risk of electric shock!

5 / EN
Dryer / User Manual
1.1.2 Product safety
•Superheating of the clothes inside of the dryer can
occur if you cancel the programme or in the event
of a power failure whilst the dryer is running, this
concentration of heat can cause self-combustion
and fire so always activate the ventilation
programme to cool down or quickly remove all
laundry from the dryer in order to hang them up
and dissipate the heat.
Points to be taken into consideration for fire
hazard:
Below specified laundry or items must not be dried
in the dryer considering fire hazard.
•Unwashed laundry items
•Items soiled with oil, acetone, alcohol, fuel oil,
kerosene, stain removers, turpentine, paraffin or
paraffin removers must be washed in hot water
with plenty of detergent before being dried in the
dryer.
For this reason especially the items containing the
above specified stains must be washed very well, to
do this use adequate detergent and choose a high
washing temperature.

6 / EN Dryer / User Manual
Below specified laundry or items must not be
dried in the dryer due to the fire hazard:
•Garments or pillows bolstered with rubber foam
(latex foam), shower bonnets, water resistant
textiles, materials with rubber reinforcement and
rubber foam pads.
•Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts,
needle etc. may damage the drum set or may lead
to functional problems. Therefore check all the
laundry that you will load into your dryer.
Never stop your dryer before the programme
completes. If you must do this, remove all laundry
quickly and lay them out to dissipate the heat.
Clothes that are washed inadequately may ignite on
their own and even may ignite after drying ends.
•You must provide enough ventilation in order to prevent
gases exiting from devices operating with other types of
fuels including the naked flame from accumulating in the
room due to the back fire effect.
AUnderwear that contains metal reinforcements
should not be dried in the dryer. Dryer may be
damaged if metal reinforcements come loose and
break off during drying.
CUse softeners and similar products in accordance
with the instructions of their manufacturers.
CAlways clean the lint filter before or after each
loading. Never operate the dryer without the lint
filter installed.
•Never attempt to repair the dryer by yourself. Do not
perform any repair or replacement procedures on the
product even if you know or have the ability to perform
the required procedure unless it is clearly suggested
in the operating instructions or the published service
manual. Otherwise, you will be putting your life and
others’ lives in danger.

7 / EN
Dryer / User Manual
•There must not be a lockable, sliding or hinged door that
may block the opening of the loading door in the place
where your dryer is to be installed.
•Install your dryer at places suitable for home use.
(Bathroom, closed balcony, garage etc.)
•Make sure that pets do not enter the dryer. Check the
inside of the dryer before operating it.
•Do not lean on the loading door of your dryer when it is
open, otherwise it may fall over.
•The lint must not be allowed to accumulate around the
tumble dryer
1.2 Mounting over a washing machine
•A fixing device should be used between the two machines
when installing the dryer above a washing machine. The
fitting device must be installed by the authorized service
agent.
•Total weight of the washing machine and the dryer -with
full load- when they are placed on top of each other
reaches to approx. 180 kilograms. Place the products on
a solid floor that has sufficient load carrying capacity!
AWashing machine cannot be placed on the dryer.
Pay attention to the above warnings during the
installation on your washing machine.
Installation Table for Washing Machine and Dryer
Dryer Depth Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be installed Can be
installed Cannot
be
installed
60 cm Can be installed
Cannot
be
installed

8 / EN Dryer / User Manual
1.3 Intended use
•Dryer has been designed for domestic use. It is not
suitable for commercial use and it must not be used out
of its intended use.
•Use the dryer only for drying laundry that are marked
accordingly.
•The manufacturer waives any responsibility arisen from
incorrect usage or transportation.
•The service life of the dryer that you purchased is 10
years. During this period, original spare parts will be
available to operate the dryer properly.
1.4 Child safety
•Packaging materials are dangerous for the children. Keep
packaging materials away from children.
•Electrical products are dangerous for the children. Keep
children away from the product when it is operating. Do
not let them tamper with the dryer. Use the child-proof
lock in order to prevent the children to tamper with the
dryer.
CChild-proof lock is on the control panel.
(See Child lock)
•Keep loading door closed even when the dryer is not in
use.

9 / EN
Dryer / User Manual

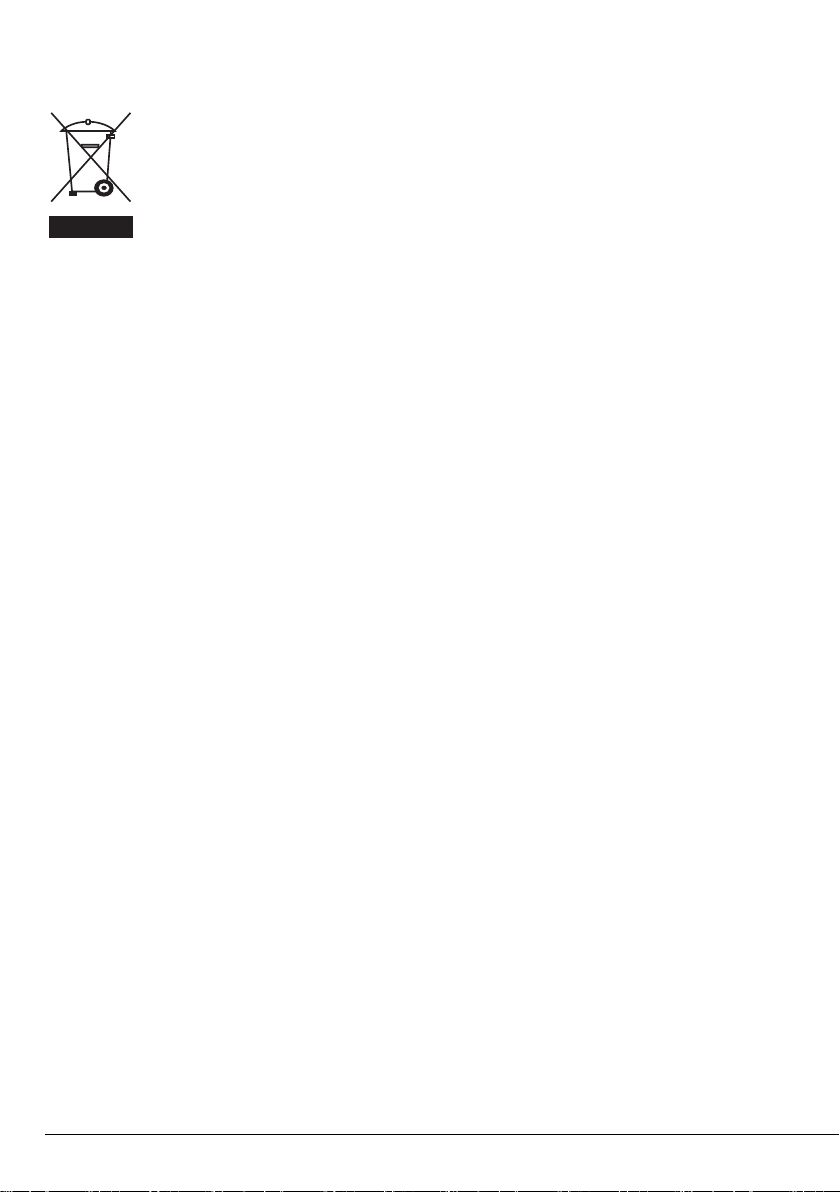

1.5 Compliance with the WEEE regulation
and disposing of the waste product
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic
equipment (WEEE).
This product has been manufactured with high
quality parts and materials which can be reused and
are suitable for recycling. Do not dispose of the waste
product with normal domestic and other wastes at the
end of its service life. Take it to the collection center
for the recycling of electrical and electronic equipment.
Please consult your local authorities to learn about these
collection centers.
1.6 Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS
Directive (2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.7 Package information
Packaging materials of the product are manufactured
from recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes.
Take them to the packaging material collection points
designated by the local authorities.

10 / EN Dryer / User Manual
1.8 Technical Specifications
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened
maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.
CTechnical specifications of the dryer are subject to
specification without notice to improve the quality
of the product.
CFigures in this manual are schematic and may not
match the product exactly.
C
Values stated on markers on the dryer or in the
other published documentation accompanying with
the dryer are obtained in laboratory in accordance
with the relevant standards. Depending on
operational and environmental conditions of the
dryer, these values may vary.
EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 54 cm
Capacity (max.) 7 kg**
Net weight (plastic front door usage) 30 kg
Net weight (glass front door usage) 32,5 kg
Voltage
See type label***
Rated power input
Model code

11 / EN
Dryer / User Manual
2 Your Dryer

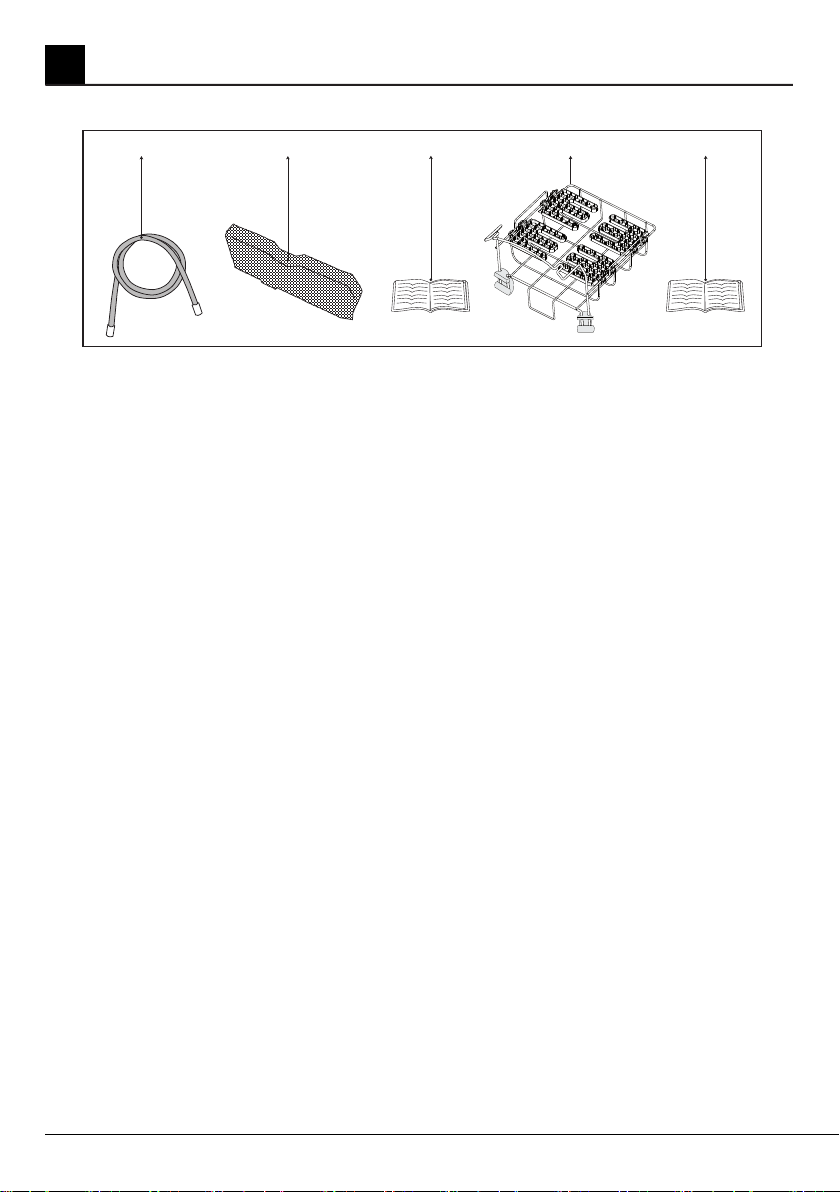

2.1 Package Contents
12 3 5
4
1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
*It can be supplied with your machine depending on its model.

12 / EN Dryer / User Manual
Refer to the nearest Authorised Service
Agent for installation of your product.
CPreparation of location and
electrical installation for the
product is under customer’s
responsibility.
BInstallation and electrical
connections must be carried out
by a qualified personnel.
APrior to installation, visually
check if the product has any
defects on it. If so, do not have
it installed. Damaged products
will cause risks for your safety.
3.1 Appropriate installation
location
• Install the product in an environment
which has no risk of freezing and is in a
stable and level position.
• Operate your product in a well
ventilated, dust-free environment.
• Do not block the air ducts in front of and
under the product with materials such as
long pile rugs and wooden bands.
• Do not place your product on a long pile
rug or on similar surfaces.
• Do not install the product behind a door
with a lock, sliding door or a hinged door
which can strike the product.
• Once the product is installed, it should
stay at the same place where its
connections have been made. When
installing the product, make sure that
the rear wall of it does not touch
anywhere (tap, socket, etc.) and also
pay attention to install the product at a
place where it will stay permanently.
BDo not place the product on top
of the power cable.
• Keep at least 1.5 cm distance to walls of
other furniture.
3.2 Under counter installation
• A special part (Part no: 295 970 0100)
replacing the top trim must be provided
and installed by the Authorised Service
Agent in order to use the machine under
a counter or in a cupboard. It should
never be operated without the top trim.
• Leave at least 3 cm of space between the
side and rear walls of the product and
the walls of the counter/cupboard when
installing your product under a counter
or in a cupboard.
3.3 Ventilation hose and
connection (for products
equipped with an outlet vent)
Ventilation hose allows exhaust air from
inside the machine
Vented dryer has 1 air outlet.
Stainless sheet metal or aluminum pipes
can be used instead of a hose. The pipe
diameter should be minimum 10 cm.
Maximum hose and pipe lengths are given in
the table below.
Hose Pipe
Maximum length 4 m 5 m
1 elbow 45° -1.0 m -0.3 m
1 elbow 90° -1.8 m -0.6 m
1 elbow 90° short -2.7 m
1 wall passage -2.0 m -2.0 m
CEach elbow and other passages
should be subtracted from the
maximum length stated above.

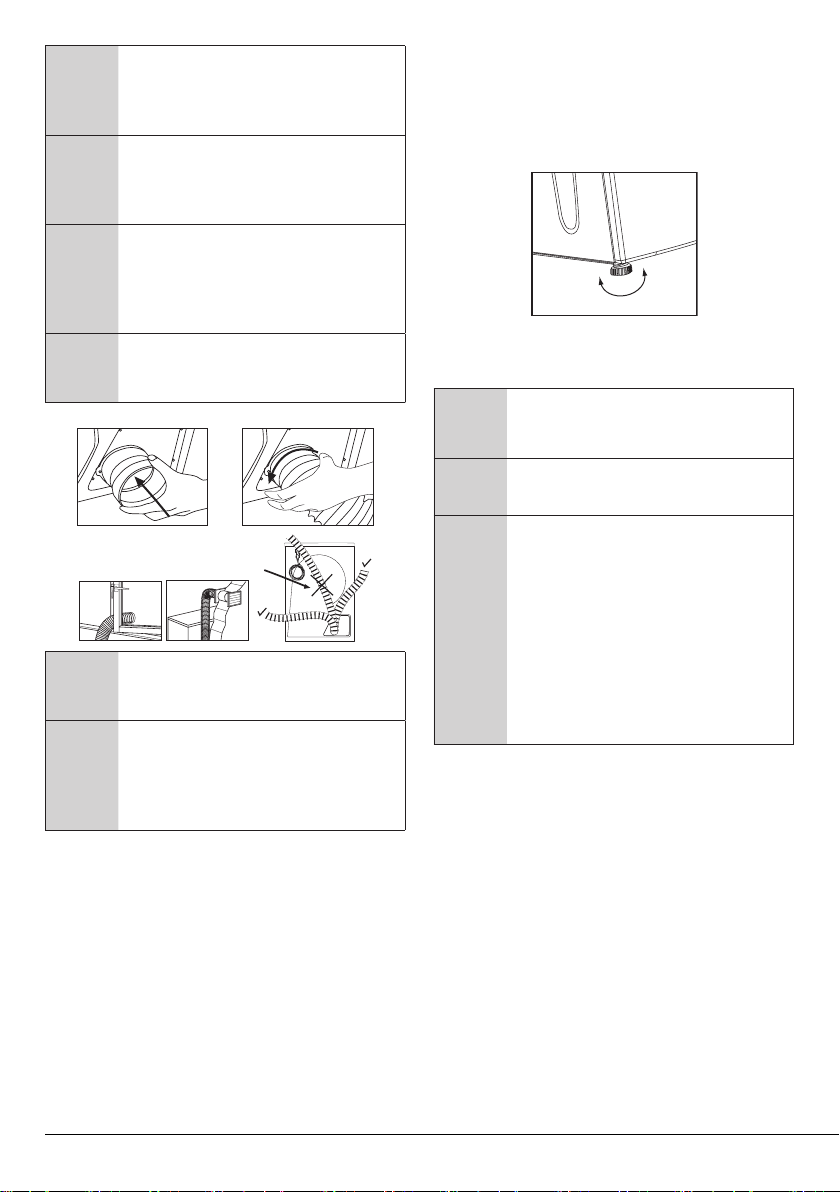

To connect a ventilation hose;
1. Connect the air outlet hose to the
hose spacer piece by turning it
counterclockwise.
2. Make the hose passages as shown below.
3Installation

13 / EN
Dryer / User Manual
CExhaust of humid air from
the dryer into the room is
inconvenient. It may damage the
walls and furniture in the room.
CThe ventilation hose can be
routed outdoors via a window or
it can be connected to the air
outlet in the bathroom.
CAir outlet hose must be routed
directly to the outdoors. There
must be a limited number
of elbows as not to hinder
ventilation.
CTo prevent water accumulation
in the hose, make sure that it is
not folded on the floor.
BThe ventilation hose should not
be connected to the chimney of
a stove or a fireplace.
BDo not operate your product at
the same time with heaters such
as a coal or gas stove. Airflow
may cause the chimney to flare
up.
3.4 Adjusting feet
In order to ensure that your product
operates more silently and vibration-free, it
must stand level and balanced on its feet.
Front feet of your product can be adjusted.
Balance the machine by adjusting the feet.
1. Loosen the feet by hand.
2. Adjust the feet until the product stands
level and firmly on the floor.
CDo not use any tools to loosen
the adjustable feet, otherwise,
they can be damaged.
CNever remove the adjustable
feet from their housings.
CYou may supply 2 plastic pieces
from an Authorized Service with
2951620100 part number. These
parts prevent your machine
from slipping when the machine
locates on wet and slippery
surfaces. You may assemble
mentioned parts to the front
adjustable feet by fitting and
pressing them to snap into
ground of feet.
3.5 Electrical connection
or specific instructions for electrical
connection required during installation (see
1.1.1 Electrical Safety)

14 / EN Dryer / User Manual
3.6 Transportation of the
machine
1. Unplug the machine from the mains.
2. Remove the water drain (if any) and
chimney connections.
3. Drain water remained in the machine
completely before transportation.
3.7 Changing the illumination
lamp
In case an illumination lamp is used in your
laundry dryer
To change the Bulb/LED used for
illumination of your tumble dryer, call your
Authorized Service.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place laundry in the
tumble dryer in a comfortable way.
‘’The lamps used in this appliance have to
withstand extreme physical conditions such
as vibrations and temperatures above
50 °C.’’

15 / EN
Dryer / User Manual
4.1 Laundry suitable for drying in the dryer
Always obey the instructions given on the garment tags. Dry only the laundry having a
label stating that they are suitable for drying in a dryer and make sure that you select the
appropriate programme.
4Preparation
Drying
Settings
At any temperature At high temperature At medium temperature At low temperature Without heating Hang to dry Lay to dry Hang wet to dry Lay in shadow to dry Dry-cleanable
Iron -
IRON
Dry or Steam
Iron at high
temperature
Iron at medium
temperature Iron at low
temperature
Do not iron
Iron without
steam
Maximum temperature 200 0C150 0C110 0C

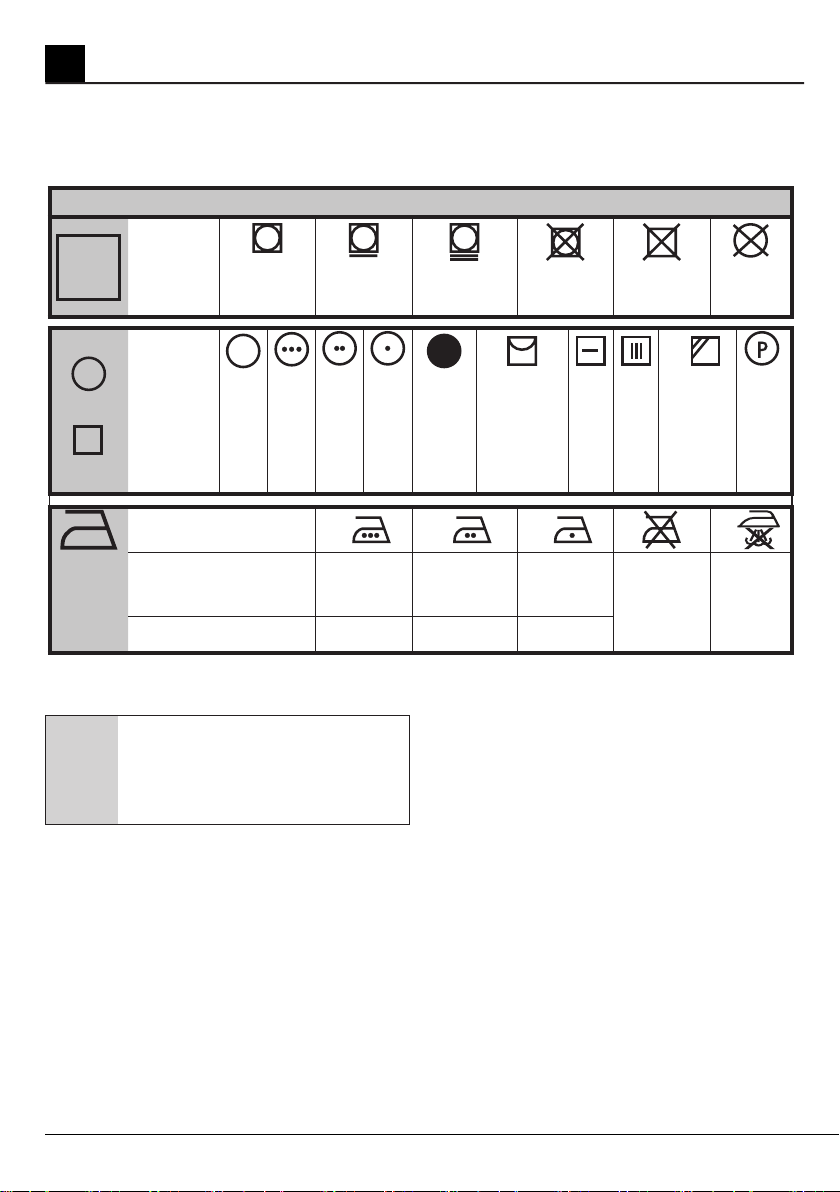

LAUNDRY DRYING SYMBOLS
Drying
Symbols Suitable for
dryer No Iron Sensitive /
Delicate dry
Do not dry
with dryer
Do not dry Do not dry-
clean
4.2 Laundry not suitable for
drying in the dryer
CDelicate embroidered fabrics,
woolen, silk garments, delicate
and valuable fabrics, airtight
items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for
drying
• Laundry may be tangled with each
other after washing. Separate the
laundry items before placing them into
the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
4.4 Things to be done for
energy saving
Following information will help you use the
dryer in an ecological and energy-efficient
manner.
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and table clothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must certainly open the loading
door, do not to keep it open for a long
time.
• Do not add wet laundry while the dryer
is in operation

16 / EN Dryer / User Manual
• Clean the lint filter before or after each
drying cycle.
• Ventilate the room, where the dryer is
located, well during drying.
4.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated
in the table.
CIt is not recommended to load
the dryer with laundry exceeding
the level indicated in the figure.
Drying performance will degrade
when the machine is overloaded.
Furthermore, dryer and the
laundry can get damaged.
Following weights are given as examples:
Laundry Approximate
weights (g)*
Cotton quit covers
(double) 1500
Cotton quit covers
(single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces) 100
T-Shirts 125
*Dry laundry weight before washing.

17 / EN
Dryer / User Manual
5Selecting a Program and Operating Your Machine

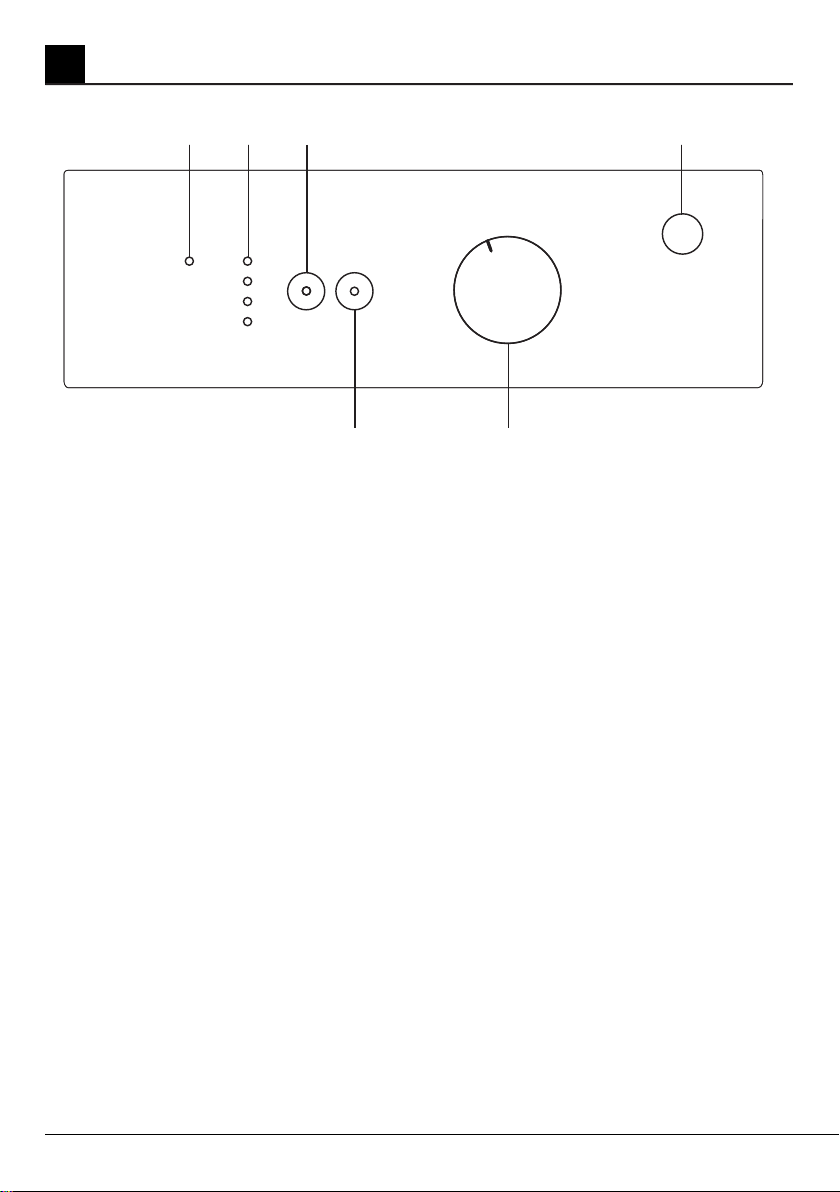

5.1 Control panel
1. Filter cleaning warning light
Warning light turns on when the filter is
full.
2. Program follow-up indicator
Used to follow-up the progress of the
current programme.
3. Low temperature
Used to dry in low temperatures.
4. On/Off button
Used to turn on and off the machine.
5. Programme selection knob
Used to select a programme.
6. Start/Pause/Cancel button
Used to start, pause or cancel the
programme.
7. Water tank warning light*
Warning light turns on when the water
tank is full.
56
12 3 4

18 / EN Dryer / User Manual
5.2 Preparing the machine
1. Plug in your machine.
2. Place the laundry in the machine.
3. Press the “On/Off” button.
CPressing the “On/Off” button
does not necessarily mean that
the programme has started. Press
“Start/Pause/Cancel” button
of the machine to start the
programme.
5.3 Timer program selection
Decide the appropriate time from the table
below which includes drying temperature in
degrees. Select the desired time with the
timer program selection button.
Extra dry
Dry at high temperature
only for cotton laundry.
Thick and multi layered
laundry (E.g.: towels,
linens, jeans) are dried
in a way that they do
not require ironing
before placing in the
wardrobe.
Ready to Wear
Normal laundry (E.g.:
tablecloths, underwear)
are dried in a way that
they do not require
ironing before placing in
the drawers.
Ready to Iron
Normal laundry (E.g.,
Shirts, dresses) are
dried ready to be
ironed.
CFor further program details, see,
“Program/Time Selection Table”
5.4 Main programs
•Anti-creasing
A 2-hour anti creasing program to prevent
laundry from creasing will be activated if
you do not take the laundry out after the
program has come to an end. This program
rotates the laundry in 60-second intervals to
prevent creasing.
•Ventilation
Only ventilation is performed for 10 minutes
without blowing hot air. You can air your
clothes that have been kept at closed
environments for a long time thanks to this
program to deodorize unpleasant odors.
•Timer programs
You can select one of the 10 min...30
min...60 min...80 min...100 min...130
min... 150 min...timer programs to achieve
the final drying level. Dry the cotton
laundry at high temperatures and synthetic
and easy-care laundry at low temperatures
depending on the type of the laundry.
CYou must press the “Low
temperature” button for
synthetics

19 / EN
Dryer / User Manual
* : Energy Label standard program (EN 61121:2005)
All values given in the table have been fixed according to EN 61121:2005 Standard. These
values may deviate from the table according to the laundry type, laundry spin speed,
environmental conditions and voltage fluctuations.
5.5 Program selection and consumption table
EN
Program table
Programs Capacity
(kg)
Spin speed
in washing
machine (rpm)
Approximate
amount of
remaining humidity
Drying time
(minutes)
Cottons / Coloreds
AReady to Wear
71000 % 60 130
800 % 70 150
3.5 1000 % 60 80-100
800 % 70 100-130
AReady to Iron
71000 % 60 100
800 % 70 100-130
3.5 1000 % 60 60-80
800 % 70 80
Synthetics
BReady to Wear
3.5 800 % 40 60
600 % 50 60-80
1.75 800 % 40 30-60
600 % 50 30-60
Energy consumption values
Programs Capacity
(kg)
Spin speed
in washing
machine (rpm)
Approximate
amount of
remaining humidity
Energy
consumption
value kWh
Cottons linen Ready to wear* 7 1000 % 60 3,95
Cottons Ready to iron 7 1000 % 60 3,10
Synthetics Ready to wear 3.5 800 % 40 1,30

20 / EN Dryer / User Manual
5.6 Auxiliary function
Low temperature
This function allows for drying at lower
temperatures and therefore saves energy.
Warning LED will light up when you select
the function.
CYou must use this function when
you dry your synthetic or delicate
laundry.
5.7 Warning indicators
CWarning indicators may differ
according to the model of your
machine.
Filter cleaning
A warning LED will light up to remind filter
cleaning after the program finishes.
CIf the filter cleaning warning LED
lights up continuously, please
refer to, “Solution suggestions for
problems”.
5.8 Starting the Program
1. Press “Start/Pause/Cancel” button to
start the program.
2. “Start/Pause/Cancel” button will light up
to indicate that the program has started.
Timer follow-up indicator
One of the lamps is on as far as program
runs and shows the approximate remaining
time.
CLEDs on the timer follow-up
indicator will also flash when the
child-proof lock is activated.
AIf more than one LED light up
or flash concurrently, it means
there is malfunctioning or a
failure (please see, Solution
suggestions for problems).
5.9 Changing the program after
the program has started
You can use this feature to dry your laundry
in a different program after your machine
has started to run.
For example;
Press and hold the “Start/Pause/Cancel”
button for about 3 seconds to select “80”
minutes program instead of “60” minutes
program.
Select the “80” minutes program by
rotating the program knob.
Press “Start/Pause/Cancel” button to start
the program.
CThe program which is selected
first will go on even if the
program selection button is
moved and another program mode
is selected while the machine
is operating. You must cancel
the ongoing program in order
to change the drying program.
(See, Ending the program through
canceling)
5.10 Adding/removing laundry
in standby mode
In order to add or take out laundry after the
start-up of the program;
1. Press the “Start/Pause/Cancel” button
to switch the machine to “Pause” mode.
Drying process will stop.
2. Open the door at Pause position and
close it again after adding or taking out
laundry.
3. Press “Start/Pause/Cancel” button to
start the program.
CAny laundry added after the
drying process was started may
cause the already dried clothes in
the machine intermingle with wet
clothes and the result will be wet
laundry after the drying process
is over.
