PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT
In accordance with the provisions of the Directive of the European Parliament and of the Council 2012/19 / EU of 4 July 2012 on waste electrical and
electronic equipment (WEEE), it is prohibited to place of used equipment together with other wastes, marked with crossed out wheeled bin symbol.
The users are obliged to transfer their used equipment to a designated collection point for proper processing. The marking means, at the same time,
that the equipment was put on the market after 13 August 2005. These legal obligations have been introduced to reduce the amount of waste
generated from waste electrical and electronic equipment and to ensure an appropriate level of collection, recovery and recycling. The equipment
does not contain any dangerous components, which would have any particularly negative impact on the environment and human health.
Failure to comply with this Manual may result in injury or death.
Keep the Manual for reference.
NOTE: Follow these instructions: non-compliant installation and/or removal may cause severe injury!
- Read this Manual before installing the product.
- Have this control unit installed/removed and wired by a suitably licensed electrician (with an electrician’s license for electrical installations ≤ 1 kV).
- Caution: Disconnect the power cable from the supply voltage before removing the product.
- The control unit is intended for operation in dry indoor rooms. Do not expose it to weather.
- The control unit requires a separate power supply line, connected to the power sub-distribution switchboard with a short-delay current
breaker, e.g. a B10 over-current CB.
- If the control unit power cable is damaged, replace it.
- Fasten and route the power cable to prevent the condensate (water) from flowing into the control unit enclosure.
- A single control unit must not operate more than one drive unit
- Install the control switch at a safe distance from all moving parts of the roller shutter / gate and at a distance which will permit watching the
operation of the roller shutter / gate, and at least 1.5 m above the floor (the minimum height above the floor requirement does not apply to
key-operated switches).
- After installation, make sure that the gate / roller shutter inverts directions properly.
- The installer must comply with the standards and regulations in force in the country where the installation is carried out.
- Users should be trained to operate the control unit.
2. SAFETY OF CONTROL UNIT OPERATION AND MAINTENANCE
NOTE: Follow these instructions: non-compliant operation and/or maintenance may cause severe injury!
- Keep children away from the central unit and its controls: they are not toys.
- Isolate the power supply from the control unit before cleaning, maintenance or replacement of parts.
- Do not operate the control unit if it needs to be repaired or readjusted.
- Whenever the roller shutter / gate is running there must be no obstacles on its way until is completely closed or open.
- Test the control unit for proper reversing of the sense of rotation at least every month.
- Do not attempt to open the roller shutter / gate if it is stuck with heavy ice.
- Do not attempt to alter or modify the product without authorization; otherwise your product warranty will be void and the product
may become hazardous in use. Have all maintenance and repairs done by a qualified technical service provider, the manufacturer, or the
manufacturer’s authorized agent.
PROGRAMMING MANUAL FOR THE AC 27701 CONTROL UNIT
1. INSTALLATION SAFETY

2
We reserve the right to any technical change.
Valid on 2021.06.07
PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT
3. TECHNICAL SPECIFICATIONS
4. CONNECTION OF THE TRANSMITTER
Power supply:
Operating temperature:
Maximum output power:
Works exclusively with motors without built-in radio control.
Works with all AC series transmitters included in the ALUPROF S.A. offer.
Possibility to program up to 20 transmitters, Each next transmitter will erase the first one.
230 VAC / 50 Hz
~ -20°C - ~ +55°C
750 W
Frequency: 433.92 MHz
Company reserves the tolerance of catalog data due the different conditions usage.
Average range: 120 meters (in open space), 20 meters (inside buildings)
L
E
N
UP
DOWN
COM
+24
S/STOP
GND
+15
- phase wire
- protective wire
- neutral wire
- UP direction
- DOWN direction
- power connector
- Power supply: +24 V
- STOP
- ground
- Power supply: +15 V
If no external switches are connected to the control unit, you must put the jumper between “STOP” and “GND”.
POWER
MOTOR
PHOTOCELL
MASTER CONTROL
EXT-MANUAL
SAFETY EDGE
- power connectors
- motor connectors
- photocell connectors
- external switch connectors
- external switch connectors
- safety edge connectors

3
We reserve the right to any technical change.
Valid on 2021.06.07
PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT
5. REMOTE CONTROLLERS
UP
DOWN
K-
- activation of this button will move curtain up.
- activation of this button will move curtain down.
- activation of this button will switch to the previous channel.
K1/K2/K3/K4 - individual channel buttons.
STOP - activation of this button will stop curtain.
K+ - activation of this button will switch to the next channel.
P2 - activation of this button will switch to programming mode.
UP
STOP
DOWN
K-
K+
P2
P2
P2
UP
STOP
DOWN
K-
K+
UP
STOP
K+
K-
DOWN
AC127-01 AC127-06 AC127-16 AC140-16 AC140-06 AC140-01
AC129-04 AC129-01
AC136-01 AC136-06 AC136-16
AC134-06
AC134-02
AC134-01 AC133-01
AC133-02
AC133-05
P2
AC116-04
K2
K4
K1
K3
P2
AC116-03
DOWN
UP
STOP

4
We reserve the right to any technical change.
Valid on 2021.06.07
PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT

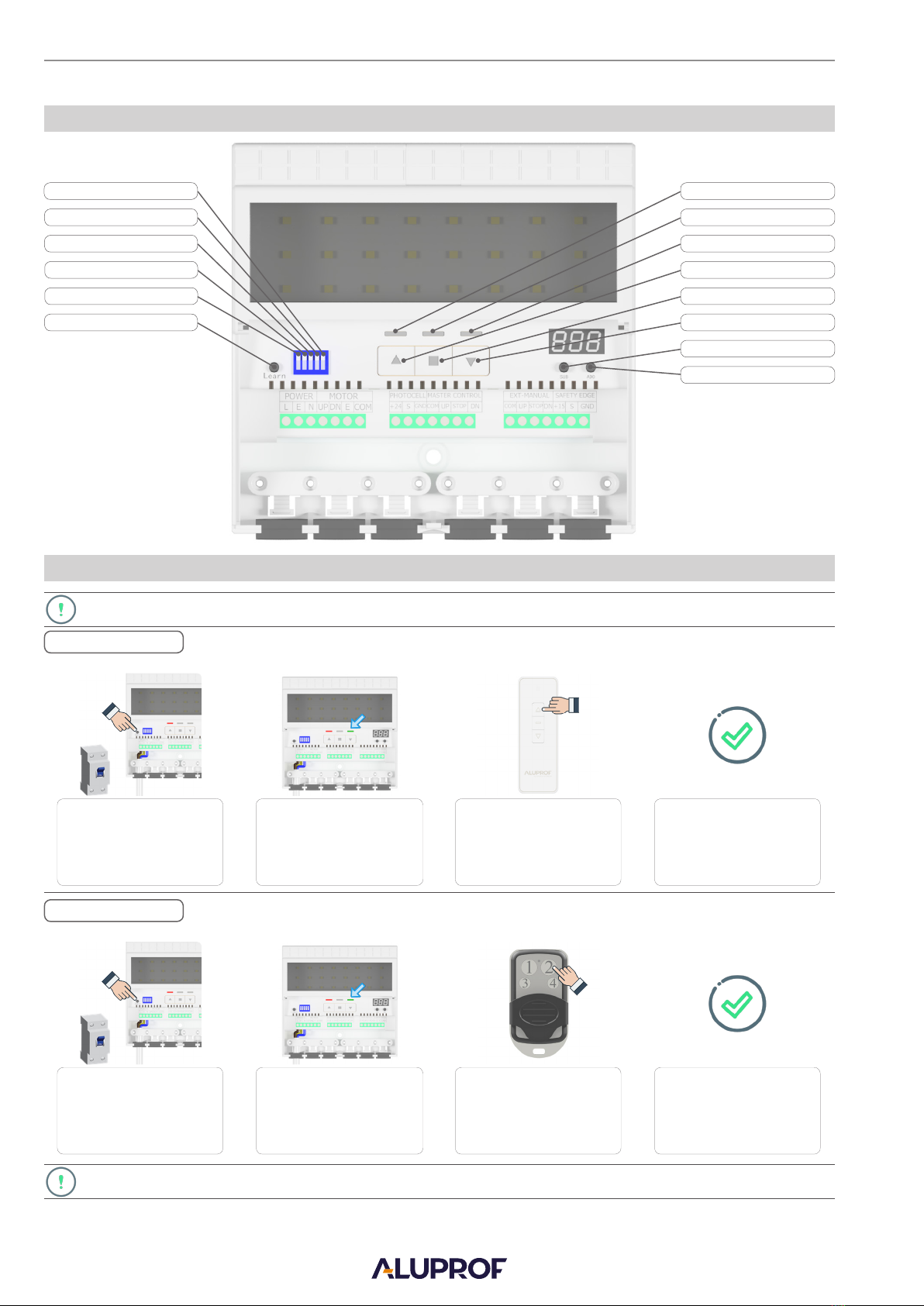

7. PROGRAMMING THE TRANSMITTER
With the control unit powered on,
press the “Learn” button.
The green LED
will flash slowly.
Press the ”TOP” button on
the transmitter. The green LED
will quickly flash 3 times.
The transmitter has been
added.
Control unit works with two types of remote controls - 1) directional 2) impulse
DIRECTIONAL
With the control unit
powered on, press
The green LED will
flash slowly.
Press the button twice
on the transmitter. The green LED
will quickly flash 3 times.the “Learn” button.
The transmitter has been added.
IMPULSE
“Learn” mode after 10 seconds of inactivity will close and no changes will be saved.
6. DIAGRAM OF THE FRONT PANEL
UP
STOP
RF COMMUNICATION
DOWN
PROTECTIONSOPERATING MODE
OPERATING MODE
TIME SETTING
SAFETY EDGE
PHOTOCELL
PROGRAMMING
„-”
POWER SUPPLY
„+”

5
We reserve the right to any technical change.
Valid on 2021.06.07
PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT
8. SETTING OF THE CONTINUOUS OPERATION TIME
Turn on the power of the
control unit.
Set switch 5 to
the “ON” position.
Press the “SUB” or “ADD”
button to set
the time in seconds.
The setting has been saved.
The setting has been saved.
10. PHOTOCELL SETTINGS
9. SETTING THE AUTOMATIC CLOSING TIME
Turn on the power of the
control unit.
Set switch 5 to
the “OFF” position.
Press the “SUB” or “ADD”
button to set
the time in seconds.
Set switch 1 to
the “ON” position.
Set switch 1 to
the “OFF” position.
active photocell inactive photocell
11. SAFETY EDGE SETTINGS
Set switch 2 to
the “ON” position.
Set switch 2 to
the “OFF” position.
safety edge is active safety edge is inactive

6
We reserve the right to any technical change.
Valid on 2021.06.07
PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT
Press the ”TOP” button
to run the motor
continuously.
Press the “DOWN”
button to switch
motor to impulse mod.
12. OPERATING MODES
Press the ”TOP” or “DOWN”
button to switch motor to
impulse mod.
Mode III and IV requires protections to be connected.
Press the ”TOP” or “DOWN”
button to run the motor
continuously.
After protection is triggered the
direction of the motor
changes. (UP).
After the motor has stopped,
the countdown of the time after
Press the ”TOP” or
“DOWN” button to run the
motor continuously.
After protection is triggered the
direction of the motor
changes. (UP).
III
II
I
IV
Set switch 3 and 4
to the “ON” position.
Set switch 4 to the
“ON” position.
Set switch 3 to the
“ON” position.
Set switch to the
“OFF” position. which it will close automatically
(point 9.).

7
We reserve the right to any technical change.
Valid on 2021.06.07
PROGRAMMING MANUAL FOR THE AC 277-01 CONTROL UNIT

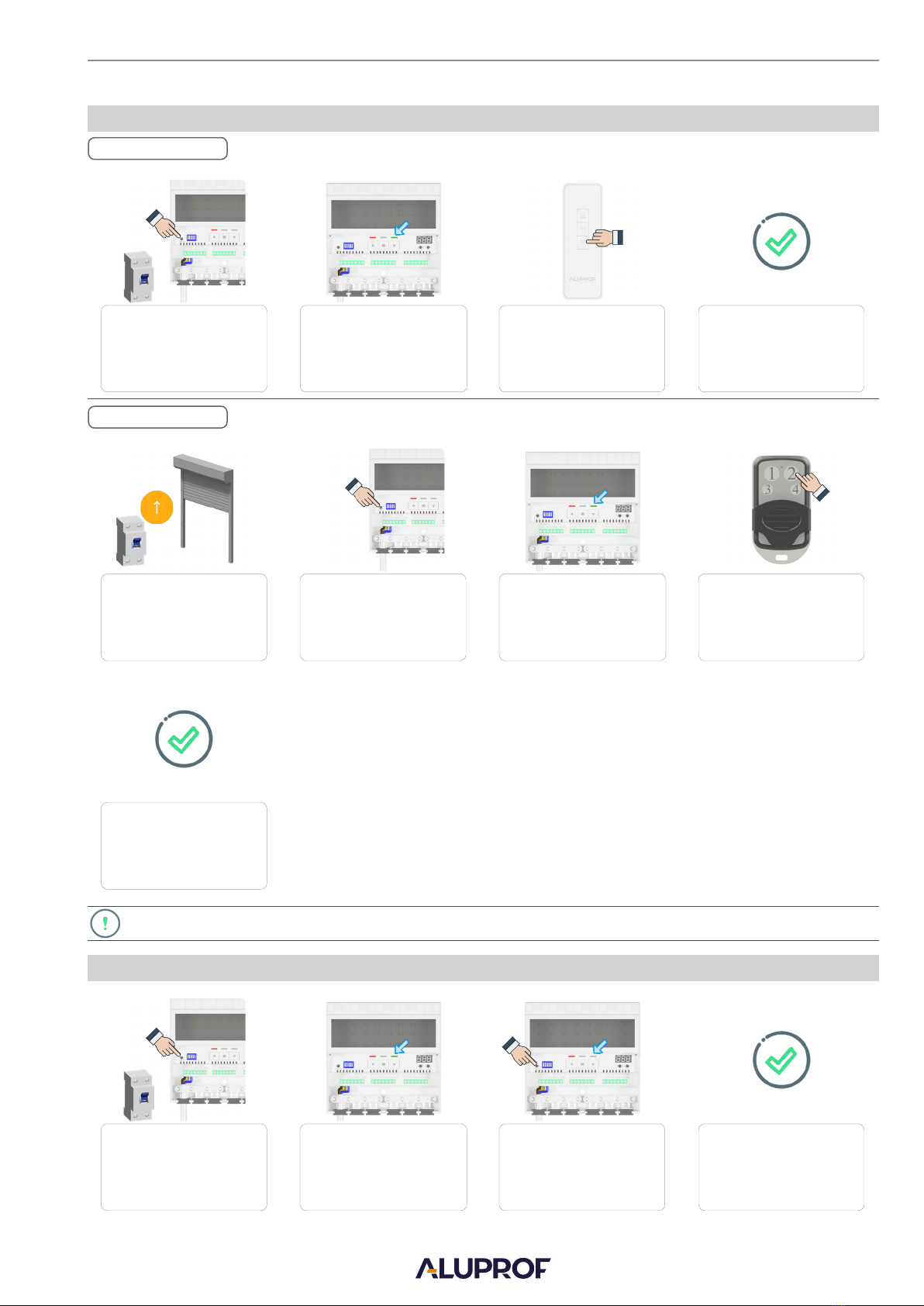

13. ERASING ONE TRANSMITTER.
14. ERASING ALL OF THE TRANSMITTERS.
The transmitters have been
deleted.
With the control unit
powered on, press
The green LED
will flash slowly.
Press the“DOWN”button on
the transmitter. The green LED
will quickly flash 3 times.
the “Learn” button.
The transmitter has been
deleted.
DIRECTIONAL
Press the “Learn” button The green LED will
flash slowly.
Press the button on the
transmitter. The green LED
will quickly flash 3 times.
The transmitter has been
deleted.
IMPULSE
With the control unit powered on
lift and stop garage door in
the top position.
“Learn” mode after 10 seconds of inactivity will close and no changes will be saved.
With the control unit
powered on, press
and hold the “Learn”
button.
The green LED will
flash rapidly. Release the
button.
Press the Learn button
again. The green
LED will turn off.

8
