Aluratek CDW530AM User manual

無線路由器
WiFi Combo Broadband
Gateway
User Guide
CDW530AM

Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and
radiate radio frequency energy and, if not installed and used in accordance with the instructions in
this manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.
The specification is subject to change without notice.
FCC COMPLIANCE STATEMENT

Table of Contents
FCC Interference Statement...............................................................................2
1. Introduction..................................................................................................4
1.1. Package Contents .........................................................................4
1.2. System Requirements for Configuration.....................................5
1.3. Interfaces - the Rear View.............................................................5
1.4. LEDs– the Front View....................................................................6
1.5. Features .........................................................................................7
2. Configuring WiFi Combo Broadband Router............................................8
2.1. Installation Considerations ..........................................................8
2.1.1. Installation Instructions- Get Start Networking ..........................8
2.1.2. Establish WiFi Connection .........................................................11
3. Using the Configuration Menu..................................................................12
3.1. Wizard setting..............................................................................13
3.2. Administrator’s Main Menu ........................................................21
4. Troubleshooting ........................................................................................58
5. Technical Specifications...........................................................................61

1. Introduction
The WiFi Combo Broadband Router is a high-performance tool that supports wireless
networking at home, work, or in a public place. The WiFi Combo Broadband Router
supports uses a USB 3G modem card, either WCDMA or EVDO and even HSDPA as
well, and supports wireless data transfers up to 300M bps, and wired data transfers up to
100 Mbps.
The WiFi Combo Broadband Router is compatible with industry security features.
1.1. Package Contents
Importance: Check your product package contents FIRST.
The WiFi Combo Broadband Router package should contain the items listed below.
If any of the items are missing, please contact your reseller.
items Description Quantity
1 WiFi Combo Broadband
Router 1
2 RJ-45 Cable 1
3 Power adapter 5V 2.0A 1
4 Quick Installation Guide 1
5 CD 1
6 Cradle set 1
7 Rubber pad and Sponge 1
Caution: Using a power supply with a different voltage rating than the one included
with the WiFi Combo Broadband Router will cause damage and void the warranty
for this product.

1.2. System Requirements for Configuration
• A compatible USB 3G modem card with service
Note: Subject to services and service terms available from your carrier.
• Computers with Windows, Macintosh, or Linux-based operating systems with an
installed Ethernet adapter.
• Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above.
• Wi-Fi System Requirements: An 802.11b, 802.11g, or 802.11n Adapter.
1.3. Interfaces - the Rear View
Note:
Contains a reset button to restore the setting back to original factory defaulted setting as if
your convenience of forgetting your applicable setting
Antenna
Auto MDI/MDIX RJ-45 Ports
Automatically sense the types of WAN
and LAN when connecting to Ethernet
Receptor for
Power adapter
Reset Button
Restore to Original
factory defaulted setting
USB port for connecting
with 3G USB modem
WPS Button
WiFi Network security
setup

1.4. LEDs– the Front View
3G Status LED
A green light as
power is on and
read
y
LAN LED
A green light as connected
to local Ethernet and blinks
durin
g
data is transmission
WAN LED
A green light as
WAN is connected
WiFi LED
A green light as
connection on
WLAN available

1.5. Features
zAutomatic take over back up with 3G connection as Ethernet WAN failover.
zImplementation within 3 minutes allows the network to go where wires cannot
go – even outside the home or office.
zUtilizes
OFDM technology (Orthogonal Frequency Division Multiplexing).
zUser-friendly configuration and diagnostic utilities.
zOperates in the 2.4GHz frequency range.
zAdvanced Firewall features.
zSupports NAT with VPN pass-through, providing added security.
MAC Filtering
IP Filtering
Port Scheduling
zDHCP server enables all networked computers to automatically receive IP
addresses.
zWeb-based interface for Managing and Configuring.
zAccess Control to manage users on the network.
zSupports special applications that require multiple connections.
zEquipped with 2*10/100 Ethernet ports, for LAN and WAN access, and USB
port for 3G network connection.
zConnects multiple computers to a Broadband either WCDMA or EV-DO even
HSDPA modem to share the Internet connection.
Note: The WiFi Combo Broadband Router is designed to work with either EVDO or
WCDMA (UMTS) even up to 3.5G HSPA PC interface.
Please refer to your service provider for detailed feature information.

2. Configuring WiFi Combo Broadband Router
2.1. Installation Considerations
The WiFi Combo Broadband Router allows you access your network using a
wireless connection, from virtually anywhere within its operating range. Keep in mind
however, that the number, thickness, and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit this range.
Typical ranges vary depending on the types of materials used, and background RF
(radio frequency) noise in your home or business.
To maximize your wireless range, please follow these guidelines:
1. Keep the number of walls and ceilings between the WiFi Combo Broadband
Router and other network devices to a minimum. Each wall or ceiling can reduce
the WiFi Combo Broadband Router’s range from 3-90 feet (1-30 meters).
Note: The same considerations apply to your broadband EVDO connection.
2. Keep your product aware from electrical devices (such as microwaves, air
conditioners, and televisions) that emit large quantities of RFI (Radio Frequency
Interference).
2.1.1. Installation Instructions- Get Start Networking
Connect the Wireless Router to Your Network
Note: DO NOT connect WiFi Combo Broadband Router to power before
performing the installation steps below.
1. Attach the antenna---picture 2.1
Picture 2.1
a. Remove the antenna from its plastic wrapper.

b. Screw the antenna in a clockwise direction to the back panel of the unit.
c. Once secured, position the antenna upward at its connecting joint. This will
ensure optimal reception.
2. Connect a USB modem with service to the WiFi Combo Broadband Router in
one of the following ways:
ÆYou can plug your USB modem into the USB interface---see Picture 2.2
Picture 2.2
Note: The WiFi Combo Broadband Router is designed to work with either
UMTS or EV-DO and even HSDPA 3G card that can be used as a modem
(support tethered data). Please refer to your service provider for detailed
feature information.

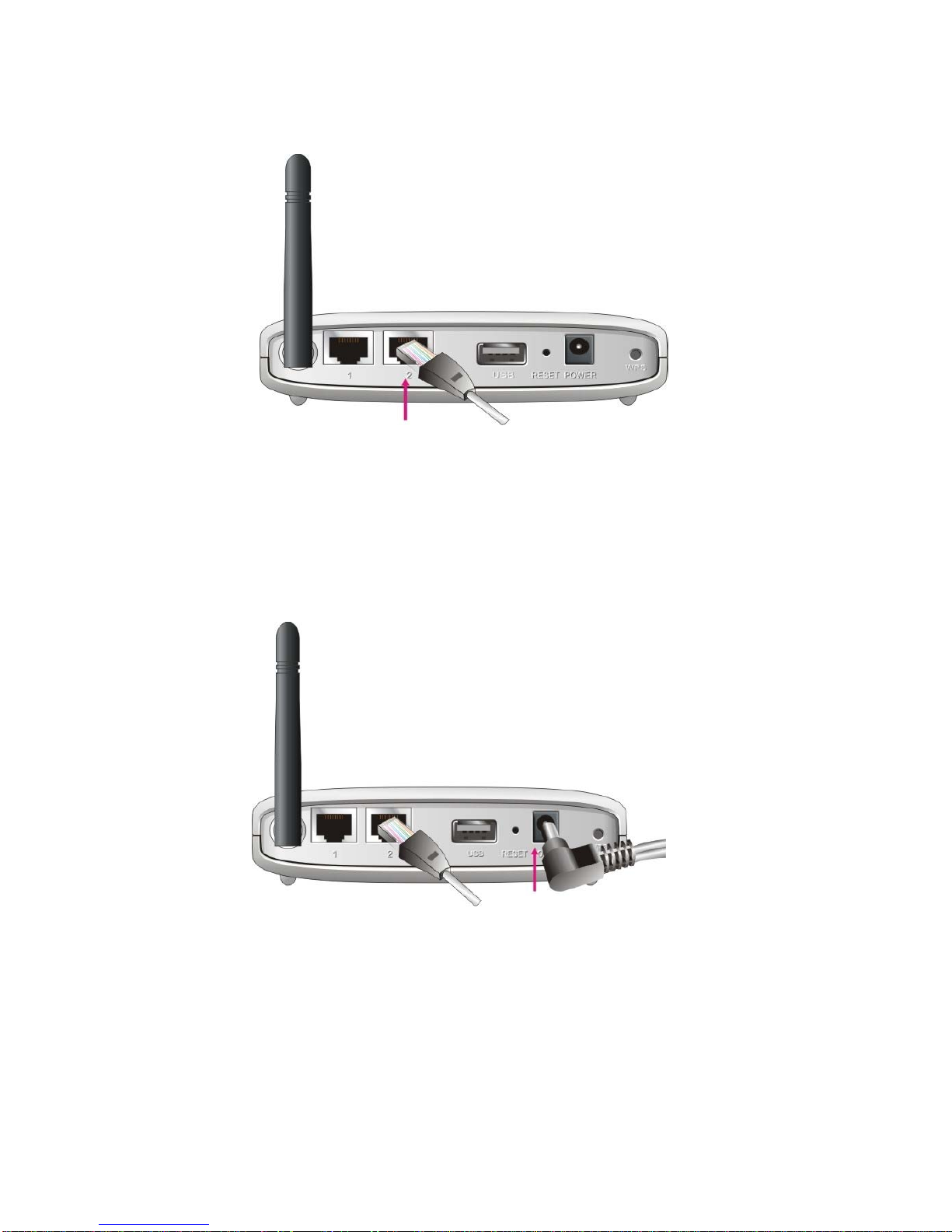

3. Insert the Ethernet patch cable into LAN Port on the back panel of the WiFi
Combo Broadband Router, and an available Ethernet port on the network
adapter in the computer you will use to configure the unit.-see Picture 2.3

Picture 2.3
Note: The WiFi Combo Broadband Router LAN Port is “Auto-MDI/MDIX.”
This provides patch Ethernet cable LAN Port access.
4. Connect the power adapter to the receptor on the back panel of your WiFi
Combo Broadband Router. Then plug the other end of the power adapter into
a wall outlet or power strip.---Picture 2.4
Picture 2.4
5. The LEDs (See Picture 2.5)
a. The 3G(Status) LED will turn ON(when 3G modem inserts) or flash(When
3G modem doesn’t insert) to indicate power has been applied.
b. When complete, the following LEDs will illuminate green: 3G(Status), LAN,
and WiFi.
c. Reference the Section 1.4, LEDs– the Front View.

Picture 2.5
2.1.2. Establish WiFi Connection
If you selected either WEP or WPA-PSK encryption, ensure these settings
match your WiFi adapter settings.
WiFi and encryption settings must match for access to the HSPA WiFi Combo
Broadband Router Configuration Menu, and the Internet. Please refer to your
WiFi adapter documentation for additional information.

3. Using the Configuration Menu
Once properly configured, the WiFi Combo Broadband Router will obtain and assign
IP address information automatically. Configuration settings can be established
through the WiFi Combo Broadband Router Configuration Menu. You can access
this interface by performing the steps listed below:
1. Open a web-browser.
2. Type in the
IP Address (http://192.168.123.254) of the WiFi Combo Broadband
Router
Note: If you have changed the default IP Address assigned to the WiFi Combo
Broadband Router, ensure you enter the correct IP Address now.

3. Type “admin” in the Password field.
4. Click “login” button.

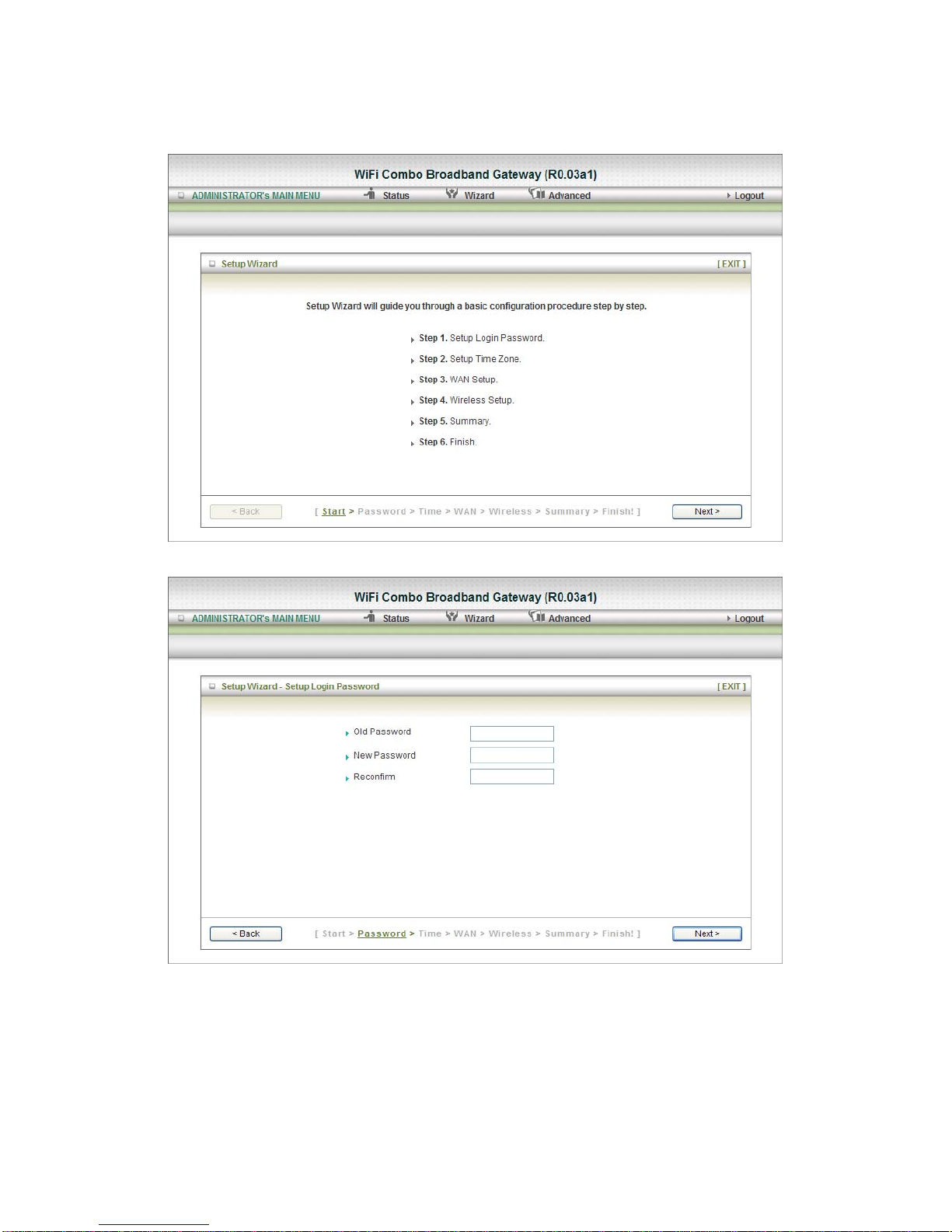

3.1. Wizard setting
zPress “Wizard” button Æfor basic settings with simpler way. (Please check section
3.1)
zOr you may click on “Advanced Setup” Æfor advanced settings. (Please check the
section Administrator’s Main Menu. each item from section 3.2)

zClick on “Enter” button to get start.
With wizard setting steps, you could configure the router in a very simple way. This
configuration wizard includes settings of
a. Login Password,
b. WAN Setup
c. Wireless Setup,
Press “Next” button to start configuration.

Step 1: Allow you to change the system password.
You can change Password here.
It is recommended that you change the system password into the one you prefer to on the
basis of security.
1. Key in your Old Password (if it is the first initiation, the “admin” will be the defaulted one.
2: Enter your New Password

3: Enter your Password again for confirmation; it must be the same as the New Password.
4. Then click on “Next” to get into next installation.
Step 2: Allow you to change the Time Zone.
You can change Time Zone here.
Or you can click the button “DetectAgain”, the Time Zone will be changed to same with your
PC.
Step 3: Select WAN Types will be used for Internet connection

Pick up one of types you preferred to.
Click on “Next” button
Step 4: Configure the LAN IP Address, Host Name and WAN MAC Address.
LAN is short for Local Area Network, and is considered your internal network.
These are the IP settings of the LAN interface for the WiFi Combo Broadband

Router, and they may be referred to as Private settings. You may change the LAN
IP address if needed. The LAN IP address is private to your internal network and
cannot be seen on the Internet.
Note: There are 254 addresses available on the WiFi Combo Broadband Router
when using a 255.255.255.0 (Class C) subnet. Example: The router's IP
address is 192.168.123.1. The available client IP range is 192.168.123.2
through 192.168.123.254.
1. LAN IP Address- The IP address of the LAN interface. The default IP address
is: 192.168.123.254
2. Host Name is optional
3. WAN’s MAC Address
If you click the Clone MAC button, you will find the MAC address of your NIC
shown in WAN's MAC Address
4. Click on “Next” to continue.
Step 5: Configure the wireless settings.
1. Select “Enable” or “Disable”. The default setting is “Enable”.
2. Network ID( SSID) will be defaulted.
3. ChannelÆSelect Wireless Channel matching to your local area for Wireless
connection.
4. Click on “Next” to continue.
Step 6: Select the Wireless security method of your wireless configuration.

Click on “Next” to continue.
Step 7: Summary
Click on the “Apply Settings” button
Step 8: System is applying.

Click “Finish” button to back the Status Page.
