Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
󲐜󲐝󲐞󲐟󲐠www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4
1. Disclaimer & Precautions
Disclaimer & Precautions
Disclaimer
Drones are products that are potentially dangerous and relatively complex to operate.
Please be sure to read the full User Manual to ensure that you understand the basic
knowledge of the drone and are familiar with the basic functions before using the
product. It is recommended to use it in GPS mode in an open outdoor area for the first
time to get familiar with the operation. Please follow the Manual’s operation instructions
and precautions strictly, in order to use the product safely and correctly. Users aged
under 14 must be accompanied by an adult while using the product. Please keep the
product out of children’s reach. For any direct or indirect loss (including but not limited
to property loss and personal injury) due to user’s failure in following the Manual’s
safety operation, the Company does not bear any liability or offer warranty services. Do
not dismantle any part except for propeller blades, or refit the product and attach other
items on it; otherwise, user should undertake the consequences arising therefrom.
For any problem in use, handling and maintenance, please feel free to contact our local
dealer or the Company. Potensic reserves the final interpretation right of this document
and related product documents, and is subject to change without notice. Please visit
https://www.potensic.com for the latest information.
Safety Precautions
Keep away from obstacles and crowds
Keep the product away from crowds, high-rise buildings and high-voltage cables, and
avoid using it in severe weather such as wind, rain and thunder, in order to keep the
safety of the user and the crowds, for the product may have uncertain flying speed,
status and potential hazards.
Keep off moisture
Keep the product off moisture to avoid an anomaly or damage due to humidity of
precise electronic components and mechanical parts inside it.
Safe operation
The product may be exposed to higher risk when user feels tired or lacks of energy and
experience. Please refit or repair the product with the original parts to keep safety.
Please operate and use the product within the allowed range and make sure to follow
the local safety rules.
Keep away from high-speed revolving parts
While the product’s propellers are revolving at a high speed, keep it away from the
crowds and animals to avoid scratch or disturbance. Do not touch the revolving
propellers with hands.

5
Keep away from heat source
Keep the product away from heat and high-temperature exposure to avoid the anomaly,
deformation and even damage, for it is made of metal, fiber, plastic and electronic
elements.
Warning & Prompts
•Please properly keep the package and manual which contain important
information.
•User should avoid personal and property losses when using the product.
•Neither the Company nor our dealers bear any liability for the proper losses and
personal injuries due to users.
•Debug and install the product in strict accordance with the Manual’s steps. Keep
a distance over 1~2m with others while using the product, to avoid injury when
the product crashes into people’s head, face and body.
•The product should be assembled by an adult. Users aged below 14 should not
handle the product alone. The battery should be charged under the supervision
of an adult and by avoiding inflammables.
•Keep the product out of children’s reach to avoid eating it by mistake, for it
contains small parts.
•Do not use the product on the road or in water to avoid an accident.
•It is forbidden to dismantle or refit the product, except for the propellers;
otherwise, an anomaly may; occur.
•Please recharge the intelligent battery with USB charger that conforms to FCC/CE
standard.
•The remote controller has a built-in 3.7V lithium battery which needs no
replacement.
•Do not short-circuit or squeeze the battery to avoid explosion.
•Do not short-circuit, break down or throw battery in fire or place it in hot place (in
fire or near electric heater).
•Keep a safe distance from the propellers which are revolving at a high speed; do
not use the product in the crowds to avoid scratch or injury.
•Do not use the product in places with strong magnetic field, such as near high-
voltage cable, buildings which contain\metals, automobiles and trains; otherwise,
the product can be disturbed.
•Please do master local laws and regulations, to avoid violation of regulations.
•Stop using the remote control within the radio control period and region of
national departments as specified, in order to conform to the requirements for
magnetic environment of aeradio.
•Avoid low-altitude flight above water surface.
•Keep it away from airport, airline and other no-fly zone.

6
Reading Tips
Symbols
Prohibited Important Operation & use prompts Technical Terms and reference
information
Prohibited
Important
Operation & use
prompts
Technical Terms
and reference
information
Suggestions of Use
1. User is highly suggested to watch the tutorial video and Quick Operation Guide before
consulting the Manual.
2. Make sure to read Disclaimer & Precautions first when consulting the Manual.
Tutorial Video / PotensicPro APP
Scan the QR Code at the right side to watch Potensic Atom SE (Atom SE) tutorial video
and download PotensicPro APP (APP) Please do watch the tutorial video in order to use
the product correctly and safely.
User can also watch the tutorial video of Atom SE in the menu column of APP
homepage.

7
Registration & Help
Make sure to register personal account in APP before the first flight, in order to get
better use experience.
Steps of Registration
Please fill your E-mail, password, check the protocol and click “Register”. You can login
the system after registration.
(Note: Keep the mobile phone online during registration)
Help
Thanks for purchasing Atom SE drone. Please read the Manual carefully.
Please contact our support team at [e-mail] if anything needs help,
when requesting an after-sales service, it is required to submit order ID and details of
the issues.
Technical Terms
IMU
IMU (inertial measurement unit), the most important core
sensor of the drone.
TOF (Time of Flight)
TOF (time of flight), the period from transmission and
receiving of detection infrared signal, in order to
determine the target distance.
Lower visual system
The sensor system, which lies at the bottom of the drone
and consists of camera and TOF module.
Visual orientation
High-accuracy positioning, which is realized through lower
visual system.
Compass
Identify direction for geomagnetic sensor and the drone.
Barometer
Atmospheric pressure sensor, which enables the drone to
determine the altitude through atmospheric pressure.
Lock/unlock
Switch the drone motor from static status to idle running.
Idling
Once unlocked, the motor will start revolving at a fixed
speed, but it has insufficient lifting force to take off.
Auto return
The drone will return to HOME point automatically based
on GPS positioning.
EIS
Electronic Image Stabilization; the camera will detect the
data of high-frequency vibration and eliminate picture
flutter through algorithm.
Drone head
Position of the drone camera.
Throttle control stick
Ascend or descend the drone.
Pitch control stick
Fly the drone to front or back.
Roll control stick
Fly the drone to left or right.
Yaw control stick
Enable self-rotation of the drone to left or right.

8
Overview
Introduction
This chapter introduces the functional characteristics of Atom SE, as well as the
component name of the drone and the remote control.
With foldable arms and weight below 250g, the product is portable, and can also be
used without real-name registration in most countries. The product is fitted with a visual
positioning system, to realize precise hovering at low altitude indoor and outdoor
environment. Meanwhile, the product is fitted with a GPS sensor to realize positioning
and auto return. Based on 1/3 " Sony CMOS image sensor, the product can shoot
4K/30FPS HD video and 1.2-megapixel pictures. Atom SE uses self-developed Shake
Vanish electronic stabilization technology to make the picture clear and stable.
By using the brand new PixSync 2.0™2.4G digital image transmission technique, the
Atom SE remote control can realize 4 km communication distance and 720P HD image
transmission maximally at ideal conditions. Open the pull-type and the foldable remote
control to contain your mobile device. Connect the remote control and mobile device
with USB data cable, to operate and set the product through APP and display HD image
transmission picture. The built-in lithium battery of the remote control can work for
approx. 2h maximally.
Atom SE uses proprietary SurgeFly™flight control technology, with a maximum
horizontal flight speed of 16m/s (52ft/s), a maximum flight time of about 31 minutes,
and the ability to withstand winds of up to level 5.
Test method of the max. flight period: Fly at an even speed of 5m/s at 25°C and in
breezeless condition. Test method of the max. distance: Measured at an open and
no-interference environment, with a flight height of 120m, and without
considering the return of the drone.
Necessary tools for one flight:
1. Drone 2. Fully-charged smart battery 3. Remote Controller
4. Smartphone 5. Adaptive USB cable of mobile phone

9
Drone Diagram
1. Charging indicator
7. TOF module
13. Propeller
2. TYPE-C charging port
8. Bottom cooling hole
14. Arm
3. Battery buckle
9. Power indicator
15. Antenna tripod
4. SD card slot
10. Power/frequency
pairing button
16. Arm shaft
5. Tail indicator
11. Integrated single-axis
gimbal camera
13. Propeller
6. Monocular visual
module
12. Brushless motor
14. Arm
4
9Remote Controller Diagram

10
5
1. Power button
Long press it for 2s to power on/off.
7. Foldable double antennas
2. Power indicator
Indicate the power level or other status of
the remote controller
8. Installation position of mobile device
To place mobile device.
3. Control stick slot
One slot respectively at the left and right
side, which are used to store the sticks
9. Shoot button
Short press it to shoot one picture
4. TYPE-C interface
To charge the remote controller/connect
mobile device
10. Record button
Short press it to start/stop recording
5. RTH / Pause button
Long press for 1s to return to HOME point
automatically
11. Left thumbwheel
Dial the thumbwheel horizontally to
control the tilt of the gimbal.
6. Control stick
Preparing the Drone
The product is delivered under folded status. Please unfold it as follows:
1. Unfold the front arm before the rear arm.
2. Unfold the propeller blades.
1

11

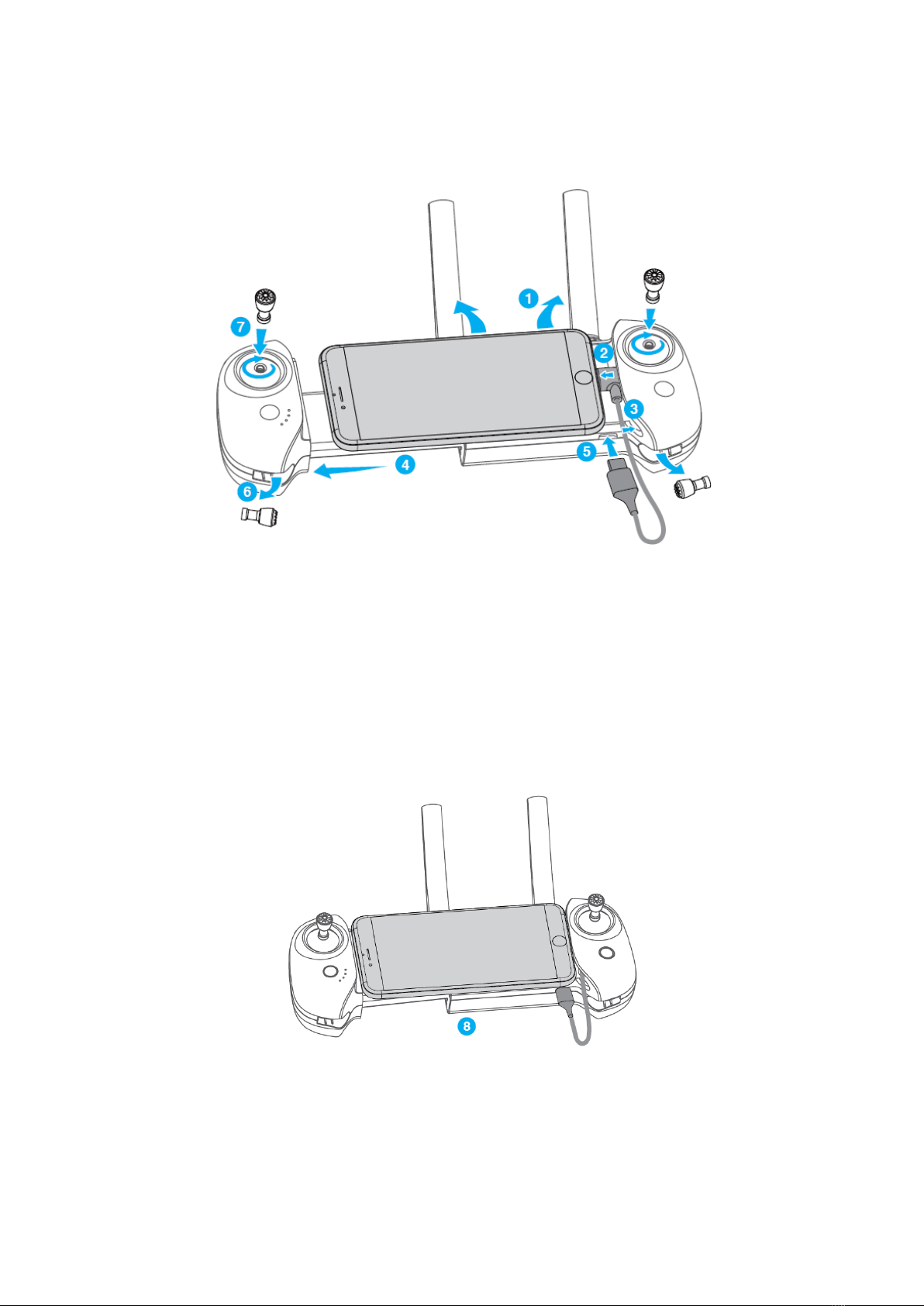

Preparing the Remote Controller
Installation of mobile phone and control stick
1
2
3
1. Unfold the antenna.
2. Connect your mobile phone to the USB cable.
3. Insert the part of your mobile phone with the USB cable into the slot of the remote
controller.
4. Pull and open the remote control with both hands and fix your mobile phone stably.
5. Connect the other end of the USB cable to the remote controller.
6. Take out the sticks.
7. Screw in both control sticks clockwise.
8. Installation completed.
4EN

12
Charging / Startup and Shutdown
When receiving a new drone battery, it is required to charge it to wake it up, otherwise
the drone wouldn't start.
Connect the TYPE-C charging port of battery and a USB charger to the AC power supply
to finish one-time charging (USB charger is not included in the package. User can use the
charger that conforms to FCC/CE specification to charge the battery). The red indicator
will stay on during charging, and turn off automatically after charging is done. User can
charge the battery with the Parallel Charging HUB if fly expansion kit is purchased. For
more details, please refer to User’s Manual of Parallel Charging HUB. The Parallel
Charging HUB can also charge the remote controller.
The shortest charging period is approx. 1h 25min through the type-C charging
port. Make sure your charger supports 5V/3A output in order to achieve this
charging speed.
User is suggested to charge the battery through the Parallel Charging HUB, in
order to charge 3 batteries quickly at the same time.
It is suggested to remove the battery from the drone to charge for the sake of
safety; otherwise, the drone won't power on if the battery is being charged in the
drone. If the charging cable is connected while the drone is on, it will power off
automatically and the charging will continue.
The battery may become too hot after use; do not charge it until it cools down;
otherwise, charging can be rejected by the smart battery.
Charge the battery on a trimonthly basis to maintain the activity of the cell.
Please connect the original cable or any cable that supports over 3A current to the
type C port; otherwise, it may cause charging failure or battery damage.
Mode 1
Mode 2

13
Startup
Drone: Make sure the battery is inserted in battery bin, short press and then long press
the power button until all indicators are on, and then release the button to start up.
Remote controller: Long press the “Power” button until all indicators are on, and then
release the button to finish startup.
Shutdown
Drone: Short press and then long press the power button of the drone until all
indicators are on, and then release the button to shut down.
Remote controller: Long press the power button until all indicators are off, and then
release the button to shut down.
The product consists of a flight control system, a communication system, a positioning
system, a power system and a smart flight battery. This chapter sets down the functions
of all parts of the drone.
Positioning
Atom SE adopts Potensic's new SurgeFly™flight control technology, which supports the
following two positioning modes:
GPS positioning: Provide precise positioning and navigation to the drone; support
precise hovering, smart flight and auto return.
Visual positioning: It can realize high-precision positioning at a low altitude based on
the Downward Vision System. The visual positioning can be realized without GPS signal,
so that the product can be used indoors.
How to switch: The flight control system will switch automatically according to the
environment of the drone. If both GPS and lower visual system fail, the flight control will
be switched to attitude mode, under which, the drone fails to realize stable hovering and
user needs to correct the flight gesture manually through the control stick.
The difficulty of drone handling will be increased greatly in the attitude mode; make
sure to master the behaviours and operation of the drone in this mode before using this
mode; avoid flying the drone at a long distance, to avoid risks due to failed judgment of
drone gesture.
User can also switch to attitude mode in APP.
In visual positioning, smart flight is not supported and flight speed will be
restricted.
The difficulty of controlling the drone will increase dramatically in ATTI Mode
so make sight in order to avoid risks in case of failed judgment of the drone's
attitude and direction.

14
Downward Vision System
The Atom SE is equipped with a downward vision system, it is located beneath the
drone. The Downward Vision System consists of a monocular camera and a TOF module.
The TOF module includes a transmitter tube and a receiver tub, it can precisely calculate
the fly height above the ground by calculating the infrared signals transmission and
receiving time. In combination with the monocular camera, the system can help achieve
high-precision positioning at low altitudes.
Detection Fields
The Downward Vision System works best when the drone is at an altitude of 0.3 to 5 m,
and its operating range is 0.3 to 10 m. When GPS is unavailable, the Downward Vision
System is enabled if the surface has a discernable surface and sufficient light. The
Downward Vision System works best when the drone is at an altitude of 0.3 to 5 m. If the
drone’s altitude is above 5 m, the Vision System may be affected, so extra caution is
required.
How to use
The Downward Vision System has enabled automatically if the positioning conditions are
satisfied. The drone tail indicator blinks cyan twice, which indicates the Downward Vision
System is working. Speed limit: To ensure positioning accuracy and flight safety during
visual positioning flight, the drone will actively limit its flight speed.
Visual positioning is only an auxiliary flight function, please always pay attention
to the changes in the flight environment and positioning mode, and do not rely
too much on the automatic judgment of the aircraft. Users need to control the
remote at all times and be prepared to operate the aircraft manually at any time.
The Vision System cannot work properly in any of the following situations
1. Pure-color surface
2. Surface with strong reflection, such as smooth metal surface
3. Transparent object surface, such as water surface and glass
TOF Module
Monocular Camera

15
4. The moving texture, such as running pets and moving vehicles.
5. Scenarios with drastic change of light; For example, the drone flies to outdoor
space with strong light from indoor space.
6. Places with weak or strong light.
7. The surface with highly repetitive texture, such as floor tile with the same
texture and small size, and highly consistent strip pattern.
For the sake of safety, please check the camera and TOF transceiver tube before
the flight, and clean it with a soft cloth if there is any dirt, dust, or water on it;
Contact Potensic Support if there is any damage to the Vision System.
Drone Status Indicator
Start-up/Shut-
down
Startup / Shutdown in progress: Green indicator is solid on
Flight status
GPS
positioning
Indicator
flashes
slowly
in green
Visual
positioning
Indicator
flashes slowly
in cyan
Attitude
mode
Indicator
flashes slowly
in blue
Return
Indicator
flashes slowly
in red
Warning & Error
Remote
control has
no
connection
with the
drone
Indicator is
in solid blue
Low battery
Indicator
flashes quickly
in red
Sensor error
Indicator is in
solid red
Emergency
stop of
propeller
Indicator has
long-
extinguishing
and short-
illuminance
Upgrade &
calibration
Compass
calibration
(horizontal)
Indicator
has
alternative
flashing
between
red and
green
Compass
calibration
(vertical)
Indicator has
alternative
flashing
between blue
and green
Frequency
pairing mode
Indicator
flashes quickly
in green
Upgrade
mode
Indicator
flashes quickly
in blue

16
Smart Battery
Function
Atom SE smart battery is mounted with high-energy cell and advanced BMS. The details
are as follows:
Basic Parameters
Model: DSBT02A
Cell Qty.
2 series
Battery Capacity
2500mAh
Rated Voltage
7.2V
Charge Completion Voltage
8.4V
Charging
Mode
TYPE-
C/Parallel
Charging HUB
Max. Charge Current
TYPE-C: 5V/3A
Parallel Charging
HUB: 8V/2.2A x 3
Function
Basic parameters
Balance
protection
Balance cell voltage automatically to guarantee battery health.
Self-discharge
protection
If the battery is fully charged and left idle, it will slowly self-
discharge to 50%-70% after 5 days to protect the battery cells.
Overcharge
protection
Charging will stop once battery is fully charged, for the battery can
be damaged by overcharging.
Temperature
protection
Please pay attention to your charging environment, for charging
will be stopped automatically when battery temperature is below
0°C or above 50°C.
Intelligent
current limiting
of charging
When charging current is too high, the battery will restrict current
automatically in order to protect the battery.
Overdischarge
protection
In non-flight status, the battery will cut off power supply
automatically to avoid over-discharge when battery is discharged
to a certain level; at this time, the battery will enter sleep status. It
is suggested to charge the battery ASAP.
Short-circuit
protection
When the drone short-circuit is detected by the battery, the power
supply will be cut off automatically to protect the battery and the
drone.
Battery health
monitoring
The BMS will monitor the battery health condition, prompt battery
damage in APP in case of cell damage, cell voltage unbalance or
other battery errors, to remind user to replace the battery in time.
Communication
function
The battery can communicate with the the drone in real time. User
can view the information in APP, such as battery circulation times
and real-time electric quantity.
If the battery is not used for a long time, it needs to be charged every three
months to ensure its health. Please store the battery in a cool, dry place where
children cannot touch it.

17
Battery Installation & Removal
Installation:
Push the battery into the product’s battery bin horizontally as shown in picture below,
the battery buckle is bounced and locked when hearing “click” sound.
Removal:
Firstly, press the buckle of smart battery, hold the upper cover of battery to pull out the
battery.
Once the battery is inserted, make sure the battery buckle is bounced
properly. This step is highly important and related to flight safety.
Make sure to power off
the product before
removing the battery.
Buckle is in position, safe
Buckle is not in position,
which may result in the
battery falling during
flight.
Charging
See chapter Charging for charging method
View Power Level
Once the battery is inserted in the drone, short press the power button to view the
power level of smart battery, as shown in the picture below.

18
LED 1
LED 2
LED 3
LED 4
Current power
level
0%~25%
25%~30%
30%~50%
50%~55%
55%~75%
75%~80%
80%~97%
97%~100%
Indicator is on
Indicator is
flashing
Indicator is
off
Operation Instructions of Smart Battery at High/low
Temperature
When the battery temperature is ＜5°C, the APP will prompt a low temperature warning
of the battery, and the battery needs to be preheated before flying.
When the battery temperature is ＞60°C, the APP will prompt a high temperature
warning of the battery, and the drone will not be able to fly.
The discharge capacity will be weakened greatly and flight duration will reduce at a
low temperature, which is normal. Avoid long-term running at a low temperature,
otherwise, the battery life can be shortened.
Power Button
LED 1
LED 2
LED3
LED 4

19
Propellers
There are two types of ATOM SE propellers, which are designed to spin in different
directions. Marks are used to indicate which propellers should be attached to which
motors, the two blades attached to one motor are the same.
Propeller
Installation
Instructions
Schematic Diagram of
Installation
Marked propeller
Install the marked
propeller blades
on marked arm
Unmarked
propeller
Install the
unmarked
propeller blades
on unmarked arm
Use the the screwdriver from the package to mount the propellers. Hold the
motor to remove the propeller blades easier.
Make sure you attach the marked propellers to the motors of the arm with
marks and the unmarked propellers to the motors of the arm without marks. Or
the drone will be unable to fly.
If a propeller is broken, remove the two propellers and screws on the
corresponding motor and discard them. Use two propellers from the same
package. DO NOT mix with propellers in other packages.
Propeller blades are sharp. Handle with care. DO NOT squeeze or bend the
propellers during transportation or storage.
Purchase the propellers separately if necessary.
Stay away from the rotating propellers and motors to avoid injuries.

20
Please check the propeller blades immediately if there are any jitters or speedless
in flight, and timely replace the propellers if it's damaged or deformed.
Make sure the motors are mounted securely and rotating smoothly. Land the
drone immediately if a motor is stuck and unable to rotate freely. Stop flying the
drone and contact support if there is any abnormal sound with the motor.
Make sure that the propellers are installed securely before each flight. Check to
make sure the screws on the propellers are tightened.
When mount or remove the propellers, do not put the screwdriver or other
foreign materials inside the motors, or the motor may be damaged.
Flight Data
Atom SE supports recording of flight data. User can view the data in APP.
“Flight record” can display the basic data for each flight of user.
“Flight log” can record the detailed flight data of user. For any abnormal circumstance in
flight, user can report it in APP and, if necessary, upload the flight log to seek for
assistance.
All flight data are stored in user’s mobile device. No flight data will be
acquired by the Company, except for the data uploaded by user to the cloud
platform.
