LED HEAD LAMPLED HEAD LAMP
F04212 - F04213F04212 - F04213
F04214 - F04215F04214 - F04215

Led Head Lamp
Installaon Manual
2 di 7
is manual is an integral part of the product and must be readily available to the installation experts and the
user. e installer and the user are required to know the contents of this manual.
e descriptions and illustrations in this publication are not binding.
Although the main features of the machine described in this manual are not subject to change, Ama S.p.A . reserves
the right to make any modifications to parts, details and accessories it deems appropriate for the improvement
of the Kit Light Trailer Wireless, or to meet manufacturing or commercial requirements at any time and without
being obliged to update this manual immediately.
WARNINGSWARNINGS
ALL RIGHTS RESERVED UNDER
INTERNATIONAL COPYRIGHT CONVENTIONS
No part of the manuals included with this product may be reproduced in any form, by any means, without
AMA's prior written authorization.
Due to AMA's ongoing research and development program, the content of the following manual is for in-
formation purposes only and is subject to change without notice. Although the content is kept as accurate
and complete as possible at the time of printing, AMA accepts no responsibility for any errors or omissions
contained in this manual. is instruction manual must be read before taking any operational action.
Nothing contained in this manual can be considered as a warranty, either expressed or implied - including,
not in a restrictive way, the suitability warranty for any special purpose. Nothing contained in this manual can
be interpreted as a modification or confirmation of the terms of any purchase contract.
e original configuration of the Lead Head Lamp must not be changed at all.
On receiving the produc make sure the supply corresponds to what has been ordered.
In case of non-compliance immediately inform Ama S.p.A..
Make sure the product has not been damaged during transport.
All warranty claims become void if the product is tampered with by unauthorised persons.
It is recommended to store the product in a dry place and at temperatures not lower than -10°C.
In order to avoid the risk of permanent eye damage, do not look directly into the headlight or aim the headlight.
directly into someone’s eyes.
Warnings / Safety instructions
Notices

Led Head Lamp 3 di 7
Installaon Manual
Description
Product description

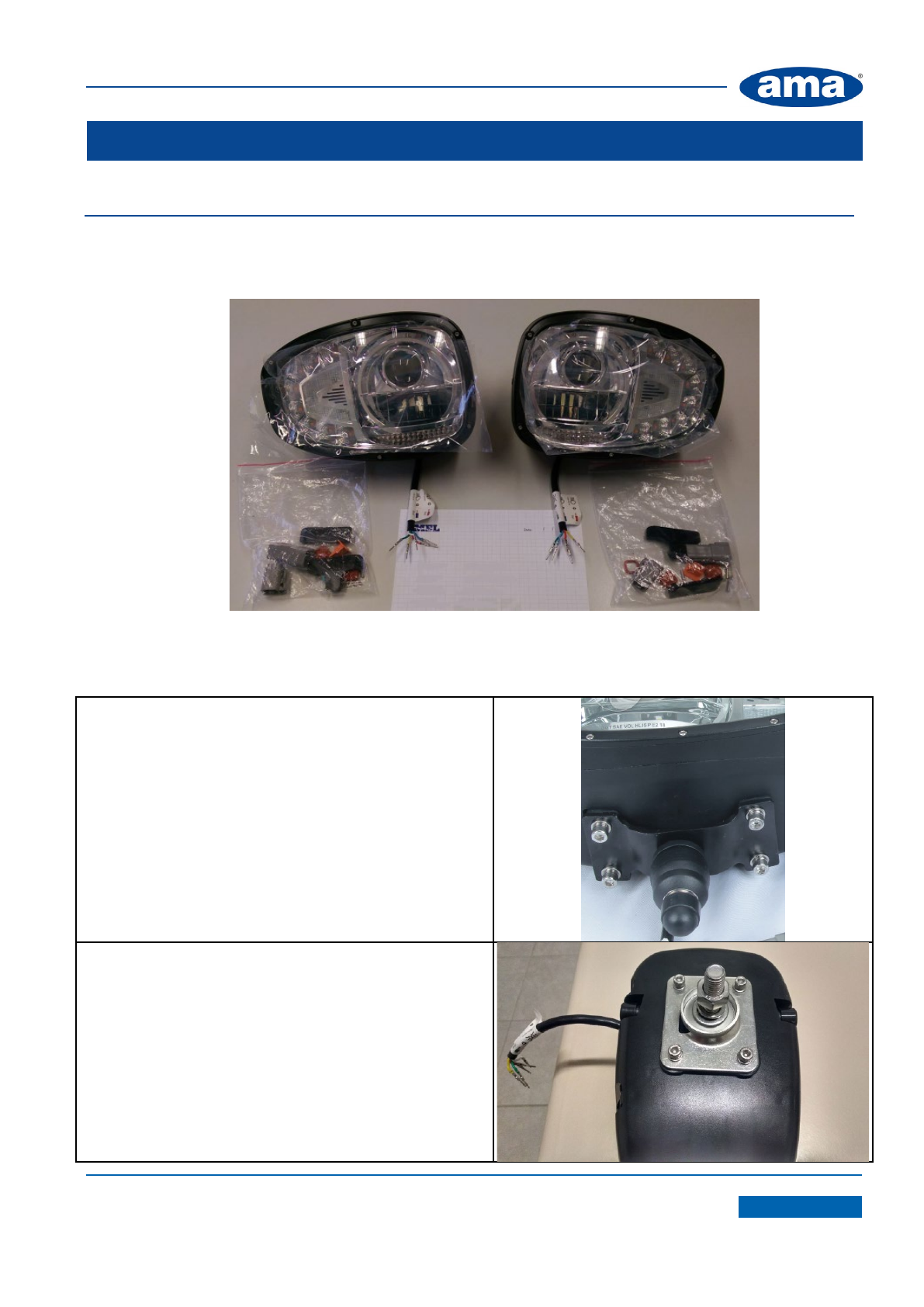

Description
e front lights are installed in the front of the agricultural/forestry or operating machine as part of the lighting
system, allowing the driver to see the road at night or in conditions of poor visibility.
Two different versions for each pair of left and right headlights are available depending on the mode of attach-
ment to the vehicle. e following items can be purchased individually:
• F04214 GRUP.ANT LED DX WITH LOWER BRACKET
• F04215 GRUP.ANT LED SX WITH LOWER BRACKET
• F04212 GRUP.ANT LED DX REAR FIXING
• F04213 GRUP.ANT LED SX REAR FIXING

Led Head Lamp
Installaon Manual
4 di 7
e figure on the side shows the size of the lamp.
e dimension is 232 x 164 x 115 mm.
Technical data
FEATUREFEATURE VA LUEVALU E
Operating Voltage 10-30 V DC
Recommended tilt angle 0° - 10°
Energy consumption
Low beam 15W
High beam 19W
Direction indicator 2W
Position light 0.4W
Homologations
ECE Regulation No 6
ECE Regulation No 7
ECE Regulation No 10
ECE Regulation No 112
CISPR 25 Class 3
Protection class IP6K9K
Housing material PC aluminum
Lens material PC
Bracket Stainless steal bracket
Connection DEUTSCH connector, 6 pin
Size

Led Head Lamp 5 di 7
Installaon Manual
For mounting the lamp on the vehicle use the bolts, screws, nuts and the bracket or plates included.
For wiring use connectors and contacts included in the package.
Usage
Mounting and Connection
WARNINGSWARNINGS
ONLY QUALIFIED PERSONNEL CAN WORK ON THE ELECTRICAL SYSTEMS OF VEHICLES.
FOR THE INSTALLATION OF THE LED WORKLIGHT OBSERVE THE SAFETY RULES AND INSTRUCTIONS
BLU / low beam
RED / high beam
GREEN / position lights
YELLOW / direction indicators
WHITE / earth

Led Head Lamp
Installaon Manual
6 di 7
Cleaning
Maintenance
Clean the LED work light frequently to maintain full brightness.
Do not clean the housing of the work light with high pressure cleaners.
Do not clean the unit with aggressive detergents but rather use a dry or lightly moistened cloth to clean the unit.
Do not pull tha cable durimg cleaning.

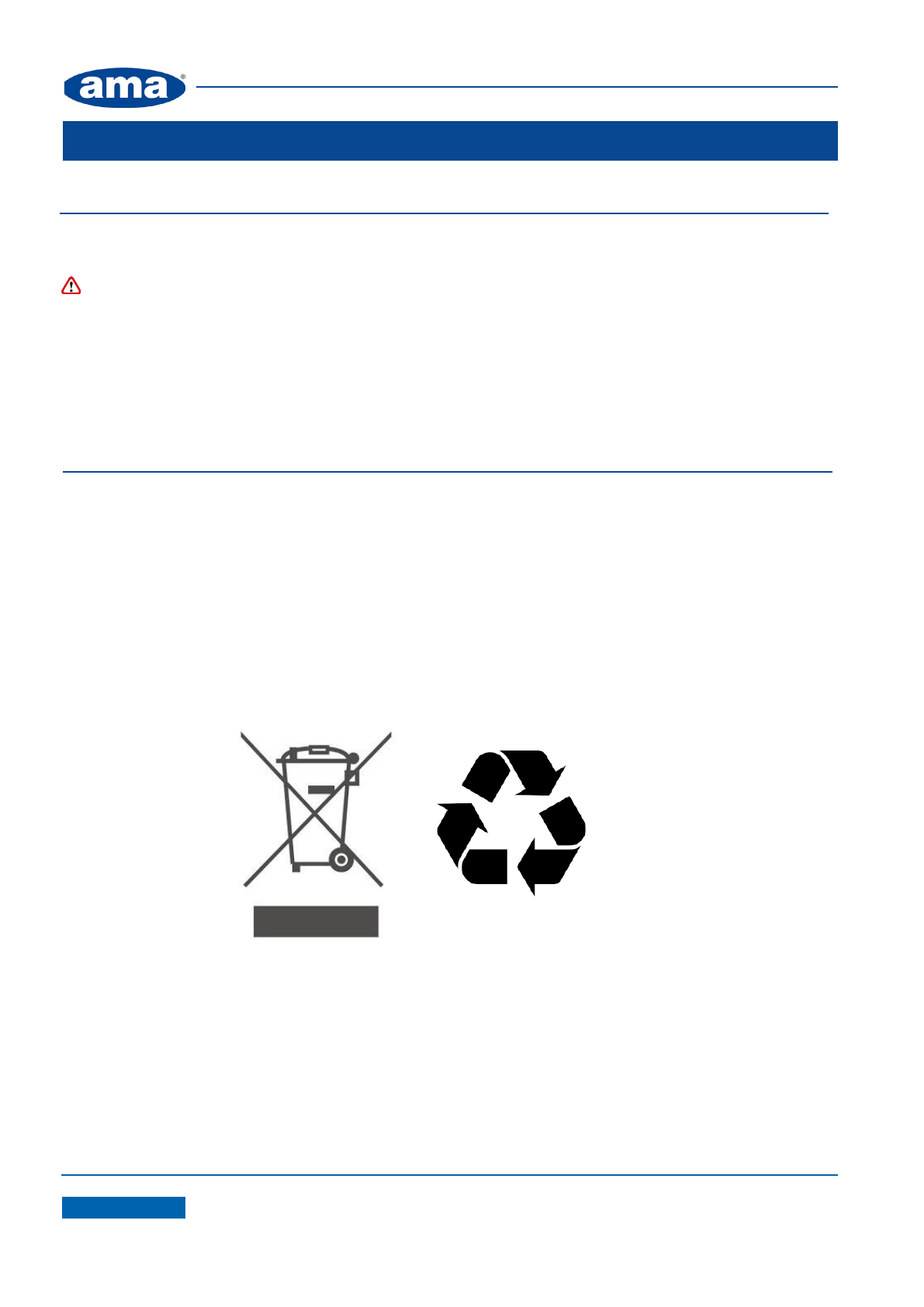

Disposal instructions
e symbol of the crossed basket, in accordance with the Directive 2012/19/EU, reported on the device indi-
cates that the product at the end of its life cycle, having to be treated separately from domestic waste, must be
conferred at a recycling center for electrical and electronic equipment.
For information on the collection points of equipment to be scrapped, Contact Your Local Municipality or local
disposal services. e kit also contains a lithium battery, at the end of life or in case of damage the devices that
make up it cannot be disposed of as a common urban waste but must be delivered in the appropriate recycling
centre.
Plastic materials are recyclable separately.

Led Head Lamp 7 di 7
Installaon Manual
EU Declaration of Conformity
Company AMA SPA
Address, City Via Puccini 28, 42018 San Martino in Rio (RE)
Country ITALY
Phone [phone]
Fax [phone] - 646241
as an importer, it certies and declares under its sole responsibility that the following products
have been tested and veried in compliance with electromagnetic compatibility requirements according to the fol-
lowing harmonised standards:
EN 50489:2010
EN 13309:2010
EN 14982:2009
EN 12895:2015
and are therefore compliant with the essential requirements and provisions of DIRECTIVE 2014/30/EU OF THE
EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonisation of the laws of the
Member States relating to electromagnetic compatibility.
The equipment also complies with DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE
COUNCIL of 8 June 2011 on the restriction on the use of certain dangerous substances in electrical and electronic
equipment.
The technical documentation as required by the Conformity Assessment procedure is kept at the following address:
AMA SPA, Via Puccini 28, 42018 San Martino in Rio (RE).
Last two digits of the year in which the CE marking was afxed: 20
Description LED Head Lamps
Brand AMA
Item F04212- F04213- F04214- F04215
