Amana ACNF180 Series User manual

IMPORTANT SAFETY INSTRUCTIONS
The following symbols and labels are used throughout this
manual to indicate immediate or potential safety hazards. It is
theowner’sandinstaller’sresponsibilitytoreadandcomplywith
all safety information and instructions accompanying these sym-
bols. Failure to heed safety information increases the risk of
personal injury, property damage, and/or product damage.
HIGH VOLTAGE!
D
ISCONNECT ALL POWER BEFORE SERVICING OR
INSTALLING
THIS UNIT . M ULTIPLE POWER SOURCES
MAY
BE PRESENT . F AILURE TO DO SO MAY CAUSE PROPERTY
DAMAGE
, PERSONAL INJURY OR DEATH .
PROPERTY DAMAGE ARISING FROM IMPROPER SERVICE OR SERVICE
PROCEDURES
. I F YOU INSTALL OR PERFORM SERVICE ON THIS UNIT , YOU
ASSUME
RESPONSIBILITY FOR ANY PERSONAL INJURY OR PROPERTY
DAMAGE
WHICH MAY RESULT . M ANY JURISDICTIONS REQUIRE A LICENSE
TO
INSTALL OR SERVICE HEATING AND AIR CONDITIONING EQUIPMENT .
T
HE MANUFACTURER WILL NOT BE RESPONSIBLE FOR INJURY OR
O NLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL , ADJUST , SERVICE OR
REPAIR ( HEREINAFTER , “ SERVICE ”) THE EQUIPMENT SPECIFIED IN THIS MANUAL
SHOULD SERVICE THE EQUIPMENT . T HE MANUFACTURER WILL NOT BE RESPONSIBLE
FOR ANY INJURY OR PROPERTY DAMAGE ARISING FROM IMPROPER SERVICE OR
SERVICE PROCEDURES . I F YOU SERVICE THIS UNIT , YOU ASSUME RESPONSIBILITY
FOR ANY INJURY OR PROPERTY DAMAGE WHICH MAY RESULT . I N ADDITION , IN
JURISDICTIONS THAT REQUIRE ONE OR MORE LICENSES TO SERVICE THE EQUIPMENT
SPECIFIED IN THIS MANUAL , ONLY LICENSED PERSONNEL SHOULD SERVICE THE
EQUIPMENT . I MPROPER INSTALLATION , ADJUSTMENT , SERVICING OR REPAIR OF
THE EQUIPMENT SPECIFIED IN THIS MANUAL , OR ATTEMPTING TO INSTALL , ADJUST ,
SERVICE OR REPAIR THE EQUIPMENT SPECIFIED IN THIS MANUAL WITHOUT PROPER
TRAINING MAY RESULT IN PRODUCT DAMAGE , PROPERTY DAMAGE , PERSONAL
INJURY OR DEATH .
CEILING MOUNT
AIR HANDLERS
INSTALLATION INSTRUCTIONS
B10259-216
CO can cause serious illness including permanent brain
damage or death.
Advertencia especial para la instalación de calentadores ó manejadoras
de aire en áreas cerradas como estacionamientos ó cuartos de servicio.
B10259-216
El monóxido de carbono puede causar enfermedades severas
como daño cerebral permanente ó muerte.
Las emisiones de monóxidode carbono pueden circular a través
del aparato cuando se opera en cualquier modo.
B10259-216
RISQUE D'EMPOISONNEMENT AUMONOXYDE DE CARBONE
Cette ventilation est nécessaire pour éviter le danger d'intoxication
au CO pouvant survenir si un appareil produisant du monoxyde
de carbone continue de fonctionner au sein de la zone confinée.
IO-416F
11/2016

2
H AVE YOUR CONTRACTOR IDENTIFY ALL THE VARIOUS CUTOFF SWITCHES
AND
DEVICES THAT SERVICE THIS UNIT . K NOW WHERE THE SWITCH IS
THAT
WILL CUT OFF ENERGY TO THE HEATING SYSTEM IN THE EVENT OF
OVERHEATING
.
CAUTION
SHIPPING INSPECTION
Uponreceiving theproduct, inspectitfordamagefromshipment.
Shipping damage, and subsequent investigation is the responsi-
bility of the carrier. Verify the model number, specifications,
electrical characteristics, and accessories are correct prior to
installation.Thedistributorormanufacturerwillnotacceptclaims
from dealers for transportation damage or installation of incor-
rectly shipped units.
CODES & REGULATIONS
This product is designed and manufactured to comply with na-
tional codes. Installation in accordance with such codes and/or
prevailing local codes/regulations is the responsibility of the in-
staller. The manufacturer assumes no responsibility for equip-
ment installed in violation of any codes or regulations.
TheUnitedStatesEnvironmentalProtectionAgency(EPA)hasis-
suedvariousregulationsregardingtheintroductionanddisposal
ofrefrigerants. Failuretofollowtheseregulations mayharm the
environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. A certified technician
must perform the installation and service of this product. Should
youhaveanyquestionspleasecontactthelocalofficeoftheEPA.
REPLACEMENT PARTS
When reporting shortages or damages, or ordering repair parts,
give the complete product model and serial numbers as stamped
ontheproduct. Replacementpartsforthisproduct areavailable
through your contractor or local distributor. For the location of
your nearest distributor consult the white business pages, the
yellow page section of the local telephone book or contact:
HOMEOWNER SUPPORT
GOODMAN MANUFACTURING COMPANY, L.P.
19001 KERMIER ROAD
WALLER, TEXAS 77484
[phone]
APPLICATION INFORMATION
HEAT PUMP PREMATURE FAILURE NOTICE
R
UNNING THE UNIT WITHOUT HPSK-1 KIT INSTALLED ON HEAT PUMP
INSTALLED
ON
ALL HEAT PUMP APPLICATIONS .
CAUSE PREMATURE UNIT FAILURE . A HPSK-1 KIT MUST BE
CAN
CAUTION
This ceiling mount air handler is available in cooling capacities of
1.5, 2 and 2.5 nominal tons of cooling with a PSC motor (ACNF18,
ACNF24andACNF30) and2and2.5nominaltonsof cooingwitha
constanttorque(EEM)motor(ACNF25andACNF31).Electricheat
models are available in capacities of 0, 5, 6, 8 and 10 kW.
The unit is designed to be installed in a horizontal position above
a dropped ceiling. Do NOT install this unit outside the structure.
ThesemodelsaredesignedforINDOORUSEONLY.
PRE-INSTALLATION INSTRUCTIONS
Carefully read all instructions for the installation prior to install-
ingproduct.Makesure eachsteporprocedure isunderstoodand
any special considerations are taken into account before starting
installation. Assemble all tools, hardware and supplies needed
tocompletetheinstallation.Someitemsmayneedtobepurchased
locally. Make sure everything needed to install the product is on
hand before starting.
Before attempting any installation, the following points should
beconsidered:
• Structural strength of supporting members
• Clearances and provision for servicing
• Power supply and wiring
• Air duct connections
• Drain facilities and connections
InstallationClearances
Place this unit as close to the space to be air conditioned as
possible. These units are U.L. listed for installations with zero
clearance to combustible materials. If this unit is installed in a
removable ceiling panel, ensure adequate space is available for
servicing. Run ducts as direct as possible to supply and return
outlets. Use non-flammable weatherproof flexible connectors on
both supply and return connections at unit to reduce noise trans-
mission.
Ducting
Duct work should be fabricated by the installing contractor in
accordance with local codes. Use industry manuals such as such
as NESCA (National Environmental Systems Contractors Associa-
tion, 1501 Wilson Blvd., Arlington, Virginia 22209) as a guide
when sizing and designing the duct system.
Toensurecorrectsystemperformance,theductworkistobesized
to accommodate 375-425 CFM per ton of cooling with the static
pressure not to exceed 0.5” W.C. Inadequate ductwork that re-
stricts airflow can result in improper performance and compres-
sor or heater failure
T O PREVENT THE RISK OF PROPERTY DAMAGE , FIRE , CARBON MONOXIDE
POISONING
, EXPLOSION , PERSONAL INJURY , OR DEATH , DO NOT
CONNECT DUCTWORK TO ANY HEAT PRODUCING DEVICE SUCH AS A
FIREPLACE INSERT OR STOVE .

3
Filters
Filters are not provided with unit, and must be supplied and in-
stalled in the return air system by the installer. A field installed
filtergrilleisrecommendedforeasyandconvenient accesstothe
filters for periodic inspection and cleaning. Filters must have
adequatefaceareafortheratedairquantityoftheunit.Themini-
mum filter size is 20" x 20" x 1".
CondensateDrainPiping
The coil drain pan has a primary and a secondary drain with 3/4"
NPT female connections. The connectors required are 3/4" NPT
male, either PVC or metal pipe, and should be hand tightened to
a torque of approximately 37 in-lbs. to prevent damage to the
drain pan connection. An insertion depth between .143 to .355
inches (2-5 turns) should be expected at this torque. Use the fe-
male (3/4 NPT) threaded fitting that protrudes outside of the
enclosure for external connections.
1. Ensure drain pan hole is NOT obstructed.
2. To prevent potential sweating and dripping on to finished
space, it may be necessary to insulate the condensate drain
line located inside the building. Use Armaflex® or similar
material.
ASecondaryCondensateDrainConnection has beenprovidedfor
areas where the building codes require it. Pitch the drain line 1/
4" per foot to provide free drainage. Insulate drain lines located
insidethebuildingtopreventsweating. Installacondensatetrap
toensureproperdrainage. Ifthesecondarydrain lineisrequired,
runthelineseparatelyfromthe primary drain and end itwhereit
can be easily seen.
NOTE: Water coming from this line means the coil primary drain
is plugged and needs clearing.
CAUTION
I F SECONDARY DRAIN IS NOT INSTALLED , THE SECONDARY ACCESS
MUST
BE PLUGGED .
The installation must include a “P” style trap that is located as
close as is practical to the evaporator coil. See Figure 1 for details
of a typical condensate line “P” trap.
NOTE: Trapped lines are required by many local codes. In the
absence of any prevailing local codes, please refer to the require-
ments listed in the Uniform Mechanical Building Code.
A drain trap in a draw-through application prevents air from
being drawn back through the drain line during fan operation
thus preventing condensate from draining, and if connected to a
sewer line to prevent sewer gases from being drawn into the air-
stream during blower operation. In a blow-through application
the drain trap prevents conditioned air from escaping. It is per-
missible in this application to use a shallow trap design some-
times referred to as a running trap.
Unit
3" MIN.
POSITIVE LIQUID SEAL
REQUIRED AT TRAP
Drain
Connection
2" MIN.
Figure 1
The depth of a running trap (Figure 2) should be either 1" or a
depth that permits unrestricted condensate drainage without
excessive air discharge.
Field experience has shown condensate drain traps with an open
vertical Tee between the air handler and the condensate drain
trap can improve condensate drainage in some applications, but
may cause excessive air discharge out of the open Tee. We do not
prohibitthistypeofdrainbutwealsodonotrecommenditdueto
theresultingairleakage.Regardlessofthecondensatedraindesign
used, it is the installer’s responsibility to ensure the condensate
drain system is of sufficient design to ensure proper condensate
removal from the coil drain pan.
Figure 2
When coils are installed above ceilings, or in other locations
where damage from condensate overflow may occur, it is MAN-
DATORY to install a field fabricated auxiliary drain pan under the
coil cabinet enclosure. Drain lines from the auxiliary pan must be
installed and terminated so that the homeowner can see water
discharges. A primary condensate drain connection is located in
thedrainpanonthe bottom of thecoil/enclosureassembly.The
female(3/4fpt) threaded fittingthatprotrudes outside oftheen-
closure is used for external connections.
NOTE:Wiresizebasedon60°Crated wireinsulationand30°C
AmbientTemp.(86°F).
For branch circuit wiring (main power supply to unit disconnect),
determinetheminimumwiresizeforthelengthofrunfromTable
1 using the circuit ampacity found on the unit rating plate. From
the unit disconnect to unit, the smallest wire size allowable in
Table 1 may be used, as long as the disconnect is in sight of the
unit.

4
BRANCH CIRCUIT COPPER WIRE SIZE
(Baseon1% VoltageDrop)
200 64443322
SUPPLY WIRE 150 86644433
TW (60C) 100 108866644
LENGTH- FEET 75 1210886644
50 14 12 18 10 8 8 6 6
15 20 25 30 35 40 45 50
BRANCH CIRCUIT AMPACITY
Note:Wiring for unitonly, no heatkit installed.
Table 1
For more than three conductors in a raceway or cable, see the
N.E.C. for derating the ampacity of each conductor.
LAYOUT FOR CEILING MOUNT AIR HANDLERS
NOTE:Thelocationoftheunitisbasedonthoroughconsideration
ofthePRE-INSTALLATIONCHECKPOINTS.
1. Before locating the unit on the dropped ceiling, ensure the
strengthoftheceilingandbeamsisadequatetosupportthe
weight involved. This is an important step and the installers
responsibility. See the table below for approximate weight
of unit.
MODEL WEIGHT (lb.)
1.5 TON 57
2 TON 64
2.5 TON 68
Table 2
2. Mount the unit in a horizontal position above a dropped
ceiling of adequate strength. Refer to Figure 3. Refer to
Figure4forpropermountingmethods.
DROP CEILING
PLENUM
OUTLET DUCT
GRILL FOR RETURN AIR
AND SERVICE
TO DRAIN
Figure3
Figure 4
3. The location of the unit should provide proper access for
inspection and servicing.
MODELABCD
1.5 TON 37 1/4 37 11/16 30 6 1/2
2 TON 43 1/4 40 11/16 36 6 1/2
2.5 TON 49 1/4 46 11/16 42 6 1/2
Table 3

5
2 ½
A
B
4 3/8
5
C
11 3/8
TOP VIEW
LIQUID LINE
SUCTION LINE
CONTROL BOX
10
21
¾
D
1
THIS END: LOW VOLTAGE WIRING
OPPOSITE END: SUPPLY VOLTAGE WIRING
Figure5
SPECIALINSTRUCTIONS
This airhandler comes equipped with an evaporator coil with a
check style flowrator assembly, an indoor blower and all neces-
sary internal electrical wiring. For most installations with match-
ing applications, no change to the flowrator orifice is required.
However, in mix-matched applications, a flowrator change may
berequired.Seethepistonkitchartorconsultyourlocaldistribu-
tor for details regarding mix-matched orifice sizing. If the mix-
match application requires a different piston size, change the
piston in the distributor on the indoor coil before installing the
coil and follow the procedure shown below.
T HE EVAPORATOR COIL IS SHIPPED FROM THE FACTORY WITH
APPROXIMATELY 200 PSI TRACER GAS CHARGE .U SE CAUTION WHEN
RELIEVING
PRESSURE .
IMPORTANTNOTE:Torchheatrequiredtobrazetubesofvarious
sizes is proportional to the size of the tube. Tubes of smaller size
requirelessheattobringthetubetobrazingtemperaturebefore
addingbrazingalloy.Applyingtoomuchheattoanytubecanmelt
thetube.Servicepersonnelmustusetheappropriateheatlevelfor
thesize ofthetubebeingbrazed.
NOTE: The use of a heat shield when brazing is recommended to
avoid burning the serial plate or the finish on the unit. Heat trap
orwetragsshould be usedtoprotectheat sensitive components
such as service valves and TXV valves.
T O PREVENT FEEDER TUBE DAMAGE , HOLD THE DISTRIBUTOR BODY WITH
A
3/4" OPEN END WRENCH WHEN REMOVING OR REPLACING THE
13/16" FLARE NUT .
CAUTION
1. Remove the valve core to allow high pressure tracer gas to
escape. No gas indicates a possible leak.
2. Remove the 13/16" flare nut and tailpiece.
3. Unsweat the access fitting on the tailpiece
4. Remove the check piston to verify it is correct and then re-
place the piston. See piston kit chart in instructions.
5. Unsweat the cap on the suction line.
6. Slide the 13/16" flare nut over the tailpiece.
7. Braze tailpiece to the lineset liquid tube.
8. Insert the suction line into the connection, slide the insula-
tion at least 18" away from the braze joint. Braze suction
line.
9. AFTER THE TAILPIECE HAS COOLED, confirm position of the
white Teflon® seal and hand tighten the 13/16" flare nut.
10. Torquethe13/16"flarenutto7-25 ft-lbs.ortighten1/6ofa
turn. Donotovertighten.
E XCESSIVE TORQUE CAN CAUSE ORIFICES TO STICK . U SE THE PROPER
TORQUE
SETTINGS WHEN TIGHTENING ORIFICES .
CAUTION
11. Replace suction line insulation.
12. After installation, evacuation and charging of the low side
is complete, check fittings for leaks.
NOTE: With the piston in the distributor, the seal end should
point inside the distributor body and should not be seen when
lookingintotheend of distributor.Makesurethepiston is freeto
rotate, and move up and down in the distributor body.

6
ELECTRICAL CONNECTIONS
HIGH VOLTAGE!
D ISCONNECT ALL POWER BEFORE SERVICING . M ULTIPLE
POWER SOURCES MAY BE PRESENT . F AILURE TO DO SO MAY
CAUSE PROPERTY DAMAGE , PERSONAL INJURY OR DEATH DUE
TO ELECTRIC SHOCK . W IRING MUST CONFORM WITH NEC OR
CEC
AND ALL LOCAL CODES . U NDERSIZED WIRES COULD CAUSE
POOR
EQUIPMENT PERFORMANCE , EQUIPMENT DAMAGE OR
FIRE .
Determinetheavailabilityof sufficient powertooperatethe unit.
ThevoltageatthepowersupplymustcorrespondtotheunitRATED
VOLTAGEREQUIREMENT.
Determine wire sizes from the unit nameplate ampacity and in
accordancewiththeNationalElectricalCode.Wiringshouldnever
be sized smaller than is recommended by either of these two
sources.
The unit must be permanently grounded in accordance with local
codes,orintheabsenceoflocalcodes,withtheN.E.C.ANSI/NFPA
NO. 70-1987 or latest edition in the U.S.A.
InternalWiring
A diagram of the internal wiring of this unit is located under the
electrical box cover. If any of the original wire as supplied with
the appliance must be replaced, the wire gauge and insulation
must be same as original wiring.
Transformer is factory wired for 230 volts on 208/ 230 volt mod-
els. See wiring diagram for 208 volt wiring. For 208V operation,
movetheredwirelead from 240V to208Vtap.
THERMOSTAT HEAT
ANTICIPATOR SETTING
ALL MODELS 0.2
MODEL
Table 4
Make the following high and low voltage connections at either
location to wire units.
HighVoltageWiring
This unit is designed for Single phase 208/230 Volt only. Connect
the two leads to terminals L1 and L2 on the disconnect in the
electrical control section, using wire sizes specified in Table 1.
Low Voltage Wiring
For ACNF18, ACNF24 and ACNF30 models, refer to Figure 6 for
coolingunitwith electricheatandrefer toFigure7for heatpump
with electric heat.
NOTE: HPSK-01HeatPumpShut-OffRelayKit(C.R.I.)mustbeused
when ACNF with electric heat installed with heat pump.
THERMOSTAT
BLUE
YELLOW TO CONDENSING UNIT
24 V CONNECTIONS
W
RYG
Figure6
24
56
13
C.R.I.
* W
RBIWBr G
R
W2
O
Y
C
CEILING MOUNT UNIT
* W
* Y * BI
ROYEG
W2C
THERMOSTAT
HEAT PUMP
*WIRES SUPPLIES WITH HPSK KIT
Note: in case of heat pump failure, switch to "E" on Thermostat for
emergency heat. See note under Low Voltage Wiring
Figure7
Connect low voltage wires from the thermostat to the corre-
sponding wires in the Ceiling Mount unit and outdoor unit using
No. 18 AWG wires as follows:
LEAD THERMOSTAT NOTES
RED R (24V) -
GREEN G (FAN) -
-Y
TO CONDENSING UNIT
24V CONNECTIONS
WHITE W -
BLUE - TO CONDENSING UNIT
24V CONNECTIONS
BROWN E TO BE USED FOR
EMERGENCY HEAT ONLY
Table5

7

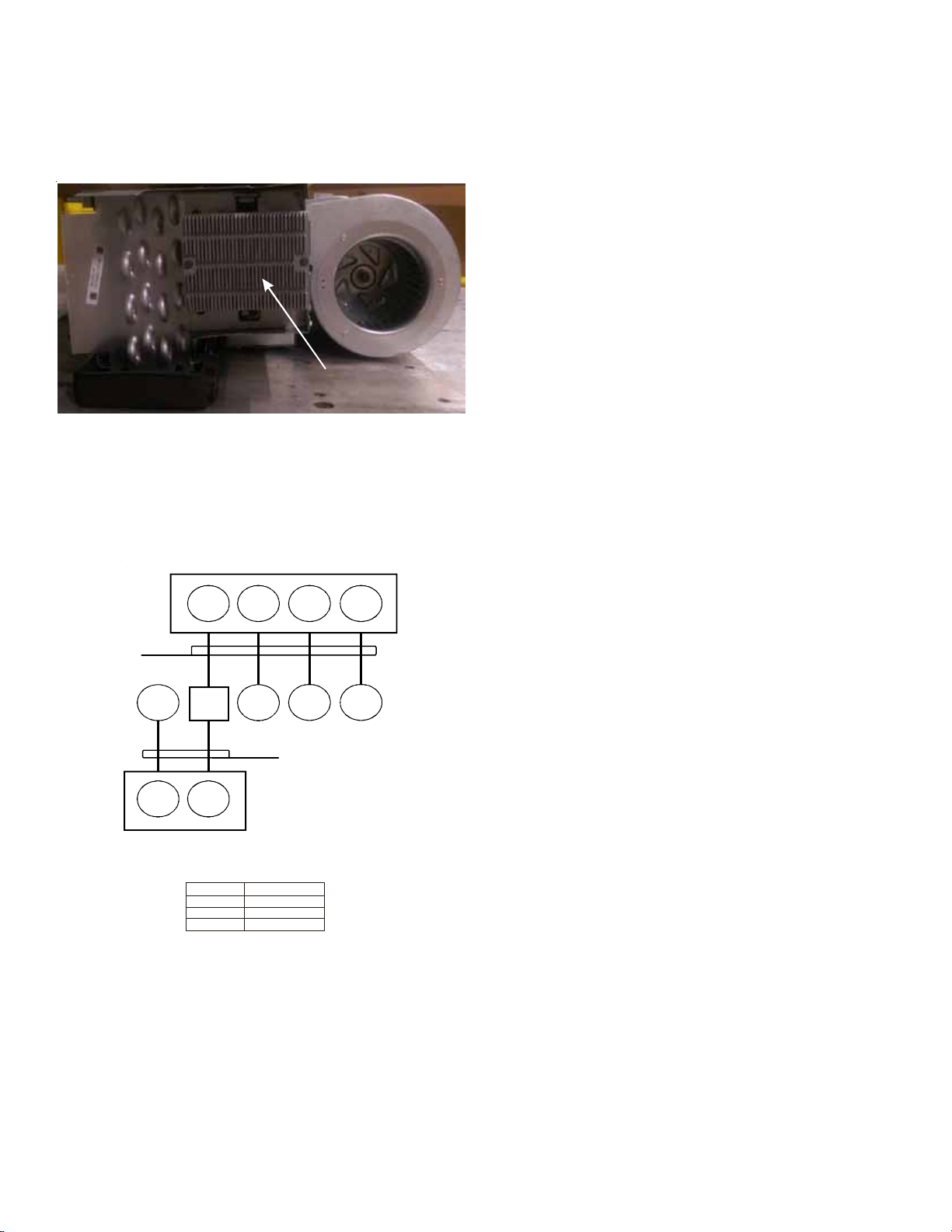

CONSTANT TORQUE (EEM) MOTORS
ACNF25 and ACNF31 models utilize constant torque (EEM) mo-
tors. These motors come with a separate control box which is
mounted on the side of the unit as shown in Figure 8. The har-
ness from the motor is inserted into the control box which has
another harness leading into the control panel of the unit.
Control Box
Figure8
The high voltage wiring is the same as the other ACNF models.
The low voltage wiring connections for the ACNF25 and ACNF31
modelsareshowninFigure9. Thewirefromthemotor,T2(purple,)
T3(pink)orT4(yellow),connectsto“Y”fromthethermostat/con-
denserdependingontheapplication. Therestoftheconnections
are similar to the other ACNF models.
R G W C
Thermostat
Air Handler
CondensingUnit
#18 Gauge
24 VAC
#18 Gauge
24 VAC
Y R G W
C Y
Y
Note: Connect T2,T3 or T4 to the Y
terminal to theoutdoor unit.
T1 T5
CONFIRM SPEED TAP SELECTED (T2, T3, OR T4)
IS APPROPRIATE FOR THE APPLICATION BASED ON THIS TABLE.
WIRECOLOR
PURPLE
PINK
YELLOW
BTU
18000
24000
h
HIGH CFM OPTION
Figure9
MAINTENANCE
Room Thermostat
Theroomthermostat controlstheoperationof yourheatingand/
or cooling unit. It senses the indoor temperature and signals the
equipmenttostartorstopmaintainingthetemperatureyouhave
selected for your comfort. The room thermostat should be in a
central, draft free inside wall location for best operation. Do not
place any heat producing apparatus such as lights, radio, etc.,
near the thermostat as this will cause erratic operation of the
comfort system.
Air Filter(s)
All central air moving comfort systems must include air filter(s).
Locatethesefiltersin either the equipmentorreturnairduct sys-
tem upstream of the equipment. The filter(s) removes dust and
debris from the air thus helping to keep your conditioned space
clean. More important, the filter keeps dust and debris from col-
lectingonheattransfersurfacesthusmaintainingoptimumequip-
ment efficiency and performance. Inspect and clean or replace
filters every month. This routine maintenance procedure will pay
big dividends in reduced operating cost and reduced service ex-
pense.Neveroperatecomfortequipmentwithoutfilter(s).
Fusesand/orCircuitbreakers
Thiscomfortequipmentshouldbeconnectedtothebuildingelec-
tric service in accordance with local and National Electric codes.
This electrical connection will include over current protection in
the form of fuses or circuit breakers. Have your contractor iden-
tifythecircuitsandthelocationof overcurrentprotectionsothat
you may be in a position to make inspections or replacements in
theeventtheequipmentfailstooperate.Keepreplacementfuses
of the proper size on hand.
PeriodicCheckupandService
Thisunitisdesignedtoprovidemanyyearsofdependable,trouble-
freecomfortwhen properlymaintained.Propermaintenancewill
consist of annual checkups and cleaning of the internal electrical
and heat transfer components by a qualified service technician.
Failure to provide periodic checkup and cleaning can result in
excessive operating cost and/or equipment malfunction.
Aluminum Indoor Coil Cleaning (Qualified Servicer Only)
This unit is equipped with an aluminum tube evaporator coil.
The safest way to clean the evaporator coil is to simply flush the
coil with water. This cleaning practice remains as the recom-
mended cleaning method for both copper tube and aluminum
tube residential evaporator coils.
It has been determined that many coil cleaners and drain pan
tablets contain corrosive chemicals that can be harmful to alu-
minum tube and fin evaporator coils. Even a one-time applica-
tion of these corrosive chemicals can cause premature alumi-
num evaporator coil failure. Any cleaners that contain corrosive
chemicals including, but not limited to, chlorine and hydroxides,
should not be used.
An alternate cleaning method is to use one of the products listed
in TP-109* to clean the coils. The cleaners listed are the only
agents deemed safe and approved for use to clean round tube
aluminum coils. TP-109 is also available on the web site in Part-
ner Link > Service Toolkit.
NOTE:Ensurecoils arerinsedwell afteruseofanychemicalclean-
ers.

8
NOTE: SPECIFICATIONS AND PERFORMANCE DATA LISTED HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTICE
QualityMakestheDifference!
All of our systems are designed and manufactured with the same high quality standards regardless of size or efficiency. We have designed these
units to significantly reduce the most frequent causes of product failure. They are simple to service and forgiving to operate. We use quality
materials and components. Finally, every unit is run tested before it leaves the factory. That’s why we know. . .There’s No Better Quality.
5151 San Felipe, Suite 500, Houston, TX 77056
©2011-2016GoodmanManufacturingCompany,L.P.
Visit our website at www.daikincomfort.com, www.goodmanmfg.com or www.amana-hac.com for information on:
• Products
• Warranties • Customer Services • Parts • Contractor Program and Training • Financing Options
is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved.
BLOWER CHART FOR ACNF
0.1" 0.2" 0.3" 0.4" 0.5"
High 710 660 590 515 435
Low 650 595 540 480 390
High 955 880 820 740 675
Low 885 840 775 725 620
High 1,075 1,005 920 820 730
Low 945 890 835 760 650
T5 969 912 854 798 778
T4 969 912 854 798 778
T3 802 776 690 641 584
T2 680 610 550 484 431
T1 680 610 550 484 431
T5 999 928 868 824 764
T4 999 928 868 824 764
T3 871 798 750 687 614
T2 763 695 625 548 478
T1 763 695 625 548 478
ACNF25XXXX
ACNF31XXXX
NOTE:Airflowdata for240Vacwithdrycoil andnofilterin place.
Model Motor
Speed
Airflow rate delivered against
ExternalStaticPressure,(CFM)
ACNF180XXX
ACNF240XXX
ACNF300XXX
