Amana ADB2500AW User instructions

BUILT-IN TALL-TUB DISHWASHER
1. Minimum 32” drain loop, 1/2” inside diameter minimum. Floor drains require a siphon break.
2. Connections preferably located toward left side of dishwasher. Care should be taken to route plumbing
away from motor and blower (if equipped).
3. Electrical and plumbing should meet all local and national codes.
4. Electrical and water supplies should enter cabinet opening on the floor, or through the back or side walls,
as shown in the shaded area of the drawing.
5. When installing dishwasher in or near a corner, allow enough room for door to open without interfering
with cabinet drawers or hardware.
Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit. Use
required fuse (15 amp) or comparable circuit breaker.
NOTES:
Style of product may vary from picture
Keep back
free of drain
inlet water and
electrical. Preferred
drain area
Preferred
drain area
A
D
C
B
PRODUCT DIMENSIONS
INCHES CENTIMETERS
MODEL SKUs
A
B
C
D
23 7/8 60.6
19 1/2 49.5
23 7/8 60.6
33 1/2-35 1/4 85.1-89.5
ADB2500AWW
ADB2500AWB
ADB2500AWQ
ADB2500AWS
Important:Because of continuing product improvements, Amana® reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.
2005-11-04 at 13:39:02 CST

This manual suits for next models

4

Other Amana Dishwasher manuals

Amana W10310515A User manual

Amana

Amana W10310515A User manual

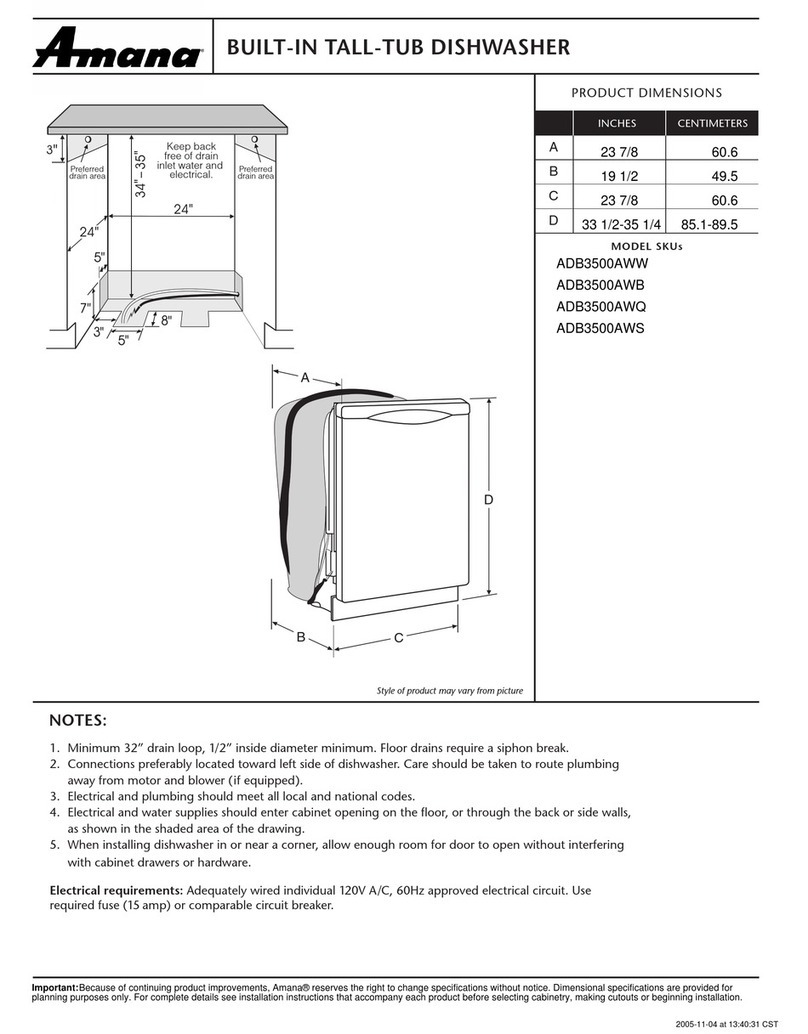

Amana ADB3500AW User instructions
