Amana PTH093G Use and care manual

REPAIR PARTS
© 2009 Goodman Manufacturing Company,
L.P. ◊5151 San Felipe, Suite 500 ◊Houston,
TX 77056
RP-733B
This manual is to be used by qualified technicians only.
July 2013
PTH093G PTAC Heat Pump
www.goodmanmfg.com www.amana-hac.com
© 2012-2013 Goodman Company, L.P. ◊5151 San Felipe St., Suite 500 ◊Houston, TX 77056
Amana is a registered trademark of Maytag Corporation or its related
companies and is used under license to Goodman Company, L.P., Houston,
TX. All rights reserved.
PTH093G25AXXXA
A
PTH093G25CXXXAA
PTH093G25DRXXAA
PTH093G25DXXXAA
PTH093G25PXXXAB
PTH093G25RXXXAA
PTH093G25VXXXAB
PTH093G35AXXXA
A
PTH093G35CRXXAA
PTH093G35CXXXAA
PTH093G35DRXXAA
PTH093G35DXXXAA
PTH093G35PXXXA
A
PTH093G35QRXXAA
PTH093G35QXXXAA
PTH093G35RXXXAA
PTH093G35VXXXA
A
PTH093G50AXXXA
A
PTH093G50CXXXAA
PTH093G50DXXXAA
PTH093G50RXXXAA
PTH093G50VXXXA
A

Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
www.amana-hac.com
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
Consumer Affairs Department
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
www.goodmanmfg.com www.amana-hac.com
Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized
technician and using authorized factory parts.
Goodman Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs
without notice or without incurring obligations.
4 - 13
3
RP-733B

Functional Parts
Part
No: Description:
CAP020250450RSS CAP, 2/25 MFD/450V/DUAL RD
44A202AS COMPRESSOR, RECHI
RSKP0010 CONTROL BOARD M61
RSKP0005 CONTROL PANEL COVER AND MEMBRANE
0130P00059 CORD, 250VAC, 15A (LCD) (M1, M2, M3, M4,
M5, M6, M7)
0130P00058 CORD, 250VAC, 20A (LCD) (M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17)
0130P00061 CORD, 250VAC, 30A (LCD) (M18, M19, M20,
M21, M22)
0131P00029s FAN MOTOR, INDOOR
0131P00027s FAN MOTOR, OUTDOOR (M1, M2, M3, M4,
M6, M8, M9, M10, M11, M12, M13, M14, M15,
M16, M17, M18, M19, M20, M21, M22)
0131P00033s FAN MOTOR, OUTDOOR (M5, M7)
0161P00030sa FAN, CONDENSER
0275P00021S HEATER ASSY (M18, M19, M20, M21, M22)
0275P00020S HEATER ASSY (M8, M9, M10, M11, M12, M13,
M14, M15, M16, M17)
0275P00019 HEATER ASSY (M1, M2, M3, M4, M5, M6, M7)
0130M00132 HIGH PRESSURE SWITCH
60343539 OVERLOAD PROTECTOR
0130M00096 RELAY
C8873917 RELAY (HYDRONIC) (M5, M13)
C8873932 RELAY (POWER VENT) (M3, M4, M7, M11,
M12, M17, M20, M22)
0151P00000 REVERSING VALVE ASSY-230V
0130P00022 REVERSING VALVE COIL
0130P00074 THERMISTOR
0130P00077 THERMISTOR (M3, M6, M9, M11, M14, M16,
M21)
0130P00075 THERMISTOR - DISCHARGE
0130P00086 THERMISTOR - INDOOR COIL
0130P00093 THERMISTOR, .375 CLIP, BLUE
0130M00149 Trans. ,40VA, 240V/208V to 24V (M3, M4, M7,
M11, M12, M17, M20, M22)
0130M00150 Trans.,40VA, 240V/208V to 120V (M5, M13)
0130M00152 TRANSFORMER
PCBEP100s VARIABLE SPEED TERMINAL BOARD
0150P00004s WHEEL, BLOWER
Expanded Model Nomenclature
M1 - PTH093G35QXXXAA
M2 - PTH093G35RXXXAA
M3 - PTH093G35VXXXAA
M4 - PTH093G50AXXXAA
M5 - PTH093G50CXXXAA
M6 - PTH093G50DXXXAA
M7 - PTH093G50RXXXAA
M8 - PTH093G50VXXXAA
M9 - PTH093G25AXXXAA
M10 - PTH093G25CXXXAA
M11 - PTH093G25DRXXAA
M12 - PTH093G25DXXXAA
M13 - PTH093G25PXXXAB
M14 - PTH093G25RXXXAA
M15 - PTH093G25VXXXAB
M16 - PTH093G35AXXXAA
M17 - PTH093G35CRXXAA
M18 - PTH093G35CXXXAA
M19 - PTH093G35DRXXAA
M20 - PTH093G35DXXXAA
M21 - PTH093G35PXXXAA
M22 - PTH093G35QRXXAA
3
RP-733B www.goodmanmfg.com www.amana-hac.com

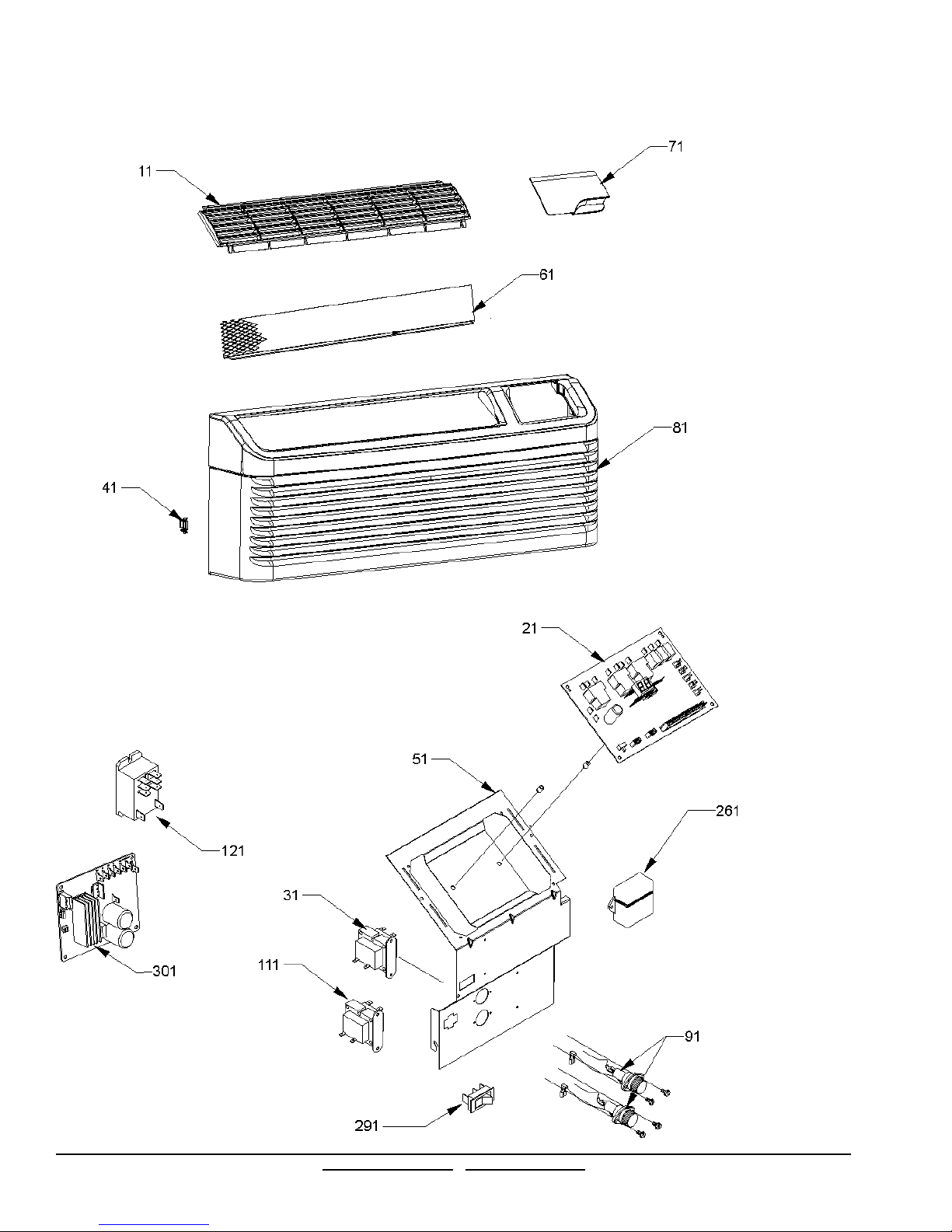

Front Assy
4RP-733B
www.goodmanmfg.com www.amana-hac.com

Front Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: FRONT-DICHARGE LOUVERS0161P0003311
CONTROL BOARD M61RSKP0010
21
TRANSFORMER0130M00152
31
CLIP (QTY 2)0163P0002541
CONTROL PANEL COVER0121P00001P
51
SCREEN, DISCHARGE0121P00073
61
DOOR ASSY -AMANA-0261P0000371
FRONT ASSY0261P00011
81
Trans. ,40VA, 240V/208V to 24V (M3, M4, M7, M11,
M12, M17, M20, M22)
0130M00149
111
Trans.,40VA, 240V/208V to 120V (M5, M13)0130M00150
111
RELAY0130M00096
121
RELAY (HYDRONIC) (M5, M13)C8873917121
RELAY (POWER VENT) (M3, M4, M7, M11, M12,
M17, M20, M22)
C8873932
121
DIGITENNA (M3, M6, M9, M11, M14, M16, M21)DT01A
261
PADDLE SWITCH (M3, M4, M7, M11, M12, M17,
M20, M22)
B1337701
291
VARIABLE SPEED TERMINAL BOARDPCBEP100s
301
FILTER, RACK (QTY 2)0161P00035NS
TERMINAL BOARD (M3, M4, M7, M11, M12, M17,
M20, M22)
B1160701
NS
Expanded Model Nomenclature
M1 - PTH093G35QXXXAA
M2 - PTH093G35RXXXAA
M3 - PTH093G35VXXXAA
M4 - PTH093G50AXXXAA
M5 - PTH093G50CXXXAA
M6 - PTH093G50DXXXAA
M7 - PTH093G50RXXXAA
M8 - PTH093G50VXXXAA
M9 - PTH093G25AXXXAA
M10 - PTH093G25CXXXAA
M11 - PTH093G25DRXXAA
M12 - PTH093G25DXXXAA
M13 - PTH093G25PXXXAB
M14 - PTH093G25RXXXAA
M15 - PTH093G25VXXXAB
M16 - PTH093G35AXXXAA
M17 - PTH093G35CRXXAA
M18 - PTH093G35CXXXAA
M19 - PTH093G35DRXXAA
M20 - PTH093G35DXXXAA
M21 - PTH093G35PXXXAA
M22 - PTH093G35QRXXAA
5
RP-733B www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
6RP-733B
www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: SHROUD, CONDENSER0161P0002611
FAN MOTOR, OUTDOOR (M1, M2, M3, M4, M6,
M8, M9, M10, M11, M12, M13, M14, M15, M16,
M17, M18, M19, M20, M21, M22)
0131P00027s
21
FAN MOTOR, OUTDOOR (M5, M7)0131P00033s
21
PANEL-PARTITION (M14, M15)0121P00093
31
PANEL-PARTITION PNT0121P00108DG
31
FAN, CONDENSER0161P00030sa
41
CABLE0163P00019
51
BRACKET, VENT DOOR (M3, M4, M7, M11, M12,
M17, M20, M22)
0121P00079
61
BRACKET, VENT DOOR-C (M1, M2, M5, M6, M8,
M9, M10, M13, M16, M18, M19, M21)
0121P00072DG
61
BRKT, POWER VENT (M3, M4, M7, M11, M12,
M17, M20, M22)
0121P00080
61
POWER VENT MOTOR BRACKET (M3, M4, M7,
M11, M12, M17, M20, M22)
11166101
61
VENT DOOR (M2, M9, M10, M19)11046105PDG71
PARTITION PANEL BRACKET (QTY 2)11191703
81
LEVER ARM (M1, M2, M5, M6, M8, M9, M10, M13,
M16, M18, M19, M21)
11046302
91
POWER DOOR ASSY (M3, M4, M11, M12, M20)0270P00997
191
EXTENSION SPRING (M3, M4, M7, M11, M12, M17,
M20, M22)
11166401
NS
POWER VENT COVER BRACKET (M3, M4, M7,
M11, M12, M17, M20, M22)
11166201NS
POWER VENT MOTOR (M3, M4, M7, M11, M12,
M17, M20, M22)
11172801
NS
THERMISTOR (M3, M6, M9, M11, M14, M16, M21)0130P00098NS
Expanded Model Nomenclature
M1 - PTH093G35QXXXAA
M2 - PTH093G35RXXXAA
M3 - PTH093G35VXXXAA
M4 - PTH093G50AXXXAA
M5 - PTH093G50CXXXAA
M6 - PTH093G50DXXXAA
M7 - PTH093G50RXXXAA
M8 - PTH093G50VXXXAA
M9 - PTH093G25AXXXAA
M10 - PTH093G25CXXXAA
M11 - PTH093G25DRXXAA
M12 - PTH093G25DXXXAA
M13 - PTH093G25PXXXAB
M14 - PTH093G25RXXXAA
M15 - PTH093G25VXXXAB
M16 - PTH093G35AXXXAA
M17 - PTH093G35CRXXAA
M18 - PTH093G35CXXXAA
M19 - PTH093G35DRXXAA
M20 - PTH093G35DXXXAA
M21 - PTH093G35PXXXAA
M22 - PTH093G35QRXXAA
7
RP-733B www.goodmanmfg.com www.amana-hac.com

Partition Assy
101 71
161
141
21
131
51
151
11
171
81
Ribbon Extension
121
8RP-733B
www.goodmanmfg.com www.amana-hac.com

Partition Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: BASEPAN, PNT0121P00056DG11
PLASTIC-DRAIN PAN0161P00044
21
CAPACITOR STRAPC6300502
51
TOP, PARTITION PANEL PNT0121P00063DG71
CAP, 2/25 MFD/450V/DUAL RDCAP020250450RSS
81
BRACE, TIE PNT (M1, M3, M4, M5, M6, M7, M8,
M11, M12, M13, M14, M15, M16, M17, M18, M20,
M21, M22)
0121P00071DG
101
CORD, 250VAC, 15A (LCD) (M1, M2, M3, M4, M5,
M6, M7)
0130P00059
121
CORD, 250VAC, 20A (LCD) (M8, M9, M10, M11,
M12, M13, M14, M15, M16, M17)
0130P00058121
CORD, 250VAC, 30A (LCD) (M18, M19, M20, M21,
M22)
0130P00061
121
CONTROL PANEL COVER AND MEMBRANERSKP0005131
PLASTIC-HOOD0161P00016
141
ACCESS COVER20410801
151
CUTOFF-SCROLL DG0121P00061DG161
COVER, MOTOR PNT0121P00070DG
171
MID PARTITION PANEL20403301
NS
SEAL-L SIDE PTC20416201NS
SEAL-R SIDE PTC20416202
NS
Expanded Model Nomenclature
M1 - PTH093G35QXXXAA
M2 - PTH093G35RXXXAA
M3 - PTH093G35VXXXAA
M4 - PTH093G50AXXXAA
M5 - PTH093G50CXXXAA
M6 - PTH093G50DXXXAA
M7 - PTH093G50RXXXAA
M8 - PTH093G50VXXXAA
M9 - PTH093G25AXXXAA
M10 - PTH093G25CXXXAA
M11 - PTH093G25DRXXAA
M12 - PTH093G25DXXXAA
M13 - PTH093G25PXXXAB
M14 - PTH093G25RXXXAA
M15 - PTH093G25VXXXAB
M16 - PTH093G35AXXXAA
M17 - PTH093G35CRXXAA
M18 - PTH093G35CXXXAA
M19 - PTH093G35DRXXAA
M20 - PTH093G35DXXXAA
M21 - PTH093G35PXXXAA
M22 - PTH093G35QRXXAA
9
RP-733B www.goodmanmfg.com www.amana-hac.com

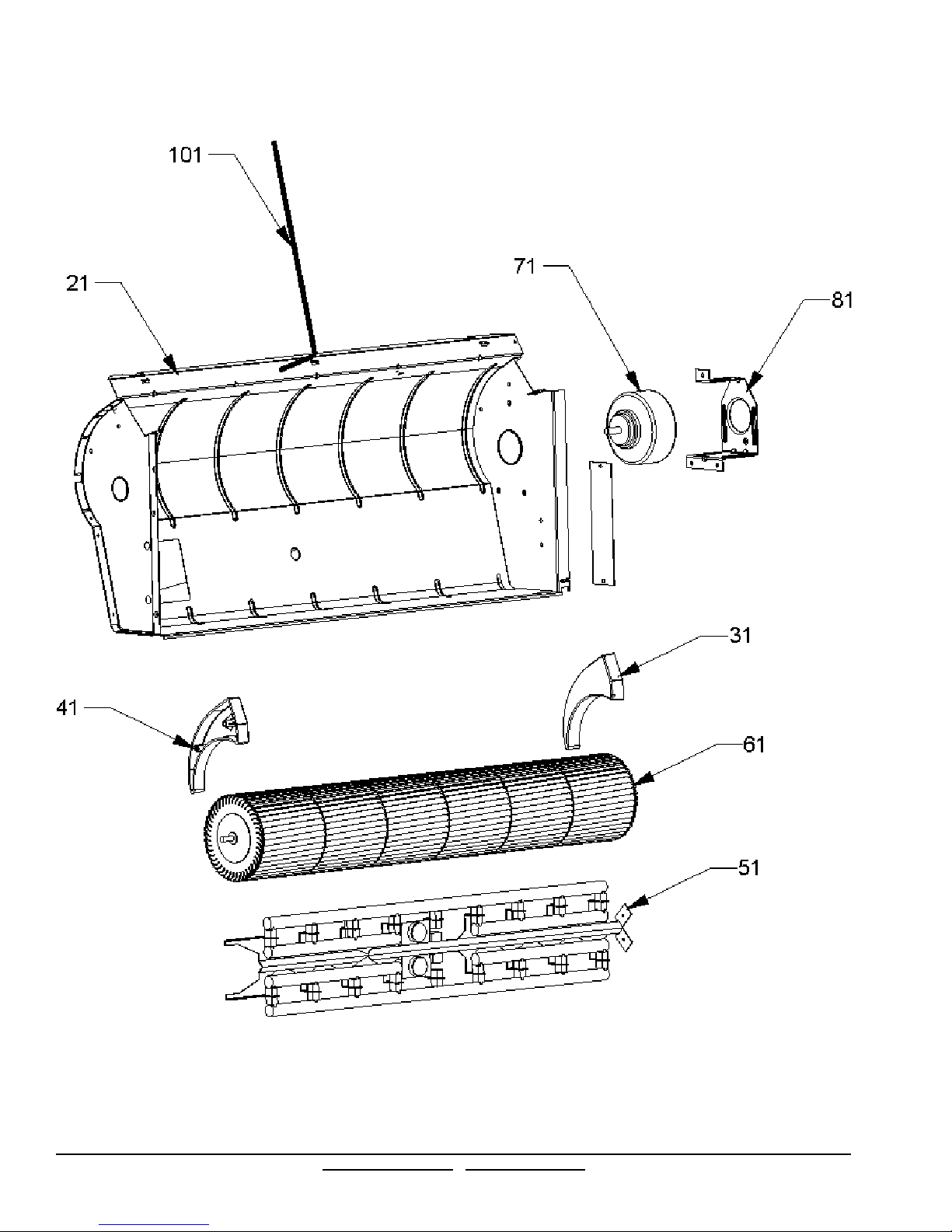

Indoor Assy
10 RP-733B
www.goodmanmfg.com www.amana-hac.com

Indoor Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: SCROLL ASSY0270P0107021
END CAP, RIGHT0161P00021
31
END CAP, LEFT0161P00022
41
HEATER ASSY (M1, M2, M3, M4, M5, M6, M7)0275P0001951
HEATER ASSY (M8, M9, M10, M11, M12, M13,
M14, M15, M16, M17)
0275P00020S
51
HEATER ASSY (M18, M19, M20, M21, M22)0275P00021S51
WHEEL, BLOWER0150P00004s
61
FAN MOTOR, INDOOR0131P00029s
71
BRACKET-MOTOR MOUNT0121P0004881
THERMISTOR - DISCHARGE0130P00075
101
BEARING0163P00027
NS
Expanded Model Nomenclature
M1 - PTH093G35QXXXAA
M2 - PTH093G35RXXXAA
M3 - PTH093G35VXXXAA
M4 - PTH093G50AXXXAA
M5 - PTH093G50CXXXAA
M6 - PTH093G50DXXXAA
M7 - PTH093G50RXXXAA
M8 - PTH093G50VXXXAA
M9 - PTH093G25AXXXAA
M10 - PTH093G25CXXXAA
M11 - PTH093G25DRXXAA
M12 - PTH093G25DXXXAA
M13 - PTH093G25PXXXAB
M14 - PTH093G25RXXXAA
M15 - PTH093G25VXXXAB
M16 - PTH093G35AXXXAA
M17 - PTH093G35CRXXAA
M18 - PTH093G35CXXXAA
M19 - PTH093G35DRXXAA
M20 - PTH093G35DXXXAA
M21 - PTH093G35PXXXAA
M22 - PTH093G35QRXXAA
11
RP-733B www.goodmanmfg.com www.amana-hac.com

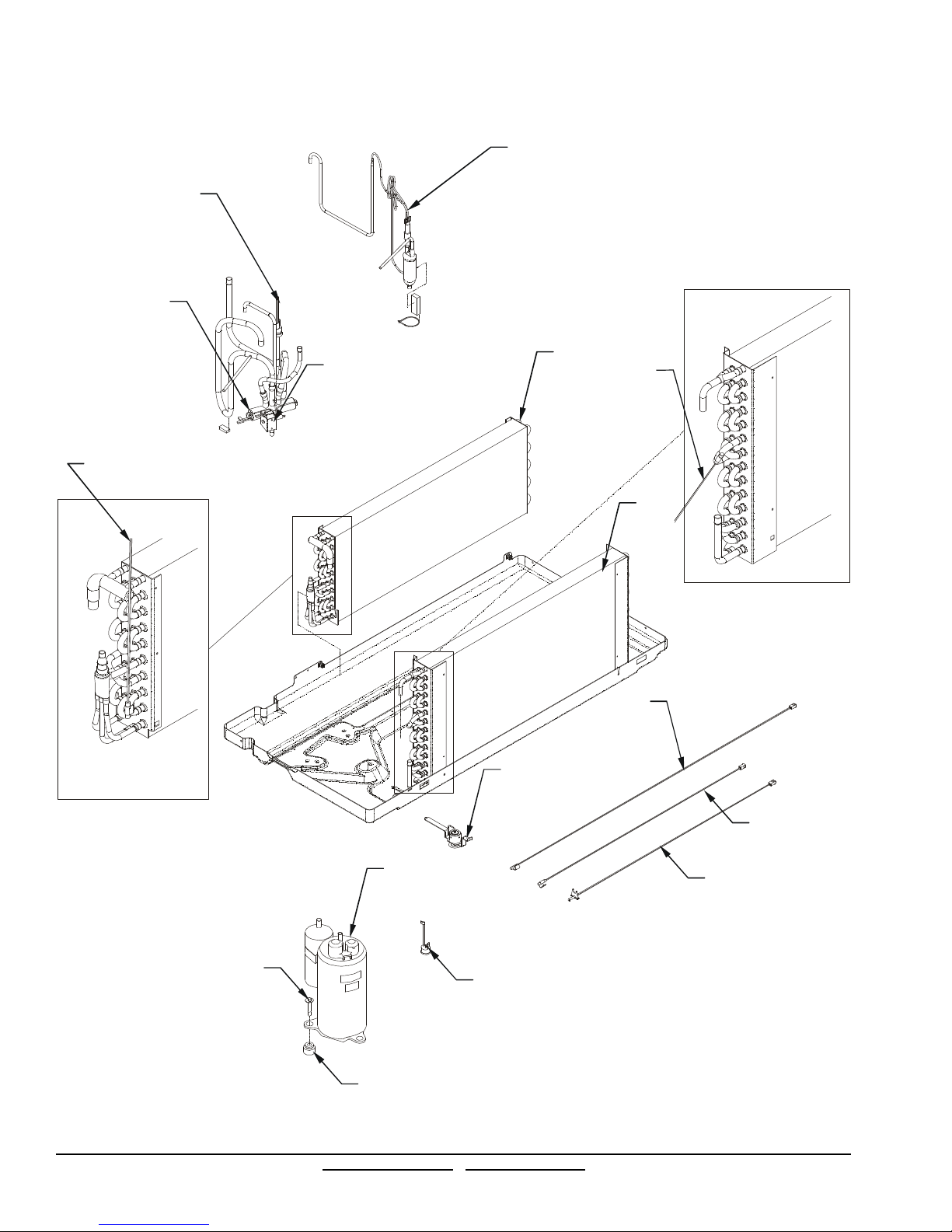

Tubing Assy
201
21
11
41 31
51
121
71
91
81
321
311
331
331
111
341
12 RP-733B
www.goodmanmfg.com www.amana-hac.com

Tubing Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: REVERSING VALVE ASSY-230V0151P0000011
HIGH PRESSURE SWITCH0130M00132
21
EVAP ASSY, 5/16, 3 ROW0202P00065s
31
REVERSING VALVE COIL0130P0002241
CONDENSER ASSY (M1, M3, M4, M5, M6, M7, M8,
M11, M12, M13, M14, M15, M16, M17, M18, M20,
M21, M22)
0201P00079S
51
CONDENSER ASSY PNT (M2, M9, M10, M19)0201P00083DG
51
COMPRESSOR, RECHI44A202AS
71
GROMMET - RECHI COMPRESSOR (QTY 3)60130203
81
SCREW, SHOULDER (QTY 3)0163M00079
91
OVERLOAD PROTECTOR60343539
111
BASE PAN VALVE (M1, M2, M3, M4, M6, M7, M8,
M9, M10, M11, M12, M13, M14, M15, M16, M17,
M18, M19, M20, M21, M22)
20406303
121
CAPILLARY WELDMENT0210P00103
201
THERMISTOR (M3, M6, M9, M11, M14, M16, M21)0130P00077
311
THERMISTOR0130P00074
321
THERMISTOR, .375 CLIP, BLUE0130P00093
331
THERMISTOR - INDOOR COIL0130P00086
341
OLP SPRING - RECHI COMPRESSOR60500101
NS
PLASTIC CLAMP, .1875 DIA (M3, M4, M7, M11,
M12, M17, M20, M22)
BT1392310
NS
TERMINAL COVER - RECHI COMP60100314
NS
TERMINAL GASKET60100103
NS
TERMINAL NUT - RECHI COMP60100401
NS
WASHER - RECHI COMPRESSOR60100201
NS
Expanded Model Nomenclature
M1 - PTH093G35QXXXAA
M2 - PTH093G35RXXXAA
M3 - PTH093G35VXXXAA
M4 - PTH093G50AXXXAA
M5 - PTH093G50CXXXAA
M6 - PTH093G50DXXXAA
M7 - PTH093G50RXXXAA
M8 - PTH093G50VXXXAA
M9 - PTH093G25AXXXAA
M10 - PTH093G25CXXXAA
M11 - PTH093G25DRXXAA
M12 - PTH093G25DXXXAA
M13 - PTH093G25PXXXAB
M14 - PTH093G25RXXXAA
M15 - PTH093G25VXXXAB
M16 - PTH093G35AXXXAA
M17 - PTH093G35CRXXAA
M18 - PTH093G35CXXXAA
M19 - PTH093G35DRXXAA
M20 - PTH093G35DXXXAA
M21 - PTH093G35PXXXAA
M22 - PTH093G35QRXXAA
13
RP-733B www.goodmanmfg.com www.amana-hac.com

REPAIR PARTS
RP-734A
This manual is to be used by qualified technicians only. This manual replaces RP-734.
© 2009 Goodman Manufacturing Company,
L.P. ◊5151 San Felipe, Suite 500 ◊Houston,
TX 77056
July 2013
PTH094G Series PTAC Heat Pump
www.goodmanmfg.com www.amana-hac.com
© 2012-2013 Goodman Company, L.P. ◊5151 San Felipe St., Suite 500 ◊Houston, TX 77056
Amana is a registered trademark of Maytag Corporation or its related
companies and is used under license to Goodman Company, L.P., Houston,
TX. All rights reserved.
PTH094G25AXXXA
A
PTH094G25CXXXAA
PTH094G25DRXXAA
PTH094G25QXXXAA
PTH094G25RXXXAA
PTH094G35AXXXA
A
PTH094G35CXXXAA
PTH094G35DXXXAA
PTH094G35QRXXAA
PTH094G35QXXXAA
PTH094G35RXXXAA
PTH094G35VXXXA
A
PTH094G50AXXXA
A
PTH094G50CXXXAA
PTH094G50RXXXAA

Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
This system uses R410A refrigerant. If sealed system work is required, use approved equipment and follow
service procedures. Refer to Service Manual or Installation Instructions for service procedures.
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
www.amana-hac.com
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
Consumer Affairs Department
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
www.goodmanmfg.com www.amana-hac.com
Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized
technician and using authorized factory parts.
Goodman Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs
without notice or without incurring obligations.
4 - 13
3
RP-734A

Functional Parts
Part
No: Description:
CAP020250450RS CAP, 2/25 MFD/450V/DUAL RD
44A207A COMPREESOR, RECHI
RSKP0010 CONTROL BOARD M61
RSKP0005 CONTROL PANEL COVER AND MEMBRANE
11114701 CORD 277 VAC, 20A (M1, M2, M3, M4, M5,
M6, M7, M8, M9, M10, M11, M12)
11114801 CORD 277 VAC, 30A (M13, M14, M15)
0131P00029 FAN MOTOR, INDOOR
0131P00034 FAN MOTOR, OUTDOOR
0161P00030 FAN, CONDENSER
A3410402 FUSE 15A (M1, M2, M3, M4, M5)
A3410403 FUSE 20A (M6, M7, M8, M9, M10, M11, M12)
A3410404 FUSE 25A (M13, M14, M15)
0275P00040 HEATER ASSY (M6, M7, M8, M9, M10, M11,
M12)
0275P00041 HEATER ASSY (M13, M14, M15)
0275P00023 HEATER ASSY (M1, M2, M3, M4, M5)
0130M00132 HIGH PRESSURE SWITCH
60343516 OVERLOAD PROTECTOR
11172801 POWER VENT MOTOR (M3, M8, M12)
0130M00097 RELAY
C8873932 RELAY (POWER VENT) (M3, M8, M12)
0151P00001 REVERSING VALVE ASSY-265V
0130P00022 REVERSING VALVE COIL
B1160701 TERMINAL BOARD (M3, M8, M12)
0130P00074 THERMISTOR
0130P00075 THERMISTOR
0130P00098 THERMISTOR (M3, M5, M9, M11, M15)
0130P00077 THERMISTOR (M3, M5, M9, M11, M15)
0130P00086 THERMISTOR, .312 CLIP, RED
0130P00093 THERMISTOR, .375 CLIP, BLUE
0130M00152 TRANSFORMER
0130M00151 Transformer, 40VA, 277V to 24V (M3, M8, M12)
PCBEP100 VARIABLE SPEED TERMINAL BOARD
0150P00004 WHEEL, BLOWER
Expanded Model Nomenclature
M1 - PTH094G25AXXXAA
M2 - PTH094G25CXXXAA
M3 - PTH094G25DRXXAA
M4 - PTH094G25QXXXAA
M5 - PTH094G25RXXXAA
M6 - PTH094G35AXXXAA
M7 - PTH094G35CXXXAA
M8 - PTH094G35DXXXAA
M9 - PTH094G35QRXXAA
M10 - PTH094G35QXXXAA
M11 - PTH094G35RXXXAA
M12 - PTH094G35VXXXAA
M13 - PTH094G50AXXXAA
M14 - PTH094G50CXXXAA
M15 - PTH094G50RXXXAA
3
RP-734A www.goodmanmfg.com www.amana-hac.com

Front Assy
4RP-734A
www.goodmanmfg.com www.amana-hac.com

Front Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: FRONT-DICHARGE LOUVERS0161P0003311 CONTROL BOARD M61RSKP0010
21 TRANSFORMER0130M00152
31 CLIP (QTY 2)0163P00025
41 CONTROL PANEL COVER0121P00001P51 SCREEN, DISCHARGE0121P00073
61 DOOR ASSY -AMANA-0261P00003
71 FRONT ASSY0261P00011
81 BAYONET FUSE HOLDER (M1, M2, M3, M4, M5)C6476001
91 BAYONET FUSE HOLDER (M6, M7, M8, M9, M10,
M11, M12)
C6476002
91
BAYONET FUSE HOLDER (M13, M14, M15)C6476003
91 Transformer, 40VA, 277V to 24V (M3, M8, M12)0130M00151
111 RELAY0130M00097
121 RELAY (POWER VENT) (M3, M8, M12)C8873932
121 DIGITENNA (M3, M5, M9, M11, M15)1261401261 PADDLE SWITCH (M3, M8, M12)B1337701
291 VARIABLE SPEED TERMINAL BOARDPCBEP100
301 FILTER, RACK (QTY 2)0161P00035
NS FUSE 15A (M1, M2, M3, M4, M5)A3410402NS FUSE 20A (M6, M7, M8, M9, M10, M11, M12)A3410403
NS FUSE 25A (M13, M14, M15)A3410404
NS TERMINAL BOARD (M3, M8, M12)B1160701
NS
Expanded Model Nomenclature
M1 - PTH094G25AXXXAA
M2 - PTH094G25CXXXAA
M3 - PTH094G25DRXXAA
M4 - PTH094G25QXXXAA
M5 - PTH094G25RXXXAA
M6 - PTH094G35AXXXAA
M7 - PTH094G35CXXXAA
M8 - PTH094G35DXXXAA
M9 - PTH094G35QRXXAA
M10 - PTH094G35QXXXAA
M11 - PTH094G35RXXXAA
M12 - PTH094G35VXXXAA
M13 - PTH094G50AXXXAA
M14 - PTH094G50CXXXAA
M15 - PTH094G50RXXXAA
5
RP-734A www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
6RP-734A
www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: SHROUD, CONDENSER0161P0002611 FAN MOTOR, OUTDOOR0131P00034
21 PANEL-PARTITION (M4, M9, M10)0121P00093
31 PANEL-PARTITION PNT0121P00108DG
31 FAN, CONDENSER0161P0003041 CABLE0163P00019
51 BRACKET, VENT DOOR (M3, M8, M12)0121P00079
61 BRACKET, VENT DOOR-C (M1, M2, M5, M6, M7,
M11, M13, M14, M15)
0121P00072DG
61
BRKT, POWER VENT (M3, M8, M12)0121P00080
61 POWER VENT MOTOR BRACKET (M3, M8, M12)11166101
61 VENT DOOR (M1, M3, M5, M6, M8, M11, M12, M13,
M15)
11046105
71
PARTITION PANEL BRACKET (QTY 2)11191703
81 LEVER ARM (M1, M2, M5, M6, M7, M11, M13, M14,
M15)
11046302
91
POWER DOOR ASSY (M3, M8)0270P00997
191 EXTENSION SPRING (M3, M8, M12)11166401
NS PANEL-AUXILLIARY (M4, M9, M10)0121P00091
NS POWER VENT COVER BRACKET (M3, M8, M12)11166201NS POWER VENT MOTOR (M3, M8, M12)11172801
NS THERMISTOR (M3, M5, M9, M11, M15)0130P00077
NS
Expanded Model Nomenclature
M1 - PTH094G25AXXXAA
M2 - PTH094G25CXXXAA
M3 - PTH094G25DRXXAA
M4 - PTH094G25QXXXAA
M5 - PTH094G25RXXXAA
M6 - PTH094G35AXXXAA
M7 - PTH094G35CXXXAA
M8 - PTH094G35DXXXAA
M9 - PTH094G35QRXXAA
M10 - PTH094G35QXXXAA
M11 - PTH094G35RXXXAA
M12 - PTH094G35VXXXAA
M13 - PTH094G50AXXXAA
M14 - PTH094G50CXXXAA
M15 - PTH094G50RXXXAA
7
RP-734A www.goodmanmfg.com www.amana-hac.com
