Amana PTH123G User manual

REPAIR PARTS
© 2009 Goodman Manufacturing Company,
L.P. ◊5151 San Felipe, Suite 500 ◊Houston,
TX 77056
RP-735C
This manual is to be used by qualified technicians only. This manual replaces RP-735B.
July 2013
PTH123G Series PTAC Heat Pump
www.goodmanmfg.com www.amana-hac.com
© 2012-2013 Goodman Company, L.P. ◊5151 San Felipe, Suite 500 ◊Houston, TX 77056
Amana is a registered trademark of Maytag Corporation or its related
companies and is used under license to Goodman Company, L.P., Houston,
TX. All rights reserved.
PTH123G25AXXXA
A
PTH123G25CXXXA
A
PTH123G25DRXXA
A
PTH123G25DXXXA
A
PTH123G25QXXXA
A
PTH123G25RXXXA
A
PTH123G25VXXXA
A
PTH123G35AXXXA
A
PTH123G35CRXXA
A
PTH123G35CXXXA
A
PTH123G35DXXXA
A
PTH123G35PXXXA
A
PTH123G35QRXXA
A
PTH123G35QXXXA
A
PTH123G35RXXXA
A
PTH123G35VXXXA
A
PTH123G50AXXXA
A
PTH123G50CXXXA
A
PTH123G50DXXXA
A
PTH123G50QXXXA
A
PTH123G50RXXXA
A
PTH123G50VXXXA
A
PTH123G50WXXXA
A

Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
This system uses R410A refrigerant. If sealed system work is required, use approved equipment and follow
service procedures. Refer to Service Manual or Installation Instructions for service procedures
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
www.amana-hac.com
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
Consumer Affairs Department
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
www.goodmanmfg.com www.amana-hac.com
Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized
technician and using authorized factory parts.
Goodman Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs
without notice or without incurring obligations.
4 - 13
3
RP-735C

Functional Parts
Part
No: Description:
20406303 BASE PAN VALVE (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M13, M14, M15, M16,
M17, M18, M19, M20, M21, M22, M23)
CAP030300450RS CAPACITOR, 500V
44A282A COMPRESSOR, RECHI
RSKP0010 CONTROL BOARD M61
RSKP0005 CONTROL PANEL COVER AND MEMBRANE
0130P00059 CORD, 250VAC, 15A (LCD) (M1, M2, M3, M4,
M5, M6, M7)
0130P00058 CORD, 250VAC, 20A (LCD) (M8, M9, M10,
M11, M12, M13, M14, M15, M16)
0130P00061 CORD, 250VAC, 30A (LCD) (M17, M18, M19,
M20, M21, M22)
0131P00029 FAN MOTOR, INDOOR
0131P00031 FAN MOTOR, OUTDOOR
0161P00030 FAN, CONDENSER
0275P00039 HEATER ASSY (M17, M18, M19, M20, M21,
M22, M23)
0275P00038 HEATER ASSY (M8, M9, M10, M11, M12, M13,
M14, M15, M16)
0275P00019 HEATER ASSY (M1, M2, M3, M4, M5, M6, M7)
0130M00132 HIGH PRESSURE SWITCH
11172801 POWER VENT MOTOR (M3, M4, M7, M11,
M16, M19, M22)
0130M00096 RELAY
C8873917 RELAY (HYDRONIC) (M12)
C8873932 RELAY (POWER VENT) (M3, M4, M7, M11,
M16, M19, M22)
0151P00000 REVERSING VALVE ASSY-230V
0130P00022 REVERSING VALVE COIL
0130P00098 THERMISTOR (M3, M6, M9, M13, M15, M21)
0130P00074 THERMISTOR
0130P00077 THERMISTOR (M3, M6, M9, M13, M15, M21)
0130P00086 THERMISTOR, .312 CLIP, RED
0130P00093 THERMISTOR, .375 CLIP, BLUE
0130P00075 THERMISTOR-DISCHARGE
B1378501 TRANSFORMER (M3, M4, M7, M11, M16, M19,
M22)
0130M00078 TRANSFORMER (M12)
20512501 TRANSFORMER (HYDRONIC)
PCBEP100 VARIABLE SPEED TERMINAL BOARD
0150P00004 WHEEL, BLOWER
Expanded Model Nomenclature
M1 - PTH123G25AXXXAA
M2 - PTH123G25CXXXAA
M3 - PTH123G25DRXXAA
M4 - PTH123G25DXXXAA
M5 - PTH123G25QXXXAA
M6 - PTH123G25RXXXAA
M7 - PTH123G25VXXXAA
M8 - PTH123G35AXXXAA
M9 - PTH123G35CRXXAA
M10 - PTH123G35CXXXAA
M11 - PTH123G35DXXXAA
M12 - PTH123G35PXXXAA
M13 - PTH123G35QRXXAA
M14 - PTH123G35QXXXAA
M15 - PTH123G35RXXXAA
M16 - PTH123G35VXXXAA
M17 - PTH123G50AXXXAA
M18 - PTH123G50CXXXAA
M19 - PTH123G50DXXXAA
M20 - PTH123G50QXXXAA
M21 - PTH123G50RXXXAA
M22 - PTH123G50VXXXAA
M23 - PTH123G50WXXXAA
3
RP-735C www.goodmanmfg.com www.amana-hac.com

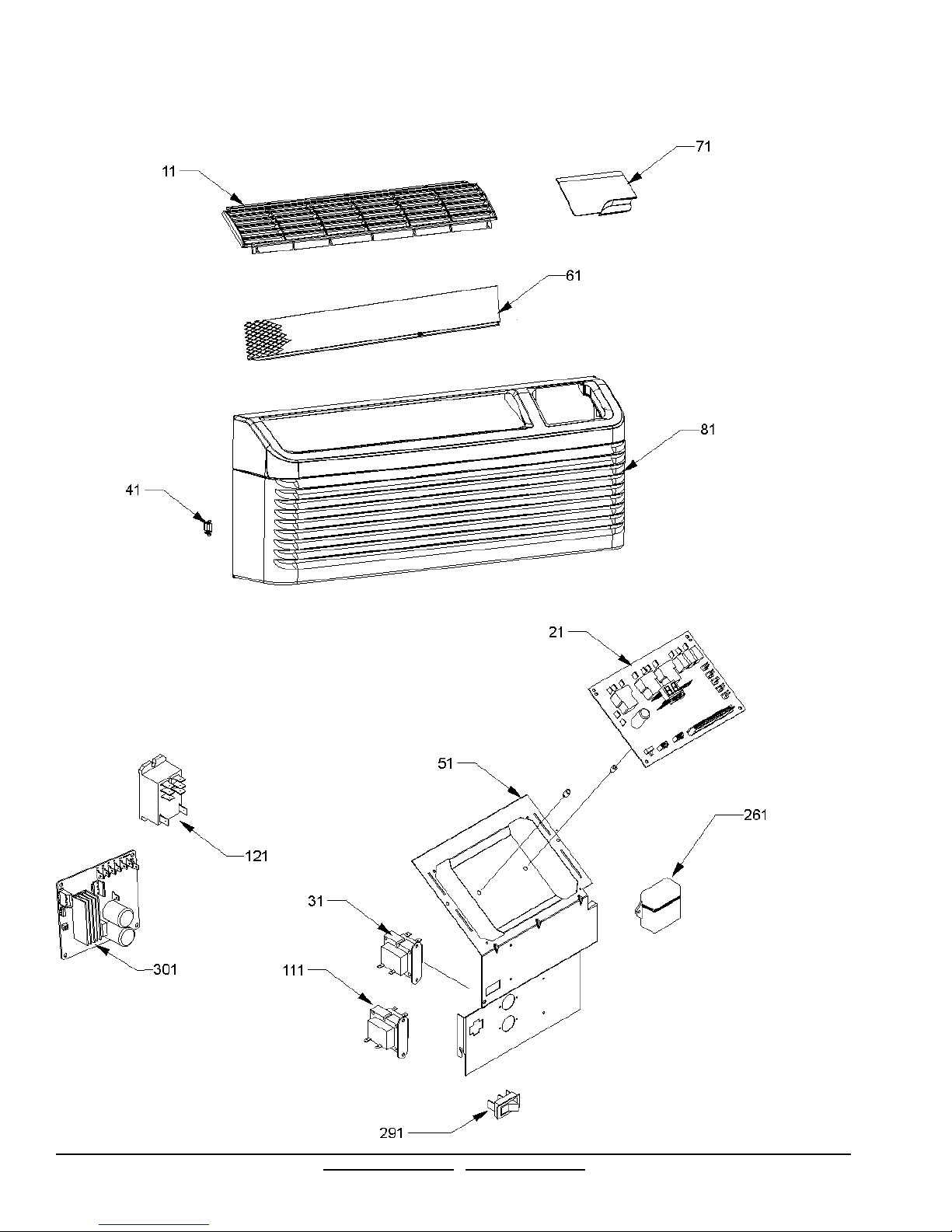

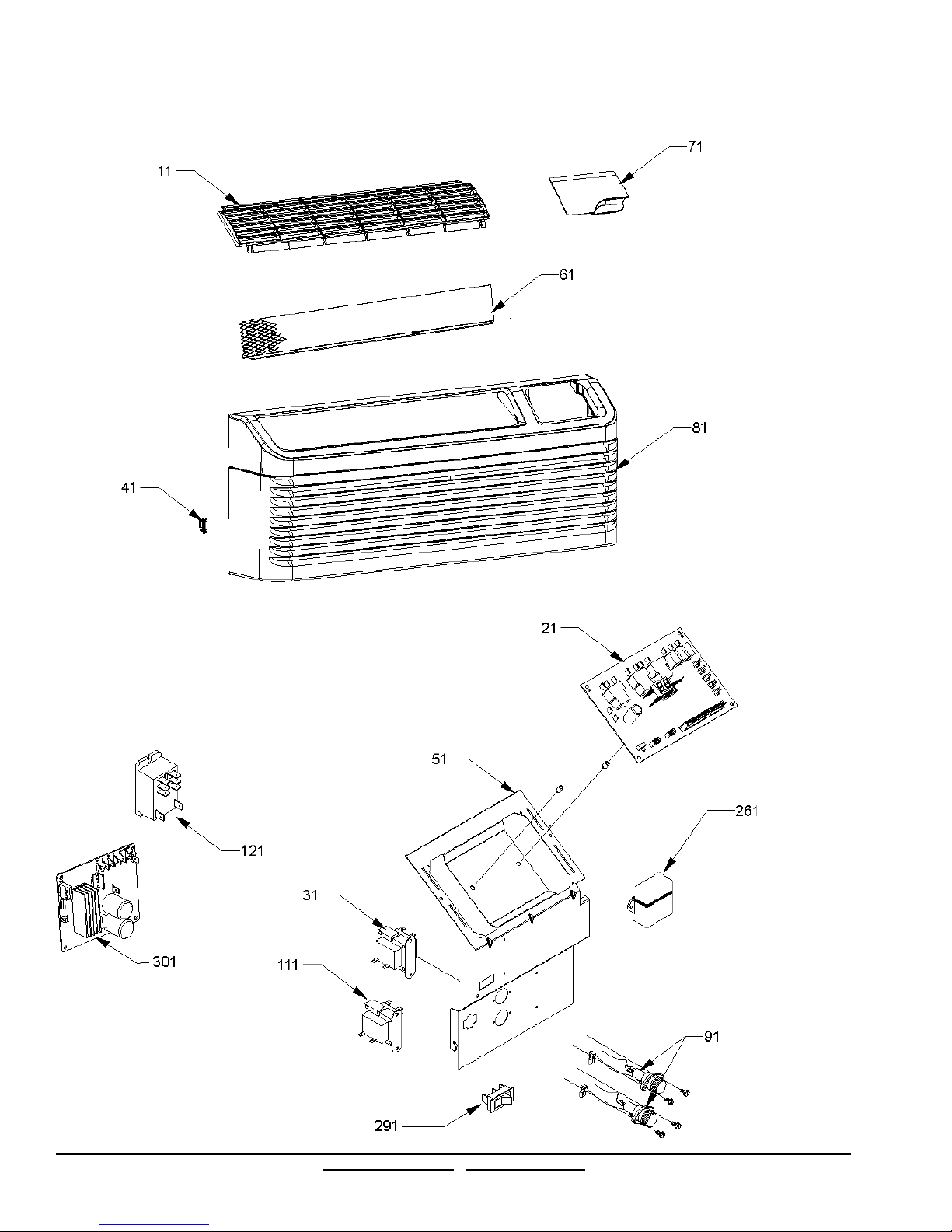

Front Assy
4RP-735C
www.goodmanmfg.com www.amana-hac.com

Front Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: FRONT-DICHARGE LOUVERS0161P0003311 CONTROL BOARD M61RSKP0010
21 TRANSFORMER (HYDRONIC)20512501
31 CLIP (QTY 2)0163P00025
41 CONTROL PANEL COVER0121P00001P
51 SCREEN, DISCHARGE0121P00073
61 DOOR ASSY -AMANA-0261P00003
71 FRONT ASSY0261P00011
81 TRANSFORMER (M12)0130M00078
111 TRANSFORMER (M3, M4, M7, M11, M16, M19,
M22)
B1378501
111
RELAY0130M00096
121 RELAY (HYDRONIC) (M12)C8873917
121 RELAY (POWER VENT) (M3, M4, M7, M11, M16,
M19, M22)
C8873932
121
DIGITENNA (M3, M6, M9, M13, M15, M21)1261401
261 PADDLE SWITCH (M3, M4, M7, M11, M16, M19,
M22)
B1337701
291
VARIABLE SPEED TERMINAL BOARDPCBEP100
301 FILTER, RACK (QTY 2)0161P00035
NS TERMINAL BOARD (M3, M4, M7, M11, M16, M19,
M22)
B1160701NS
Expanded Model Nomenclature
M1 - PTH123G25AXXXAA
M2 - PTH123G25CXXXAA
M3 - PTH123G25DRXXAA
M4 - PTH123G25DXXXAA
M5 - PTH123G25QXXXAA
M6 - PTH123G25RXXXAA
M7 - PTH123G25VXXXAA
M8 - PTH123G35AXXXAA
M9 - PTH123G35CRXXAA
M10 - PTH123G35CXXXAA
M11 - PTH123G35DXXXAA
M12 - PTH123G35PXXXAA
M13 - PTH123G35QRXXAA
M14 - PTH123G35QXXXAA
M15 - PTH123G35RXXXAA
M16 - PTH123G35VXXXAA
M17 - PTH123G50AXXXAA
M18 - PTH123G50CXXXAA
M19 - PTH123G50DXXXAA
M20 - PTH123G50QXXXAA
M21 - PTH123G50RXXXAA
M22 - PTH123G50VXXXAA
M23 - PTH123G50WXXXAA
5
RP-735C www.goodmanmfg.com www.amana-hac.com

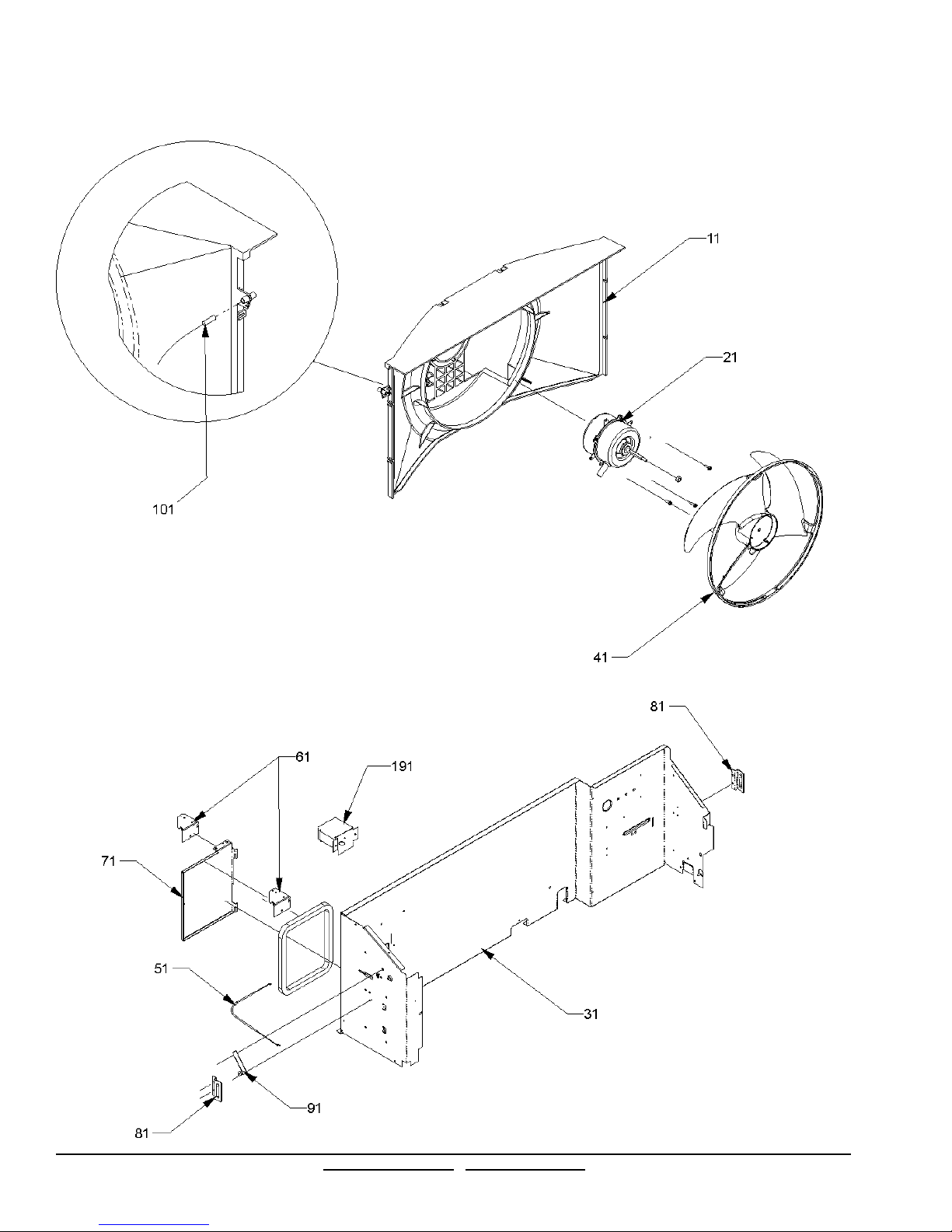

Chassis Control Panel
6RP-735C
www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: SHROUD, CONDENSER0161P0002611 FAN MOTOR, OUTDOOR0131P00031
21 PANEL-PARTITION (M5, M13, M14, M20)0121P00093
31 PANEL-PARTITION PNT (M2, M9, M10, M18)0121P00108DG
31 FAN, CONDENSER0161P00030
41 CABLE0163P00019
51 BRACKET, VENT DOOR (M3, M4, M7, M11, M16,
M19, M22)
0121P00079
61
BRACKET, VENT DOOR-C (M1, M2, M6, M8, M9,
M10, M12, M15, M17, M18, M21, M23)
0121P00072DG61
VENT DOOR (M2, M9, M10, M18)11046105PDG
71 PARTITION PANEL BRACKET (QTY 2)11191703
81 LEVER ARM (M1, M2, M6, M8, M9, M10, M12, M15,
M17, M18, M21, M23)
1104630291
THERMISTOR (M3, M6, M9, M13, M15, M21)0130P00098
101 POWER DOOR ASSY (M3, M4, M11, M19)0270P00997
191 BRKT, POWER VENT (M3, M4, M7, M11, M16,
M19, M22)
0121P00080NS
EXTENSION SPRING (M3, M4, M7, M11, M16,
M19, M22)
11166401
NS
PANEL-AUXILLIARY (M5, M13, M14, M20)0121P00091NS POWER VENT COVER BRACKET (M3, M4, M7,
M11, M16, M19, M22)
11166201
NS
POWER VENT MOTOR (M3, M4, M7, M11, M16,
M19, M22)
11172801
NS
POWER VENT MOTOR BRACKET (M3, M4, M7,
M11, M16, M19, M22)
11166101NS
Expanded Model Nomenclature
M1 - PTH123G25AXXXAA
M2 - PTH123G25CXXXAA
M3 - PTH123G25DRXXAA
M4 - PTH123G25DXXXAA
M5 - PTH123G25QXXXAA
M6 - PTH123G25RXXXAA
M7 - PTH123G25VXXXAA
M8 - PTH123G35AXXXAA
M9 - PTH123G35CRXXAA
M10 - PTH123G35CXXXAA
M11 - PTH123G35DXXXAA
M12 - PTH123G35PXXXAA
M13 - PTH123G35QRXXAA
M14 - PTH123G35QXXXAA
M15 - PTH123G35RXXXAA
M16 - PTH123G35VXXXAA
M17 - PTH123G50AXXXAA
M18 - PTH123G50CXXXAA
M19 - PTH123G50DXXXAA
M20 - PTH123G50QXXXAA
M21 - PTH123G50RXXXAA
M22 - PTH123G50VXXXAA
M23 - PTH123G50WXXXAA
7
RP-735C www.goodmanmfg.com www.amana-hac.com

Partition Assy
101 71
161
141
21
131
51
151
11
171
81
Ribbon Extension
121
8RP-735C
www.goodmanmfg.com www.amana-hac.com

Partition Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: BASEPAN, PNT0121P00056DG11 PLASTIC-DRAIN PAN0161P00044
21 CAPACITOR STRAPC6300502
51 TOP, PARTITION PANEL PNT0121P00063DG
71 CAPACITOR, 500VCAP030300450RS
81 BRACE, TIE PNT (QTY 2)0121P00071DG
101 CORD, 250VAC, 15A (LCD) (M1, M2, M3, M4, M5,
M6, M7)
0130P00059
121
CORD, 250VAC, 20A (LCD) (M8, M9, M10, M11,
M12, M13, M14, M15, M16)
0130P00058121
CORD, 250VAC, 30A (LCD) (M17, M18, M19, M20,
M21, M22)
0130P00061
121
CONTROL PANEL COVER AND MEMBRANERSKP0005131 PLASTIC-HOOD0161P00016
141 ACCESS COVER20410801
151 CUTOFF-SCROLL DG0121P00061DG
161 COVER, MOTOR PNT0121P00070DG171 MID PARTITION PANEL20403301
NS SEAL-L SIDE PTC20416201
NS SEAL-R SIDE PTC20416101
NS
Expanded Model Nomenclature
M1 - PTH123G25AXXXAA
M2 - PTH123G25CXXXAA
M3 - PTH123G25DRXXAA
M4 - PTH123G25DXXXAA
M5 - PTH123G25QXXXAA
M6 - PTH123G25RXXXAA
M7 - PTH123G25VXXXAA
M8 - PTH123G35AXXXAA
M9 - PTH123G35CRXXAA
M10 - PTH123G35CXXXAA
M11 - PTH123G35DXXXAA
M12 - PTH123G35PXXXAA
M13 - PTH123G35QRXXAA
M14 - PTH123G35QXXXAA
M15 - PTH123G35RXXXAA
M16 - PTH123G35VXXXAA
M17 - PTH123G50AXXXAA
M18 - PTH123G50CXXXAA
M19 - PTH123G50DXXXAA
M20 - PTH123G50QXXXAA
M21 - PTH123G50RXXXAA
M22 - PTH123G50VXXXAA
M23 - PTH123G50WXXXAA
9
RP-735C www.goodmanmfg.com www.amana-hac.com

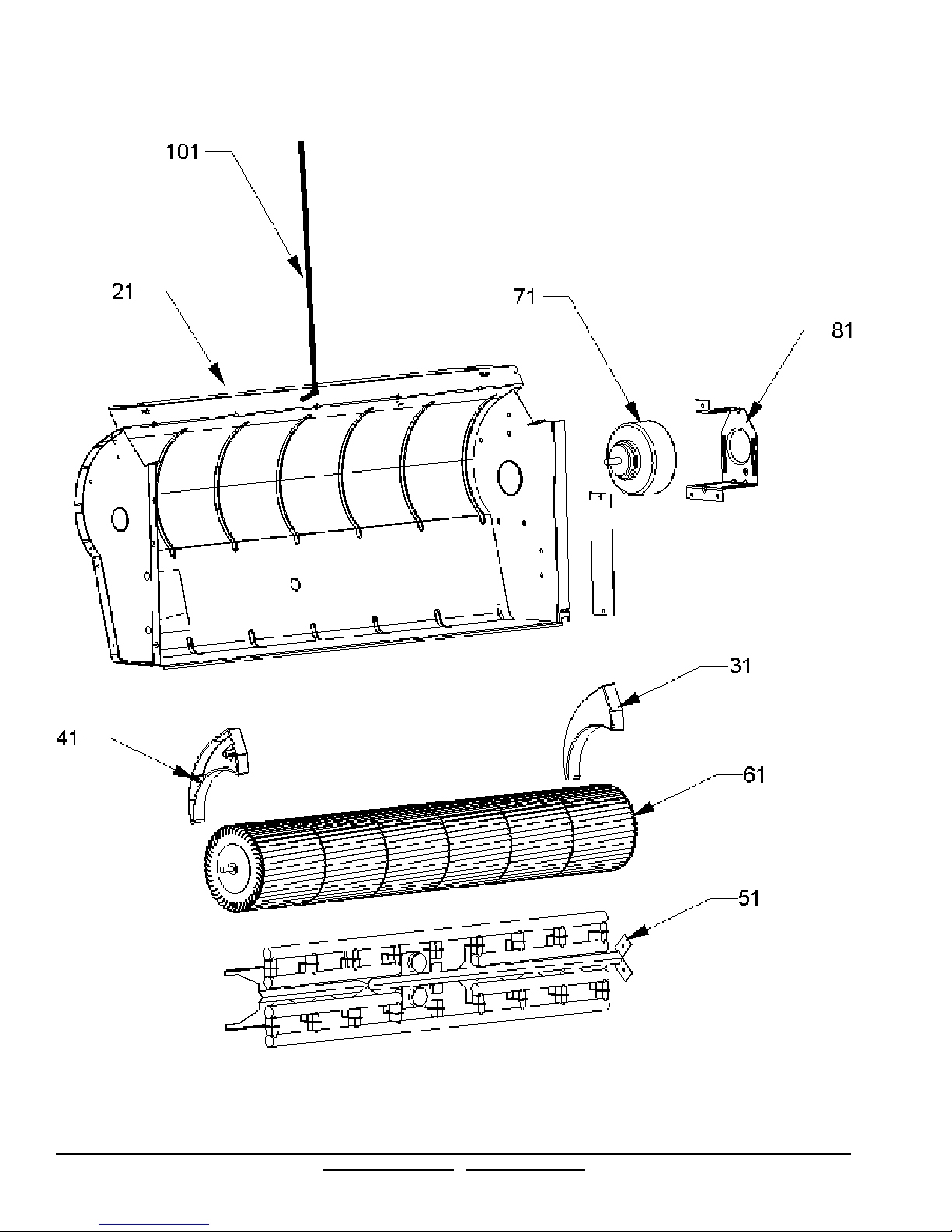

Indoor Assy
10 RP-735C
www.goodmanmfg.com www.amana-hac.com

Indoor Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: SCROLL ASSY0270P0107021 END CAP, RIGHT0161P00021
31 END CAP, LEFT0161P00022
41 HEATER ASSY (M1, M2, M3, M4, M5, M6, M7)0275P00019
51 HEATER ASSY (M8, M9, M10, M11, M12, M13,
M14, M15, M16)
0275P00038
51
HEATER ASSY (M17, M18, M19, M20, M21, M22,
M23)
0275P00039
51
WHEEL, BLOWER0150P0000461 FAN MOTOR, INDOOR0131P00029
71 BRACKET-MOTOR MOUNT0121P00048
81 THERMISTOR-DISCHARGE0130P00075
101 BEARING0163P00027NS
Expanded Model Nomenclature
M1 - PTH123G25AXXXAA
M2 - PTH123G25CXXXAA
M3 - PTH123G25DRXXAA
M4 - PTH123G25DXXXAA
M5 - PTH123G25QXXXAA
M6 - PTH123G25RXXXAA
M7 - PTH123G25VXXXAA
M8 - PTH123G35AXXXAA
M9 - PTH123G35CRXXAA
M10 - PTH123G35CXXXAA
M11 - PTH123G35DXXXAA
M12 - PTH123G35PXXXAA
M13 - PTH123G35QRXXAA
M14 - PTH123G35QXXXAA
M15 - PTH123G35RXXXAA
M16 - PTH123G35VXXXAA
M17 - PTH123G50AXXXAA
M18 - PTH123G50CXXXAA
M19 - PTH123G50DXXXAA
M20 - PTH123G50QXXXAA
M21 - PTH123G50RXXXAA
M22 - PTH123G50VXXXAA
M23 - PTH123G50WXXXAA
11
RP-735C www.goodmanmfg.com www.amana-hac.com

Tubing Assy
12 RP-735C
www.goodmanmfg.com www.amana-hac.com

Tubing Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: REVERSING VALVE ASSY-230V0151P0000011 HIGH PRESSURE SWITCH0130M00132
21 EVAP ASSY, 5/16, 3 ROW0202P00065
31 REVERSING VALVE COIL0130P00022
41 CONDENSER ASSY (M1, M3, M4, M5, M6, M7, M8,
M11, M12, M13, M14, M15, M16, M17, M19, M20,
M21, M22, M23)
0201P00079
51
CONDENSER ASSY PNT (M2, M9, M10, M18)0201P00083DG
51 COMPRESSOR, RECHI44A282A71 GROMMET - RECHI COMPRESSOR (QTY 3)60130203
81 SCREW, SHOULDER (QTY 3)0163M00079
91 OVERLOAD PROTECTOR60343503
111 BASE PAN VALVE (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M13, M14, M15, M16, M17,
M18, M19, M20, M21, M22, M23)
20406303121
CAPILLARY TUBE WELD0210P00106
201 THERMISTOR, .375 CLIP, BLUE0130P00093311 THERMISTOR0130P00074
321 THERMISTOR, .312 CLIP, RED0130P00086
331 OLP SPRING - RECHI COMPRESSOR60500101
NS PLASTIC CLAMP, .1875 DIA (M3, M4, M7, M11,
M16, M19, M22)
BT1392310NS
TERMINAL COVER - RECHI COMP60100314
NS TERMINAL GASKET60100103
NS TERMINAL NUT - RECHI COMP60100401NS THERMISTOR (M3, M6, M9, M13, M15, M21)0130P00077
NS WASHER - RECHI COMPRESSOR60100201
NS
Expanded Model Nomenclature
M1 - PTH123G25AXXXAA
M2 - PTH123G25CXXXAA
M3 - PTH123G25DRXXAA
M4 - PTH123G25DXXXAA
M5 - PTH123G25QXXXAA
M6 - PTH123G25RXXXAA
M7 - PTH123G25VXXXAA
M8 - PTH123G35AXXXAA
M9 - PTH123G35CRXXAA
M10 - PTH123G35CXXXAA
M11 - PTH123G35DXXXAA
M12 - PTH123G35PXXXAA
M13 - PTH123G35QRXXAA
M14 - PTH123G35QXXXAA
M15 - PTH123G35RXXXAA
M16 - PTH123G35VXXXAA
M17 - PTH123G50AXXXAA
M18 - PTH123G50CXXXAA
M19 - PTH123G50DXXXAA
M20 - PTH123G50QXXXAA
M21 - PTH123G50RXXXAA
M22 - PTH123G50VXXXAA
M23 - PTH123G50WXXXAA
13
RP-735C www.goodmanmfg.com www.amana-hac.com

REPAIR PARTS
RP-736A
This manual is to be used by qualified technicians only. This manual replaces RP-736.
www.amana-hac.com
© 2012-2013 Goodman Company, L.P. ◊5151 San Felipe St., Suite 500 ◊Houston, TX 77056
May 2013
PTH124G Series PTAC Heat Pump
www.goodmanmfg.com
Amana is a registered trademark of Maytag Corporation or its related
companies and is used under license to Goodman Company, L.P.,
Houston, TX. All rights reserved.
PTH124G15AXXXA
A
PTH124G25AXXXA
A
PTH124G25CXXXA
A
PTH124G25RXXXA
A
PTH124G35AXXXA
A
PTH124G35CXXXA
A
PTH124G35DXXXA
A
PTH124G35QRXXA
A
PTH124G35QXXXA
A
PTH124G35RXXXA
A
PTH124G50AXXXA
A
PTH124G50CXXXA
A
PTH124G50RXXXA
A

Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
This system uses R410A refrigerant. If sealed system work is required, use approved equipment and follow
service procedures. Refer to Service Manual or Installation Instructions for service procedures.
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
Consumer Affairs Department
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
www.amana-hac.com
Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized
technician and using authorized factory parts.
Goodman Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs
without notice or without incurring obligations.
www.goodmanmfg.com
4 - 13
3
RP-736A

Functional Parts
Part
No: Description:
CAP020300450RS CAP, 2/30 MFD/450V/DUAL RD
44A287A COMPRESSOR, RECHI
RSKP0010 CONTROL BOARD M61
RSKP0005 CONTROL PANEL COVER AND MEMBRANE
11114701 CORD 277 VAC, 20A (M1, M2, M3, M4, M5,
M6, M7, M8, M9, M10)
11114801 CORD 277 VAC, 30A (M11, M12, M13)
0131P00029 FAN MOTOR, INDOOR
0131P00032 FAN MOTOR, OUTDOOR
0161P00030 FAN, CONDENSER
A3410402 FUSE 15A (M1, M2, M3, M4)
A3410403 FUSE 20A (M5, M6, M7, M8, M9, M10)
A3410404 FUSE 25A (M11, M12, M13)
0275P00023 HEATER ASSY (M2, M3, M4)
0275P00025 HEATER ASSY (M11, M12, M13)
0275P00026 HEATER ASSY (M1)
0275P00024 HEATER ASSY (M5, M6, M7, M8, M9, M10)
0130M00132 HIGH PRESSURE SWITCH
60343539 OVERLOAD PROTECTOR
0130M00097 RELAY
C8873932 RELAY (POWER VENT) (M7)
0151P00001 REVERSING VALVE ASSY-265V
0130P00077 THERMISTOR (M4, M8, M10, M13)
0130P00093 THERMISTOR
0130P00074 THERMISTOR
0130P00075 THERMISTOR- DISCHARGE
0130P00086 THERMISTOR-INDOOR COIL
0130P00098 THERMISTOR-OUTDOOR AMBIENT (M4, M8,
M10, M13)
11172101 TRANSFORMER (M7)
20512501 TRANSFORMER (HYDRONIC)
PCBEP100 VARIABLE SPEED TERMINAL BOARD
0150P00004 WHEEL, BLOWER
Expanded Model Nomenclature
M1 - PTH124G15AXXXAA
M2 - PTH124G25AXXXAA
M3 - PTH124G25CXXXAA
M4 - PTH124G25RXXXAA
M5 - PTH124G35AXXXAA
M6 - PTH124G35CXXXAA
M7 - PTH124G35DXXXAA
M8 - PTH124G35QRXXAA
M9 - PTH124G35QXXXAA
M10 - PTH124G35RXXXAA
M11 - PTH124G50AXXXAA
M12 - PTH124G50CXXXAA
M13 - PTH124G50RXXXAA
3
RP-736A www.goodmanmfg.com www.amana-hac.com

Front Assy
4RP-736
A
www.goodmanmfg.com www.amana-hac.com

Front Assy
Ref.
No:
Part
No: Description:
Ref.
No:
Part
No: Description:
Image 1:
FRONT-DICHARGE LOUVERS0161P0003311
CONTROL BOARD M61RSKP001021
TRANSFORMER (HYDRONIC)2051250131
CLIP (QTY 2)0163P0002541
CONTROL PANEL COVER0121P00001P51
SCREEN, DISCHARGE0121P0007361
DOOR ASSY -AMANA-0261P0000371
FRONT ASSY0261P0001181
BAYONET FUSE HOLDER (M1, M2, M3, M4)C647600191
BAYONET FUSE HOLDER (M5, M6, M7, M8, M9,
M10)
C647600291
BAYONET FUSE HOLDER (M11, M12, M13)C647600391
TRANSFORMER (M7)11172101111
RELAY0130M00097121
RELAY (POWER VENT) (M7)C8873932121
DIGITENNA (M4, M8, M10, M13)1261401261
PADDLE SWITCH (M7)B1337701291
VARIABLE SPEED TERMINAL BOARDPCBEP100301
FILTER, RACK (QTY 2)0161P00035NS
FUSE 15A (M1, M2, M3, M4)A3410402NS
FUSE 20A (M5, M6, M7, M8, M9, M10)A3410403NS
FUSE 25A (M11, M12, M13)A3410404NS
TERMINAL BOARD (M7)B1160701NS
Expanded Model Nomenclature
M1 - PTH124G15AXXXAA
M2 - PTH124G25AXXXAA
M3 - PTH124G25CXXXAA
M4 - PTH124G25RXXXAA
M5 - PTH124G35AXXXAA
M6 - PTH124G35CXXXAA
M7 - PTH124G35DXXXAA
M8 - PTH124G35QRXXAA
M9 - PTH124G35QXXXAA
M10 - PTH124G35RXXXAA
M11 - PTH124G50AXXXAA
M12 - PTH124G50CXXXAA
M13 - PTH124G50RXXXAA
5
RP-736A www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
6RP-736
A
www.goodmanmfg.com www.amana-hac.com

Chassis Control Panel
Ref.
No:
Part
No: Description:
Ref.
No:
Part
No: Description:
Image 1:
SHROUD, CONDENSER0161P0002611
FAN MOTOR, OUTDOOR0131P0003221
PANEL-PARTITION (M8, M9)0121P0009331
PANEL-PARTITION PNT (M1, M2, M3, M4, M5, M6,
M7, M10, M11, M12, M13)
0121P00108DG31
FAN, CONDENSER0161P0003041
CABLE0163P0001951
BRACKET, VENT DOOR (M7)0121P0007961
BRACKET, VENT DOOR-C (M1, M2, M3, M4, M5,
M6, M10, M11, M12, M13)
0121P00072DG61
VENT DOOR (M3, M6, M12)11046105PDG71
PARTITION PANEL BRACKET (QTY 2)1119170381
LEVER ARM (M1, M2, M3, M4, M5, M6, M10, M11,
M12, M13)
1104630291
THERMISTOR-OUTDOOR AMBIENT (M4, M8, M10,
M13)
0130P00098101
POWER DOOR ASSY (M7)0270P00997191
BRKT, POWER VENT (M7)0121P00080NS
EXTENSION SPRING (M7)11166401NS
PANEL-AUXILLIARY (M8, M9)0121P00091NS
POWER VENT COVER BRACKET (M7)11166201NS
POWER VENT MOTOR (M7)11172801NS
POWER VENT MOTOR BRACKET (M7)11166101NS
Expanded Model Nomenclature
M1 - PTH124G15AXXXAA
M2 - PTH124G25AXXXAA
M3 - PTH124G25CXXXAA
M4 - PTH124G25RXXXAA
M5 - PTH124G35AXXXAA
M6 - PTH124G35CXXXAA
M7 - PTH124G35DXXXAA
M8 - PTH124G35QRXXAA
M9 - PTH124G35QXXXAA
M10 - PTH124G35RXXXAA
M11 - PTH124G50AXXXAA
M12 - PTH124G50CXXXAA
M13 - PTH124G50RXXXAA
7
RP-736A www.goodmanmfg.com www.amana-hac.com
