Amana ASZ 14 SEER User manual

®
RT6213006r12
April2014
Copyright © 2006 - 2012, 2014 Goodman Company, L.P.
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodman does not assume any responsibility for property damage or personal injury due to
improper service procedures or services performed by an unqualified person.
ASZ 14 SEER
Split System Heat Pumps
•RefertoServiceManualRS6200006forinstallation,operation,andtroubleshootinginformation.
•Allsafetyinformation must be followedasprovided in the ServiceManual.
•RefertotheappropriatePartsCatalogfor part number information.
•Models listed on page 3.
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
is a registered trademark of Maytag Corporation or its related companies and is used under
license to Goodman Company, L.P., Houston, TX. All rights reserved.

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING Installation and repair of this unit
should be performed ONLY by in-
dividuals meeting (at a minimum)
the requirements of an "entry level technician" as speci-
fied by the Air-Conditioning, Heating, and Refrigeration
Institute (AHRI). Attempting to install or repair this unit
without such background may result in product damage,
personal injury or death.
ASZ140361AA
PRODUCT
TYPE:
C: Condenser R-22
X: Condenser R-410A
H: Heat Pump R-22
Z: Heat Pump R-410A
PRODUCT
FAMILY:
S: Split System
SEER:
SEER Rating
BRAND:
A: Amana®
Brand
NOMINAL
CAPACITY:
018: 1-1/2 Tons
024: 2 Tons
030: 2-1/2 Tons
036/8: 3 Tons
042: 3-1/2 Tons
048: 4 Tons
060: 5 Tons
MAJOR
REVISION:
A: Initial Release
MINOR
REVISION:
A: Initial Release
ELECTRICAL:
1: 208-230V/1ph/60Hz
3: 208-230v/3ph/60Hz
4: 460v/3ph/60Hz

PRODUCT IDENTIFICATION
3
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
thatisnotdesigncertifiedbyGood-
man for use with this unit. Serious
property damage, personal injury, reduced unit perfor-
mance and/or hazardous conditions may result from the
use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materi-
als or use gasoline or other flammable liquids or vapors
in the vicinity of this appliance.
WARNING
WARNING
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
* Indicates minor revision & is not used for order entry or inventory management
ASZ140181A*
ASZ140241A*
ASZ140301A*
ASZ140361A*
ASZ140381A*
ASZ140421A*
ASZ140481A*
ASZ140601A*
ASZ140361B*

PRODUCT DESIGN
4
ASZ14modelsareavailablein 1 1/2 through 5 tonsizesand
use R-410A refrigerant. They are designed for 208/230 volt
singlephaseapplications.
The condenser air is pulled through the condenser coil by a
direct drive propeller fan. This condenser air is then dis-
charged out of the top of the cabinet.
These units are designed for free air discharge, so no addi-
tional resistance like duct work shall be attached.
The suction and liquid line connections on present models
areofthesweattypefor field piping with refrigerant type cop-
per. Front seating valves are factory installed to accept the
fieldruncopper. The total refrigerantcharge for a normal in-
stallationisfactoryinstalled in thecondensingunit.ASZunits
are charged for the matching evaporator coil and a 15 foot
refrigerantlineset.
Systems should be properly sized by heat gain and loss
calculations made according to methods of the Air Condi-
tioning Contractors Association (ACCA) or equivalent. It is
the contractors responsibility to ensure the system has ad-
equate capacity to heat or cool the conditioned space.
ASZmodelsusehigh-efficiencyCopeland®scroll "Ultratech"
compressorswhichare specifically designed for R-410Are-
frigerant.Therearea number of designcharacteristicswhich
aredifferentfromthescrollcomparedtothetraditionalrecip-
rocatingcompressor.
"Ultratech" Series scroll compressors with Copeland®
ComfortAlert diagnostics will not have a discharge thermo-
stat. Some of the early model scroll compressors required
dischargethermostats.
Due to their design Scroll compressors are inherently more
tolerantofsmall quantities of liquid refrigerant.
NOTE: Eventhoughthe compressor sectionofaScrollcom-
pressor is more tolerant of liquid refrigerant, continued
floodback or flooded start conditions may wash oil from the
bearingsurfacescausing premature bearing failure.
"Ultratech" Series scroll compressors use "POE" or
polyolesteroil whichis NOT compatiblewithmineraloilbased
lubricants like 3GS. "POE" oil must be used if additional oil
isrequired.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
Operating pressures and amp draws may differ from stan-
dardreciprocatingand/orscroll compressors. This informa-
tion may be found in the "Cooling Performance Data" sec-
tion.

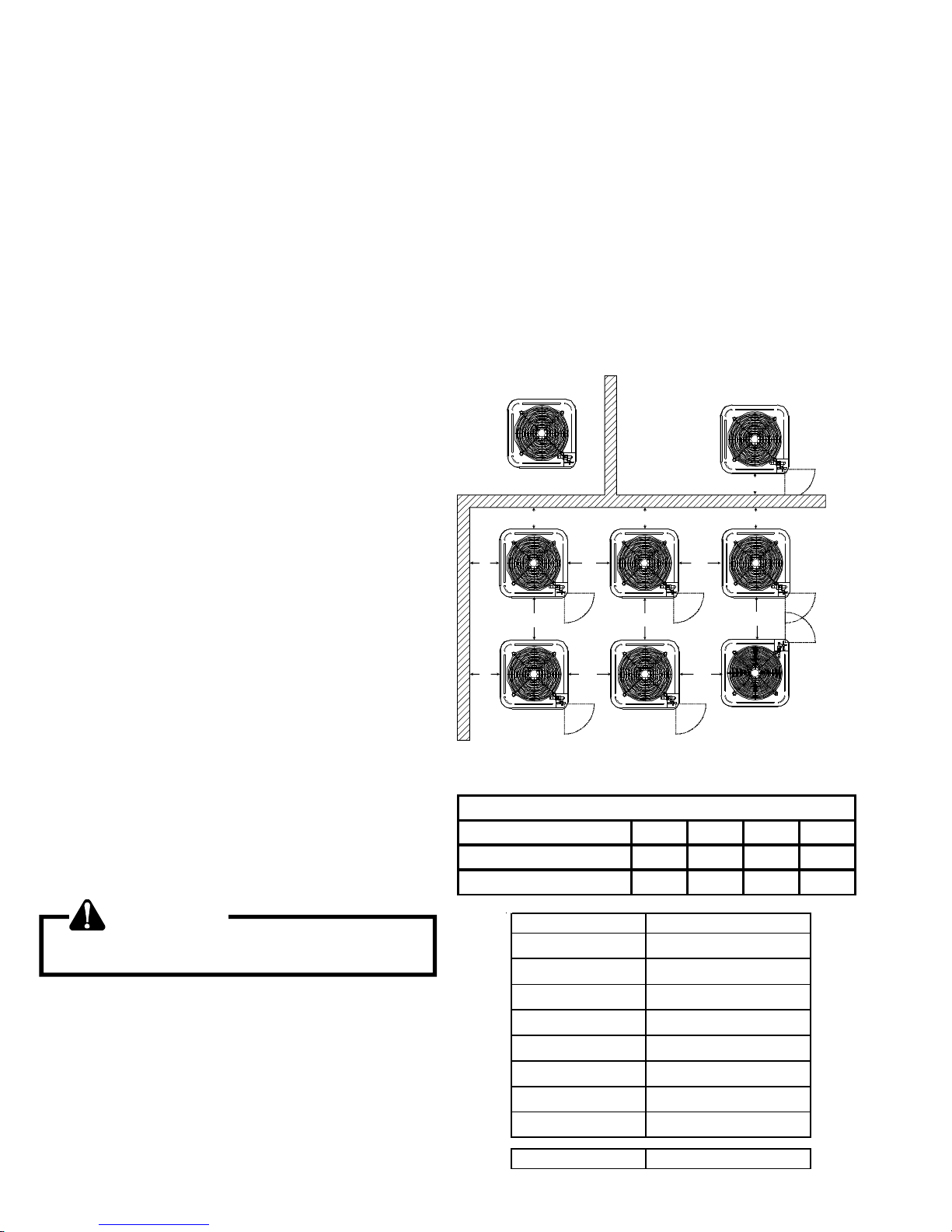

This unit is for outdoor installation only. Refer to minimum
figure for clearances from the sides of the unit to full walls
andother objects.
NOTE: This unit cannot be completely enclosed. At least
one side must be unrestricted.
Theseclearanceswillhelpavoidairrecirculation.Ifinstalling
two or more units at the same location, allow at least 24
inches between units. If only one side is restricted (for ex-
ample, against the outside wall of a house), the unit may be
placed as close as 8" to that one wall.
DO NOT locate the unit:
* Directlyundera vent termination fora gas appliance.
* Within 3 feet of a clothes drier vent
* Wheretherefreezingofdefrostwaterwould create
ahazard
* Where water may rise into the unit.
OK!
OK!
AA AAA
A
CC
CCOK!
OK!
OK!
OK!
NOT
RECOMMENDED
AA
AA AA
AA
AA
B B B
B
Model Type A B C AA
Residential 10" 10" 18" 20"
Light Commercial 12" 12" 18" 24"
Minimum Airflow Clearance
Model Dimensions - W x D x H
ASZ140181A* 29 x29 x34¼
ASZ140241A* 29 x29 x38¼
ASZ140301A* 29 x29 x38¼
ASZ140361A* 35½x35½ x38¼
ASZ140381A* 35½x35½ x38¼
ASZ140421A* 35½x35½ x38¼
ASZ140481A* 35½x35½ x38¼
ASZ140601A* 35½x35½ x38¼
ASZ140361B* 29 x29 x38¼

HEAT PUMP SPECIFICATIONS
5
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general
and electrical information.
ASZ140[18,30,36,38]1AA-AF;ASZ140241AA-AG;ASZ140[42,48,60]1AA-AE
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
ASZ140181AA-AF
ASZ140241AA-AG
ASZ140301AA-AF ASZ140361AA-AF
ASZ140381AA
ASZ140421AA-AE ASZ140481AA-AE ASZ140601AA-AE
Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 36,000 42,000 48,000 60,000
Compressor
R.L. Amps 9.0 12.8 14.1 16.7 14.10 17.9 19.9 26.4
L.R. Amps 48.0 58.3 73.0 79.0 77.0 112.0 109.0 134.0
LowPressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/12 1/6 1/6 1/4 1/6 1/4 1/4 1/4
F.L. Amps 0.60.91.11.5 1 1.51.51.5
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 3/4" 3/4" 7/8" 7/8" 7/8" 7/8" 7/8"
Refrigerant Charge 143.0 173.0 188.0 213.0 211.0 213.0 273.0 278.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 11.8 16.9 18.7 22.4 18.60 23.9 26.4 34.5
Maximum Overcurrent Device(2) 20 20 30 30 30 40 40 60
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 191 201 203 242 242 268 300 314
