Amana AMAW18S User manual

WINE COOLER
Model No.:AMAW18S
CUSTOMER SERVICE NUMBER
In the U.S. 1-855-666-4477
KEEP THIS NUMBER FOR FUTURE REFERENCE!
Warrantor: Zhongshan Galanz Consumer
Electric Appliances Co., Ltd, Guangdong 528429
To ensure proper use of this appliance and for your safety, please read
the following instructions completely before operating this appliance.
by Galanz-Zhongshan Galanz Consumer Electric Appliances Co., Ltd.,
Guangdong, China. Limited warranty provided by manufacturer.
®/TM 2018 Amana. All rights reserved. Manufactured under license
C
AMAW16S2MS

When using electrical appliances, basic safety precautions should always be
followed to reduce the risk of explosion fire, electrical shock, and/or injury to
persons, including the following:
Read all instructions before using the appliance.
1.This appliance must be grounded. Connect only to properly grounded outlet.
See Important Grounding Instructions on page 2 and page 3.
2.Install or locate this wine cooler only in accordance with the provided
Installation Instructions.
3.To protect against electric shock, do not place cord, plug, or wine cooler in
water or other liquid.
4.The refrigerant of this product is R600a, which isflammable. Make sure not to
damage the cooling system during the transportation and installation.
Please note that servicing shall be done by factory authorized service
personnel, so as to minimize the risk of possible ignition due to incorrect parts
or improper service.
5.
SAVE THESE INSTRUCTIONS
1
WINE COOLER SAFETY
1
TABLE OF CONTENTS
Wine cooler safety ...................................................................... 11
Important safety instructions...................................................... 11
Important grounding instructions............................................... 2
Installation instructions............................................................... 3
Operating instructions................................................................. 4
Parts and features........................................................................ 5
Specifications............................................................................... 6
Cleaning....................................................................................... 7
Power failure............................................................................... 8
Vacation and ............................................................moving care 8
Reversing the door....................................................................... 9
Troubleshooting tips....................................................................11
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you
and others.
All safety messages will follow the safety alert symbol and either the
These words mean:
word”DANGER” or “WARNING.”
You can be killed or seriously injured if you don’t
immediately follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to
the chance of injury, and tell you what can happen reduce if the instructions
are not followed.
–

Before you throw away your old wine cooler:
1.Take off the doors.
2.Leave the shelf racks in place so that children may not easily climb inside.
Refrigerants
All refrigeration products contain refrigerants, which under federal law must be
removed prior to product disposal. If you are getting rid of an old wine cooler
product, check with a qualified disposal company for instructions.
IMPORTANT GROUNDING INSTRUCTIONS
2 3
This appliance must be grounded due to the event of an electrical short circuit.
This appliance is equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly installed and
grounded.
wine cooler
wine cooler
wine cooler
2
2
wine cooler
left right
LOCATION REQUIREMENTS
Keep flammable materials and vapors,such as
gasoline,away from wine cooler .
1.Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood or if
doubt exists as to whether the appliance is properly
grounded.
Three-prong
(grounding) plug
Properly polarized and
grounder outlet

1. Allow wine cooler to stand upright for 4 hours before using.
but does not turn the power off.
54

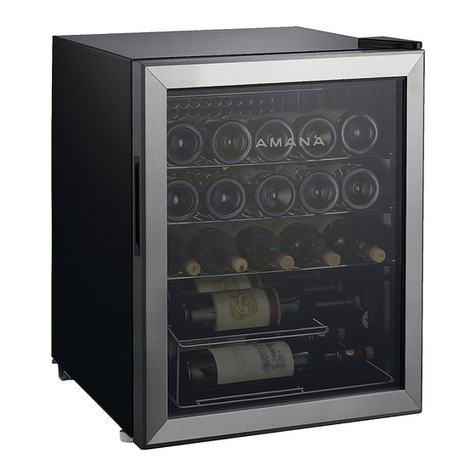

PARTS AND FEATURES
4. Reducing the frequency of door opening can lower power consumption.
1. Glass Door
2. Wire Shelf Racks (2)
3. Temperature Knob
4. Wire Basket Rack
5. Wire Base Rack
6. Adjustable Legs (2)
AMAW18S/AMAW16S2MS
1
3
4
5
2
6
It is recommended that you do not install the wine cooler near
an oven, radiator, or other heat source.
Do not install in a location where the temperature will fall
below 55°F (13°C). For best performance, do not install the
wine cooler behind a cabinet door.
OPERATING INSTRUCTIONS
NOTES:
2. Plug into a grounded outlet. (See Important Grounding Instructions on page 2).
3. The temperature of the refrigerator can be controlled manually by the control
dial. Setting 1 is the warmest setting, while setting 7
is the coldest. The first time you turn the unit on, set the
dial on 4 and allow 24 hours for the refrigerator to
reach this temperature. If a colder or warmer
temperature is desired after this period, use the dial to
adjust to the temperature that best meets your needs.
Please note that moving the dial to 0 stops the cooling

AMAW18S
AMAW16S2MS
SPECIFICATIONS
76
Model
Electric shock protection type
Capacity (cu. ft.)
Voltage (V)
Frequency (Hz)
Current (A)
Energy consumption (kWh/24h)
Refrigerant
Net weight (lbs)
Interior temperature (F)
Dimensions ( )inches
Width
Depth
Height
I
1.7
115
60
0.95
R600a/13g
44
47-67
18.9
21.0
18.5
0.65
Use nonflammable cleaner.

98
POWER FAILURE
1
2
3
6
8
7
5
4
AMAW18S/AMAW16S2MS
When a power failure occurs, the wine cooler can normally store for several wine
hours. Do not put additional into thwine e appliance during a power failure, and do
not open door. Disconnect the plug from the outlet, and reconnect when the
power has been restored.
VACATION AND MOVING CARE
3. Clean the wine cooler. See Cleaning on page 7.
If you choose to turn the wine cooler off before you leave, follow
these steps.
1. Remove all open wine bottles from the wine cooler.
2. Unplug the wine cooler.
When you are moving your wine cooler to a new home, follow
these steps to prepare it for the move.
1. Remove all wine bottles from the wine cooler.
2. Unplug the wine cooler.
3. Clean, wipe and dry it thoroughly. See Cleaning on page 7.
4. Take out all removable parts, wrap them well, and tape them
together so they do not shift and rattle during the move.
5. Tape the doors shut and tape the power cord to the wine
cooler.
When you get to your new home, put everything back and refer to
the Installation Instructions on page 3 for preparation instructions.
1. Top hinge cover
2. Top hinge screw
3. Top hinge
4. Cabinet plug
5. Bottom hinge
6. Door handle plug
7. Bottom hinge screw
8. Leveling legs
Do not tilt the appliance
over 45° when revising
the door as possible
damage to the sealed
system may occur.

1110
wine cooler
TROUBLESHOOTING TIPS
Wine cooler
What To Do
Wine cooler
seems too warm
not seem to cool
bottles /wine do

Assistance
Before calling for assistance or service, please check
“Troubleshooting.” It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you only use factory
specified replacement parts. Factory specified replacement parts will fit right and
work right because they are made with the same precision used to build every
new wine cooler.
To locate factory specified replacement parts in your area, call us
or your nearest designated service center.
In the U.S.A.
toll free: 1-855-666-4477.
Limited Warranty
This warranty applies to products purchased and used in the U.S. This is the
only express warranty for this product and is in lieu of any other warranty.
This product is warranted to be free from defects in material and workmanship
for a period of one (1) year from the date of original purchase, except as noted
below. During this period, we will repair or replace this product at our option.
This warranty extends only to the original consumer purchaser and does not
cover a defect resulting from abuse, misuse, neglect including failure to clean
product regularly in accordance with manufacturer's instructions, use for
commercial purposes, or any use not in conformity with the printed directions.
This warranty is provided by Galanz-Zhongshan Galanz Consumer Electric
Appliances Co.,Ltd.
1312
(see Installation Instructions)
wine cooler
wine cooler
wine cooler
wine bottles
Wine cooler
Wine cooler
What To Do
The following are mormal conditions that can be encountered during the
of this appliance:operation
The flow of refrigerant through the coils can cause a noise.
The sides of the appliance may become warm as a result of the cooling
function.

If you have a claim under this warranty, please call our CUSTOMER SERVICE
NUMBER. For faster service please have model number and serial number
ready for operator to assist you.
We exclude all claims for special, incidental, and consequential damages caused
by breach of express or implied warranty. All liability is limited to the amount
of the purchase price. Every implied warranty, including any statutory
warranty of merchantability or fitness for a particular purpose, is
disclaimed except to the extent prohibited by law, in which case such
warranty is limited to the duration of this written warranty. This
warranty gives you specific legal rights. You may have other legal rights that
vary depending on where you live. Some states do not allow limitations on
implied warranties or special, incidental, or consequential damages, so the
foregoing limitations may not apply to you.
1514
