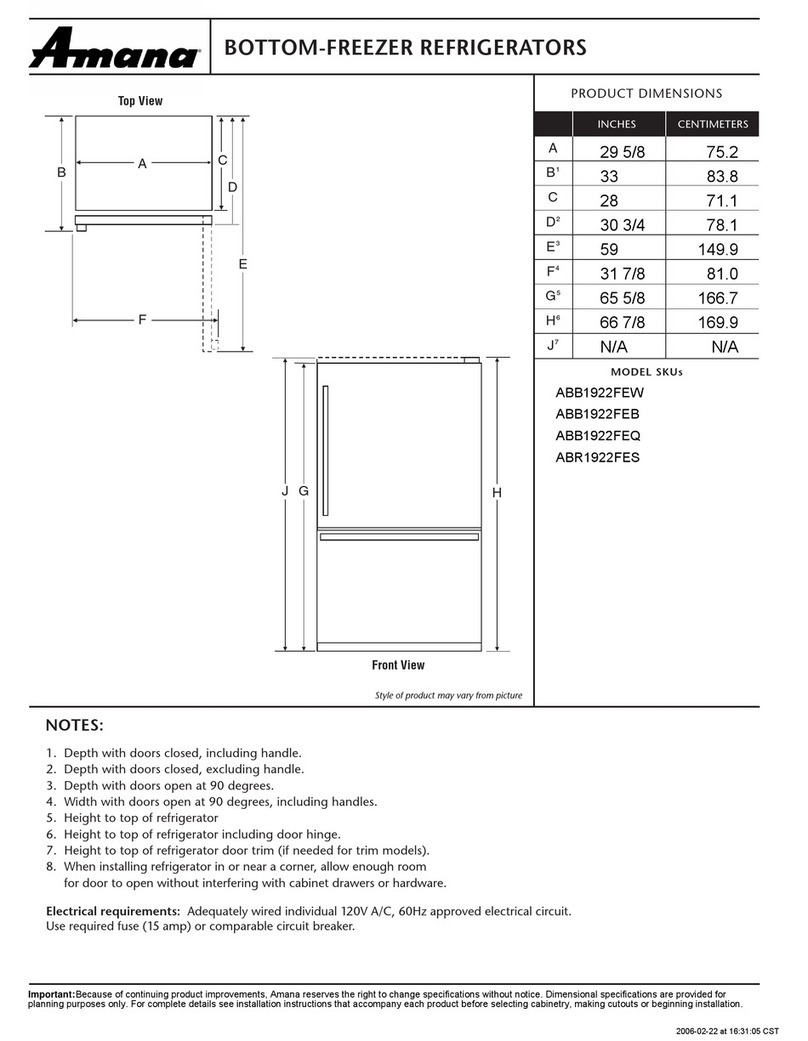

CABINET PARTS
1

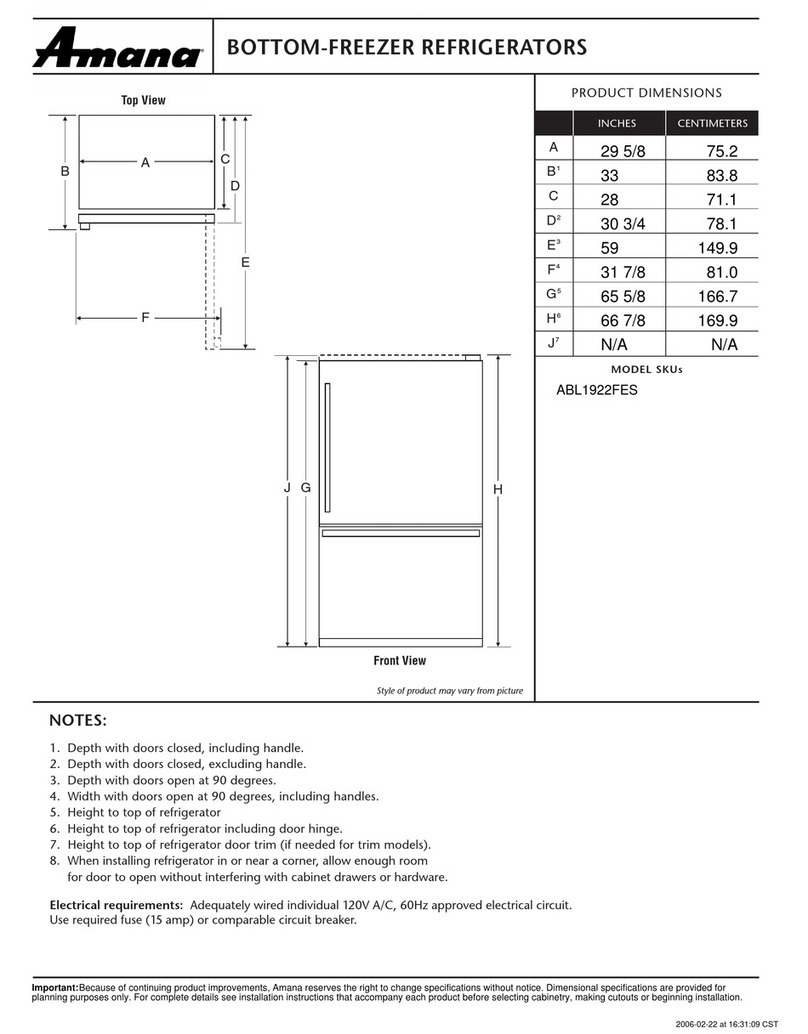

For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel) (Stainless Steel)
05−08 Litho in U.S.A. (MAT) (eeb) Part No. W10205146 Rev. B

CABINET PARTS
2
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10175445 Owners Manual
W10183296 Energy Tag
W10165418 Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
67001131 Black
4 67005064 Label, Fill Tube
5 67006118 Roller Assembly
6 12627302 Clip, Grille
7 67006642 Pin, Center Hinge
8 67006611 Bolt, Adjusting
(Rear)
9 67006521 Screw
10 67001098 Cover, Fill Tube
11 67006380 Screw
12 67006473 Screw (8)
13 A3076901 Plug, Button
14 67006303 Screw (3)
15 Hinge, Center
67007043 Black
16 67003868 Foot Brake (2)
17 Cover, Corner
67003485 Black
18
12566604ED Hinge, Top
19 12479901 Plate, Cover
20 67006564 Screw (8)
21 Cover, Hinge
67001012 Black
22 Grille Assembly
(Includes Clips)
67006886 Black
24 67006662 Screw
25 67006425 Screw (9)
26 67007174 Bracket, Foot
27 67001173 Cover, Water Valve
28 67006101 Cover, Unit
29 67003796 Insulation, Sound
30
W10164397 Tube, Drain
31
W10157973 Clip, Drain Tube
33 B5759649 Gasket
(Stainless Steel)

REFRIGERATOR LINER PARTS
3
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

REFRIGERATOR LINER PARTS
4
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
Y67003896 Bracket, Control
and Lights
3 67004279 Overlay
4
W10185244 Housing,
Electronic Control
5
W10165748 Board, Control
6 C3680310 Switch, Light
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701 Socket, Light (2)
11 67003900 Insert,
Damper Cover
12 67006602 Screw (2)
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429 Control, Damper
16 12002355 Thermistor
17 M0310343 Plug Button
Following Parts Not Illustrated
67004033 Harness, Controls
(Refrigerator)
(Includes # 16)
(Stainless Steel)

FREEZER LINER PARTS
5
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

FREEZER LINER PARTS
6
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam (2)
3 12002497 Gear (2)
(Includes RH & LH)
4 67003905 Cover, Light
5 67004067 Shaft
6
Y12570701 Socket, Light
8 67006473 Screw (8)
9 A0282812 Bulb, Light
10 67001035 Housing, Frz. Light
11 67005871 Cover, Evaporator
12 67005822 Screw (7)
13 Bracket, Door
W10122147 Left
W10122148 Right
14 67003906 Housing, Lighting
15
W10167028 Clip, Evap. Motor
16 67005653 Switch, Light
18 Bracket, Basket
W10187668 Left
W10187667 Right
19
W10120018 Slide, Drawer (2)
20 67002286 Gasket, Bottom
21 Bracket, Slide
W10128118 Left
W10128119 Right
22
W10175909 Cover, Fan Shroud
23
W10167023 Shroud, Evap.Fan
24 2169142 Fan, Evaporator
25
W10121318 Grommet (2)
26 67003636 Motor, Evaporator
27 D7753903 Funnel, Drain
(Incl. # 28 & 29)
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 67003924 Cover, Thermistor
32 67006406 Screw (6)
33 67006530 Screw
Following Parts Not Illustrated
67006095 Harness, Lights
(Freezer)
(Stainless Steel)

REFRIGERATOR DOOR PARTS
7
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

REFRIGERATOR DOOR PARTS
8
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/ Insulation)
Stainless Steel
W10203482 Left
W10182772 Right
2 Plug, Vent
67004838 Black
3 67003819 Door, Compartment
4 67001279 Tray, Dairy
5 67001021 Bucket (2)
(Medium)
6
Y12528501 Nameplate
7 Plug, Button (2)
67001131 Black
8 Gasket, Door
Magnetic
12683815B Black
9 Handle, Door
W10159105 Stainless Steel
10 67002935 Screw
11 Closure, Door
67003639 Black
12 67004124 Bucket (1)
(Short)
13 Bushing
67004978 Black
14 67001296 Retainer, Door
15 67006287 Screw
16 10423131 Bin, Utility
17 Stop, Door
67003780 Black
18 67006113 Mount, Handle
19 67005626 Caddy, Can
20 67001141 Bucket (2)
(Small)
21 10436404 Lid, Utility
22 10436506 Tray, Egg
(Stainless Steel)

FREEZER DOOR PARTS
9
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

FREEZER DOOR PARTS
10
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
W10174587 Stainless Steel
2 Handle, Door
W10159105 Stainless Steel
3 67006113 Mount, Handle
4 Gasket, Door
W10153328 Black
5 67006682 Screw
6 Plug, Vent (2)
67004838 Black
(Stainless Steel)

SHELF PARTS
11
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

SHELF PARTS
12
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
(Stainless Steel)
1 67002690 Ladder, Side
2 67006400 Screw (6)
3 67001073 Ladder, Center
4 67006360 Screw (2)
5 12204808 Glass, Shelf (4)
6 67006626 Screw (4)
7 67006877 Glass, Crisper
8 67001153 Frame, Crisper
9 10946012 Trim, Rear (4)
10 67005864 Knob, Control
11 D7725402 Tray, Ice Cube
12 67001057 Rail, Center
Crisper
13 67001155 Brace, (2)
Crisper Frame
14 67003884 Trim, Crisper
15 67002569 Pan, Crisper (2)
16 67004985 Basket, Freezer
(Upper)
17 12646501 Rack, Ice
18 67004127 Divider,
Upper Basket
19 67006608 Screw
20
W10143560 Basket, Freezer
(Lower)
21 67006644 Divider,
Lower Basket
24 10972101 Spacer, Rack
25 67003400 Frame, Shelf (4)
26 67006908 Screw (2)
27 67001308 Pan, Deli
28 10459930 Trim, Front (4)

UNIT PARTS
13
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

UNIT PARTS
14
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 67006433 Screw (3)
2
W10162928 Blade, Fan
3 67006914 Basepan
4 67006425 Screw (2)
5 67004954 Screw (3)
6
W10130129 Compressor
7
W10119856 Harness,
Evap. Heater
8 67004713 Drain Pan
9 61004743 Grommet (3)
10 67002135 Evaporator Heater
11 67005562 Capacitor
12
W10174592 Overload/Relay
(Capacitor Incl.)
13 61003210 Gasket
14
W10165425 Thermostat
15
W10137529 Grommet (4)
16
W10158508 Shroud, Condenser
17
W10131991 Clip, Capacitor
18 67006133 Condenser
19
W10174591 Tube, Discharge
20 67001133 Tray, Drip
21 10623002 Clip, Evaporator
22 12002051 Evaporator
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060301 Harness, Unit
Includes Cord
27 Drier
10743203 (Production)
2317845 (Service)
28 10547003 Clip, Drier
29 67004953 Bracket, Fan
30
W10169124 Grommet (3)
31 67006432 Screw (2)
32 67006573 Screw (4)
33 67006737 Screw
34 67005680 Grommet (2)
35 67005491 Block, Condenser
36 67005149 Roller (2)
37 67006434 Axle, Roller (2)
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 Ozs.
(R−134A)
(Stainless Steel)

ICEMAKER PARTS
15
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
(Stainless Steel)

ICEMAKER PARTS
16
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION
1 Mold & Heater
Assembly
(Not Available
Order D7824706Q)
2 67004028 Arm, Shutoff
3 628356 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2195914 Support & Motor
Assembly
7 2315522 Retainer,
Thermostat
8 Thermostat
(Not Available
Order D7824706Q)
9 681249 Screw (2)
10 67001255 Pan, Ice
11 67004101 Bracket, Tube
Support
12 67006531 Valve, Water
Inlet
13 A3223101 Insert, Tube
14 B5705307 Tubing, Plastic
15
W10146389 Harness, Icemaker
16 625910 Bracket
17 67006662 Screw
18 67004710 Cover
19 Module Assembly
(Not Available
Order D7824706Q)
20 67006287 Screw
21 67005603 Funnel, Fill
Tube
100 67001740 Complete Icemaker
Following Parts Not Illustrated
18001005 Icemaker Install
Kit
(Stainless Steel)

OPTIONAL PARTS (NOT INCLUDED)
17
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
W10205146
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350939 Black
350942 Primer, White
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
PAINT, BULK (1 qt.)
799344 White (Uncut)
799340 Black (Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
TORX SCREW WRENCH
1117510 Torx Key
ACCESSORIES
4396920 Cleaner,
Stainless Steel
(Stainless Steel)
