Amana R Series User manual

"R" Series
Bottom Freezer
Refrigerator
Use and Care
Manual
Attention:
Keep these instructions for future reference. If
the refrigerator changes ownership, be sure this
manual accompanies refrigerator.
Consumer Information Line
1-800-843-0304

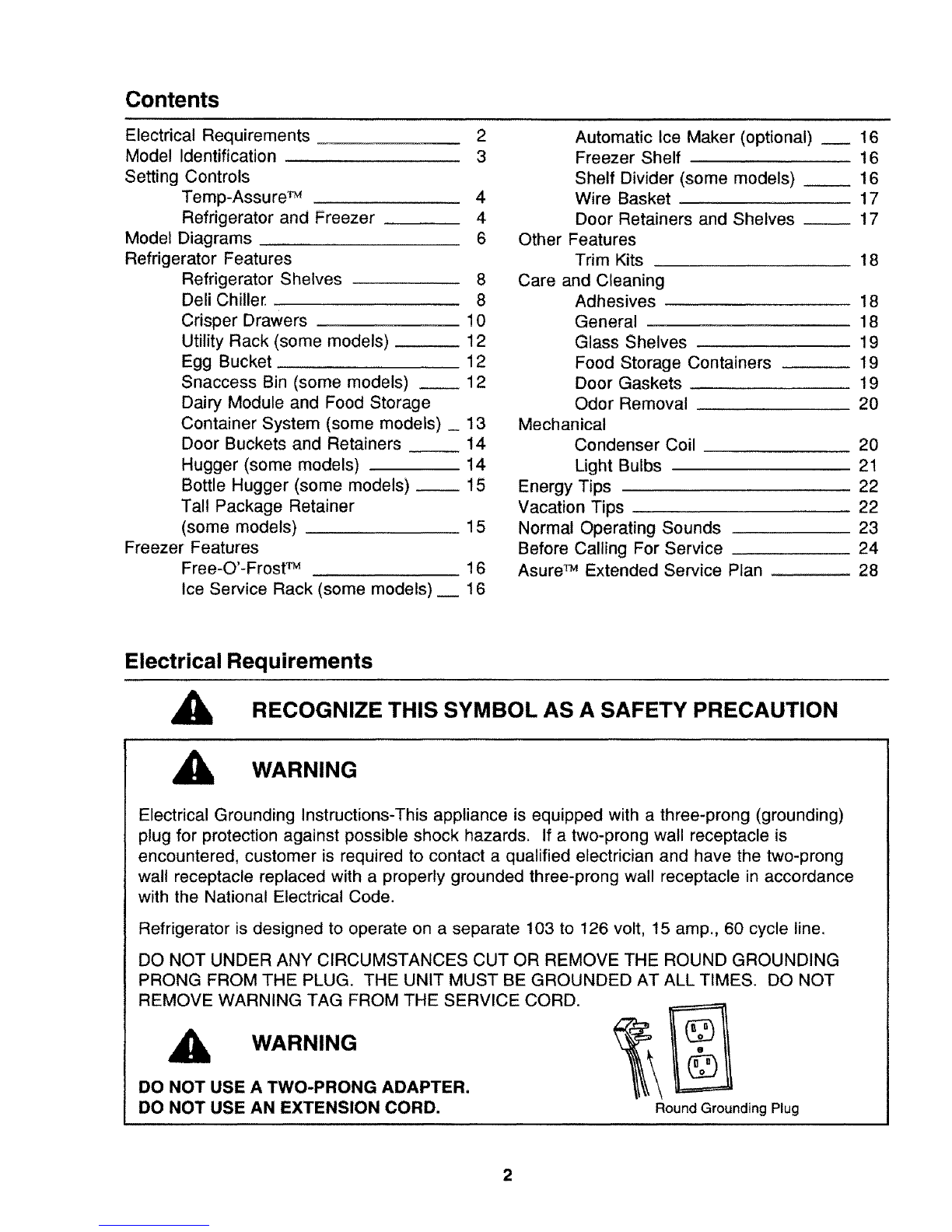

Contents
Electrical Requirements
Model Identification
Setting Controls
Temp-Assure TM
Refrigerator and Freezer
Model Diagrams
Refrigerator Features
Refrigerator Shelves
2
3
4
4
6
Automatic Ice Maker (optional) __
Freezer Shelf
Shelf Divider (some models)
Wire Basket
Door Retainers and Shelves __
Other Features
Trim Kits
Care and Cleaning
Deli Chiller 8
Crisper Drawers 10
Utility Rack (some models) 12
Egg Bucket 12
Snaccess Bin (some models) __ 12
Adhesives
General
Glass Shelves
Food Storage Containers
Door Gaskets
Dairy Module and Food Storage
Container System (some models) _ 13
Door Buckets and Retainers 14
Hugger (some models) 14
Bottle Hugger (some models) __ 15
Tall Package Retainer
(some models) 15
Freezer Features
Free-O'-Frost TM 16
Ice Service Rack (some models) __ 16
Odor Removal
Mechanical
Condenser Coil
Light Bulbs
Energy Tips
Vacation Tips
Normal Operating Sounds
Before Calling For Service
Asure TM Extended Service Plan
16
16
16
17
17
18
18
18
19
19
19
20
20
21
22
22
23
24
28
Electrical Requirements
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION
WARNING
Electrical Grounding Instructions-This appliance is equipped with a three-prong (grounding)
plug for protection against possible shock hazards. If a two-prong wall receptacle is
encountered, customer is required to contact a qualified electrician and have the two-prong
wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance
with the National Electrical Code.
Refrigerator is designed to operate on a separate 103 to 126 volt, 15 amp., 60 cycle line.
DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING
PRONG FROM THE PLUG. THE UNIT MUST BE GROUNDED AT ALL TIMES. DO NOT
REMOVE WARNING TAG FROM THE SERVICE CORD.
WARNING
DO NOT USE A TWO-PRONG ADAPTER.
DO NOT USE AN EXTENSION CORD. Round Grounding Plug
2

Model Identification
Please read this Use and Care Manual thoroughly. This manual provides proper maintainance
information for maximum benefit of the features selected.
Complete enclosed registration card and promptly return card to Amana's Product Registration
department. If registration card is missing, call Amana's Consumer Information Line at
1-800-843-0304.
When contacting Amana, provide product information. Product information is located on the
nameplate, found in upper left-hand corner of refrigerator section. Record the following
information:
Model Number:
Manufacturing Number:
Serial or S/N Number:
Date of purchase:
Dealer's name and address:
Keep a copy of sales receipt for future reference or in case warranty service is required.
If something is operating incorrectly, read "Before Calling for Service" section. Any further
questions or to locate an authorized Amana servicer, call 1-800-843-0304. Amana recommends
contacting an authorized servicer if service is required.
Amana offers a complete line of appliances...freezers, ranges, cooktops, wall ovens, microwave
ovens, dishwashers, washers and dryers. Amana also manufactures a complete selection of high
efficiency gas furnaces plus both central and room air conditioners. When buying one of these
products, choose Amana.
Enjoy this new refrigerator.

Setting Controls
This refrigerator is designed to operate most
efficiently under normal household
temperatures ranging from 55 ° to 110°F.
Temp-Assure TM Thermostatic Control
Temp-Assure TM thermostatic control is located
on upper back wall of refrigerator section and
operates independently of freezer control. A
hidden thermostatic sensor measures
refrigerator air temperature constantly. If
temperature rises as little as 1 1/2°F (.8°C) from
setting, Temp-Assure TM thermostatic control lets
in more cold air.
Refrigerator and Freezer Controls
Refrigeratcr control is located at top back of
refrigerator section.
....
<L_J
Freezer control is located at left front corner of
freezer section.
When freezer control is set to "Off", neither
refrigerator nor freezer.sections will cool.
Initially set both controls to "4". Wait 24 hours
for refrigerator and freezer to reach desired
temperatures. After 24 hours, adjust controls
as desired.
"1" is warmest setting.
"7" is coldest.
4

To settemperaturesmoreprecisely,usea
householdthermometerthat includes
temperaturesbetween-5°to 50°F
(-20.5° to 10°C). Thermometercan usuallybe
purchasedat a hardwarestore.
Infreezersection,putthermometersnugly
betweenfrozenfood packages. Wait5-8
hours.Iftemperatureis not0°to 2°F
(-18° to -17°C),adjustcontrol,onenumberat a
time. Checkagain after5-8hours.
/
Frozen Food Packages
In refrigerator section, put thermometer in a
glass of water and place in middle of
refrigerator. Wait 5-8 hours. If temperature is
not 38 ° to 40°F (3 ° to 4°C), adjust control, one
number at a time. Check again after 5-8
hours. /
_s "_
/ !
• !
/
Glass of Water

Model Diagrams
Model Shown is BZ20R
Model, Manufacturing
and Serial Numbers
Refrigerator Shelf
Dell Chiller
Crisper Drawers
Freezer Control --
Ice Service Rack __._.
Shelf Divider
Wire Basket
Temp-Assure TM
Thermostatic Control Utility Rack Egg Bucket Door Buckets
'Module
Food Storage
Containers
Bottle Hugger
Tall Package
Retainer
Door Retainer
_Door Shelves
Freezer Shelf
Features vary from model to model.

ModelShownis BZ22R
Model, Manufacturing
and Serial Numbers
Refrigerato
Deli Chiller
Crisper Drawers
Freezer Control
_ce Service Rack
Shelf Divider
Wire Basket
Temp.Assure TM
Thermostatic Control Utility Rack Egg Bucket
\
Snaccess Bin
Dairy Module and
Food Storage
Container System
Door Buckets
Bottle Hugger
Tall Package
Retainer
Door Retair',er
Door Shelves
Door Retainers
Freezer Shelf
Features vary from model to model,

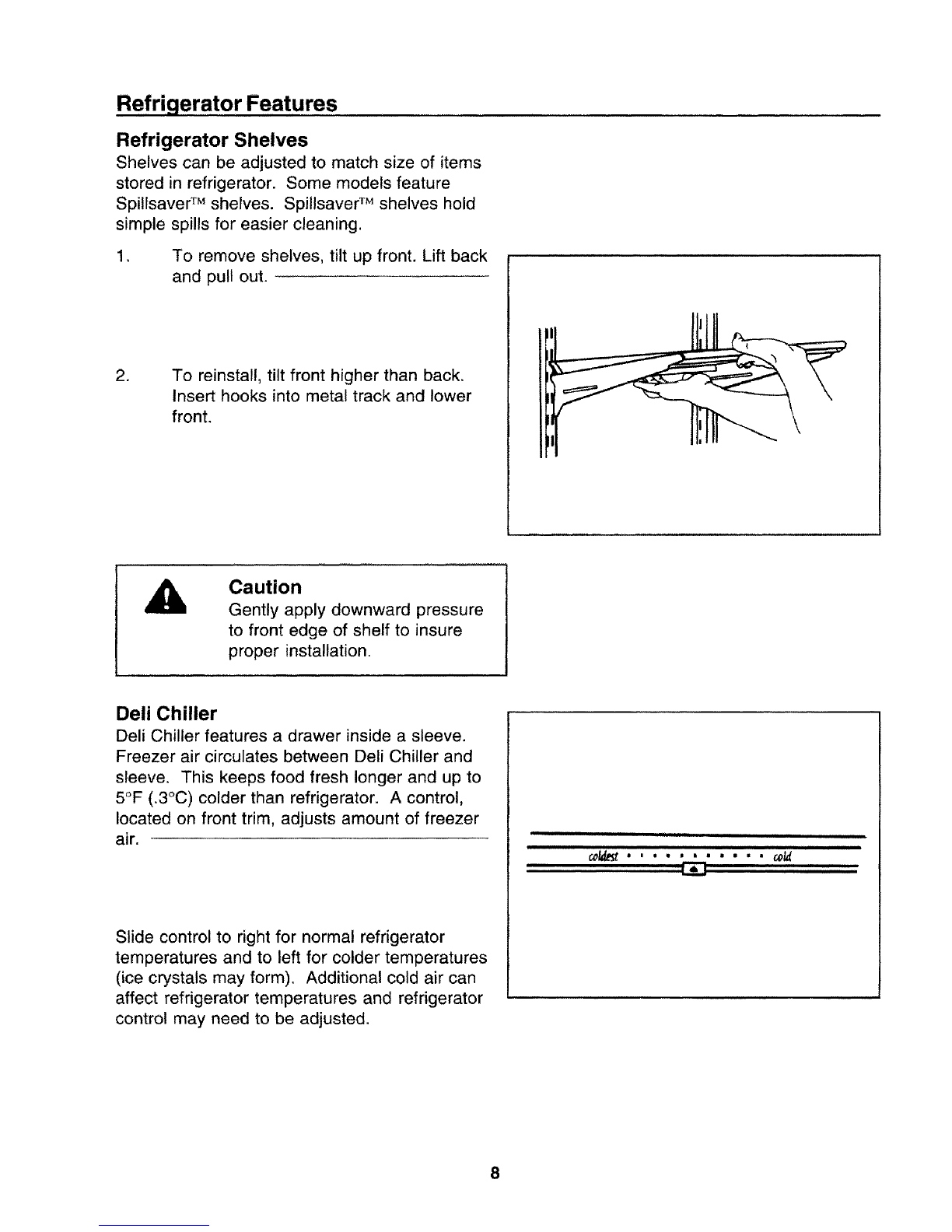

Refrigerator Features
Refrigerator Shelves
Shelves can be adjusted to match size of items
stored in refrigerator. Some models feature
Spillsaver TM shelves. Spillsaver TM shelves hold
simple spills for easier cleaning.
1, To remove shelves, tilt up front. Lift back
and pull out.
,To reinstall, tilt front higher than back.
Insert hooks into metal track and lower
front.
Caution
Gently apply downward pressure
to front edge of shelf to insure
proper installation.
Deli Chiller
Deli Chiller features a drawer inside asleeve.
Freezer air circulates between Dell Chiller and
sleeve. This keeps food fresh longer and up to
5°F (.3°C) colder than refrigerator. A control,
located on front trim, adjusts amount of freezer
air.
Slide control to right for normal refrigerator
temperatures and to left for colder temperatures
(ice crystals may form). Additional cold air can
affect refrigerator temperatures and refrigerator
control may need to be adjusted.
ii i
i

Moving Dell Chiller
Remove Dell Chiller drawer, Refer to
refrigerator shelves instructions to remove and
reinstall Dell Chiller. Use only fourth through
sixth slots. Reinstall Dell Chiller drawer. Slide
hand along back wall to make sure Dell Chiller
boot fits snugly over hole in back wall.
Moving Deli Chiller Left or Right
1. To avoid scratching liner, use a knife
covered with tape. Remove plastic air
hole cap from back wall of
refrigerator. I
2_ Rotate Dell Chiller boot 180 ° to opposite
side.
,
4. Reinstall Dell Chiller.
Insert plastic air hole cap in opposite
side of refrigerator. Be sure cap is
snugly in place. If cap is left out, cold
air may cause food to freeze.

Crisper Drawers
Crisper drawers store fresh fruits and
vegetables. To keep fresh longer, tightly wrap
produce to seal in natural moisture. Do not
wash produce before placing in crisper drawers.
Excess moisture could cause produce to spoil.
Do not line crisper drawers with paper towels.
Paper towels will retain moisture.
Leafy vegetables such as lettuce, spinach or
cabbage should be stored in crisper drawers at
high humidity settings. Produce with skins, such
as apples, cauliflower, corn or tomatoes, should
be stored in crisper drawers at low humidity
settings.
Removing Crisper Drawers and
Glass Shelf
!. To remove crisper drawers and glass
shelf, remove food. It may be necessary
to remove shelves located above crisper
drawers to remove bottom glass shelf.
2. Open left* crisper drawer.
*For refrigerator doors hinged on left,
open right crisper drawer.
3. Gently push shelf up from underneath.
Caution
Handle tempered glass shelves
with care. Chipping, scratching
and twisting may cause shelves
to break suddenly. Replace
shelves immediately if scratched
or chipped. Do not expose
shelves to rapid temperature
changes.
10

,Tilt one end of glass up. Remove shelf
from refrigerator.
5_ Remove left* crisper drawer by
lifting front up while supporting drawer
underneath.
*For refrigerator doors hinged on left,
use crisper on right.
°
7_
8.
Remove crisper support post which fits
into recess at bottom center of
refrigerator.
Slide other crisper drawer to opposite
wall and slide out.
Reverse procedure to reinstall crisper
drawers and glass shelf.
Suppo_ Post
11

Utility Rack (some models)
Utility rack provides extra storage space for
items such as a large bottle, eggs, etc. Slide
flat edge of rack onto shelf. Move shelf if
necessary. If bottle is used, be sure cap is on
tightly.
Egg Bucket
Take-to-the-counter egg bucket has a
removable tray and cover. When tray is
removed, bucket will accept a standard egg
carton.
Snaccess Bin (some models)
Snaccess bin stores small items and snacks in
an easy, convenient location. Remove upper
portion and use bottom portion as an additional
door bucket. To remove, open lid, place hand
below center of upper shelf and lift up.
12

Dairy Module and Food Storage
Container System (some models)
This system comes with dairy module, food
storage container shelf and two containers.
Entire system fits in top position of refrigerator
door. Depending on the model, entire system
can be placed on either side of door. Dairy
module and food storage container shelf can
also be used independently of each other.
Some models feature a stationary dairy module
and two removable shelves.
,To remove system, lift up dairy
door. Push lock tabs toward center.
While holding in lock tabs, pull system
out.
.
3.
To reinstall, slide system into top
position until tabs lock into place.
To remove dairy door, lift door up. Flex
in slightly near hinges and pull door out.
,
,
,
To remove food storage container
shelf, remove system and grasp sides of
shelf. Flex out slightly and gently pull
down.
Reverse procedure to replace shelf. For
added storage, additional shelves can
be purchased from an Amana dealer or
independent parts distributor.
If refrigerator has stationary dairy
module and two removable shelves,
grasp each side of shelf to remove.
Gently pull corners out to disengage
tabs.
13

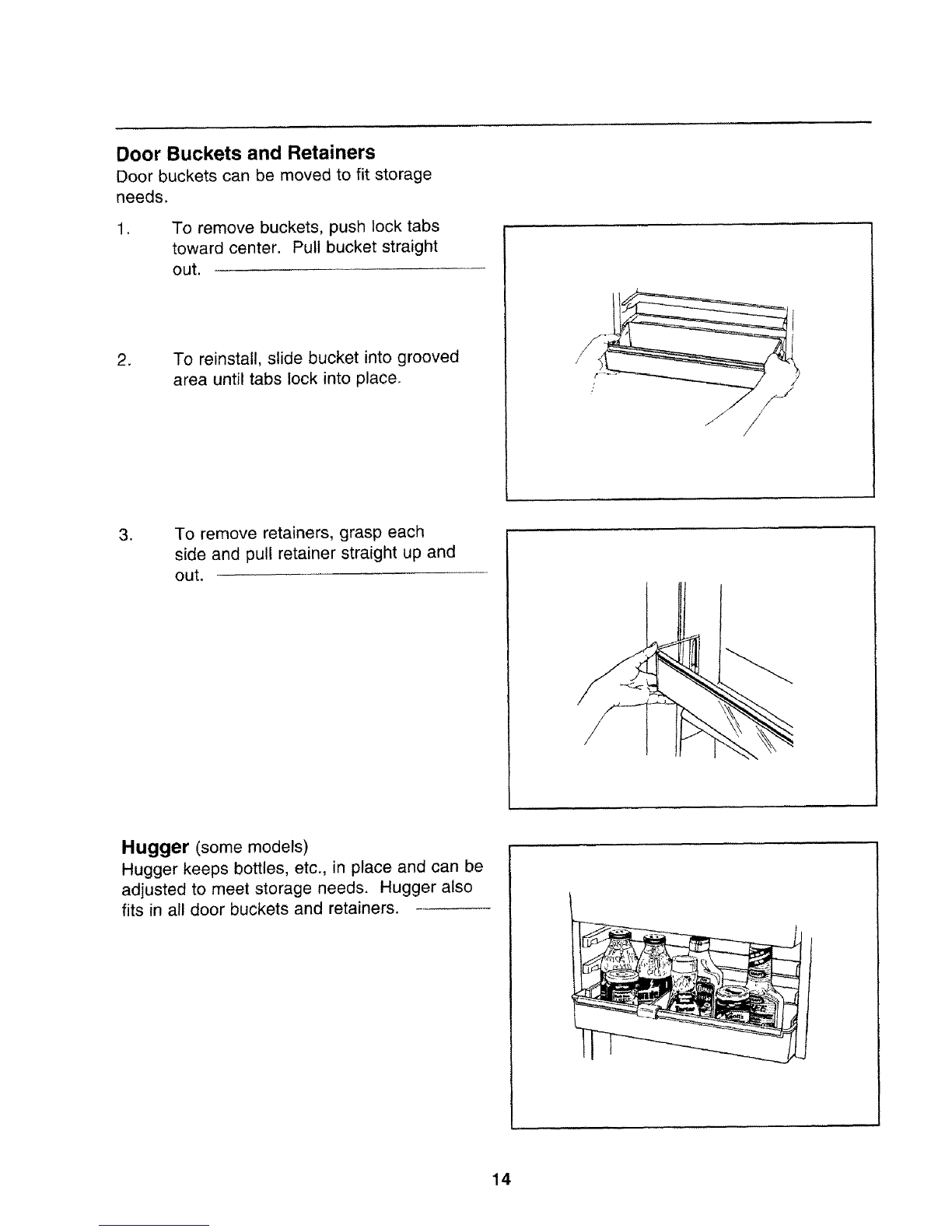

Door Buckets and Retainers
Door buckets can be moved to fit storage
needs.
,To remove buckets, push lock tabs
toward center. Pull bucket straight
out.
2, To reinstall, slide bucket into grooved
area until tabs lock into place,
,To remove retainers, grasp each
side and pull retainer straight up and
out.
Hugger (some models)
Hugger keeps bottles, etc., in place and can be
adjusted to meet storage needs. Hugger also
fits in atl door buckets and retainers.
14

Bottle Hugger (some models)
Bottle hugger prevents bottles from tipping over
in buckets and retainers, Bottle hugger can be
moved to meet storage needs.
Tall Package Retainer
Retainer keeps tall packages secure in door
buckets or retainers, To remove, rotate and lift
up.
15

Freezer Features
Free-O-Frost TM System
Freezer and refrigerator sections are completely
frost free. Amana's Frost-Magnet® evaporator
coil stops frost before frost starts. Under normal
operating conditions, refrigerator and freezer will
never have to be defrosted. Defrosting is
automatic.
Ice Service Rack (some models)
Service rack holds two ice cube trays and an
ice bin. Service rack can be moved to right side
by completing the following steps.
.
2.
3.
4.
,
6.
7.
Slide rack toward front of freezer until
screws are in middle of mounting holes.
Gently pull rack away from side wall of
freezer.
Using 1/4" hex nut driver, remove
screws from side wall.
To prevent scratching liner, use a flat
blade screwdriver covered with tape.
Gently pry plastic plugs from opposite
side of side wall.
Replace plastic plugs with screws and
vice versa.
Line up middle mounting holes in side of
rack with screws on side wall.
Gently slide rack back until secure.
Automatic Ice Maker (optional)
The bottom freezer refrigerator has an electrical
connection in freezer for installation of an ice
maker. To ensure good ice cubes, a water filter
can also be added. Ice maker, model IC6, and
water filter, part #R0183114, can be purchased
separately from an Amana dealer.
Freezer Shelf
Some models feature a glass or metal shelf.
.
2.
To remove shelf, pull out. A sharp tug
may be necessary.
To reinstall, slide until back of shelf
snaps in.
Shelf Divider (some models)
Shelf divider separates food for more storage
space. To move divider, rotate clockwise and
slide to new position.
16

Wire Basket
Wire basket is ideal for large, bulky items and
glides out for easier access.
,
.
To remove basket, open door
completely. Pull basket straight out until
basket stops. Tilt up front and pull out.
To reinstall, slide basket in.
Door Retainers and Shelves
All models feature two full retainers and two half
shelves.
,
2.
TO remove retainers, grasp each side
and pull retainers up and out.
To remove shelves, slide front trim
right or left and up. Lift shelf up and pull
out.
,To use area for tall packages, slide front
trim off shelf and reinstall trim.
17

Other Features
Trim Kits
To accent kitchen decor, custom door panels
can be added to door fronts. These panels are
held in place with decorator trim kits. These kits
can be purchased separately from an Amana
dealer. Custom panels can be purchased
locally.
Care and Cleaning
Adhesives
To remove glue residue from refrigerator,
dab toothpaste over adhesive. Rub fingers
over adhesive and rinse.
General
Caution
To avoid electrical shock, unplug
power cord or open household
circuit breaker to refrigerator
before cleaning or replacing light
bulb. After cleaning or replacing
light bulb, reconnect power.
=
.
3.
Wash refrigerator with warm, soapy
water as needed. Rinse and dry
thoroughly.
If using concentrated liquid detergent,
dilute in warm water first.
Do not use following item& These items
can scratch, crack and discolor
su rfaces.
•abrasive cleaners such as
Comet, Ajax, etc.
•solvents
• metal scouring pads
t8

Glass Shelves
Caution
Handle tempered glass shelves
with care. Chipping, scratching
and twisting may cause shelves
to break suddenly. Replace
shelves immediately if scratched
or chipped. Do not expose
shelves to rapid temperature
changes.
After removing shelf, place on soft surface such
as a towel or dishcloth. Allow shelf to adjust to
room temperature before cleaning.
Food Storage Containers
When using containers to reheat food in a
microwave oven, follow storage container
manufacturer's instructions. Containers are
dishwasher safe. Always place in top rack of
dishwasher. If containers should stain, follow
storage container manufacturer's instructions
for cleaning.
Door Gaskets
1. At least four times a year, clean gaskets
with a liquid detergent or baking soda
diluted in water.
2. Rinse and dry thoroughly.
3. Apply a light film of petroleum jelly to
keep gaskets soft and pliable.
4. Do not use cleaners which contain
ammonia or chlorine bleach.
19

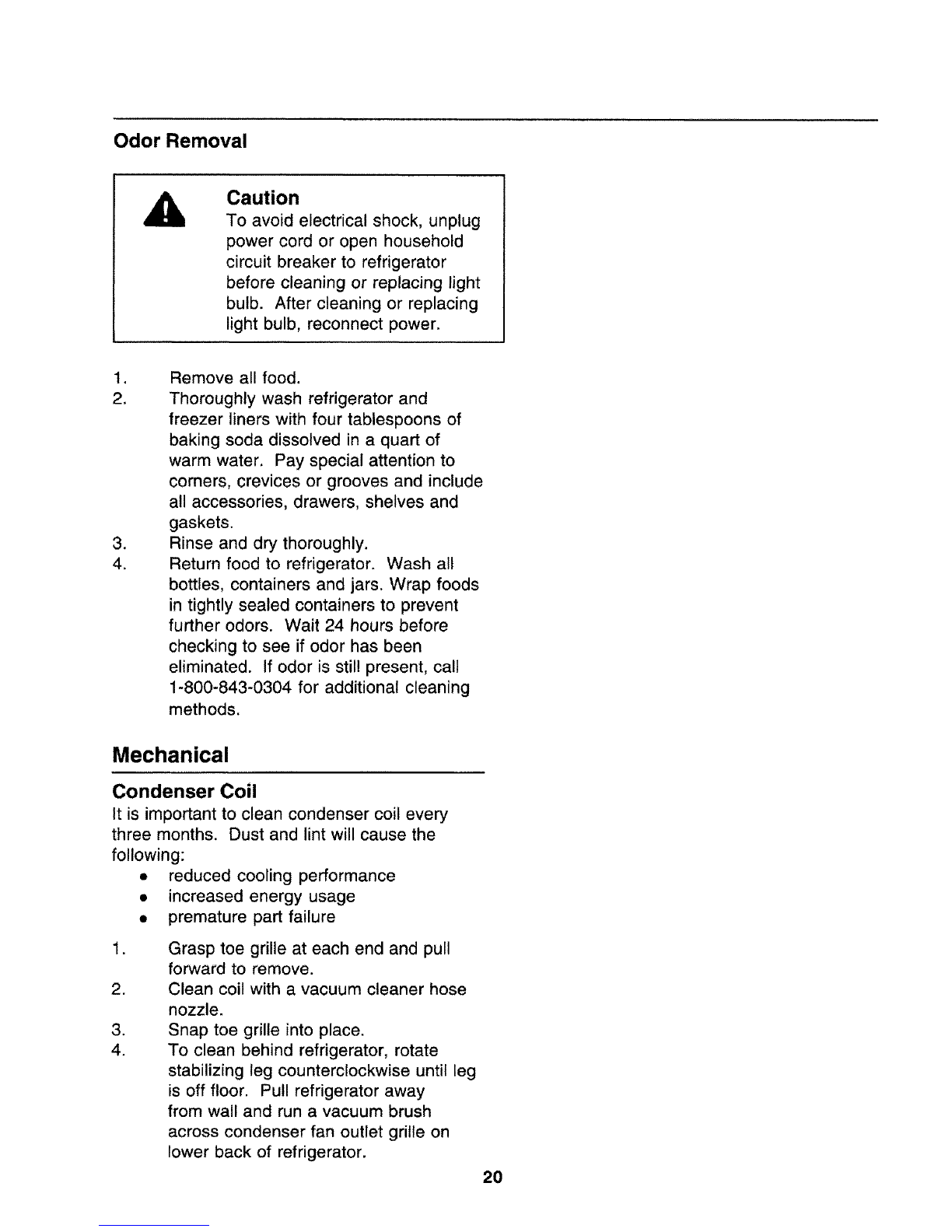

Odor Removal
Caution
To avoid electrical shock, unplug
power cord or open household
circuit breaker to refrigerator
before cleaning or replacing light
bulb. After cleaning or replacing
light bulb, reconnect power.
.
2.
,
4.
Remove all food.
Thoroughly wash refrigerator and
freezer liners with four tablespoons of
baking soda dissolved in a quart of
warm water. Pay special attention to
corners, crevices or grooves and include
all accessories, drawers, shelves and
gaskets.
Rinse and dry thoroughly.
Return food to refrigerator. Wash all
bottles, containers and jars. Wrap foods
in tightly sealed containers to prevent
further odors. Wait 24 hours before
checking to see if odor has been
eliminated. If odor is still present, call
1-800-843-0304 for additional cleaning
methods.
Mechanical
Condenser Coil
It is important to clean condenser coil every
three months. Dust and lint will cause the
following:
•reduced cooling performance
•increased energy usage
• premature part failure
.
2.
3.
4.
Grasp toe grille at each end and pull
forward to remove.
Clean coil with a vacuum cleaner hose
nozzle.
Snap toe grille into place.
To clean behind refrigerator, rotate
stabilizing leg counterclockwise until leg
is off floor. Pull refrigerator away
from wall and run a vacuum brush
across condenser fan outlet grille on
lower back of refrigerator.
20
