Amazfit T-Rex Pro A2013 User manual

Product Manual
Amazfit T-Rex Pro
A2013

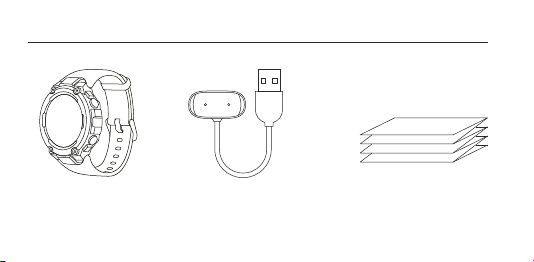

01 Package Contents
Smartwatch with
band × 1
Charging base × 1
1
Instruction Manual × 1

02 About the Watch
2
Note: Press and hold the power button to turn on the watch. If the watch cannot be turned on, please
charge it and then try again.
Heart rate
sensor
Charging
plates
Power/Select button
Touch screen
Upper
button
Lower
button
Back button

03 Pairing the Watch
3
1.
2.
3.
4.
Scan the QR code on the Instruction Manual with your mobile phone to download the app to your
mobile phone. You can also download the latest version of app from the Google Play Store or Apple App
Store.
Open the app, register an account and log in.
Follow the steps in the app to pair your watch correctly.
Once pairing is complete, the watch will display the
correct time.
You can set the other watch functions as needed.
Download Zepp App

4
Note:
1.
2.
3.
For a better user experience, please use the most recent version of the app.
The operating system needs to be Android 5.0, iOS 10.0, or above.
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the
app to pair your watch correctly.

04 Charging the Watch
5
Note:
1.
2.
Please use the charging base that comes with the watch. Make sure
that the charging base is dry before charging.
Please use a 1A or above power adapter.
1.
2.
3.
Connect the watch's charging cable to a power adapter or a computer's USB port.
Put the watch into the charging base. Pay attention to the direction and position of the watch, and
make sure that the metal contacts on the back of the watch t closely with the charging base.
When charging starts, the watch screen displays the charging progress.

05 Disassembly and Assembly of the Watch Strap
6

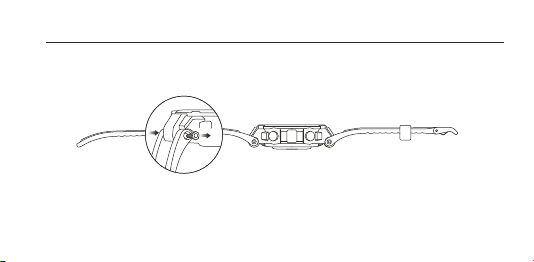

If you need to install or remove the strap, hold the screw on one side with a screwdriver, and rotate
the nut on the other side, as shown in the gure below.
Note:
Once the strap is assembled, pull the strap properly to ensure it is installed successfully.

06 Wearing the Watch
7
1.
2.
3.
Wear the watch strap not too tightly or too loosely, and leave enough space for the skin to
breathe. This makes you feel comfortable and allows the sensor to function.
When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing the watch on
the wrist joint, keep your arm at, maintain comfortable (appropriately tight) tting between the
watch and the skin of your wrist, and keep your arm still throughout the measurement process.
When aected by external factors (arm sag, arm sway, arm hair, tattoo, etc.), the measurement
result may be inaccurate or the measurement may fail and provide no output.
We recommend that you tighten the watch strap during exercise and loosen it afterwards.

07 Basic Parameters
8
Product model: A2013
Input: 5V d.c. 500mA MAX
Bluetooth version: BLE V5.0
BLE output power: <5 dBm
View product certication information on the watch's Settings > System > Regulation page.
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions
Operating temperature: 0°C to 45°C
Water resistance rating: 10 ATM
Bluetooth frequency: 2400–2483.5 MHz
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Anhui Huami Information
Technology Co., Ltd. is under license. Other trademarks and trade names are
those of their respective owners.

08 Regulatory Notice
9
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC ID: 2AC8UA2013
Any changes or modications that are not expressly approved by the party responsible for the
compliance may void the user’s authority to operate the device.

10
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

11
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which
thereceiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
IS 13252(Part 1)/
IEC 60950-1
R-41136905
www.bis.gov.in HIDF19000259

12
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
IC: 21806-A2013 CAN ICES-3(B)/NMB-3(B)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.

13
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement
d'une communication satisfaisante.

09 Disposal and Recycling Information
14
All products bearing this symbol are waste electrical and electronic equipment (WEEE
as in directive 2012/19/EU) which should not be mixed with unsorted household
waste. Instead, you should protect human health and the environment by handing
over your waste equipment to a designated collection point for the recycling of waste
electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to
the environment and human health. Please contact the installer or local authorities for
more information about the location as well as terms and conditions of such collection
points.

15
10 Certifications and Safety Approvals
Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device
type A2013 is in compliance with Directive 2014/53/EU. The full text of the EU declaration
of conformity is available at the following internet address: https://sup-
port.amazt.com/en
For more regulatory information and product certication/compliance logos related to
Amazt T-Rex Pro, please go to Regulatory on your Amazt T-Rex Pro.
Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device
type A2013 is in compliance with Radio Equipment Regulations 2017 (S.I. 2017/1206).
The full text of the UK declaration of conformity is available at the following internet
address: http://en.amazt.com/support.html

16
11 Battery Safety
1.
2.
3.
4
This device is equipped with a built-in battery that cannot be removed or replaced. Do not
disassemble or modify the battery by yourself.
Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery
can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment can result in
an explosion or the leakage of ammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of
ammable liquid or gas.

17
12 Safety Notice
1.
2.
3.
4.
Do not allow children or pets to bite or swallow the product or its accessories, as this may cause
injury.
Do not place this product under excessively high or low temperatures, which may cause the
product to catch re or explode.
Do not place this product near heat sources or open ame, such as ovens and electric heaters.
Some people may experience allergic skin reactions to plastics, leathers, bers, and other
materials, and symptoms such as redness, swelling, and inammation will occur after long-term
contact with this product's components. If you experience such symptoms, please discontinue
use and consult your doctor.

18
5.
6.
7.
Do not use unauthorized or incompatible power adapters, chargers, or data cables, which may
damage the watch and accessories, or cause re, explosion, or other hazards.
The radio waves generated by this product may aect the normal operation of implanted
medical devices or personal medical devices, such as pacemakers and hearing aids. If you use
any such medical devices, consult the manufacturer for relevant usage restrictions.
Do not dispose of this device or its accessories as ordinary household waste. Please make sure
you dispose of or recycle this device and its accessories in accordance with local laws and
regulations.

19
13 Repair and Maintenance
1.
2.
3.
4.
5.
Avoid using detergents such as soap, hand sanitizer, bath foam, or lotion for cleaning to prevent
chemical residues from irritating the skin, corroding the device, or degrading the water resistance
of the device.
After wearing the device while bathing (for devices that support bathing), swimming (for devices
that support swimming), or sweating, please promptly clean and dry the device.
The leather strap is not waterproof. Avoid getting the strap wet, as this may shorten its service life.
When using light-colored watch straps, avoid contact with dark clothing to prevent staining.
Do not place the device in direct sunlight for long periods. Excessively high or low ambient
temperature may cause device failure.
