Amazilla iWing SR-HD User manual

User Manual
iWING SR-HD
System No. IAR-601

What is inside? Page 1

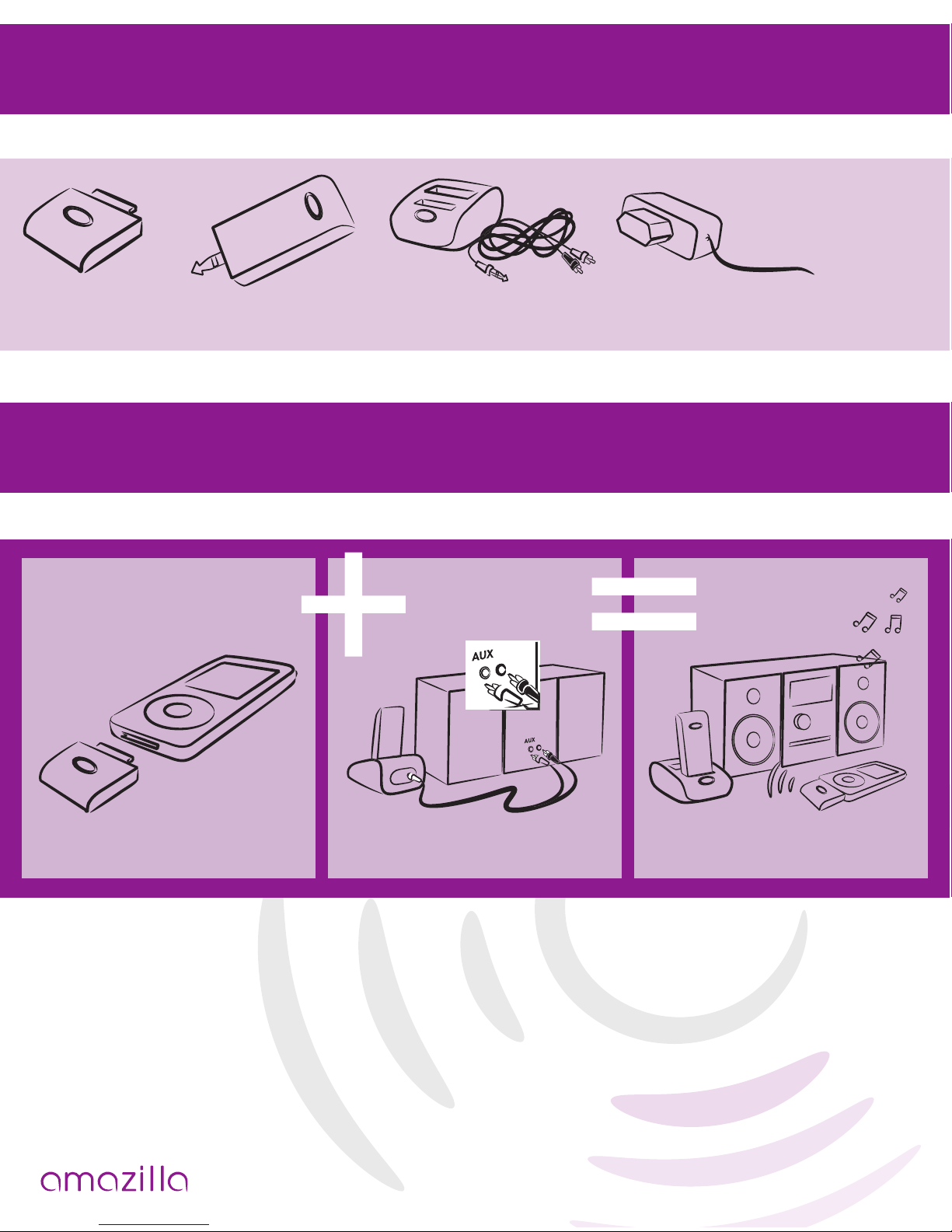

Sender 2.4 GHz Receiver 2.4 GHz Adapter 110-
240V / DC 5.0V
AUX
extension
cable
Quickstart
Legal Disclaimer
“made for iPod” means that an electronic accessory has been designed to connect specically to iPod
and has been certied by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
c onnect plug play
HiFi Dock
& RCA Cable

How does it work? Page 2
Connection to Hi system
Before you start, make sure your receiver is fully charged.
Step 1
• Turn on your iPod.
• Plug the sender into the iPod.
• The purple LED will ash – the sender is trying to connect with the receiver.
Step 2
• Connect the RCA cable to the Hi dock and to the AUX socket of the Hi system.
• Power the Hi dock with the adapter.
• Turn on your Hi system.
• Plug the receiver rmly into the Hi dock.
Step 3
• Push the On/Off button (2-4 sec.) to activate the receiver.
• If the purple light ashes, the receiver is connecting with the sender.
• If the purple light does not ash you have to reload the battery.
Step 4
• The sender and receiver will automatically pair within 10 - 20 seconds.
• Once connected the purple light will stop ashing and will shine constantly.
Now you can play your music wirelessly via your Hi system
and have full control through your iPod!

How does it work? Page 3
Connection to speaker dock
Before you start, make sure your receiver is fully charged.
Step 1
• Turn on your iPod.
• Plug the sender into your iPod.
• The purple LED will ash; the sender is trying to connect with the receiver.
Step 2
• Turn on your speaker dock.
• Plug the receiver into the AUX socket of the speaker dock.
• If the AUX socket is difcult to access, use the AUX extension cable.
Step 3
• Push the On/Off button (2-4 sec.) to activate the receiver.
• If the purple light ashes, the receiver is connecting with the sender.
• If the purple light does not ash you have to reload the battery.
Step 4
• The sender and receiver will automatically pair within 10 - 20 seconds.
• Once connected the purple light will stop ashing and will shine constantly.
Now you can play your music wirelessly via the speaker
and have full control through your iPod!
Range & performance
Amazilla is using 2.4 GHz technology for sending & receiving audio. The standard range is
12 meters (36 ft), but is depending on environmental conditions such as wi networks, wireless
telephones, and other (wireless) interferences.

LED light denitions Page 4
Sender
Flashing mode Denition
LED off - Sender is not plugged into iPod, or
- iPod is not compatible
LED ashing Sender is in pairing mode
LED on Sender is paired
Receiver
Flashing mode Denition
Purple LED off Receiver is in off status
Purple LED ashing Receiver is in pairing mode
Purple LED on Receiver is paired
Battery indicator (red LED) on top off - Battery is fully charged, or
- if the pairing LED does not ash, battery is empty
Battery indicator (red LED) on top ashing Battery low. You need to recharge the receiver
with the adapter or Hi dock
Battery indicator (red LED) on top on Battery is charging
Charging
Charging the Amazilla receiver
The receiver contains a rechargeable battery, which can be charged by the adaptor and/or through
the Amazilla Hi dock (not included). You can power the receiver with the adaptor, even while the
receiver is plugged into the speaker dock. When the battery of the receiver is fully charged, the lifetime
of the battery is +/- 6 hours, depending the usage (loudness, distance)
Charging iPod when sender is connected
When the sender is connected, it will use the power of the iPod. Though the power consumption is very
low, you may nd the need to recharge your iPod simultaneously. Just plug your adaptor into the sender
and you can proceed using the wireless communication.

Charging/playing the iPod
via the Hi dock
Page 5
If the Hi dock is powered through the adapter, you can plug in your iPod with the use of the bracket
suitable for your model, and consequently charge it.
You can also plug your iPod into the Hi dock and play the music via the Hi system.
Tip
Once your Hi dock is installed you may leave it permanently connected to you Hi system. Do not
disconnect. This way you are always ready to plug in the iPod or receiver without any hassle.

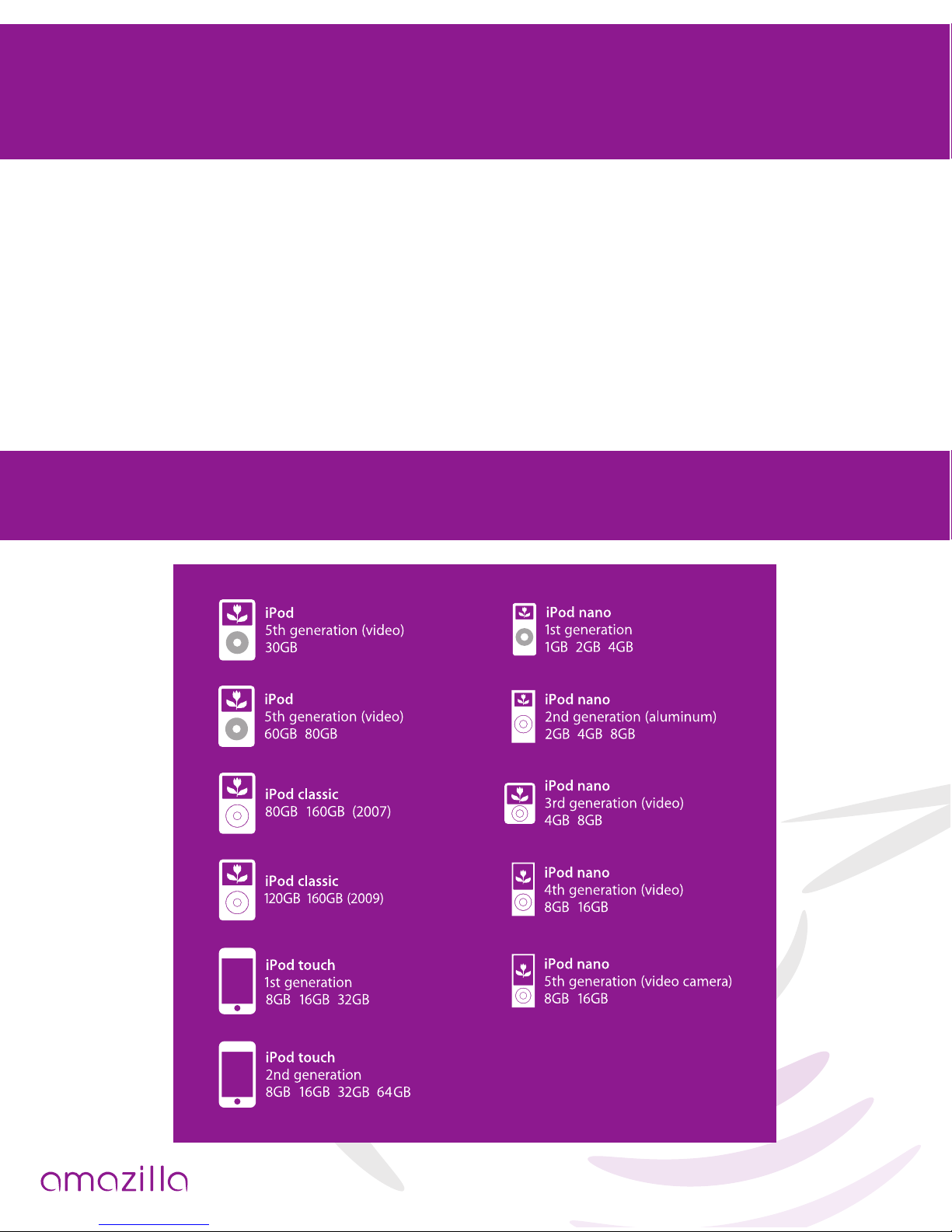

iPod compatibility

Trouble shooter Page 6
Sender is connected to an iPod and the receiver is connected to my speaker dock, but does not
produce sound.
Power
• check if the battery of the receiver is charged (if not, charge the receiver rst)
• check if the battery of the iPod is not empty
• verify if the speaker dock is powered
Volume
• verify if the volume of the speaker dock is turned up
• verify if the volume of the iPod is turned up
Functionality
• verify if you are playing a song
If the above does not give you answers
• unplug the sender and the receiver
• power off (put the power off of both the iPod and the speaker dock)
• power on (re-activate the iPod and speaker dock)
• plug on ( connect the sender and receiver as described)
Guarantee & Service
This product has been extensively tested, however, in case you experience any problem, please refer to
our website for further information: www.amazilla.com/FAQ
For more service, you can visit our website and learn more about frequent asked questions and/or
other amazing products of Amazilla ; www.amazilla.com/FAQ

Additional information & warnings Page 7
AC switching power adaptor
AC INPUT : 100-240V ~ 50/60Hz
DC OUTPUT :5V ===1000mA
Warnings and guidelines for safe use :
• This product consists of a sender, a receiver, a power adaptor, and for certain models a Hi dock.
• Use this product only with the power adapter supplied in the product package. Using another power supply may damage the units.
• The product and the AC/DC adaptor shall not be exposed to dripping or splashing and that no objects lled with liquids, such as
vases, shall be placed on the product.
• To completely disconnect the power input, the AC/DC adaptor of apparatus shall be disconnected from the mains.
• The AC/DC adaptor of apparatus should not be obstructed OR should be easily accessed during intended use.
• The receiver contains a rechargeable battery. Do not expose the receiver to excessive heat such as sunshine, re or the like.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not try to open (any part of) the product. Do not try to replace the rechargeable battery of the receiver.
• The product operates in an environment with a temperature between -5 C - + 40 C ( 23F - 104F ).
• While operating, the product will generate heat. Make sure there is sufcient room for ventilation (min. 5 cm) around the product
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body
Changes or modication to this unit not expressly approved by Amazilla,
responsible for compliance, could void the user’s authority to operate the equipment.
