B073787QMY
USB 3.0 Universal Laptop Docking Station
Estación Base Universal Para Laptop USB 3.0
Station d’Accueil Universelle USB 3.0 Pour Ordinateur Portable
USB 3.0 ユニバーサルラップトップドッキングステーション
USB 3.0 通用型便携式电脑扩展坞
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 1 8/22/17 1:14 PM

English ..................................... 3
Español.................................. 27
Français ................................. 51
日本語 ..................................... 75
中文 ........................................ 99
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 2 8/22/17 1:14 PM

3
USB 3.0 Universal Laptop Docking
Station
Safety and Compliance
Before attempting to connect, operate or adjust this product, please save and read the user
manual completely.
• Always read the safety instructions carefully.
• Keep this user manual for future reference.
• Keep this equipment away from humidity.
• If any of the following situation arises, get the equipment checked by a service technician:
- The equipment has been exposed to moisture.
- The equipment has been dropped and damaged.
- The equipment has obvious sign of breakage.
- The equipment has not been working well or you cannot get it to work according to the
user manual.
Copyright
• This document contains proprietary information protected by copyright. All right are reserved.
No part of this manual may be reproduced by any mechanical, electronic or other means, in
any form, without prior written permission of the manufacturer.
Trademarks
• All trademarks and registered trademarks are the property of their respective owners or
companies.
Welcome Guide •English
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 3 8/22/17 1:14 PM

4
Disclaimer
• Information in this document is subject to change without notice. The manufacturer does not
make any representations or warranties (implied or otherwise) regarding the accuracy and
completeness of this document and shall in no event be liable for any loss of profit or any
commercial damage, including but not limited to special, incidental, consequential, or other
damage.
FCC Conditions
This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received and include interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment
CE
This equipment is in compliance with the requirements of the following regulations: EN 55032/EN
55024: CLASS B
WEEE Information
For EU (European Union) member users: According to the WEEE (Waste electrical and electronic
equipment) Directive, do not dispose of this product as household waste or commercial waste. Waste
electrical and electronic equipment should be appropriately collected and recycled as required by
practices established for your country. For information on recycling of this product, please contact
your local authorities, your household waste disposal service or the shop where you purchased the
product.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 4 8/22/17 1:14 PM

5
Introduction
• The USB 3.0 dual display docking station is designed for extra connectivity demands. With the
docking station, you can extend the connection of a computer to more USB peripherals, Ethernet
network, the speaker and the microphone through one single USB cable.
• With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data
transmission between USB peripherals. Aside from USB 3.0, this product is compliant with USB
1.1/2.0 specification. You will be able to keep and use your USB 1.1/2.0 devices as usual.
• In addition, the docking station is equipped with video output. With the DVI and HDMI ports,
you can mirror your primary screen, or extend the Window desktop allowing visibility of more
applications at the same time. Enhanced expansion capability plus the stylish appearance, this
docking station with video is the most versatile accessory that also complements your home or
office space.
Incorporates HDMI®technology.
Features
• Compatible with USB 3.0/ 2.0 specification
• Resolution up to 2048x1152
• Support audio 2.1 channel
• Support Gigabit Ethernet
• Support HDMI / DVI Video Output
• Support BC1.2 charging (Front x1)
Package Contents
• Docking Station x1
• USB 3.0 Cable x1
• Power Adapter x1
• CD (Driver and User’s Manual) x1
• Quick Installation Guide x1
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 5 8/22/17 1:14 PM

6
System Requirements
The minimum requirements for the PC are:
• CPU: 1.6GHz single core or higher processor clock.
- Intel Pentium/Celeron family
- AMD K6/Athlon/Duron family, or compatible processor
• RAM: 1GB or greater
• USB port: 2.0/3.0
• 30MB of available disk space
• Operating Systems:
- Microsoft: Windows®7 SP1 or later/ Windows®8/
- Windows®8.1/ Windows®10
- Apple: Mac OS®10.9 or later
To play DVD on the extra connected monitor through docking station, in addition to the requirements
above, the following requirements should also be met:
• With dual core CPU at 2.0 GHz processor clock
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 6 8/22/17 1:14 PM

7
Product Overview
Front
1
2
3
4
# Item Description
1 USB 3.0 Port Connect to USB 3.0 devices
2 USB 3.0 Port Connect to USB 3.0 devices / With BC 1.2 charging
3 Speaker jack Connect to a speaker or earphone
4 MIC jack Connect to a microphone
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 7 8/22/17 1:14 PM

8
Product Overview
Back
Dual Display Docking Station
5
5
6
7
8
9
10
# Item Description
5 USB 2.0 port Connect to USB 2.0 devices
6 RJ45 port Connect to an Ethernet.
7 DVI connector Connect to a DVI monitor or projector
8 HDMI connector Connect to a HDMI monitor or projector
9 USB 3.0 port (Type B) Connect to a computer
10 Power jack Connect to the power adapter
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 8 8/22/17 1:14 PM

9
Connection
To connect the USB peripherals, Ethernet, speaker and microphone, follow the illustrations below to
connect the corresponding connectors.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 9 8/22/17 1:14 PM

10
Installation
Caution: DO NOT connect the docking to a computer before installing the provided driver.
Note that the following strings and screenshots shown on this user’s manual may vary slightly with the
operating system
Windows®OS
1. Insert the provided CD into your CD-ROM drive.
2. Click Run Setup.exe to execute the installer program. Wait for the program to install the drivers.
3. Click Finish to complete the installation.
NOTE:
a. If the AutoPlay does not start automatically, locate and double-click on the Setup.exe file in
the driver folder to launch the setup.
b. Enter the administrator password and then click Yes to start the installation if a User Account
Control dialog box pops up.
c. For some Windows Operating Systems, the driver will automatically be installed. If the driver
installation doesn’t start automatically, please install the provided driver as instructed above.
4. Connect the docking station to a computer after the driver installation is completed. For
connection details, refer to the chapter of Connection.
5. When the operating system detects the docking station, the reminder message will appear on the
system tray.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 10 8/22/17 1:14 PM

11

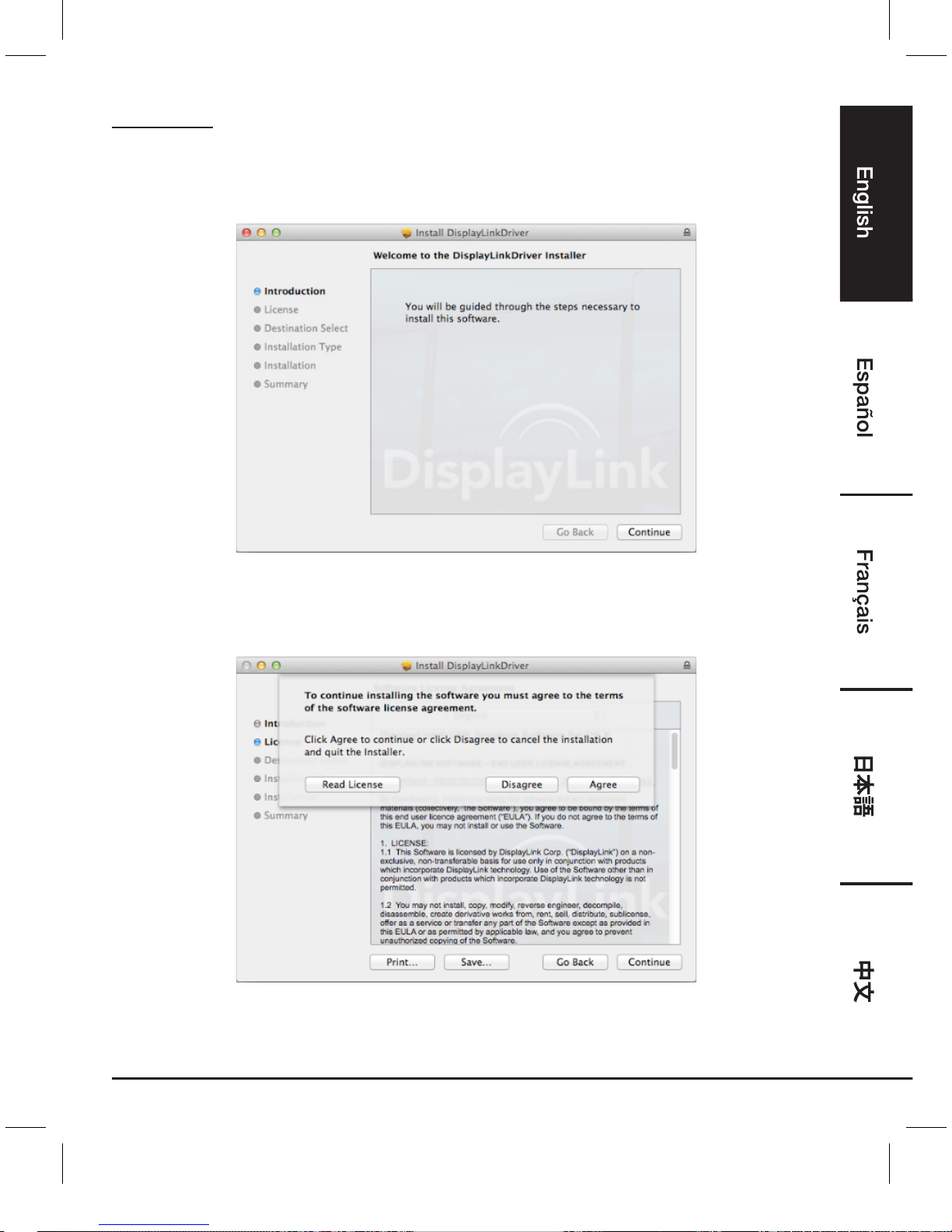

Mac OS®
1. Insert the provided CD into your CD-ROM drive.
2. Locate and double-click the .dmg file to start the installation, and click Continue.
3. Click Continue > Agree.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 11 8/22/17 1:14 PM

12

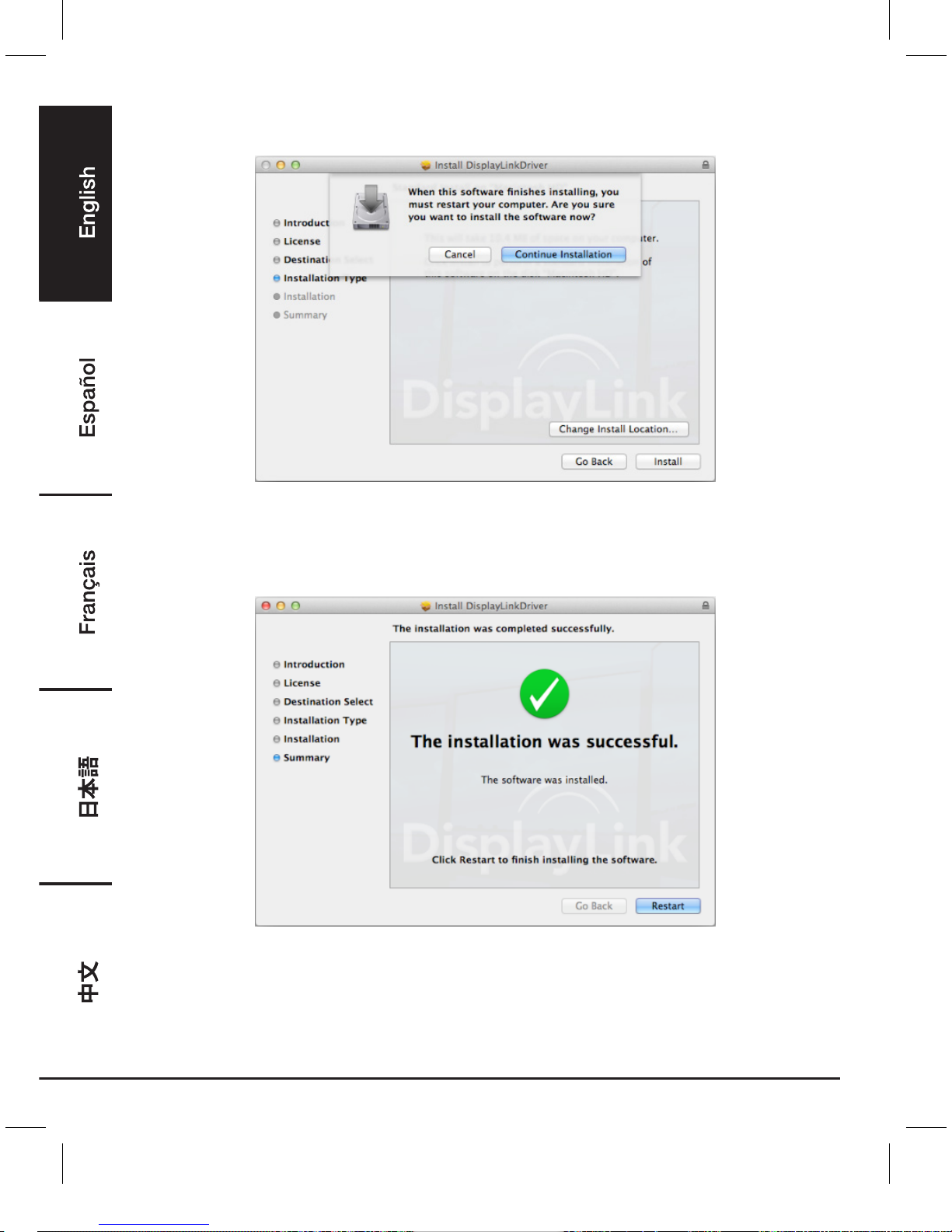

4. Click Install > Continue Installation.
5. Please wait while the installation is in process.
6. Click Restart to complete the installation.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 12 8/22/17 1:14 PM

13
Verifying The Installation
To verify the driver of the adapter, follow the step below.
1. Following the path to open the device manager.
Windows®10
Settings\Devices\Connected devices
Windows®8/ Windows®8.1
Settings\ Control Panel\ System and Security\System\ Device manager
Windows®7
Control Panel\ System and Security\ Systems\ Device manager
2. You will find AmazonBasics Docking Station device listed as below.
*The strings of the driver and the screenshots are from Windows®8 and might vary slightly with the
operating system.
NOTE:
If you cannot find the driver in the list, the driver may not be properly installed. Please delete the item,
unplug the adapter and repeat the installation steps.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 13 8/22/17 1:14 PM

14

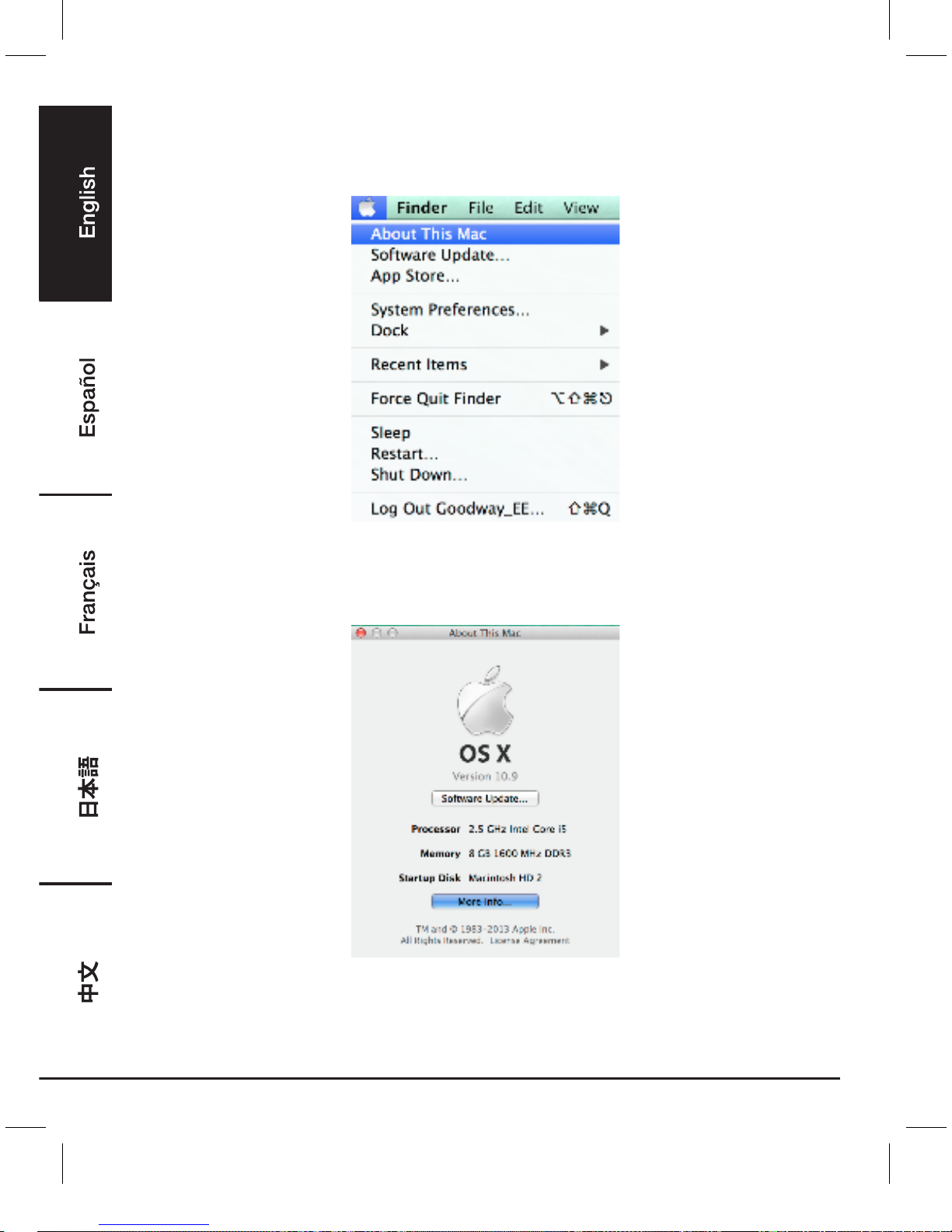

Mac OS®
1. Click on the Apple sign on the top left corner of the screen to open About This Mac on Mac®.
2. When the screen below appears, click More Info….
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 14 8/22/17 1:14 PM

15
3. When the screen below appears, please click System Report….
4. You will find DisplayLink Driver listed as below.
Display Conguration
NOTE: The following screenshots in this section are from Windows®7 and might vary slightly with the
operating system.
Utility Settings
The supplied utility allows configuring the display mode, screen rotation, screen resolution, and
physical arrangement of your monitors.
1. Click utility icon in Windows System Tray.
NOTE: If you cannot find the icon in Windows System Tray, click arrow icon to bring up icon list
to find it.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 15 8/22/17 1:14 PM

16

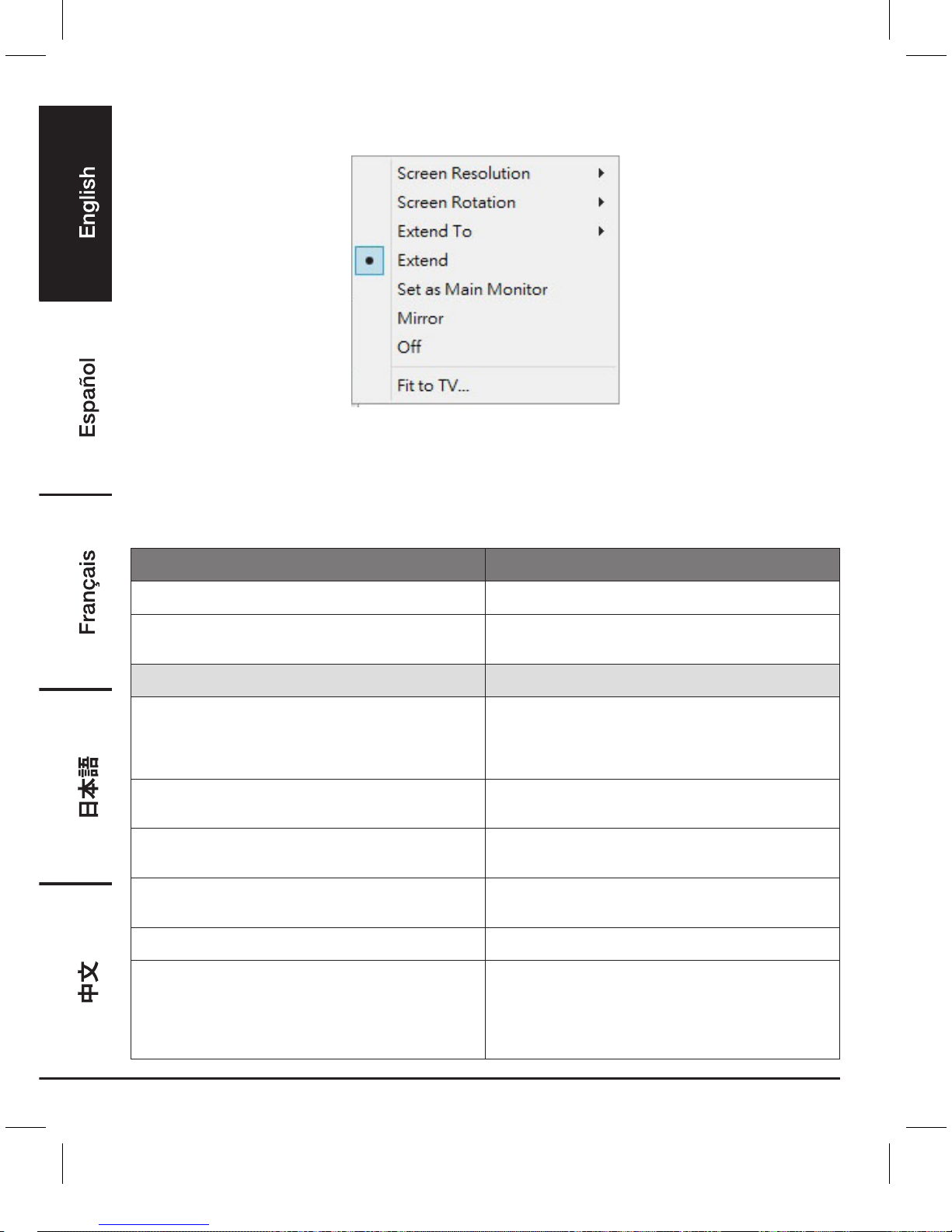

2. Select a preferred option, and then click it using mouse.
Description Of The Settings
Options Description
DisplayLink Manager Enable the Windows screen resolution page
Check for updates… Check the latest driver and download if
available
Display Setting Submenu
Screen Resolution Click to select an available resolution. Note that
this function is invalid in mirror mode, as the
resolution is defined as the resolution of the
primary monitor
Screen Rotation Rotate the screen according to the desired
orientation
Extend To The cursor can extend to desired screen via
left/right/above/below way moving
Extend Extend the screen according to the desired
orientation
Set as Main Monitor Set this screen to the main screen
Notebook Monitor Off Switch the add-on monitor to the main display
and turn off the screen of the laptop. NOTE:
This function works only when one add-on
monitor is connected. This option will also only
appear on laptop.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 16 8/22/17 1:14 PM

17
Mirror Duplicate the primary monitor to the monitor
which connects with the adapter
Off Turn off the monitor
Fit to TV Adjust the size of Windows Desktop on the TV
NOTE: This function works only when one add-
on monitor is connected. Besides, this option
will also only work in extended mode. The add-
on monitor will change to the extended mode if
selecting this option while in mirror mode
Audio Setup Enable the Windows audio configuration page.
This function works only in specific models
Video Setup Enable the Windows screen resolution page

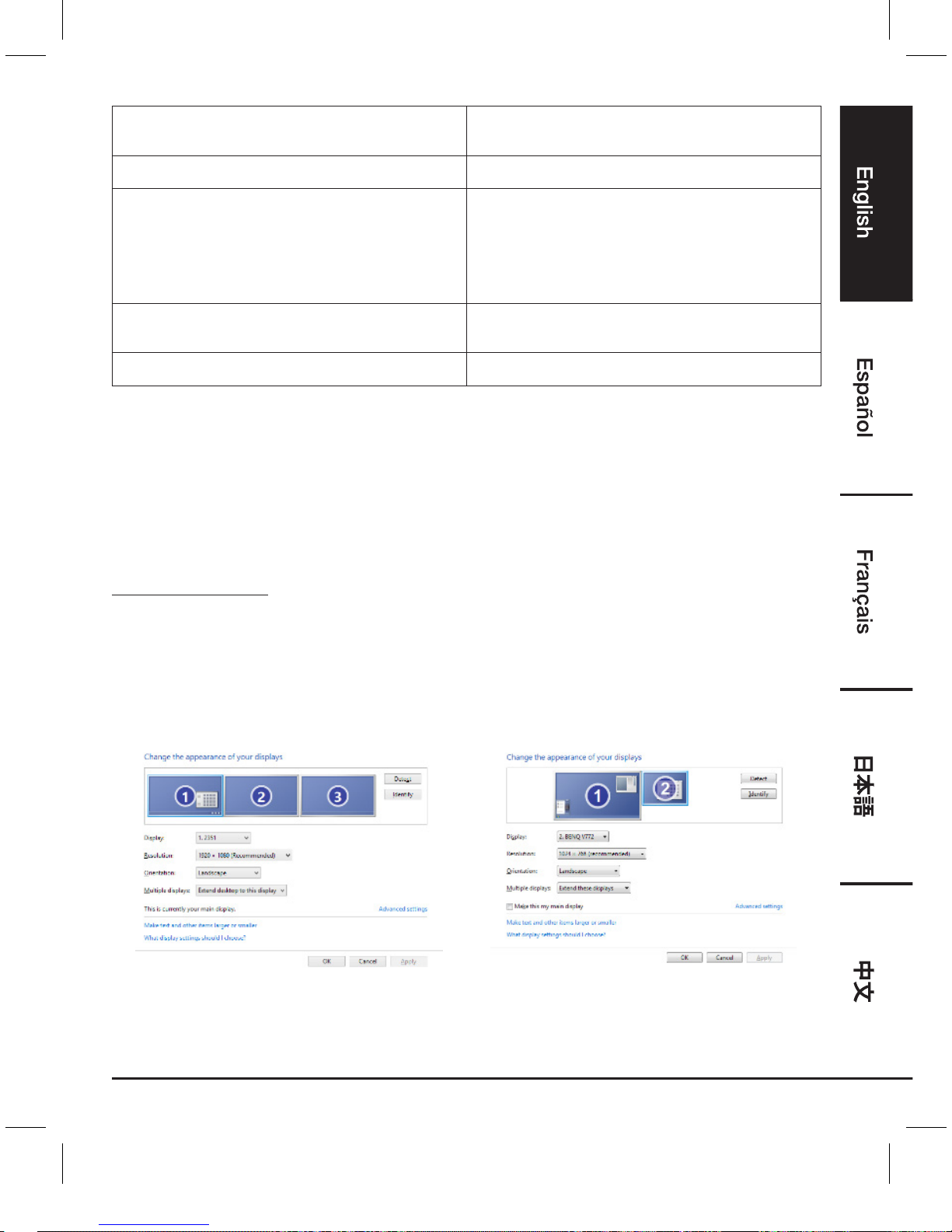

Multi-Monitor Configuration
Extra DVI and HDMI monitors can be connected through the Docking Station, if one monitor is
already connected to the PC directly. Once the extra monitors are connected, it can be configured to
use either “Mirror Mode”, “Extended Mode” or be the Primary display.

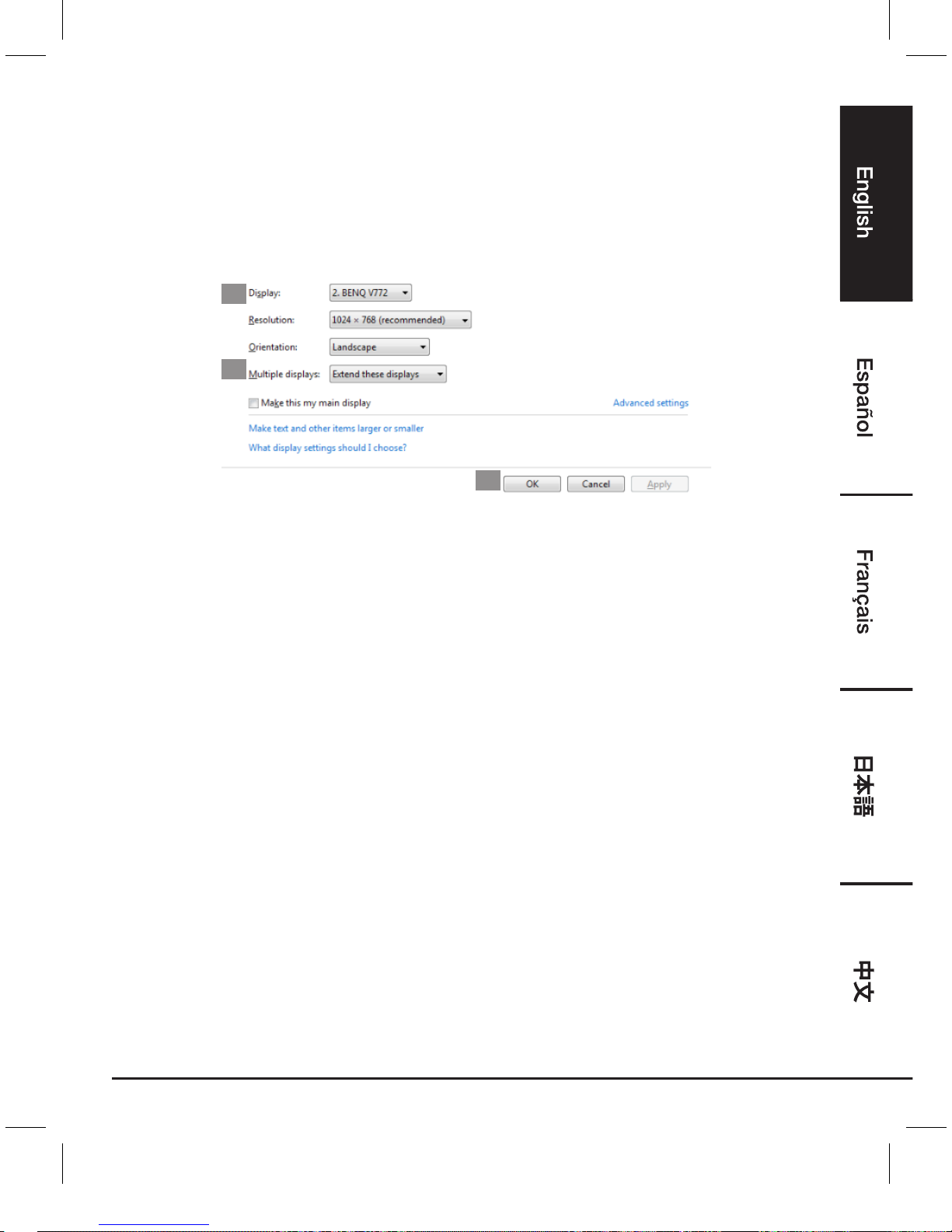

Windows®OS
Position the mouse anywhere on the Windows Desktop,
Right-click and select Screen Resolution.
Single Display Dual Display
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 17 8/22/17 1:14 PM

18
Alternatively, click utility icon in the Windows System Tray, and then select DisplayLink
Manager or Video Setup.
Mac OS®
1. Click Apple icon of the upper left icon in screen and select System Preferences… on the drop-
down list.
2. Click Displays turn to multi-monitor mode and the extended monitor with model number will be
shown in the Desktop.
Single Display Docking Station Dual Display Docking Station
NOTE: Switch to Tick the box in front of Mirror Displays turns to Mirror Mode.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 18 8/22/17 1:14 PM

19
Extended Mode
1. Refer to the Multi-monitor configuration section to bring up the configuration window.
2. In the Display drop-down menu, select the preferred monitor.
3. Select Multiple Displays > Extend these displays.
4. Click OK to confirm and exit
2
3
4
5. Once the setting is completed, simply drag and drop the application icons or the opened windows
to the add-on monitor. However, some applications may not support to display on the extended
desktop.
Cursor Disappeared
If the status remains in the extended mode but the adapter is disconnected, the desktop will still be
panned to the add-on monitor. The cursor may not be found on the primary monitor in such a case. If
it happens, connect the add-on monitor through the adapter again or keep moving the mouse.
Video Playback In Extended Mode
If the video or DVD playback quality is poor or low performance in extended mode, please playback it
on the primary monitor instead of the add-on monitor.
Mirror Mode
1. Refer to the Multi-monitor configuration section to bring up the configuration window.
2. In the Display drop-down menu, select the preferred monitor.
3. Select Multiple Displays > Duplicate these displays.
4. Click OK to confirm and exit.
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 19 8/22/17 1:14 PM

20
Set The Primary Monitor
1. Refer to the Multi-monitor configuration section to bring up the configuration window.
2. In the Display drop-down menu, select the preferred monitor.
3. Check the box of Make this my main display.
NOTE: For some computers, you may need to disable the main display by unchecking the box
of Extend the desktop onto this monitor or Extend my Windows desktop onto this monitor.
4. Click OK to confirm and exit.
Windows Shortcut
Press Windows button + Pto bring up the menu as below, and then select a desired option.
This function is available for Windows®7 or later
Supported Resolution
Before adjusting the resolution, refer to the table below for the supported resolution.
Name Refresh rate 16 bit Refresh rate 32 bit
640x480 VGA 60 72 75 85 60 72 75 85
800x600 SVGA 56 60 72 75 56 60 72 75 85
1024x768 XGA 60 70 75 85 60 70 75 85
1280x720 720p 60 60
1280x768 WXGA+ 60 70 75 85 60 70 75 85
1280x800 WXGA 60 60
1280x1024 SXGA 60 75 85 60 75
1366x768 WXGA+ 60 60
1400x1050 SXGA+ 60 75 85 60 75 85
1600x1200 UXGA 60 60
1680x1050 WSXGA+ 60 60
B073787QMY-USB 3.0 Universal Laptop Docking Station-IM-V01 (US).indb 20 8/22/17 1:14 PM
