Instruction Manual
HDTV Indoor Antenna
Contents
• HDTV Indoor Antenna
• Mini 59 coaxial cable (attached to antenna)
• 3’ USB power cable with 110V adapter (amplied antenna only)
• Two 3M™ Command™ Brand Strips
• This instruction manual

4

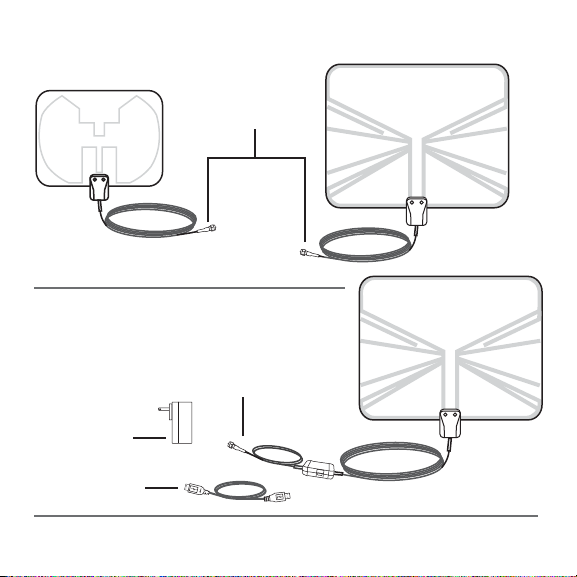

Product overview
Non-amplied antenna
Amplied antenna
Coaxial cable
Coaxial cable
USB cable
110V adapter

5

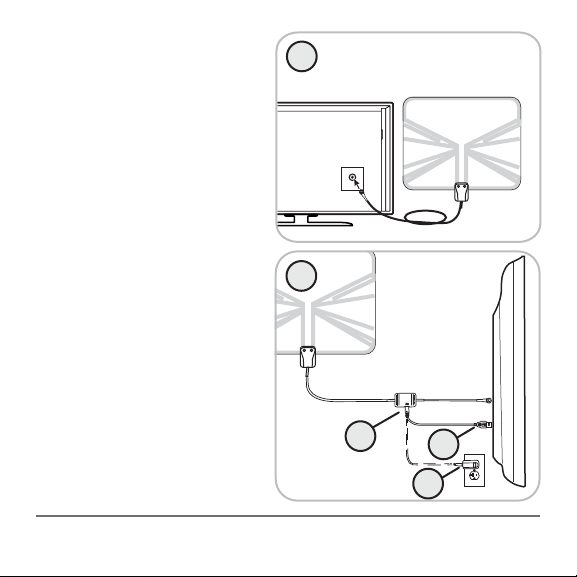

Setup:
1. Connect the coaxial cable
to the Antenna In jack on
your HDTV.
2. If you have the AmazonBasics
Amplied Antenna:
A. Insert the micro USB
connector into the USB
PWR port on the amplier.
B. Insert the other end into
a USB port on your HDTV.
OR
C. If the HDTV does not
have a USB port, use the
110V adapter.
3. Attach the provided 3M™
Command™ Brand Strips
to any part of the antenna,
remove the paper
backing, and then attach
AB
1
2
C
OR

6
the antenna to your selected surface. See For optimal
reception below for tips on mounting your antenna.
4. Scan for channels. This is usually found in your HDTV
on-screen menu. See your HDTV documentation for more
information. To keep your channel list up-to-date, run a
channel scan monthly. For a listing of channels available in
your area, go to dtv.gov/maps.
For optimal reception
• Position the antenna as high as possible and towards the
broadcast tower. The higher the antenna, the better the
signal.
• Test the antenna in multiple locations because digital
signals may bounce off objects.
• If the antenna lies at (e.g. on a table), make sure the
coaxial cable points towards the broadcast tower.
• If the antenna is mounted vertically (e.g. on a wall or
window), run the coaxial cable from the top or bottom of
the antenna (not the sides).

7
• Do not paint the antenna. Metallic paint can block signals.
FAQ
When do I need to run a channel scan
Run a channel scan after setting up the antenna, then monthly
to keep your channels up-to-date.
How do I know where the signal is strongest?
Try the antenna in different locations, making sure to run a channel
scan every time you move the antenna. Sometimes moving a few
feet can make a difference. The fewer obstructions between the
antenna and the tower and the higher the antenna is mounted, the
better the chance of receiving a strong signal.
Some HDTVs have a signal strength indicator that shows you how
strong your signal is. See the instructions that came with your
HDTV to see if yours has that feature.
Is there anywhere that the antenna shouldn’t be mounted?
The antenna is designed for indoor use only. The antenna is not
meant to be mounted outdoors or in the attic.

8
Does the antenna work with any HDTV?
The antenna works with any HDTV or device that has an ATSC
tuner. Devices that have built-in ATSC tuners include HDTVs,
laptops, PCs, some satellite receivers, and digital recording
devices (DVRs). Any television manufactured after March 1, 2007 is
required by U.S. government to have an ATSC tuner. If your HDTV
menu has an option for scanning for digital channels, your
television has an ATSC tuner.
Can I connect the antenna to multiple televisions?
The signal should only be split between multiple HDTVs if using an
amplied antenna.
What channels can the antenna receive?
The antenna can receive programming from all of the major local
broadcast networks (e.g. ABC, CBS, FOX, NBC, PBS) plus additional
networks (Qubo, ION, The CW, This TV, MyNetworkTV, Azteca,
Telefutura, Univision, and Telemundo). The antenna can also
receive local news, weather, and educational programs that
satellite and cable don’t offer.
How many channels will I receive with the antenna?
The number of channels will vary from location to location.
Generally, if you live in or near a metropolitan area, you will receive

9
more channels than if you live outside a metropolitan area. Keep in
mind that antenna reception may vary based on terrain (including
trees, buildings, hills, and mountains). The fewer obstructions, the
better your chance for receiving strong digital signals.
How can I nd out what channels are broadcast in my area?
Check out dtv.gov/maps. Enter your address to get a listing of
likely channels available in your area.
Do I need to pay for programming?
No, local programming received through an over-the-air antenna is free!
Troubleshooting
I am not getting any channels.
Run a channel scan on your HDTV. Select Antenna, Off-Air Mode, or
Auto-scan, depending on your HDTV. See your TV documentation for
more information.
NOTE: Running a channel scan is NOT the same as pressing
Channel UP/DOWN on your remote.
• Move the antenna, then re-run the channel scan. Something may
be obstructing the signal.
• Use the 110V adapter instead of the USB port on your HDTV for
more power.

10
One channel is missing.
• Move the antenna, then re-run the channel scan. Something may
be obstructing the signal.
• Try turning the antenna 10 or 20 degrees in either direction to
avoid reection, then re-run the channel scan.
The picture or sound freezes while I am watching a channel, or
there are boxes in the picture.
• This is often caused by a weak or intermittent signal. Try moving
the antenna to a different location or aiming it directly at the
broadcast tower for this channel.
Specications
• High VHF/UHF (B00DIFIO8E and B00DIFIP06 antennas)
• Range
- Up to 50 miles (B00DIFIP06 antenna)
- Up to 35 miles (B00DIFIO8E antenna)
- Up to 25 miles (B00DIFIM36 antenna)
• Multi-directional

11
Made in China
© 2013 Amazon.com, Inc. or its afliates. All Rights reserved. Amazon and the AmazonBasics
logo are trademarks of Amazon.com, Inc. or its afliates.
WEEE
Regulatory Information: Disposal of Waste Electrical and Electronic Equipment (WEEE)
The Waste Electrical and Electronic Equipment (WEEE) Directive aims to minimize the impact of electrical and electronic
goods on the environment, by increasing re-use and recycling and by reducing the amount of WEEE going to landll. The
symbol on this product or its packaging signies that this product must be disposed separately from ordinary household
wastes at its end of life. Be aware that this is your responsibility to dispose of electronic equipment at recycling centers in
order to help conserve natural resources.
Each country should have its collection centers for electrical and electronic equipment recycling. For information about
your recycling drop o area, please contact your related electrical and electronic equipment waste management
authority, your local city oce, or your household waste disposal service.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be deter- mined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance may cause interference and
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.

13-0705 2452301
