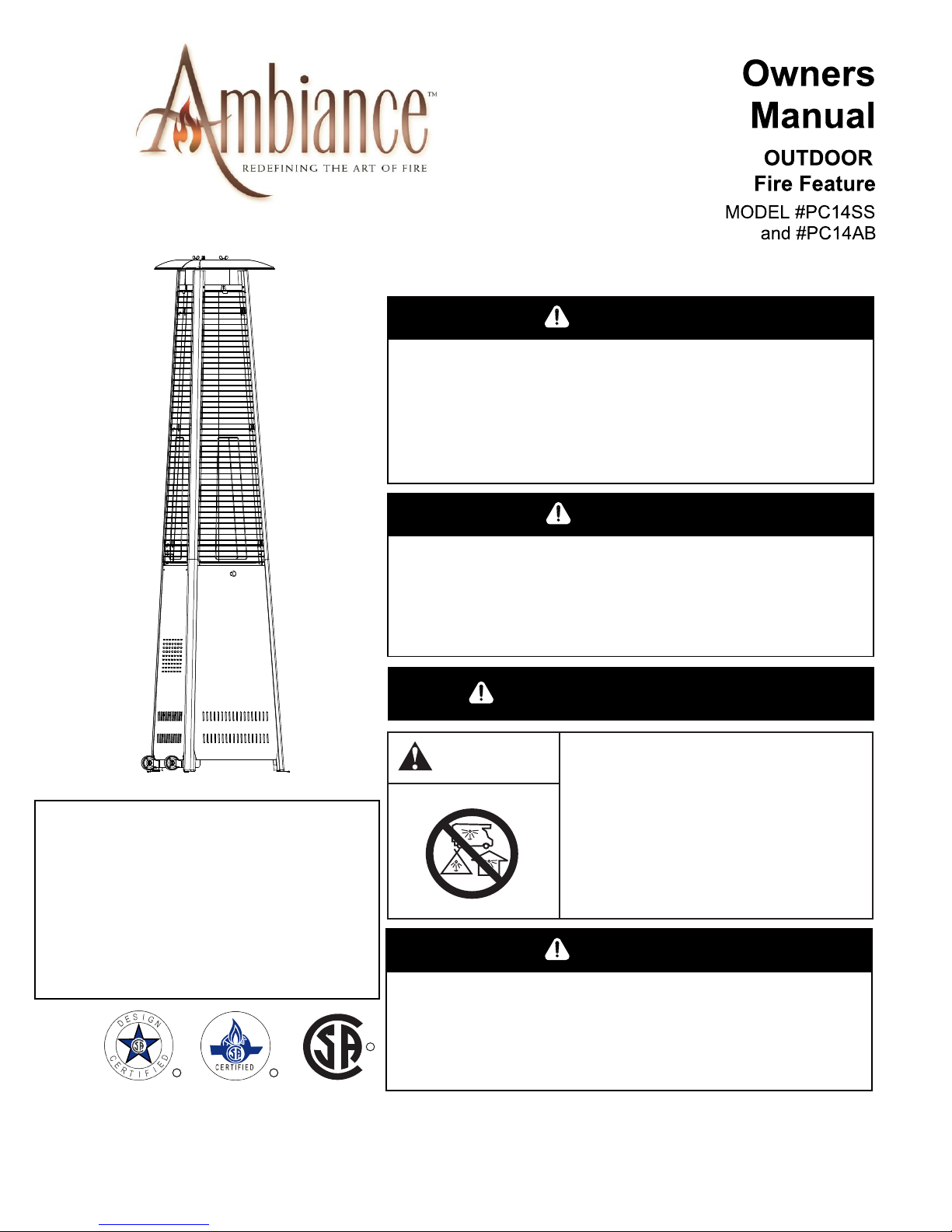

ambiance pc14ss User manual

#2 January 2016
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
WARNING: For Outdoor Use Only
US
R
RR
WARNING-California Proposition 65-The
burning of gas cooking or heating fuels (and certain
components contained in this product) generates some by
products which are on a list of substances known by the
State of California to cause cancer or reproductive harm.
California law requires businesses to warn customers of
potential exposure to such substances. To minimize
exposure tosuch substances always operate this appliance
in accordance with our Use & Care Guide (Owner’s Manual )
ensuring you provide good ventilation when cooking with
gas. For detailed information please see official California
Proposition 65 website www.P65WARNINGS.CA.GOV

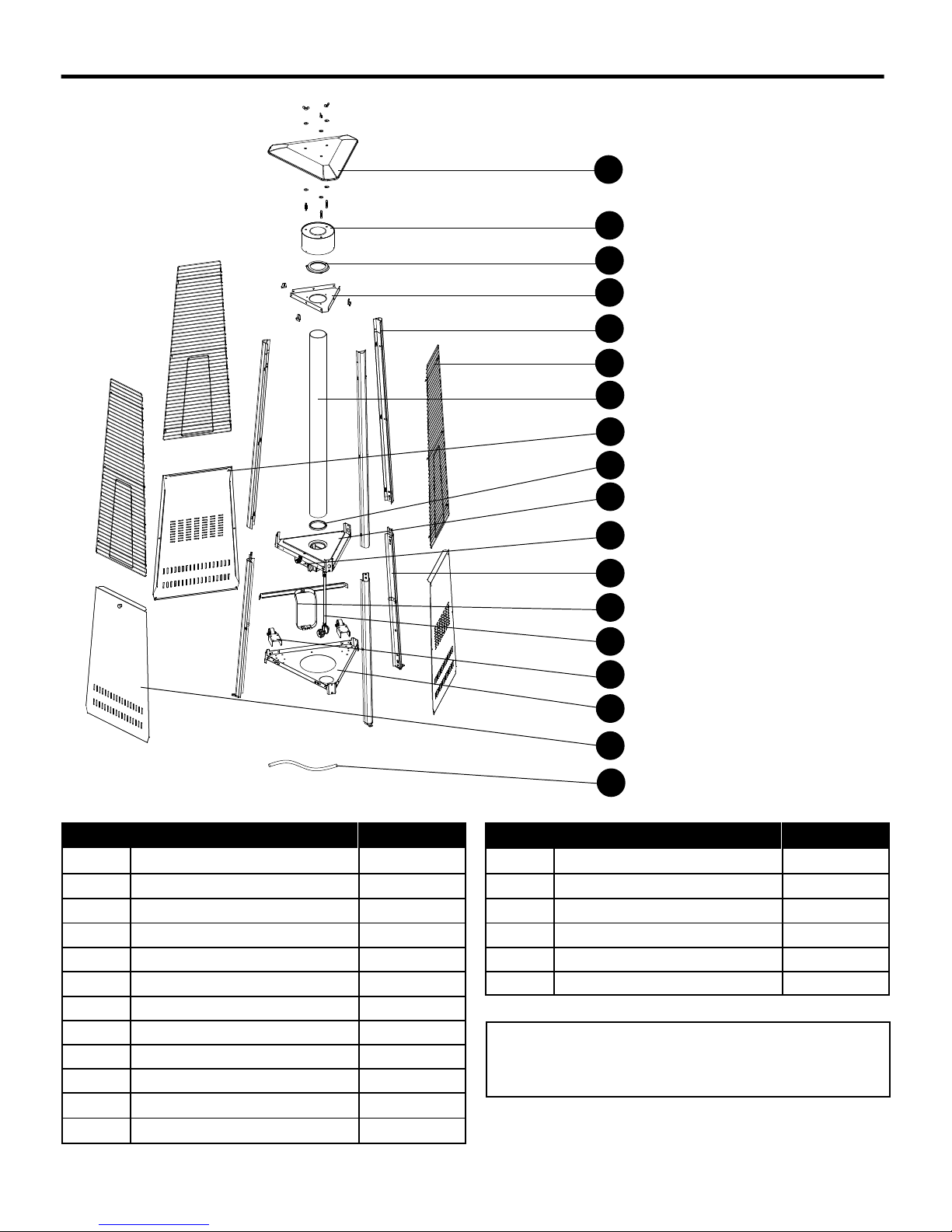

PACKAGE CONTENTS
PART
DESCRIPTION
QUANTITY
A
Reflector
1
B
Emitter Grid
1
C
Glass Tube Fixer
1
D
Top Plate
1
E
Upper Support (Long)
3
F
Protective Guard
3
G
Glass Tube
1
H
Side Panel
2
I
Black Silicone Ring
1
J5
Mid Support Plates
1
J
Control Box Assembly
1
K
Lower Support (Short)
3
PART
DESCRIPTION
QUANTITY
L
Block Belt
1
M
Gas Hose & Regulator
1
N
Wheel Assembly
Bottom plate
2
O
Front Control Access Panel
1
P
1
Q
Ceramic Fiber
1
2
Reflector
Emitter Grid
Upper Support (Long)
Protective Guard
A
B
E
F
Top Plate
D
Glass Tube Fixer
C
Glass Tube
G
Side Panel
H
Black Silicone Ring
I
Front Control Access Panel
Ceramic Fiber
P
M
Bottom plate
Ambiance parts are specifically designed for our units.
Please DO NOT attempt to use Ambiance parts on
other products.
O
Wheel Assembly
N
Block Belt
L
Lower Support (Short)
K
Gas Hose & Regulator
Control Box Assembly
J
Mid Support Plates
J5
Q

3

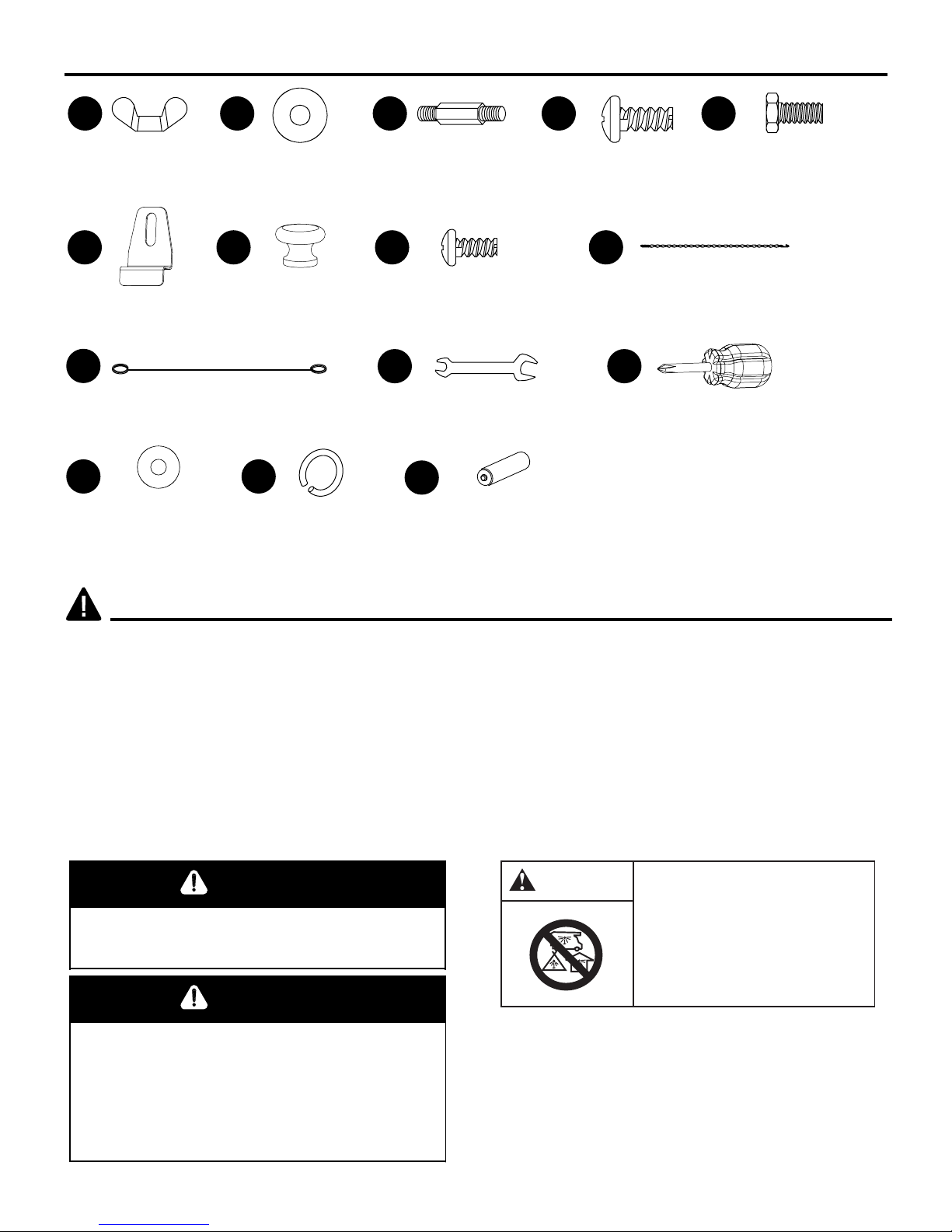

HARDWARE CONTENTS (shown actual size)

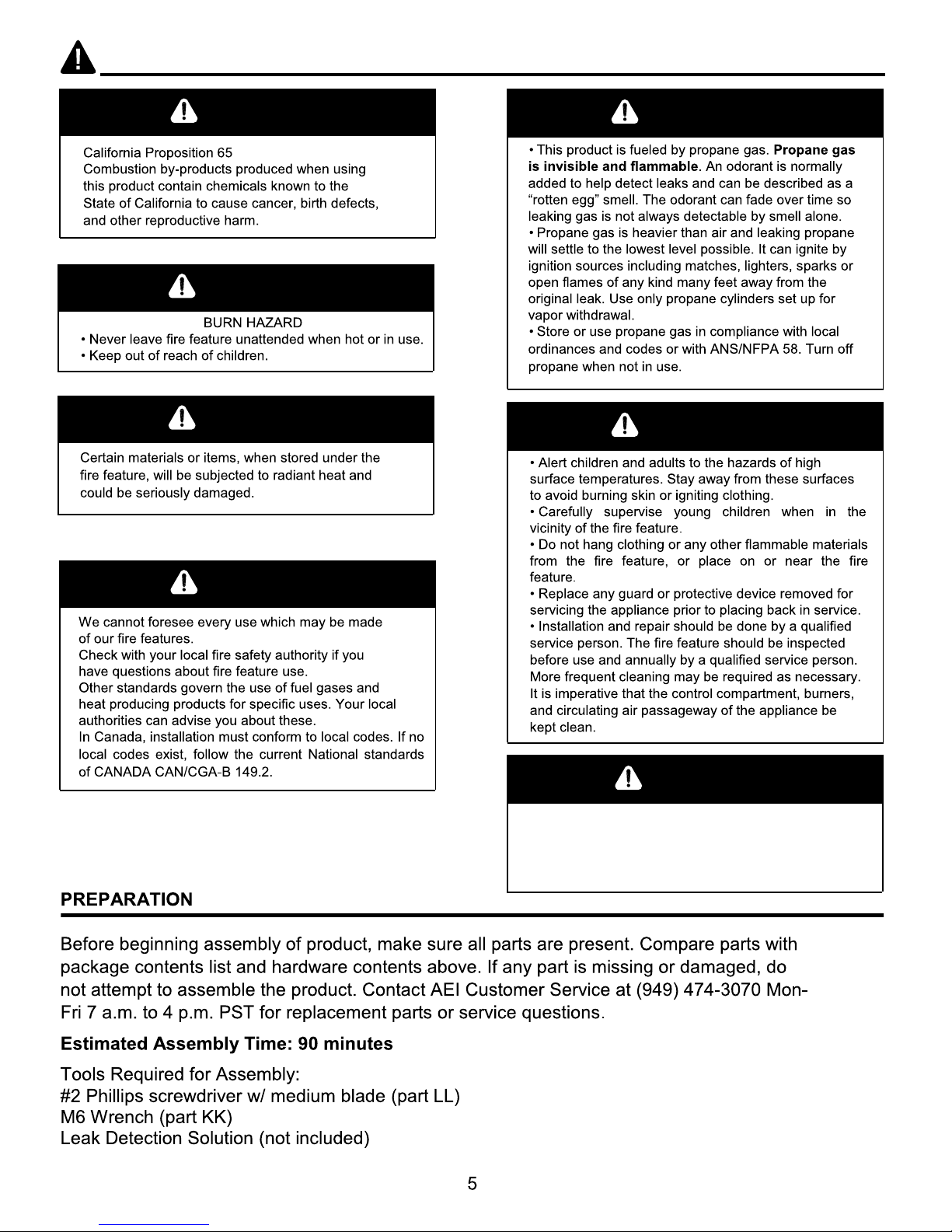

SAFETY INFORMATION
This manual contains important information about the assembly, operation and maintenance of
this Fire Feature. General safety information is presented in these first few pages and is also
located throughout the manual. Keep this manual for future reference and to educate new users
of this product. This manual should be read in conjunction with the labeling on the product. Safety
precautions are essential when any mechanical or propane fueled equipment is involved. These
precautions are necessary when using, storing, and servicing this patio heater. Using this equipment
with the respect and caution demanded will reduce the possibilities of personal injury or property
damage. The following symbols shown below are used extensively throughout this manual. Always
follow these precautions, as they are essential when using any mechanical or fueled equipment.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
DANGER
Failure to comply with the precautions and
instructions provided with this fire feature can result in
death, serious bodily injury and property loss or
damage from hazards of fire, explosion, burn,
asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the
instructions should use or service this fire feature.
DANGER CARBON MONOXIDE HAZARD
This appliance produces
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
AA BB
Wing nut
Qty. 3 Small Flat
Washer
Qty. 6
DD EE
JJ
MM
KK LL
M5 x 12 mm Screw
Qty. 35
M4 x 6 mm
Screw
Qty.1
Chain
Qty.1
CC
Stud
Qty. 3
Phillips Screwdriver
Qty. 1
M6 x 12 mm Bolt
Qty. 8
FF GG II
Fixing Bracket
Qty. 3
Wrench
Qty. 1
Knob
Qty. 1
HH
Long Stem Lighter
Qty.1
Φ4 Small Flat
Washer
Qty.1
NN
Φ4 Spring
Washer
Qty.1
OO
AA Battery (1.5 V)
Qty.1

•EXPLOSION - FIRE HAZARD
•Keep solid combustibles, such as building
materials, paper or cardboard, a safe distance away
from the fire feature as recommended by the
instructions.
•Provide adequate clearances around air
openings into the combustion chamber.
•Never use the fire feature in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust
particles or unknown chemicals.
•During operation, this product can be a source of
ignition. Keep fire feature area clear and free from
combustible materials, gasoline, paint thinner,
cleaning solvents and other flammable vapors and
liquids. Do not use fire feature in areas with high dust
content. Minimum fire feature clearances from
combustible materials: 36" (91 cm) from the sides &
24" (61 cm) from the top.
•EXPLOSION - FIRE HAZARD
•Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
•Propane vapours are heavier than air and can
accumulate in low places. If you smell gas, leave
the area immediately.
•Never install or remove propane cylinder while fire
feature is lit, near flame, pilot light, other ignition sources
or while fire feature is hot to touch.
•The glass tube, emitter grid and reflector are red hot
during use and can ignite flammables too close to the
burner. Keep flammables at least 36" (91 cm) from
sides & 24" (61 cm) from top. Keep gasoline and other
flammable liquids and vapors well away from fire
feature.
•Store the propane cylinder outdoors in a well ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If fire
feature is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
•CARBON MONOXIDE HAZARD
•This fire feature is a combustion appliance. All
combustion appliances produce carbon monoxide
(CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance
with all warnings and instructions. Do not block air flow
into or out of the fire feature.
•Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness,
fatigue and possibly death. You can't see it and you
can't smell it. It's an invisible killer. If these symptoms
are present during operation of this product, get fresh
air immediately!
•For outdoor use only.
•Never use inside house, or other
unventilated or enclosed areas.
•This fire feature consumes air (oxygen). Do not
use in unventilated or enclosed areas to avoid
endangering your life.
SERVICE SAFETY
•Keep all connections and fittings clean. Make sure
propane cylinder valve outlet is clean.
•During set up, check all connections and fittings for
leaks using soapy water. Never use a flame.
•Use as a heating appliance only. Never alter in any
way or use with any device.
CAUTION indicates an imminently hazardous
situation which, if not avoided, may result in minor or
moderate personal injury, or property damage.
An appliance may be installed with shelter no
more inclusive than:
(a) With walls on all sides, but with no overhead cover.
(b) Within a partial enclosure which includes an
overhead cover and no more than two side walls. These
side walls may be parallel, as in a breezeway, or at right
angles to each other.
(c) Within partial enclosure which includes an
overhead cover and three side walls, as long as 30
percent or more of the horizontal periphery of the
enclosure is permanently open.
4
DANGER
DANGER
DANGER
CAUTION
CAUTION
CAUTION
SAFETY INFORMATION

WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
SAFETY INFORMATION
WARNING
WARNING: This product contains small batteries.
Swallowed small batteries can cause CHOKING
HAZARD. Seek immediate medical attention if batteries
are swallowed or inhaled. Keep children away from the
small batteries.
Adjustable or ¾” open end wrench.

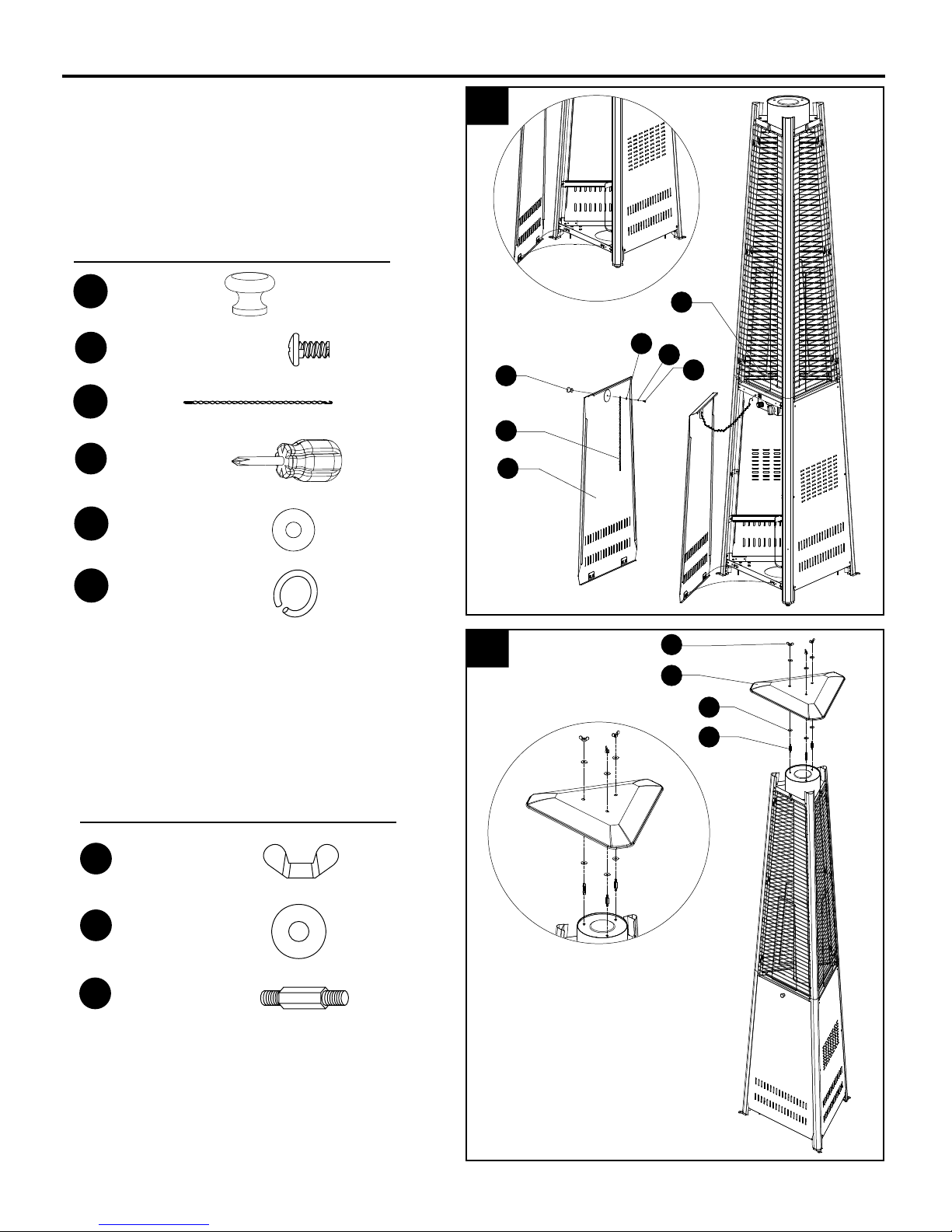

Step one may be easiest if done on a table. 1-1 1-2
1-3
1-1. Unscrew the switch button, load small
battery, tighten the switch button.
1-2. Install the gas hose (M) to the gas
connector on the control box (J), Tighten it.
These are FLARE fittings and are designed to
make a sealed connection when firmly tightened.
Please do not apply sealing compound or tape
at this connection.
1-3.Insert the hoods of Bottom Plate (O) to the
lower holes of the three Lower Supports (K)
Insert the hoods of Control Box Assembly (J) to
the upper holes of the three lower support (K).
Secure with 3 (DD) M5 X 12MM Screw.
IMPORTANT NOTE: Make sure to align the side
of Bottom Plate (O) with the holes (to
accommodate Front Tank Control Access Panel)
with the side of Control Box Assembly (J) with
the magnet and control knob.
2. Insert three Upper Supports (E) to the three
Lower Supports (K). Please note: be sure
that the Upper Support (E) slide down
completely into the Lower Supports (K) before
attempting to install screws.
If you have purchased the STAINLESS STEEL
version of this appliance, now would a good
time to remove all of the plastic film protection
from all pieces and panels.
6
Note… Bottom Plate with tank retention
hole has folded edges facing up.
1
2
J
J
M
OO
K
O
E
ASSEMBLY INSTRUCTIONS
AA Battery (1.5 V)

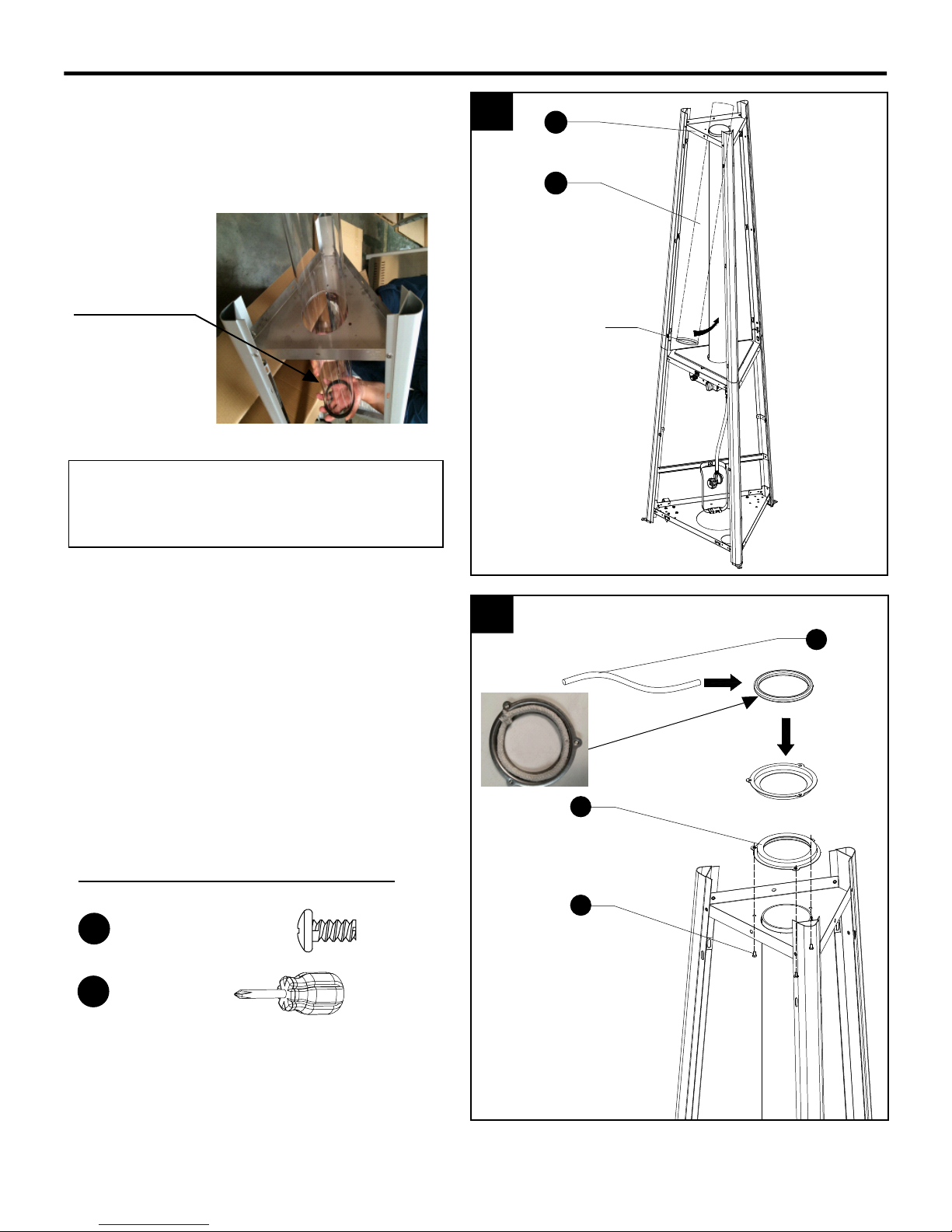

3.Use Phillips screwdriver (LL) to fasten the
Control Box Assembly (J) and the Bottom
Plate (O) with M5 x 12 mm screws (DD).

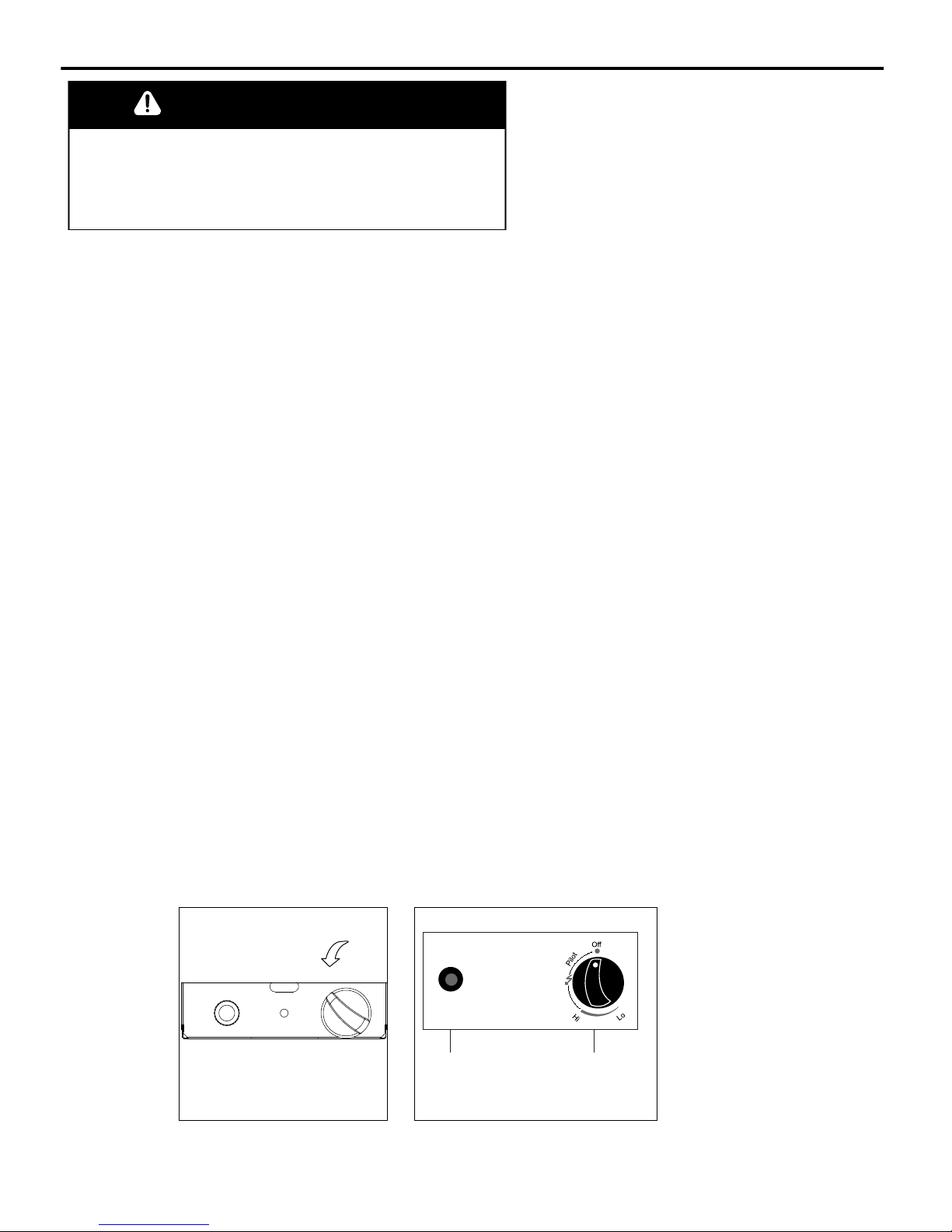

PLEASE NOTE: The bottom plate must
have the slots facing the same way as the
CONTROL KNOB.
4.Use Phillips screwdriver (LL) to secure the
Top Plate (D) to the Upper Supports (E) with
M5 x 12 mm screws (DD).
7
ASSEMBLY INSTRUCTIONS
4
DD
D
J
3
DD
Hardware Used
DD
LL
x 6
Phillips
Screwdriver
M5 x 12 mm Screw
x 1
Hardware Used
DD
LL
x 9
Phillips
Screwdriver
M5 x 12 mm Screw
x 1

8
ASSEMBLY INSTRUCTIONS
Hardware Used
5
6
5.Using wrench (KK) to assemble the Wheel
Assembly (N) to the Bottom Plate (O) with
M6 x 12 mm bolts (EE).
DD
LL
x 2
Phillips
Screwdriver
M5 x 12 mm Screw
x 1
Hardware Used
EE
N
O
DD
L
K
EE
KK
x 8
Wrench
M6 x 12 mm Bolt
x 1
6. Use Phillips screwdriver (LL) to secure the
Block Belt (L) to the Lower Supports (K) with
M5 x 12 mm screws (DD).

ASSEMBLY INSTRUCTIONS
9
After the Glass Tube (G) is installed, be
sure to wipe off all fingerprints with a
clean, dry cloth.
7D
G
Hardware Used
8
DD
C
Q
DD x 3
M5 x 12 mm Screw
LL Phillips
Screwdriver x 1
8. SECURING GLASS TUBE TO TOP PLATE
Insert the Ceramic Fiber (Q) to the Quartz Tube
Fixer (C) as pictured above. Flip this assembly.
Press the glass tube fixer to the glass tube.
Use Phillips screwdriver (LL) to secure
the Glass Tube Fixer (C) to the Top Plate (D)
with M5 x 12 mm screws (DD).
7. Carefully install the Glass Tube through
top of plate (D) then secure Black Silicone
Ring (I) to bottom of Glass Tube and
seat Glass Tube with Black Silicone Ring
over orifice in burner.
Black Silicone
Ring (I) on
Glass Tube (G) BLACK
SILICONE
RING

10
ASSEMBLY INSTRUCTIONS
Hardware Used
DD
LL
10
10. Use Phillips screwdriver (LL) to install Side
Panels (H) to bottom of assembly with
M5 x 12 mm screws (DD).
Note: Do not cover the panel where the
knob is.
x 12
Phillips
Screwdriver
M5 x 12 mm Screw
x 1
H
DD
9
Hardware Used
DD
FF x 3
x 3
x 1
Fixing Bracket
LL Phillips
Screwdriver
M5 x 12 mm Screw
F
E
D
B
DD
FF
9. Assemble the Protective Guard and Emitter
Grid by inserting the hooks of Protective
Guard (F) to the holes of Upper Supports (E).
Put the Emitter Grid (B) on the Top Plate (D).
Make sure the screw holes align the holes of
Top Plate (D). Once aligned, hold each of 3
Fixing Brackets (FF) in place and use Phillips
screwdriver (LL) to secure the Emitter Grid (B)
and Protective Guard (F) to the Top Plate (D)
with M5 x 12 mm screws (DD) and Fixing
Bracket (FF).

11
ASSEMBLY INSTRUCTIONS
12
12. Carefully lean the assembly and attach
Reflector (A) to Emitter Grid (B) with
Studs (CC), small flat washers (BB) on either
side of reflector (A) and then wing nuts (AA).
Gently return the assembly to the upright
position.
Hardware Used
AA
BB
x 3
x 6
Small Flat
Washer
Wing Nut
A
AA
CC
BB
CC x 3
Stud
11
11.Install the Knob (GG) to the Front Control
Access Panel (P) using the M4x10 screw (HH),
Φ4 Small Flat Washer (MM) and Φ4 Spring
Washer (NN) Hang the Chain (II) to the hole
on the Control Box Assembly (J) and insert
the pothook of front panel to the holes of
bottom plate.
J
P
HH
NN
MM
II
GG
Hardware Used
x 1
GG Knob
HH
LL
x 1
x 1
Philips
screwdriver
Screw M4 X 6
x 1
x 1
x 1
II Chain
MM Φ4 Small Flat
Washer
NN Φ4 Spring
Washer

ASSEMBLY INSTRUCTIONS
13. Connect regulator to cylinder. But DO NOT OPEN the
cylinder valve yet. Install cylinder, and secure with the
propane block belt (L) tightly. Complete installation.
Use a standard 20 lb. propane cylinder only.
(approximately 12.2 in. / 31cm. in diameter and 17.9 in.
/ 45.5cm high).
Use this heater only with a propane vapor
withdrawal supply system. See chapter 5 of the standard
for storage and handling of liquefied petroleum gas,
ANS/NFPA 58. Your local library or fire department
should have this book. Storage of an appliance indoors
is permissible only if the cylinder is disconnected and
removed from the appliance. A cylinder must be stored
outdoors in a well-ventilated area out of the reach of
children. A disconnected cylinder must have dust caps
tightly installed and must not be stored in a building,
garage or any other enclosed area. The maximum inlet
gas supply pressure: 250 psi /1750 kPa. The minimum
inlet gas supply pressure: 5 psi /35kPa. Manifold
pressure with regulator provided: 11 inch W.C/ 2.74 kPa.
The pressure regulator and hose assembly supplied
with the appliance must be used. The installation must
conform with local codes, or in the absence of local
codes,with national fuel gas code, ANS Z223.1/NFPA54,
natural gas and propane Installation Code, CSA B149.1,
or propane storage and handling code, B149.2.
12
NOTE, we have provided three tabs at
the base of the fire feature where it
can be secured to a patio. If installed
in a windy area or where it may be
bumped or tipped (fasteners are not
included) we strongly recommend
securing Ambiance to patio.
13
L

ASSEMBLY INSTRUCTIONS
Warning:
Ambiance parts are specifically designed for our units. Please DO NOT attempt to use
Ambiance parts on other products.
Do not store a spare LP-gas cylinder under or near this appliance;
Never fill the cylinder beyond 80 percent full;
Place the dust cap on the cylinder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other type of caps or plugs may result in leakage of propane.
13
A dented, rusted or damaged propane cylinder may be
hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged
valve connection.
The propane cylinder must be constructed and marked
in accordance with the specifications for LP gas
cylinders of the U.S. Department of Transportation
(DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and
commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention
device. The cylinder must have a connection device
compatible with the connection for the appliance. The
cylinder used must include a collar to protect the
cylinder valve. Never connect an unregulated propane
cylinder to the heater.
Use only Ambiance approved replacement parts. These can be ordered through your dealer or
directly from AEI Corporation [phone] M-F 7 a.m. to 4 p.m. PST.
Standard 20 lb. tank
12.2 in. / 31cm
17.9 in. / 45.5cm
The knob on the LP tank must be closed. Make sure that
the knob is turned clockwise to a full stop. The
cylinder supply system must be arranged for vapor
withdrawal. Check that the control knob on the control
unit is turned off. Hold the regulator in one hand and
insert the nipple into the valve outlet. Be sure the nipple
is centered in the valve outlet. The coupling nut connects
to the large outside threads on the valve outlet.
Hand-tighten the coupling nut clockwise until it comes
to a full stop. Firmly tighten by hand only.
To Disconnect: Fully close the tank valve by turning
clockwise. Turn the coupling nut counterclockwise
until the regulator assembly detaches.

OPERATION INSTRUCTIONS
Leak Check
•Perform all leak tests outdoors.
•Extinguish all open flames.
•NEVER smoke while carrying out the leak test.
•Do not use the fire feature until all connections have
been leak tested and do not leak.
1. Make 6-8 oz. of leak check solution (one part liquid dish washing detergent and three parts water).
2. Make sure tank valve is OFF and valve to Ambiance Fire Feature is in OFF Position
3. Apply several ounces of solution where hose attaches to regulator and Control Box fitting.
4. Apply several ounces of solution where regulator connects to cylinder; apply the soapy solution
to all hose & valve connections.
5. Turn tank cylinder valve ON.
If bubbles appear at any connection, there is a leak, follow instructions below:
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: Tighten accordingly with wrenches. The fittings are flare
to flare and tape or sealant should not be used. If bubbles continue appearing, the hose should be
returned to the place of purchase or contact AEI Corporation at [phone].
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. Apply the soapy solution to all hose & valve connections. If you continue to see bubbles
after several attempts, cylinder valve or regulator fitting is defective and should be returned to
cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete
leak test.
14
CRITICAL LEAK TEST LOCATION
CRITICAL LEAK TEST LOCATION
Regulator / Cylinder
connection
Hose / Regulator
connection
WARNING

OPERATION INSTRUCTIONS
DANGER
•CARBON MONOXIDE HAZARD
•For outdoor use only. Never use inside house, or other
unventilated or enclosed areas. This fire feature
consumes air (oxygen). Do not use in unventilated or
enclosed areas to avoid endangering your life.
Caution: Do not attempt to operate until you have read and understand all General Safety
Information in this manual and all assembly is complete and leak checks have been performed.
Before Turning Gas Supply ON:
1. Your fire feature was designed and approved for outdoor use only. Do NOT use it inside a
building, garage, or any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, such as wood, fabric, plants,
gasoline, and other flammable vapors or liquids.
3. Make sure that there is no obstruction to air ventilation. Be sure all gas connections are tight
and there are no leaks.
4. Be sure the cylinder housing is clear of debris. Be sure any component removed during assembly
or servicing is replaced and fastened prior to starting.
Before Lighting: NOTE
1. Ambiance Fire Feature should be thoroughly inspected before each use, and by a qualified
service person at least annually. Always wait at least 5 minutes before attempting to relight a hot
Ambiance Fire Feature.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected
areas should be leak tested. If the hose leaks, it must be replaced prior to operation. Only use
3. The pressure regulator and hose assembly supplied with the appliance must be used. Replacement
pressure regulators and hose assemblies must be those specified by the appliance manufacturer.
the replacement hose assembly specified by AEI Corporation for Ambiance.
Lighting:
Note: This fire feature is equipped with a Safety Pilot System that allows for safer startups and
shutdowns. Pilot must be lit before main burner can be started.
1. Turn the control knob to the “OFF” position.
2. Fully open LP cylinder valve.
3. Push control knob in and rotate to pilot position (Figure 1).
Note: For initial start or after any cylinder change, hold control knob in at “Spark Symbol”
position for up to 1 minute to purge air from gas lines before proceeding.
Figure 1 Figure 2
15

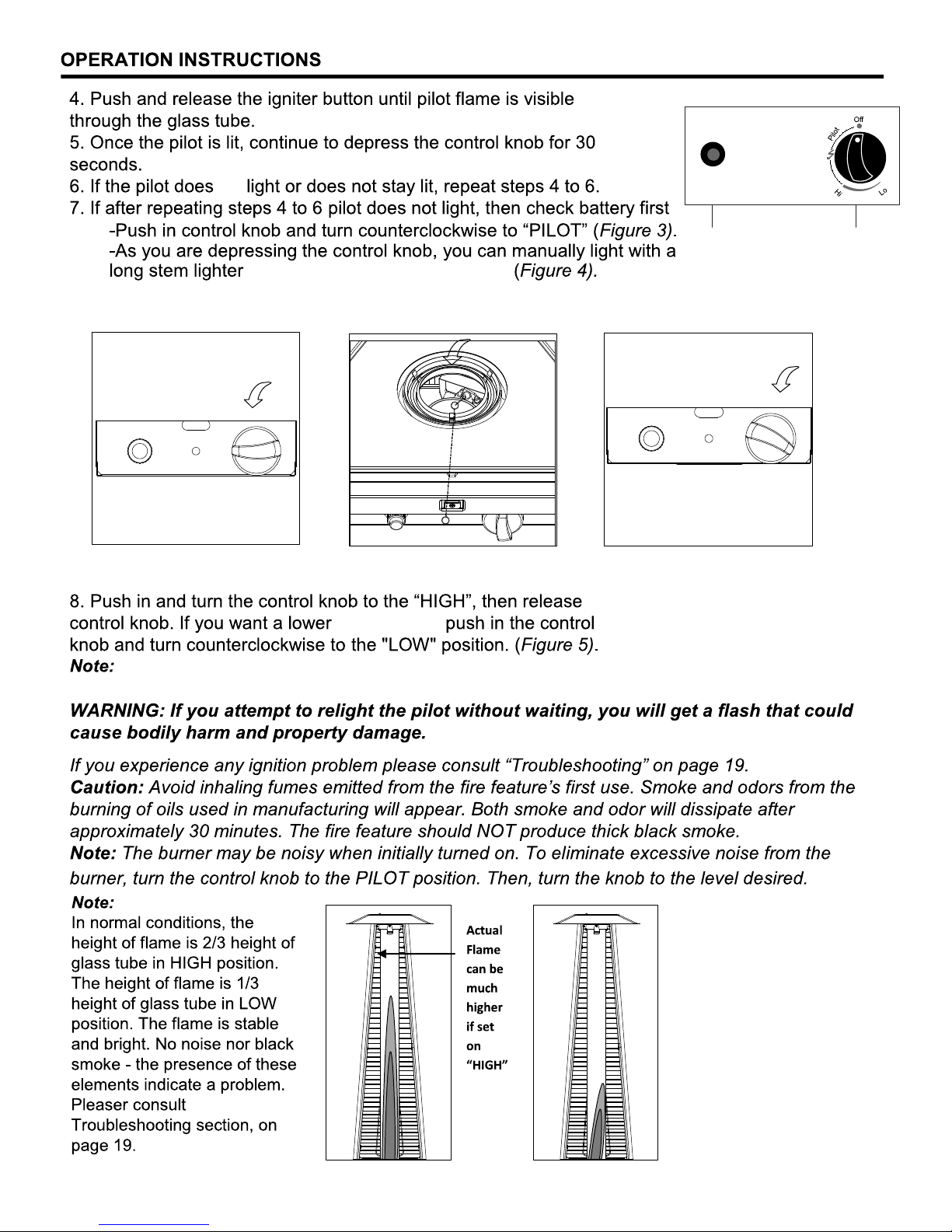

Igniter Variable
control knob

Igniter Variable
control knob
Figure 3 Figure 4 Figure 5
flame height,
Improper operation, can cause injury or property damage. If pilot fails to remain lit, all valves
should be closed and a waiting period of at least 5 minutes should pass before attempting to light.
Normal Abnormal
16
not
or the match extension tool (JJ).

OPERATION INSTRUCTIONS
WARNING
WARNING
17
if
above 40 degree F

9. Fire feature is away from gasoline or other flammable liquids or vapors.
10. Fire feature is away from windows, air intake openings, sprinklers and other water sources.
11. Fire feature is located at least 24" (top) / 36" (sides) from combustible materials.
12. Fire feature is on a hard and level surface.
13 . There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the fire feature.
18. Clothing, combustible materials or other protective material should not be hung from the fire
feature, or placed on or near the fire feature.
19. Any guard or other protective device removed for servicing the fire feature must be replaced
prior to operating the fire feature.
20. Any repair of this fire feature should be done by a qualified service person. The fire feature
should be inspected before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control
compartment, burner and circulating air passageways of the fire feature be kept clean.
After Operation be Certain:
Gas control is in OFF position. Gas tank Valve is OFF. Disconnect Propane gas cylinder if storing. .
FOR YOUR SAFETY:
•Do NOT touch or move fire feature for at least 45
minutes after use.
•Reflector is hot to touch.
•Allow reflector to cool before touching.
To enjoy years of outstanding performance from your fire feature, make sure you perform the
following maintenance activities on a regular basis:
1. Keep exterior surfaces clean. Use warm soapy water for cleaning. Never use flammable or
corrosive cleaning agents. While cleaning your unit, be sure to keep the area around the burner
and pilot assembly dry at all times. Do not submerge the control valve assembly. If the gas control
is submerged in water, do NOT use it. It must be replaced.
2. Keep the appliance area clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
3. Do not obstruct the flow of combustion and ventilation air.
4. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
5. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean.
6. Regularly replace AA Battery behind ignitor button (as needed)
7. Remove and thoughouly clean control box assembly using compressed air annually, if Ambiance
Fire Feature pilot fails to light or as needed.
18
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE

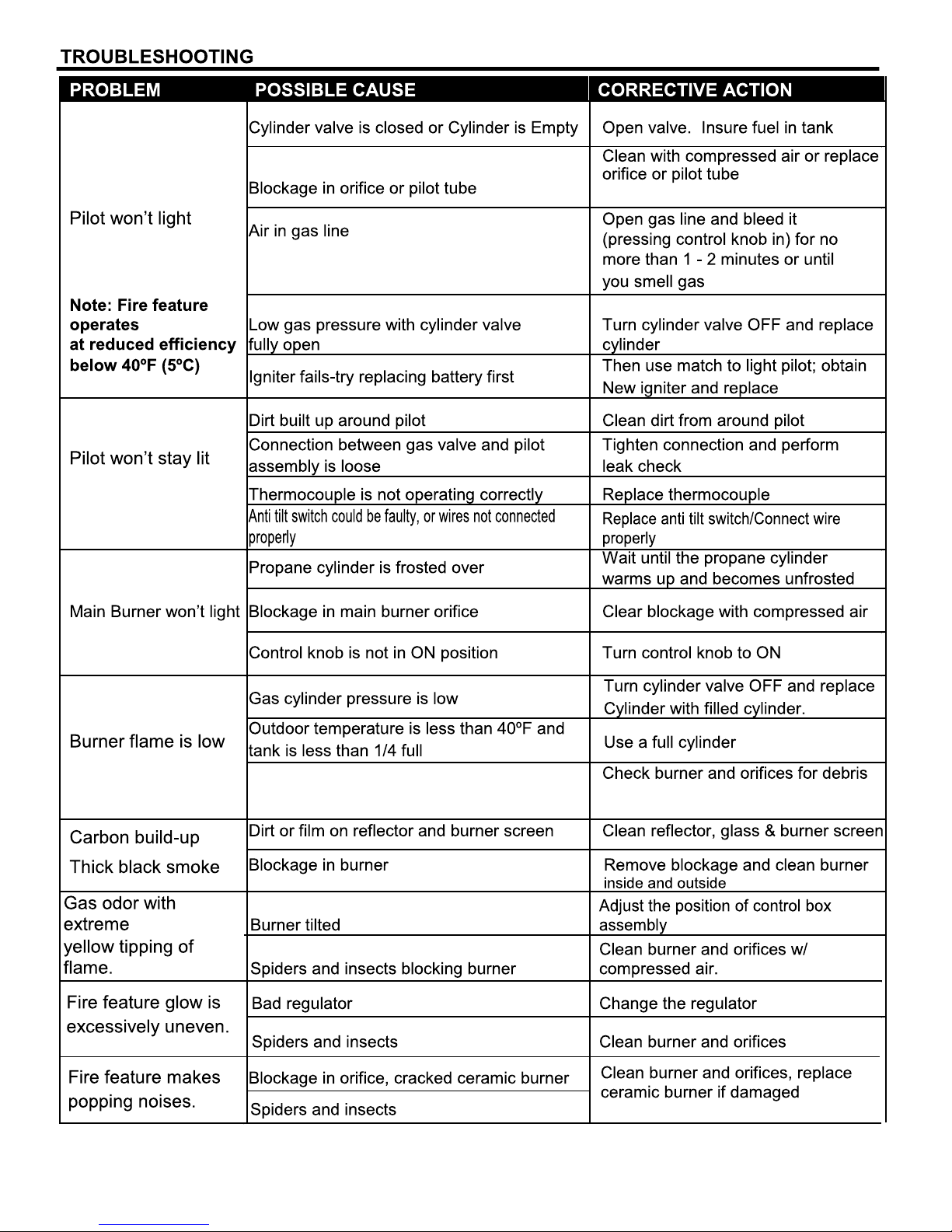

WARNING

19
And control knob is in the fully ON position and clean blockage with compressed
air.

CARE AND MAINTENANCE
Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire feature
and render it unsafe for use. Clean burner holes by using compressed air, burner is fragile, handle
with care when cleaning.
Carbon deposits may create a fire hazard, to clean, remove the emitter grid (mesh) assembly, take
down one side of protective guards. Remove both screws from just one upper support (E) where it
attaches to the top plate (D). Then take Carefully the glass tube UP AND THEN OUT from the
Ambiance Fire Feature wash and clear. After that; reassemble the glass tube and the rest of parts.
Note:In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
TIP:
Use high-quality automobile wax to help maintain the appearance
of your fire feature. Apply to exterior surfaces from upper support
(long) down. Do not apply wax to emitter grid, glass tube, or
reflector.
Storage, Transporting or during periods of extended inactivity
Between uses:
Turn control knob OFF.
Disconnect and remove LP cylinder.
Store fire feature upright in an area sheltered from direct contact with inclement weather (such as
wind, rain, sleet, hail, snow, dust and debris).
If desired, cover fire feature to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until fire feature is completely cooled off before moving or covering.
Service
Only a qualified service person should repair gas passages and associated components. Contact
AEI Corporation for OEM parts at:
Ph [phone] Fax [phone] www.aeicorporation.com
or [email protected] 2641 Du Bridge Ave., Irvine CA 92606
Caution: Always allow fire feature to cool before moving or attempting service.
20
Spiders and other small insects are attracted to the odorant found in gas.
Keep area in and around Ambiance Fire Feature Free from insects.
