Ambient Technologies TOUCH LIGHT User manual

50D0092 Rev 4 Feb 2005 Page 1 of 9 Ambient Technologies
ADivision Of
TLM
TOUCH LIGHT™ On/Off Remote Control
INSTALLATION AND OPERATING INSTRUCTIONS
This wireless wall on/off/ remote control – system provides a safe, reliable, and user-friendly remote control for
millivolt valve gas appliances. The system can be manually turned on and off with the transmitter. Always check
the appliance home owner’s manual for additional information, or warnings regarding accessory installation before
connecting this remote control system.
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the
dealer from whom you purchased the kit. Do not attempt to install any part of the kit unless all parts are in good
condition. Please keep this booklet for future reference.
CONTENTS OF KIT
Description Qty
Touch Light Transmitter 1
Battery Alkaline AA (for Transmitter and receiver) 6
Receiver (Assembly) consists of : 1
Receiver Box
Slide Button-Black (On/RS/Off)
L-Bracket (Floor Mount)
Wall Cover Plate-Black 1
Wall Cover Plate-White 1
Slide Button-White (On/RS/Off) 1
Screws (for Wall Cover Plate) 2
Plug-In Wiring Assembly – 18” Inches 1
Velcro (Loop and Hook) 1
Wall Anchor Screws 2
Wall Anchor 2
Installation Instructions
Screws (for fireplace system control covers)
Wall Bracket
1
2
1
FEATURES/SPECIFICATIONS
•Contemporary Ergonomic Table Top or Wall Mount Transmitter with Large LCD Display
•Battery Powered Transmitter and Receiver
•Easy Access Battery Door
•Pre-Programmed for Quick Installation
•Low battery Indication
•Child Proof Lock-out
•16 Security Codes
•2 hour Shut Down (Optional)
•Thermal Safety Shutdown (Transmitter Only)
•Quick Disconnect Wiring Assembly
•Reset Button

50D0092 Rev 4 Feb 2005 Page 3 of 9 Ambient Technologies
ADivision Of
L-Bracket
Slide Switch
Batter
y
Door

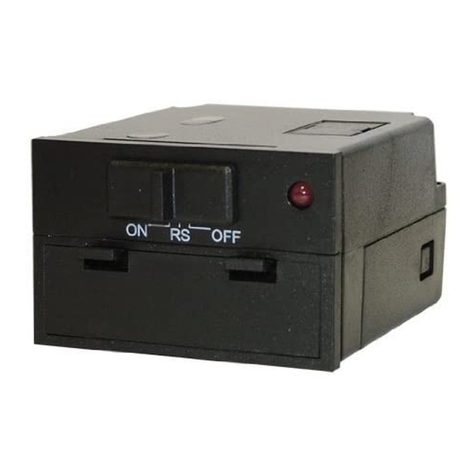

Remote Receiver:
The remote receiver may be wall mounted or installed in the appliance per the
appliance homeowner’s manual. Refer to the Homeowner’s Manual for special
installation instructions. If wall mounted, the remote receiver must be installed
in a junction box with cover plate provided. Failure to follow the installation
instructions found in the appropriate Homeowner’s Manual will void the warranty
and may cause a fire hazard.
Installing Batteries:
The remote receiver uses four (4) “AA”- size batteries. To install batteries,
1. Remove the slide switch by gently pulling straight out.
2. Use your thumb and index finger to gently pull down the L-bracket.
3. Open the battery door by pressing the two tabs located on the door.
4. Install the batteries as indicated in the receiver cover.
5. Close the battery door until the door tab snaps in place.
6. To install the receiver into a wall junction box, install the receiver with
the screws provided .
7. If you decided to install the receiver into the appliance, reinstall the L-
bracket.
8. Gently, install the slide switch back to the receiver stem.
9. The batteries should be replaced at least once every 6 months or when the battery indicator flashes.
Connecting the Receiver to your appliance:
This system comes with an 18 inch wire assembly. Insert the white terminal to the back of the receiver. The
terminal wire block can only be installed one way. Do not force the terminal plug onto the receiver.
Connect the wiring terminal two (2) _” female spade terminals to the appliance. Refer to the appropriate
Homeowner’s Manual for proper wiring connections to the appliance. Your appliance may have other options to
connect wiring from receiver. For applications longer than 18 inches, use 18 gauge wire, 105ºC rated, with no
splices. Connect to the two (2) 1/4“ female spade wiring terminals. Wire can be no longer than 20 feet.
WARNING
Make sure that the wires do not contact the appliances any place other than at the terminals.
Exposure to temperatures higher than 105C (250ºF) may cause the receiver to malfunction or
fire hazard.
Touch Light Transmitter:

50D0092 Rev 4 Feb 2005 Page 4 of 9 Ambient Technologies
ADivision Of
Installing Batteries:
The Touch Light transmitter uses two (2) “AA”- size batteries. To install
batteries,
1. Press down the battery door tab and lift up and remove the
battery door.
2. Install the battery.
3. Close the battery door by snapping in place
4. Repeat the above step for the other battery.
5. When both batteries are installed, the transmitter will
initialize for 10 seconds and then is ready for use.
6. The batteries should be replaced at least once every 6
months or when the battery icon indicator flashes.
Setting Privacy (DIP) Switch on Receiver and Transmitter:
The remote receiver and transmitter privacy (DIP) switches are preset at the factory. In the event of activation or
interference from other nearby transmissions, reset the code using the following procedure:
1. Slide the code switches on the transmitter or receiver to your choice of ON or OFF position. Switches #1
to #4 are preset to “ON” for both the transmitter and receiver.
2. The switches on the transmitter and receiver must match in order for the system to work.
3. To check, touch the transmitter groove surfaces for at least 1 second and , the transmitter will emit a beep,
and the receiver indicator light will blink. If not repeat step 2.
4. The system is now ready to operate.
WARNING
Do not use two (2) or more remote control systems in the same area with the same dip switch
settings, as they will communicate with each other. This may cause the appliances to
malfunction.
Optional Auto Shutdown:
