Ambient Weather PM2.5 User manual

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 1
Ambient Weather PM2.5 Wireless Indoor / Outdoor
Particulate Monitor User Manual
Table of Contents
1. Introduction.....................................................................................................................................1
1.1 Parts List .................................................................................................................................2
1.2 Recommend Tools...................................................................................................................2
1.3 Warnings .................................................................................................................................2
1.4 Sensor Overview.....................................................................................................................3
2. Sensor Setup....................................................................................................................................3
2.1 Inserting the Batteries .............................................................................................................3
2.2 Recharging the Batteries.........................................................................................................4
3. Sensor Installation...........................................................................................................................4
3.1 Sensor Mounting.....................................................................................................................4
3.1.1 Mounting Guidelines..........................................................................................................4
3.1.2 Mounting Screws ...............................................................................................................4
3.2 Best Practices for Wireless Communication...........................................................................5
4. Specifications..................................................................................................................................6
4.1 Measurement Specifications ...................................................................................................6
4.2 Wireless Specifications...........................................................................................................6
4.3 Power Specifications...............................................................................................................6
5. Liability Disclaimer ........................................................................................................................6
6. FCC Statement................................................................................................................................7
7. Warranty Information......................................................................................................................7
1. Introduction
Thank you for your purchase of the Ambient Weather PM2.5 WiFi Indoor / Outdoor Particulate
Monitor. The following user guide provides step by step instructions for installation, operation and
troubleshooting. To download the latest manual, compatible devices, and additional troubleshooting
tips, please visit:
https://ambientweather.net/product/pm25
PM2.5 refers to particles that are 2.5 microns or smaller in diameter. This sensor uses laser
scattering to radiate suspending particles in the air, then collects scattering light to obtain the curve of
scattering light change with time. The microprocessor calculates equivalent particle diameter and the
number of particles with different diameter per unit volume.

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 2
The following table describes the Air Quality Index (AQI) vs. PM2.5 breakpoints.
AQI Category
Breakpoints
(µg/m3)
Good
0.0 –12.0
Moderate
12.1 –35.4
Unhealthy for Sensitive
Groups
35.5 –55.4
Unhealthy
55.5 –150.4
Very Unhealthy
150.5 –250.4
Hazardous
250.5 –350.4
Extremely Hazardous
350.5 –500
Figure 1
1.1 Parts List
QTY
Item
1
PM2.5 Sensor
1
USB Charging Cable
2
Ni-MH Rechargeable Batteries
4
Mounting Screws
1
User manual
1.2 Recommend Tools
Precision screwdriver for mounting screws.
1.3 Warnings
Warning: Only use Ni-MH Rechargeable Batteries. Do not use any other battery chemistry.
Using batteries other than the prescribed Ni-MH may result in battery explosion when charging.

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 3

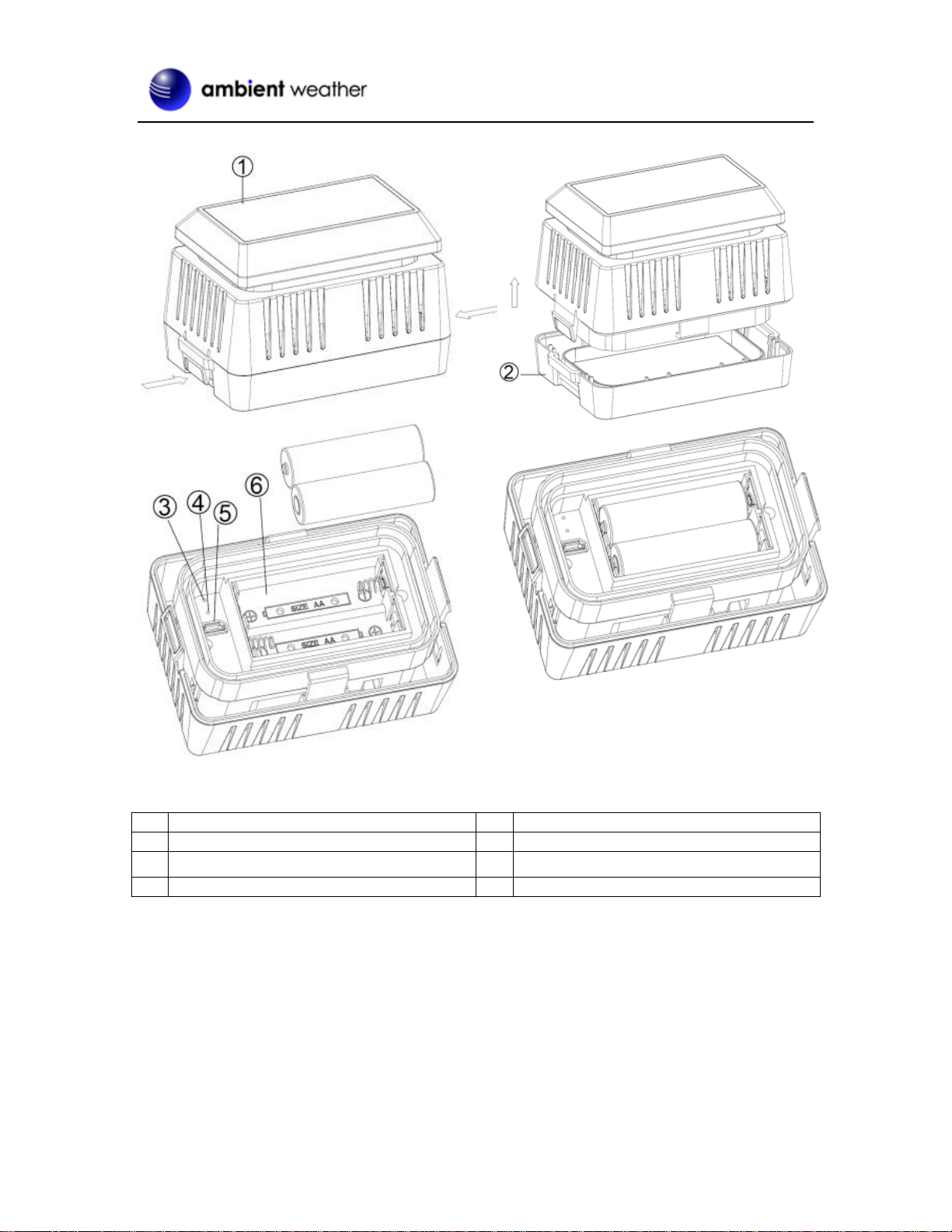

1.4 Sensor Overview
Figure 2
No
Description
No
Description
1
Solar Collector
4
Blue LED Indicator (charging status)
2
Battery Compartment Cover
5
USB Charging Port
3
Red LED Indicator (RF transmission)
6
Battery Compartment
2. Sensor Setup
2.1 Inserting the Batteries
Remove the battery cover on the bottom of the sensor, and insert the 2 x AA Ni-MH Rechargeable
Batteries.
After inserting the batteries, the sensor LED indicator will light for four seconds, and then flash once
per 10 minutes thereafter. Each time it flashes, the sensor is transmitting data.

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 4
Close the battery door.
2.2 Recharging the Batteries
When there is no solar energy, a fully charged set of batteries can last for about 20 days (approximately
500 hours). A low battery indicator will appear on the display console.
To recharge the batteries:
Remove the battery cover on the bottom of the sensor.
Connect the USB cable to a standard USB power adapter and charge battery until blue LED turns off,
indicating batteries are fully charged.
Once charged, disconnect the USB charging cable.
Close the battery door.
3. Sensor Installation
3.1 Sensor Mounting
3.1.1 Mounting Guidelines
Mount in a well-drained area. An example of a good mounting location is on the top of a post. If the
sensor is mounted in a pool of water, it will read incorrectly and may degrade the life of the
sensor. An example of a poor mounting location is a table or ground where water can collect.
Mounting orientation is not important. It can be mounted vertically or horizontally, as long as the
vents are not blocked.

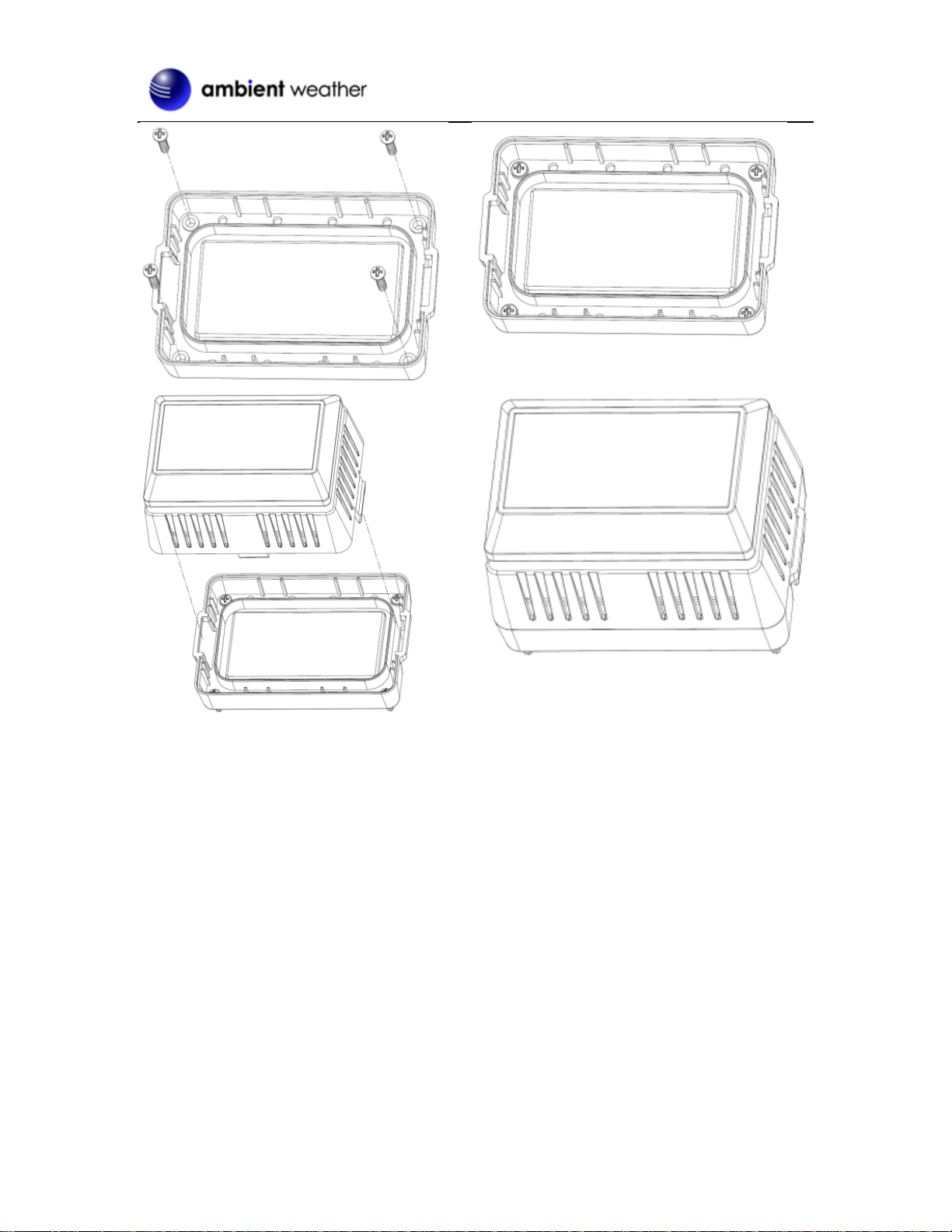

3.1.2 Mounting Screws
Open the battery compartment.
Use four screws to fix the base of the sensor on a flat surface.
Close the battery compartment.

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 5
Figure 3
3.2 Best Practices for Wireless Communication
Wireless communication is susceptible to interference, distance, walls and metal barriers. We
recommend the following best practices for trouble free wireless communication.
1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors
and TVs.
2. Radio Frequency Interference (RFI). If you have other 433 MHz devices and communication is
intermittent, try turning off these other devices for troubleshooting purposes. You may need to relocate
the transmitters or receivers to avoid intermittent communication.
3. Line of Sight Rating. This device is rated at 300feet line of sight (no interference, barriers or walls)
but typically you will get 100feet maximum under most real-world installations, which include passing
through barriers or walls.

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 6
4. Metal Barriers. Radio frequency will not pass through metal barriers such as aluminum siding. If
you have metal siding, align the remote and console through a window to get a clear line of sight.
The following is a table of reception loss vs. the transmission medium. Each “wall”or obstruction
decreases the transmission range by the factor shown below.
Medium
RF Signal Strength Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%
4. Specifications
4.1 Measurement Specifications
4.2 Wireless Specifications
Transmission distance in open field: 300 feet line of sight, 100 feet under most conditions.
Frequency: 915 MHz
Sensor reporting interval: 10 minutes
4.3 Power Specifications
PM2.5 sensor: 2 x AA 1.2V LSD type NI-MH batteries (included)
Solar panel for backup power
5. Liability Disclaimer
Please help in the preservation of the environment and return used batteries to an authorized depot.
The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in
wild country and/or in unauthorized grounds strongly damages the environment.
Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any
responsibility for any incorrect readings and any consequences that occur should an inaccurate reading
take place.
This product is designed for use in the home only as indication of weather conditions. This product is
not to be used for medical purposes or for public safety information.
The specifications of this product may change without prior notice.
This product is not a toy. Keep out of the reach of children.
Measurement
Range
Accuracy
Resolution
PM 2.5
0~999ug/m3
>100ug/m3, ±15%
<100ug/m3, ±15ug/m3
(at 25°C ±5°C)
1ug/m3

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 7
No part of this manual may be reproduced without written authorization of the manufacturer.
Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL,
PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR
MALFUNCTION OF THIS PRODUCT.
6. FCC Statement
Statement according to FCC part 15.19:
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Statement according to FCC part 15.21:
Modifications not expressly approved by this company could void the user's authority to operate the
equipment.
Statement according to FCC part 15.105:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
7. Warranty Information
Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in
materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on products purchased and
only to the original purchaser of this product. To receive warranty service, the purchaser must contact
Ambient, LLC for problem determination and service procedures.
Warranty service can only be performed by a Ambient, LLC. The original dated bill of sale must be
presented upon request as proof of purchase toAmbient, LLC.
Your Ambient, LLC warranty covers all defects in material and workmanship with the following
specified exceptions: (1) damage caused by accident, unreasonable use or neglect (lack of reasonable
and necessary maintenance); (3) damage resulting from failure to follow instructions contained in your
owner’s manual; (4) damage resulting from the performance of repairs or alterations by someone other
than an authorized Ambient, LLC authorized service center; (5) units used for other than personal use

Version 1.6 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 8
(6) applications and uses that this product was not intended (7) the products inability to receive a
signal due to any source of interference or metal obstructions and (8) extreme acts of nature, such as
lightning strikes or floods.
This warranty covers only actual defects within the product itself, and does not cover the cost of
installation or removal from a fixed installation, normal set-up or adjustments, claims based on
misrepresentation by the seller or performance variations resulting from installation-related
circumstances.
