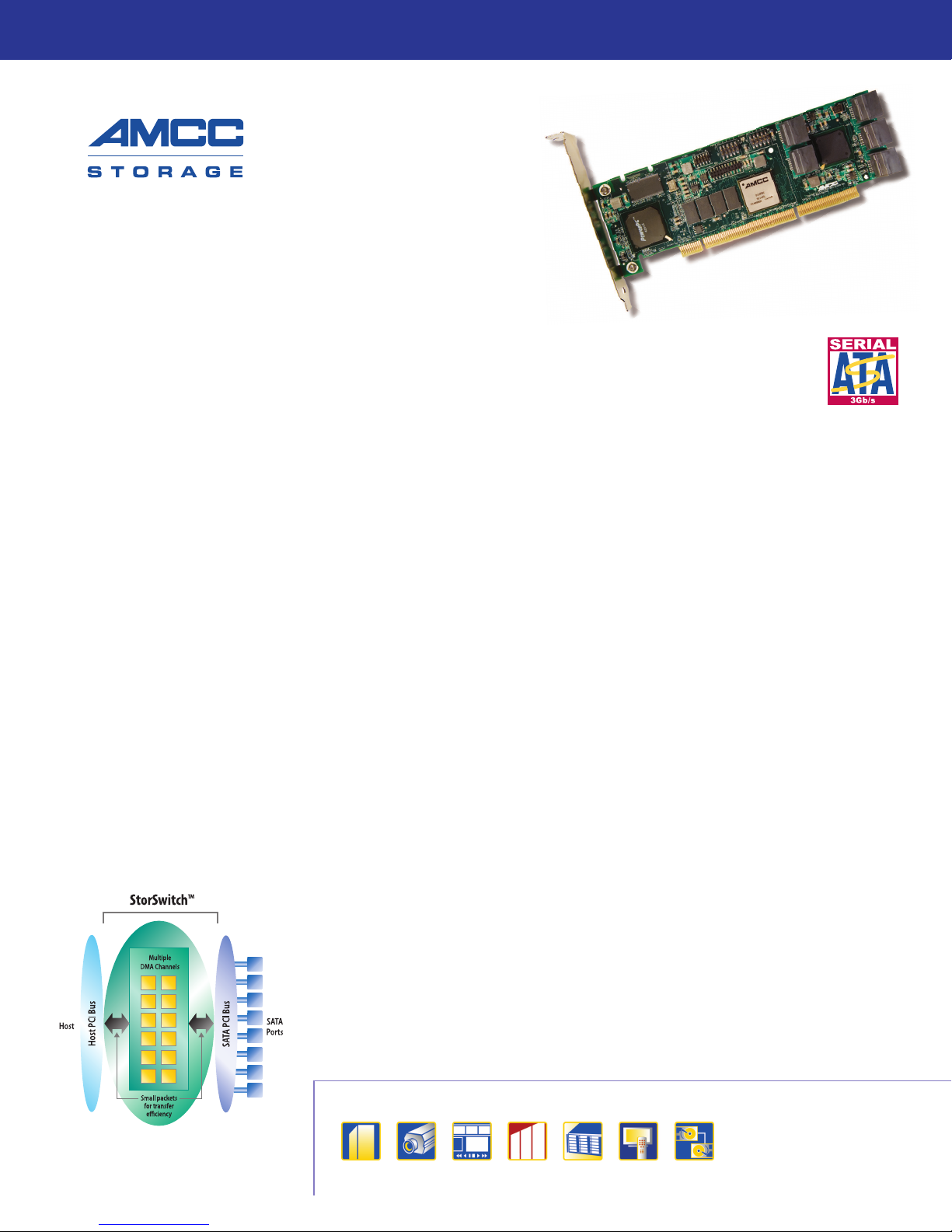

AMCC 3ware 9550SXU-16M User manual

The 3ware 9550SXU SATA II RAID controller delivers unmatched performance, robust fault-
tolerance, and multi-terabyte capacities. Combined with an advanced RAID management feature
set that includes web-based, command-based, and API software components, the 9550SXU,
available in 4, 8, 12, and 16-port configurations, is the most compelling solution available.
Highlights
• 200% faster than the industry-
leading 3ware 9500S RAID controller
• Over 380 MB/s RAID 5 writes and
over 800 MB/s RAID 5 reads
• StorSwitch™7th generation non-
blocking switch fabric for maximum
controller throughput
• StreamFusion™optimizes RAID 5 disk
accesses to maximize application
performanceunder multiple heavy
stream loads
• StorSave™BBU with write journaling
optimizes data protection and
performance
• Supports advanced SATA 2.5 specifi-
cation features including 3 Gbps,
NCQ, Port Multiplier and Port Selector
•Multi-lane™combines four SATA ports
intoasingle locked connection to
improve I/O subsystem reliability
• A complete family of 4,8,12,and
16-port controllers
SATA II RAID Controllers
APPLICATIONS FOR 3WARE CONTROLLERS
Servers Security/
Surveillance Video Editing Super
Computing NAS Video On-Demand Disk-to-Disk
Backup
High Performance RAID
Solution of Choice
The 3ware 9550SXU PCI-X to Serial ATA II RAID
controller delivers over 800 MB/sec RAID 5 reads
and exceeds 380 MB/sec RAID 5 writes, making it
200% faster than the industryleading 3ware
9500S RAID controller. 7th generation StorSwitch™
non-blocking switch fabric technology and
sophisticated SATA II features including 3 Gbps
transfer speed, Native Command Queuing, and
Port Multiplier support drive this unmatched
performance.
AMCC’s exclusive StreamFusion™caching algorithms
assurethe most efficient use of available band-
width when transferring multiple simultaneous
data streams to an array. The on-board PowerPC
processor manages RAID controller functions,
which allows the host system CPU tomanage
system applications.
The 9550SXU’sadvanced RAID features and pow-
erful performance architecture make it the ideal
controller for mid-range database applications,
print and file server applications, and vertical
applications including NAS storage, web servers,
cluster servers, supercomputing, near-line backup
and archival,securitysystems,and audio and
video streaming applications.
Enterprise-class Reliability
and Scalability
StorSave™,AMCC’s data reliability platform, delivers
acomprehensivesuiteof advanced data protec-
tion and data recovery features, combined with
aBatteryBackup Unit. The BBU,completewith
write journaling, provides added data protection
in the event of a power outage. Reliability is
further strengthened with features like out of
band (OOB) staggered spin up, SMART disk drive
monitoring and reporting, hot spare/hot swap,
automatic rebuild, and dynamic sector repair.
Enterprise RAID features such as on-line capacity
expansion allows flexible scalabilityof the RAID
array, while RAID level migration allows the
reorganization of arrays when data protection
requirements change. Other scalability features
include 64-bit LBA support for addressing arrays
greater the 2 TB and support for multiple cards
within a system for large storage requirements.
The 3ware9550SXU controller supports RAID
levels 0, 1, 10, 5, 50, Single Disk, and JBOD.
Integrated Cabling Flexibility
AMCC’s award winning Multi-lane™SATA cabling
system significantly reduces the number of cables
needed to connect controllers, backplanes,
and standardSATAdrives.Multi-lane combines
four SATA ports into a single locked connection.
A16-port controller requires only four cables
with Multi-lane. A reduced cable count facilitates
systems scalability and improved airflow.
3ware®9550SXU*
High-Performance PCI-X to Serial ATAII RAID Controller
Hard
Drive
Hard
Drive
Hard
Drive
Hard
Drive
Up to
1.5 Gb/sec
per port
3ware SATA Hardware
RAID Controller
Advanced
StorSwitch
Architecture
*A“U” has been added to all 9550SX part numbers to denote
RoHS 6 of 6 compliance

3ware 9550SXU Series Selection Guide
Model 9550SXU-4LP 9550SXU-8LP 9550SXU-12 9550SXU-12MI 9550SXU-16ML
Form Factor Half length/lowprofile Half length/lowprofile Half length Half length Half length
Port Count 4812 12 16
Host Interface PCI-X PCI-X PCI-X PCI-X PCI-X
Host Interface Speed 64-bit/133MHz 64-bit/133MHz 64-bit/133MHz 64-bit/133MHz 64-bit/133MHz
Onboard Memory 128 MB 128 MB 256 MB 256 MB 256 MB
Connector Type Discrete Discrete Discrete Multi-lane Multi-lane
RoHS Compliant Model 9550SXU-4LP 9550SXU-8LP 9550SXU-12 9550SXU-12MI 9550SXU-16ML
• Array/Drive Status and drive identification LED support
• Chassis Control Unit for enclosure management via I2C
• Low operating temperature at full utilization
Operating System Support
• Microsoft® Windows® 2003/XP/2000, Red Hat Linux, SuSE Linux,
Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD, 32/64-bit support
For complete OS listing, go to:
www.3ware.com/support/OS-support
3ware 9550SXU Specifications
• Low profile (4 and 8-port) and half-length form factors
• 4, 8, 12, and 16-port configurations
• PCI-X 1.0b (and PCI 2.3) compliant 64-bit/133/100/66MHz bus master
• Serial ATA 2.5 Specification support
• BIOS PnP (plug and play) and BBS (BIOS boot specification) support
• Operating Temperature Without BBU: 0˚C to 50˚C
With BBU: 10˚C to 40˚C
• Power Requirements 3.5 –10 W @ 3.3 V (depending on configuration)
• Dimensions
9550SXU-4LP 7.475”L x 2.536”H (18.987cm x 6.441cm)
9550SXU-8LP 7.475”L x 2.536”H (18.987cm x 6.441cm)
9550SXU-12 6.875”L x 4.2”H (17.463cm x 10.668cm)
9550SXU-12MI 6.875”L x 4.2”H (17.463cm x 10.668cm)
9550SXU-16ML 6.875”L x 4.2”H (17.463cm x 10.668cm)
Service and Support
• 3-year warranty
•Supportvia the web at www.3ware.com/support
• For latest motherboard and hard drive compatibility listing go to:
www.3ware.com/products/compatibility_sata.asp
Accessories
• BBU-MODULE-03 Battery Backup Unit
• BBU-MODULE-04 Battery Backup Unit with remote battery
mounting kit
• RDC-400-SATA SATA internal drive cage
• RDE-400-XSATA SATA RAID drive enclosure
• Cables See www.3ware.com/products/cables.asp
•BATT-SPARE-02 Replacement battery for BBU-MODULE-03
and BBU-MODULE-04
3ware 9550SXU Features
• 7th-generation StorSwitch™point-to-point, non-blocking switched
architecture
• On-board PowerPC RISC processor provides true hardware RAID
—SCSI device driver model to take advantage of the benefits of
SCSI using inexpensive Serial ATA drives
• Bootable array support for greater fault tolerance
• Variable stripe size for performance tuning by application
• 64-bit LBA support
• ATA pass-through mode support
• Up to 256 MB DDR2 400 memory with ECC protection
• 32 pooled DMA channels
• Complete configuration management suite
—3ware BIOS Manager 2 (3BM2) – easy to use BIOS configuration tool
— 3ware Disk Manager 2 (3DM®2) – browser-based management tool
* Features include: secure access via ssh or https, create unit, delete
unit, remove unit, import unit, migrate unit, verify unit rebuild unit
— Command Line Interface (CLI) – scriptable configuration tool
• SNMP support
• SMTP support for email/pager notification
• ATA/6 and Out of band (OOB) staggered drive spin-up support
• Auto carving allows logical units larger than 2 TB to be divided into
multiple units for legacyoperating systems that are limited to a
maximum of 2 TB per logical unit
• StorSave platform for advanced performance tuning with the BBU
• Multiple logical unit sizes and RAID levels on one card
• Multiple card support within a system for large storage requirements
•Hot-swap and hot-spare support for data availability
• Dynamic sector repair for robust data protection
• S.M.A.R.T. disk drive monitoring for reliability
•Emergency Flash Recovery protects against failed firmware upgrade
• Drive activity LED support
• Online Capacity Expansion and RAID Level Migration
• Battery Backup Unit (BBU) ready
• Enhanced data protection with write journaling for non-redundant
arrays and accidental driveremoval
• Drive insertion and removal notification
3ware 9550SXU*
AMCC reserves the right to make changes to its products, or to discontinue any product or service without notice, and advises its customers to
obtain the latest version of relevant information to verify, before placing orders, that the information being relied upon is current.
AMCC is a registered trademark of Applied Micro Circuits Corporation. 3ware, SwitchedRAID and 3DM are registered trademarks in the United
States and StorSwitch is a trademark in the United States, of Applied Micro Circuits Corporation. All other trademarks are the property of their
respective holders. Copyright © 2005 Applied Micro Circuits Corporation. All Rights Reserved. DS9550SXU_081607
