Amerec iPOD DOCK User manual

4211-40 11/08/11
iPOD DOCK INSTALLATION TEMPLATE
Determine the location where the Dock will be mounted. This drawing may be used as a template or use the instructions on the next page.
Make sure the mounting is level and plumb!
TOP
DOCK MOUNTING TEMPLATE 1
For assistance, contact Technical Support at 1-800-363-0251 or [email protected]

1/4” dia
6,3mm
5-7/8”
146 mm
1/2” diameter
13mm
5/16” diameter
8mm
4 corners
4.10”
104mm
center to center
2.96”
75mm
center to center
2.96”
75mm
center to center
5-9/16”
141mm
center to center
3-5/8”
92mm
3-5/16”
84mm
center to center

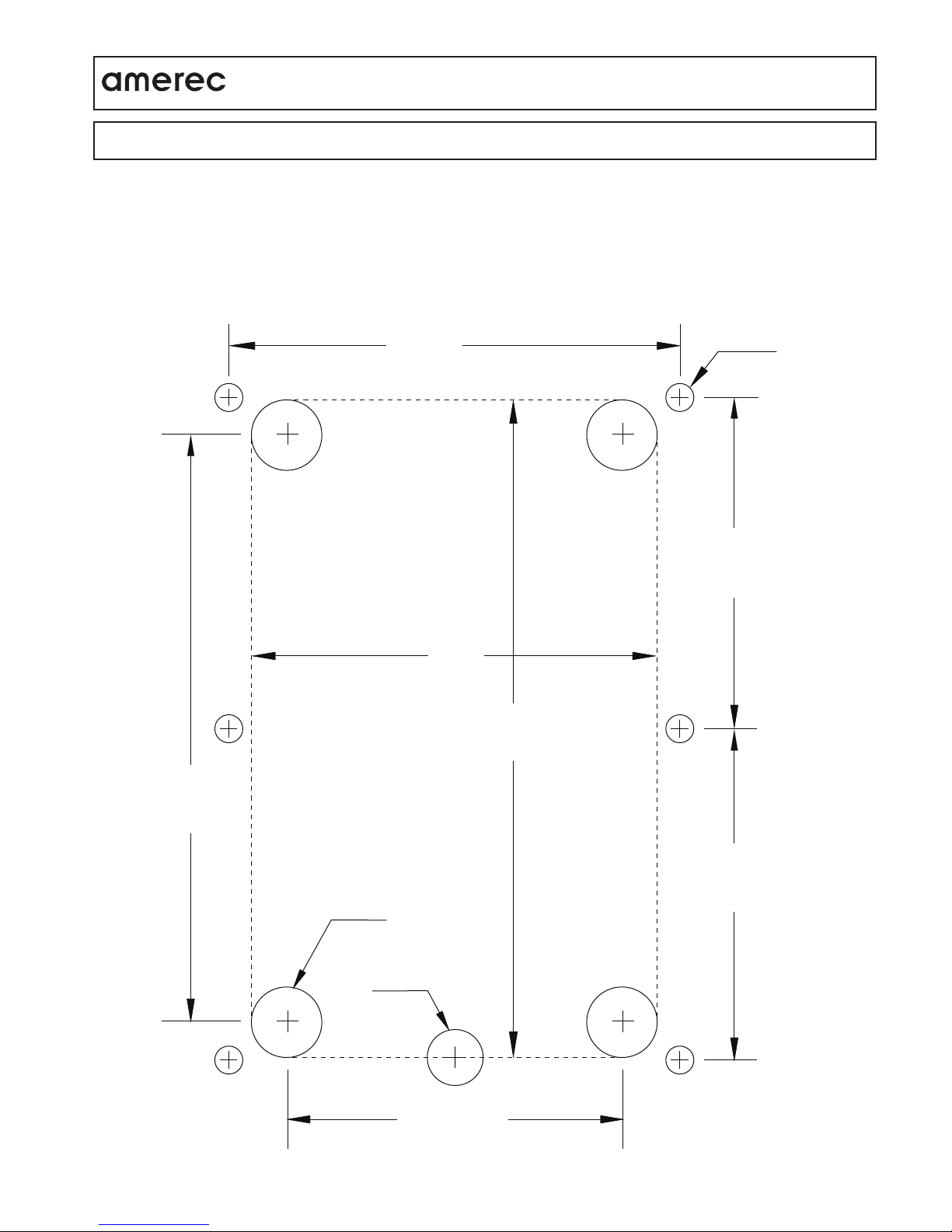

Determine the location where the Dock will be mounted. This drawing may be used as a template or drill holes as shown then connect the
large corner holes by cutting straight lines from the outside edges of each hole as shown. The 1/2” hole at the bottom is needed to provide
clearance for the iPod cable at the bottom of the Dock.
Make sure the mounting is level and plumb!
DOCK MOUNTING TEMPLATE 2
iPOD DOCK INSTALLATION TEMPLATE
For assistance, contact Technical Support at 1-800-363-0251 or [email protected]
4211-40 11/08/11
