User Instructions
Illusion Dotz 4.4
©2013 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!

Unpacking: Thank you for purchasing the Illusion Dotz 4.4 by ADJ
Products, LLC. Every Illusion Dotz 4.4 has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your xture for
any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please do not return this unit to your dealer without
contacting customer support rst.
Introduction: The Illusion Dotz 4.4 is a DMX intelligent, moving head
fixture. The Illusion Dotz 4.4 can be a 12 channel, 14 channel, or 59
Channel DMX unit. The fixture can operate in three different operating
modes; show mode, sound-active, or under DMX control. The Illusion
Dotz 4.4 can be used as a stand alone unit or in a master/slave con-
figuration. For best results use fog or special effects smoke to enhance
the beams projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Illusion Dotz 4.4 General Information
ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 2
Table of Contents
Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
Features.........................................................................5
Handling Precautions..................................................................6
Registration......................................................................6
Mounting.........................................................................7-8
DMX Set-Up...........................................................................9-11
System Menu............................................................................12
Operation............................................................................31-32

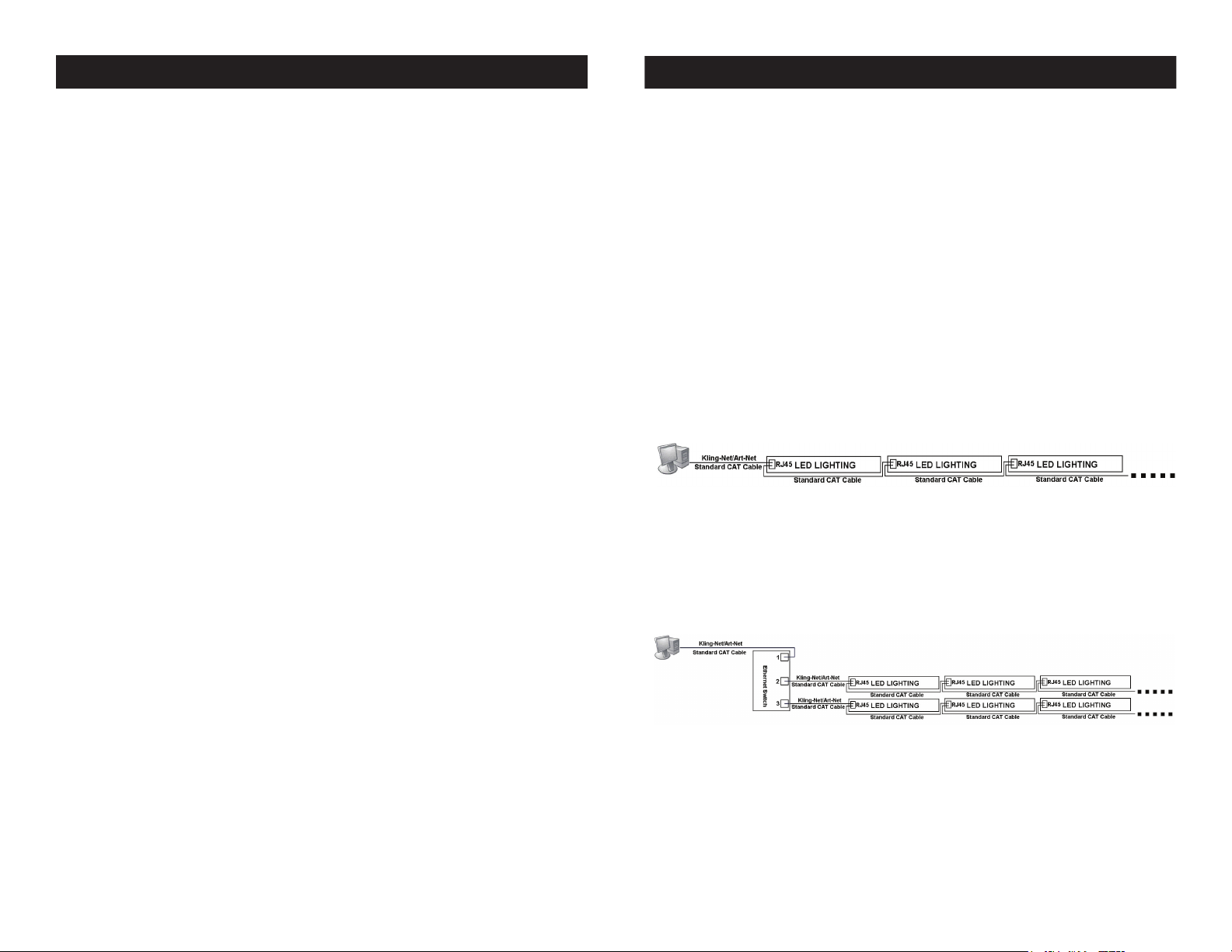

Kling-Net/ArtNet Control...........................................................33
DMX Traits............................................................................34-44
Fuse Replacement....................................................................46
Cleaning..................................................................46
Trouble Shooting.......................................................................46
Warranty.........................................................................47
Specifications....................................................................50

For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 46 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Illusion Dotz 4.4 Safety Precautions
ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 4
• 3 Modes of DMX-512 Protocol Compatible (12 DMX Channel
Mode, 14 DMX Channel Mode, and 59 DMX Channel Mode)
• RDMX - Lets you set the DMX address from any DMX Controller
• 3 Operating Modes - Master/Slave; Stand Alone; Sound Active
• Kling-Net and Art-Net Compatible (Recommended control solu-
tions; Arkaos Media Master Express, Media Master Pro, and LED
Master software’s (sold separately).
• Internal Microphone
• 5 Dimmer Curve Settings
• Power Cord Daisy Chaining (See below)
• Edit and Save Scenes into the Memory
• 360˚/ 540˚ Pan Movement
• 270˚ Tilt Movement
• Digital Display for Address and Function Setting
Illusion Dotz 4.4 Features
ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 5
With this feature you can connect the xtures to one another
using the PowerCON input and output sockets. The quantity
that can be connected is 3 xtures maximum for 120V and 5 x-
tures maximum for 240V. After the maximum xtures has been
reached you will need to use a new power outlet. They must be
the same xtures. DO NOT mix xtures.
Illusion Dotz 4.4 Power Cord Daisy Chain

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 7
The Illusion Dotz 4.4 is fully operational in two dierent mounting
positions, hanging upside-down from a ceiling or set on a at level
surface. To avoid internal damage to the unit, never mount the unit on
its side. Be sure this xture is kept at least 0.5m away from any am-
mable materials (decoration etc.). Always use and install the supplied
safety cable as a safety measure to prevent accidental damage and/
or injury in the event the clamp fails (see next page). Never use the
carrying handles for secondary attachment.
Illusion Dotz 4.4 Mounting
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 6
The Illusion Dotz 4.4 carries a two year limited warranty. Please fill out
the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A.
number must be clearly written on the outside of the return package.
A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper and included in the shipping
carton. If the unit is under warranty, you must provide a copy of your
proof of purchase invoice. You may obtain a R.A. number by con-
tacting our customer support team on our toll free customer support
number. All packages returned to the service department not display-
ing a R.A. number on the outside of the package will be returned to
the shipper at the shippers cost.
Illusion Dotz 4.4 Product Registration
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Illusion Dotz 4.4 General Instructions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting dam-
ages caused by the non-observance of this manual or any unauthor-
ized modication to this unit.
Illusion Dotz 4.4 Handling Precautions

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 8
Screw one clamp each via a M12 screw and nut onto the
Omega holders. Insert the quick-lock fasteners of the rst
Omega holder into the respective holes on the bottom of the
Illusion Dotz 4.4. Tighten the quick-lock fasteners fully clock-
wise. Install the second Omega holder. Pull the safety-cable
through the holes on the bottom of the base and over the truss-
ing system or a safe xation spot. Insert the end in the carabine
and tighten the safety screw.
Illusion Dotz 4.4 Mounting
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.
ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 9
Power Supply: The ADJ Illusion Dotz 4.4 contains a electronic volt-
age switch, which will auto sense the voltage when it is plugged into
the power source. With the electronic ballast you do not need to worry
about wall voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Illusion Dotz 4.4 can be controlled via DMX-512 pro-
tocol. The Illusion Dotz 4.4 can be either a 12, 14, or 59 channel DMX
unit. The DMX address is set electronically using the controls on the
front panel of the unit. Your unit and your DMX
controller require a approved DMX-512 110 Ohm
Data cable for data input and data output (Figure
1). We recommend Accu-Cable DMX cables. If you
are making your own cables, be sure to use stan-
dard 110-120 Ohm shielded cable (This cable may
be purchased at almost all professional sound and
lighting stores). Your cables should be made with
a male and female XLR connector on either end of the cable. Also
Illusion Dotz 4.4 Set Up
Figure 1

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 11ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 10
remember that DMX cable must be daisy chained and cannot be split.
Illusion Dotz 4.4 Set Up
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination. When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Pin 5 - Do Not Use
Pin 4 - Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Illusion Dotz 4.4 Set Up

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 12 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 13
Illusion Dotz 4.4 System Menu
Function
Status Remote Add
No DMX Status
Pan Invert
Tilt Invert
Pan Degree
Feedback
Move.Spd
Mic.Sens
Stand By
ON/OFF
Blackout/Hold/Auto/Sound
ON/OFF
ON/OFF
630/540
ON/OFF
Speed 1~ 4
0~99%
OFF, 01M~99M15M
Add. via DMX
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback switch
Movement Mode Select
Sensitivity of Mic.
Stand By Mode
Fixture ID Service PIN
RDM PID
Device IP Addr
Ctrl IP Addr
Universe
Password=XXX
Xxxxxx
Xxx.xxx.xxx.xxx
Xxx.xxx.xxx.xxx
xxx
Service Code =050
RDM Unique PID setting
Set the Device IP address
Set the Console IP address
Port number
Protocol Set Kling-Net (Default Kling-Net)
ArtNet
Net Switch ON/OFF Ethernet Switch
Fan Set Head Fan Auto
High
Low
Fans Speed Mode Select
Base Fan 50%
75%
95%
LCD.Set Backlight
Flip Display
Key Lock
DispFlash
02~60m 05m
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Display Flip 180
Key Lock
Display flashes when NoSignal
Dim Curve Standard, Stage, TV, Architectural, Theater
Temp. C/F Celsius
Fahrenheit
Temperature switch
between /
Init.Effect PAN =XXXInitial effect position
Disp.Set Chan.Value
Slave Set
Auto.Pro
Sound.Ctrl
PAN……
Slave1,Slave2,Slave3
Master / Alone
Master / Alone
Value of channel is displayed
Slave receive location choice
Auto program
Music control
DFSE ON/OFF Restore factory set
Information
Time.Info Current
Total Time
Last Clear
Timer PIN
Clear Last
Power on running time (Hours)
Fixture running time (Hours)
Fixture Last times clear (Hours)
Timer Password
Password=050
ON/OFF
Temp. Info Head Temp. Temperature in the head
Error. Info Pan,Tilt….. Reset the error message
Model. Info XXXX Lamps Model Information
Software.V 1U01 V1.00……
2U01 V1.00……
Software version information of
each IC
Receive
Set Address A001~AXXX DMX address setting
User Mode
User Mode Standard
Basic
Extend
User A
User B
User C
User’s mode to change channel
numbers
Edit A
Edit B
Edit C
Max Channel
PAN
:
Preset User modes
Test
Reset.M Pan&Tilt Reset Pan/Tilt
Test.Chan
PAN …… Test function
Panel.Ctrl. PAN =XXX
:
Adjustment of the lamp
Calibrate
-Password-
PAN
:
Calbrate and adjust the effects to
standard position
Password “050”
Program
Select .Pro Pro. Part 1 = Program 1 ~ 9 Program 1
Pro. Part 2 = Program 1 ~ 9 Program 2
Pro. Part 3 = Program 1 ~ 9 Program 3
Select programs to be run
Edit. Pro Program 1
:
Program 9
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit.Sce Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
Fade Time
Secne Time
Input By Outside
Manually enter the scene
Fade Time
Secne Time
External console scene input
Sce.Input XX~XX Automatic recording scene
Illusion Dotz 4.4 System Menu
The main menu is accessed by pressing the MODE button. Browse
through the menu by using the UP, DOWN, RIGHT, & LEFT buttons.
Press the ENTER button to access the desired menu. You can scroll
through the submenus using the UP, DOWN, RIGHT, & LEFT buttons.
To conrm every selection press the ENTER button. You can exit
every menu and submenu by pressing the MODE button. The unit will
automatically exit the menus if no buttons are pressed after 10 sec-
onds. These next pages will explain each function in the menu layout
located on the previous page.
RECEIVE
SET ADDRESS - With this function, you can adjust the desired DMX-
address via the Control Board.
1. Access the main menu, and press the UP or DOWN buttons so
that “Receive” is higlighted, then press ENTER.
2. “Set Address” will be displayed, press ENTER. The current DMX
address will now be displayed.
3. Use the UP or DOWN buttons to adjust the DMX address.
4. Press ENTER to conrm or press MODE to return to the main
menu.
USER MODE
USER MODE -
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “User Mode” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “User Mode” is displayed,
press ENTER.
3. Use the UP or DOWN buttons to scroll through the 3 DMX Channel
Modes.
Standard Mode - This is 14 Channel Mode.
Basic Mode - This is 12 Channel Mode.
Extended Mode - This is 59 Channel Mode.
4. Press the MODE button once to return to the “User Mode” menu.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 15ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 14
Use the UP or DOWN buttons to scroll through the Edit modes. Press
ENTER to select any of the Edit modes.
Edit A, B, or C – This function allows the user to make the actual
changes in the user-dened modes that are created in the previous
function.
Function -
REMOTE ADD - With this function you can adjust the DMX address
via external controller.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Remote Add” is displayed,
and press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
To use this function follow these instructions:
To adjust the address of your unit you must rst go to the address
that it is currently set to. From there you can adjust the address. First
make sure all channels are set to the value of “0”.
1. On your DMX controller set the DMX value of Channel 1 to the
value “7”.
2. Now set the DMX value of Channel 2 to the value “7” to adjust the
starting address between 1 and 255. To adjust the address between
256 and 511 set Channel 2 to the value “8” .
3. Set the DMX value of Channel 3 to your desired starting address.
This will take about 20 seconds before the unit accepts the new DMX
address.
EXAMPLE: If you want the address to be 57, you must rst set the
address that is currently assingned to the unit. Then set Channel 1’s
Illusion Dotz 4.4 System Menu Illusion Dotz 4.4 System Menu
value to “7”, Channel 2’s value to “7”, and Channel 3’s value to “57”.
Wait 20 seconds and the address should change on the unit to “57”.
2ND EXAMPLE: If you want the address to be 420, you must rst set
the address that is currently assingned to the unit. If you want the set
the address to 420, set Channel 1’s value to “7”, Channel 2’s value to
“8”, and Channel 3’s to “164”. (256 + 164 = 420).
NO DMX STATUS - With this function if the DMX signal is suddenly
lost, the unit will automatically go into 1 of 4 modes.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “No DMX Status” is displayed,
and press ENTER.
4. Either “Hold” (Last DMX setting), “Close” (Blackout), “Music”
(Sound Active), or “Auto” (Auto Program) will be displayed, use the
UP and DOWN buttons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
PAN INVERT - With this function you can reverse the Pan movement.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Pan Invert” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
TILT INVERT - With this function you can reverse the Tilt movement.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 16 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 17
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Tilt Invert” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
PAN DEGREE - With this function you can change the pan degree
from 630 to 540.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Pan Degree” is displayed, and
press ENTER.
4. Either “540” or “630” will be displayed, use the UP and DOWN
buttons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
FEEDBACK - With this function you can feedback switch the pan
movement or tilt movement.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Feedback” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
MOVEMENT SPEED - With this function you can set the pan and tilt
Illusion Dotz 4.4 System Menu
movement speed.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Move Speed” is displayed,
and press ENTER.
4. Either “Speed 1”, “Speed 2”, “Speed 3” or “Speed 4” will be dis-
played, use the UP and DOWN buttons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
MIC SENS - With this function you can set the microphone sensitiv-
ity. The default setting is 70%. You can adjust the sensitivity between
0%-99%
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Mic Sensitivity” is displayed,
and press ENTER.
4. Use the UP and DOWN buttons to adjust the mic sensitivity
between 0%-99%.
5. Press ENTER to conrm your selection or press MODE to exit.
STAND BY - With this function the LEDs and step motors will power
o if there is no DMX signal within 15 mins (factory defualt). Once it
receives a DMX signal, the xture will reset itself.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Status” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Stand By” is displayed, and
press ENTER.
Illusion Dotz 4.4 System Menu

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 19ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 18
Illusion Dotz 4.4 System Menu
4. “15M” will be displayed, use the UP and DOWN buttons to adjust
the hibernation period between 01M-99M or “O”.
5. Press ENTER to conrm your selection or press MODE to exit.
Fixture ID
SERVICE PIN - With this function you can enter the RDM password
so that you can access and change the RDM ID number.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Fixture ID” is displayed,
press ENTER.
3. Press UP or DOWN buttons, until “Service PIN” is displayed, and
press ENTER.
4. The “Password” is 050.
5. Press ENTER or press MODE to exit.
RDM PID - RDM stands for “Remote Device Management”. This
feature lets you control every aspect of your xture remotely from an
RDM controller. Manual settings like adjusting the DMX address are
no longer needed. This is especially useful when the unit is installed
in a remote area.
In this submenu you can see the units RDM ID number and adjust it
as well.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Fixture ID” is displayed,
press ENTER.
3. Press UP or DOWN buttons, until “RDM PID” is displayed, and
press ENTER.
4. “XXXXXX” will be displayed. “XXXXXX” represents the units current
RDM ID.
5. Press ENTER or press MODE to exit.
Illusion Dotz 4.4 System Menu
DEVICE IP ADDR - With this function you set the Device IP address.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Fixture ID” is displayed,
press ENTER.
3. Press UP or DOWN buttons, until “Device IP Addr” is displayed,
and press ENTER.
4. “XXX XXX XXX XXX” will be displayed. “XXX XXX XXX XXX” repre-
sents the units current Device IP Address.
5. Press ENTER or press MODE to exit.
CTRL IP ADDR - With this function you set the Console IP address.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Fixture ID” is displayed,
press ENTER.
3. Press UP or DOWN buttons, until “Ctrl IP Addr” is displayed, and
press ENTER.
4. “XXX XXX XXX XXX” will be displayed. “XXX XXX XXX XXX” repre-
sents the units current Device IP Address.
5. Press ENTER or press MODE to exit.
UNIVERSE - With this function you can enter the port number.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Fixture ID” is displayed,
press ENTER.
3. Press UP or DOWN buttons, until “Universe” is displayed, and
press ENTER.
4. “XXX” will be displayed. “XXX” represents the units current Device
IP Address.
5. Press ENTER or press MODE to exit.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 20 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 21
Illusion Dotz 4.4 System Menu
Protocol Set
KLING-NET/ARTNET - With this function you can select the soft-
ware for which you are going to control the xture.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Protocol Set” is displayed,
press ENTER.
3. Either “Kling-Net” or “ArtNet” will be displayed. Use the UP
or DOWN buttons, to nd the software you wish to use, and press
ENTER to select.
4. Press the MODE button to exit.
Net Switch
NET SWITCH - This function will activate the unit to receive Kling-
Net/ArtNet signal.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Net Switch” is displayed,
press ENTER.
3. Either “On” or “O” will be displayed. To activate the Net Switch
use the UP or DOWN buttons to select “On”, and press ENTER to
select.
4. Press the MODE button to exit.
Fan Set
HEAD FAN - With this function you can adjust the speed of the
moving head fans.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Head Fan” is displayed,
press ENTER.
3. Either “Auto Fan Speed” (default), “Low Fan Speed”, or “High
Fand Speed” will be displayed, use the UP and DOWN buttons to
Illusion Dotz 4.4 System Menu
toggle between.
4. Press ENTER to conrm your selection or press MODE to exit.
BASE FAN - With this function you can adjust the speed of the base
fans.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Base Fan” is displayed,
press ENTER.
3. Either “Auto Fan Speed” (default), “Low Fan Speed”, or “High
Fand Speed” will be displayed, use the UP and DOWN buttons to
toggle between.
4. Press ENTER to conrm your selection or press MODE to exit.
LCD Setting
BACKLIGHT - With this function you can have the LCD display after
2-60 minutes. Use this function to adjust the time.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “LCD Set” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Backlight” is displayed, and
press ENTER.
4. “05m” (5 minutes) will be displayed, use the UP and DOWN but-
tons to adjust the shuto time between 02m-60m or “O”.
5. Press ENTER to conrm your selection or press MODE to exit.
FLIP DISPLAY - With this function you can rotate (ip) the display
180 degrees.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “LCD Set” is displayed, press
ENTER.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 23ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 22
Illusion Dotz 4.4 System Menu
3. Press UP or DOWN buttons, until “Flip Display” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
KEY LOCK - With this function activated the buttons will lock autom-
matically after 15 seconds.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “LCD Set” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “Key Lock” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
DISPFLASH - With this function activated the the display will ash
when there is not DMX signal.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “LCD Set” is displayed, press
ENTER.
3. Press UP or DOWN buttons, until “DispFlash” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
Dimmer Curve
DIM CURVE - Select 1 of 5 dimming curves. See page 45 for the
dimming curve chart.
Illusion Dotz 4.4 System Menu
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Dim Curve” is displayed,
press ENTER.
3. Either “Standard”, “Stage”, “TV”, “Architectural”, or “Theater”
will be displayed, use the UP and DOWN buttons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
Temp. C/F
TEMP. C/F - With this function, you can change the temperature dis-
play to show either Celsius or Fahrenheit.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press UP or DOWN buttons, until “Temp. C/F” is displayed, and
press ENTER.
3. Either “Celsius” or “Fahrenheit” will be displayed, use the UP and
DOWN buttons to toggle between.
4. Press ENTER to conrm your selection or press MODE to exit.
Init. Eect
INIT. EFFECT - In this menu you are able to check initial eect posi-
tion.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Function” is highlighted, then press ENTER.
2. Press UP or DOWN buttons, until “Init. Eect” is displayed, and
press ENTER.
3. “XXX” will be displayed. “XXX” represents the current eect posi-
tion.
4. Press ENTER or press MODE to exit.
CHANNEL VALUE - This function will allow you to see the DMX
value of each DMX channel that is currently being used at the time.
1. Access the main menu, and press the UP or DOWN buttons so

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 24 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 25
Illusion Dotz 4.4 System Menu
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “DMX Value” is displayed,
and press ENTER.
3. A DMX Channel will be displayed. Example: Prism, Color Wheel,
Gobo Wheel, etc... Press ENTER when you nd the DMX channel that
you would like to check. When you press ENTER the DMX value of
that channel will displayed.
4. Press the MODE button to exit.
SLAVE SET - This function lets you designate the unit as the slave in
a Master-Slave conguration.
1. Access the main menu, and press the UP or DOWN buttons so
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Slave Set” is displayed, and
press ENTER.
3. Either Slave 1, Slave 2, or Slave 3 will be displayed. Press ENTER
to select either of the three, or press MODE button to exit.
AUTO PROGRAM - This function allows the internal programs to
run in either stand-alone or master/slave mode. In “Master” mode
the xture will send DMX data to other xtures connect via the DMX
chain. In “Alone” mode the xture will operate as a single xture. The
program for this mode is selected in the “Select program” section of
the control menu. You can set the number of steps under “Edit pro-
gram”. You can edit the individual scenes under “Edit scenes”. With
this function, you can run the individual scenes either automatically,
i.e. with the adjusted Step-Time.
1. Access the main menu, and press the UP or DOWN buttons so
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Auto Program” is displayed,
and press ENTER.
3. Either “Master” or “Alone” will be displayed.
4. Press ENTER to to make your selection, or press MODE button to
exit.
Illusion Dotz 4.4 System Menu
SOUND CONTROL - With this function, the internal program will run
in sound active mode.
1. Access the main menu, and press the UP or DOWN buttons so
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Sound Control” is dis-
played, press ENTER.
3. Either “Master” or “Alone” will be displayed. Use the UP or DOWN
buttons to change the operating mode.
4. Press ENTER to to make your selection, or press MODE button to
exit.
DEFAULT RESET -
1. Access the main menu, and press the UP or DOWN buttons so
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “DFSE” is displayed, press
ENTER.
3. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
4. Press ENTER to conrm your selection or press MODE/ESC to
exit.
INFORMATION
Time Information (Time information is always represented in
hours)
CURRENT RUNNING TIME - This will allow you to check the units
current running time.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Time Information” is dis-
played, press ENTER.
3. Press UP or DOWN buttons, until “Current” is displayed, and
press ENTER.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 27ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 26
Illusion Dotz 4.4 System Menu
4. “XXXX” will now be displayed. “XXXX” represents the current run-
ning time.
5. Press ENTER or press MODE to exit.
TOTAL RUNNING TIME - This will allow you to check the units total
running time.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Time Information” is dis-
played, press ENTER.
3. Press UP or DOWN buttons, until “Total Time” is displayed, and
press ENTER.
4. “XXXX” will now be displayed. “XXXX” represents the total run-
ning time.
5. Press ENTER or press MODE to exit.
LAST CLEAR - This will allow you to check when the last running
time was cleared.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Time Information” is dis-
played, press ENTER.
3. Press UP or DOWN buttons, until “Last Clear” is displayed, and
press ENTER.
4. “XXXX” will now be displayed. “XXXX” represents the last running
time.
5. Press ENTER or press MODE to exit.
RUN PASSWORD - This will display the timer password.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
Illusion Dotz 4.4 System Menu
2. Press the UP or DOWN buttons until “Time Information” is dis-
played, press ENTER.
3. Press UP or DOWN buttons, until “Timer Pin” is displayed, and
press ENTER.
4. The “Timer Pin” is 050.
5. Press ENTER or press MODE to exit.
CLEAR LAST - This will allow you to clear the last run time of the
unit. You need to put in the Timer PIN before doing this. Please see
the section before this.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Time Information” is dis-
played, press ENTER.
3. Press UP or DOWN buttons, until “Clear Last” is displayed, and
press ENTER.
4. Either “O” or “On” will be displayed, use the UP and DOWN but-
tons to toggle between.
5. Press ENTER to conrm your selection or press MODE to exit.
TEMPERATURE INFO - This will allow you to check the moving
head temperature.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Temp. Info” is displayed,
press ENTER.
3. “Head Tem.” will now be displayed, press ENTER.
4. “XXX” will now be displayed. “XXX” represents the current tem-
perature of the moving head.
5. Press ENTER or press MODE to exit.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 28 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 29
Illusion Dotz 4.4 System Menu
ERROR INFO - In this menu you are able to reset the error message.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Error Info” is displayed,
press ENTER.
3. Use the UP or DOWN buttons to nd the error message that needs
to be cleared.
4. Press ENTER or press MODE to exit.
MODEL INFO - In this menu you are able to see the lamps model
information.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Model Info” is displayed,
press ENTER.
3. “XXXX” will now be displayed. “XXXX” represents the model infor-
mation.
4. Press MODE to exit.
SOFTWARE VERSION - This will allow you to see the software ver-
sion of each IC.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Information” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Software Version” is dis-
played, press ENTER.
3. Use the UP or DOWN buttons to scroll through each IC and see
the software version.
4. Press MODE to exit.
Illusion Dotz 4.4 System Menu
TEST
RESET MOTORS - With this function you can reset the Pan & Tilt
motors.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Test” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Reset Motor” is displayed,
press ENTER.
3. Press ENTER to reset or press MODE to exit.
TEST CHANNEL - With this function you can test/correct each chan-
nel function.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Test” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Test Channel” is displayed,
press ENTER.
3. Use the UP or DOWN buttons to scroll through the various chan-
nels.
4. Press ENTER or press MODE to exit.
PANEL CTRL. - With this function you can easily adjust the lamp. All
eects will be canceled, the shutter will open and output intensity will
be 100%. With the individual functions you can focus the light on at
surface (a wall) and nely adjust the lamp.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Test” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Panel Ctrl.” is displayed,
press ENTER.
3. Use the UP or DOWN buttons to scroll through the various func-
tions. Press ENTER when you nd the function you would like to
adjust.
4. Press ENTER or press MODE to exit.
CALIBRATION - With this function you can calibrate and adjust the
eects wheels to their correct positions. The Calibration password

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 31
ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 30
Illusion Dotz 4.4 System Menu
050.
1. Press the MODE button to access the main menu. Press the UP
or DOWN buttons so that “Eect Adjust” is highlighted, then press
ENTER.
2. Press the UP or DOWN buttons until “Calibration” is displayed,
press ENTER.
3. “XXXX” will be displayed. The password is 050.
4. Press ENTER to conrm or press MODE to exit.
PROGRAM - The xture comes equipped with a built-in DMX
recorder that allows custom programs to be installed and recalled
directly from the xture’s control board. Programs can be created and
stored using the xture’s control board or by using an external DMX
controller.
1. Press the MODE button to access the main menu. Press the UP or
DOWN buttons so that “Program” is highlighted, then press ENTER.
2. Use the UP or DOWN buttons to nd and access one of the below
submenus.
Select Program – This function allows the user to select one of ten
of the user dened built-in programs. This program is then accessed
in “Function Mode” under “Program Run.”
Edit Program – This function allows the user to edit the built-in pro-
grams.
Edit Scene – This function allows the user to edit or dene the actual
scenes that are stored in the user dened built-in programs that are
accessed in the previous step.
Scene Input - The Illusion Dotz 4.4 features an integrated DMX
recorder. Preprogrammed scenes can be transmitted to the xture via
any DMX compliant controller. This function allows those scenes to
be stored in to the xture’s built-in memory and
then subsequently used to create the user-dened programs.
Universal DMX Control: This function allows you to use a uni-
versal DMX-512 controller such as the Elation® DMX Operator™ or
Elation® Show Designer™ to control head movement, RGB colors,
master dimmer, shutter (strobe), and various other features. A DMX
controller allows you to create unique programs tailored to your indi-
vidual needs.
1. The Illusion Dotz 4.4 has a 12 Channel mode, 14 Channel mode,
and 59 Channel mode. See pages 34-44 for detailed description
of the DMX traits.
2. To control your fixture in DMX mode, follow the set-up procedures
on pages 13-15 as well as the set-up specifications that are
included with your DMX controller.
3. Use the controller’s faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the directions on page 36 to select your DMX Channel
mode, and follow the instruction on page 17 to set the DMX
address.
6. For longer cable runs (more than a 100 feet) use a terminator on
the last fixture.
7. For help operating in DMX mode consult the manual included
with your DMX controller.
Stand-Alone (Sound Active or Auto Program): This mode allows
a single unit to run to the beat of the music or run through a built-in
program.
AUTO PROGRAM:
1. Access the main menu, and press the UP or DOWN buttons so
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Disp Set” is displayed, and
press ENTER.
3. Press the UP or DOWN buttons until “Auto Pro” is displayed, and
press ENTER.
4. Either “Master” or “Alone” will be displayed. Using the UP or
DOWN buttons select “Alone” and press ENTER.
SOUND ACTIVE:
1. Access the main menu, and press the UP or DOWN buttons so
that “Function” is highlighted, then press ENTER.
2. Press the UP or DOWN buttons until “Disp Set” is displayed, and
Illusion Dotz 4.4 Operation

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 32 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 33
Illusion Dotz 4.4 Operation
press ENTER.
3. Press the UP or DOWN buttons until “Sound Ctrl.” is displayed,
and press ENTER.
4. Either “Master” or “Alone” will be displayed. Using the UP or
DOWN buttons select “Alone” and press ENTER.
Master-Slave Operation (Sound Active or Auto Program):
This function will allow you to link up to 16 units together and oper-
ate without a controller. The units can run a built-in program or run in
sound actiive mode. In Master-Slave operation one unit will act as the
controlling unit and the others will react to the controlling units pro-
grams. Any unit can act as a Master or as a Slave.
1. Using standard XLR microphone cables, daisy chain your units
together via the XLR connector on the rear of the units. Remem-
ber the Male XLR connector is the input and the Female XLR
connector is the output. The rst unit in the chain (master) will use
the female XLR connector only - The last unit in the chain will use
the male XLR connector only. For longer cable runs we suggest a
terminator at the last fixture.
2. On your “Master” unit, access the main menu, and press the UP
or DOWN buttons so that “Function” is highlighted, then
press ENTER.
3. Press the UP or DOWN buttons until “Disp Set” is displayed, and
press ENTER.
4. Select your desired operating mode. Use the UP or DOWN but-
tons to select between “Auto Pro” or “Sound Ctrl”, press ENTER
to select your desired program.
5. Either “Master” or “Alone” will be displayed. Using the UP or
DOWN buttons select “Master” and press ENTER.
6. For your “Slave” units, access the main menu, and press the UP
or DOWN buttons so that “Function” is highlighted, then
press ENTER.
7. Press the UP or DOWN buttons until “Disp Set” is displayed, and
press ENTER.
8. Press the UP or DOWN buttons until “Slave Mode” is displayed,
and press ENTER.
9. Either Slave 1, Slave 2, or Slave 3 will be displayed. Select your
desired Slave setting and press ENTER.
10. Press MODE if you want to return to the main menu.
Illusion Dotz 4.4 Kling-Net or Art-Net Operation
1. Activate the Net Switch using the instructions on page 20 under
“Net Switch”. Select your software using the instructions on page
20 under “Kling-Net/Artnet”.
2. Install one of the recommended operating softwares onto your
computer. Recommended softwares; Arkaos Media Master
Express, Media Master Pro, or LED Master (Sold Separately).
3. Connect the panels via CAT 5 Straight Network cable. When
creating your own custom cable, use RJ45 Straight Network
cable.
4. Map the fixtures using KlingNetMapper or Art-Net Mapper.
5. Control the fixtures using ArKaos or Art-Net software. Please refer
to the media playback software user manual for further instruc-
tions.
Note: ArKaos Kling-Net requires a gigabit (1000 mbps) Ethernet card
and network router for a smoother operation.
When connecting you must use a CAT 5 Straight Network cable.
Installation method 1:
Note: Do not daisy-chain more thean 25 units when connected directly from the computer.
Use a Ethernet Switch if more than 25 units are being controlled.
When connecting you must use a CAT 5 Straight Network cable.
Installation method 2:
Note:1.The Ethernet Switch must be Gigabit Switch.
2. Do not daisy-chain more than 25pcs units from a single network port of the Ethernet Switch.
3. Maximum 2 output network ports of the Ethernet Switch can be used. So the system cancontrol 25pcs
maximum.

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 35ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 34
Illusion Dotz 4.4 12 Channel DMX Mode
Channel Value Function
9 AUTO PROGRAMS
71 - 80 PROGRAM 8
81 - 90 PROGRAM 9
91 - 100 PROGRAM 10
101 - 110 PROGRAM 11
111 - 120 PROGRAM 12
121 - 130 PROGRAM 13
131 - 140 PROGRAM 14
141 - 150 PROGRAM 15
151 - 160 PROGRAM 16
161 - 170 PROGRAM 17
171 - 180 PROGRAM 18
181 - 190 PROGRAM 19
191 - 200 PROGRAM 20
201 - 210 PROGRAM 21
211 - 220 PROGRAM 22
221 - 230 PROGRAM 23
231 - 240 PROGRAM 24
241 - 250 PROGRAM 25
251 - 255 GRADIENT EFFECT
10 PROGRAM SPEED
0 - 255 SLOW - FAST
11 PAN/TILT MOVEMENT SPEED
0 - 225 MAX TO MIN. SPEED
226 - 235 BLACKOUT BY MOVEMENT
246 - 255 NO FUNCTION
12 LAMP ON/OFF, RESET & PROGRAMS
0 - 79 NORMAL
80 - 84 ALL MOTOR RESET
85 - 96 NO FUNCTION
97 - 99 OTHER MOTOR RESET
100 - 119 INTERNAL PROGRAM 1
120 - 139 INTERNAL PROGRAM 2
140 - 159 INTERNAL PROGRAM 3
Illusion Dotz 4.4 12 Channel DMX Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT 8bit
2 0 - 255 TILT MOVEMENT 8bit
3 ALL RED
0 - 255 0% - 100%
4 ALL GREEN
0 - 255 0% - 100%
5 ALL BLUE
0 - 255 0% - 100%
6 SHUTTER & STROBE
0 - 31 LED’S OFF
32 - 63 LED’S ON
64 - 95 STROBING SLOW - FAST
96 - 127 LED’S ON
128 - 159 PULSE EFFECT IN SEQUENCES
160 - 191 LED’S ON
192 - 223 RANDOM STROBE SLOW - FAST
224 - 255 LED’S ON
7 DIMMER
0 - 255 INTENSITY 0% - 100%
8 DIMMER CURVES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT SETTING
9 AUTO PROGRAMS
0 - 10 PROGRAM 1
11 - 20 PROGRAM 2
21 - 30 PROGRAM 3
31 - 40 PROGRAM 4
41 - 50 PROGRAM 5
51 - 60 PROGRAM 6
61 - 70 PROGRAM 7

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 36 ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 37
Illusion Dotz 4.4 12 Channel DMX Mode
Channel Value Function
12 160 - 179 INTERNAL PROGRAM 4
180 - 199 INTERNAL PROGRAM 5
200 - 219 INTERNAL PROGRAM 6
220 - 239 INTERNAL PROGRAM 7
240 - 255 SOUND ACTIVE PROGRAM
Illusion Dotz 4.4 14 Channel DMX Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT 8bit
2 0 - 255 PAN FINE 16bit
3 0 - 255 TILT MOVEMENT 8bit
4 0 - 255 TILT FINE 16bit
5 ALL RED
0 - 255 0% - 100%
6 ALL GREEN
0 - 255 0% - 100%
7 ALL BLUE
0 - 255 0% - 100%
8 SHUTTER & STROBE
0 - 31 LED’S OFF
32 - 63 LED’S ON
64 - 95 STROBING SLOW - FAST
96 - 127 LED’S ON
128 - 159 PULSE EFFECT IN SEQUENCES
160 - 191 LED’S ON
192 - 223 RANDOM STROBE SLOW - FAST
224 - 255 LED’S ON
9 DIMMER
0 - 255 INTENSITY 0% - 100%
10 DIMMER CURVES
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT SETTING
11 AUTO PROGRAMS
0 - 10 PROGRAM 1
11 - 20 PROGRAM 2
21 - 30 PROGRAM 3
31 - 40 PROGRAM 4

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 39ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 38
Illusion Dotz 4.4 14 Channel DMX Mode
Channel Value Function
14 LAMP ON/OFF, RESET & PROGRAMS
97 - 99 OTHER MOTOR RESET
100 - 119 INTERNAL PROGRAM 1
120 - 139 INTERNAL PROGRAM 2
140 - 159 INTERNAL PROGRAM 3
160 - 179 INTERNAL PROGRAM 4
180 - 199 INTERNAL PROGRAM 5
200 - 219 INTERNAL PROGRAM 6
220 - 239 INTERNAL PROGRAM 7
240 - 255 SOUND ACTIVE PROGRAM
Illusion Dotz 4.4 14 Channel DMX Mode
Channel Value Function
11 AUTO PROGRAMS
0 - 10 PROGRAM 1
11 - 20 PROGRAM 2
21 - 30 PROGRAM 3
31 - 40 PROGRAM 4
71 - 80 PROGRAM 8
81 - 90 PROGRAM 9
91 - 100 PROGRAM 10
101 - 110 PROGRAM 11
111 - 120 PROGRAM 12
121 - 130 PROGRAM 13
131 - 140 PROGRAM 14
141 - 150 PROGRAM 15
151 - 160 PROGRAM 16
161 - 170 PROGRAM 17
171 - 180 PROGRAM 18
181 - 190 PROGRAM 19
191 - 200 PROGRAM 20
201 - 210 PROGRAM 21
211 - 220 PROGRAM 22
221 - 230 PROGRAM 23
231 - 240 PROGRAM 24
241 - 250 PROGRAM 25
251 - 255 GRADIENT EFFECT
12 PROGRAM SPEED
0 - 255 SLOW - FAST
13 PAN/TILT MOVEMENT SPEED
0 - 225 MAX TO MIN. SPEED
226 - 235 BLACKOUT BY MOVEMENT
246 - 255 NO FUNCTION
14 LAMP ON/OFF, RESET & PROGRAMS
0 - 79 NORMAL
80 - 84 ALL MOTOR RESET
85 - 96 NO FUNCTION
