American Dryer Corp. AD-360X2 User manual

AD-360X2
Parts Manual
Phase 5 / Coin
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: [phone] / Fax: [phone]
E-mail: [e-mail]
www.amdry.com
ADC Part No. 450558-3

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to
make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to
change or discontinue models.
Important
For your convenience, log the following information:
DATEOFPURCHASE ___________________________________________________ MODEL NO. ________________
RESELLER’S NAME _________________________________________________________________________________
Serial Number(s)_____________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or theADC factory. When ordering replacement parts from the
factory,you canFAXyour ordertoADCat [phone]ortelephone your order directly to theADCPartsDepartment
at [phone]. Please specify the dryer model number and serial number in addition to the description and part
number, so that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite
of the various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product
is properly maintained, it will provide many years of safe, efficient, and trouble free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayedon the equipment or specified in the installation manual included
with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
POURVOTRESÉCURITÉ
Ne pas entreposer ni utiliser d’essence
nid’autresvapeursouliquides
inflammables à proximité de cet appareil
oudetoutautreappareil.
AD-360X2
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructions to be followed if the user smells gas. These
instructionsmustbepostedinaprominentlocation near the dryer.

Table of Contents
Front Panel Assembly .................................................................................................................................4
Right Coin Computer PanelType II .............................................................................................................5
Left Coin Computer PanelType II................................................................................................................6
Coin Chute Assembly .................................................................................................................................7
Coin Box / VaultAssembly (Left and Right).................................................................................................8
Main Door “Steel”Assembly ........................................................................................................................9
Main Door SwitchAssembly .....................................................................................................................10
Tumbler / Support Assemblies .................................................................................................................. 11
Top Locking Lint BasketAssembly............................................................................................................12
Bottom Locking Lint Basket Assembly......................................................................................................13
Separator Assembly..................................................................................................................................14
Rotational Sensor / Sail Switch and Teflon®Backup Washer Plate..........................................................15
Lint Coop and Adjustment Wheel Bracket Assembly................................................................................16
Left Rear Wheel Bracket (3-Bolt)..............................................................................................................17
Right Rear Wheel Bracket (3-Bolt) ...........................................................................................................18
Microprocessor Temperature Sensor Bracket Assembly .........................................................................19
Top Burner Box Assembly.........................................................................................................................20
Bottom Burner Box Assembly ...................................................................................................................21
Blower MotorAssembly.............................................................................................................................22
Rear Electrical Panel ................................................................................................................................23
Drive Motor / Motor MountAssemblies......................................................................................................24
Exhaust Duct Assembly............................................................................................................................25
Rear Back Guard Assembly......................................................................................................................26
Wrapper Gasket........................................................................................................................................27

4 American Dryer Corporation 450558-3
Front Panel Assembly
Illus. No. Part No. Qty.Description
1 883144 1 White Right Hand Front Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
883149 1 Bisque Right Hand Front Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
883159 1 Stainless Steel Right Hand Front Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
2 881987 2 Friction Door Latch Kit
(includes illus. nos. 2 and 3)
3 154215 4 5/32” x 1/4” Rivet
4 –––––– 1 Top Hinge Block Assembly
(refer to Main Door “Steel” Assembly on page 9)
5 –––––– 1 Main Door Switch
(refer to Main Door Switch Assembly on page 10)
6 –––––– 1 Bottom Hinge Block Assembly
(refer to Main Door “Steel” Assembly on page 9)
7 354267 2 Arrow Backup Plate
8 150517 10 #10-16 x 1-1/2” Hex Head TEK Screw
9 882798 1 Black Kick Plate
10 150311 2 #10-16 x 3/4” Hex Head TEK Crimptite Screw
11 150309 8 #10-16 x 1/2” Hex Head TEK Screw

450558-3 www.amdry.com 5

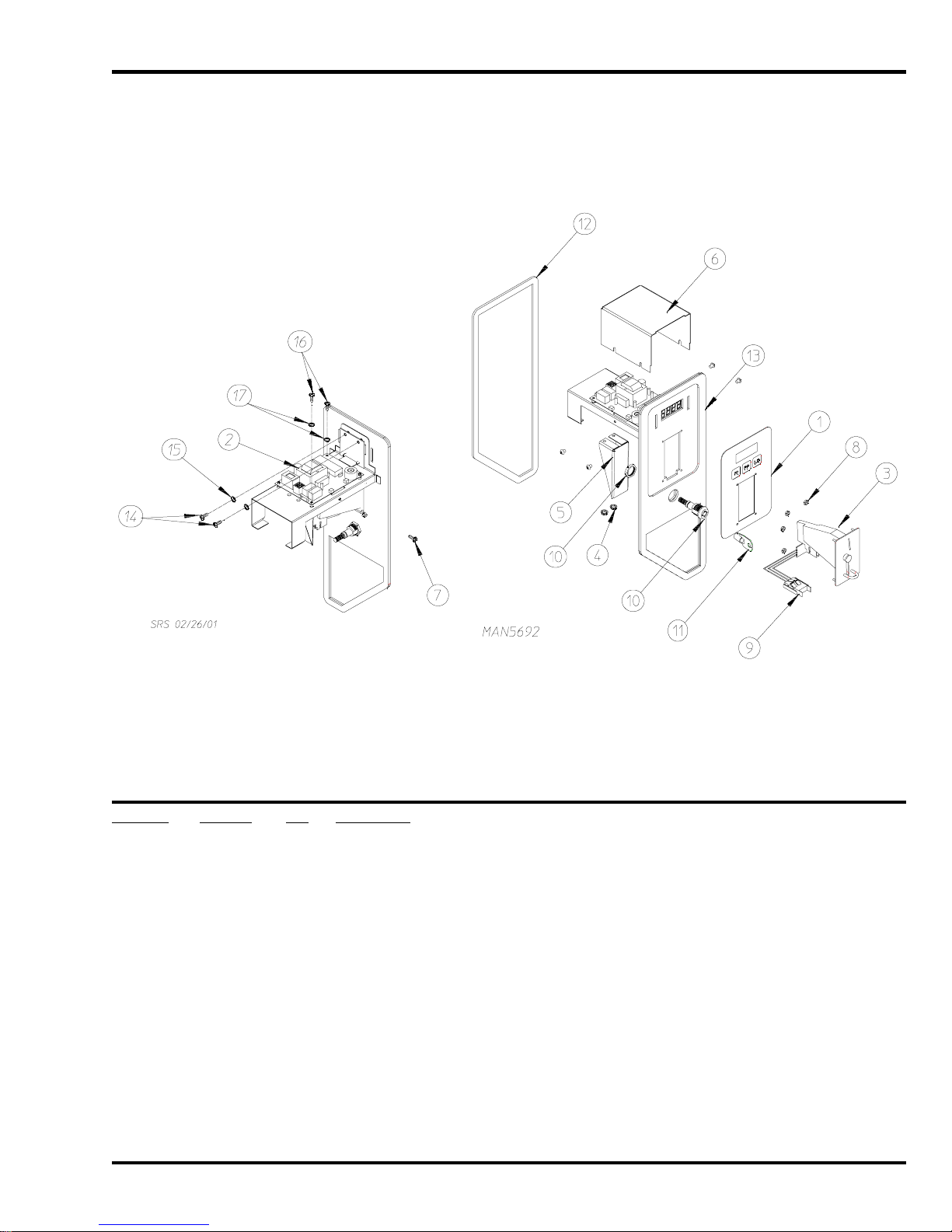

Right Coin Computer Panel Type II
Illus. No. Part No. Qty.Description
1 112574 1 Keypad
2 137251 1 Computer Board with Display
3 883134 1 25¢ U.S. Hanke Coin Acceptor with Optic Switch
4 151001 2 #8-32 Pal Nut
5 354192 1 Optic Switch Protector
6 354260 1 Computer Cover
7 150201 4 #10-32 x 1/4” Phillips Pan Head Tap Screw
8 150102 4 HankeAcceptor M3 Metric Hex Nut
9 883067 1 Hanke Optic Switch Assembly
10 182621 1 Control Panel Lock with Key
11 182628 1 Key ONLY (specify key number when ordering)
12 117603 4 1/8” x 9/16” Noise Suppressor Tape
13 883019 1 Right Computer Panel ONLY Type II
14 150005 2 #6-32 x 1/4” Phillips Right Hand Machine Screw
15 153010 2 #6 Star Washer
16 150005 2 #6-32 x 1/4” Phillips Right Hand Machine Screw
17 153010 2 #6 Star Washer

6 American Dryer Corporation 450558-3
Left Coin Computer Panel Type II
Illus. No. Part No. Qty.Description
1 112574 1 Keypad
2 883134 1 25¢ U.S. Hanke Coin Acceptor with Optic Switch
3 354192 1 Optic Switch Protector
4 151001 2 #8-32 Pal Nut
5 137251 1 Computer Board with Display
6 354260 1 Computer Cover
7 150201 4 #10-32 x 1/4” Phillips Pan Head Tap Screw
8 150102 4 HankeAcceptor M3 Metric Hex Nut
9 883067 1 Hanke Optic Switch Assembly
10 182621 1 Control Panel Lock with Key
11 182628 1 Key ONLY (specify key number when ordering)
12 117603 4 1/8” x 9/16” Noise Suppressor Tape
13 883018 1 Left Computer Panel ONLY Type II
14 150005 2 #6-32 x 1/4” Phillips Right Hand Machine Screw
15 153010 2 #6 Star Washer
16 150005 2 #6-32 x 1/4” Phillips Right Hand Machine Screw
17 153010 2 #6 Star Washer

450558-3 www.amdry.com 7

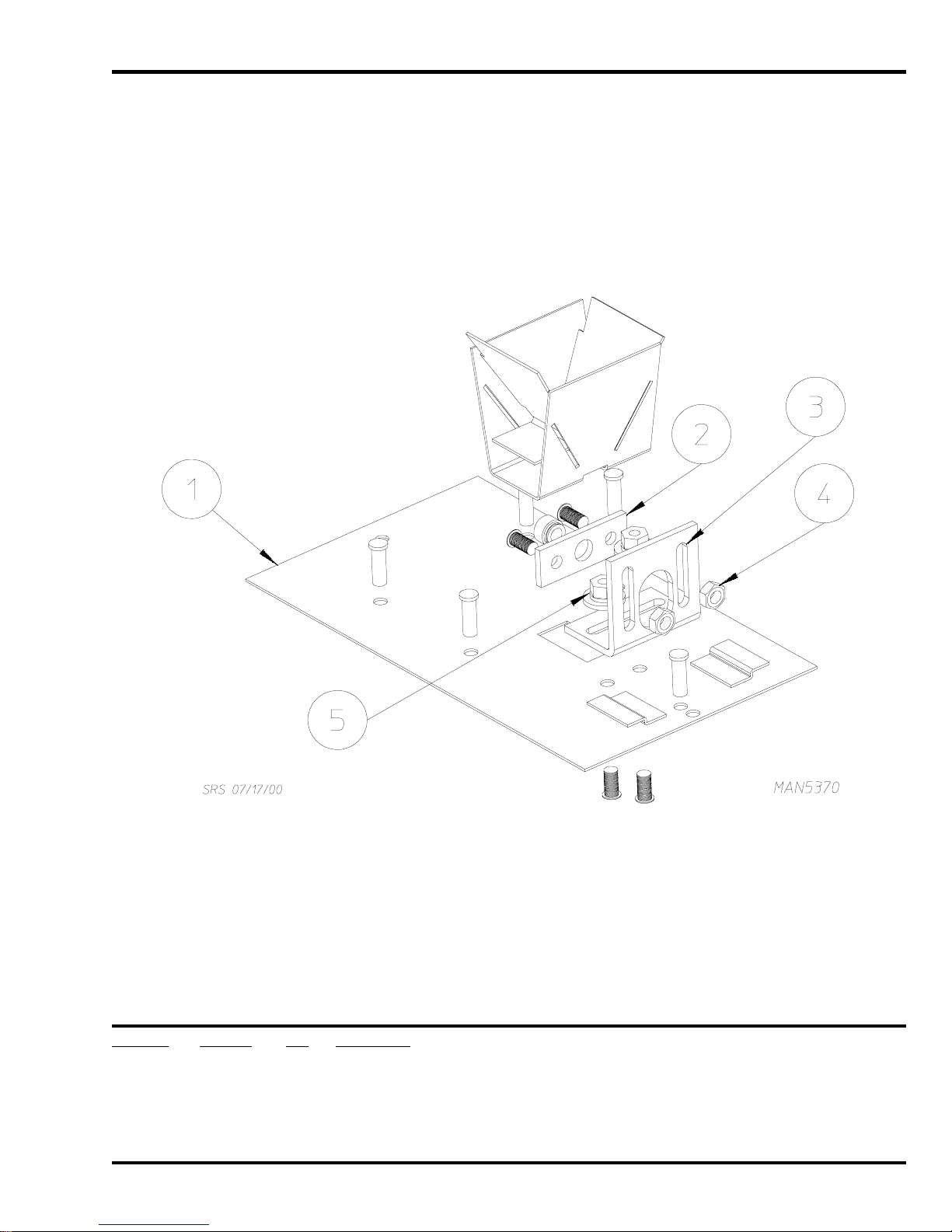

Coin Chute Assembly
Illus. No. Part No. Qty.Description
1 882715 1 Coin Chute
2 882937 1 Control Panel Lock Plate
3 354180 1 Control Panel Lock Bracket
4 152002 2 1/4-20 Hex Nut
5 152014 2 1/4-20 Free Spin Wash Nut

8 American Dryer Corporation 450558-3
Coin Box / Vault Assembly (Left and Right)
Illus. No. Part No. Qty.Description
1 882740 1 Black Left / Right Coin Box Faceplate ONLY
882745 1 Left Coin Box with Black Faceplate (less lock)
2 882672 1 Coin Box Lock Kit (includes 2 locks “keyed alike”)
3 160136* 1 Coin Box Lock Key ONLY
4 882742 1 Black Left Coin Vault ONLY
5 882740 1 Black Left / Right Coin Box Faceplate ONLY
882746 1 Right Coin Box with Black Faceplate (less lock)
6 882741 1 Black Right Coin Vault ONLY
* Specify key number when ordering.

450558-3 www.amdry.com 9
Main Door “Steel” Assembly
Illus. No. Part No. Qty.Description
1 881150 1 Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
881207 1 Stainless Steel Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2 102354 1 Door Gasket
170730 1 Clear Glass Adhesive (10.3 oz. cartridge)
170731 Black Glass Adhesive (10.3 oz. cartridge)
3 881152 1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
881208 1 Stainless Steel Top Hinge Block Assembly
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 881151 1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5, 6, and 7)
881209 1 Stainless Steel Bottom Hinge Block Assembly
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
150443 2 1/4-20 x 3/4” Stainless Steel Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
150682 3 1/4-20 x 5/8” Stainless Steel Carriage Bolt (for models with stainless steel doors)
9 152014 3 1/4-20 Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
151009 1 #10-32 Stainless Steel Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
150682 3 1/4-20 x 5/8” Stainless Steel Carriage Bolt (for models with stainless steel doors)
13 152014 3 1/4-20 Free Spin Wash Nut
14 881210 1 Black Main Door Handle ONLY
170333 1 Stainless Steel Main Handle ONLY
15 102218 1 20-7/16” Door Glass
102360 1 Glass / Door Gasket Tape
(for models mfd. as of February 9, 2001)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)
(for models mfd. prior to February 9, 2001)
16 151013 4 #10-32 Black Nylon Acorn Nut

10 American Dryer Corporation 450558-3

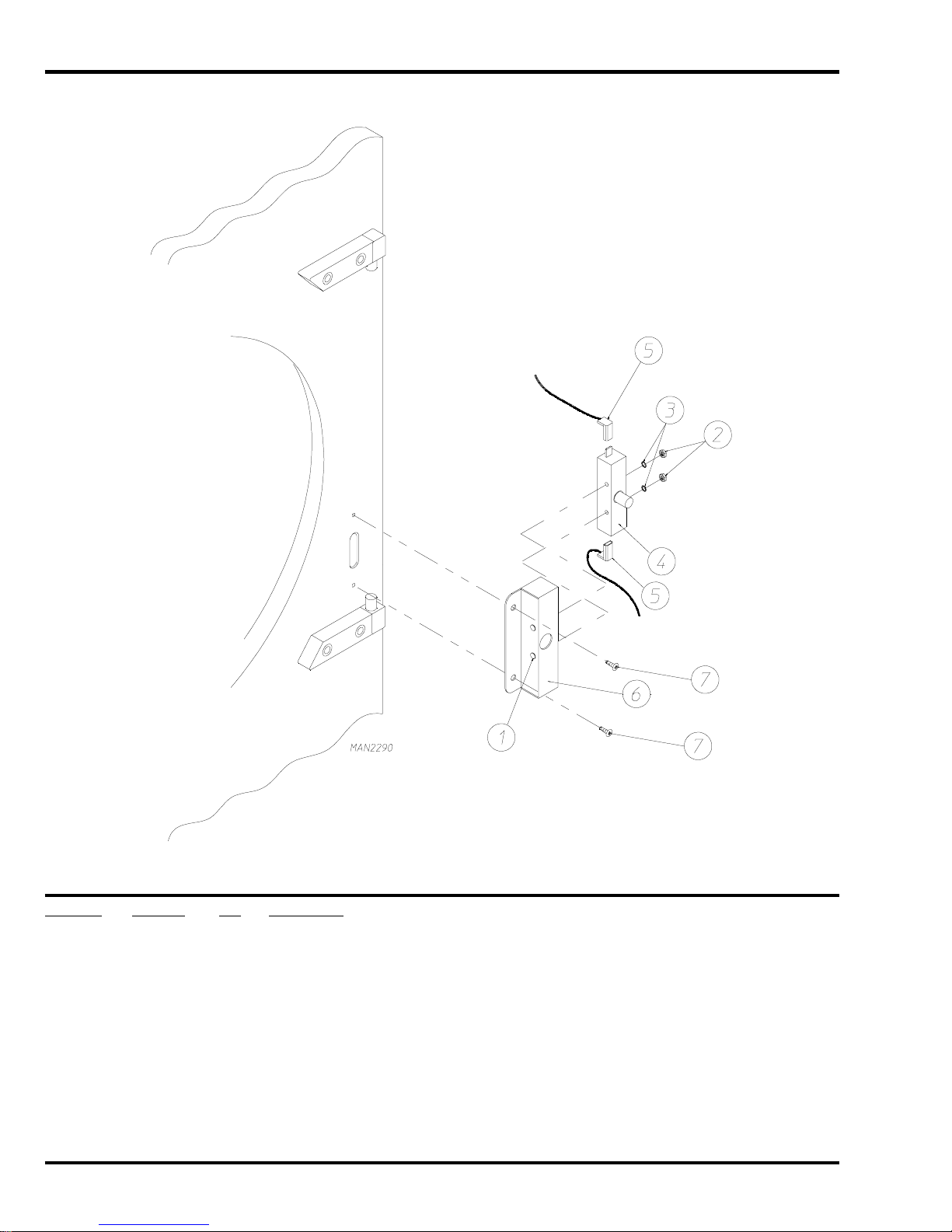

Main Door SwitchAssembly
Illus. No. Part No. Qty.Description
1 153566 2 #6-32 x 7/8” Clinch Stud
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 Star Washer
4 137005 1 Door Switch
5 122636 2 Flag Terminal
6 881211 1 Black Main Door Switch Housing ONLY
353209 1 Stainless Steel Main Door Switch Housing ONLY
881153 1 Black Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
800474 1 Stainless Steel Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

450558-3 www.amdry.com 11

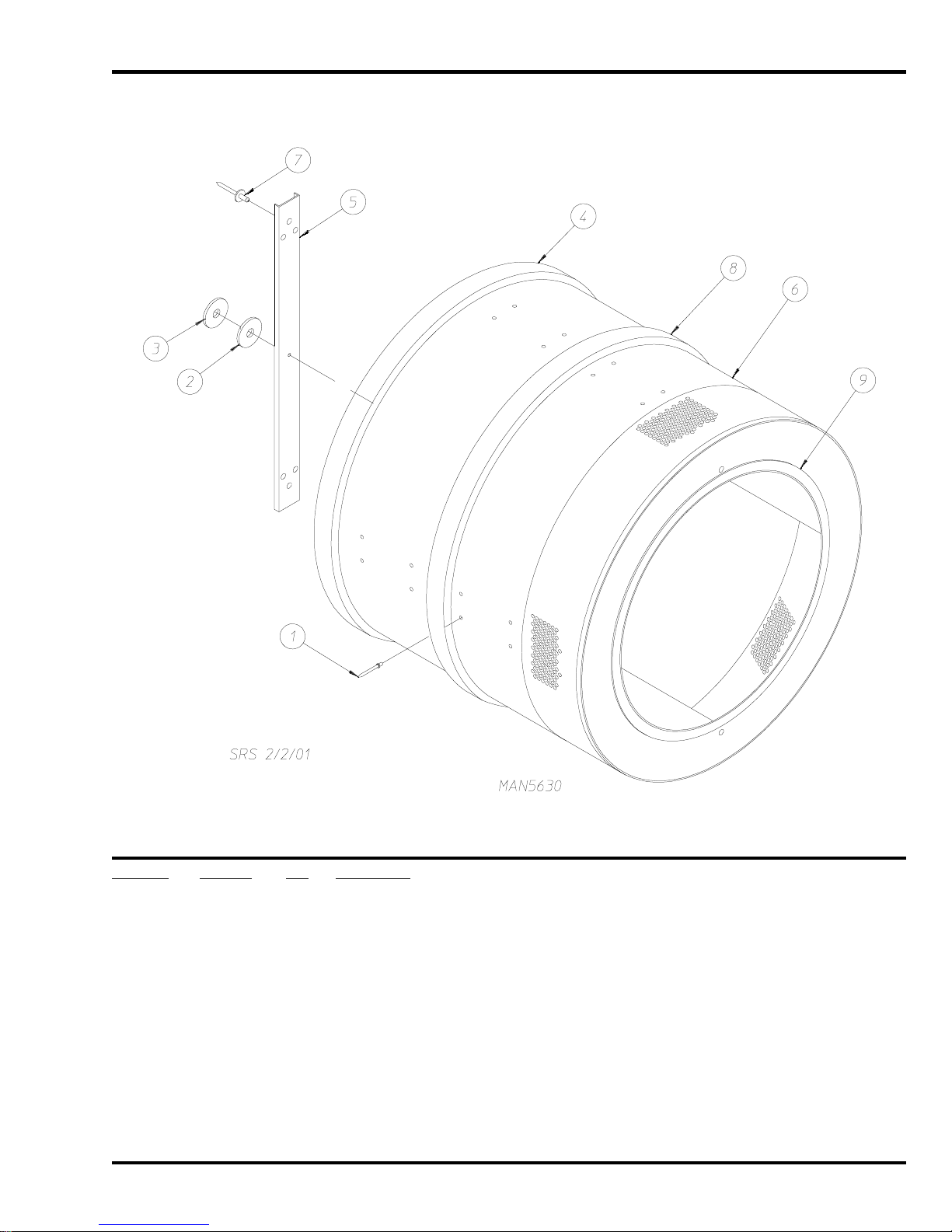

Tumbler / Support Assemblies
Illus. No. Part No. Qty.Description
1 154210 40 5/32” x 3/16” Pop Rivet
2 354217 1 Spacer Plate
3 153048 1 Inner Friction Teflon®Pad
4 116332 1 94” x 2-1/2” x 1/8” Felt Collar
5 882765 1 One Arm Tumbler Support Assembly
(includes illus. nos. 2, 3, and 5)
6 882766 1 Tumbler Assembly for One Arm Tumbler Support
(includes illus. nos. 1, 4, and 9)
882990 1 One Arm Tumbler and Support Assembly Complete
(includes illus. nos. 1 through 7 and 9)
7 154210 6 5/32” x 3/16” Pop Rivet
8 100191 1 12 Rib 105” Long (J) High Temperature Belt
9 115992 1 Inner Ring Felt Collar
401010 1 #847 Adhesive for Felt Collar (5 oz. tube)

12 American Dryer Corporation 450558-3
Top Locking Lint Basket Assembly
Illus. No. Part No. Qty.Description
1 115904 1 Lint Basket Felt
2 154210 5 5/32” x 3/16” Pop Rivet
3 160140 1 Key ONLY for XX4451
4 882787 1 Top Locking Lint Basket with Lock (white)
(includes illus. nos. 1 through 5)
882794 1 Top Locking Lint Basket with No Lock (bisque)
(includes illus. nos. 1, 2, and 4)
5 160038 1 Lint Basket Lock with Cam (no key)
160050 1 Lint Basket Lock (no cam and key) for Stainless Steel ONLY
6 117605 4 1/4” x 3/8” Neoprene Sponge Tape (sold by the foot)

450558-3 www.amdry.com 13
Bottom Locking Lint Basket Assembly
Illus. No. Part No. Qty.Description
1 115904 1 Lint Basket Felt
2 154210 5 5/32” x 3/16” Pop Rivet
3 160140 1 Key ONLY for XX4451
4 882797 1 Bottom Locking Lint Basket Assembly with Lock (black)
(includes illus. nos. 1 through 6)
882796 1 Bottom Locking Lint Basket Assembly with No Lock (black)
(includes illus. nos. 1, 2, 4, and 6)
5 160038 1 Lint Basket Lock with Cam (no key)
6 117604 4 1/8” x 3/8” Neoprene Sponge Tape (sold by the foot)

14 American Dryer Corporation 450558-3
Separator Assembly
Illus. No. Part No. Qty.Description
1 152014 18 1/4-20 Free Spin Wash Nut
2 882926 1 Inner Ring Separator Bracket
882717 1 Inner Ring Separator Assembly
(includes illus. nos. 1 through 3)
3 115903 1 Tumbler Separation Felt

450558-3 www.amdry.com 15
Rotational Sensor / Sail Switch and Teflon®Backup Washer Plate
Illus. No. Part No. Qty.Description
1 882747 1 Teflon®Backup Washer and Magnet Assembly
(includes illus. nos. 1 through 5)
153047 1 Outer Friction Pad
2 354203 1 Teflon®Backup Washer
3 102102 1 Magnet
4 153012 1 #8 Internal Star Washer
5 152001 1 #8-32 x 3/8” Hex Nut
6 153002 1 5/16” Split Lock Washer
7 150501 1 5/16-18 x 3/4” Tap Bolt
8 882748 1 Sail Switch and Rotational Sensor Bracket
(includes illus. nos. 8, 9, 13, 14, 17, and 18)
9 154004 1 Twin Speed Nut
10 105550 1 Sail Switch Rod
11 154002 1 1/8” Push-On Fastener
12 319206 1 Sail Switch Damper
13 122200 1 Sail Switch ONLY
14 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
15 130102 1 190° Rear Tumbler Hi-Limit
16 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
17 152014 2 1/4-20 Free Spin Wash Nut
18 153528 1 #8-32 x 1/2” Self-Clinching Stud
19 824807 1 Rotational Sensor Magnetic Reed Switch

16 American Dryer Corporation 450558-3

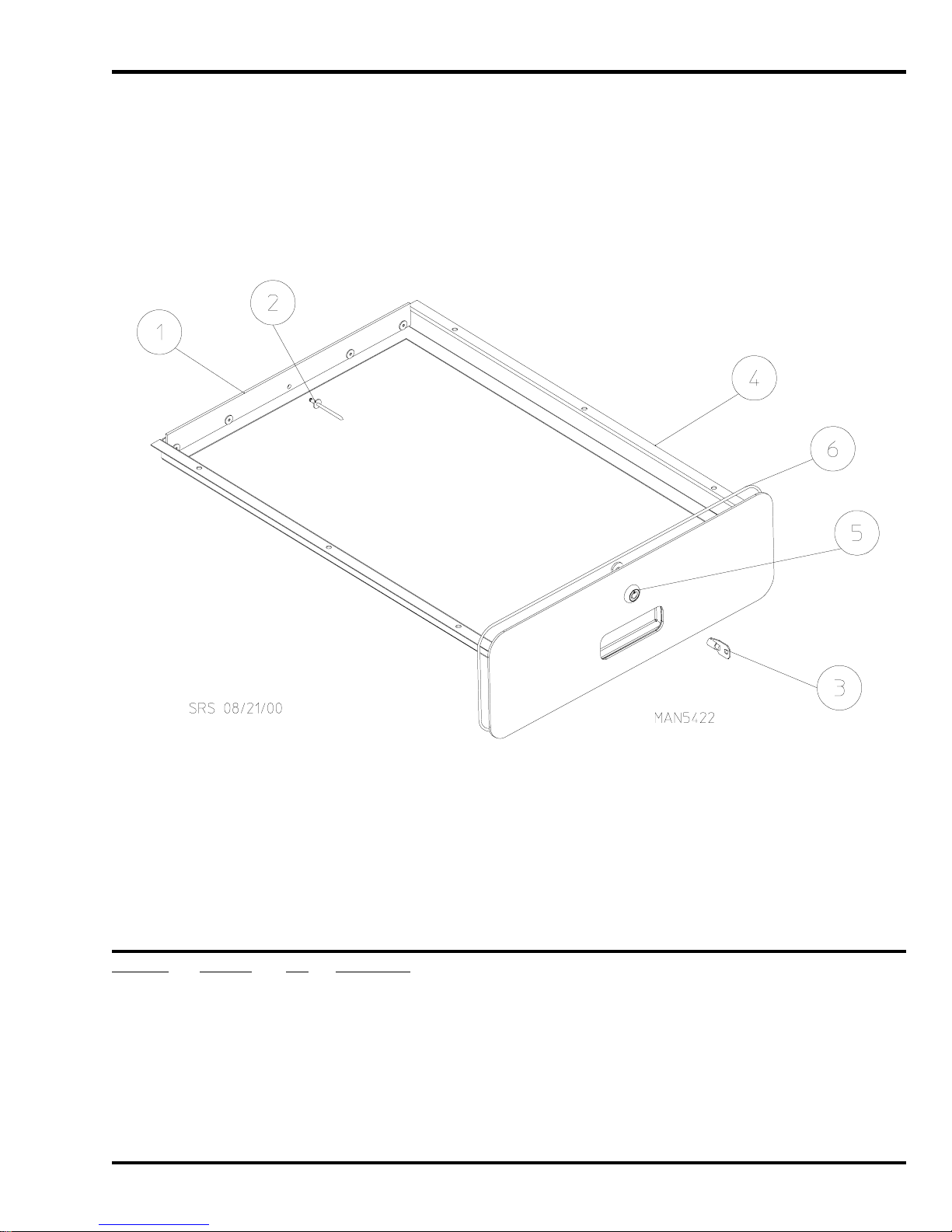

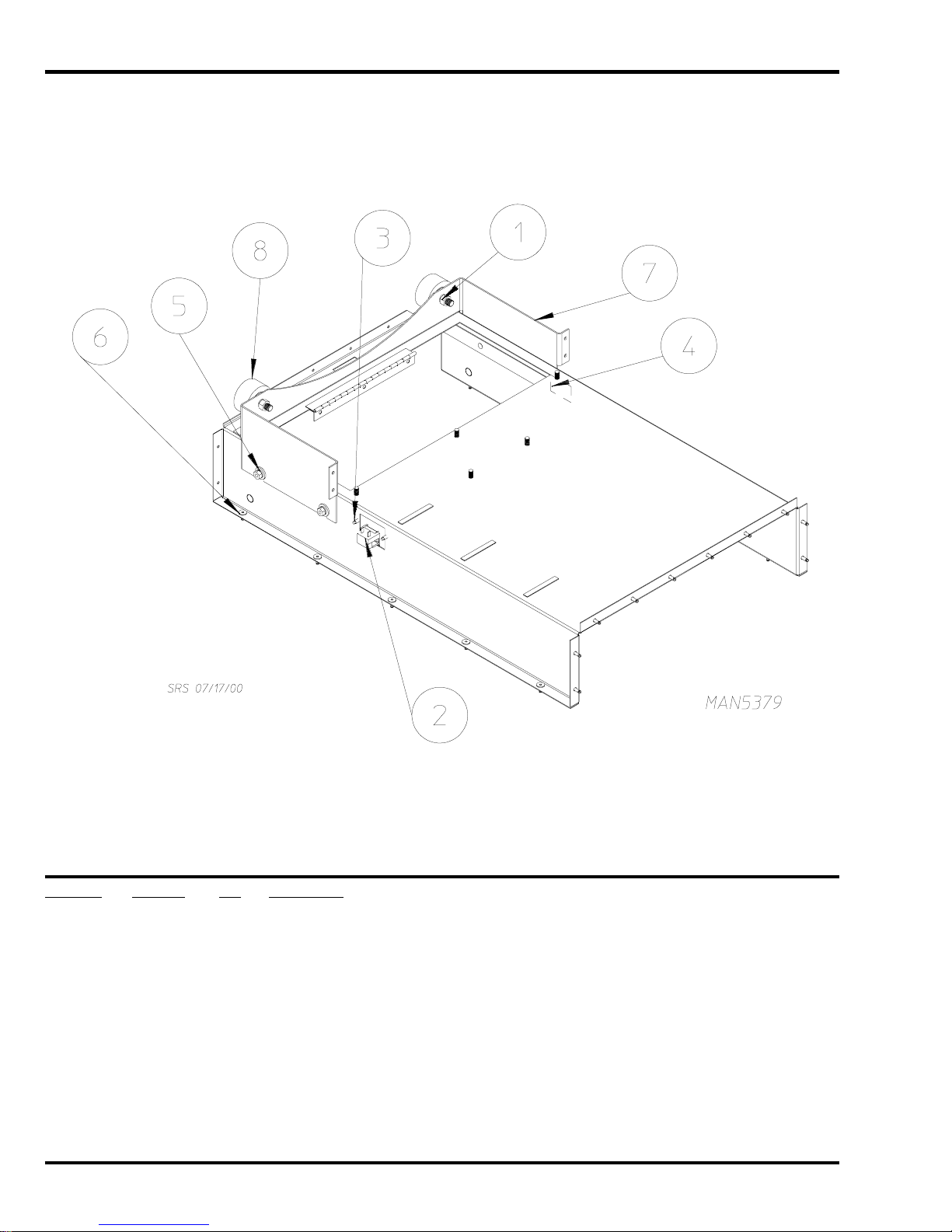

Lint Coop and Adjustment Wheel Bracket Assembly
Illus. No. Part No. Qty.Description
1 150220 2 3/8-24 Hex Nut
2 122002 1 Lint Drawer Switch
3 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 882927 1 Lint Coop ONLY
882716 1 Lint Coop Assembly Complete
(includes illus. nos. 1 through 8)
5 152014 4 1/4-20 Free Spin Wash Nut
6 154210 20 5/32” x 3/16” Pop Rivet
7 354067 1 Adjustment Wheel Bracket
883119 1 Adjustment Wheel Bracket Assembly Complete
(includes illus. nos. 1, 7, and 8)
8 884242 2 Thruster Wheel
(includes illus. nos. 1 and 8)

450558-3 www.amdry.com 17
Left Rear Wheel Bracket (3-Bolt)
Illus. No. Part No. Qty.Description
1 150220 1 3/8-24 Hex Nut
2 150510 3 1/4-20 x 3/4” Hex Head Machine Bolt
3 153007 3 1/4” Split Lock Washer
4 883004 1 Left Rear Roller Wheel Bracket ONLY (3-bolt)
884244 1 Left Rear Roller Wheel Bracket Assembly with Hardware (3-bolt)
5 884242 1 Thruster Wheel

18 American Dryer Corporation 450558-3

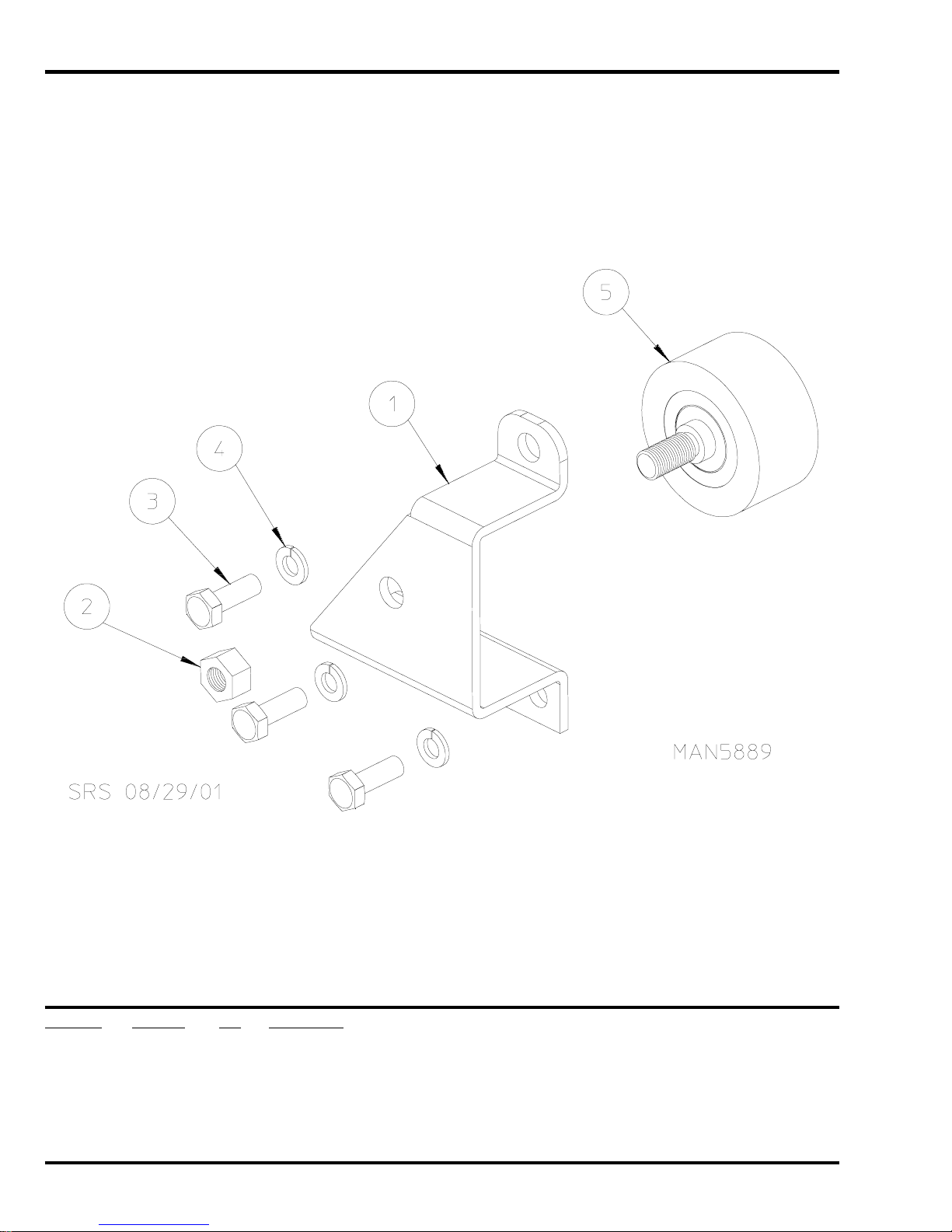

Right Rear Wheel Bracket (3-Bolt)
Illus. No. Part No. Qty.Description
1 883005 1 Right Rear Roller Wheel Bracket ONLY (3-bolt)
884243 1 Right Rear Roller Wheel Bracket Assembly with Hardware (3-bolt)
2 150220 1 3/8-24 Hex Nut
3 150510 3 1/4-20 x 3/4” Hex Head Machine Bolt
4 153007 3 1/4” Split Lock Washer
5 884242 1 Thruster Wheel

450558-3 www.amdry.com 19
Microprocessor Temperature Sensor Bracket Assembly
Illus. No. Part No. Qty.Description
1 882682 1 Temperature Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 6 and 9 through 12)
354117 1 Sensor Bracket ONLY
2 883025 1 Microprocessor Temperature Sensor Probe Assembly Complete
(includes illus. nos. 2 through 6)
3 154007 1 1/4” Push-On Fastener
4 121028 2 1/4” Terminal
5 122701 4 Socket Terminal ONLY
122801 – Pins / Socket Extraction Tool
6 122605 1 4-Position Connector (female)
7 122700 4 Pin Terminal ONLY
8 122604 1 4-Position Connector (male)
9 130119 1 190° Automatic Thermostat
10 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
11 153010 2 #6 Star Washer
12 152013 2 #6-32 Hex Nut
13 152014 2 1/4-20 Free Spin Wash Nut

20 American Dryer Corporation 450558-3
Top Burner Box Assembly
Illus. No. Part No. Qty.Description
1 141138 1 Burner Manifold
2 141137 2 Stainless Steel Burner Tube
3 128927 1 1/2” 24 VAC (natural gas) Gas Valve
880960 1 1/2” 24 VAC Liquid Propane Gas Valve
140411 1 1/2” Liquid Propane Conversion Kit (per tumbler)
883933* – Liquid Propane Conversion Kit
(includes parts to convert both top and bottom tumbler to liquid propane gas)
4 354141 1 Gas Valve Mounting Bracket
5 142710 1 3/4” x 4” Black Nipple
6 354146 2 Burner Bottom Baffle
7 130400 1 290° Burner Hi-Limit
8 354162 1 Direct Spark Ignition Module Mounting Panel
9 354163 1 Pipe Bracket
10 354170 1 Burner Tube Hood
11 142505 1 3/4” x 1/2” x 1/2” Tee
12 142700 1 1/2” Close Nipple
13 128935 1 Direct Spark Ignition Module with 3 Tries
14 150299 2 #10 x 1” Hex Washer TEK Screw
15 353222 1 Manifold Bracket
16 150300 10 #10-16 x 1/2” Hex Washer TEK Screw
17 140819 2 #30 Burner Orifice (natural gas)
18 154210 30 5/32” x 3/16” Pop Rivet
19 882451 1 Direct Spark Ignition Ignitor / Flame-Probe with High Voltage Wire
20 142601 1 3/4” Black Union
21 882906 1 Burner Box ONLY
883128** 1 Natural Gas Burner Assembly Complete (less orifice)
22 –––––– 1 Rear Electrical Panel Assembly Complete
(refer to Rear Electrical Panel on page 23)
* Consult factory for elevations over 2,000 feet.
** Burner orifice is not included and must be ordered separately.
