American Dryer Corp. ADE-50S User manual

SUPER AD-50 Parts Manual
24 VAC
1994 thru 2001
American Dryer Corporation
88 Currant Road
Fall River, MA02720-4781
Telephone: [phone] / Fax: [phone]
E-mail: [e-mail]
www.amdry.com
MODELS: ADG-50DS
ADE-50S
ADS-50S
ADC Part No. 450302

SUPER AD-50
Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________
RESELLER’S NAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of
the various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.

Table of Contents
Control DoorAssembly Without Trim
For Non-Coin Models Mfd. as of July 13, 1998 ............................................................................... 3
High Security Control DoorAssembly
ForAll Coin Models and Non-Coin Models Mfd. prior to July 13, 1998 ........................................... 4
Phase 5 Coin Microprocessor Control PanelAssembly ........................................................................... 5
Phase 5 Non-Coin Microprocessor Control PanelAssembly ................................................................... 6
Phase 5 Coin and Non-Coin Microprocessor Control BoxAssembly ...................................................... 7
Dual Timer “Tap Touch” Controls
For Models Mfd. as of November 3, 2000 ....................................................................................... 8
Dual Timer Control PanelAssembly
For Models Mfd. prior to November 3, 2000 ................................................................................... 9
Dual Timer Control BoxAssembly ........................................................................................................ 10
Non-Microprocessor Coin Meter Control PanelAssembly .................................................................... 11
Non-Microprocessor Coin Meter Control BoxAssembly ...................................................................... 12
Coin Meter Replacement Parts ............................................................................................................. 13
Coin VaultAssembly ............................................................................................................................. 14

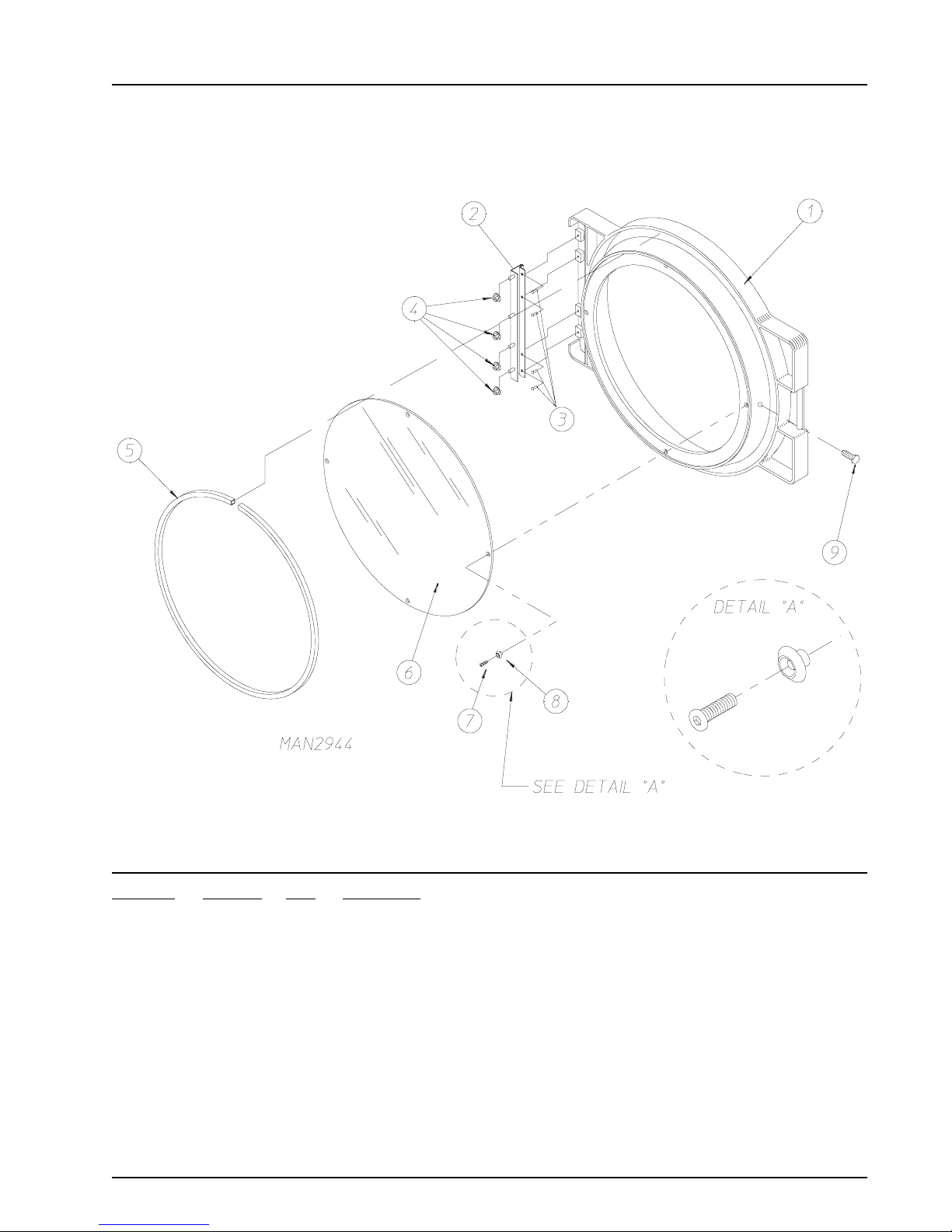

“Plastic” Main DoorAssembly .............................................................................................................. 15
Main Door SwitchAssembly For “Plastic” Door ................................................................................... 16

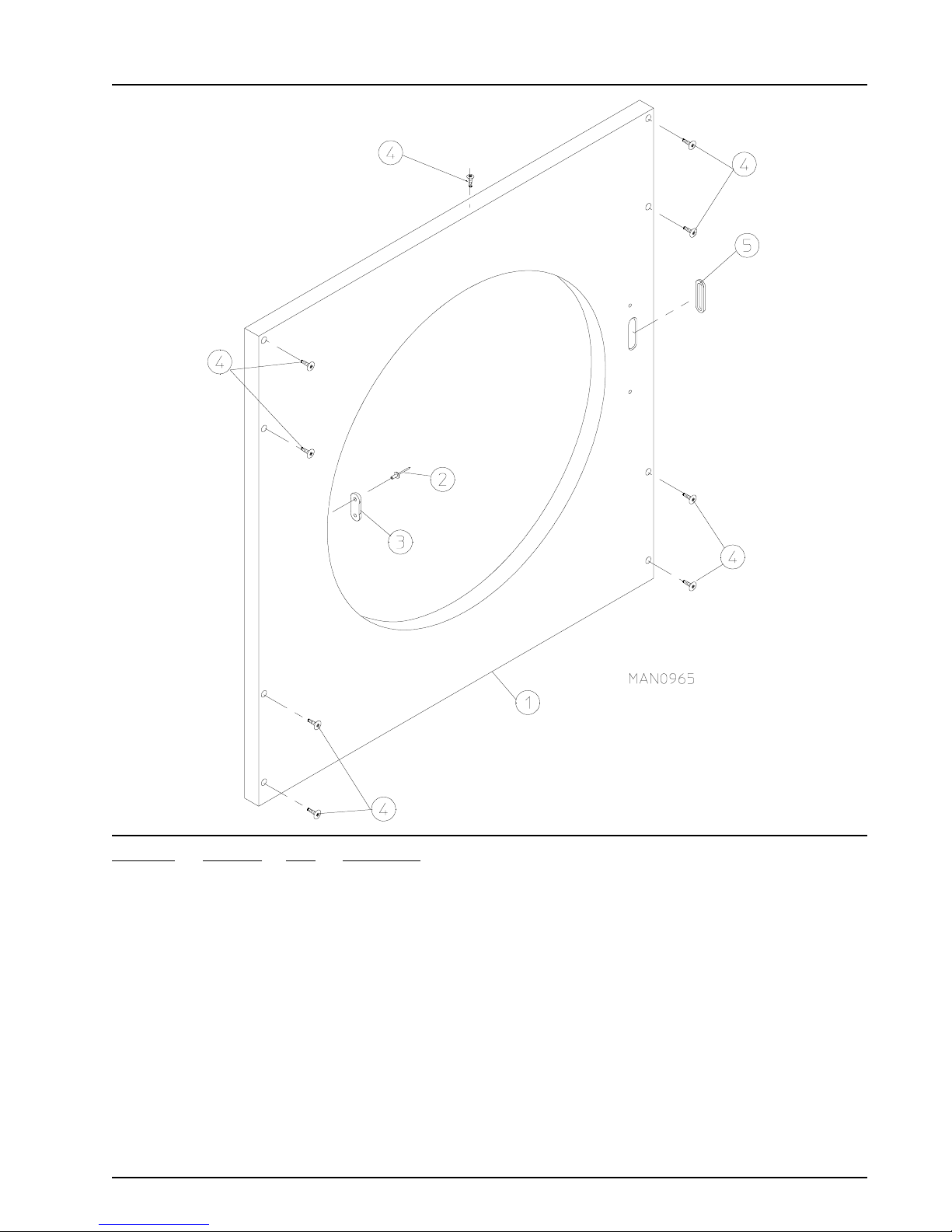

Front PanelAssembly For “Plastic” Door .............................................................................................. 17

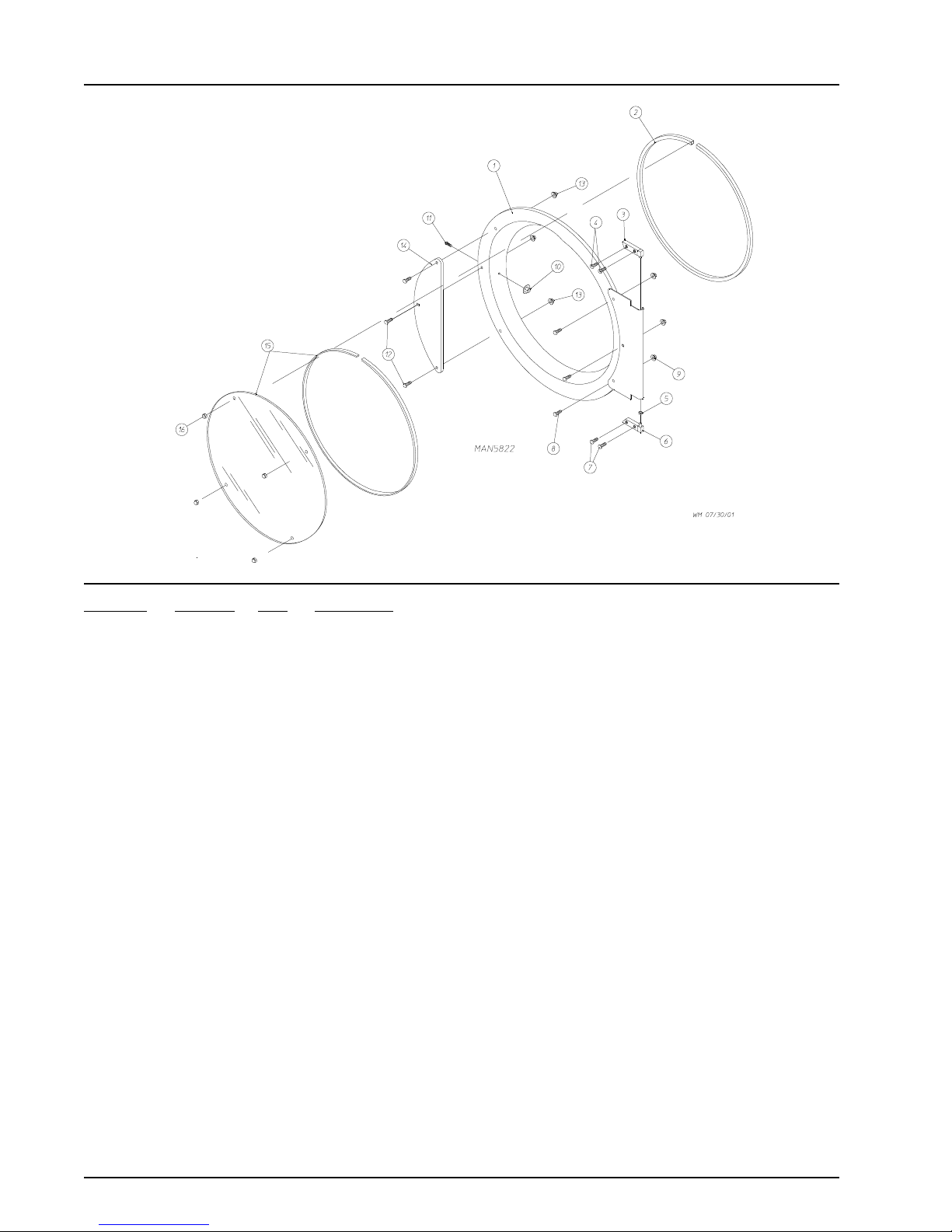

Main Door “Steel”Assembly ................................................................................................................ 18
Main Door SwitchAssembly Cold Rolled Steel Door ............................................................................ 19
Cold Rolled Steel Door Front Panel ...................................................................................................... 20
Lint TrapAssembly ............................................................................................................................... 21
Drop Lint DoorAssembly Without Trim
For Non-Coin Models Mfd. as of July13, 1998 .............................................................................. 22
Drop Lint DoorAssembly With Trim
ForAll Coin Models and Non-Coin Models Mfd. prior to July 13, 1998 ......................................... 23

Tumbler/SupportAssemblies ................................................................................................................. 24
Idler BearingAssembly ......................................................................................................................... 25
Tumbler BearingAssembly .............................................................................................................. 26, 27
Non-Reversing Totally Enclosed, Fan-Cooled Motor MountAssembly ............................................ 28, 29
Reversing Totally Enclosed, Fan-Cooled Motor MountAssembly .................................................... 30, 31
Sensor BracketAssemblies ............................................................................................................. 32, 33
Direct Spark Ignition BurnerAssembly ............................................................................................ 34, 35
Electric OvenAssembly .................................................................................................................. 36, 37
Steam Coil/Air Operated Steam DamperAssembly ......................................................................... 38, 39
Sail Switch/Hi-LimitAssembly .............................................................................................................. 40
Single-Phase (1Ø) Motor, Electric Relay PanelAssembly ...................................................................... 41
3-Phase (3Ø) Motor, Electric Relay PanelAssembly ............................................................................. 42
Microprocessor Reversing Rear Control BoxAssembly ......................................................................... 43
Dual Timer Reversing Rear Control BoxAssembly ................................................................................ 44
Outer Top/Back GuardAssemblies ....................................................................................................... 45
Electric Oven Chart .............................................................................................................................. 46
Transformer Listing Gas/Steam Dryers .................................................................................................. 47
Transformer Usage Listing For Electric Dryers ....................................................................................... 48
Microprocessor CoinAcceptors Listing ................................................................................................ 49
Additional PartsAvailable ..................................................................................................................... 50

450302-5 Telephone: [phone] / www.amdry.com 3

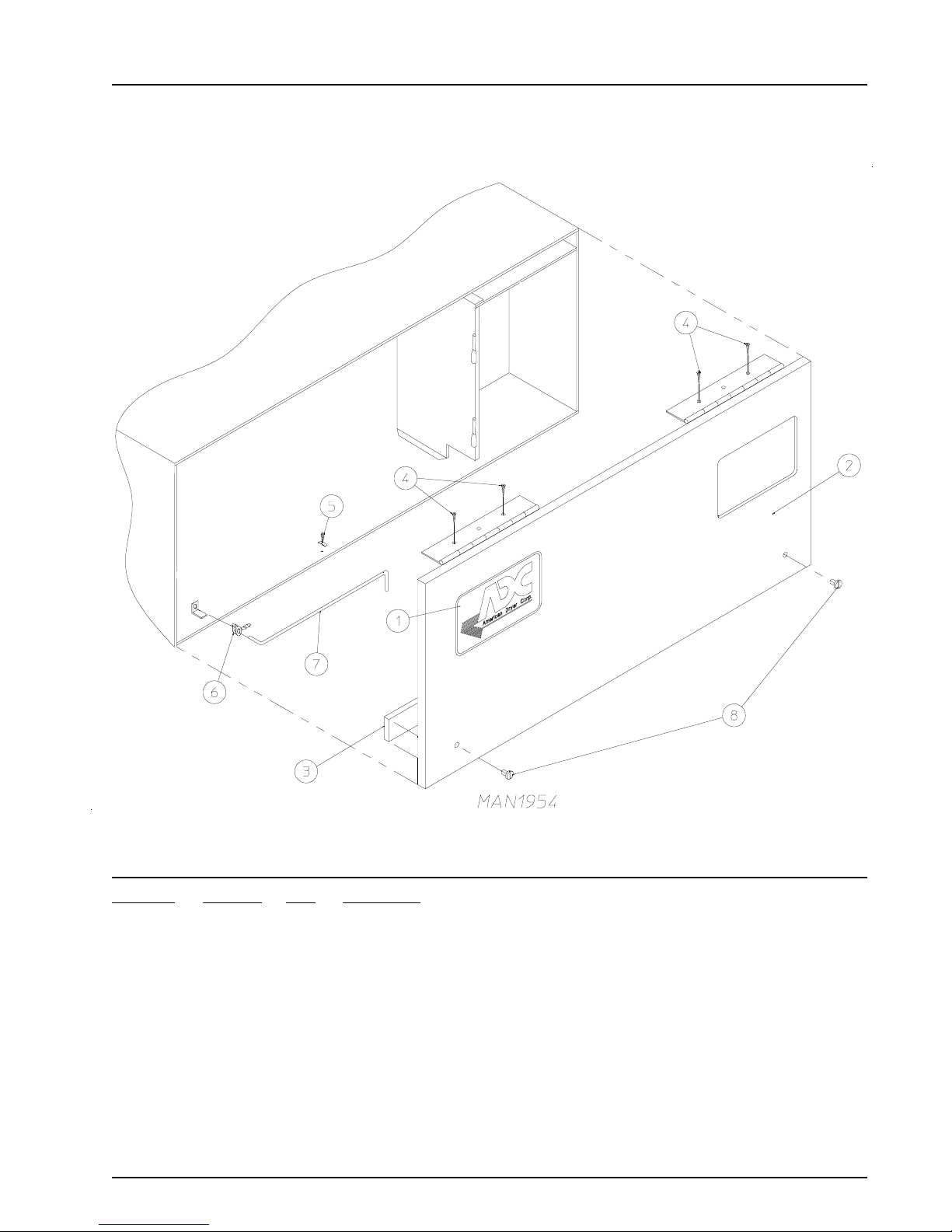

Control Door Assembly Without Trim
For Non-Coin Models Mfd. as of July 13, 1998
Illus. No. Part No. Qty.Description
1 881053 1 ADC Logo Only (with double adhesive tape)
870011 1 Logo Double Tape Kit
2 882265* 1 Control Door
(includes illus. nos. 2 and 3)
3 117604 4 Neoprene Sponge Tape (sold by the foot)
4 150300 4 #10 x 1/2” Hex Washer TEK Screw
5 102603 1 Control Door Rod Support Catch
6 102601 1 Control Door Retainer Clip
7 102502 1 Control Door Support Rod
8 882541 2 Spring Turn Latch Assembly
* Specify color when ordering.

4 American Dryer Corporation 450302-5
Illus. No. Part No. Qty.Description
1 160015 1 High Security MK-100 Lock Assembly with Key (for coin models Only)
160104 1 MK-100 Key Only
160017 1 Special Dummy Lock Only (for non-coin models Only)
2 160032 1 Lock Cam Only
3 881053 1 ADC Logo with Tape Kit
112350 1 ADC Logo Only
870011 1 Double Sided Tape Kit
4* 800022 1 High Security Control Door Assembly Less Lock
(includes illus. nos. 4 through 7)
800141 1 High Security Stainless Steel Control Door Assembly Less Lock
(includes illus. nos. 4 through 7)
5 180201 1 Top Trim with Lock Hole
6 117603 3 Suppressor Tape/Gasket (sold by the foot)
7 150201 5 #10-32 x 1/4” Phillips Round Head Machine Screw
8 150300 4 #10 x 1/2” Hex Washer TEK Screw
9 102603 1 Control Door Support Rod Catch
10 102601 1 Control Door Rod Retainer Clip
11 102502 1 Control Door Support Rod
* Specify color when ordering.

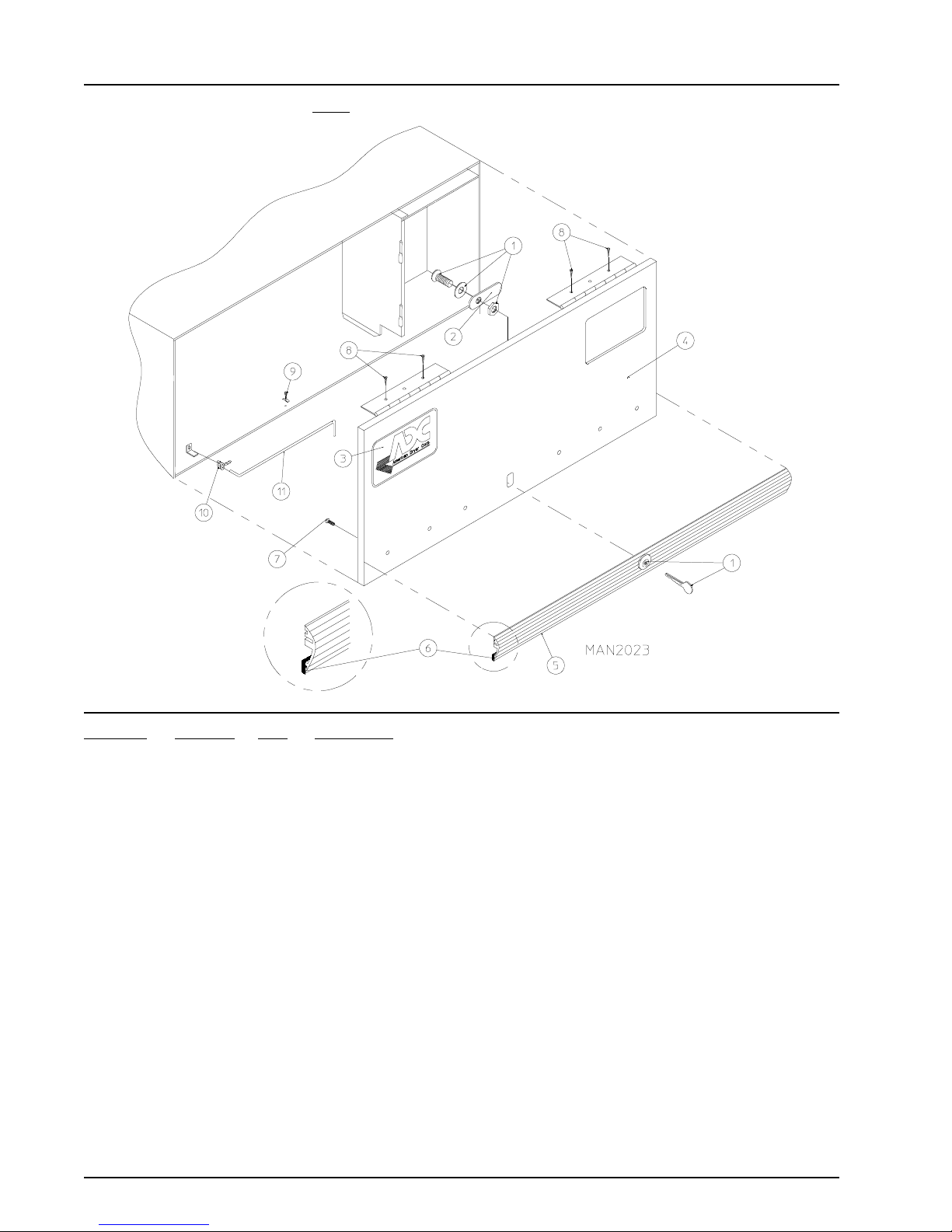

High Security Control Door Assembly
For ALL Coin Models and Non-Coin Models Mfd. prior to July 13, 1998

450302-5 Telephone: [phone] / www.amdry.com 5
Illus. No. Part No. Qty.Description
1 112526 1 Coin Keyboard Label Assembly
2 801213 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4 through 6 and 11)
801229 1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4 through 6 and 11)
801259 1 Coin Control Panel Only
801258 1 Coin Control Panel with Battery Bracket
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Controller Only
824998 1 Phase 5 Battery Clip
5 153010 2 #6 Star Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7 --------- 1 Microprocessor Coin Acceptor with Optical Switch
(refer to Microprocessor Coin Acceptors Listing on page 49)
8 137056 1* Optic Switch Only (Greenwald coin acceptors)
881143 1* Optic Switch Only (Hanke coin acceptors)
9 137023 1* Optic Switch Connector Only
10 137021 3* Microprocessor Socket Only
880772 1 Single Coin Optical Switch Harness
824080 1 Dual Coin Optical Switch Harness
122800 1 Microprocessor (female) Pin Extraction Tool
11 136048 1 1/8-Amp (Slo-Blo) Fuse
* For dual coin models, double the quantity.
IMPORTANT: Check label on computer chip to verify correct part number for controller.

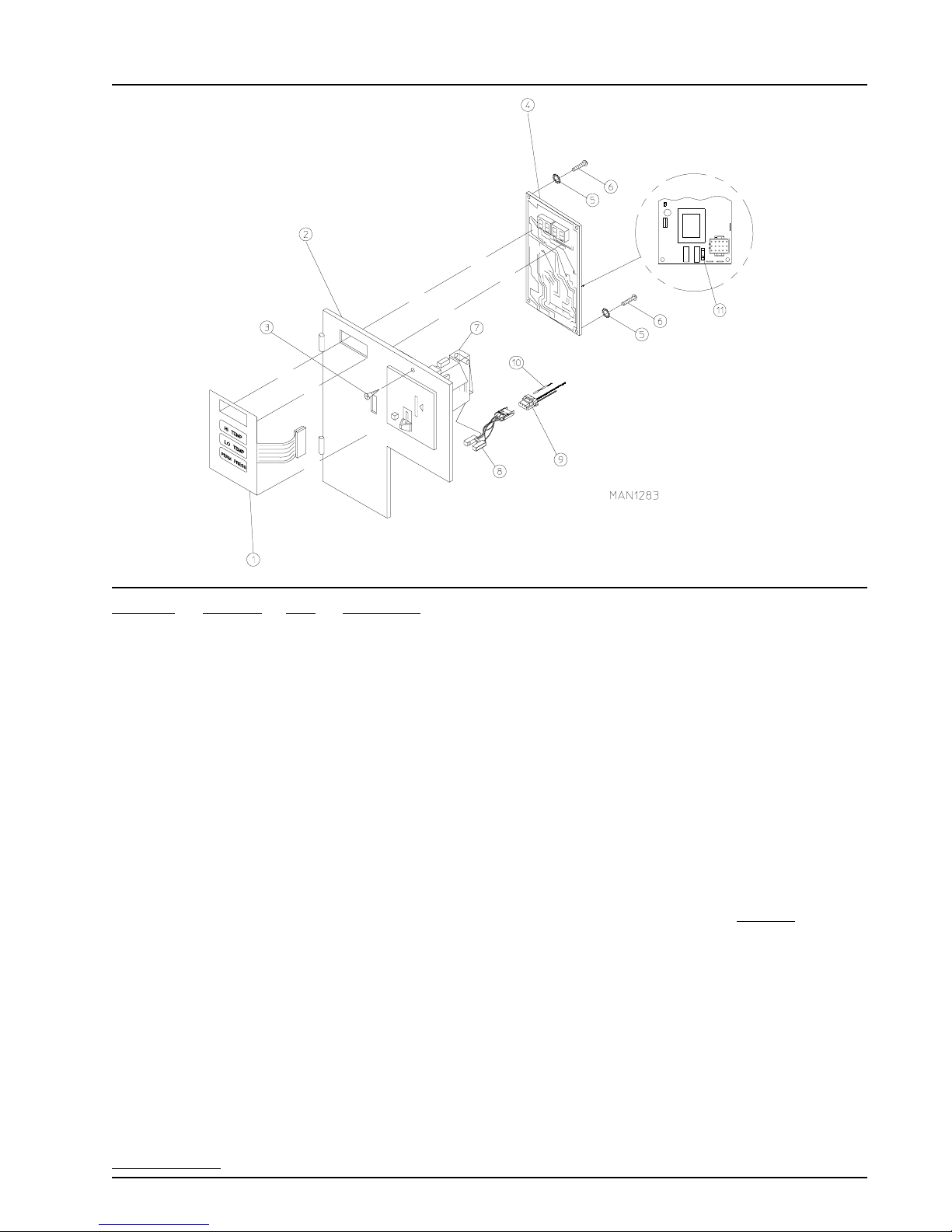

Phase 5 Coin Microprocessor Control Panel Assembly

6 American Dryer Corporation 450302-5
Illus. No. Part No. Qty.Description
1 112535 1 Non-Coin English Keyboard Label Assembly
112276 1 Non-Coin Stick-On Labels (English Only)...Not Illustrated
112275 1 3-Language Non-Coin Stick-On Labels...Not Illustrated
(Spanish, Italian, and Hebrew)
112277 1 3-Language Non-Coin Stick-On Labels...Not Illustrated
(English, Spanish, and Hebrew)
112278 1 5-Language Non-Coin Stick-On Labels...Not Illustrated
(Italian, Dutch, French, German, and Chinese)
2 801255 1 Phase 5 Microprocessor Control Panel Only
801256 1 Phase 5 Microprocessor Control Panel Only with Battery Bracket
801206 1 Phase 5 Non-Coin Non-Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 through 7)
801207 1 Phase 5 Non-Coin Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 through 7)
3 137222 1 Phase 5 Non-Coin Non-Reversing Controller Only
137231 1 Phase 5 Non-Coin Reversing Controller Only
824998 1 Phase 5 Battery Clip
4 153010 2 #6 Star Washer
5 150005 2 #6-32 x 3/4” Phillips Round Head Machine Screw
6 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 136048 1 1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Check label on computer chip to verify correct part number for controller.

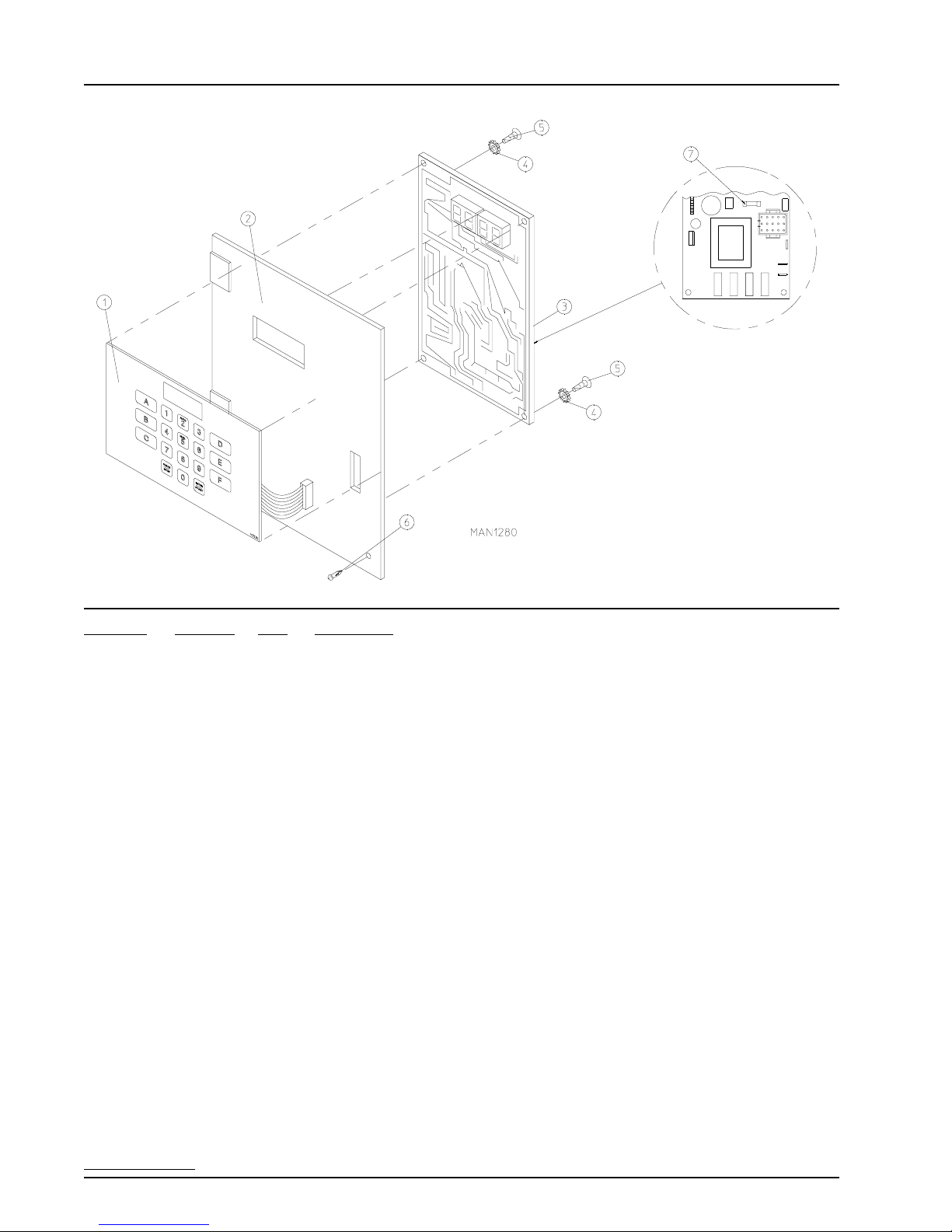

Phase 5 Non-Coin Microprocessor Control Panel Assembly

450302-5 Telephone: [phone] / www.amdry.com 7
Phase 5 Coin and Non-Coin Microprocessor Control Box Assembly
Illus. No. Part No. Qty.Description
1 141403 1 24 VAC Transformer
For ALL Gas and Steam Models, and Electric Models of 380/416/480 Volt
132070 1 24 VAC Transformer
(for electric models of 208 volt/240 volt)
2 150300 2 #10 x 1/2” Hex Washer TEK Screw
3 120715 1 30-Position Terminal Block
4 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
5 151000 2 #6-32 Pal Nut
6 136057 * 1/2-Amp (Slo-Blo) Fuse
7 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw
8 136008 * Fuse Block/Strip Only
9 122641 1 15-Pin Microprocessor Connector
10 122706 * Socket
* As required.

8 American Dryer Corporation 450302-5

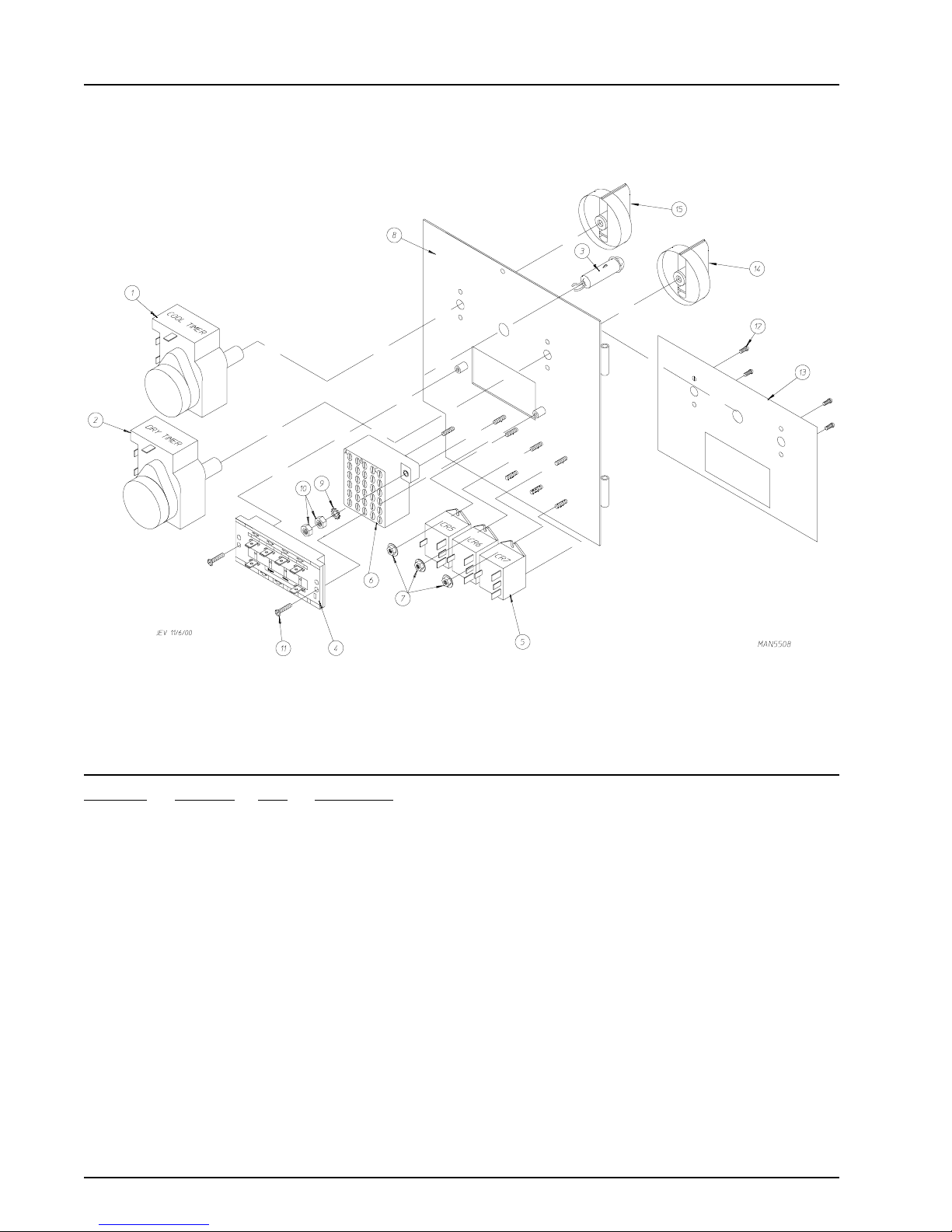

Dual Timer “Tap Touch” Controls
For Models Mfd. as of November 3, 2000
Illus. No. Part No. Qty.Description
1 124030 1 15 Minute Timer - 24 VAC
2 124025 1 60 Minute Timer - 24 VAC
3 824175 1 Red Pilot Light - 24 VAC
4 122301 1 “Tap Touch” Switch
5 131932 3 Relay SPST 24v
6 120730 1 30-Position Terminal Block
7 151000 6 #6-32 Pal Nut
8 882903 1 Dual Timer Panel Complete
(includes illus. nos. 1 through 15)
850392 - Dual Timer Panel Only
9 153010 2 #6 Star Washer
10 152000 3 #6-32 Hex Nut
11 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
12 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
13 112563 1 Dual Timer Panel Overlay
14 124104 1 Pure Touch Knob with Red Pointer
15 124105 1 Pure Touch Knob with Blue Pointer

450302-5 Telephone: [phone] / www.amdry.com 9

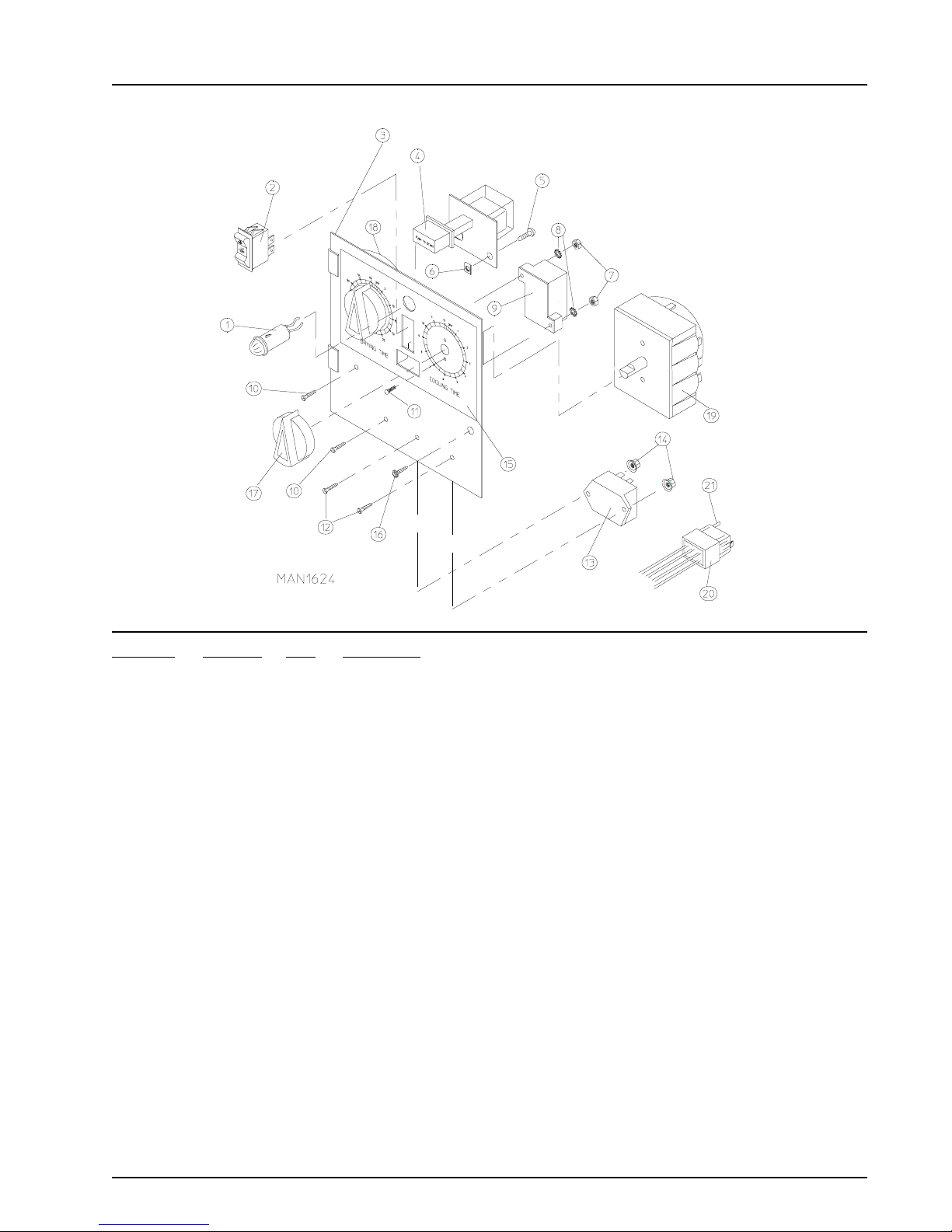

Illus. No. Part No. Qty.Description
1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 824015 1 Dual Timer Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 21)
800051 1 Dual Timer Control Panel Only
4 131917 1 Push-to-Start Relay - 24 VAC
5 150207 2 #10-24 x 1/2” Round Head Machine Screw
6 154001 2 #10-24 Speed Nut
7 152000 2 #6-32 Hex Nut
8 153010 2 #6 Star Washer
9 120713 1 18-Position Terminal Block
10 150002 2 #6-32 x 1” Round Head Machine Screw
11 150110 4 #8-32 x 1/4” Phillips Machine Screw
12 150001 2 #6-32 x 1/2” Round Head Machine Screw
13 131931 1 Dual Timer Relay - 24 VAC
14 151000 2 #6-32 Pal Nut
15 112050 1 Dual Timer Label Only
16 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
17 124103 2 Arrow Timer - 24 VAC
18 124025 1 60 Minute Timer - 24 VAC
19 124030 1 15 Minute Timer - 24 VAC
20 122602 1 9-Pin Connector Only
21 122700 8 Pin Terminal Only
-- 122801 1 Pin/Socket Extraction Tool
Dual Timer Control Panel Assembly
For Models Mfd. prior to November 3, 2000

10 American Dryer Corporation 450302-5

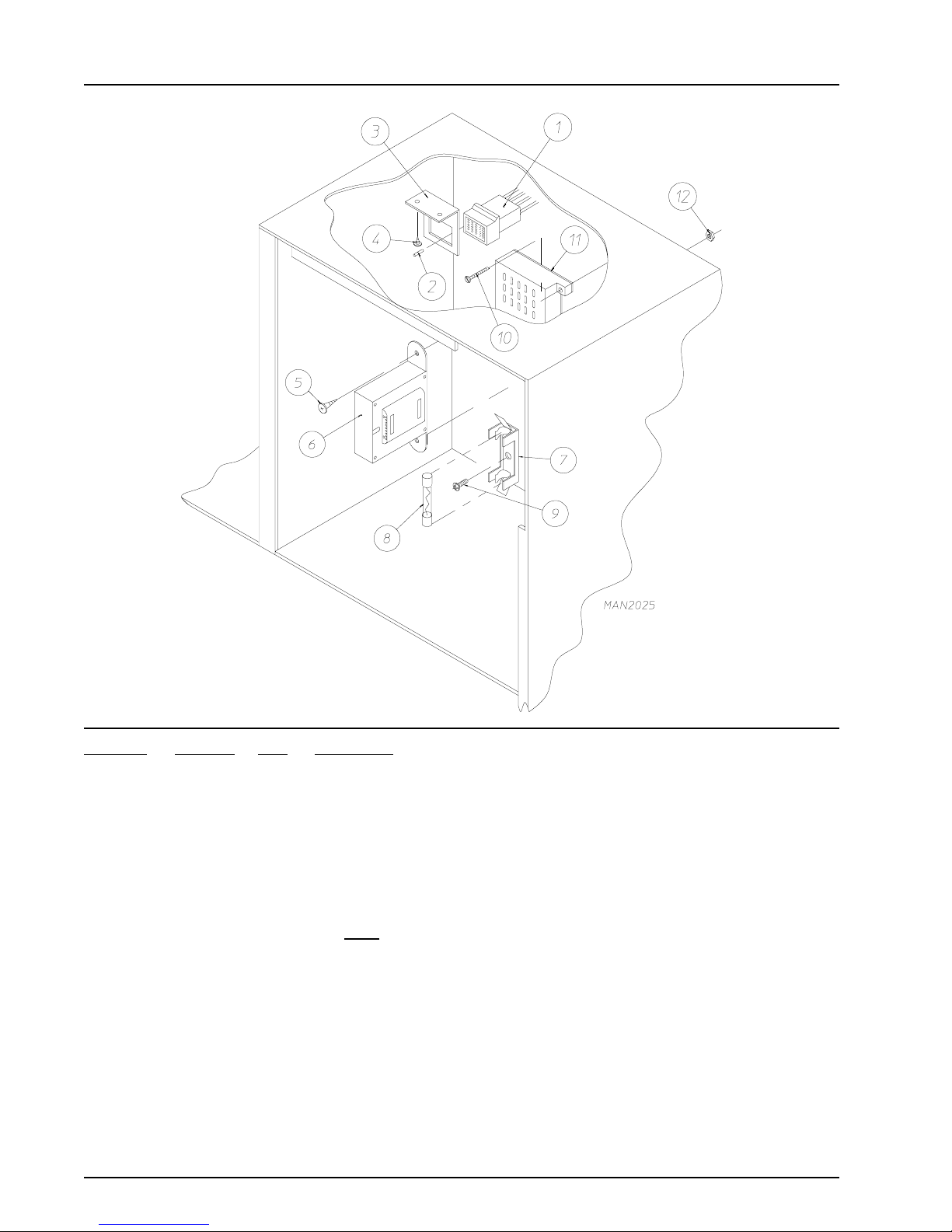

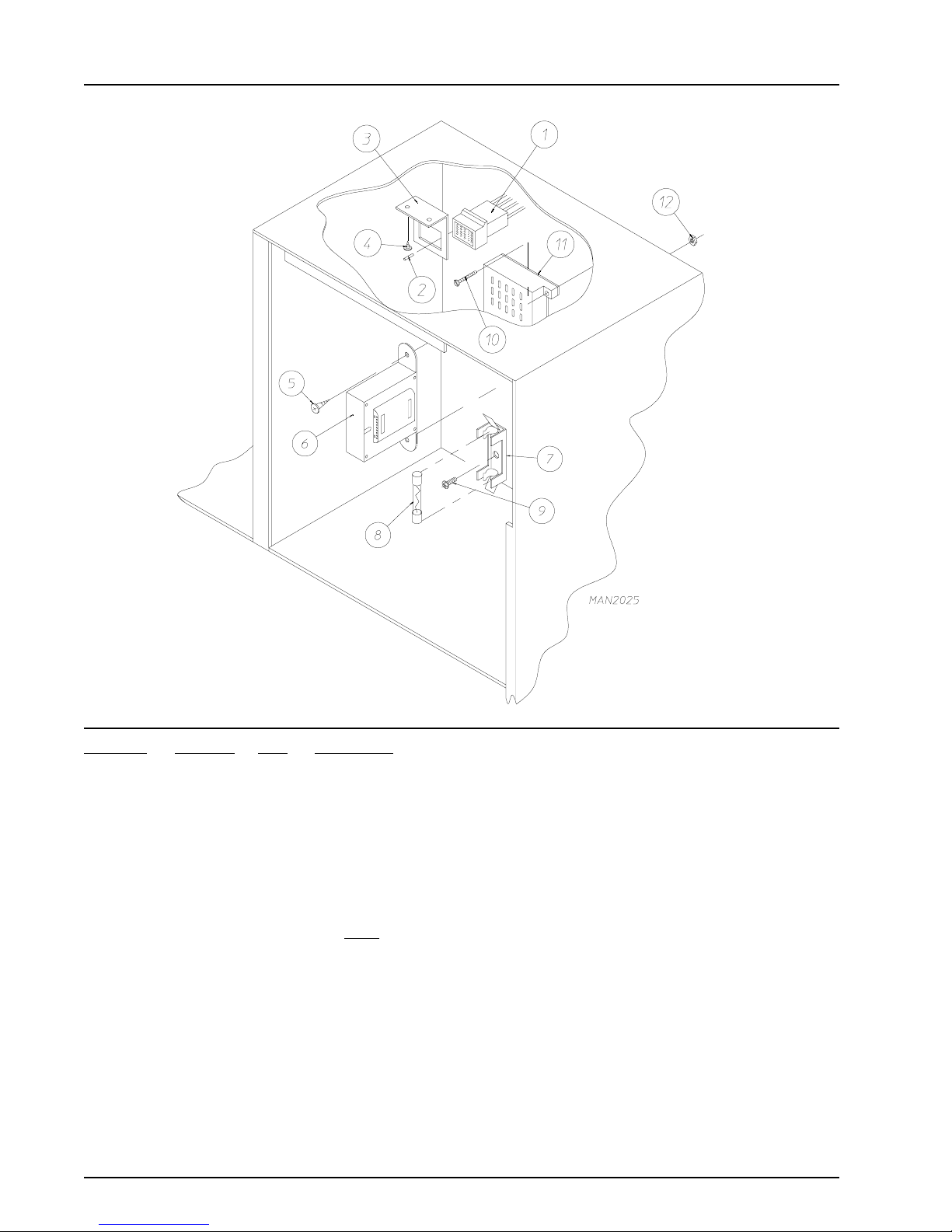

Illus. No. Part No. Qty.Description
1 122603 1 9-Pin Socket Connector
2 122701 9 Socket Terminal Only
122801 1 Pin/Socket Extraction Tool
3 315010 1 9-Pin Connector Bracket
4 150300 2 #10 x 1/2” Hex Washer TEK Screw
5 150300 2 #10 x 1/2” Hex Washer TEK Screw
6 141403 1 24 VAC Transformer
(for ALL gas and steam models, and electric models of 380/416/480 volt)
132070 1 24 VAC Transformer
(for electric models of 208 volt/240 volt)
7 136008 * Fuse Block/Strip Only
8** 136057 * 1/2-Amp (Slo-Blo) Fuse
9 150301 * #8 x 7/16” Phillips Pan Head TEK Screw
10 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
11 120715 1 30-Position Terminal Block
12 151000 2 #6-32 Pal Nut
* As required.
** Check fusing on dryer for verification.
Dual Timer Control Box Assembly

450302-5 Telephone: [phone] / www.amdry.com 11

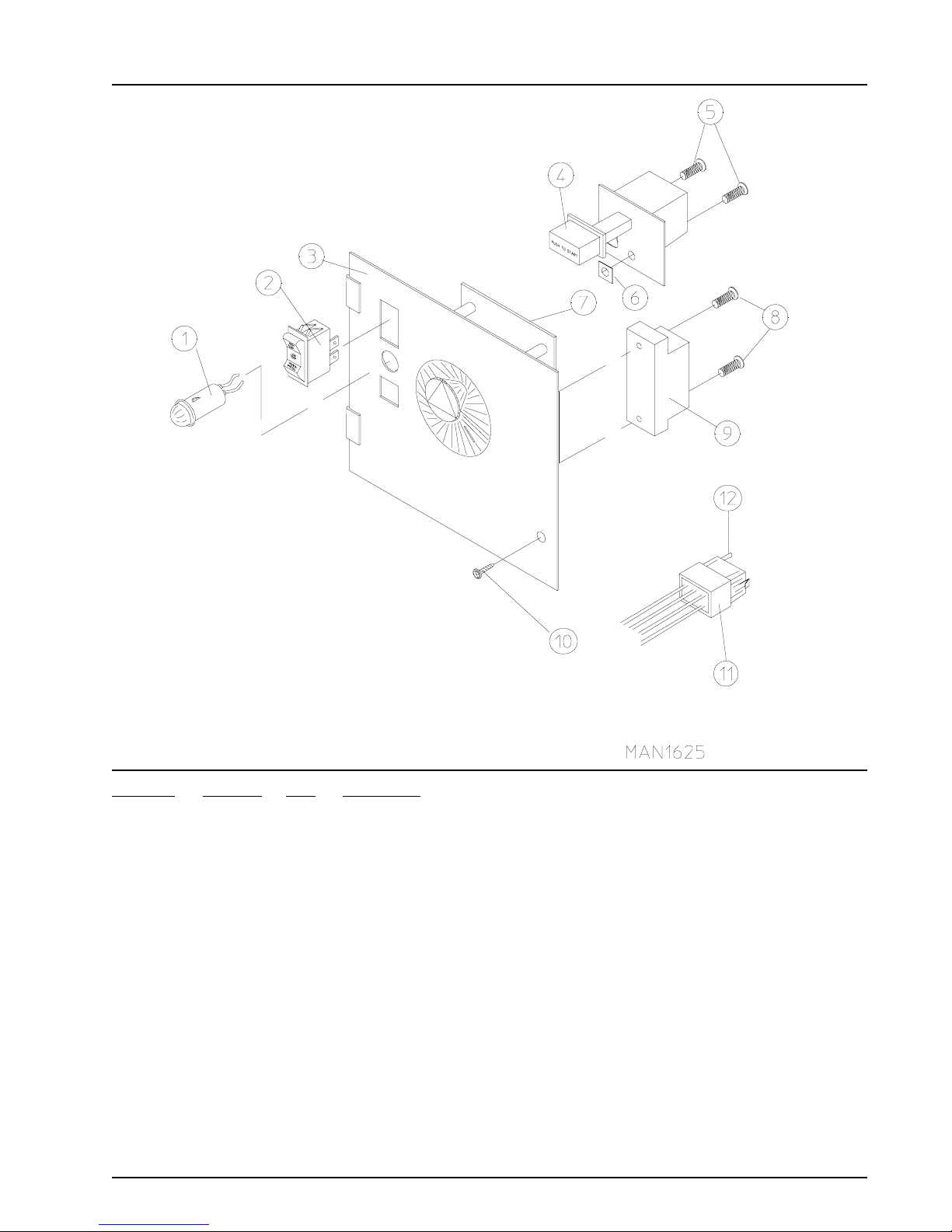

Non-Microprocessor Coin Meter Control Panel Assembly
Illus. No. Part No. Qty.Description
1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 824020 1 Coin Meter Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 6 and 8 through 12)
800054 1 Coin Meter Control Panel Only
4 131917 1 Push-to-Start Relay - 24 VAC
5 150207 2 #10-24 x 1/2” Round Head Machine Screw
6 154001 2 #10-24 Speed Nut
7* 125601 1 25¢ Coin Meter 24v (specify timing)
8 150303 2 #4 x 3/4” Pan Head “A” Screw
9 120712 1 12-Position Terminal Block
10 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
11 122602 1 9-Pin Connector Only
12 122700 9 Pin Terminal Only
-- 122801 1 Pin/Socket Extraction Tool
* Consult factory for coin meters not listed.

12 American Dryer Corporation 450302-5
Illus. No. Part No. Qty.Description
1 122603 1 9-Pin Socket Connector
2 122701 9 Socket Terminal Only
122801 1 Pin/Socket Extraction Tool
3 315010 1 9-Pin Connector Bracket
4 150300 2 #10 x 1/2” Hex Washer TEK Screw
5 150300 2 #10 x 1/2” Hex Washer TEK Screw
6 141403 1 24 VAC Transformer
(for ALL gas and steam models, and electric models of 380/416/480 volt)
132070 1 24 VAC Transformer
(for electric models of 208/240 volt)
7 136008 * Fuse Block/Strip Only
8** 136057 * 1/2-Amp (Slo-Blo) Fuse
9 150301 * #8 x 7/16” Phillips Pan Head TEK Screw
10 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
11 120715 1 30-Position Terminal Block
12 151000 2 #6-32 Pal Nut
* As required.
** Check fusing on dryer for verification.
Non-Microprocessor Coin Meter Control Box Assembly

450302-5 Telephone: [phone] / www.amdry.com 13

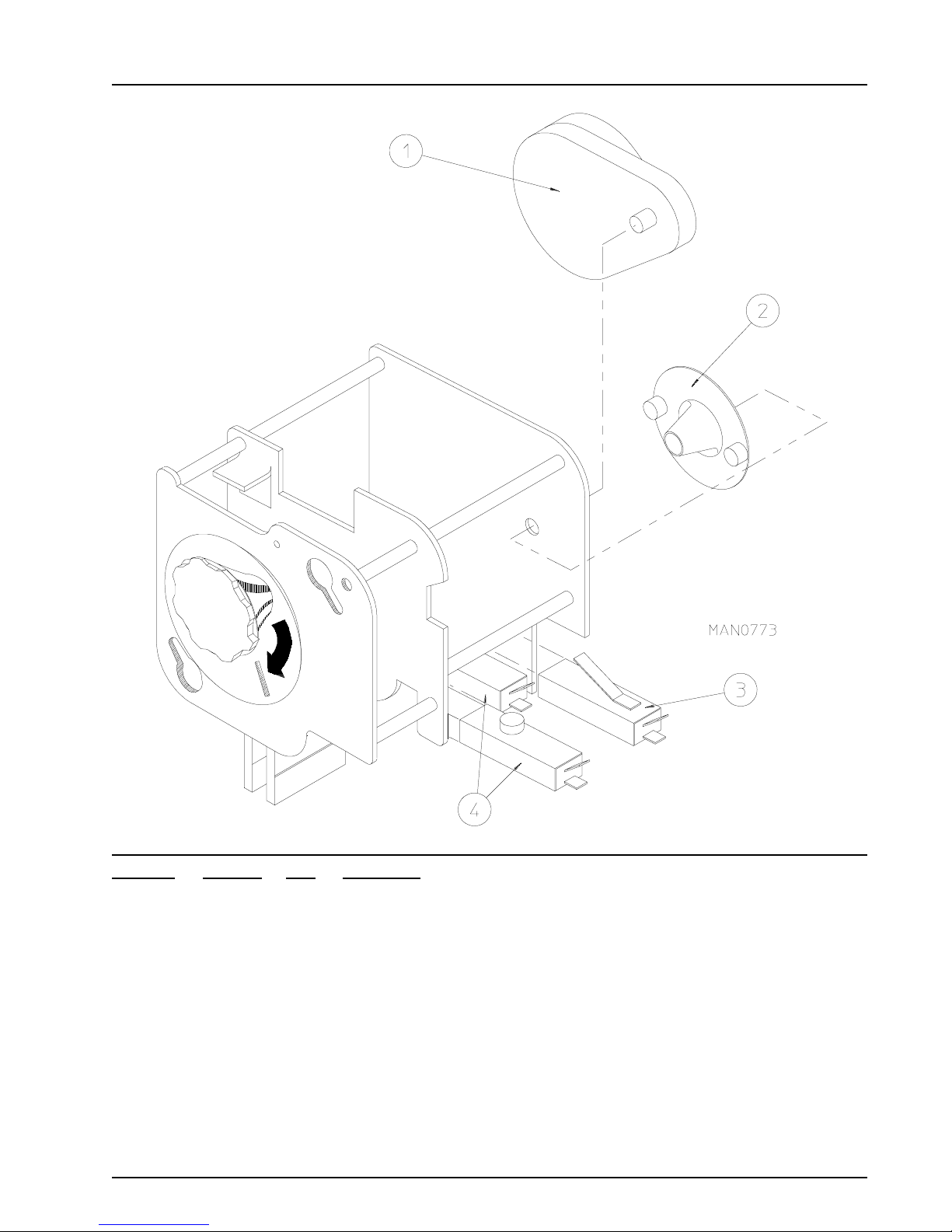

Illus. No. Part No. Qty.Description
1 125541 1 1/60 RPM 24v / 60 Hz Meter Motor
125540 1 1/30 RPM 24v / 50 Hz Meter Motor
2 125500 1 2-Point Cam
125501 1 3-Point Cam
125502 1 4-Point Cam
125503 1 5-Point Cam
125504 1 6-Point Cam
125506 1 8-Point Cam
125507 1 9-Point Cam
125508 1 10-Point Cam
125510 1 12-Point Cam
3 125515 1 Meter Switch “B” with Arm
4 125516 2 Meter Switch “A” or “C”
Coin Meter Replacement Parts

14 American Dryer Corporation 450302-5

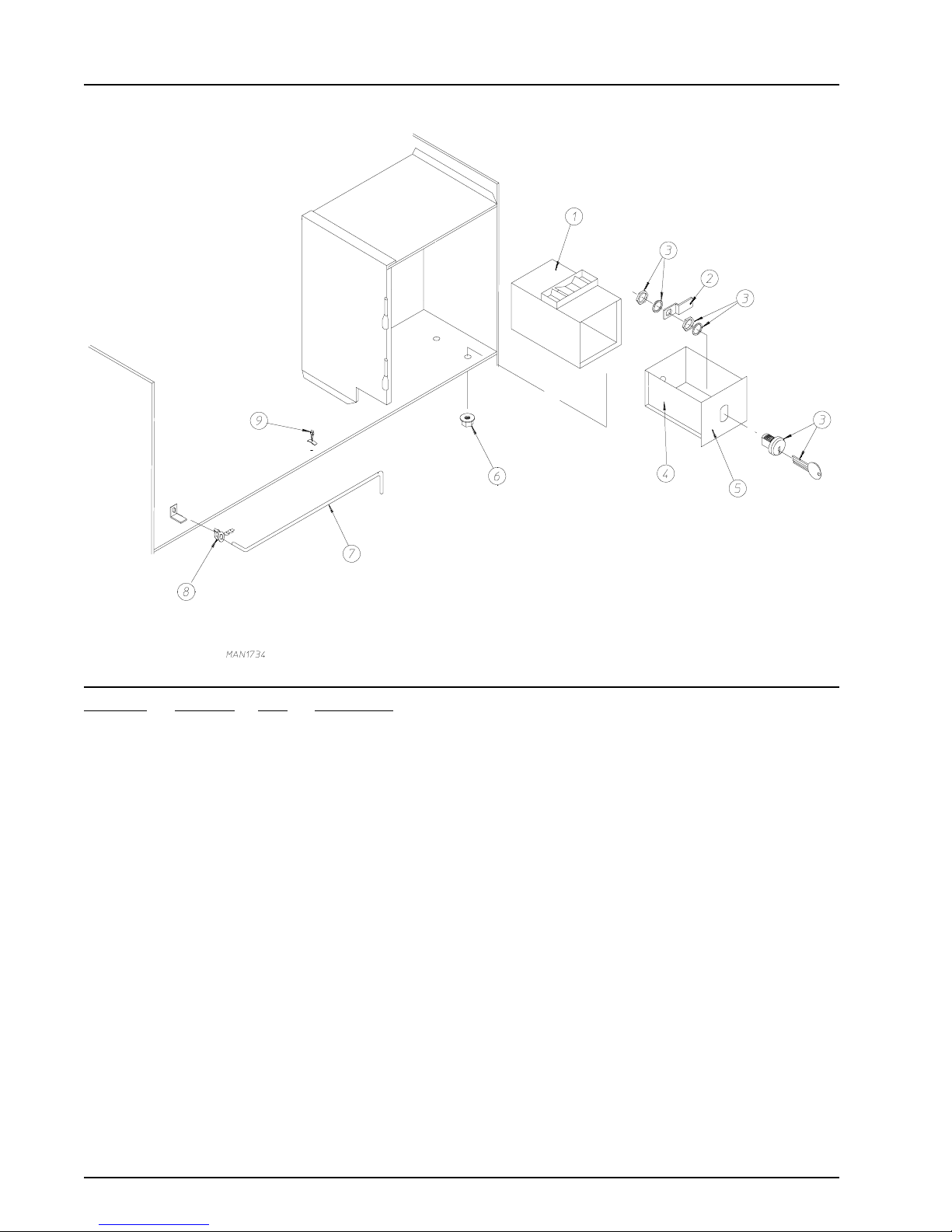

Illus. No. Part No. Qty.Description
1 802112 1 Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6)
802117 1 Microprocessor Coin Vault Only
802110 1 Non-Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6)
802115 1 Non-Microprocessor Coin Vault Only
2 160006 1 Cam For 1/4 Turn Lock Only
3 875061 1 1/4 Turn Lock with Key and Cam
160105* 1 1/4 Turn Mer-Pel Key Only
4 802020 1 1/4 Turn Coin Box Assembly
(includes illus. nos. 2 through 5)
802019 1 1/4 Turn Coin Box Only without Face Plate
125915 1 High Security (Greenwald) Coin Box Only with Key
5 802018 1 1/4 Turn Coin Box Face Plate Assembly
(includes illus. nos. 2 through 5)
6 152014 4 1/4-20 Free Spin Wash Nut
7 102502 1 Control Door Support Rod
8 102601 1 Control Door Rod Retainer Clip
9 102603 1 Control Door Rod Catch
* Specify key number when ordering.
Coin Vault Assembly

450302-5 Telephone: [phone] / www.amdry.com 15
Illus. No. Part No. Qty.Description
1 881421 1 Gray Plastic Main Door Assembly Complete with Mechanical Fasteners
(includes illus. nos. 1 and 5 through 9)
2 800448 4 12-1/2” Stainless Steel Main Door Hinge Assembly
3 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw
4 152014 1 1/4-20 Free Spin Wash Nut
5 102349 1 Main Door Gasket
6 102212 1 20-7/16” Door Glass with Four (4) Holes
170730 1 Main Door Glass Adhesive (10.3 oz. cartridge)
7 150448 4 1/2” Stainless Steel Flat Head Allen Screw
8 170319 4 Door Glass (Nylon) Spacer
9 150431 1 Main Door Latch Screw
(#10 x 7/16” dome hex head)
“Plastic” Main Door Assembly

16 American Dryer Corporation 450302-5

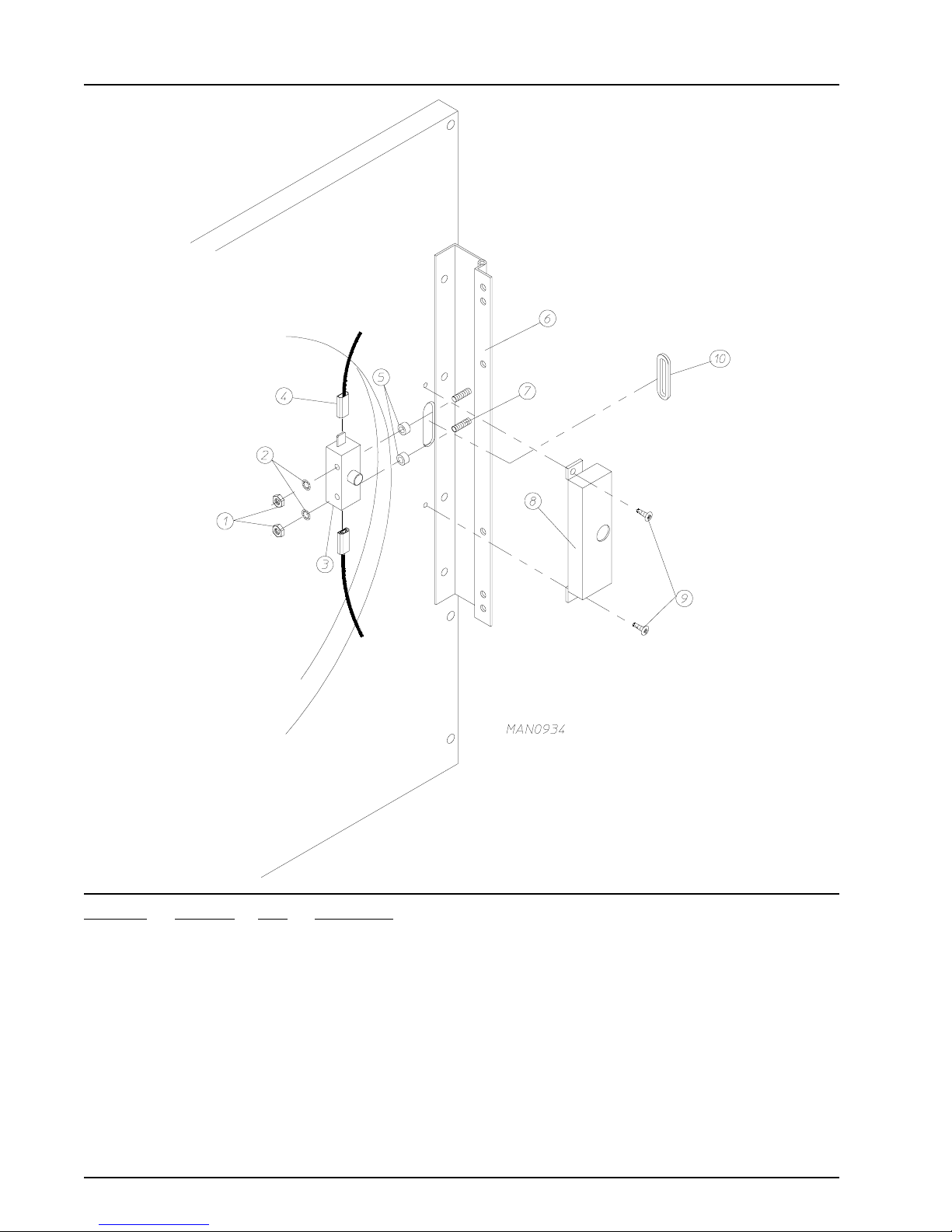

Illus. No. Part No. Qty.Description
1 152013 2 #6-32 Hex Nut
2 153008 2 #6 Lock Washer
3 137005 1 Single-Pole Door Switch
4 121028 2 Insulated Female Terminal
5 154281 2 3/8” Standard Nylon Spacers
6 800448 1 12-1/2” Stainless Steel Main Door Hinge Assembly
(includes illus. nos. 6 and 7)
7 153565 2 #6 Stud
8 313218 1 Main Door Switch Housing Only
9 150201 2 #10-32 x 1/4” Phillips Pan Head Screw
10 121405 1 Rubber Grommet
Main Door Switch Assembly For “Plastic” Door

450302-5 Telephone: [phone] / www.amdry.com 17
Illus. No. Part No. Qty.Description
1 875301* 1 Insulated Front Panel Assembly Complete - Latch Type
(includes illus. nos. 1 through 3 and 5)
875312 1 Stainless Steel Right Hand Insulated Front Panel Assembly Complete -
Latch Type
(includes illus. nos. 1 through 3 and 5)
2 154215 2 1/8” Pop Rivet
3 170330 1 Friction Door Latch
4 150309 9 #10-16 x 1/2” Hex Head TEK Crimptite Screw
150313 9 #10-16 x 1/2” TORX Plus Type 1 Screw
(for models mfd. as of November 2, 2000)
150318 - TORX Plus Bit
5 121405 1 Rubber Grommet
* Specify color when ordering.
Front Panel Assembly For “Plastic” Door

18 American Dryer Corporation 450302-5
Main Door “Steel” Assembly
Illus. No. Part No. Qty.Description
1 881150 1 Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2 102354 1 Door Gasket
170730 1 Clear Glass Adhesive (10.3 oz. cartridge)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)
3 881152 1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 881151 1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5, 6, and 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
150443 2 1/4-20 x 3/4” Stainless Steel Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/4-20 Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/4-20 Free Spin Wash Nut
14 881210 1 Black Main Door Handle Only
15 102218 1 20-7/16” Door Glass
102360 1 Glass/Door Gasket Tape
(for models mfd. as of February 9, 2001)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)
For Models Mfd. prior to February 9, 2001
16 151013 4 #10-32 Black Nylon Acorn Nut
