American Dryer Corp. AD-210 User manual

AD-210 / ML-210
Installation Manual
Phase 7 / Non-Coin / 650,000 Btu/hr
with Non-Tilting Options
ADC Part No. 113549-8
AVERTISSEMENT:
RISQUE D’INCENDIE OU D’EXPLOSION
Le non-respect des avertissements de
sécurité pourrait entraîner des blessures
graves, la mort ou des dommages
matériels.
– N’entreposer pas et n’utilisez pas
d’essence ni d’autres vapeurs ou
liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ
●●
●●
●Ne tentez pas d’allumer d’appareil.
●●
●●
●Ne touchez à aucun interrupteur. Ne
vous servez pas des téléphones se
trouvant dans le bâtiment où vous
vous trouvez.
●●
●●
●Évacuez la pièce, le bâtiment ou la zone.
●●
●●
●Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●●
●●
●Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
– L’installation et l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
●●
●●
●Do not try to light any appliances.
●●
●●
●Do not touch any electrical switch;
do not use any phone in your
building.
●●
●●
●Clear the room, building or area of
all occupants.
●●
●●
●Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●●
●●
●If you cannot reach your gas
supplier, call the fire department.
– Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
!!
!!
!!!
!!
!
American Dryer Corporation
88 Currant Road, Fall River MA 02720-4781 USA
Telephone: [phone] / Fax: [phone]
e-mail: [email protected] / www.adclaundry.com

We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer reserves the
right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to
change or discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
IMPORTANT
For your convenience, log the following information:
DATE OF PURCHASE ______________________________________________ MODEL NO. _________________________
RESELLER’S NAME ___________________________________________________________________________________
SERIAL NUMBER(S) ___________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the
factory, you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts
Department at [phone]. Please specify the dryer model number and serial number in addition to the description
and part number, so that your order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning
the modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructions to be followed if the user smells gas. These
instructions must be posted in a prominent location near the dryer.
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY CAUTION” must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet appareil
ou de tout autre appareil.

Caution: Label all wires prior to
disconnection when servicing
controls. Wiring errors can
cause improper operation.
Attention: Au moment de l’entretien des commandes,
étiquetez tous les fils avant de les débrancher. Des
erreurs de câblage peuvent entraîner un fonctionnement
inadéquat.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE DRYERS.
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.
IMPORTANT
YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND THE GAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TOALLOW ACCESS FOR CLEANING, ADJUSTING,
INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OCCUPATIONAL SAFETY
AND HEALTH ADMINISTRATION (OSHA) STANDARDS.
CAUTION
DRYERS SHOULD NEVER BE LEFT UNATTENDED WHILE IN OPERATION.
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
In the State of Massachusetts, the following installation instructions apply:
■Installations and repairs must be performed by a qualified or licensed contractor,
plumber, or gas fitter qualified or licensed by the State of Massachusetts.
■Acceptable Shut-off Devices: Gas Cocks and Ball Valves installed for use shall be
listed.
■A flexible gas connector, when used, must not exceed 4 feet (121.9 cm).

IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/
or specified in the installation manual included with the dryer.
Dryer
must not be installed or stored in an area where it will be exposed to water and/or
weather.
IMPORTANT
Dryer must be installed in a location/environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).
The wiring diagram for the dryer is located in the front electrical control box area.
WARNING
UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch,
heat safety circuit ever be disabled.
DO NOT MODIFY THISAPPLIANCE.
The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.

Table of Contents
SECTION I
IMPORTANT INFORMATION ............................................................................... 3
A. Receiving and Handling ................................................................................................................... 3
B. Safety Precautions .......................................................................................................................... 4
SECTION II
SPECIFICATIONS/DIMENSIONS AND COMPONENT LOCATION................... 7
A. Specifications (Gas and Steam) ...................................................................................................... 7
B. Dimensions and Component Location ............................................................................................ 8
SECTION III
INSTALLATION PROCEDURES ........................................................................ 10
A. Reassembly of Dryer .................................................................................................................... 10
B. Location Requirements ................................................................................................................. 15
C. Fresh Air Supply Requirements .................................................................................................... 16
D. Exhaust Requirements ................................................................................................................. 17
E. Compressed Air Supply System ................................................................................................... 23
F. Electrical Information ..................................................................................................................... 25
G. Gas Information ............................................................................................................................. 29
H. Water Supply Connection for Sensor Activated Fire Extinguishing (S.A.F.E.) System ................. 32
I. Steam Information ......................................................................................................................... 33
J. Preoperational Test ....................................................................................................................... 38
K. Preparation for Operation / Start-Up .............................................................................................. 40
L. Shutdown Instructions ................................................................................................................... 41
SECTION IV
SERVICE / PARTS INFORMATION ................................................................... 42
A. Service .......................................................................................................................................... 42
B. Parts .............................................................................................................................................. 42
SECTION V
WARRANTY INFORMATION .............................................................................. 43
A. Returning Warranty Cards ............................................................................................................ 43
B. Warranty ........................................................................................................................................ 43
C. Returning Warranty Parts.............................................................................................................. 43

SECTION VI
ROUTINE MAINTENANCE ................................................................................. 45
A. Cleaning ........................................................................................................................................ 45
B. Adjustments .................................................................................................................................. 47
C. Lubrication ..................................................................................................................................... 47
SECTION VII
COMPONENT SYSTEM DESCRIPTIONS........................................................ 48
A. Tumbler Drive System .................................................................................................................. 48
B. Tumbler ......................................................................................................................................... 49
C. Air Blower Drive System ............................................................................................................... 49
D. Safety Devices .............................................................................................................................. 49
E. Steam Damper Actuator System ..................................................................................................51
SECTION VIII
MANUAL RESET BURNER HI-LIMIT INSTRUCTIONS .................................... 52
SECTION IX
DATA LABEL INFORMATION ............................................................................ 53
SECTION X
PROCEDURE FOR FUNCTIONAL CHECK
OF REPLACEMENT COMPONENTS ............................................................... 54
SECTION XI
OPTIONAL SENSOR ACTIVATED
FIRE EXTINGUISHING (S.A.F.E.) SYSTEM ...................................................... 55
SECTION XII
NON-COIN PROGRAMMING.............................................................................. 60

113549 - 8 www.adclaundry.com 3
SECTIONI
IMPORTANTINFORMATION
A. RECEIVINGAND HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or optional
box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and wooden skid should
be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect further before delivering
carrier leaves.
Dryers damaged in shipment:
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the trucker’s receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers, which were not damaged in a
damaged shipment should be accepted, but the number received and the number refused must be noted on the
receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the delivering
carrier’s freight terminal immediately and file a claim. The freight company considers this concealed damage.
This type of freight claim is very difficult to get paid and becomes extremely difficult when more than a day or two
passes after the freight was delivered. It is your responsibility to file freight claims. Dryer/parts damaged in
transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end. ADC
assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at [phone].
IMPORTANT: Thetumbler section ofthe dryermustbe transportedandhandled in anupright positionat
ALLtimes.

4 American Dryer Corporation 113549-8
B. SAFETY PRECAUTIONS
WARNING: Foryour safety, the information in this manual mustbe followedto minimize the risk of fire or
explosionortoprevent property damage,personal injury,orlossof life.
WARNING: Thedryermust never be operatedwithany of thebackguards, outer tops,orservice
panelsremoved. PERSONALINJURYOR FIRECOULDRESULT.
1. DONOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2. DO NOT spray aerosols in the vicinity of this appliance while it is in operation.
3. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the user
smells gas. The instructions should be posted in a prominent location.
4. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
5. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
6. Dryer(s) must be exhausted to the outdoors.
7. AlthoughADC produces a very versatile dryer, there are some articles that, due to fabric composition or cleaning
method, should not be dried in it.
WARNING: Dryonly water washedfabrics. DONOTdry articles spottedor washed indry cleaning
solvents,a combustible detergent,industrial chemicals, or “allpurpose”cleaner.
EXPLOSIONCOULDRESULT.
WARNING: DONOTdry ragsor articlescoatedor contaminatedwithgasoline, kerosene,oil, paint, or
wax. EXPLOSIONCOULDRESULT.
WARNING: DONOTdry mopheads. Contaminationbywax or flammablesolventswill create afire
hazard.
WARNING: DONOTuse heat fordrying articlesthatcontainplastic,foam, sponge rubber, orsimilarly
texturedrubbermaterials. Dryingina heated tumblermay damageplastics orrubber andmay
bea fire hazard.

113549 - 8 www.adclaundry.com 5
8. The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce
damage to the machine and harmful fumes.
9. A program shouldbeestablished for the inspection and cleaning of lint in the heating unit area, exhaust ductwork,
and inside the dryer. The frequency of inspection and cleaning can best be determined from experience at each
location.
WARNING: The collection of lintintheburnerarea and exhaustductwork cancreate apotential fire
hazard.
10. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or National
Electric Code ANSI/NFPA 70, or in Canada, Canadian Electric Code CSA C22.1.
NOTE: Failuretodo sowillVOIDTHEWARRANTY.
11. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, heat safety circuit ever
be disabled.
WARNING: PERSONALINJURYORFIRECOULDRESULT.
12. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
13. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in thedryerafterthedrying and coolingcycles havebeencompletedcancreate a
firehazard.
14. DO NOT operate steam dryers with more than 125 PSI (8.62 bar) steam pressure. Excessive steam pressure
can damage steam coil and/or harm personnel.
15. Replace leaking flexible hoses or other steam fixtures immediately. DO NOT operate the dryer with leaking
flexible hoses. PERSONAL INJURY MAY RESULT.
16. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE DRYER.
17. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less than
sixty-six percent (66%), 132 lb (59.9 kg) of its rated capacity.
WARNING: YOUMUSTDISCONNECTANDLOCKOUTTHE ELECTRICSUPPLYANDTHE
GASSUPPLYORTHESTEAM SUPPLYBEFOREANYCOVERS ORGUARDS
AREREMOVED FROMTHE MACHINETOALLOWACCESS FOR
CLEANING,ADJUSTING,INSTALLATION,ORTESTINGOFANYEQUIPMENT
PEROSHA(OccupationalSafetyandHealthAdministration)STANDARDS.
IMPORTANT: Dryermust beinstalledinalocation/environment, whichthe ambienttemperature
remainsbetween 40° F(4.44° C)and130° F(54.44° C).

6 American Dryer Corporation 113549-8
CE ONLY
IMPORTANT: Thisappliancemustonlybeinstalledandoperatedinthecountryof destination indicated on
thedryer’s dataplate. Ifthe applianceis to beinstalled and operatedin acountryother
thanthe one indicatedonthe data plate,adata plateamendmentmust be obtainedfrom
AmericanDryerCorporation.
IEC335 applies.
NOTES __________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________

113549 - 8 www.adclaundry.com 7
MAXIMUM CAPACITY (DRY WEIGHT) 200 lb 90.72 kg
TUMBLER DIAMETER 62-1/2” 158.75 cm
TUMBLER DEPTH 42” 106.7 cm
TUMBLER VOLUME 74.5 cu ft 2,109.60 L
TUMBLER / DRIVE MOTOR 3 hp 2.24 kW
DOOR OPENING *36-3/4” w x 43” h 93.3 cm x 109.2 cm
DOOR SILL HEIGHT – LEVEL 36-1/2” 92.7 cm
COMPRESSED AIR VOLUME 3.25 cfh 0.09 cmh
COMPRESSED AIR CONNECTION ** 1/8” F.N.P.T.
EXHAUST CONNECTION (DIAMETER) 20” 50.8 cm
WATER CONNECTION *** 3/4” F.N.P.T.
VOLTAGE AVAILABLE 208-575V 3ø 3,4w 50/60 Hz
BLOWER / FAN MOTOR (REAR / SIDE EXHAUST) 7-1/2 hp / 15 hp 5.6 kW / 11.2 kW
APPROXIMATE NET WEIGHT 3,033 lb 1,376 kg
APPROXIMATE SHIPPING WEIGHT 3,195 lb 1,449 kg
HEAT INPUT 650,000 Btu/hr 163,810 kcal/hr
AIRFLOW 50/60 Hz 5,300 cfm 150.08 cmm
INLET PIPE CONNECTION 1-1/2” F.N.P.T.
VOLTAGE AVAILABLE 208-575V 3ø 3,4w 50/60 Hz
BLOWER / FAN MOTOR 15 hp 11.2 kW
APPROXIMATE NET WEIGHT 3,275 lb 1,486 kg
APPROXIMATE SHIPPING WEIGHT 3,437 lb 1,559 kg
AIRFLOW 60 Hz 6,500 cfm 184.06 cmm
50 Hz 5,417 cfm 153.38 cmm
STEAM CONSUMPTION 890 lb/hr 404.5 kg/hr
OPERATING STEAM PRESSURE 125 psi max 8.6 bar
BOILER HORSEPOWER (NORMAL LOAD) 27 Bhp
SUPPLY CONNECTION 2” M.N.P.T.
RETURN CONNECTION 2” M.N.P.T.
SECTIONII
SPECIFICATIONS/DIMENSIONS
AND COMPONENT LOCATION
A. SPECIFICATIONS (GAS AND STEAM)
Shaded areas are stated in metric equivalents 7/17/14
* Height is 43-inches (109.22 cm) maximum at the center of the door.
** Dryer must be provided with clean, dry and regulated 80 psi +/- 10 psi (5.51 bar +/- 0.69 bar) air supply.
*** Water supply must be 40 psi +/- 20 psi (2.75 bar +/- 1.37 bar) for fire suppression system to operate properly.
GASSTEAM
NOTE: ADCreserves the right to makechangesin specifications at any time withoutnotice or obligation.

8 American Dryer Corporation 113549-8
B. DIMENSIONS AND COMPONENT LOCATION
210* NON-TILT GAS MODEL
NOTE: ADCreserves the right to make changesinspecifications at any time without noticeorobligation.

113549 - 8 www.adclaundry.com 9
210* NON-TILT STEAM MODEL
NOTE: ADCreserves the right to makechangesin specifications at any time withoutnotice or obligation.

10 American Dryer Corporation 113549-8
SECTIONIII
INSTALLATIONPROCEDURES
Installation should be performed by competent professional in accordance with local, state, and country codes. In the
absence of these codes, the installation must conform to applicable American National Standards: National Fuel Gas
CodeANSI Z223.1/NFPA54 and National Electric CodeANSI/NFPA70, or in Canada, the installation must conform
to applicable Canadian Standards: Natural Gas and Propane Installation Code CSA B149.1 and Canadian Electric
Code CSA C22.1.
A. REASSEMBLYOF DRYER
IMPORTANT: Alwayskeepthetumblersectionofthedryerinanuprightpositionwhenmovingit.
The dryer may be shipped one (1) of two (2) ways; as a complete unit fully assembled and ready for hookup or with the
tumbler section separated from the base. If the dryer is shipped in two (2) pieces, the tumbler section will have to be
lifted onto the base. Use cables through the eyebolts on top of the tumbler section, or use a forklift for the lifting
process.

113549 - 8 www.adclaundry.com 11
1. Reassembly Instructions For Gas Dryer Shipped In Two (2) Pieces

12 American Dryer Corporation 113549-8
a. Reassembly Instructions For Non-Tilt Gas Dryers:
Lift the tumbler section onto the base.
1) The dryer has four (4) support posts assemblies, which are located in each corner of the base. On top of
each post assembly is a clevis block, which must be bolted to the tumbler section. Use the
4-1/2” diameter x 1-1/8” long bolts and lock washers to bolt each clevis block to the tumbler section.
(Refer to View 1 on the previous page.)
2) Tumbler power cable reconnection:
a) A plug and cable is located in the right of the base. This must be lifted up and reconnected into the
mating socket located at the bottom of the right tumbler section.
b) Pull the tumbler section power cable up from the left side of the base through the hole in the bottom of
the tumbler section. Reconnect the wires of this cable into the 2-inch x 4-inch (5.08 cm x 10.16 cm)
tumbler junction box located at the bottom of the tumbler section. (Refer to the illustration on the
previous page.)
c) Drop the controlcable connector from the rear right side of the tumbler section intothebase. Reconnect
the industrial grade plug in to its mating socket.
3) Bolt the 20-inch (50.8 cm) diameter exhaust duct transition piece to the dryers rectangular exhaust duct.
The exhaust duct exits the dryer from the rear of the base. (Refer to the illustration on the previous
page.) Use the 1/4-20 self-drilling screws supplied with the dryer.

113549 - 8 www.adclaundry.com 13
2. Reassembly Instructions For Steam Dryer Shipped In Two (2) Pieces

14 American Dryer Corporation 113549-8
a. Reassembly Instructions For Non-Tilt Steam Dryers:
Lift the tumbler section onto the base.
1) The dryer has four (4) support posts assemblies, which are located in each corner of the base. On top of
each post assembly is a clevis block, which must be bolted to the tumbler section. Use the
4-1/2” diameter x 1-1/8” long bolts and lock washers to bolt each clevis block to the tumbler section.
(Refer to View 1 on the previous page.)
2) Tumbler power cable reconnection:
a) A plug and cable is located in the right of the base. This must be lifted up and reconnected into the
mating socket located at the bottom of the right tumbler section.
b) Pull the tumbler section power cable up from the left side of the base through the hole in the bottom of
the tumbler section. Reconnect the wires of this cable into the 2-inch x 4-inch (5.08 cm x 10.16 cm)
tumbler junction box located at the bottom of the tumbler section. (Refer to the illustration on the
previous page.)
c) Drop the controlcable connector from the rear right side of the tumbler section intothebase. Reconnect
the industrial grade plug in to its mating socket.
3) Bolt the 20-inch (50.8 cm) diameter exhaust duct transition piece to the dryers rectangular exhaust duct.
The exhaust duct exits the dryer from the rear of the base. (Refer to the illustration on the previous
page.) Use the 1/4-20 self-drilling screws supplied with the dryer.
4) If a steam dryer is shipped in two (2) pieces, the steam coil may have been removed from the top of the
tumbler section and shipped with the base. If this is the case, lift the steam coil on to the top of the tumbler
section with the steam pipe connections facing towards the right side of the dryer and bolt the coil to the
top of the dryer with a 1/4-inch hardware supplied. There are three (3) panels that cover the front, right
side, and rear of the steam coil. Fasten these in position also.

113549 - 8 www.adclaundry.com 15
B. LOCATION REQUIREMENTS
Before installing the dryer, ensure the location conforms to local codes and ordinances. In the absence of such codes
or ordinances the location must conform with National Fuel Gas Code ANSI Z223.1/NFPA 54, or in Canada, the
installation must conform to applicable Canadian Standards: Natural Gas and Propane Installation Code CSA B149.1.

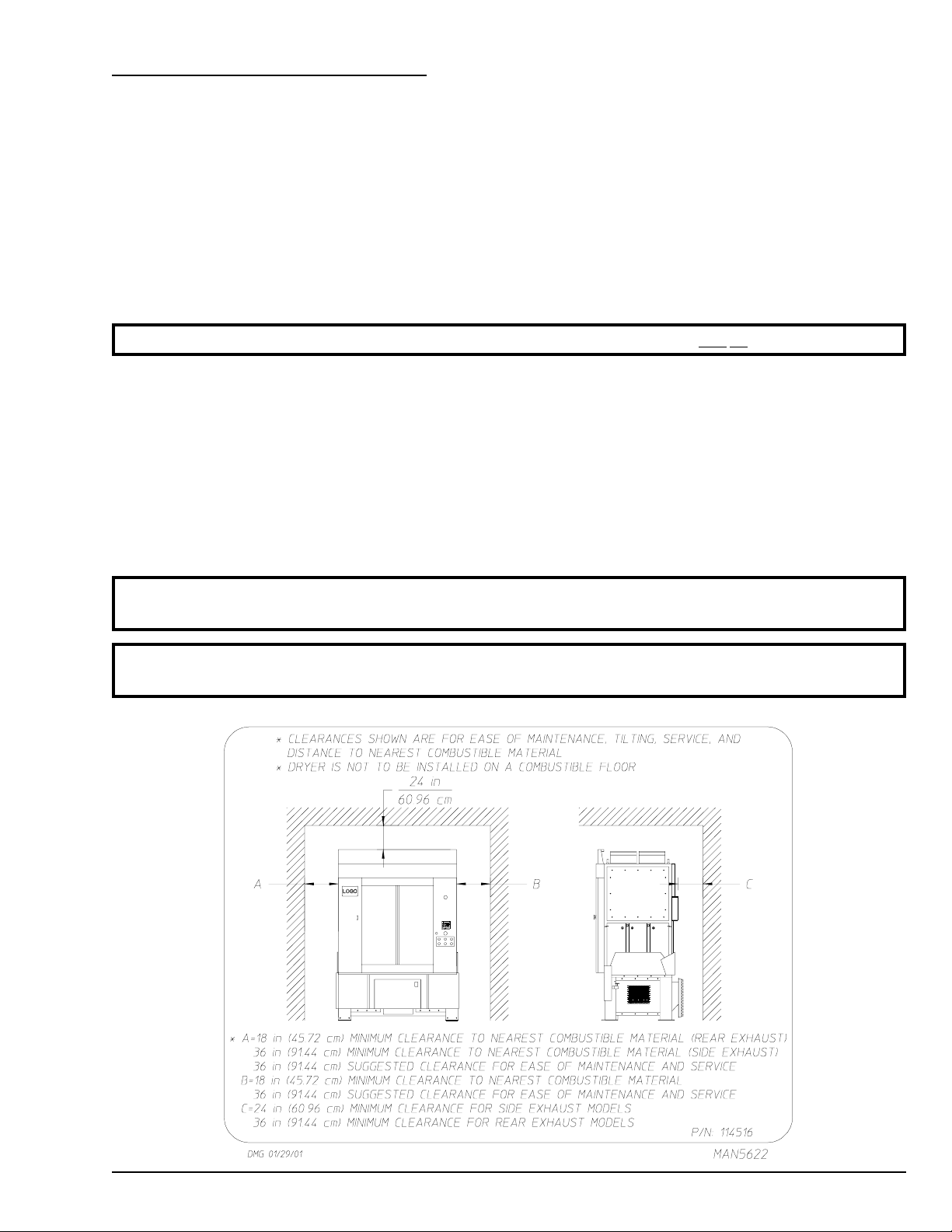

The non-tilting model dryer requires 18-inches (45.72 cm) of space on each side of the dryer and 24-inches (60.96 cm)
of space behind the unit for ease of service. Aminimum of 12-inches (30.48 cm) must be allowed between the top of
a gas dryer and the ceiling. Aceiling height of 120-inches (304.8 cm) is required for gas dryers, and a ceiling height for
130-inches (330.2 cm) is required for steam dryers. The dryer must be leveled for proper operation. If shimming is
required, put metal shims, which are the same size as the base feet under the base feet. The dryer must be lagged to
the floor.
WARNING: Dryer shouldbe locatedwherea minimum lengthofexhaustductwill benecessary.
1. The dryer must be installed with a proper exhaust duct connection to the outside.
2. The dryer must be installed with provisions for adequate combustion and make-up air supply.
3. Clearance provisions must be made from combustible construction.
4. Provisions must be made for adequate clearances for servicing and for operation.
5. The dryer must be installed with adequate clearance for air openings into the combustion chamber.
CAUTION: Thisdryer produces combustiblelintand mustbeexhausted totheoutdoors. Every 6 months,
inspectthe exhaust ducting andremoveanylintbuildup.
IMPORTANT: Dryermust beinstalledinalocation/environment, whichthe ambienttemperature
remainsbetween 40° F(4.44° C)and130° F(54.44° C).

16 American Dryer Corporation 113549-8
C. FRESH AIR SUPPLYREQUIREMENTS
This appliance may only be installed in a room that meets the appropriate ventilation requirements specified in the
nationalinstallation regulations.
When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler, and exhausts it out of the
building. Therefore, the room air mustbe continually replenished from the outdoors. If the make-up air is inadequate,
drying time and drying efficiency will be adversely affected. Ignition problems and sail switch “fluttering” problems
may result, as well as premature motor failure from overheating.
Air supply (make-up air) must be given careful consideration to assure proper performance of each dryer. An
unrestricted source of air is necessary for each dryer. An airflow of 5,300 cfm (cubic feet per minute) (150 cmm
[cubic meters per minute]) must be supplied to each gas dryer and 6,500 cfm (184 cmm) for each steam dryer. As a
general rule, an unrestricted air entrance from the outdoors (atmosphere) of a minimum of 6 square feet (0.56 square
meters) is required for each gas dryer and a minimum of 8 square feet (0.74 square meters) for each steam dryer.
To compensate for the use of registers or louvers used over the openings, this make-up air area must be increased by
approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near where
exhaust vents exit the building.
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL the
dryers. The dryer must be installed with provisions for adequate combustion and make-up air supply.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive altitudes
or predominantly low pressure areas.
IMPORTANT: Make-upair mustbeprovided froma source freeof dry cleaningsolvent fumes. Make-up
airthat is contaminated by drycleaningsolventfumeswillresultinirreparabledamagetothe
motorsandother dryercomponents.
NOTE: Componentfailure due to dry cleaningsolventfumeswillVOIDTHEWARRANTY.
