American Dryer Corp. ML-410 Administrator Guide

For replacement parts, contact the distributor from which the dryer
was purchased or
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781
Telephone: [phone] / Fax: [phone]
e-mail: [e-mail]
022200DMG/tcosta ADC Part No. 113128
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion or to prevent property damage,
personal injury or death.
Do not store or use gasoline or other flammable
vapor and liquids in the vicinity of this or any
other appliance.
WHAT DOYOU DO IF YOU SMELL GAS
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use
any phone in your building.
* Clear the room, building or area of all
occupants.
* Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
* If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
dincendie ou dexplosion ou pour éviter tout
dommage matériel, toute blessure ou la mort.
Ne pas entreposer ni utiliser dessence ni
dautres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
* Ne pas tenter dallumer dappareil.
* Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le bâtiment où vous vous trouvez..
* Évacuez la pièce, le bâtiment ou la zone.
* Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
* Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
Linstallation et lentretien doivent être assurés
par un installateur ou un service dentretien
qualifié ou par le fournisseur de gaz.
ML-410 Phase 7
Installation/Operator’s Manual

Retain This Manual In A Safe Place For Future Reference
Replacement parts can be obtained from your distributor or the ADC factory. When ordering replacement parts from the
factory, you can FAX your order to ADC at [phone] or telephone your orders directly to the ADC Parts Department at
[phone]. Please specify the dryer model number and serial number in addition to the description and part number, so
that your order is processed accurately and promptly.
DATE OF PURCHASE MODEL NO.
DISTRIBUTORS NAME
Serial Number(s)
ML-410
IMPORTANT NOTE TO PURCHASER
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation/operator's manual
included with the dryer.
The following FOR YOUR SAFETY caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser dessence
ni dautres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:

IMPORTANT
YOU MUST DISCONNECT and LOCKOUTTHE ELECTRIC SUPPLYandTHE GAS
SUPPLY or THE STEAM SUPPLY BEFORE ANY COVERS or GUARDS ARE
REMOVED FROM THE MACHINETOALLOWACCESS FOR CLEANING,ADJUST-
ING, INSTALLATION, or TESTING OFANY EQUIPMENT per OSHA (Occupational
Safety and HealthAdministration) STANDARDS.
CHILDREN SHOULD NOT BEALLOWEDTO PLAYON OR NEAR THE DRYERS.
WARNING
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.
DRYERS SHOULD NEVER BE LEFT UNATTENDEDWHILE IN OPERATION.
CAUTION
FOR YOUR SAFETY
DO NOT DRY MOPHEADS IN THE DRYER.
DO NOTUSE DRYER IN THE PRESENCE OF DRYCLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES should the door switch or the heat circuit devices
ever be disabled.
Caution: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper operation.
«Attention: Lor des opérations dentretien
des commandes étiqueter tous fils avant
de les déconnecter. Toute erreur de
câblage peut étre une source de danger et
de panne.»

WARNING
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONALINJURY or FIRE COULD RESULT.
IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or
specified in the installation/operator's manual included with the dryer.
Dryers must not be installed or stored in an area where it will be exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.
DRYER MUST NEVER BE OPERATEDWITHOUTTHE LINT FILTER (SCREEN) IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
WARNING

Table of Contents
ML-410 REFERENCE GUIDE ................................................................................ 3
INTRODUCTION ...................................................................................................... 5
ML-410 MACHINE OPERATIONALSUMMARY ....................................................................... 5
ML-410 OPERATOR CONTROLS/INDICATORS........................................................................ 5
ML-410 MACHINE OPERATION TROUBLESHOOTING INFORMATION .............................. 7
SECTION I
IMPORTANT INFORMATION ............................................................................. 14
A. Receiving and Handling ............................................................................................................. 14
B. Safety Precautions .................................................................................................................... 15
SECTION II
SPECIFICATIONS and DIMENSIONS ............................................................... 17
A. Specifications (Gas and Steam Models) .................................................................................... 17
B. Dimensions ............................................................................................................................... 18
SECTION III
INSTALLATION PROCEDURES ......................................................................... 23
A. Reassembly of Dryer ................................................................................................................ 23
B. FreshAir Supply Requirements ................................................................................................. 30
C. Exhaust Requirements ............................................................................................................... 31
D. CompressedAir Supply System ................................................................................................ 32
E. Electrical Information ................................................................................................................ 34
F. Gas Information ........................................................................................................................ 37
G. Steam Information .................................................................................................................... 41
H. Water Supply Connection For Optional Sprinkler System .......................................................... 45
I. Preoperational Tests ................................................................................................................. 46
J. Preparation For Operation/Start-Up ......................................................................................... 48
K. Shut Down Instructions ............................................................................................................. 49
SECTION IV
SERVICE/PARTS INFORMATION ...................................................................... 50
A. Service ..................................................................................................................................... 50
B. Parts ........................................................................................................................................ 50

SECTION V
WARRANTY INFORMATION .............................................................................. 51
A. Returning Warranty Card(s) ...................................................................................................... 51
B. Parts ........................................................................................................................................ 51
C. Returning Warranty Part(s) ........................................................................................................ 51
SECTION VI
ROUTINE MAINTENANCE .................................................................................. 53
A. Cleaning ................................................................................................................................... 53
B. Adjustments ............................................................................................................................. 55
C. Lubrication ............................................................................................................................... 55
SECTION VII
COMPONENT SYSTEM DESCRIPTIONS........................................................ 56
A. Tumbler (Basket) Drive System................................................................................................. 56
B. Tumbler (Basket) ...................................................................................................................... 57
C. Air Blower Drive System .......................................................................................................... 57
D. Air Jet System .......................................................................................................................... 57
E. Safety Devices .......................................................................................................................... 57
F. Steam DamperActuator System ............................................................................................... 59
SECTION VIII
OPTIONAL SPRINKLER SYSTEM COMPONENTS ...................................... 60
Optional Sprinkler Circuit Components ............................................................................................ 60
ML-410 Sprinkler Option Temperature Controller Settings .............................................................. 62

3
ML-410 Reference Guide

4

5
INTRODUCTION
ML-410 MACHINE OPERATIONAL SUMMARY
The model ML-410 incorporates one (1) EMERGENCY STOP (E-Stop) BUTTON located centrally on the
Right Front Control Door. This RED MUSHROOM PUSH-BUTTON is PUSH TO STOP the machine and
TURN TO RELEASE or PULL TO RELEASE type control device. This button must be in the released
mode to power the machine. The PHASE 7 MICROPROCESSOR CONTROLLER (Computer) display will
light when the EMERGENCY STOP (E-Stop) BUTTON is in the released mode. To turn ON the ML-
410s control voltage, press the green ON push-button located on the Right Front Control Door.
The ML-410 has two (2) electronic controllers:
PHASE 7 MICROPROCESSOR CONTROLLER (Computer) ... for drying material
MODICON PLC (Programmable Logic Controller) ... for loading, unloading auto doors, and burner
status monitoring
The PHASE 7 MICROPROCESSOR CONTROLLER (Computer) only response to keyboard (touchpad)
commands when the ML-410s tumbler (basket) section is level with the loading doors and lint drawer/basket
door closed. Likewise, the MODICON 1 PLC (Programmable Logic Controller) responses to load or unload
selections when the ML-410 is not drying material.
ML-410 OPERATOR CONTROLS/INDICATORS
The Right Front Control Door incorporates the following operator controls/indicators:
EMERGENCY STOP (E-Stop) BUTTON (Push To Stop/Turn or Pull To Release)
JOG (Forward/Reverse Push-Buttons)
UNLOAD/DRY/LOAD (Selector Switch)
TILT FUNCTION (Off - On Selector Switch)
CONTROL POWER (Indicator/Control Power On Push-Button)
CONTROL POWER (Off Push-Button)
EMERGENCY STOP (E-Stop) BUTTON (Push To Stop/Turn To Release or Pull To Release)
This red mushroom push-button, located in the center of the Right Front Control Door almost directly under the
Phase 7 Microprocessor Controller (computer) is a Push To Stop and Turn To Release type push-button.
This button must be in the released mode to power the machine (enable the machine to run).

6
JOG (Forward/Reverse Push-Buttons)
These two (2) push-buttons, located towards the left side of the Right Front Control Door, are for either loading
or unloading the tumbler (basket). JOG functions are only enabled when the doors are open.
NOTE: There is a PLC controlled DWELL TIME between forward jog or reverse jog
selection to prevent plug starting the tumbler (basket) drive motor.
LOAD/DRY/UNLOAD (Three [3] Position Selector Switch)
TILT (Off - On) (Two [2] Position Selector Switch)
The LOAD/DRY/UNLOAD and TILT (Off - On) selector switches work in conjunction with each other. If
the TILT selector is in the OFF position, an UNLOAD or LOAD selection will open the front horizontal
doors, allowing an operator to load or unload the tumbler (basket) in the level position.
NOTE: The ML-410 JOG feature will respond in the level position. The Lint Drawer must be
closed for the JOG feature to operate.
If the TILT selector is in the ON position, an UNLOAD selection will open the front vertical doors and tilt
the tumbler (basket) section towards the front (Rear Up). Likewise, a LOAD selection will open the front
horizontal doors and tilt the tumbler (basket) section towards the rear (Front Up).
The DRY selection will bring the tumbler (basket) section to a level position and close the front horizontal
doors. Once ALL safe conditions are met (i.e., front doors closed, lint drawer closed, machine level), an operator
will be able to select a drying cycle on the Phase 7 Microprocessor Controllers (computer) keyboard (touchpad)
located on the Right Front Control Door. Refer to the Phase 7 Operators Manual for details.
CONTROL POWER (On)
This green lighted operator, located on the Right Front Control Door, is for enabling the dryers control voltage.
This push-button must be ON for drying or load/unload function to occur.
CONTROL POWER (Off)
This red non-lighted operator, located on the Right Front Control Door, is for disabling the dryers output
control voltage. This push-button is mainly for use as a troubleshooting function.
END OF CYCLE/AIR JET
This amber colored indicator located on the top of the ML-410 has two (2) functions:
1. To indicate that a drying cycle has been completed and that the dried material is ready for attention. Once
the dryer is attended (i.e., lint drawer is opened, or the UNLOAD - DRY - LOAD selector is turned to
either the UNLOAD or LOAD position and the vertical doors open) the indicator will go off.
2. TheAir Jet will be activated at the end of the drying cycle when the End of Cycle light has been energized.
The Air Jet will remain active for approximately thirty (30) seconds to remove lint which may have
accumulated on the Blower Wheel (squirrel cage).

7
ML-410 MACHINE OPERATION TROUBLESHOOTING INFORMATION
END OF CYCLE/HEATER FAULT INDICATOR
The End of Cycle light located on the top of the ML-410, is triggered by the End of Cycle Signal of the Phase 7
Microprocessor Controller (computer) I/O (input/output) board. The 1 second flashing is accomplished by a
Flasher Module located on the Main Control Panel in the Right Front Control Cabinet. Refer to the electrical
blueprints included with this machine for detailed signal routing.
If this END OF CYCLE light fails to display at the end of every cycle;
1. Check the bulb.
2. Check voltage to the bulb (24 VAC).
3. Refer to the ladder diagram and the schematics provided with this machine for detailed signal information
for higher level troubleshooting.
JOG (Forward/Reverse Push-Button)
Forward JOG is in the clockwise (CW) direction and Reverse JOG is in the counterclockwise (CCW)
direction.
There is a seven (7) second dwell (delay) time between a selection of a different rotation direction. This delay
is to prevent plug starting the tumbler drive motor.
If the JOG function does not operate in the tilted position;
1. Check that the Main Doors are fully opened.
2. Check that the Overload for the Drive Motor is in the Start position.
3. Check that the Overload for the Tumbler (Basket) Motor is in the Start position.
4. Check that the Lint Drawer is closed.
5. Refer to the ladder diagram and the schematics provided with this machine for detailed signal information
for higher level troubleshooting.
AIR JET
The Air Jet signal is sent from the Phase 7 Microprocessor Controller (computer) at the end of the drying cycle.
If the air valve fails to operate;
1. Check the air supply to the dryer (set to 80 PSI [5.512 bars]).
2. Check to see that the Air Jet L.E.D. (light emitting diode) is on at the end of the drying cycle. If the L.E.D.
(light emitting diode) is not on it may be an indication of a failed Phase 7 Microprocessor Controller
(computer) I/O (input/output) board.

8
3. IfAir Jet L.E.D. (light emitting diode) is on then check the wiring from the Phase 7 Microprocessor Controller
(computer) to the air valve.
4. Faulty air valve.
LOAD/DRY/UNLOAD (Selector Switch) and TILT FUNCTION (Off - On Selector Switch)
As mentioned in the machine summary (refer to page 5), the LOAD/DRY/UNLOAD selector switch and
TILT Off - On selector switch work in conjunction with each other.
UNLOAD or LOAD LEVEL...opens the load doors only
If this selection does not operate;
1. Check that 80 PSI (5.512 bars) of compressed air is supplied to the machine and that the door solenoid is
being actuated. The Door Open signal is generated by the PLC (Programmable Logic Controller). Refer
to the PLC information included in the ladder diagrams and schematics supplied with the machine.
UNLOAD TILTED
This selection causes the front horizontal doors to open. Once the Door Open signal is sensed, the PLC
enables the Rear Up solenoid to tilt the machine. Once the tumbler (basket) section releases the tilt switch, the
JOG functions become enabled for an operators selection.
If the tumbler section does not tilt forward;
1. Verify that a Door Open signal is being sensed by the PLC.
2. Check that 80 PSI (5.512 bars) of compressed air is supplied to the machine and that the Rear Up solenoid
is being actuated by the PLC.
Refer to the PLC signal information included in the ladder diagrams and schematics supplied with the machine.
LOAD TILTED
This selection causes the front horizontal doors to open. Once the Door Open signal is sensed, the PLC
enables the Front Up solenoid to tilt the machine. The JOG functions then becomes enabled for an operators
selection.
If the tumbler section does not tilt towards the rear;
1. Verify that a Door Open signal is being sensed by the PLC (Programmable Logic Controller).
2. Check that 80 PSI (5.512 bars) of compressed air is supplied to the machine and that the Front Up
solenoid is being actuated by the PLC (Programmable Logic Controller).
Refer to the PLC (Programmable Logic Controller) signal information included in the ladder diagrams and
schematics supplied with the machine.

9
DRY
This selection prepares the machine for a Material Drying Command from the Phase 7 Microprocessor Controller
(computer).
NOTE: Before a drying cycle can be selected, the tumbler (basket) section must be in the level
position and both the Front Horizontal Doors as well as the Lint Drawer must be closed.
The PLC (Programmable Logic Controller) senses that the machine is level by the two (2) level switches located
on the left side of the base section. One (1) switch is towards the rear of the machine and the other switch is
towards the front of the machine.
The PLC senses that the load doors are closed by the two (2) proximity switches located at the top center, of the
dryer above the doors. These switches are magnetically actuated by magnets located on the doors.
The PLC senses the Lint Drawer by a push type switch located on the right side of the lint drawer door.
IMPORTANT: THE LINT DRAWER MUST BE CLOSED BEFORE BRINGING THE
MACHINE TO A LEVEL POSITION.
If the tumbler (basket) section does not return to a level position;
1. Verify that a Door Closed signal is being sensed by the PLC.
2. Check that 80 PSI (5.512 bars) of compressed air is supplied to the machine and that the Front Down or
Rear Down solenoid is being actuated by the PLC.
3. Verify that the Lint Drawer is in the closed position. This signal can be easily verified since it is a PLC
input.
Refer to the PLC signal information included in the ladder diagrams and schematics supplied with the machine.
ONE or BOTH BURNERS DO NOT IGNITE
The model MLG-410 dryer has two (2) burner boxes. Each burner box has its own Gas Valve, Spark Ignitor/
Flame-Probe Assembly, and DSI (Direct Spark Ignition) Module.
DSI (Direct Spark Ignition) MODULE
When the dryer calls for heat, and ALL dryer safety switches are satisfied, a 24 VAC control signal is supplied
to both DSI Modules. The DSI Module L.E.D. (light emitting diode) indicators will light red for approximately
1.5 seconds of pre-purge, the L.E.D. (light emitting diode) indicators will light green. Each DSI Module will
energize its respective gas valve and provide an 8 second spark to its Spark Ignitor/Flame-Probe Assembly.
The gas in both burner boxes should ignite. If ignition does not occur in one or both burners after 8 seconds, the
flame will not be sensed by the Spark Ignitor/Flame-Probe Assembly and the DSI Module will go into the
LOCKOUT mode lighting the L.E.D. (light emitting diode) indicator(s) red continuously. THERE ARE
NO IGNITION RETRIES BY THE DSI MODULE. Stop the dryer at this point and restart another drying
cycle. It may take several restarts to clear the gas supply piping of air.
NOTE: BURNER FAULT will occur during the initial set up of the machine, indicating that
the burners are not lighting due to air in the gas line.

10
GAS PRESSURE
The natural gas pressure supplied to the dryer must be between 6-inches (14.92 mb) and 12-inches of W.C.
(water column) - 29.9 mb - pressure. If the supply pressure is above 12-inches water column (29.9 mb) than an
external regulator must be installed to reduce the gas supply pressure to between 6-inches (14.92 mb) and 12-
inches of water column (29.9 mb).

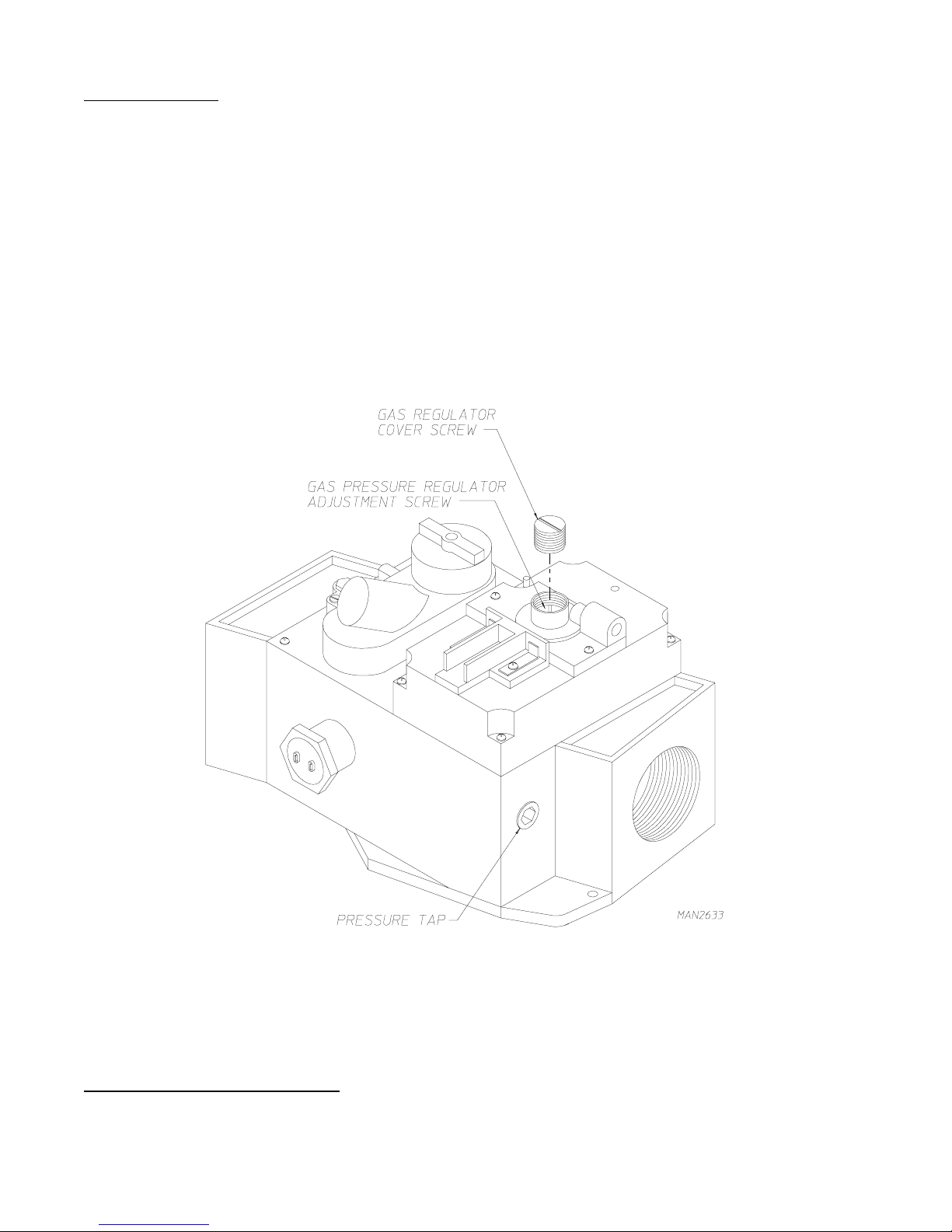

Once the flame has been established in both burner boxes, the natural gas outlet manifold pressure measured at
each gas valve pressure tap must be 3.5-inches W.C. (water column) - 8.7 mb - pressure. Connect a water tube
manometer to the 1/8 F.P.T. gas pressure tap on the downstream side of each gas valve. There is a pressure
regulator in both gas valves so the manifold pressure can be adjusted to 3.5-inches water column (8.7 mb).
Unscrew the slotted regulator cover which is located on the top of each gas valve, and turn the regulator adjustment
screw located underneath the cover (clockwise [CW] to increase manifold pressure and counterclockwise [CCW]
to decrease manifold pressure).
The L.P. (liquid propane) gas pressure measured at each gas valve pressure tap must be 11-inches water column
(27.4 mb) pressure, when the flame is established in both burner boxes. There is no means to adjust this pressure
supplied with the dryer so the downstream L.P. pressure regulator must be adjusted to provide the 11-inch water
column (27.4 mb) outlet manifold pressure. Connect a water tube manometer to the 1/8 F.P.T. gas pressure tap
on the downstream side of each gas valve to measure the manifold pressure.
IMPORTANT INFORMATION
Once the Blower Motor starts, both the FRONTAIRFLOW SWITCH and the REARAIRFLOW SWITCH
must pull in to indicate that there is sufficient airflow through the machine for safe ignition of both the
Front Burner and the Rear Burner.

11
Refer to the system ladder diagram for HEAT signal information. There are several safety devices that must
be satisfied prior to ignition. Any one of these safety devices can cause NO IGNITION, therefore a
BURNER FAULT...i.e., FRONT AIRFLOW SWITCH
REAR AIRFLOW SWITCH
EXHAUST MANUAL RESET HI-LIMIT SWITCH
FRONT BURNER MANUAL RESET HI-LIMIT SWITCH
REAR BURNER MANUAL RESET HI-LIMIT SWITCH
DEFECTIVE ELECTRICAL HEAT CIRCUIT
ONE BURNER WILL NOT IGNITE AT THE BEGINNING OF A CYCLE
This condition can be caused by the following:
DEFECTIVE DSI (Direct Spark Ignition) MODULE
DEFECTIVE SPARK IGNITOR/FLAME-PROBE ASSEMBLY
DEFECTIVE GAS VALVE
INSUFFICIENT GAS PRESSURE
DEFECTIVE ELECTRICAL HEAT CIRCUIT
Refer to the ladder diagram and the schematics provided with this machine for reference to the above listed
information.
ONE BURNER WILL NOT IGNITE DURING A DRYING CYCLE
This condition can be caused by the following:
DEFECTIVE DSI (Direct Spark Ignition) MODULE
DEFECTIVE SPARK IGNITOR/FLAME-PROBE ASSEMBLY
DEFECTIVE GAS VALVE
DEFECTIVE ELECTRICAL HEAT CIRCUIT
LOSS OF GAS PRESSURE
Refer to the ladder diagram and the schematics provided with this machine for reference to the above listed
information.
CONTROL POWER (Indicator/Control Power On Push-Button)
This GREEN LIGHTED Push-Button is for enabling the 24 VAC control voltage to the control circuits of
the machine. This push-button indicator must be ON for the system to load or dry material.
Refer to the ladder diagram included with this ML-410 for the function of this push-button in the 24 VAC
control voltage latching control circuit.
CONTROL POWER (Off Push-Button)
This RED NON-LIGHTED Push-Button is for disabling the 24 VAC control voltage to the control circuits
of the machine.
Refer to the ladder diagram included with this ML-410 for the function of this push-button in the 24 VAC
control voltage latching control circuit.

12
SYSTEM LADDER DIAGRAM
The SYSTEM LADDER DIAGRAM is an overview on the electrical connections of the ML-410. This diagram
is for signal flow information and is a tool to direct an individual in the correct direction for troubleshooting this
machine.
The ML-410 system is divided into a number of electrical sections which are as follows:
1. Right Front Control Panel
The RIGHT FRONT CONTROL PANEL is located in the Right Front Control Cabinet of the ML-410.
This panel is the heart of the drying system, where ALL control signals interface to or from this panel. The
signals that interface to this panel are too many to list here, however, they are ALL identified on TB1 of its
schematic diagram.
2. Right Base Electrical Enclosure
The RIGHT BASE ELECTRICALENCLOSURE is located towards the front of the right base section. An
industrial multi-pin connector is used to connect the base section control signals to the tumbler (basket)
sections main control panel. This electrical enclosure is labeled CAUTION, HIGH VOLTAGE IS
PRESENT IN THIS ENCLOSURE and incorporates the following electrical devices:
The MAIN ELECTRICAL POWER to the machine
The ELECTRICAL CONNECTION for the OPTIONAL SPRINKLER CIRCUIT POWER
The THERMAL/MAGNETIC OVERLOAD and CONTACTOR for the BLOWER MOTOR
3. Right Base Interface Junction Box
The RIGHT BASE INTERFACE JUNCTION BOX is located towards the rear of the right base section and
is used as a central location to interface the base section electrical components to the TILTING tumbler
(basket) section. An industrial multi-pin connector is used to connect the base section control signals to the
tumbler (basket) sections main control panel. The control signals incorporated in the Right Base Interface
Junction Box are:
SOLENOID CONTROL
Front Up/Front Down
Rear Up/Rear Down
Open Front Door
Supply Air Enable
Air Jet
LINT DRAWER/STATUS
TUMBLER TEMPERATURE and HI-LIMIT INFORMATION
TUMBLER LEVEL SENSE
Front Level Switch
Rear Level Switch

13
OPTIONAL SPRINKLER CONTROL SIGNALS
4. Left Hand Control Cabinet
The thermal magnetic overload and reversing contactor for the tumbler (basket) motor!
The OPTIONAL SPRINKLER CIRCUIT main control panel will be located in the left front electrical
enclosure. If a SPRINKLER OPTION is included with the ML-410, this panel will include an
AUTOMATIC EMERGENCY STOP (E-Stop) feature. This feature requires the Sprinkler Circuit
be functional for the dryer to be powered.
NOTE: There will be a dedicated electrical connection in the Right Electrical Junction Box for
the Sprinkler Circuit.

14
SECTION I
IMPORTANT INFORMATION
A. RECEIVING and HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and
wooden skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect
further before delivering carrier leaves.
Dryers damaged in shipment:
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the truckers receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers which were not damaged in a
damaged shipment should be accepted, but the number received and the number refused must be noted on
the receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carriers freight terminal immediately and file a claim. The freight company considers this
concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult
when more than a day or two passes after the freight was delivered. It is your responsibility to file freight
claims. Dryer/parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.
ADC assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508) 678-
9000.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.

15
B. SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the
risk of fire or explosion or to prevent property damage, personal injury, or loss of
life.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY or FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. Immediately call your gas supplier from a neighbors phone. Follow the gas suppliers instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryer(s) must be exhausted to the outdoors.
6. Although ADC produces a very versatile machine, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only water-washed fabrics. DO NOT dry articles spotted or washed in dry
cleaning solvents, a combustible detergent, or all purpose cleaner.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil,
paint, or wax.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create
a fire hazard.
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or
similarly textured rubberlike materials. Drying in a heated tumbler (basket) may
damage plastics or rubber and also may be a fire hazard.

16
7. A program should be established for the inspection and cleaning of lint in the burner area, exhaust duct
work, and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: The collection of lint in the burner area and exhaust duct work can create a
potential fire hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failure to do so will VOID THE WARRANTY.
9. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, heat safety circuit,
or tilt switches ever be disabled.
WARNING: PERSONAL INJURY or FIRE COULD RESULT.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed
can create a fire hazard.
12. READ and FOLLOWALL CAUTION and DIRECTION LABELS ATTACHED TO THE DRYER.
WARNING: YOU MUST DISCONNECT and LOCKOUT THE ELECTRIC SUPPLY and
THE GAS SUPPLY or THE STEAM SUPPLY BEFORE ANY COVERS or
GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS
FOR CLEANING, ADJUSTING, INSTALLATION, or TESTING OF ANY
EQUIPMENT per OSHA (Occupational Safety and Health Administration)
STANDARDS.
