AD-50V Parts Manual
24 VAC Phase 5
American Dryer Corporation
88 Currant Road
Fall River, MA02720-4781
Telephone: [phone] / Fax: [phone]
e-mail: [e-mail]
www.amdry.com
ADC Part No. 450345
033000JCARRITA/abe

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________
RESELLER’S NAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
AD-50V

OPL Control DoorAssembly
For Models Mfd. as of July 1, 2002.................................................................................................... 3
Coin Control DoorAssembly
For Models Mfd. as of July 1, 2002.................................................................................................... 4
Control DoorAssembly
For Models Mfd. prior to July 1, 2002................................................................................................ 5
Phase 5 Coin Microprocessor Control PanelAssembly ....................................................................... 6, 7
Phase 5 OPL Microprocessor Control PanelAssembly ........................................................................... 8
Coin and OPL Control BoxAssembly ..................................................................................................... 9
Coin VaultAssembly ............................................................................................................................. 10
Dual Timer “Tap Touch” Controls
For Models Mfd. as of November 1, 2000 ....................................................................................... 11
Dual Timer Control PanelAssembly
For Models Mfd. prior to November 1, 2000 ................................................................................... 12
Non-Microprocessor Coin Meter Control PanelAssembly
For Models Mfd. as of January 25, 2002 ..........................................................................................13
Non-Microprocessor Coin Meter Control PanelAssembly
For Models Mfd. prior to January 25, 2002 ...................................................................................... 14
Front PanelAssembly
For Models Mfd. with Steel Main Door ............................................................................................ 15
Front PanelAssembly
For Models Mfd. with Plastic Main Door .......................................................................................... 16
Main Door “Steel”Assembly ................................................................................................................ 17
Plastic Main DoorAssembly ................................................................................................................. 18
Main Door SwitchAssembly
For Models Mfd. with Steel Main Door ............................................................................................ 19
Main Door Switch
For Models Mfd. with Plastic Main Door .......................................................................................... 20
Lint Drawer/Lint Drawer SwitchAssemblies
For Models Mfd. as ofAugust 10, 2000 ...........................................................................................21
Lint Drawer/Lint Drawer SwitchAssemblies
For Models Mfd. prior toAugust 10, 2000 ....................................................................................... 22
Idler BearingAssembly ......................................................................................................................... 23
Basket (Tumbler) BearingAssembly
For Models Mfd. as of July 17, 2000.......................................................................................... 24, 25
Table of Contents

Basket (Tumbler) BearingAssembly
For Models Mfd. prior to July 17, 2000...................................................................................... 26, 27
Basket (Tumbler)/SupportAssemblies ............................................................................................. 28, 29
Non-Reversing T.E.F.C. Motor MountAssembly ............................................................................ 30, 31
Reversing T.E.F.C. Motor Mount Assembly .................................................................................... 32, 33
Sensor BracketAssemblies ............................................................................................................. 34, 35
Direct Spark Ignition (DSI) BurnerAssembly
For Models Mfd. as ofApril 7, 2000 .......................................................................................... 36, 37
Direct Spark Ignition (DSI) BurnerAssembly
For Models Mfd. prior toApril 7, 2000 ...................................................................................... 38, 39
Electric OvenAssembly .................................................................................................................. 40, 41
Gas Burner Sail Switch/Hi-LimitAssemblies .......................................................................................... 42
Single-Phase (1ø) Motor, Electric Relay PanelAssembly ....................................................................... 43
3-Phase (3ø) Motor, Electric Relay PanelAssembly ........................................................................ 44, 45
460-480 VAC 3-Phase (3ø) Motor, Electric Relay PanelAssembly ....................................................... 46
Reversing Electric Relay PanelAssembly ............................................................................................... 47
460-480 VAC Reversing Electric Relay PanelAssembly .................................................................. 48, 49
Steam Coil/Air Operated Steam DamperAssembly ......................................................................... 50, 51
Steam Coil/Mechanical Steam DamperAssembly Option ................................................................ 52, 53
Outer Top/Back GuardAssemblies ....................................................................................................... 54
Microprocessor CoinAcceptors Listing ................................................................................................ 55
Coin Meter Replacement Parts ............................................................................................................. 56
Electric Oven ComponentApplication Chart ......................................................................................... 57
Additional PartsAvailable ..................................................................................................................... 58

3
Telephone: [phone] Fax: [phone]

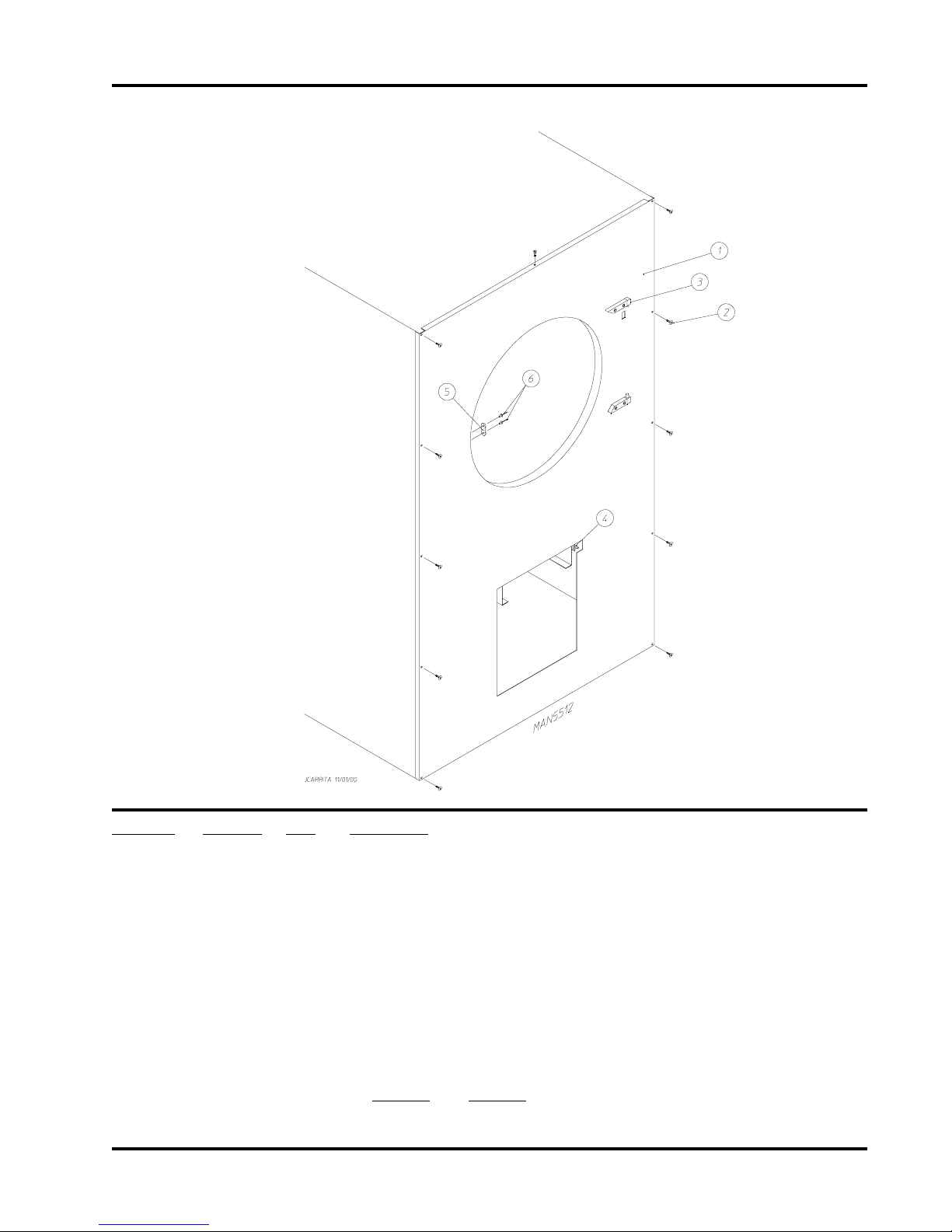

OPL Control Door Assembly
For Models Mfd. as of July 1, 2002
Illus. No. Part No. Qty.Description
1 881053 1 ADC Logo with Tape
870011 1 Double Sided Tape Kit
2 883550 1 White Control Door Assembly
(includes illus. nos. 2 and 3)
883551 1 Ivory Control Door Assembly
(includes illus. nos. 2 and 3)
883552 1 Coral Blue Control Door Assembly
(includes illus. nos. 2 and 3)
3 117604 3 Neoprene Sponge Tape (sold by the foot)
4 150317 2 #10-16 x 3/4” TORX + BTN Type 1
5 102603 1 Control Door Rod Support Catch
6 102601 1 Control Door Rod Retainer Clip
7 102502 1 Control Door Support Rod
8 150321 2 #10-32 x 1/2” Phillips Machine Screw
9 154011 2 #10-32 Multi-Thread U-Nut

4
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

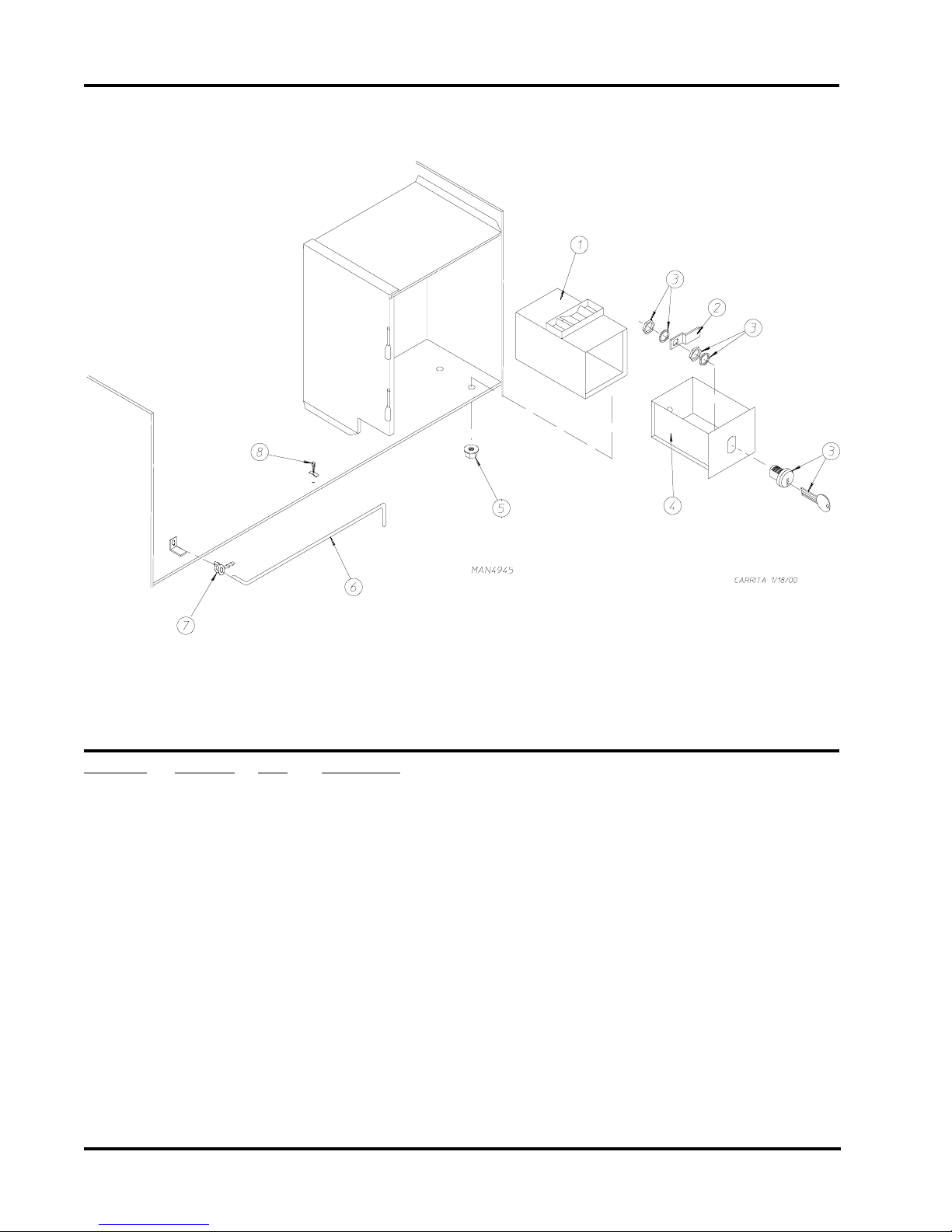

Coin Control Door Assembly
For Models Mfd. as of July 1, 2002
Illus. No. Part No. Qty.Description
1 160015 1 High Security Lock Assembly
160104 1 Key ONLY
2 160016 1 Lock Cam ONLY
3 881053 1 ADC Logo with Tape
4 883477 1 White Control Door Assembly with Black Trim
(includes illus. nos. 4 through 7)
883478 1 Ivory Control Door with Black Trim
(includes illus. nos. 4 through 7)
883549 1 Coral Blue Control Door with Black Trim
(includes illus. nos. 4 through 7)
5 883476 1 Black Trim Strip with Lock Hole
6 117604 6 Neoprene Sponge Tape (sold by the foot)
7 152014 4 1/4-20 with 3/4” Free Spin Wash Nut
8 150317 2 #10-16 x 3/4” TORX + BTN Type 1
9 102603 1 Control Door Rod Support Catch
10 102601 1 Control Door Rod Retainer Clip
11 102502 1 Control Door Support Rod

5
Telephone: [phone] Fax: [phone]
Control Door Assembly
Illus. No. Part No. Qty.Description
1 160015 1 High Security MK-100 Lock Assembly with Key
(for coin models Only)
160017 1 Special Dummy Lock ONLY
(for non-coin models Only)
160104 1 MK-100 Key ONLY
2 160052 1 Lock Cam ONLY
3 881053 1 ADC Logo with Tape
870011 1 Double Sided Tape Kit
4 882511 1 White High Security Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
882513 1 Almond “B” High Security Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
882512 1 Coral Blue High Security Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
882509 1 Stainless Steel High Security Control Door Assembly Less Lock
(includes illus. nos. 4 and 5)
5 117603 3 Noise Suppressor Tape (sold by the foot)
6 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
7 102603 1 Control Door Rod Support Catch
8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
9 102502 1 Control Door Support Rod
10 102601 1 Control Door Rod Retainer Clip
For Models Mfd. prior to July 1, 2002

6
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

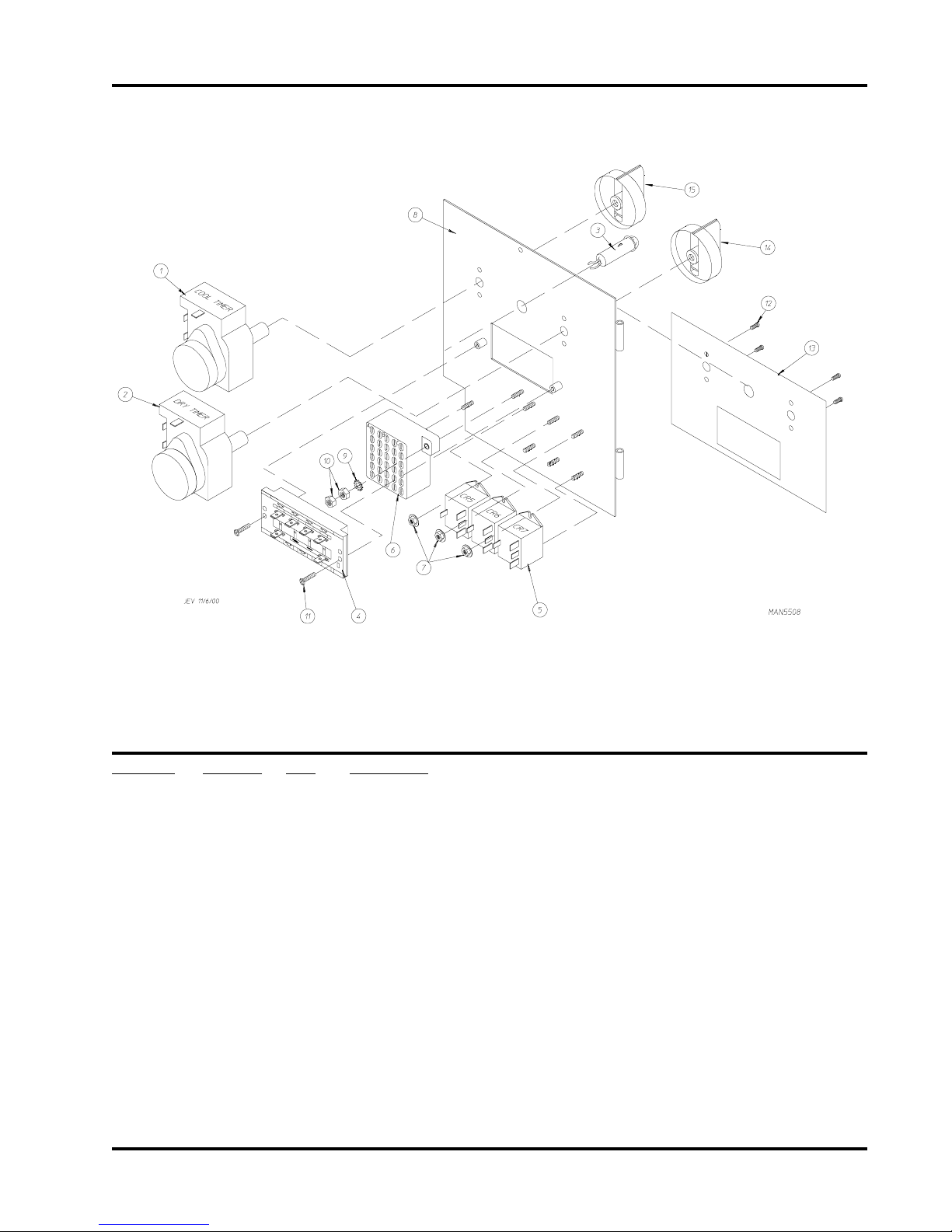

Phase 5 Coin Microprocessor Control Panel Assembly

7
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 112526 1 Coin Keyboard Label Assembly
2 883537 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
883538 1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
883582 1 Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
883581 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
883539 1 Coin Control Panel ONLY
(for models mfd. as of June 25, 2002)
883540 1 Coin Control Panel ONLY with Battery Bracket
(for models mfd. as of June 25, 2002)
883580 1 Coin Control Panel ONLY
(for models mfd. prior to June 25, 2002)
883579 1 Coin Control Panel ONLY with Battery Bracket
(for models mfd. prior to June 25, 2002)
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Controller ONLY
824998 1 Phase 5 Battery Clip
5 153010 2 #6 Star Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7 --------- 1 Microprocessor Coin Acceptor
(refer to Microprocessor Coin Acceptors Listing on page 55)
8 -------- 1 Optic Switch ONLY
(refer to Microprocessor Coin Acceptors Listing on page 55)
9 137023 1 Optic Switch Connector ONLY
10 137021 3 Microprocessor Socket ONLY
880772 1 Single Coin Optical Switch Harness
122800 1 Microprocessor (female) Pin Extraction Tool
11 136048 1 1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Check label on computer chip to verify correct part number of controller (computer).
Phase 5 Coin Microprocessor Control Panel Assembly

8
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty.Description
1 112535 1 OPL English Keyboard Label Assembly
112276 1 OPL Stick-On Labels (English ONLY)...Not Illustrated
112275 1 3-Language OPL Stick-On Labels
(Spanish, Italian, and Hebrew)...Not Illustrated
112277 1 3-Language OPL Stick-On Labels
(English, Spanish, and Hebrew)...Not Illustrated
112278 1 5-Language OPL Stick-On Labels
(Italian, Dutch, French, German, and Chinese)...Not Illustrated
2 801255 1 Phase 5 Microprocessor Control Panel ONLY
801256 1 Phase 5 Microprocessor Control Panel ONLY with Battery Bracket
801206 1 Phase 5 OPL Non-Reversing Microprocessor Control Panel
Assembly Complete
(includes illus. nos. 1 through 6)
801207 1 Phase 5 OPL Reversing Microprocessor Control Panel Assembly Complete
(includes illus. nos. 1 through 6)
3 137222 1 Phase 5 OPL Non-Reversing Controller ONLY
137231 1 Phase 5 OPL Reversing Controller ONLY
824998 1 Phase 5 Battery Clip
4 153010 2 #6 Star Washer
5 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
6 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 136048 1 1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Check label on computer chip to verify correct part number for controller (computer).
Phase 5 OPL Microprocessor Control Panel Assembly

9
Telephone: [phone] Fax: [phone]
Coin and OPL Control Box Assembly
Illus. No. Part No. Qty.Description
1 132002 1 Transformer
(for mechanical steam damper models - 208 VAC and higher Only)
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
4 131931 1 Steam Valve Relay - 24 VAC
(for mechanical steam damper models Only)
5 137035 1 Motor Capacitor
(for mechanical steam damper models Only)
6 323583 1 Capacitor Bracket
(for mechanical steam damper models Only)
7 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
8 122641 1 15-Pin Microprocessor Controller (computer) Connector
9 122706 * Socket Terminal ONLY
-- 122801 1 Pin/Socket Extraction Tool
* As required.

10
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Coin Vault Assembly
Illus. No. Part No. Qty.Description
1 802112 1 Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 5)
802117 1 Microprocessor Coin Vault ONLY
802110 1 Non-Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 5)
802115 1 Non-Microprocessor Coin Vault ONLY
2 160028 1 Cam for 1/4 Turn Lock ONLY
3 875061 1 1/4 Turn Lock with Key and Cam
160105* 1 1/4 Turn Mer-Pel Key ONLY
4 802020 1 1/4 Turn Coin Box Assembly
(includes illus. nos. 2 through 4)
5 152014 4 1/4-20 Free Spin Wash Nut
6 102502 1 Control Door Support Rod
7 102601 1 Control Door Rod Retainer Clip
8 102603 1 Control Door Rod Catch
* Specify key number when ordering.

11
Telephone: [phone] Fax: [phone]
Dual Timer “Tap Touch” Controls
For Models Mfd. as of November 1, 2000
Illus. No. Part No. Qty.Description
1 824298 1 15 Minute Timer - 24 VAC
2 824299 1 60 Minute Timer - 24 VAC
3 824175 1 Red Pilot Light - 24 VAC
4 122301 1 “Tap Touch” Switch
5 131932 3 Relay SPST 24v
6 120730 1 30-Position Terminal Block
7 151000 6 #6-32 Pal Nut
8 882903 1 Dual Timer Panel Complete
(includes illus. nos. 1 through 15)
850392 - Dual Timer Panel ONLY
9 153010 2 #6 Star Washer
10 152000 3 #6-32 Hex Nut
11 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
12 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
13 112563 1 Dual Timer Panel Overlay
14 124104 1 Pure Touch Knob with Red Pointer
15 124105 1 Pure Touch Knob with Blue Pointer

12
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty.Description
1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 882596 1 Dual Timer Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 16)
882600 1 Dual Timer Reversing Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 17)
850456 1 Dual Timer Control Panel ONLY
4 131917 1 Push-To-Start Relay - 24 VAC
5 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
6 154001 2 #10-24 Speed Nut
7 152000 2 #6-32 Hex Nut
8 153010 2 #6 Star Washer
9 120730 1 30-Position Terminal Block
10 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
11 131932 1 Dual Timer Relay - 24 VAC
12 151000 4 #6-32 Pal Nut
13 112050 1 Dual Timer Label ONLY
14 124103 2 Arrow Timer Knob
15 124025 1 60-Minute Timer - 24 VAC
16 124030 1 15-Minute Timer - 24 VAC
17 132198 1 Reversing Timer - 24 VAC
-- 882540 1 Panel Wiring (non-reversing panel)...Not Illustrated
-- 882573 1 Panel Wiring (reversing panel)...Not Illustrated
Dual Timer Control Panel Assembly
For Models Mfd. prior to November 1, 2000

13
Telephone: [phone] Fax: [phone]
Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. as of January 25, 2002
Illus. No. Part No. Qty.Description
1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 824172 1 Coin Meter Control Panel Assembly Less Coin Meter
(includes illus. nos. 2 through 5, 7, and 8)
824109 1 Coin Meter Control Panel ONLY
4 131932 1 24 VAC Relay
154001 2 #10-24 Speed Nut (used on P/N: 131932, 24 VAC relay)
5 123225 1 Green Push-To-Start Button
6 125601 1 25¢ Coin Meter - 24 VAC (specify timing)
7 153010 2 #6 Star Washer
8 152016 2 #4-40 Hex Nut
9 120712 1 12-Position Terminal Block
10 150300 1 #10-16 x 1/2” Hex Washer TEK Screw
11 122602 1 9-Pin Connector
12 122700 7 Pin Terminal ONLY
-- 122801 1 Pin Extraction Tool
NOTE: For Coin Meter Replacement Parts refer to page 56.

14
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty.Description
1 123005 1 Red Indicator Light - 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 824020 1 Coin Meter Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 6 and 8 through 12)
800054 1 Coin Meter Control Panel ONLY
4 131917 1 Push-To-Start Relay - 24 VAC
5 150207 2 #10-24 x 1/2” Round Head Machine Screw
6 154001 2 #10-24 Speed Nut
7* 125601 1 25¢ Coin Meter - 24 VAC (specify timing)
8 150303 2 #4 x 3/4” Pan Head “A” Screw
9 120712 1 12-Position Terminal Block
10 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
11 122602 1 9-Pin Connector ONLY
12 122700 9 Pin Terminal ONLY
--- 122801 1 Pin/Socket Extraction Tool
* Consult factory for coin meters not listed.
NOTE: For Coin Meter Replacement Parts refer to page 56.
Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. prior to January 25, 2002

15
Telephone: [phone] Fax: [phone]
Front Panel Assembly
For Models Mfd. with Steel Main Door
Illus. No. Part No. Qty.Description
1 883137 1 White Front Panel Assembly
(includes illus. nos. 1, 3, 5, and 6)
883138 1 Coral Blue Front Panel Assembly
(includes illus. nos. 1, 3, 5, and 6)
883139 1 Ivory Front Panel Assembly
(includes illus. nos. 1, 3, 5, and 6)
2 150313 11 #10-16 x 1/2” TORX Plus BTN Type 1
150318 1 25 IP TORX Plus Bit 1/4 Hex (for removal of TORX head screw)
3 -------- 1 Main Door Hinge
4 -------- 1 Lint Drawer Switch
(refer to Lint Drawer/Lint Drawer Switch Assemblies
on page 21 and page 22)
5 170330 1 Friction Door Latch
6 154215 2 5/32” Pop Rivet

16
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Front Panel Assembly
For Models Mfd. with Plastic Main Door
Illus. No. Part No. Qty.Description
1 882525 1 White Right Hand Front Panel Assembly
(includes illus. nos. 1, 3, 5, and 6)
882527 1 Almond “B” Right Hand Front Panel Assembly
(includes illus. nos. 1, 3, 5, and 6)
882528 1 Coral Blue Right Hand Front Panel Assembly
(includes illus. nos. 1, 3, 5, and 6)
2 150309 11 #10-16 x 1/2” Hex Head TEK Crimptite Screw
3 121405 1 Rubber Grommet
4 -------- 1 Lint Drawer Switch
(refer to Lint Drawer/Lint Drawer Switch Assemblies
on page 21 and page 22)
5 170330 1 Friction Door Latch
6 154215 2 5/32” Pop Rivet

17
Telephone: [phone] Fax: [phone]

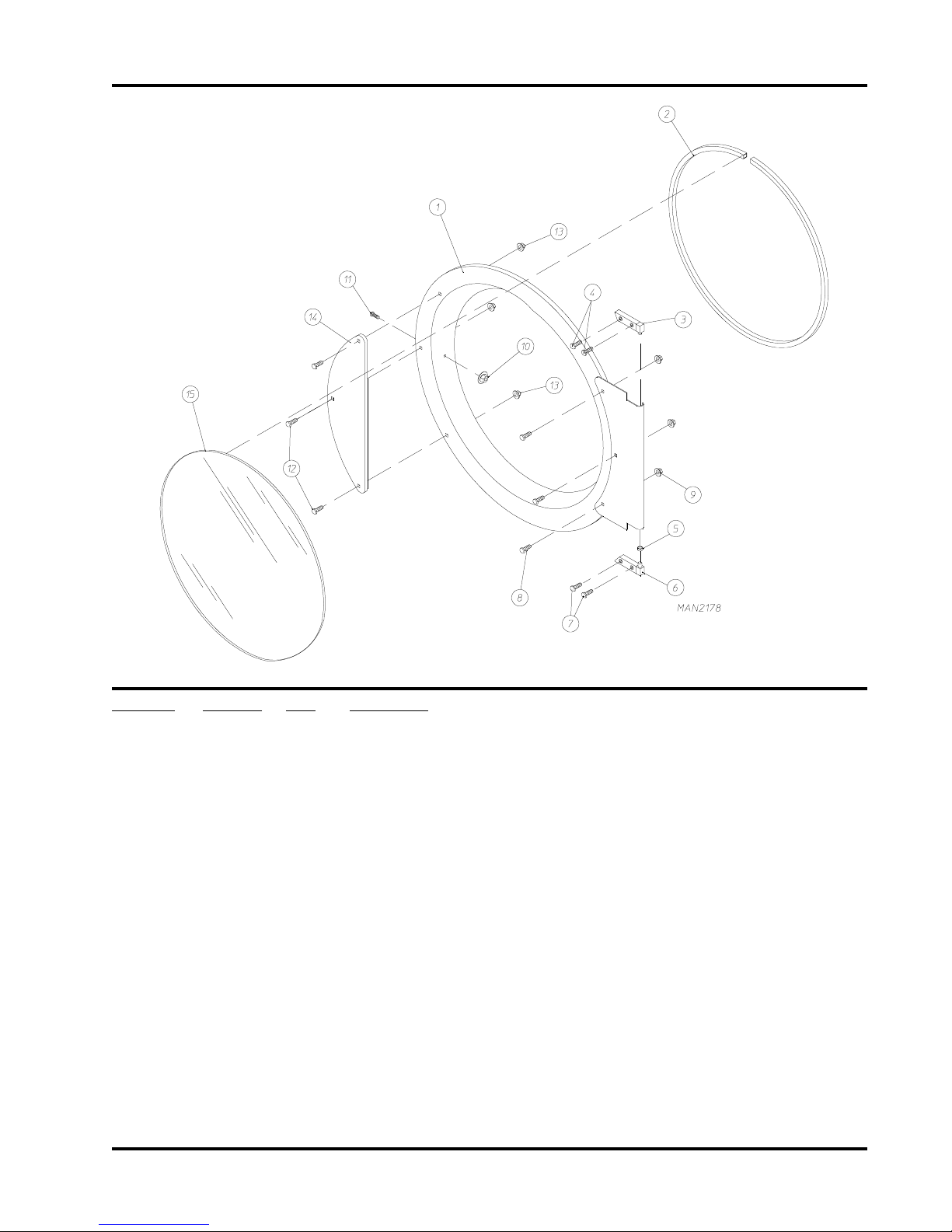

Main Door “Steel” Assembly
Illus. No. Part No. Qty.Description
1 881150 1 Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2 102354 1 Door Gasket
170731 1 Black Gasket Adhesive (10.7 oz. cartridge)
3 881152 1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 881151 1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5 through 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/2-20 Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/2-20 Free Spin Wash Nut
14 881210 1 Black Main Door Handle ONLY
15 102211 1 20-7/16” Door Glass
170731 1 Black Glass Adhesive (10.3 oz. cartridge)

18
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty.Description
1 881422 1 Black Plastic Main Door Assembly Complete with Mechanical Fasteners
(includes illus. nos. 1 and 5 through 9)
2 800448 1 12-1/2” Stainless Steel Main Door Hinge Assembly
3 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw
4 152014 4 1/4-20 Free Spin Wash Nut
5 102349 1 Main Door Gasket
6 102212 1 20-7/16” Door Glass with (4) Holes
170730 1 Main Door Gasket/Glass Adhesive (10.3 oz. cartridge)
7 150448 4 1/2” Stainless Steel Flat Head Allen Screw
8 170319 4 Door Glass (Nylon) Spacer
9 150431 1 Main Door Latch Screw
(#10 x 7/16” Dome Hex Head Screw)
Plastic Main Door Assembly
