American Dynamics AD RS-422 User manual

Model AD2083-02C
AD RS-422 Distributor
Installation and Operation Instructions
SpeedDome LT, SpeedDome, SpeedDome Ultra,
SpeedDome Optima, and SpeedDome Optima LT
The AD2083-02C Distributor is used to interface American Dynamics’ Switching Systems with
SpeedDomes, SpeedDome LTs, SpeedDome Ultras, SpeedDome Optimas, and SpeedDome Optima LTs.
Part Number 8200-0634-00 A0

End User License Agreement (EULA) – Sensormatic
READ THIS LICENSE AGREEMENT BEFORE OPENING THE DISK PACKAGE,
DOWNLOADING THE SOFTWARE, INSTALLING THE SOFTWARE/FIRMWARE,
OR USING YOUR SYSTEM.
THIS LICENSE AGREEMENT DEFINES YOUR RIGHTS AND OBLIGATIONS. BY
BREAKING THE SEAL ON THIS PACKAGE, DOWNLOADING THE SOFTWARE,
INSTALLING THE SOFTWARE/FIRMWARE, OR USING YOUR SYSTEM, YOU
AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF
YOU DO NOT AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS
AGREEMENT, YOU MAY, WITHIN 30 DAYS, RETURN THIS PACKAGE, ALL THE
DOCUMENTATION, AND ALL ACCOMPANYING MATERIAL(S) TO THE POINT OF
PURCHASE FOR A REFUND.
SOFTWARE/FIRMWARE LICENSE
The Software/Firmware includes the computer code, programs, and files, the
associated media, hardware or software keys, any printed material, and any
electronic Documentation. The Software/Firmware may be provided to you pre-
installed on a storage device (the media) as part of a system. The Software/Firmware
is licensed, not sold.
GRANT OF LICENSE
This agreement between Sensormatic Electronics Corporation (Sensormatic) and
you permits you to use the Software/Firmware you purchased. Once you have
purchased the number of copies you require, you may use the Software/Firmware
and accompanying material provided you install and use no more than the licensed
number of copies at one time. The Software/Firmware is only licensed for use with
specified Sensormatic supplied equipment. If the Software is protected by a software
or hardware key or other device, the Software may be used on any computer where
the key is installed. If the key locks the Software to a particular System, the Software
may only be used on that System.
OTHER RIGHTS AND LIMITATIONS
•A demonstration or evaluation copy of the Software/Firmware is considered purchased and is covered by this license
agreement.
•You may not de-compile, disassemble, reverse engineer, copy, transfer, modify, or otherwise use the Software/Firmware
except as stated in this agreement.
•The hardware/software key, where applicable, is your proof of license to exercise the rights granted herein and must be
retained by you. Lost or stolen keys will not be replaced.
•If the Software/Firmware is provided as part of a System, the Software/Firmware may only be used with the System.
•You may not sub-license, rent or lease the Software/Firmware, but you may permanently transfer the Software/Firmware
to another party by delivering the original disk and material comprising the Software/Firmware package as well as this
license agreement to the other party. Initial use of the Software/Firmware and accompanying material by the new user
transfers the license to the new user and constitutes the new user's acceptance of its terms and conditions.

•The Software/Firmware is not fault tolerant and may contain errors. You agree that the Software/Firmware will not be
used in an environment or application in which a malfunction of the Software/Firmware would result in foreseeable risk of
injury or death to the operator of the Software/Firmware, or to others.
•Sensormatic reserves the right to revoke this agreement if you fail to comply with the terms and conditions of this
agreement. In such an event, you must destroy all copies of the Software/Firmware, and all of its component parts (e.g.,
documentation, hardware box, software key).
•The Software/Firmware may contain software from third parties that is licensed under a separate End User License
Agreement (EULA). Read and retain any license documentation that may be included with the Software/Firmware.
Compliance with the terms of any third party EULA is required as a condition of this agreement.
•UPGRADES AND UPDATES. Software/Firmware Upgrades and Updates may only be used to replace all or part of the
original Software/Firmware. Software/Firmware Upgrades and Updates do not increase the number copies licensed to
you. If the Software is an upgrade of a component of a package of Software programs that you licensed as a single
product, the Software may be used and transferred only as part of that single product package and may not be separated
for use on more than one computer or device.
Failure to comply with any of these restrictions will result in automatic termination of
this license and will make available to Sensormatic other legal remedies.
COPYRIGHT
The Software/Firmware is a proprietary product of Sensormatic and is protected by
both the United States and International copyright laws.
LIMITED WARRANTY
Sensormatic warrants that the recording medium on which the Software/Firmware is
recorded, hardware key, and the Documentation provided with it, will be free of
defects in materials and workmanship under normal use for a period of ninety (90)
days from the date of delivery to the first user. Sensormatic further warrants that for
the same period, the software provided on the recording medium under this license
will substantially perform as described in the user documentation provided with the
product when used with the specified hardware.
CUSTOMER REMEDIES
Sensormatic's entire liability and your exclusive remedy under this warranty will be, at
Sensormatic's option, to a) attempt to correct Software/Firmware errors with efforts
we believe suitable to the problem, b) replace at no cost the recording medium,
Software/Firmware or Documentation with functional equivalents as applicable, or
c) refund the license fee and terminate this agreement. Any replacement item will be
warranted for the remainder of the original warranty period. No remedy is provided for
failure of the Software/Firmware if such failure is the result of accident, abuse,
alteration or misapplication. Warranty service or assistance is provided at the original
point of purchase.
NO OTHER WARRANTIES
The above warranty is in lieu of all other warranties, express or implied, including, but
not limited to the implied warranties of merchantability and fitness for a particular
purpose. No oral or written information or advice given by Sensormatic, its

representatives, distributors or dealers shall create any other warranty, and you may
not rely on such information or advice.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES
In no event will Sensormatic be liable to you for damages, including any loss of
profits, loss of data or other incidental or consequential damages arising out of your
use of, or inability to use, the Software/Firmware or its Documentation. This limitation
will apply even if Sensormatic or an authorized representative has been advised of
the possibility of such damages. Further, Sensormatic does not warrant that the
operation of the Software/Firmware will be uninterrupted or error free. This limited
warranty gives you specific legal rights. You may have other rights that vary from
state to state. Some states do not allow the exclusion of incidental or consequential
damages, or the limitation on how long an implied warranty lasts, so some of the
above limitations may not apply to you.
GENERAL
If any provision of the agreement is found to be unlawful, void, or for any reason
unenforceable, then that provision shall be severed from this agreement and shall not
affect the validity and enforceability of the remaining provisions. This agreement is
governed by the laws of the State of Florida. You should retain proof of the license
fee paid, including model number, serial number and date of payment, and present
such proof of payment when service or assistance covered by this warranty is
requested.
U.S. GOVERNMENT RESTRICTED RIGHTS
The Software/Firmware and Documentation are provided with RESTRICTED
RIGHTS. Use, duplication, or disclosure by the Government is subject to restrictions
as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at DFARS 252.227-7013 or subparagraph (c)(1) and (2) of the
Commercial Computer Software-Restricted Rights at 48 CFR 52.227-19, as
applicable. Manufacturer is Sensormatic Electronics Corporation, 6600 Congress
Avenue, Boca Raton, FL, 33487.

vii
Contents
Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions .......................... 1
Product Description ...................................................................................................................... 1
Features................................................................................................................................................1
Application Notes ..................................................................................................................................2
Installation..................................................................................................................................... 2
Rack Mounting ......................................................................................................................................2
Wall Mounting .......................................................................................................................................2
Setup using DIP Switches ............................................................................................................ 3
Camera Block Assignments ..................................................................................................................3
Internal Setups ......................................................................................................................................4
Connections.................................................................................................................................. 6
Interface Connectors.............................................................................................................................6
Control Code Connector .......................................................................................................................6
Data Line Connectors ...........................................................................................................................7
RS-232 Connectors...............................................................................................................................7
Operation ...................................................................................................................................... 8
Power Sources......................................................................................................................................8
Operating Indicators..............................................................................................................................8
Controlling Receiver Features...............................................................................................................8
Appendix ........................................................................................................................................... 10
Typical System Connection Drawings ........................................................................................ 10
SpeedDome Address Tables...................................................................................................... 14

Contents
viii

1
Model AD2083-02C
AD RS-422 Distributor Installation and Operation Instructions
Product Description
The Model AD2083-02C AD RS-422 Distributor is used as an interface to American Dynamics switching systems.
The 2083-02C allows for the use of SpeedDome LT, SpeedDome, SpeedDome Ultra, SpeedDome Optima, and
SpeedDome Optima LT with an American Dynamics switch and control system.
This unit interfaces with the SpeedDome LT, SpeedDome, SpeedDome Ultra, SpeedDome Optima, and
SpeedDome Optima LT. When using the AD Manchester Control Code interface, this unit can control up to 128
domes with AD1650 switchers, and 32 domes with AD2150 switchers. Multiple AD2083-02C units can be used to
control additional domes with the Control Code interface. When using the Data Line interface, the AD2083-02C
can control up to 512 domes with 1995 systems, and 1024 domes with 2050/1024 systems.
AD2083-02C

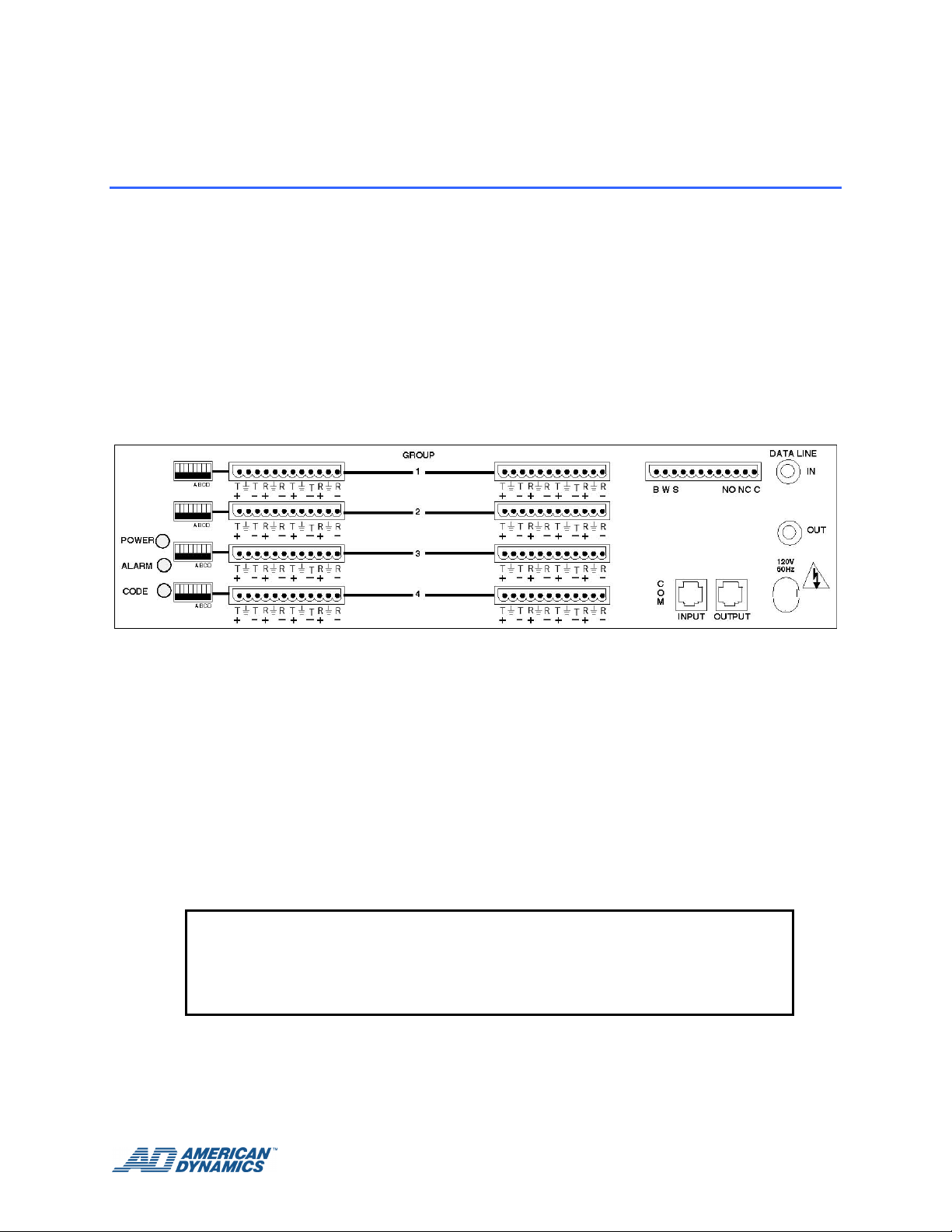

Figure 1 – AD2083-02C AD RS-422 Distributor Rear Panel
Features
•Universal Mount Cabinet
•LED Power /Alarm/Code Indicator
•DIP Switch Selection for Camera Group
•DIP Switch Configuration for Baud Rate
•Screw Terminal Wire Connector
•AD Manchester Control Code
•High Speed Data Line
•Simplex Operation Support
If you need assistance, contact American Dynamics Technical Services at:
Toll Free: 800-507-6268, Option 2
International: 561-912-6259, Option 2
Fax: [phone]
Email: [e-mail]

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
2
Application Notes
For those installations that are upgrading to the AD2083-02C Code Distributor from versions AD2083-02B or
earlier, the following list highlights the changes between these versions.
•There are seven (7) dome-stored presets for the legacy domes: SpeedDome (Unicard), SpeedDome (Duo-
Card), SpeedDome Ultra 1, and SpeedDome Ultra 2. Previously, there had been (16) host-stored presets.
•There are sixty (60) dome-stored presets for the newer domes: SpeedDome Ultra 5 (ver. 3.07), SpeedDome
Ultra 6, SpeedDome Ultra 7, SpeedDome Ultra 7e, Optima, and Optima LT (up from (16) host-stored
presets).
•Proportional speed control for simplex RS-422 now supported. Simplex was not previously supported, and
full-duplex was required.
•Address 64 in each bank of 99 cameras is now available. This camera address had been previously
reserved for host broadcasting.
•The legacy MiniDome is not fully supported.
Installation
The universal cabinet of the AD2083-02C Code Distributor may be surface or rack mounted in any convenient
location with adequate ventilation.
Rack Mounting
As shipped, with the mounting ears flush with the front panel, the AD2083-02C Code Distributor can be mounted
into the front of a standard 19-inch rack. The ears of the AD2083-02C Code Distributor can be removed and
reinstalled such that they are flush with the rear panel. This allows the AD2083-02C to be mounted to the rear of a
rack that is equipped with mounting channels.
For proper ventilation allow at least three feet (1m) from the rear of the racks to any wall, and one EIA rack height,
1.75 inches (4.5cm), between units in a rack.
Wall Mounting
The Code Distributor can be mounted to the wall by reinstalling the ears perpendicular to the side of the unit. The
unit can be installed with either the bottom or the top cover facing the wall and the front or the rear panel facing
upwards.
WITH THE FRONT OR REAR PANEL PERPENDICULAR TO THE SIDES
RACK MOUNTED WALL MOUNTED

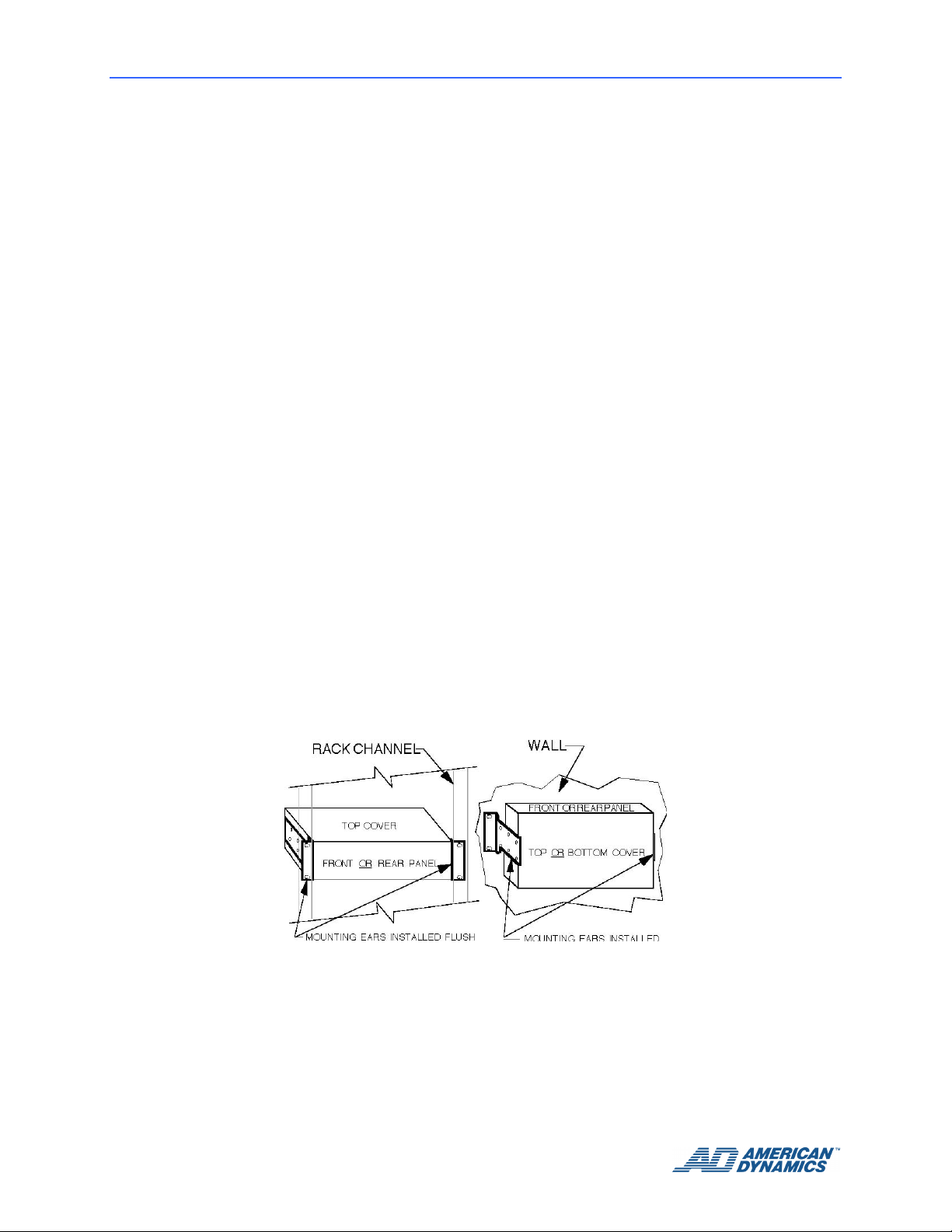

Figure 2 – Mounting Options

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
3
Setup using DIP Switches
The AD2083-02C is configured using four 8-position DIP switches (S1, S2, S3, and S4) located on the rear panel
of the unit, and two 8-position DIP switches (S5 and S6) located on the main printed circuit board (PCB) inside the
unit.
Camera Block Assignments
Four 8-position DIP switches (S1, S2, S3, and S4) are located on the rear panel of the unit, as shown in Figure 1.
The settings of these switches determine the cameras associated with the connectors in each of four selective
groups. The active positions for each DIP switch are labeled A, B, C, and D (see Figure 1). Table 1 shows the
switch settings that correspond to camera assignments for all supported domes.
Note
When used with the AD1650 switcher, one AD2083-02C Code Distributor accepts inputs 1-64. A second
AD2083-02C unit is required for inputs 65 through 128.
Table 1 – S1, S2, S3, and S4 Setup
All SpeedDome Models
Video Input Switch Positions (0=OFF, 1=ON)
Camera #s A B C D
1-99 0 0 0 0
100-198 0 0 0 1
199-297 0 0 1 0
298-396 0 0 1 1
397-495 0 1 0 0
496-594 0 1 0 1
595-693 0 1 1 0
694-792 0 1 1 1
793-891 1 0 0 0
892-990 1 0 0 1
991-1024 1 0 1 0

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
4
Internal Setups
– CAUTION –
The following internal adjustments, requiring disassembly of the unit, will expose hazardous-voltage
components and allow access to dangerous electric shock potentials. These internal adjustments
should be made only by qualified service personnel.
Two 8-position DIP switches (S5 and S6) are located on the main PCB inside the unit (see Figure 3). Each DIP
switch has eight switch positions, numbered 1 through 8. The active position numbers are used for the following
setup functions.
Figure 3 – Location of DIP Switches on PCB
Baud Rate Selection
The S5 DIP switch settings configure the input and output baud rates for the two RS-232 COM terminals and for
the RS-422 terminal pins of the interface connectors (see Table 2).
Table 2 – S5 Baud Rate Setup
Switch Position
COM OUT COM IN RS-422
BAUD RATE 1 2 3 4 5 6
1200 OFF OFF OFF OFF OFF OFF
2400 ON OFF ON OFF ON OFF
4800 OFF ON OFF ON OFF ON
9600 ON ON ON ON ON ON
Note
All SpeedDome products work at 4800 Baud only.

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
5
Acknowledge Window Settings
In order to accommodate a system with slow dome acknowledgement response times, S5 DIP switch positions 7
and 8 are used to set the time window in which an acknowledgement message is expected (see Table 3).
Table 3 – S5 Acknowledge Window Settings
Switch Position
Window
Time 7 8
35 mS* Off Off
50 mS On Off
75 mS Off On
100 mS On On
* This is the acknowledgement response time used by the older versions of the AD2083. Also note that setting
changes requires cycling of power to the unit.
Alarm Contacts and Dome Type Setup
The S6 DIP switch is used for selecting the number of alarm switch contacts that can be configured for each
dome. This switch also selects the dome type for each of the four groups of connectors. These switch positions
must be set to OFF. Table 4 shows the S6 switch position settings for these selections.
Note
Each SpeedDome, SpeedDome Ultra, and SpeedDome Optima accepts a maximum of 4 alarm contacts. The
SpeedDome LT does not accept any (zero) alarm contacts.
Table 4 – S6 Setup
Number of Alarm Contacts per Dome
Switch Position # 1 2 3 4
1 OFF ON OFF ON
2 OFF OFF ON ON
3 NOT USED
4 NOT USED
Switch Position # Group Speed Domes
5 1 OFF
6 2 OFF
7 3 OFF
8 4 OFF

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
6
Connections
Interface Connectors
Eight 12-pin connectors on the rear of the AD2083-02C Code Distributor panel are used for transmitting and
receiving codes with domes and J-boxes. The transmit (T) and receive (R) signal positions are labeled on each
connector. Each connector is supplied with a mating screw terminal connector (see Figure 4). Simplex only
requires connection to transmit.
Figure 4 – Typical Mating Screw Connector
Control Code Connector
The upper right connector on the rear of the AD2083-02C Code Distributor is a 12-pin connector. This is used to
receive Control Code signals from 1650 or 2150 switcher units (B, W, and S lines) and to provide access to an
internal Form C alarm relay. When the AD2083-02C receives an alarm from any SpeedDome, the internal alarm
relay closes. This relay can be used for turning accessories (VCR, etc.) on or off via its Normally Open (NO) or
Normally Closed (NC) terminals. The mating screw terminal connector is shown below (see Figure 5).
Figure 5 – Control Code Mating Connector
Connections on the above 12-pin connectors are easily made by inserting signal and ground wires into the slots
of the Pin1 mating connectors and tightening the hold down screws. When all wires have been connected, insert
the 12-pin mating connectors into the rear panel.

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
7
Data Line Connectors
Two DATA LINE BNC connectors are provided on the rear panel, labeled IN and OUT. The IN is used to receive
control codes from the 1995 or the 1996/1024 CPU of the 2050 systems. The OUT is a loop through connection.
If this device is the final device in a daisy chain, the BNC must be terminated in 75 ohms. Use RG-59U video
cable for all connections.
Note
When 1995 or 2050/1024 systems with existing B/W/S Control Code interfaces are used, they can be
connected to the AD2083-02C Control Code Connector, as shown in Figure 5.
RS-232 Connectors
Two RS-232 connectors on the rear panel, labeled INPUT and OUTPUT, are provided for alarm interface
connections. The output port is for connection to the switcher/control system alarm input ports or for cascading to
another AD2083-02C unit's input port or a 2096 Alarm Interface unit. The baud rate is set for these ports as
shown in Table 2.
The RS-232 connectors are 8-pin modular type RJ-45 connectors. The pin-out definitions for the two connectors
are shown in Table 5.
Table 5 – RS-232 Connectors Pin Definitions
Pin INPUT OUTPUT Terminal Block
2 Shield Shield GND
4 XMT XMT RCD
5 RCD RCD XMT
7 GND GND Shield
Remaining Pins - No Connection
The AD2083-02C connects to switching systems with a modular cable 6003-0047-02, when distances between
the units are no further than 7 feet apart.
Note
The pin definitions as listed require modular cable 6003-0047-02, or similar (that is, a cable that inverts the
connections).
For connection to switchers where the distances exceed 7 feet, a modular cable with a wall-mount 8-pin Terminal
Block, Figure 6, is provided for plug-in to the rear panel connectors. The pin definitions for this block are the same
as in Table 5. See Appendix for typical connections.
Figure 6 – 8-pin Terminal Block

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
8
Operation
Power Sources
DO NOT CONNECT THE EQUIPMENT TO A POWER SOURCE UNTIL READY TO "POWER UP''. Make all
connections to the AD2083-02C code input and relay connections and set the DIP switches prior to power up.
The AD2083-02C Code Distributor does not contain an On/Off Switch. The socket outlet shall be located near the
equipment and shall be readily accessible. The 120 V units are supplied with a pendant 3-wire cord and plug for
mating to the primary source outlet. The 230 V units are supplied with a Euro style IEC 320 type inlet. A suitable
detachable cord should be connected between the IEC 320 inlet and the power source. The cord should be
connected between the IEC 320 inlet and the power source. The cord should conform to all national and local use
code requirements. A green POWER LED indicator located on the rear panel illuminates when power is applied.
Code Distributors are available in two models, depending on the power source to be used:
AD2083-02C 120VAC, 50/60 Hz
AD2083-02C-1 230VAC, 50/60 Hz
The AD2083-02C unit has fuse power protection. The fuse sizes for replacement are:
AD2083-02C 120V -250V, SB, 0.3 A, 5 x 20mm
AD2083-02C-1 230V -250V, T, 125 mA, 5 x 20mm
Operating Indicators
When the unit is receiving valid code, the green CODE LED, on the rear panel, is illuminated. The LED stays lit
for 5 seconds after code is removed. If this LED does not light, a problem in the unit or its interconnection may be
indicated.
If an alarm input is activated, the green ALARM LED illuminates, and the alarm relay closes. The ALARM LED
remains illuminated and the alarm relay remains closed for 10 seconds after the alarm input is removed.
Controlling Receiver Features
The AD2083-02C supports the transmitted codes for all SpeedDome LT, SpeedDome, SpeedDome Ultra,
SpeedDome Optima, and SpeedDome Optima LT models. This includes full Pan, Tilt and Lens control, 60 presets
per receiver, and 4 special Console to Dome commands per Speed Dome. The special Console to Dome
commands are: Reset Iris, Increase V-Phase Delay, Decrease V-Phase delay, and Reset Dome. Pattern
programming features of the domes are also provided.
The AD2083-02C also supports alarm contacts. The American Dynamics Start Alarm and Stop Alarm commands
are transmitted via the RS232 output port. The alarm contact number is based on the American Dynamics real
camera address and the number of alarms per dome selected. When an alarm is received, an internal relay
closes and the green alarm LED illuminates. The alarm reading is an asynchronous operation, working on a first-
in first-out basis.

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
9
All dome functions are controlled via the AD keyboard using the keys indicated in Table 6. The commands shown
are all applicable to SpeedDomes.
Table 6 – Dome Commands
Dome Function Key Switch Position Keyboard Command
Call Presets Operate 1-60 Shot (Preset)***
Reset Iris Operate 66 Shot
Set Auxiliary 4 OFF Operate 64 Shot
Set Auxiliary 4 ON Operate 63 Shot
Flip (camera position 180º) Operate 67 Shot
Run Pattern # 1 Operate 70 Shot
Run Pattern # 2 Operate 71 Shot
Run Pattern # 3 Operate 72 Shot
Auto Repeat Pattern # 1 Operate 69 Shot, 70 Shot
Auto Repeat Pattern # 2 Operate 69 Shot, 71 Shot
Auto Repeat Pattern # 3 Operate 69 Shot, 72 Shot
Reset Dome Program 65 Shot
Set (Define) Presets 1-60 Program 1-60 Shot
Define Pattern # 1 Program 70 Shot
Define Pattern # 2 Program 71 Shot
Define Pattern # 3 Program 72 Shot
End Pattern Definition Program 68 Shot
Save New Pattern Program 69 Shot
Clear Pattern # 1 Program 62 Shot
Clear Pattern # 2 Program 63 Shot
Clear Pattern # 3 Program 64 Shot
Enter V Phase Adjust Mode Program 67 Shot, followed by iris open/close
Exit V Phase Adjust Mode Program 67 Shot
Dome Menu Programming Program 66 Shot
*** = Depending on keyboard, keycap may be labeled "Shot" or "Preset"

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
10
Appendix
Typical System Connection Drawings
Figure 7 – Typical System Connections: 1995 to AD2083-02C

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
11
Figure 8 – Typical System Connections: 1024 CPU to AD2083-02C

Model AD2083-02C AD RS-422 Distributor Installation and Operation Instructions
12
Figure 9 – Typical System Connections: 1650B to AD2083-02C
