Owner’s Manual
PLANETARY MIXER
Models
AE-20(A), AE-30(A), AE-40(A)
Rev. 1.01
CONTENTS
Overview 2
Safety Precautions 2
Feature 2
Standard Accessories 3
Specifications 3
Installation 4
Mixing Operation 5
Standard mixing procedures 5
Maximum Mixing capacity 6
Functions of Accessories 7
Hub Attachments 7
Maintenance 8
General 8
Daily 8
Weekly 8
Periodic 8
Lubrication 8
Electrical 8
Troubleshooting 9
Appendix 9
Installation Diagram 9-11
Wiring Diagram 12-13
Controls Illustrations 14
Warranty Information 15

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
2
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
OVERVIEW
Your American Eagle Planetary Mixer is a highly-reliable machine that lets you handle even the
most demanding of professional food applications with ease. Its advance design makes it ideal for
mixing every type of dough, as well as for use in preparing eggs, cream, mayonnaise, and other
food products. Model No. AE-40P(A) is specially designed for extra heavy-duty work in preparing
all kinds of pizza & begal dough.
SAFETY PRECAUTIONS
⎝WARNING:
The following safety precautions must be observed when operation this machine. Serious
injury or damage may result from failure to do so.
zKEEP HAND & CLOTHING AWAY FROM BOWL AND HUB ATTACHMENTS WHEN IN
OPERATION.
zKEEP RIGID OBJECTS AWAY FROM BOWL AND HUB ATTACHMENTS WHEN IN OPERATION.
zDO NOT USE THIS MACHINE FOR ANY APPLICATIONS OTHER THAN FOOD PROCESSING.
zUSE THE MACHINE ONLY WITH THE ELECTRICAL SERVICE SPECIFIED ON ITS NAMEPLATE.
zDISCONNECT THE MACHINE FROM ITS POWER SOURCE BEFORE CARRYING OUT ANY
MAINTENANCE.
zDO NOT DISABLE OR REMOVE THE SAFETY MECHANISMS INCLUDED WITH THE MACHINE.
zDO NOT LEAVE THE MACHINE IN OPERATION UNATTENDED.
zOBSERVE MAINTENANCE AND SAFETY INSPECTION SCHEDULES.
FEATURE
zRugged cast iron frame for maximum strength and stability.
zHardened steel drive worm & bronze alloy worm wheel.
zContinuously lubricated, fully gear-driven transmission with hardened steel alloy gears.
zNo. 12 (standard size) hub accommodates a variety of attachments for food grinding,
shredding, slicing, etc..
zBuilt-in timer.
zListed by ETL. (Conforms to Underwriters Laboratories, Inc. Standard No. 763 and
certified to Canadian Standards Association specification C222, No. 195.)
zListed by ETL Sanitation. (Conforms to NSF No. 8.)
zMeets food industry Sanitation Standards Committee requirements.
zCE model conforms to European Union Directives of safety design and performance.

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
3
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
STANDARD ACCESSORIES
zHigh polish stainless steel bowl.
zLever-type bowl lift on all models.
zAll models include a hygiene-compliant aluminum alloy dough hook, a hygiene-compliant
aluminum alloy beater and a stainless steel whip.
zAE-20(A) and AE-30(A) come standard configured for 115V/60Hz/1PH. Other electrical
specifications available.
zAE-40P (A) comes standard configured for 220V/60Hz/1PH. Other electrical specifications
available.
zOptional standard-sized (No. 12) Hub Attachments & Accessories are available.
SPECIFICATIONS
Model AE-20(A) AE-30(A) AE-40P(A)
Bowl Capacity (QT.) 20 30 40
Motor Specification 60HZ 115V, 0.5HP 115V, 1HP 220V, 1.5HP
Power Consumption 0.38 kW, 11APM 0.75 kW, 16AMP 1.12 kW, 10AMP
Transmission 3 Speed 100% Gear
Box 3 Speed 100% Gear Box 3 Speed 100% Gear Box
Agitator R.P.M.
First Speed 106 120 90
Second Speed 197 222 186
Third Speed 359 405 340
Electrical (Standard) 115V, SP 115V, SP 220V, SP
Dimensions L x W x H 21 x 19 x 30 inches 23.6 x 22 x 45.2 inches 26.8 x26.8 x47.2 inches
Packing Size L x W x H 26 x 24 x 41 inches 28 x 24 x 52 inches 32 x 28 x 58 inches
Net Weight (lbs.) 200 370 490
Standard Accessories :
Stainless Steel Bowl 1 PC 1 PC 1 PC
Stainless Steel Wire Whip 1 PC 1 PC 1 PC (optional)
AL Hook 1 PC 1 PC 1 PC
AL Beater 1 PC 1 PC 1 PC (optional)
15-Minute Timer 1 PC 1 PC 1 PC
6-Foot Cord & Approved Plug 1 PC 1 PC 1 PC (without Plug)

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
4
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
INSTALLATION
IMMEDIATELY, BEFORE UNPACKING THE MIXER, INSPECT IT FOR POSSIBLE SHIPPING
DAMAGE AND/OR SHORTAGE. IF YOU FIND THE PACKAGING MATERIAL OR THE
MACHINE IS DAMAGED, INSTANTLY CONTACT THE CARRIER. THIS PROCEDURE MUST
BE FILED WITH THE TRANSPORTATION COMPANY BY YOU WITHIN 3 DAYS OF DELIVERY.
OUR RESPONSIBILITY CEASES WHEN MERCHANDISE IS DELIVERED TO THE
TRANSPORTATION COMPANY AND RECEIPTED FOR. ALSO, TAKE NOTICE TO THE
BRIGHT RED NOTICE ON EACH CRATE—1). CAUTION 2). FREIGHT CONDITION
zBEFORE INSTALLING YOUR MIXER, BE SURE TO CHECK THAT YOUR ELECTRICAL SERVICE
SPECIFICATIONS MATCH THOSE OF YOUR MIXER AS PRINTED ON MIXER’S NAMEPLATE.
zInstall the mixer in convenient location that permits easy access to the mixer’s control, and
maintenance access from top, front, and sides.
zUse a level and shims as necessary to ensure that the mixer is installed in a level position
from front to back and left to right.
zThe unit should be moved carefully by qualified personnel to avoid injury or damage from
toppling.
zElectrical connections should be made by qualified personnel in accordance with applicable
codes and regulations.
zPermissible voltage fluctuation is ±10% of normal voltage.
zBe sure to tag any electrical outlets, fuses, or connections involved in installing the mixer until
installation has been completed.
zTHE UNIT MUST BE PROPERLY GROUNDED TO PREVENT ELECTRICAL SHOCK AND
INTERFERENCE. Use a grounding cable of not less that the code-determined minimum
length. The diameter of the grounding cable must be the same as that of the power cable.
Each machine must be separately grounded.
zTo move or relate the mixer after it has been installed, first disconnect the power and
grounding cables.
zBe sure the planetary runs in the direction shown by the arrow in the planetary head. Reverse
direction is forbidden.
WIRING DIAGRAM OF AE-20(A), AE-30(A), AE-40P(A) ARE LOCATED IN THE
APPENDIX.
INSTALLATION DIAGRAM OF AE-20(A), AE-30(A), AE-40P(A) ARE LOCATED
IN THE APPENDIX.
CONTROLS ILLUSTRATIONS OF AE-20(A), AE-30(A), AE-40P(A) ARE LOCATED

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
IN THE APPENDIX.
MIXING OPERATION
STANDARD MIXING PROCEDURES
NOTE: Before using a new mixing bowl, and before each use of any mixing bowl or mixing
egg whites or whole eggs, the bowl should be thoroughly washed with hot water and mild
soap. Rinse the bowl with a mild soda or vinegar solution, and then thoroughly rinse it
again with clean water.
1. BOWL LIFT SLIDE
WAY
2. BOWL LIFT HANDLE
3. GEARSHIFT LEVER
4. HEAD RING
5. AGITATOR
6. BOWL
7. THUMBSCREW
8. HUB COVER PLUG
9. BOWL SUPPORT
10.ALIGNMENT PIN
11. SAFETY GUARD
1. Always place bowl in position before installing agitator.
2. Be sure the mixing bowl alignment pin at the back of the bowl is properly engaged with the
insertion receptacle in the center of bowl support.
3. Be sure to seat the bowl properly on the alignment pins on the bowl support.
4. If using a bowl adapter, install it as you would a bowl, and then put the bowl In place as usual.
5. Install the agitator by lifting it on to the agitator shaft, and twist it to the right until the agitator
lock engages. To remove the agitator, raise it on the shaft, twist it to the left, and pull down.
6. To avoid splatters, add all ingredients before starting mixer.
7. Select the desired speed. Always stop the machine to change speeds-never change
speeds while mixer is in operation.
8. Set the timer to the desired mixing time and set timer switch to ON position, or leave timer at “0”
and timer switch OFF for un-timed mixing. On some models, the timer switch is integrated with
the mixer START/STOP switch.
9. Raise the bowl into position using the bowl lift. Never raised or lower the bowl while the
mixer is in operation.
10. On safety guard models, close the safety guard into position.
5
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
3
6
5
4
1
2
7
8
9
10
1
2
11

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
6
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
11. Press START to begin mixing. Press stop to stop mixing.
MAXIMUM MIXING CAPACITY
The moisture content of heavy dough is a critical factor when selecting proper mixing speed. You
should never use 2nd speed when mixing heavy dough with an Absorption Ratio (AR) of 50% or
less. To determine the Absorption Ratio (AR) of a product, water weight divide by flour
weight.
Example: Calculate the Absorption Ratio of a mixture containing 5 lbs. of water and
10 lbs. of flour. 5 ÷10 = 0.50 = 50 % = AR
PRODUCT TOOL AE-20(A) AE-30(A) AE-40P(A)
Egg Whites Whip 1 qt. 1-1/2 qt. 1-3/4 qt.
Mashed Potatoes Beater 15 lbs 20 lbs 30 lbs
Mayonnaise (Qts. Oil) Beater 10 qt. 12 qt. 13 qt.
Meringue (Qts. Water) Whip 1 qt. 1 qt. 1-1/2 qt.
Waffle/Pan cake Batter Beater 8 qts. 12 qts. 16 qts.
Whipped Cream Whip 4 qts. 6 qts. 9 qts.
Sheet Cake Batter Beater 20 lbs. 20 lbs. 40 lbs.
Cup Cake Beater 22 dz. 30 dz. 45 dz.
Layer Cake Beater 20 lbs. 30 lbs. 45 lbs.
Pound Cake Beater 21 lbs. 23 lbs. 40 lbs.
Sugar Cookie Beater 30 dz. 30 dz. 65 dz.
Bread or Roll Dough (Light/ Medium,
60% AR, =) Hook
* Water
6 lbs. Flour 10 lbs.
Water
12 lbs.
Flour
20 lbs. Water 15 lbs. Flour 25 lbs.
Bread or Roll Dough (Heavy, 55% AR, =) Hook
* Water
4.4 lbs. Flour 8 lbs.
Water
8.8 lbs.
Flour
16 lbs. Water 11 lbs. Flour 20 lbs.
Thin Pizza Dough, Pasta, Basic Egg
Noodle(40% AR, =, 5 min. max. mix time) Hook
* Water
2 lbs. Flour 5 lbs.
Water
3.2 lbs.
Flour
8 lbs. Water 7.2 lbs. Flour 18 lbs.
Medium Pizza Dough (50% AR, =) Hook
* Water
3 lbs. Flour 6 lbs.
Water
6 lbs.
Flour
12 lbs. Water 11 lbs. Flour 20 lbs.
Thick Pizza Dough (60% AR, =) Hook
* Water
6 lbs. Flour 10 lbs.
Water
12 lbs.
Flour
20 lbs. Water 15 lbs. Flour 25 lbs.
Raised Donut Dough (65% AR) Hook
* Water
3 lbs. Flour 5 lbs. Water 5.2 lbs. Flour 8 lbs. Water 10 lbs. Flour 15 lbs.
Whole Wheat Dough ( 70% AR) Hook
** Water
7 lbs. Flour 10 lbs. Water 14 lbs. Flour 20 lbs. Water 18 lbs. Flour
25 lbs.
z*1st speed only ** 1st speed & 2nd speed only

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
7
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
z=If high gluten flour is used, reduce above dough batch size by 10 %
z1 gallon of water weights 8.33 lbs.
FUNCTIONS OF ACCESSORIES
DOUGH ARM:
Frequently used for heavy bread dough, and preferable to be used at low speed.
The moisture content of heavy dough is critical when selecting proper mixing
speed. You should never use 2nd speed when mixing heavy dough with an
Absorption Ratio (AR) of 50% or less.
BEATER:
Commonly used for thin batters, cake and mashing potatoes, like stuffing and
preferable to be used at middle speed.
WIRE WHIP:
Best for whipping cream and beating eggs and preferable to be used at high
speed.
BOWL
New mixers bowls and agitators (beaters, whip, and dough arms) should be thoroughly washed
with hot water and mild soap solution, rinsed with either a mild soda or vinegar solution, and
thoroughly rinsed with clean water BEFORE being put into service. This cleaning procedure
should also be followed for bowls and agitators before whipping egg whites with or whole eggs.
HUB ATTACHMENTS
The mixer’s standard-sized, No. 12 hub accommodates a variety of optional attachments. To
install an attachment, loosen the thumbscrew on the attachment hub and remove the hub cover
plug. Insert the attachment into the attachment hub making certain that the square shank of the

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
8
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
attachment is in the square driver of the mixer. Secure the attachment by tightening the
thumbscrew. Be sure to follow the manufacturer’s installation, operation, and safety instructions for
the hub attachment. Attachment hub should not be used while mixing.
MAINTENANCE
NOTE : ALL MAINTENANCE WORK SHOULD BE DONE ONLY AFTER UNIT HAS BEEN
DISCONNECTED FROM ELECTRICAL POWER AND GROUNDING.
General
Clean the mixer after each day’s use. It should be wiped with a clean, damp cloth. Use a soft brush to clean
areas that are difficult to clean with a cloth. NEVER USE A METAL OR OTHER TYPE OF STIFF BRUSH
TO CLEAN THE MIXER. NEVER CLEAN THE MIXER WITH A WATER HOSE OR ANY TYPE OF FLUID
UNDER PRESSURE OR IN HIGH QUANTITY.
Daily
zClean the mixer regularly after each day’s use.
zDo not run the mixer continuously for long periods.
zWash the bowl, agitators, and attachments according to normal food-contact equipment procedures
after each use.
Weekly
zInspect planetary mechanism and transmission case for leaks or damage. CONTACT YOUR LOCAL
SERVICE REPRESENTATIVE IF IT BECOMES NECESSARY TO REPACK THE BALL BEARING.
Use of unapproved grease or lubricants may lead to damage and may void the manufacturer’s
warranty.
Periodic
zLubricate the bowl lift semi-annually, or more often under heavier use.
zInspect the drip cup periodically for moisture or lubricant dripping. Remove the cup and wipe it with a
soft cloth.
Lubrication
zThe mixer comes with grease-packed ball bearing and/or roller bearing that do not require regular
lubrication. When it becomes necessary to repack them, contact your authorized service representative
or AMERICAN EAGLE.
zThe bowl slideways require periodic lubrication with a small quantity of high-quality mineral oil that
may be applied with a cotton swab or by finger tip.
zThe polished drip cup protects against lubricant seeping out of the planetary into the bowl. The drip cup
should be wiped clean monthly and inspected for excessive leakage. The drip cup may be removed by

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
9
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
Ml
pulling down on it.
Electrical
zThe mixer’s electrical system does not require electrical maintenance under normal use. Should service
be required, contact your local service representative or AMERICAN EAGLE.
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE REMEDY
Mixing shaft won’t turn. ⇒Loose electrical connection(s). ⇒Tighten electrical connection.
Oil leakage ⇒Oil seals worn ⇒Call for authorized service.
Bowl lifter too tight ⇒Handle guides need oil. ⇒Lubricate as needed
Motor overheats ⇒Power supply problem. ⇒Check power supply voltage.
Motor stop ⇒Overload.
⇒Speed too high.
⇒Wrong agitator.
⇒Correct load
⇒Decrease speed
⇒Install correct agitator.
Gearbox noise ⇒Insufficient lubricant. ⇒Add oil
Motor works, but agitator
doesn’t rotate.
⇒Transmission problem ⇒Call for authorized service.
Speed select binds ⇒Gears are not proper engaged. ⇒Turn machine off, then rotate
planetary head. Re-select speed.
Lose speed ⇒Grease jam. ⇒Operating in loading
APPENDIX
INSTALLATION DIAGRAM (inch)

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
10
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
AE-20
19 21
30

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
11
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
AE-30
25 21
40

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
12
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
AE-40P
27 27
47

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml

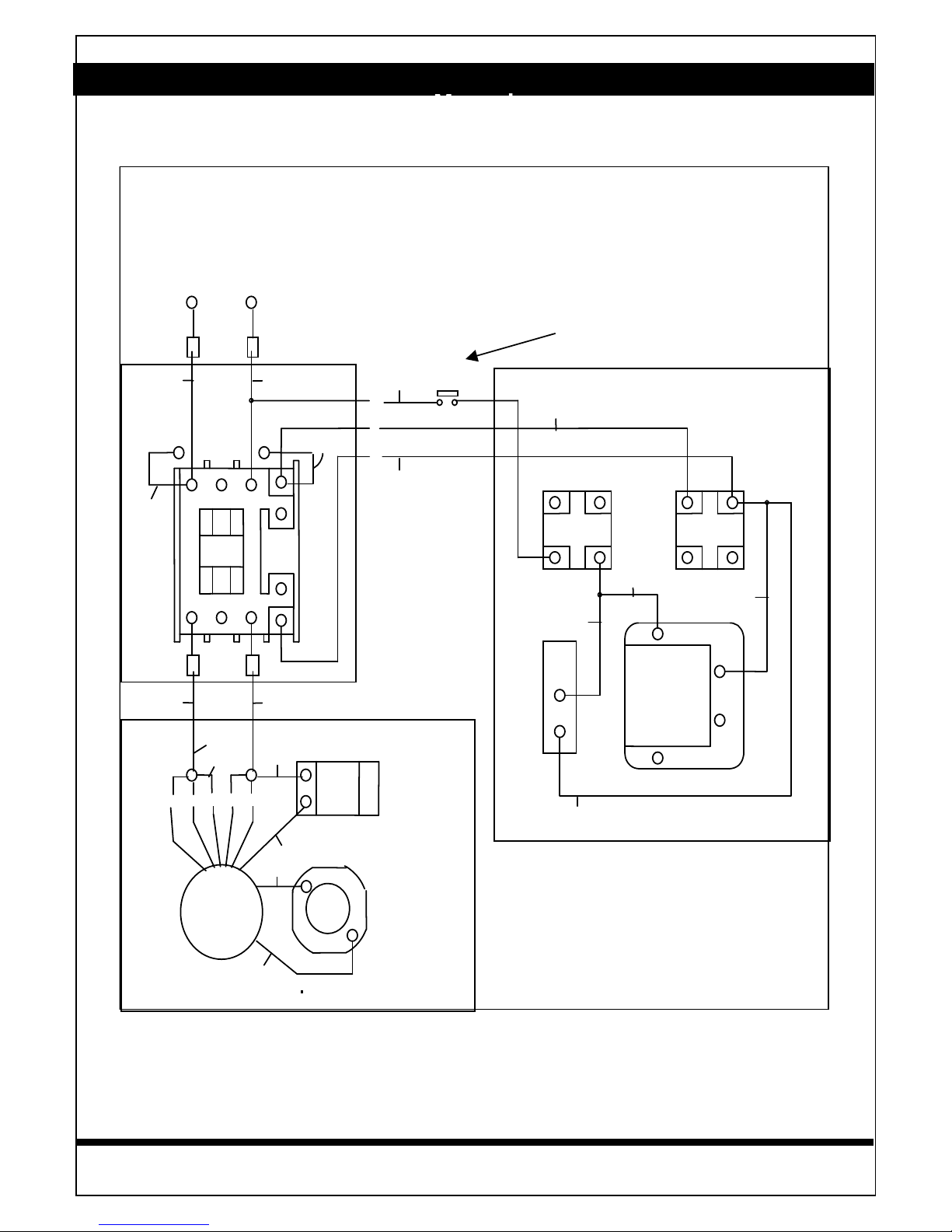

WIRING DIAGRAM
13
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
AE- 20
MOTO
R
BLACK 132
4
4
25
G
OVERNOR
B
LUE
CAPACITOR
B
LUE
R
ED 13
1
L
1
2
TIMER
1
2
Y
ELLOW
L
2
SW
BLOCKTERM INAL
B
LUE
BLU
E
BLACK
W
HITE
BLACK
W
HITE
Y
ELLOW
Y
ELLOW
Y
ELLOW

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
14
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
A2
14
MC
L1 L2
13
1
3
2
TIMER
1
SW
1
2
2
START
STOP
13 14
21 22
M
OTO
R
51342
CAPACITOR
GOVERNOR
W
HIT
E
BLACK
BLUE
BLACK
W
HIT
E
RED
BLUE
BLUE
BLACK
BLUE
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
R
T
U
W
L.S
AE- 20A, AE-30A AND AE-40PA SINGLE PHASE,TIMER & GUAR
D
zAE-30 AND AE-40P W/O L. S.

American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
CONTROLS
15
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
AE-20A is furnished with two button-switches,
which control power to the mixer.
Positionat3speed(high)
2
1
OFF
TIMER
O
N
AE-30 (A)
Position at 2 speed (intermediate)
3
1
START STOP
TIMER
AE-40P (A) Position at 3 speed (high)
2
1
AE-20 is furnished with an ON-OFF toggle switch which
controls power to the mixer.
Positionat3speed(high)
2
1

16
©Copyright 1998 American Eagle Food Machinery, Inc. All Rights Reserved
American Eagle Food Machinery, Inc. AE-20, 30, 40P(A) Owner’s
Ml
AMERICAN EAGLE AE-20(A), AE-30(A) AND AE-40P(A) PLANETARY MIXER
WARRANTY INFORMATION
LIMITED WARRANTY
Parts : 1 YEAR . Labor : 90 DAYS
PARTS :
American Eagle Food Machinery, Inc. warrants to the original purchaser/user of every American eagle Food Machinery, Inc.
Product that the Product will be free from defects in material or workmanship for a period of one (1) year from the date of
acquisition when installed and operated according to our instruction, OR eighteen (18) months from the date of shipment from
our factory to our dealer, whichever expires first.
LABOR :
American Eagle Food Machinery, Inc. will, during its normal business hours, or through an authorized service representative repair
or replace all parts found to be defective under this warranty without charge for labor for a period of ninety (90) days from the date
of acquisition.
THIS WARRANTY IS CONDITIONAL UPON NOTIFICATION OF AMERICAN EAGLE FOOD MACHINERY, INC. BEING
NOTIFIED OF ANY DEFECTS IN MATERIALS OR WORKMANSHIP WITHIN THIRTY (30) DAYS OF OCCURRENCE.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. AMERICAN EAGLE
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
THE LIABILITY OF AMERICAN EAGLE FOOD MACHINERY, INC. IS EXPRESSLY LIMITED TO REPAIRING
EQUIPMENT THAT PROVES TO BE DEFECTIVE IN MATERIALS OR WORKMANSHIP WITHIN THE WARRANTY
PERIOD STATED ABOVE. AMERICAN EAGLE FOOD MACHINERY, INC. EXPRESSLY EXCLUDES LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES TO PURCHASER /OWNER OR ANY THIRD PARTY, INCLUDING BUT
NOT LIMITED TO AND WITHOUT LIMITATION DAMAGES ARISING FORM PERSONAL INJURIES, LOST PROFITS,
LOSS OF BUSINESS OPPORTUNITY, LOSS OF PROPERTY, ECONOMIC LOSSES OR STATUTORY OR EXEMPLARY
DAMAGES WHETHER THROUGH NEGLIGENCE, WARRANTY, STRICT LIABILITY OR OTHERWISE.
THIS WARRANTY IS GIVEN SOLELY TO THE ORIGINAL PURCHASER/USER OF THE PRODUCT. NO WARRANTY IS
GIVEN OR IMPLIED TO SUBSEQUENT TRANSFEREES.
THIS WARRANTY SHALL NOT TAKE EFFECT UNTIL AND UNLESS A PROPERLY COMPLETED AND SIGNED WARRANTY
REGISTRATION FORM HAS BEEN RECEIVED BY AMERICAN EAGLE FOOD MACHINERY, INC. WITHIN 30 DAYS FORM
DATE OF INSTALLATION.
This is the sole Warranty Agreement between American Eagle Food Machinery Inc. and the Purchaser User. No other
agreements are implied, authorized, or assumed, whether by American Eagle Food Machinery Inc. or any third party.
WARRANTY REGISTRATION RECORD
INSTRUCTIONS: YOU MUST REGISTER WITHIN 30 DAYS UPON THE PURCHASE DATE IN
ORDER FOR THE WARRANTY TO BE EFFECTIVE MAIL TO
A
MERICAN EAGLE FOOD
MACHINERY, INC.
Model
Serial No.
Purchase Date
Purchased From
Salesperson
Telephone No.
Warranty Sent On
By
