StorTrends® 2401 Setup Guide 1
StorTrends® 2401 Setup Guide
(StorTrends iTX version 2.7)
MAN-2401-SG
04/15/2011
© Copyright 1985-2011 American Megatrends, Inc.
All rights reserved.
American Megatrends, Inc.
5555 Oakbrook Parkway,
Building 200
Norcross, GA 30093
This publication contains proprietary information that is protected by copyright. No part
of this publication can be reproduced, transcribed, stored in a retrieval system, translated
into any language or computer language, or transmitted in any form whatsoever without
the prior written consent of the publisher, American Megatrends, Inc.
All trademarks and trade names used in this document refer to either the entities claiming
the marks and names or their products. American Megatrends, Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Revision History
08/30/2010 Initial Release
10/23/2010 Update product name and screens
11/01/2010 Updated raw drive support per enclosure to 24 TB from 16 TB
12/14/2010 Edit Create Share Name section regarding spaces and quotes (cannot use quotes)
04/15/2011 Added Licensing Information and Updating and Removed Maximum Physical and
Theoretical Capacity Information
NOTE:
All screen captures are for representative purposes only. Your actual screen may look
different. You may have a newer version and build of the StorTrends software and/or a
different hardware configuration; such as a different StorTrends storage appliance. Most
of the screen captures found in this document where taken from the StorTrends 3200
storage appliance. However, the basic usage remains the same.

StorTrends® 2401 Setup Guide
2
Thank You
Thank you for purchasing the StorTrends® 2401 storage appliance. Please take a few
minutes to review this Setup guide before beginning the installation process. If you
require a further explanation of any item covered in this guide, please refer to the
installation instructions on your CD.
This manual is written for the end-user to get up and running with the unit as quickly as
possible. Installation and maintenance should be performed by experienced technicians
only.
Disclaimer
This document describes the operation of the American Megatrends StorTrends® 2401
storage appliance. Although efforts have been made to assure the accuracy of the
information contained here, American Megatrends expressly disclaims liability for any
error in this information, and for damages, whether direct, indirect, special, exemplary,
consequential or otherwise, that may result from such error, including but not limited to
the loss of profits resulting from the use or misuse of the manual or information
contained therein (even if American Megatrends has been advised of the possibility of
such damages). Any questions or comments regarding this document or its contents
should be addressed to American Megatrends at the address shown on the inside of the
front cover.
American Megatrends provides this publication “as is” without warranty of any kind,
either expressed or implied, including, but not limited to, the implied warranties of
merchantability or fitness for a specific purpose.
Some states do not allow disclaimer of express or implied warranties or the limitation or
exclusion of liability for indirect, special, exemplary, incidental or consequential
damages in certain transactions; therefore, this statement may not apply to you. Also, you
may have other rights that vary from jurisdiction to jurisdiction.
This publication could include technical inaccuracies or typographical errors. Changes
are periodically made to the information herein; these changes will be incorporated in
new editions of the publication. American Megatrends may make improvements and/or
revisions in the product(s) and/or the program(s) described in this publication at any time.
Requests for technical information about American Megatrends products should be made
to your American Megatrends authorized reseller or marketing representative.

StorTrends® 2401 Setup Guide 3
Hardware Installation
Overview
This section provides a quick setup checklist to get your StorTrends® 2401 storage
appliance up and running. Following the steps in the order given should enable you to
have the system operational within a minimal amount of time.
NOTE:
Follow the steps in the order given to complete the installation process in a minimal
amount of time. Read this section in its entirety before you begin the installation
procedure outlined in this section.
Unpack the StorTrends® 2401 Storage Appliance
You should inspect the box the StorTrends® 2401 Storage Appliance was shipped in and
make sure that it is undamaged. If the server itself shows damage, you should file a
damage claim with the carrier who delivered it.
Decide on a suitable location for the rack unit that will hold the StorTrends® 2401
Storage Appliance. It should be situated in a clean, dust-free area that is well ventilated.
Avoid areas where heat, electrical noise and electromagnetic fields are generated. You
will also need it placed near a grounded power outlet. Read all Warning sections in this
document.

StorTrends® 2401 Setup Guide
4
Preparing for Setup
The StorTrends 2401 includes two sets of rail assemblies, two rail mounting brackets and
the mounting screws you will need to install the system into the rack. Please read this
document in its entirety before you begin the installation procedure.
Choosing a Setup Location
•Leave enough clearance in front of the rack to enable you to open the front door
completely (~25 inches).
•Leave approximately 30 inches of clearance in the back of the rack to allow for
sufficient airflow and ease in servicing.
•This product is for installation only in a Restricted Access Location (dedicated
equipment rooms, service closets and the like).
WARNING!
RACK PRECAUTIONS
•ENSURE THAT THE LEVELING JACKS ON THE BOTTOM OF THE RACK ARE
FULLY EXTENDED TO THE FLOOR WITH THE FULL WEIGHT OF THE RACK
RESTING ON THEM.
•IN A SINGLE RACK INSTALLATION, STABILIZERS SHOULD BE ATTACHED TO
THE RACK.
•IN MULTIPLE RACK INSTALLATIONS, THE RACKS SHOULD BE COUPLED
TOGETHER.
•ALWAYS MAKE SURE THE RACK IS STABLE BEFORE EXTENDING A
COMPONENT FROM THE RACK.
•YOU SHOULD EXTEND ONLY ONE COMPONENT AT A TIME - EXTENDING TWO
OR MORE SIMULTANEOUSLY MAY CAUSE THE RACK TO BECOME UNSTABLE.

StorTrends® 2401 Setup Guide 5
WARNING!
SERVER PRECAUTIONS
•REVIEW THE GENERAL SAFETY PRECAUTIONS.
•DETERMINE THE PLACEMENT OF EACH COMPONENT IN THE RACK BEFORE
YOU INSTALL THE RAILS.
•INSTALL THE HEAVIEST SERVER COMPONENTS ON THE BOTTOM OF THE
RACK FIRST, AND THEN WORK UP.
•USE A REGULATING UNINTERRUPTIBLE POWER SUPPLY (UPS) TO PROTECT
THE SERVER FROM POWER SURGES, VOLTAGE SPIKES AND TO KEEP YOUR
SYSTEM OPERATING IN CASE OF A POWER FAILURE.
•ALLOW THE POWER SUPPLY UNITS AND HARD DISK DRIVE TO COOL BEFORE
TOUCHING THEM.
•ALWAYS KEEP THE RACK'S FRONT DOOR AND ALL PANELS AND
COMPONENTS ON THE SERVERS CLOSED WHEN NOT SERVICING TO MAINTAIN
PROPER COOLING.
•WHEN REMOVING THE HARD DISK DRIVE, UNLOCK THE LATCH AND WAIT
APPROXIMATELY ONE MINUTE TO ALLOW THE HARD DISK DRIVE MOTOR TO
STOP BEFORE PULLING THE HARD DISK DRIVE OUT.

StorTrends® 2401 Setup Guide
6
Rack Mounting Considerations
Feature Description
Ambient Operating
Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than
the ambient temperature of the room. Therefore, consideration
should be given to installing the equipment in an environment
compatible with the manufacturer’s maximum rated ambient
temperature (Tmra).
Reduced Airflow Equipment should be mounted into a rack so that the amount of
airflow required for safe operation is not compromised.
Mechanical Loading Equipment should be mounted into a rack so that a hazardous
condition does not arise due to uneven mechanical loading.
Circuit Overloading Consideration should be given to the connection of the equipment to
the power supply circuitry and the effect that any possible
overloading of circuits might have on overcurrent protection and
power supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Reliable Ground A reliable ground must be maintained at all times. To ensure this, the
rack itself should be grounded. Particular attention should be given
to power supply connections other than the direct connections to the
branch circuit (for example, the use of power strips and so on.).
Installing the System into a Rack
This section provides information on installing the StorTrends 2401 into a rack with the
rack rails provided. If the StorTrends 2401 has already been mounted into a rack, you can
skip this step.
There are a variety of rack units on the market that may mean the assembly procedure
will differ slightly. You should also refer to the installation instructions that came with
the rack unit you are using.

StorTrends® 2401 Setup Guide 7
Requirements
The rack rails supplied with your system are designed to be used with four post rack
enclosures. The rack rails mount between the posts and are designed to be quickly
installed.
In order for you to use the supplied rack rails, your rack enclosure must conform to the
following:
•must be a 19 inch rackmount cabinet
•must be at least 27 inches deep
•must have square holes on the posts (sometimes referred to as, "rapid rack holes.")
•must have a side clearance of 0.75 inches in between the posts, from square
mounting hole to square mounting hole.
Meaning if you take a (0.75 inch) wide by (5.75 inch) tall by (the amount of space
between the posts) length of wood and place it between the posts, it should not be
exposed in a way that would restrict you from sliding your system into your rack
enclosure.
NOTE:
If you are using a rack enclosure that does not have enough space to fit the
included rack rails, you can use either an L bracket or a rack shelf.
Correct type of four post rack enclosure
(not drawn to scale)
Fits between the posts

StorTrends® 2401 Setup Guide
8
Wrong type of four post rack enclosure
Inspection
Remove both the left (marked L) and right (marked R) rack rails from their plastic bags.
Both the left and right rack rails have two sections to them.
•inner rail
•outer rail
Rack Rail Sections
Separating the Rail Sections
The inner rack rail needs to be slid out from the outer rack rail prior to installation. To
slide the inner rack rail from the outer rack rail, fully extend the rack rail until the inner
rack rail slides to its locking position.
(not drawn to scale)
Cannot fit between the posts
Outer Rail Inner Rail

StorTrends® 2401 Setup Guide 9
Rack Rail Release Tab
While lifting the locking tab on the inner rack rail, slide the inner rack rail out from the
outer rack rail.
Inner Rail Fully Released
Attaching the Inner Rack Rails to the Chassis
The inner rack rail has openings that line up with the side of the chassis. Match the inner
rack rail to the appropriate side of the chassis.
Slide the inner rack rail into its locking position. You will hear a snap when this happens
and the inner rack rail will become securely affixed to the side of the chassis.
Screw the inner rack rail to the side of the chassis.
Press Down to Release

StorTrends® 2401 Setup Guide
10
Inner Rail Attached to Chassis
NOTE:
The inner rack rails are marked LH and RH, which corresponds to the left side and
right side of the chassis.
Installing the Outer Rack Rails into the Rack
Locate the front of the outer rack rail and attach it to the rack. To do this, simply push the
outer rack rail into the back of the rack post. The plastic securing pins will retract so that
you can latch the outer rack rail into place. Once the outer rack rail is latched into place
the securing plastic pins will pop back out.
Locking Tab
Screw
Inner Rack Rail
Release Tab

StorTrends® 2401 Setup Guide 11
Quick Rail Installation
Sliding the rear of the outer rack rail until it comes into contact with the back post. Make
sure that the outer rack rail is level and secure it to the port in the same manner as you did
with the front of the outer rack rail.
Secure the outer rack rail to the rack posts with four screws. Two for the front post and
two for the rear post.
Repeat this process with the remaining outer rack rail.

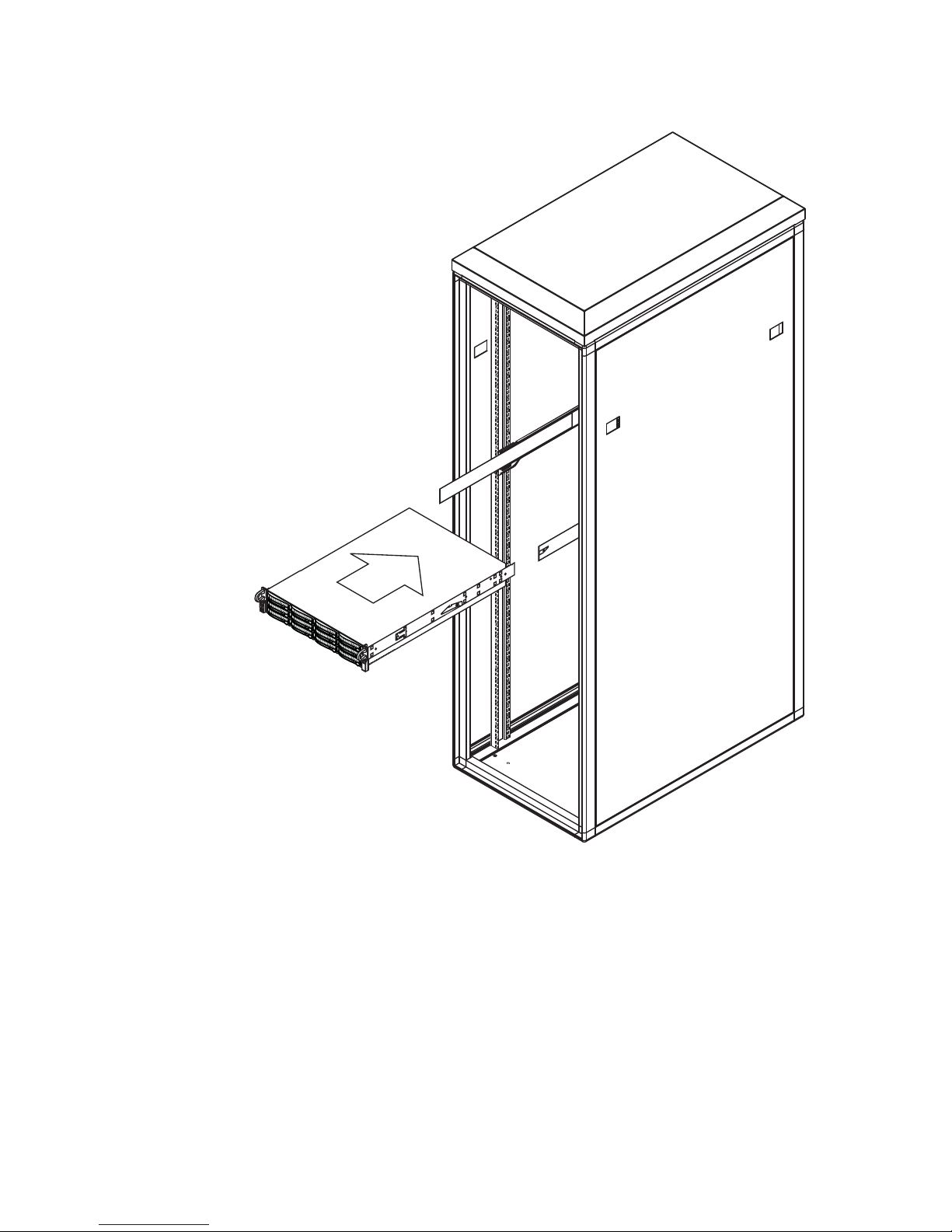

Line up the inner rack rails of the chassis with the outer rack rails on the rack.
Slide the chassis into place until it comes to a stop.
Verify that both sides of the chassis come to a stop at the same location.
Lift the locking tab on the inner rack rails so that you can slide the chassis all the way
into the rack.
1
2
1
2
PUSH
Right SideLeft Side

StorTrends® 2401 Setup Guide
12
Slide System into Enclosure

Co
m
m
pleting th
e
Ne
an
S
1
2
3
4
5
6
7
e
Hardwa
r
e
xt, you shoul
d
d have not co
m
S
tep Desc
r
All h
a
appli
a
Verif
y
stora
g
Conn
e
Conn
e
The l
a
appli
a
p
owe
r
reco
m
Powe
r
Once
scree
n
than
o
listed
.
r
e Installat
i
d
check to ma
k
m
e loose in tra
n
r
iption
a
rd disk drives c
a
a
nce. Verify tha
t
y
that all cables
i
g
e appliance.
e
ct your networ
k
e
ct your USB C
D
a
st thing you m
u
a
nce. Plug the t
w
r
strip that offer
s
m
mende
d
that yo
u
r
your StorTren
d
the StorTrends
s
n
. Write down t
h
o
ne NIC connec
t
.
i
on
k
e sure that the
n
sit.
a
n be accessed
f
the hard disk d
r
i
n your rack are
k
cable(s) to a D
D
-ROM, keybo
a
u
st do is to provi
d
w
o power cords
f
s
protection fro
m
u
use an uninter
r
d
s storage appli
a
s
torage applianc
h
e IP Address li
s
t
ed to your netw
o
hard disk driv
f
rom the front o
f
r
ive trays are in
s
not obstructing
D
HCP network.
a
rd and monitor
de input power
t
f
rom the power
s
m
electrical nois
e
r
ruptible power
s
a
nce on.
c
e is fully operat
i
s
ted in the “Ip A
ork, there will b
StorTrends® 24
0
v
es have been
p
f
your StorTren
d
s
erted all the wa
y
the airflow of y
o
(and mouse if a
p
t
o your StorTre
n
s
upply units int
o
e
and power sur
g
s
upply (UPS).
i
onal, you will
s
A
ddress” field. I
f
b
e more than on
e
0
1 Setup Guide
p
roperly insert
e
d
s storage
y
into its bay.
o
ur StorTrends
p
plicable).
n
ds storage
o
a high-quality
g
es. It is
s
ee the followin
g
f
you have more
e
IP Address
13
e
d
g

14
C
o
Ste
p
Ste
p
o
nnect
p
One: Po
w
P
o
co
p
Two: Get
O
n
sc
r
I
f
I
P
O
A
to th
e
w
er your s
y
o
wer on your s
y
r
ner of the ch
a
the IP ad
d
n
ce the StorTr
e
r
een. Write do
w
f
you have mo
r
P
Address list
e
O
nce again, W
R
A
NOTHER C
O
e
Stor
T
y
stem on
y
stem by push
i
a
ssis under the
d
ress
e
nds® Storage
w
n the IP Add
r
N
r
e than one NI
e
d. You shoul
d
S
R
ITE DOWN
O
MPUTER o
n
T
rends
®
i
ng the power
o
handle.
Appliance is
f
r
ess listed in t
h
N
OTE:
C
connected t
o
d
use the first I
P
S
TOP!
the IP Addres
s
n
the same net
w
®
Ap
p
o
n button loca
t
f
ully operation
a
h
e “
I
p Addres
s
o
your networ
k
P
Address list
e
s
listed in the
“
w
ork to contin
StorTrends® 24
0
p
lianc
e
t
ed on the fro
n
al, you will se
e
s
” field.
k
, there will be
e
d.
“
Ip Address” f
i
n
ue with the co
n
0
1 Setup Guide
e
n
t lower left
e
the followin
g
more than on
e
i
eld. Go to
n
figuration.
g
e

Ste
p
ano
t
Ste
p
p
Three: C
o
t
her syste
m
T
y
y
o
p
Four: Lo
g
Y
o
it.
D
e
D
e
•
•
o
nnecting
m
y
pe the IP Add
r
ur Inte
r
net Br
o
g
ging on t
o
o
u will be pro
m
Enter your us
e
e
fault user na
m
e
fault passwor
d
When you
administra
t
You can c
h
Both the u
s
to the Sto
r
r
ess of the Sto
r
o
wser.
o
the Stor
T
m
pted to provi
d
e
rname and pa
s
m
e:
i
t
x
d
: pa
s
N
login using th
e
t
ive rights. It i
s
h
ange your pa
s
s
er name and
p
r
Trends®
S
r
Trends® Stor
T
rends® S
t
d
e a username
s
sword.
x
admin
s
swor
d
N
OTE:
e
default
i
tx
a
s
advised that
o
s
sword in the
U
p
assword are c
a
S
torage A
p
r
age Applianc
e
t
orage Ap
p
and password
a
dmin
p
assw
o
o
nce you logi
n
U
ser’s section
i
a
se sensitive.
StorTrends® 24
0
p
pliance f
r
e
that you just
w
p
liance
before you ca
n
o
rd, you have
fu
n
, you change t
h
i
n the Control
P
0
1 Setup Guide
r
om
w
rote down in
t
n
gain access t
o
f
ull
h
e password.
P
anel.
15
t
o
o

16
U
s
Sett
i
s
ing th
e
If
t
to
y
o
W
i
i
ng up Em
a
T
h
se
t
ha
Y
o
S
I
f
h
e
e
e
Qui
c
t
he storage ha
s
configure the
E
u will be pro
m
i
zard will get
y
a
il Alert S
e
h
e Email Alert
t
tings in order
r
dware events
.
Y
ou MUST ha
v
o
n your mail s
e
S
torTrends sto
r
f
you click Ca
n
h
ave opted to c
a
e
nabled to rec
e
e
vents. Do you
c
k Sta
r
s
not been con
f
E
mail Alerts
S
m
pted to run th
e
y
our Storage
A
e
ttings
Settings setup
to receive noti
.
N
v
e an email se
r
e
rver’s configu
r
r
age appliance
n
cel, you will
b
a
ncel the E-
M
a
ive notificatio
n
still want to c
a
r
t Setu
f
igured on you
r
S
ettings. Once
t
e
Storage Con
f
A
ppliance up a
n
and configura
t
fications on di
N
OTE:
r
ver setup on
y
r
ation, you m
a
to send email
s
b
e prompted
w
a
il alert confi
g
n
s on disk fail
u
a
ncel the confi
g
p Wiz
a
u
r Storage App
l
t
he Email Aler
t
f
iguration Wiz
a
n
d running in l
e
t
ion allows yo
u
i
sk failures, vo
l
y
our network t
o
a
y need to con
f
s
through it.
w
ith a warning
d
g
uration. E-
Ma
u
res, volume e
v
g
uration?”
StorTrends® 24
0
a
rd
l
iance, you wi
l
ts Settings has
a
rd. The Quic
k
ess than five
m
u
to configure
lume events, s
y
o
use Email A
l
f
igure it to allo
d
ialog box tha
t
a
il alert config
u
v
ents, System
a
0
1 Setup Guide
l
l be prompted
been complet
e
k
Start Setup
m
inutes.
the email aler
t
y
stem and
l
erts. Dependi
n
w the
t
states, “You
u
ration has to
a
nd Hardware
e
d,
t
s
n
g
be

Fiel
d
Emai
Addr
e
Emai
Addr
e
Emai
Add
b
Dele
t
Infor
m
War
n
Criti
c
Appl
y
Canc
T
o
n
o
d
/Item
l Server Name/
I
e
ss
l Origin (“From
e
ss)
l Address fiel
d
b
utton
t
e button
m
ation
n
ing
c
al/Fatal
y
button
e
l button
I
f
W
o
enable Email
o
tifications’. Y
o
Descriptio
n
I
P Type IP A
d
”
Type in a
d
stortre
n
This colu
m
Left click t
h
This butto
n
Check this
is recorded
Check this
recorded.
E
and so on.
Check this
is recorded
To save ch
a
Left click t
h
f
you would li
k
W
izard. Jump
t
Alerts notific
a
o
u can config
u
n
d
dress or FQDN
d
omain name fo
r
n
ds@yourdo
ma
m
n allows you to
h
is button to ad
d
n
allows you to
d
box to trigger a
n
. An Informatio
n
box to trigger a
n
E
xamples of Wa
r
box to trigger a
n
. A Critical or
F
a
nges, left click
h
is button to re
v
S
k
e more contr
o
t
o the next sec
t
a
tion, left clic
k
u
re up to four
E
of the SMTP s
e
r
the email origi
n
a
inname.co
m
enter the email
a
d
an Email addr
e
d
elete a selected
n
email notifica
t
n
event can be a
n
n
email notifica
t
r
ning events are
:
n
email notifica
t
F
atal event can
b
the Apply
b
utto
n
v
oke the settings
S
TOP!
o
l of these setti
t
ion for more i
k
the box next
t
E
mail addresse
e
rver for outgoi
n
n
. It will appear
m
.
addresses for u
p
e
ss.
item from the l
i
t
ion to be sent
w
n
event such as
a
t
ion to be sent
w
:
heat threshold
t
ion to be sent
w
b
e an event such
n
.
.
i
ngs, you can
e
i
nformation o
n
StorTrends® 24
0
t
o ‘Enable Em
a
s.
n
g mail into this
as coming from
p
to four destina
t
i
st.
w
henever an info
r
a system reboot
.
w
henever a warn
i
exceeded, fan s
p
w
henever a critic
a
as a hard disk
d
e
nter the
A
dva
n
n
the
A
dvance
d
0
1 Setup Guide
a
il alert
field.
t
ions.
r
mational event
.
i
ng event is
p
eed too slow,
a
l or fatal event
d
rive failure.
n
ced Setup
d
Setup Wizard
.
17
.

18
Qui
c
Ste
p
c
k Start Wi
U
s
T
S
n
a
V
a
p
One: Qui
c
If
t
to
zard : Bef
o
s
e the followin
T
he Quick Star
S
torTrends® i
T
n
ames are auto
m
a
re also autom
a
V
olumes are c
o
a
vailable hard
d
c
k Start S
e
t
he storage ha
s
run the Wizar
d
o
re You B
e
g instructions
a
N
t
Setup Wizar
d
T
X Storage Ap
p
m
atically gene
r
a
tically create
d
o
nfigured to us
d
isk space sho
u
e
tup Wiza
r
s
not been con
f
d
. Click the Q
u
e
gin
a
s a basis.
N
OTE:
d
will select all
p
liance to cre
a
r
ated. Both a
d
d
. In the Quick
e
Exact Provis
u
ld be reserve
d
r
d
f
igured on you
r
u
ick Start Setu
p
the physical
h
a
te the RAID a
r
d
efault NAS Sh
Start Setup W
i
s
ioning. Twent
y
d
if you are pl
a
u
r Storage App
l
p
option, and t
h
StorTrends® 24
0
h
ard disk drive
s
a
rray. SAN an
d
h
are and a def
a
i
zard the SAN
y
percent of t
h
a
nning to use s
n
l
iance, you wi
l
h
en click Next
.
0
1 Setup Guide
s
present in th
e
d
NAS volume
a
ult SAN Targ
e
and NAS
h
e physically
n
apshot storag
l
l be prompted
.
e
et
e.

Ste
p
p
Two: RAI
O
n
•
•
•
T
h
dr
i
O
Y
o
cl
i
D Level
n
ce you initiat
e
RAID 0
RAID 1
RAID 5
h
is step will cr
e
i
ves available
i
O
nce you selec
t
o
u will be pro
m
i
ck anywhere
e
e
the Quick St
a
e
ate a Logical
D
i
n the system
w
N
t
Next, you ca
n
m
pted to wait
w
e
lse.
a
rt Setup Wiza
r
D
isk and a St
o
w
ith the RAID
N
OTE:
n
not come bac
k
w
hile it config
u
r
d, you are pro
o
rage Pool fro
m
type you spec
i
k
to this step.
u
res the box.
D
StorTrends® 24
0
o
vided the foll
o
m
all the physi
c
ify.
D
o not close th
e
0
1 Setup Guide
o
wing options:
c
al hard disk
e
window or
19

20
Ste
p
p
Three: S
A
O
n
St
o
•
•
•
If
y
S
A
O
n
b
l
o
A
N or NAS
n
ce an array h
a
o
rage Applian
c
Only SAN (
B
Only NAS (
F
Both SAN
a
y
ou want you
r
AN
. If you wan
t
n
ly NAS. Selec
t
o
c
k
-level and
f
or Both
a
s been create
d
c
e. You are pr
o
B
lock based)
F
ile based)
a
nd NAS (Dua
l
r
Storage Appl
i
t
your Storage
t
Both SAN an
d
f
ile-level stora
g
d
in the box, y
o
o
vided with th
e
l
dialect)
i
ance to be us
e
Appliance to
b
d
NAS if you
w
g
e.
o
u can select h
o
e
following op
t
e
d for bloc
k
-le
v
b
e used for fil
e
w
ant your Stor
a
StorTrends® 24
0
o
w you want t
o
tions:
v
el storage onl
y
e
-level storage
a
ge Appliance
0
1 Setup Guide
o
use your
y
, select Only
only, select
to support bo
t
t
h
