American Musical ANY SPOT ECMR User manual

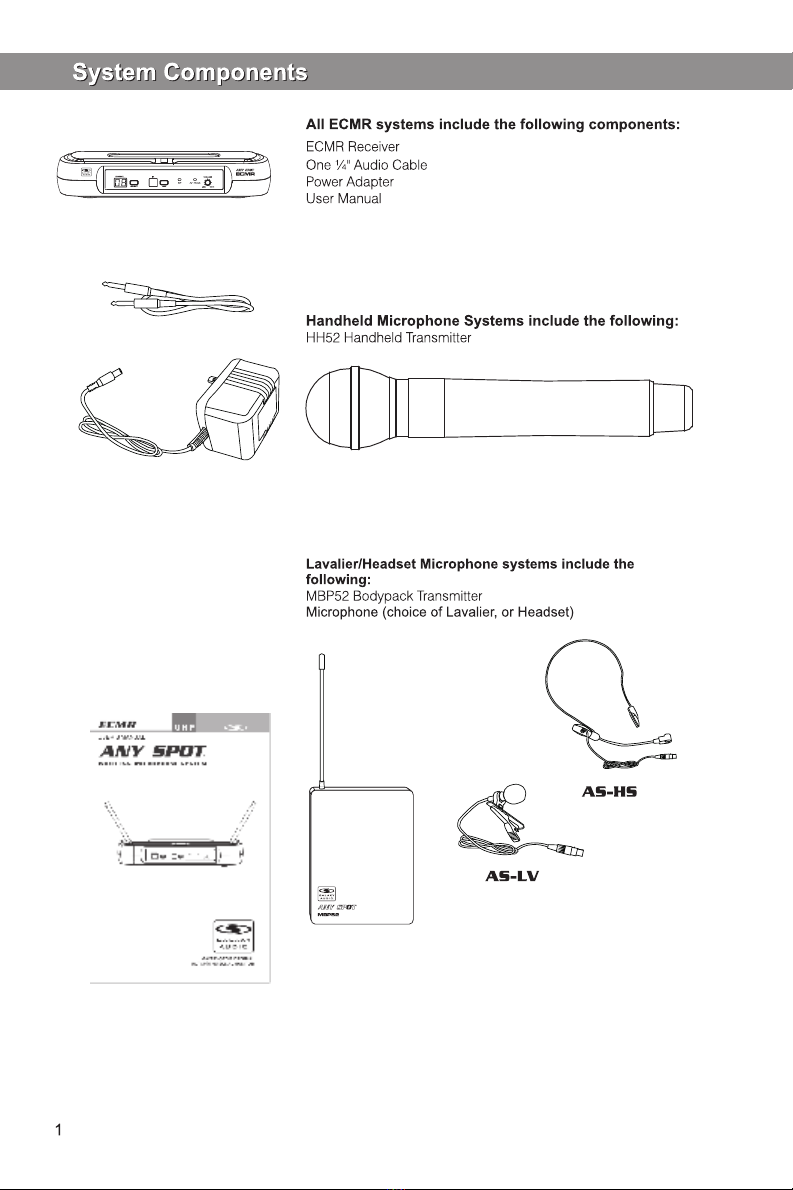

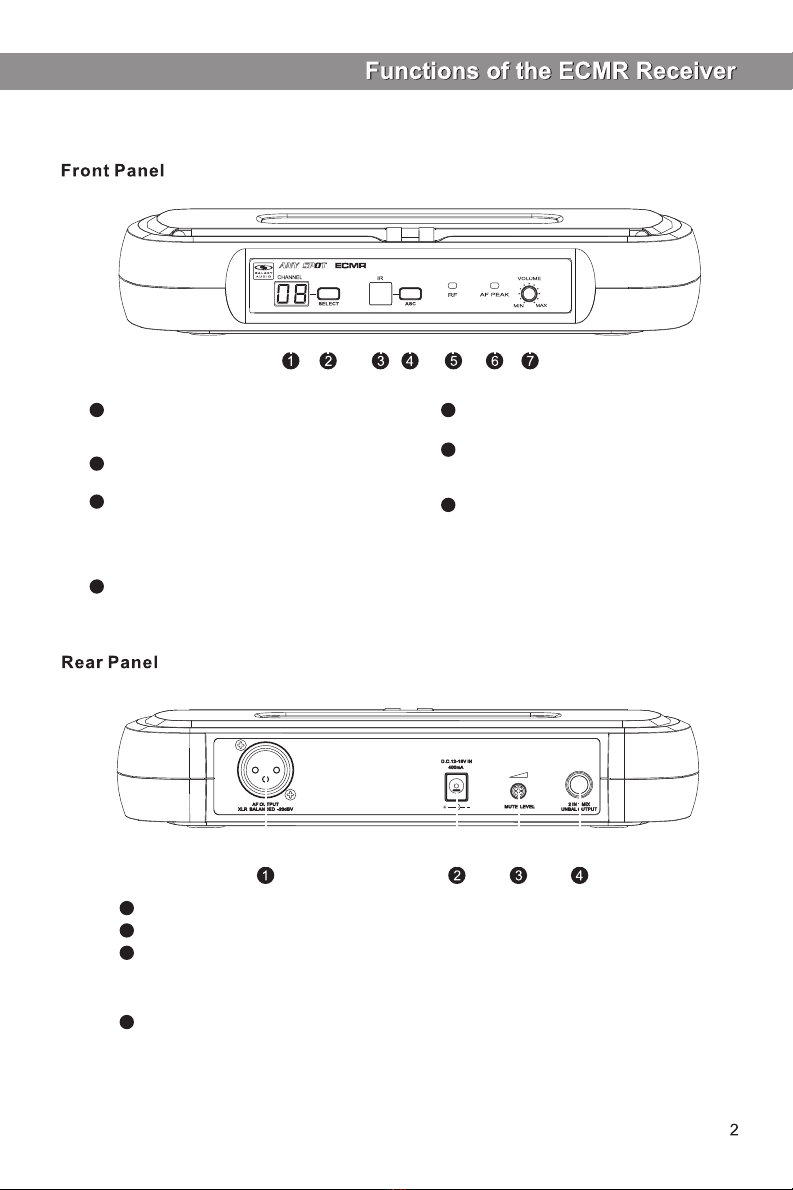

Power Adapter Jack.
AF Output fine adjustment of Mute Threshold Level.
This is factory set and usually does not need to be adjusted.
If interference signals are present, this Threshold Value
can be Increased by turning the knob Clockwise until RF Signal LED goes out.
¼" Audio Output.
AF Audio Output.
1
2
3
4
Channel Display.
Displays selected Channel.
Channel select button
IR Window.
Unit sends Infrared Signal to the Transmitter
through this Window for Frequency
Synchronization.
ASC Synchronizing Signal Transmit Button.
Press this Button to establish Infrared connection
between the Receiver and Transmitter.
1
2
3
4
RF Signal LED
Audio LED. Indicates a peak
Audio Signal.
Audio Output Level Control.
Left turn for Output Level Decrease,
right turn for Output Level Increase.
5
6
7

Changing Batteries:
Unscrew cover to access the Battery Tray. Observe
correct polarity markings when installing Batteries.
Expected life for two alkaline batteries is about 8 hours.
Microphone Head.
Power/ASC/Low Battery Indicator.
Green: Power On.
Flashing Green: IR Transmission in progress.
Red: Batteries Low.
Gain (Sensitivity) Control.
Turn Left to Decrease Sensitivity.
Turn Right to Increase Sensitivity.
RF Power Level Switch.
H for High Level RF Power.
L for Low Level RF Power.
IR Window.
Receives Infrared signal to synchronize frequencies
between Receiver and Transmitter.
Battery Tray.
Power On/Off Switch.
1
2
3
4
5
6
7

Antenna.
Input Gain Switch.
There are three Gain settings. Select the
setting most suitable to your application.
Mic.: Microphone Level.
0: Guitar Level.
-10dB: Line Level.
Power/Low Battery/IR Transmission LED.
Green: Power On, Batteries OK.
Flashing Red: Low Batteries.
Flashing Green: IR transmission in Progress.
3-pin Input Jack.
Power Button.
Press and Hold to switch Power On/Off.
ASC Automatic Frequency Synchronisation.
Press this button to establish Infrared
connection between the Transmitter and Receiver.
IR Window.
This window receives the Infrared signal duringASC.
1
2
3
4
5
6
7
How to Wear the MBP52 Transmitter:
Slide the transmitter clip onto the belt , or run a guitar strap
through the transmitter clip , as shown in the diagram at left.
1
2
Battery Replacement:
Slide open the Battery Door as shown. Install Batteries
while observing correct polarity markings.
The life expectancy of two alkaline batteries is about 8 hours.

Note: when establishing infrared connection between the receiver and
the transmitter, the distance between them should not exceed O.5m.
When more than one system are used, only IR window of one
transmitter should be pointed to the receiver for each infrared
connection.
ECMR Receiver Setup:
Channel Selection
Press channel Selector button to select desired Channel. When
switching Channels, wait for the Channel number display to stop
blinking before using the ASC function. For best results when
operating multiple systems, set every channel to achieve the
maximum distance between channels.
Receiver Volume Control:
Turn Left for Output Level decrease, turn Right for Output Level
increase.
Mute Level Threshold Adjustment:
The Mute Level is factory set and normally needs no adjustment.
However, you may turn clockwise if interference is present.
Automatic Transmitter Setup (ASC):
Remove the access cover on the Handheld Transmitter. Point the
IR Window of the Handheld towards the IR Window on the
Receiver and press the ASC button.
Point the MBP52 Bodypack IR Window towards the Receiver IR
Window, then press the ASC buttons on both the Transmitter and
Receiver.
The Receiver transmits sync frequencies for 25 seconds each
time you press the "ASC" button.
Whenever the ASC button on the MBP52 is pressed, the
synchronizing signal will be transmitted continually for 25
seconds.

Bodypack Transmitter:
Gain Adjustment Range: mic/0/-10
Input Impedance: 5K
Dimensions: 3.3" x 2.6" x 1"
(85mm H x 65mm W x 24mm D)
Weight: 3.0oz (85 g) (without batteries)
Power Requirements:
2 alkaline or rechargeable
batteries
Battery Life:
About 8 hours
Audio Input Level:
0 dBV to +10dBV
AA Batteries

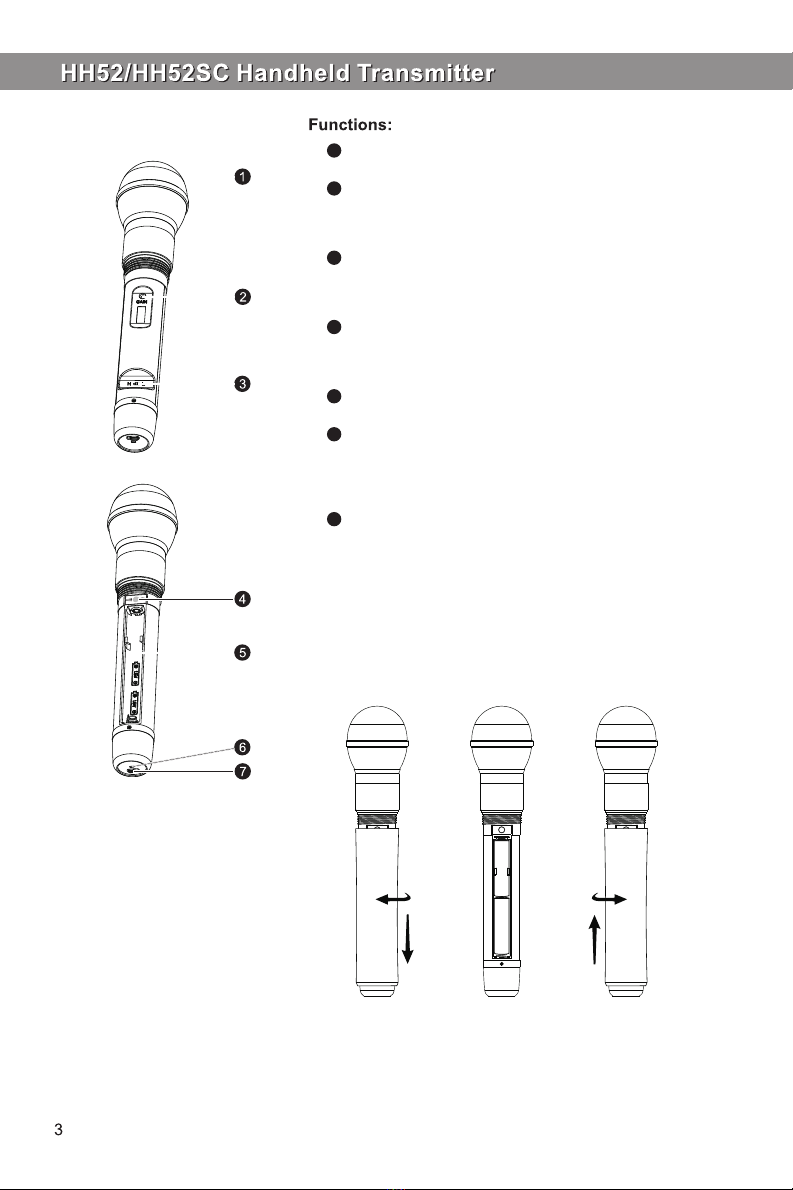

Handheld Transmitter:
Max Audio input level:
Gain (Sensitivity): Control High/Low RF power switch.
Dimensions: 9.8" x 2.1" dia. (250mm x 53mm dia.)
Weight: 9.5oz (270 g) (without batteries)
Power Requirements: 2 “AA”size
alkaline or rechargeable batteries
Battery Life: About 8 hours
0dBV
Receiver:
Audio Output Level: (+/-30KHz deviation, 1KHz tone)
XLR connector (into 600 load) -12dBV
¼" connector (into 3K load) -18dBV
Output Impedance: XLR connector 200
¼" connector 1K
XLR output: Impedance balanced
Pin1：Ground (cable shield)
Pin2：Audio
Pin3：No Audio
Sensitivity: -93dBm for 30dB
Image Rejection: >90dB
Dimensions: 1.75" x 9.25" x 121"
(44.45mm H x 235mm W x 121mm D)
Weight: .85lbs (.39kg)
Power Requirements:
13.5 V dc at 300mA, supplied by external
power supply.
System
Available Channels: 16
Frequency Range: 655 - 679 MHZ
Transmitter Output level: 10 dBm
Band: UHF
Operating Range Under Typical Conditions:
Note: actual range depends on RF signal
absorption, reflection, and interference.
Audio Frequency Response: (+/-3dB)
60Hz~16KHz
Total Harmonic Distortion (+/-30KHz deviation，
1KHz tone): <1%
Dynamic Range: >90dB A-weighted
Operating Temperature Range:
14ºF to 122ºF (-10º C to +50º C)
Note: battery characteristics may limit
this range:
150' (50m)

ARETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any
items being returned to Galaxy Audio for return or repair. Contact customer service @ [phone].
Galaxy Audio warrants the materials and workmanship of its products as follows:
A limited THREE YEAR Warranty applies to the following products:
Galaxy Audio warrants the materials and workmanship of its products as follows:
A limited THREE YEAR Warranty applies to the following products:
1. HOT SPOTS-including HS7, HSRG, HSVC, PA6S, & PA6SR
2. MICRO SPOTS-including MSVC, MSPM, MSPA(DC)
3. CRICKET Polarity Test Set
4. JACKS IN THE BOX – including the MULTI MIXER
5. The TRAVELER SERIES is supported with a 3 year warranty on speaker components and casing, 1
year warranty on wireless and RM SERIES components.
6. The LINE ARRAY SERIES (LA4)
A limited ONE YEAR Warranty applies to the following products:
1. CHECKMATE Series-including CM130, CM140, CM150, CM160, CM-C200
2. ANY SPOT Series-including AS-1000,AS-900, 1100, 1500 SERIES, DHT, TRC, PSE, ECM, TOUR
GUIDE/TRANSLATOR SYSTEMS & WIRELESS CAMERA KITS
3. Any units containing a rechargeable battery will have a 90 day warranty on the battery.
4. Lightweight headset mics including HS3, HSH, HSS, HSA, & HSE series microphones.
The following are not covered by the warranty:
1. Damage to or deterioration of the exterior of the item which occurs after delivery
2. Damage after initial delivery resulting from accident, misuse or neglect
3. Damage resulting from failure to follow instructions contained in the owner's manual
4. Damage resulting from the performance of repairs by someone other than the Galaxy Audio
repair department
5. Damage occurring during the shipment or delivery of any Galaxy Audio product to Galaxy Audio after
initial delivery of the product to you.
6. Damage to any Galaxy Audio product which has been altered or on which the serial number has
been effaced or removed.
7. Damage to or deterioration of the exterior of the item which occurs after delivery
Galaxy Audio does not authorize any third party including any dealer or Service Center to assume any
liability on behalf of Galaxy Audio or to make any warranty for Galaxy Audio
DEFECTIVE MERCHANDISE POLICY-WARRANTY
A RETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any
items being returned to Galaxy Audio for return or repair. Contact customer service @ [phone].
The Galaxy Audio warranty policy is to repair and return defective merchandise. Items under
warranty may be replaced at no charge if deemed un-repairable by the Galaxy Audio technician. Proof
of purchase may be required to verify warranty status. Customer will be responsible for shipping
charges to repair facility, repaired product will be returned
shipping prepaid by Galaxy Audio. Freight charges will not be reimbursed. Credit for defective warranty
merchandise must have authorization from the Galaxy Audio main office
before credit will be issued and will be subject to applicable restock and replacement charges.
A twenty (20%) restock fee will apply to warranty items returned for credit. The cost of replacement
parts to bring the item back to “like new” condition will also be deducted from credit for warranty items
DEFECTIVE MERCHANDISE POLICY-NON WARRANTY
ARETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any
items being returned to Galaxy Audio for return or repair. Contact customer service @ [phone].
Repair charges are $30.00 per hour (no minimum) plus parts. Customer will be responsible for all
shipping charges. Prepayment is expected if customer is not set up with open account terms in
advance. Discounts are not applicable on repairs. Open account terms for repairs will be Net Thirty (30)
days. Some items past the warranty time period may qualify for a standard replacement cost. Please
