INSTALLATION MANUAL FOR
MEDALLION DUAL FUEL RANGES
MODEL NUMBERS:
ARR-304DF, ARR-366DF, ARR-364GDDF, ARR-364GRDF, ARR-486GDDF, ARR-486GRDF,
ARR-4822GDDF, ARR-484X2GRDF, ARR-60622GDDF, ARR-606X2GRDF, ARR-606GDGRDF
PROFESSIONAL QUALITY COOKING EQUIPMENT
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
© 2015 American Range
All Rights Reserved

Table of Contents
Warnings & Important Safety Instructions....................................................................................... 1-4
Product Dimensions ..........................................................................................................................................5
Specications & Electrical Requirements .......................................................................................... 6-7
General Instructions...................................................................................................................................... 8-9
Clearance Dimensions.............................................................................................................................10-11
Installation Steps.........................................................................................................................................12-20
Performance Checklist....................................................................................................................................21
Final Preparation ................................................................................................................................................21
Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com

Installation, Operation and
Maintenance Instructions
Residential
Dual Fuel Ranges
Installation Manual
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
Instruction to be followed in the event the user smells gas should be posted
in a prominent location. This information should be obtained by
consulting the local gas supplier.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
1

• Before beginning, please read all the instructions carefully.
• DO NOT remove permanently afxed labels, warnings, or plates from product. This may void the warranty.
• All local and national codes and ordinances must be observed, installation must conform with local codes.
• The Installer must leave these instructions with the consumer who should retain for local inspector’s use and for future reference.
• Installation and service must be performed by a qualied installer, service agency or gas supplier.
• Please ensure that the product is properly grounded.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
Installation Manual Residential Dual Fuel Ranges
IMPORTANT - PLEASE READ AND FOLLOW!
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
2
!
DANGER
!
WARNING
!
CAUTION
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury of death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.

A Ground Fault Interrupter (GFI) shall be used as required by NFPA-70 (National Electric Code), Federal / State / Local laws or
local ordinances.
• The required use of a GFI is normally related to the location of a receptacle to any signicant sources of water or moisture.
• American Range will not warranty any problems resulting from GFI outlets which are not installed properly or do not meet
the requirements below.
IF THE USE OF A GFI IS REQUIRED, it should be:
• The receptacle type (breaker type or portable type not recommended).
• Used with permanent wiring only (temporary or portable wiring not recommended).
• On a dedicated circuit (no other receptacles, switches or loads in the circuit).
• Connected to a standard breaker or appropriate size (GFI breaker of the same size not recommended).
• Rated for class (5mA + 1mA trip current) as per UL 943 standard.
• In good condition and free from any loose-tting gaskets (if applicable in outdoor situations).
• Protected from moisture (water, steam, high humidity) as much as reasonably possible.
Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
3
IMPORTANT - PLEASE READ AND FOLLOW!
To prevent possible damage to cabinets and cabinet nishes, use only materials
that will not discolor or delaminate and will withstand temperatures up to 194ºF
(90ºC). Heat resistant adhesive must be used if the product is to be installed in
laminated cabinetry, check with your builder or cabinet supplier to make sure
that the materials meet these requirements.
WARNING
!
The use of cabinets for storage above the oven may result in potential re or
burn hazard.
WARNING
!
To avoid risk of electrical shock, personal injury or death; verify your appliance has
been properly grounded in accordance with local codes or in absence of codes,
with the National Electrical Code (NEC).ANSI/NFPA 70 latest edition.
DANGER
!

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
4
Do not use the handle or oven door to lift the oven, remove pull down door
before installation to ensure that it is not used to lift the unit. Make sure pins
are inserted into hinges before removing door to prevent injury to hands
and / or ngers.
WARNING
!
IMPORTANT - PLEASE READ AND FOLLOW!
The misuse of the oven door(s) (e.g.; stepping, sitting, or leaning on them) can
result in hazard or injuries and damage to the product.
WARNING
!
This appliance should not be used for space heating. This information is based
on safety considerations.
WARNING
!
MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires 2 or more personnel
while handling and moving. Use of moving device is recommended.
WARNING
!

30 -1/2"
29-7/8"
30 -1/2"
35-7/8"
47-7/8"
30 -1/2"
37"
59-7/8"
30 -1/2"
46 -1/2"
37"
37"
37"
Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
5
DIMENSIONS - DUAL FUEL RANGES
30” Range
48” Range
60” Range
36” Range

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
6
SPECIFICATIONS & ELECTRICAL REQUIREMENTS
DUAL FUEL RANGES - 30” & 36” Ranges
Description 30” wide models 36” wide models
Overall Width 30” 36”
Overall Height To top of side trim 36-1/4”. Legs adjust 1”.
Overall Depth 30”
Additions to Base Height 37-1/4” to Island Trim
Gas Requirements 7” W.C. Natural and 11” LP
Gas Manifold Pressure 5” W.C. Natural and 10” LP
Electrical Requirements 240 VAC, 60Hz Single Phase
Max Amp Usage 30 AMP
Surface Burner Rating
Natural / LP
17,000 BTU
13,000 BTU
9,000 BTU
Griddle Burner Rating N/A 20,000 BTU
Grill Burner Rating N/A 15,000 BTU
Oven Interior Width 26” 32”
Oven Interior Height 15”
Oven Interior Depth 20-1/2”
Oven Volume 4.6 CU. FT. 5.7 CU. FT.
Approximate Shipping Weight 407 LB. 498 LB.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
7
SPECIFICATIONS & ELECTRICAL REQUIREMENTS
DUAL FUEL RANGES - 48” & 60” Ranges
Description 48”Wide Models 60”Wide Models
Overall Width 48” 60”
Overall Height To top of side trim 36-1/4”. Legs adjust 1”.
Overall Depth 30”
Additions to Base Height 37-1/4” to Island Trim
Gas Requirements 7” W.C. Natural and 11” LP
Gas Manifold Pressure 5” W.C. Natural and 10” LP
Electrical Requirements 240 VAC, 60Hz Single Phase
Max Amp Usage 30 AMP
Surface Burner Rating
Natural / LP
17,000 BTU
13,000 BTU
9,000 BTU
Griddle Burner Rating 20,000 BTU
Grill Burner Rating 30,000 BTU
Oven Interior Width 26” 14-1/2” 26”
Oven Interior Height 15”
Oven Interior Depth 20-1/2”
Oven Volume 4.6 CU. FT. 2.6 CU. FT. 4.6 CU. FT. (EA)
Approximate Shipping Weight 581 LB. 755 LB.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
8
GENERAL INSTRUCTIONS
RANGE LOCATION: The location for the range must meet the following criteria. If any of these criteria are not met, select another
location.
CABINET PREPARATION:
1. The range is a free standing appliance. If the range is to be adjacent to cabinets, the clearances shown below are required.
2. This range may not be recessed into the cabinets. The rear of the door must be beyond the edge of the front face of
the adjacent cabinet.
3. The gas and electrical supplies should be located in adjacent right cabinet.
4. Any openings in the wall behind the range and in the oor under the range must be sealed.
5. Always keep the appliance clear and free from combustible materials, gasoline, or other ammable vapors and liquids.
6. Do not obstruct the ow of combustion and ventilation air to the unit.
For optimal performance, the range should be installed away from drafts that
may be caused by doors, windows, and heating and air conditioning outlets.
WARNING
!
ELECTRICAL SERVICE:
A 240 VAC, 60Hz separately grounded circuit that is protected by a 30A circuit breaker or time delay fuse must be supplied to the
appliance.
A 4-wire connection (not provided) is required to connect the appliance to the electrical supply junction box, consult local building
codes for the type and minimum wire gauge to use.
The wiring to the appliance from the electrical supply junction box needs to be long enough to allow the appliance to be pulled out
from the wall for service, while remaining connected.
GAS SUPPLY:
Be certain the appliance being installed is correct for the gas service being provided. Refer to the appliance data plate for the gas
supply requirements.
Minimal natural gas supply pressure required is 7” water column.
Minimal liquid propane (LP) gas supply pressure required is 11” water column.
A manual gas shut-off valve must be remotely installed and easily accessible in the adjacent cabinet. The regulator inlet is for 3/4” gas
line. The appliance ships with a 1/2” to 3/4” adapter connected to the regulator.
The maximum depth of the overhead cabinets installed on either side of the
hood is 13”.
WARNING
!

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
9
GENERAL INSTRUCTIONS
INSTALLATION INSTRUCTIONS
• Installation of this oven should be performed by qualied, certied and licensed persons.
• Products are anchored to the wooden shipping pallet using metal straps that are screwed to the bottom of the product
and the pallet.
• To remove the packaging, rst remove the staples located at the bottom perimeter of the corrugated cover.
• Remove the corrugated cover by lifting it off the product and remove the inner packing.
• Detach the product from the metal anchor strip by removing the attachment screw.
• Conrm available access to adequate power and gas. See Specications & Electrical Requirements table.
• Fill out page 1 of this installation manual with requested data. Model number and serial number can be found on the plate
located underneath the control panel on the front of the appliance.
• Do not remove protective packaging until you are ready to perform the installation.
• Do not remove the protective wrapping from the product control panel until the product is installed.
• Use proper equipment to move products.
• Any openings in the wall and in the oor behind or under the appliance must be sealed.
WARNING
!
CAUTION
!
The appliance is heavy. Use extreme care when handling.
Do not use an extension cord with this appliance. Such use may result in re, electrical shock or other personal injury.
WARNING
!
Do not use the handle or oven door to lift the oven, remove pull down door before installation to ensure that it is not used to lift
the unit. Make sure pins are inserted into hinges before removing door to prevent injury to hands and / or ngers.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
10

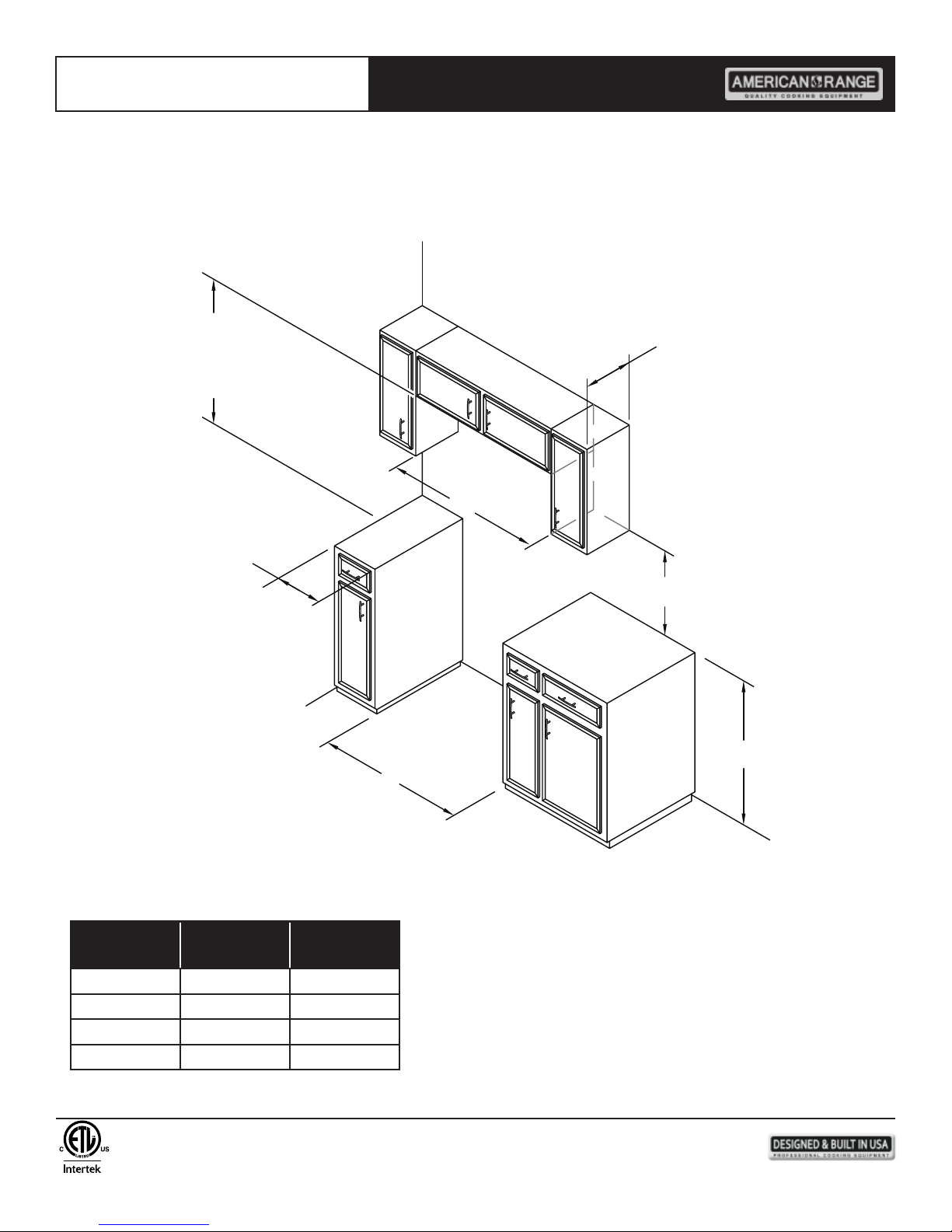

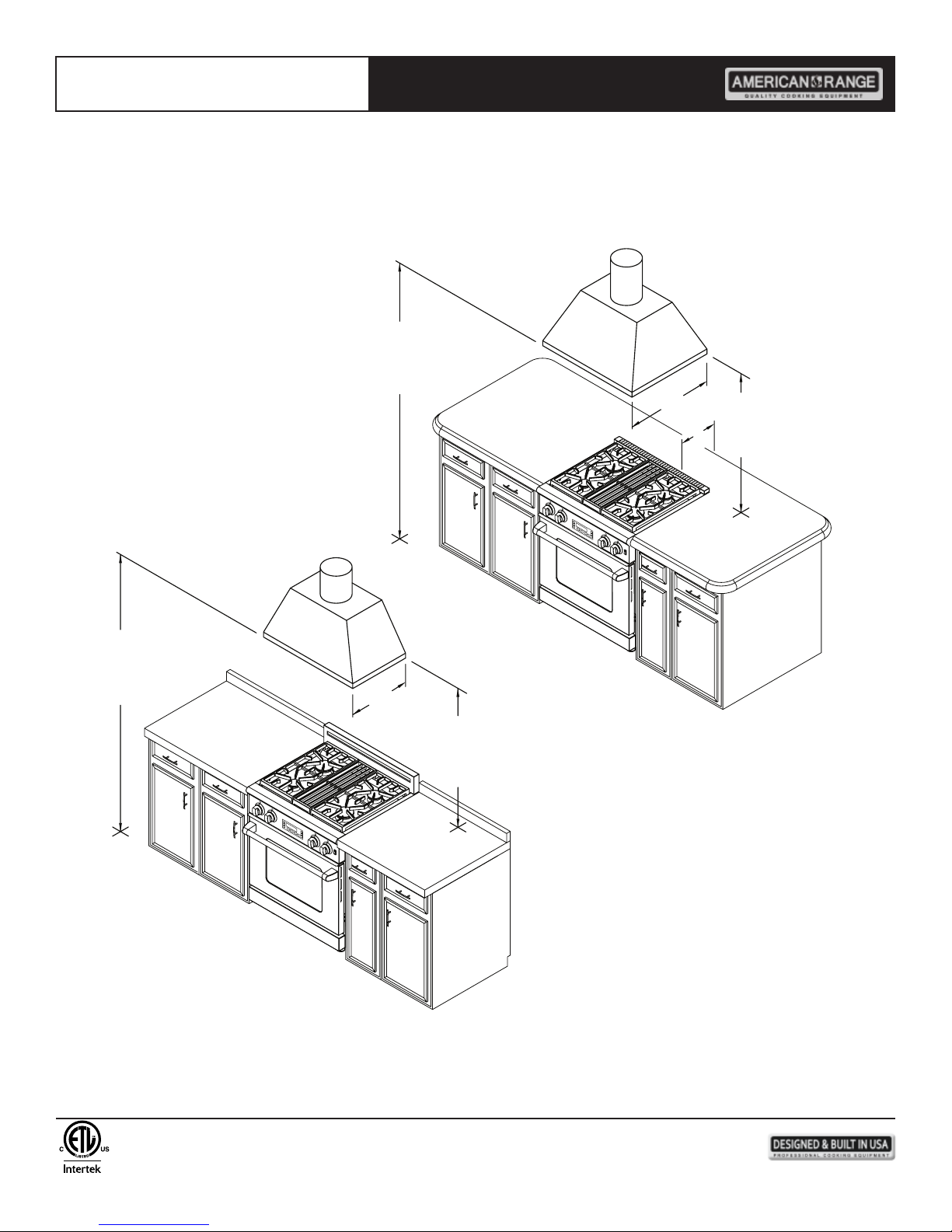

CLEARANCE DIMENSIONS
The gas and electrical supplies should be located
in the adjacent right cabinet.
Range
Width
“A”
Dimension
“B”
Dimension
30” 30” 36”
36” 36” 42”
48” 48” 54”
60” 60” 66”
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MATERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
B
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 14"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
11
CLEARANCE DIMENSIONS
The gas and electrical supplies should be located
in the adjacent right cabinet.
6"
30"
66" min.
TO
72" max.
30" min.
TO
36" max.
66" min.
TO
72" max.
30" min.
TO
36" max.
24"

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
12
INSTALLATION STEPS
STEP 1
Open door completely.
Place pins, supplied with unit in pin hole.
For personal safety, only use the pins supplied with
the unit.
STEP 2
Remove hinge trim screws, take off hinge trim,
identify right and left hinge for future re-installation.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
13
INSTALLATION STEPS
STEP 3
Close until pins stop door.
STEP 4
Hold the door with both hands just below the
handle and pull it away form the oven while
continuing to lift.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
14
INSTALLATION STEPS
STEP 5
Remove racks.
STEP 6
Measure the four corners in cutout area to verify
that ooring is level.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
15
INSTALLATION STEPS
STEP 7
For uneven or sloped oors, level unit with metal
shims only, as the adjustment required may exceed
the thread available in the leg.
STEP 8
Move unit into opening.

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
16
INSTALLATION STEPS
STEP 9
Check that unit is level side to side and front to back.
Side trim of the high corner must be 3/8” above the
countertop.
STEP 10
Pull oven straight out. Install Anti-Tip Device
according to installation instructions found inside
the Anti-Tip Device kit.
3/8"
(1cm)

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
17
INSTALLATION STEPS
STEP 11
Connect gas and electrical supplies before placing
appliance in operation, always check for gas leaks.
This must be performed by your dealer, a qualied
licensed plumber or gas service company.
A. Gas pressure regulator.
B. Adapter (must have 1/2” male pipe thread).
C . Flexible connector.
D. Manual gas shut-off valve.
E. 3/4” or 1/2” gas supply.
F. Use pipe-joint compound.
To avoid risk of electrical shock, personal injury or death; leak testing of the
appliance must be conducted according to the manufacturer’s instructions.
Before placing appliance in operation, always check for gas leaks with soapy
water solution. Do not use an open ame to check for gas leaks.
DANGER
!
F
A
B
CBD
E
F

Residential Dual Fuel RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
18
INSTALLATION STEPS
STEP 12
Replace door.
STEP 13
Open door completely.
Put hinge trim plates back on.
Secure the screw.
