American Range Heritage Series User manual

INSTALLATION MANUAL FOR
HERITAGE GAS RANGES
TITAN GAS RANGES
MODEL NUMBERS: ARR-244, ARR-304, ARR-364GD, ARR-366, ARR-364GR, ARR-486GD, ARR-4842GR,
ARR-484GDGR, ARR-4842GD, ARR-486GR, ARR-606GDGR, ARR-6062GD, ARR-6062GR,
ARR-244IS, ARR-304IS, ARR-366IS
PROFESSIONAL QUALITY COOKING EQUIPMENT
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
© 2016 American Range
All Rights Reserved
DRAFT

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death and will void warranty. Read the
installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
Instruction to be followed in the event the user smells gas should be posted
in a prominent location. This information should be obtained by
consulting the local gas supplier.
Installation, Operation and Maintenance Instructions
1

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
Table of Contents
GENERAL ..............................................................................................................1-4
Warnings & Important Safety Instructions....................................................... 1-4
SPECIFICATIONS ................................................................................................5-7
Dimensions .............................................................................................................................4
Specications & Electrical Requirements...............................................................5
GENERAL INSTRUCTIONS .............................................................................8-9
General Instructions.................................................................................................10-11
INSTALLATION ...................................................................................................7-9

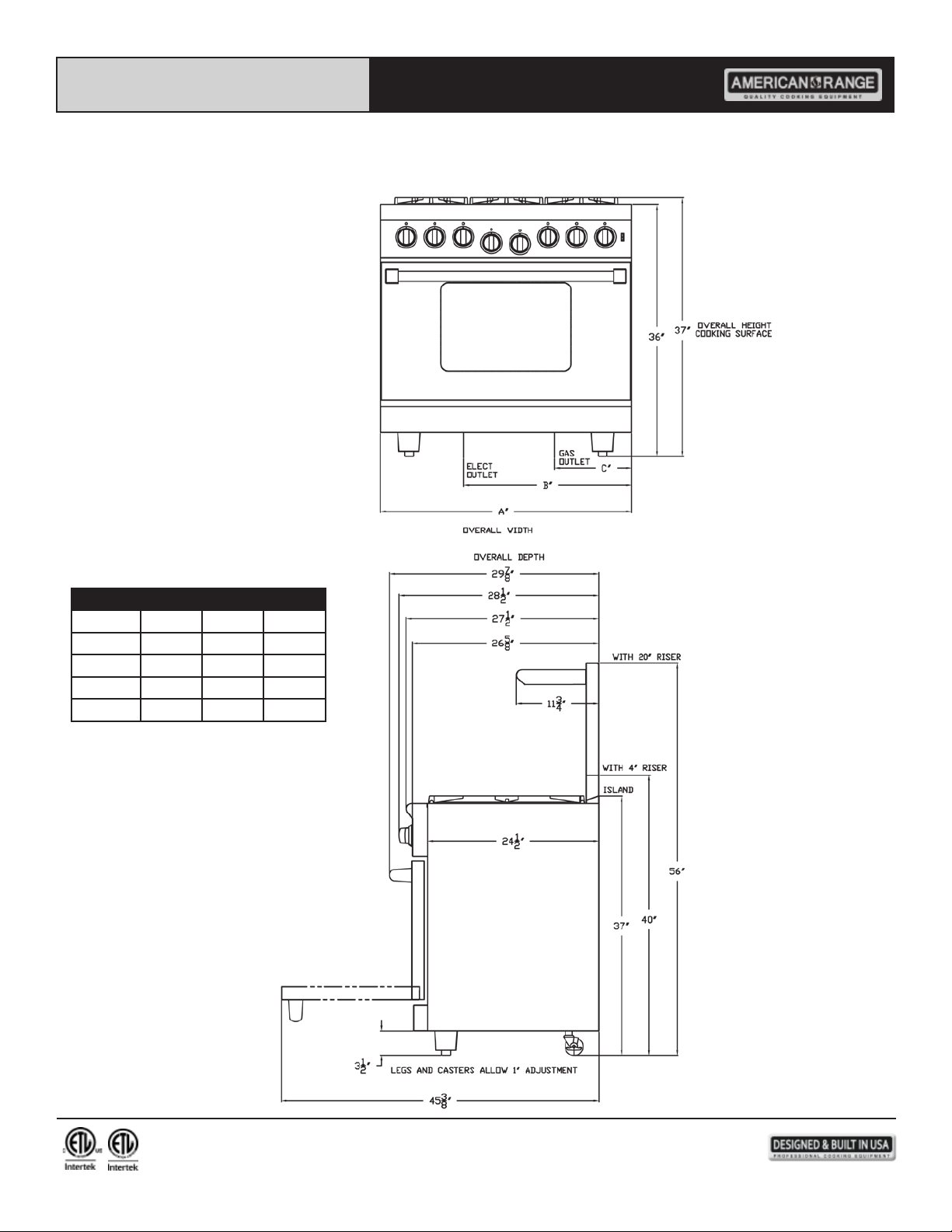

Dimensions ...................................................................................................................10-17
Model and Parts Identication...........................................................................18-19
Installation Checklist........................................................................................................20
Performance Checklist...................................................................................................21
Final Preparation ........................................................................................................21-22
Warranty................................................................................................................................23

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
2
IMPORTANT - PLEASE READ AND FOLLOW!
• Before beginning, please read all the instructions carefully.
• DO NOT remove permanently afxed labels, warnings, or plates from product. This may void the warranty.
• All local and national codes and ordinances must be observed, installation must conform with local codes.
• The installer must leave these instructions with the consumer who should retain for local inspector's use and
for future reference.
• Installation and service must be performed by a qualied installer, service agency or gas supplier.
• Please ensure that the product is properly grounded.
Your safety and the safety of others is very important. We have provided many important safety messages in
this manual and on your appliance. Always read and obey all safety messages.
!
DANGER
!
WARNING
!
CAUTION
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury or death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
3
DANGER
!
WARNING
!
To prevent damage to cabinets and cabinet nishes, use only materials that will not
discolor or delaminate and will withstand temperatures up to 194°F (90°C). Heat
resistant adhesive must be used if the product is to be install in laminated cabinetry,
check with your builder or cabinet supplier to make sure that the materials meet
these requirements.
The use of cabinets for storage above the oven may result in potential re or burn
hazard.
To avoid risk of electrical shock, personal injury or death; verify your appliance has
been properly grounded in accordance with local codes or in absence of codes, with
the National Electrical Code (NEC).ANSI/NFPA 70 latest edition.
IMPORTANT - PLEASE READ AND FOLLOW!
A ground fault interrupter (GFI) shall be used as required by FPa-70 (National Electric Code), Federal / State /
Local laws or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle to ant signicant sources of
water or moisture.
• American Range will not warranty any problems resulting from GFI outlets which are not installed properly
or do not meet the requirements below.
IF THE USE OF A GFI IS REQUIRED, it should be:
• The receptacle type (breaker type or portable type not recommended).
• On a dedicated circuit (no other receptacles, switches or loads in the circuit).
• Connected to a standard breaker or appropriate size (GFI breaker of the same size not recommended).
• Rated for class (5mA ± ImA trip current) as per UL 943 standard.
• In good condition and free from any loose-tting gaskets (if applicable in outdoor situations).
• Protected from moisture (water, steam, high humidity) as much as reasonably possible.
WARNING
!

Heritage & Titan Gas Ranges
Installation Manual
IMPORTANT - PLEASE READ AND FOLLOW!
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
4
DANGER
!
WARNING
!
CAUTION
!
To prevent damage to cabinets and cabinet nishes, use only materials that will not
discolor or delaminate and will withstand temperatures up to 194°F (90°C). Heat
resistant adhesive must be used if the product is to be install in laminated cabinetry,
check with your builder or cabinet supplier to make sure that the materials meet
these requirements.
The use of cabinets for storage above the oven may result in potential re or burn
hazard.
To avoid risk of electrical shock, personal injury or death; verify your appliance has
been properly grounded in accordance with local codes or in absence of codes, with
the National Electrical Code (NEC).ANSI/NFPA 70 latest edition.

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
5

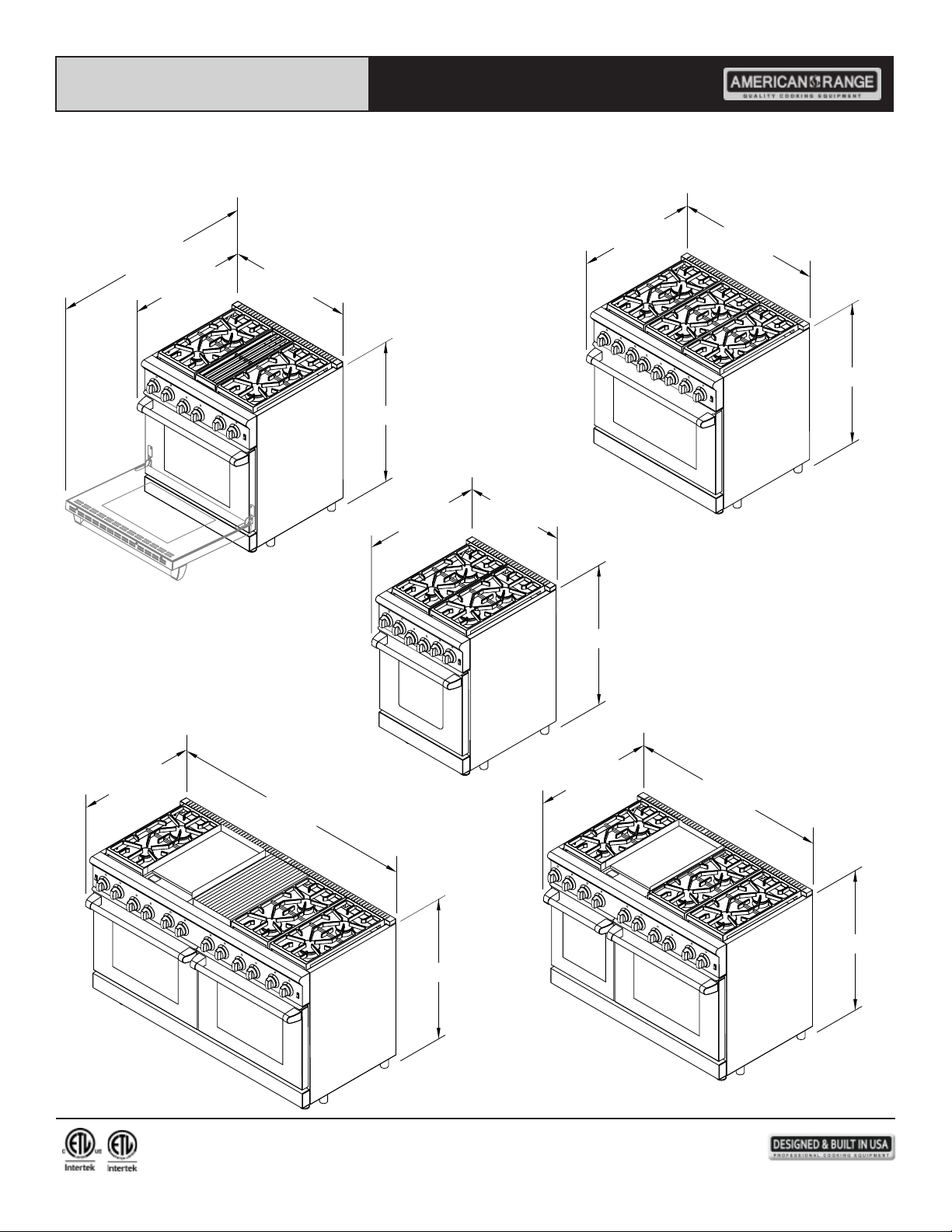

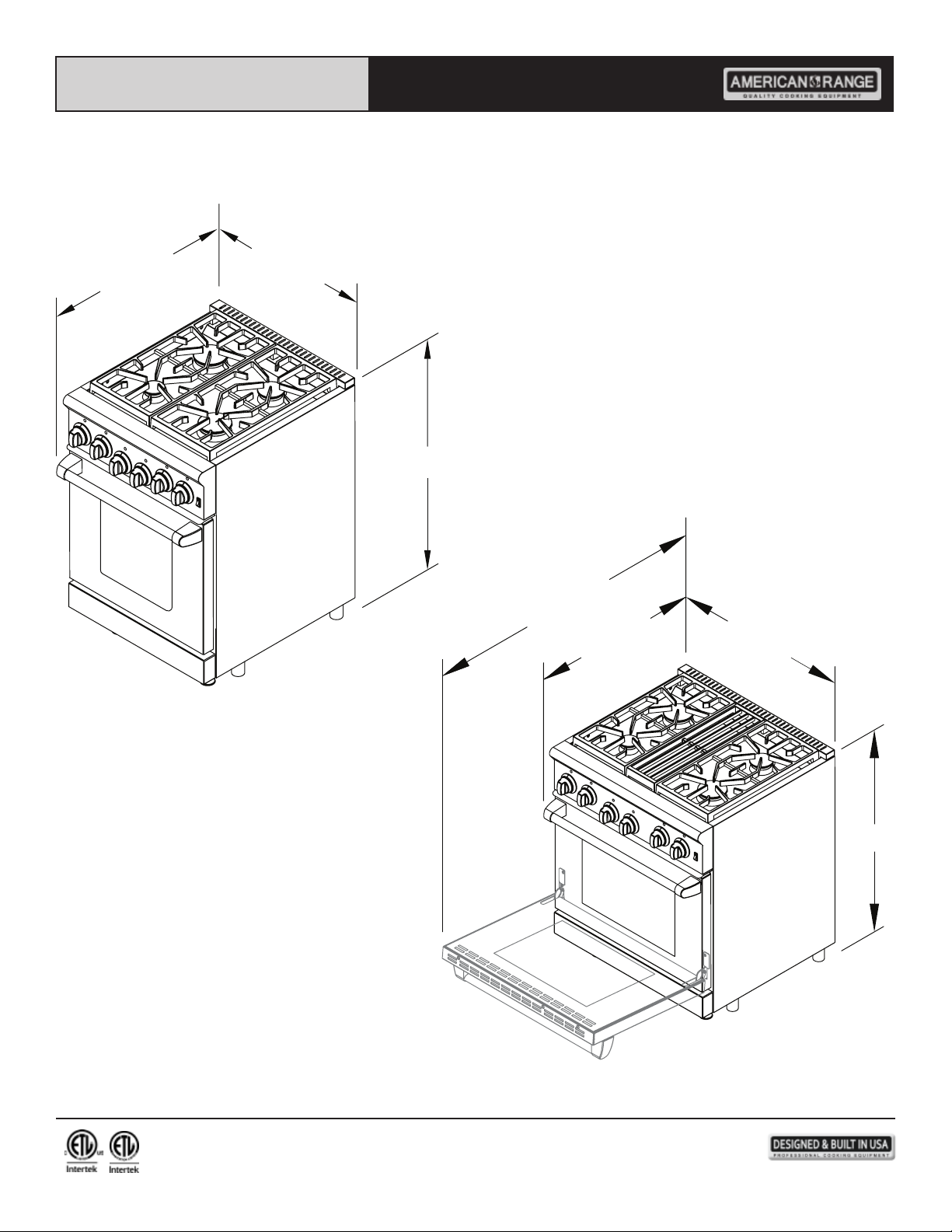

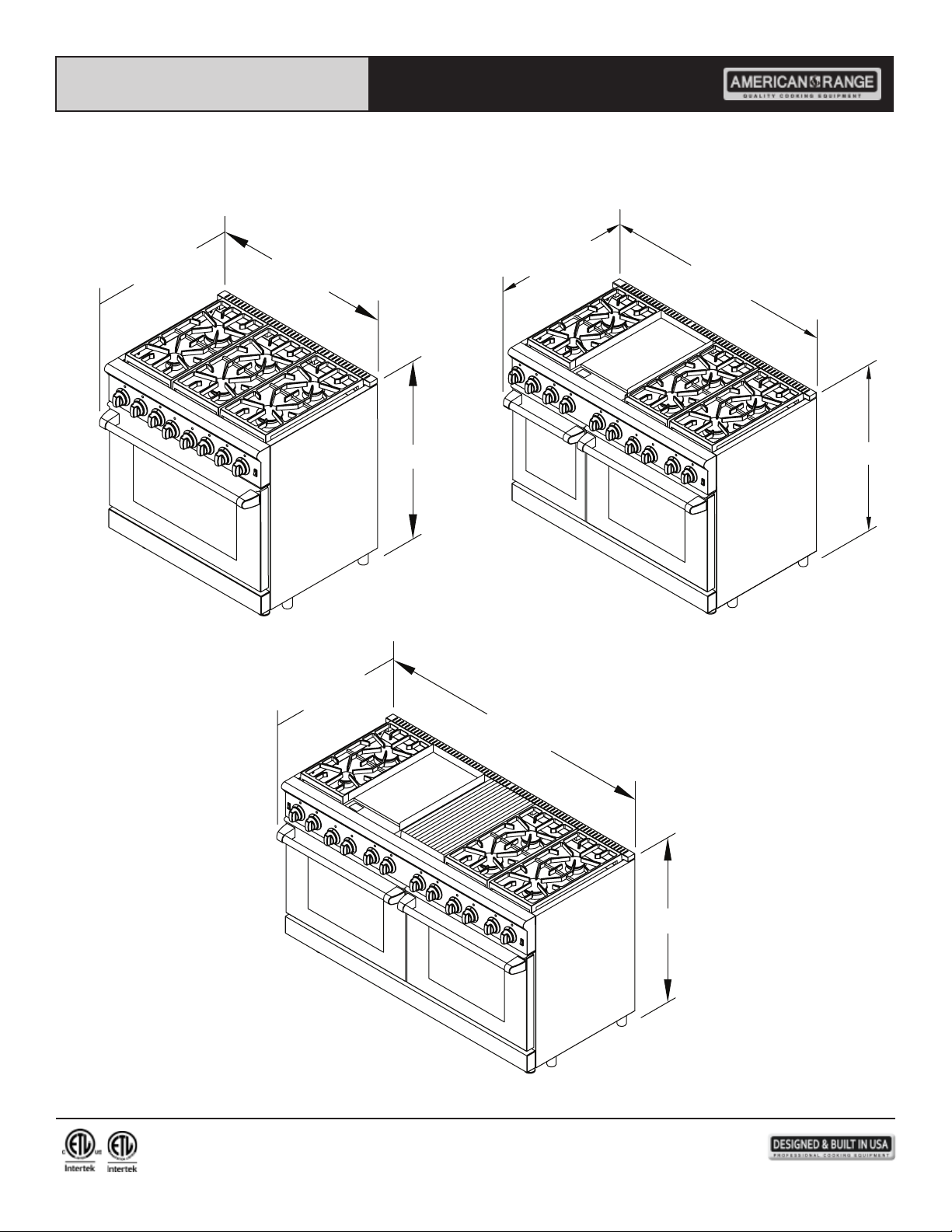

DIMENSIONS - SEALED BURNER GAS RANGES
30 -1/2"
29-7/8"
30 -1/2"
35-7/8"
47-7/8"
30 -1/2"
37"
59-7/8"
30 -1/2"
45 -1/2"
30 -1/2"
23-7/8"
37"
37"
37"
37"
30” Range
24” Range
48” Range
60” Range
36” Range

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
6
SPECIFICATIONS & ELECTRICAL REQUIREMENTS
HERITAGE / TITAN SEALED BURNER RANGES - 24", 30", 36", 48", 60"
DESCRIPTION 24" MODELS 30" MODELS 36" MODELS 48" MODELS 60" MODELS
Overall Width 24" 30" 36" 48" 60"
Overall Height To top side trim 36", legs adjust 1"
Overall Depth 29-7/8"
Additions to Base Height 37-1/4" to Island Trim
Gas Requirements 7" W.C. Natural and 11" LP
Gas Manifold Pressure 5" W.C. Natural and 10" LP
Electrical Requirements 120 VAC, 60Hz Single Phase
Max Amp Usage 10 AMP
Surface Burner Rating
Natural / LP
17,0000 BTU
13,0000 BTU
9,000 BTU
Griddle Burner Rating N/A 20,000 BTU
Grill Burner Rating N/A 30,000 BTU
Oven Interior Width 20" 26" 32" 26"
14-1/2"
26" (EA)
Oven Interior Height 15"
Oven Interior Depth 20-1/2"
Oven Volume 3.71 CU. FT. 4.8 CU. FT. 5.6 CU. FT. 4.8 CU. FT.
2.5 CU. FT.
4.8 CU. FT. (EA)
Approximate Shipping
Weight
407 lb 407 lb 498 lb 581 lb 755 lb

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
7

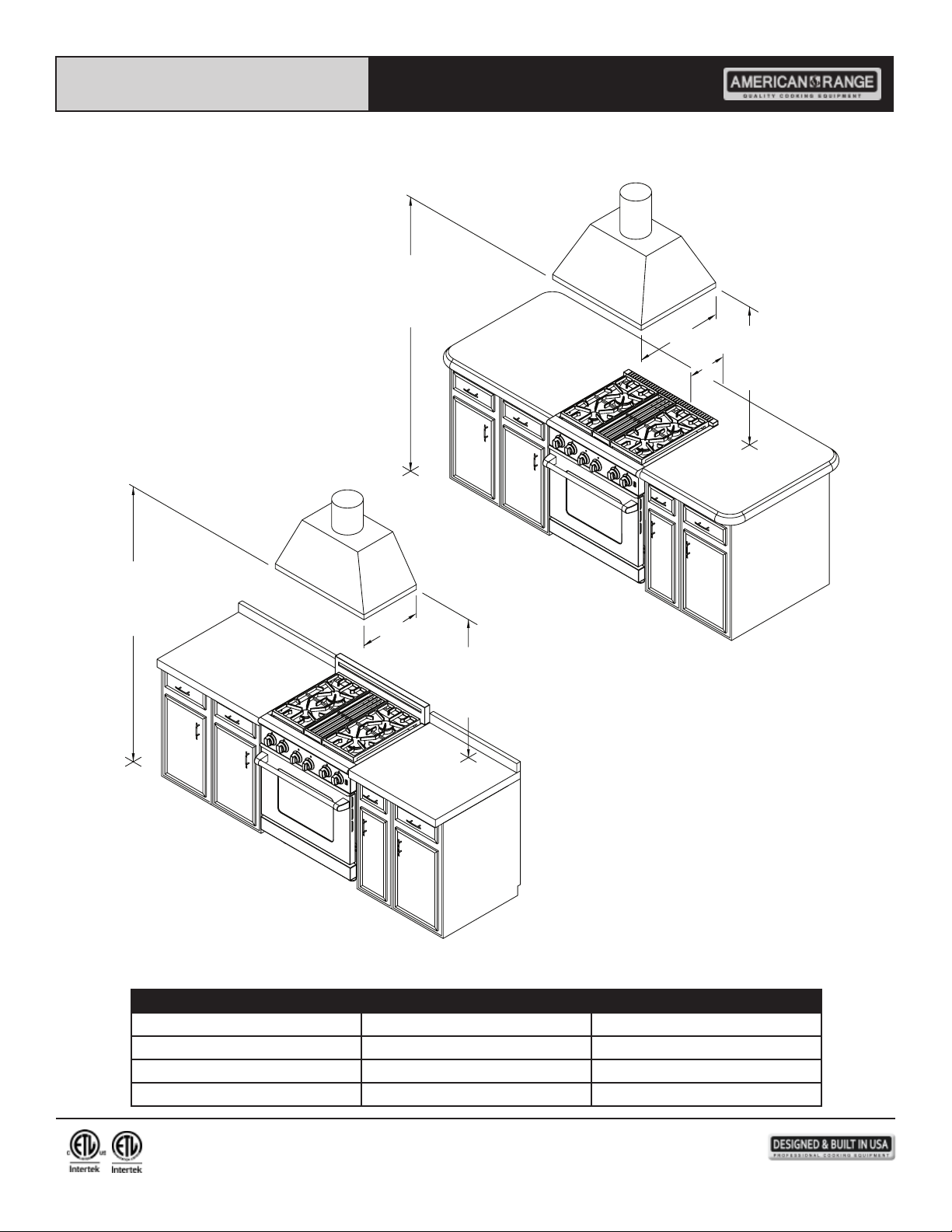

The location selected for the range must meet the following criteria. If any of these criteria are not met, select another location.
Important - The maximum depth of the overhead cabinets installed on either side of the hood is 13".
SITE PREPARATION
0The range is a free standing appliance. If the range is to be installed adjacent to cabinets, the clearances where indicated are
required.
0This range may not be recessed into the cabinets. The rear of the oven door must be beyond the edge of the front face of the
adjacent cabinet.
0The gas and electrical supplies should be located below the unit or in the adjacent right cabinet.
0 Any openings in the wall behind the range and in the oor under the range must be sealed.
0 Always keep the appliance free and clear of combustible materials, gasoline, or other ammable vapors and liquids.
0 Do not obstruct the ow of combustion exhaust and ventilation air to the unit.

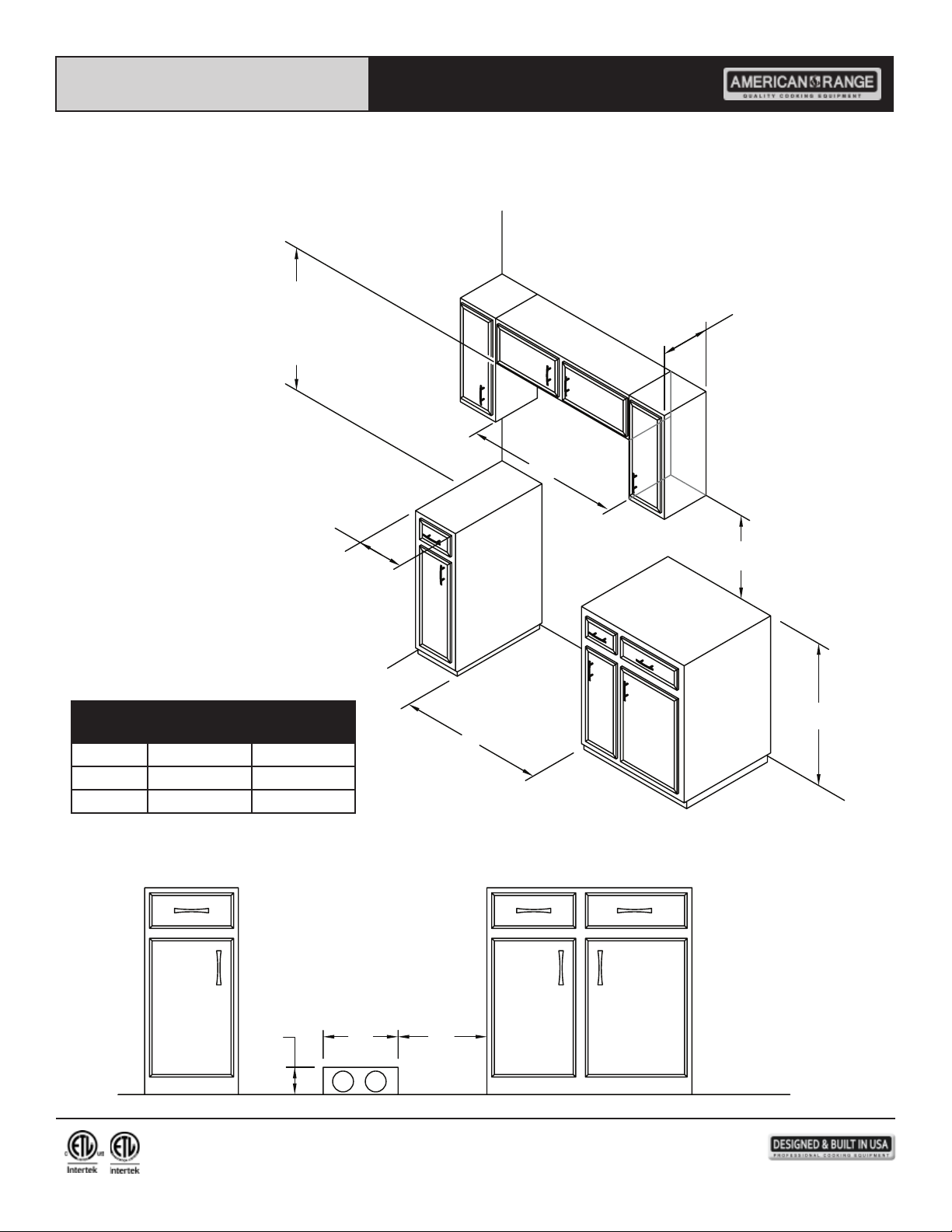

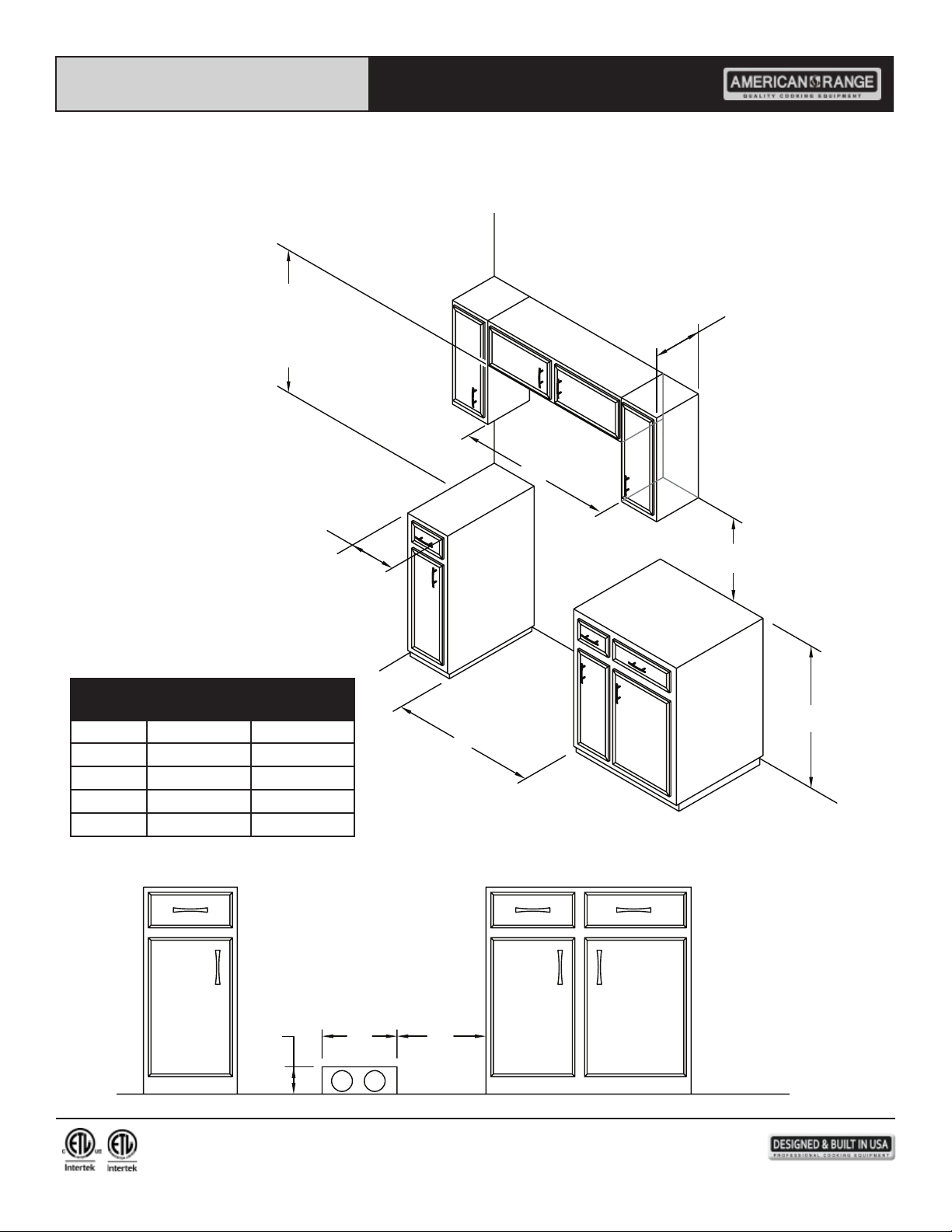

CABINET PREPARATION
Check cabinet materials to be sure they can be used in proximity of the Range.
The maximum depth of overhead cabinets installed on either side of the hood is 13".
When there is less than 12" clearance between combustible material and the back edge of the Range above the cooking
surface, a backguard must be installed.
When clearance to combustible material is over 12" no backguard is necessary.
Backguards must be ordered separately.
ELECTRICAL CONNECTION
0The Range must be electrically grounded in compliance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA70.
0 This range requires a 120 volt supply to operate the ignition system. The supply cord provided on the range is equipped with
a three-prong (grounding) plug for protection against electrical shock.
0 The electrical service in the building must be equipped with a properly grounded three-prong receptacle.
0Do not cut or remove grounding prong from this plug.
POWER REQUIREMENTS FOR THIS RANGE
0 120 VAC, 60 Hz, single phase, 15 AMP Max
GAS CONNECTION
Be certain the appliance gas type matches the gas service being provided. Refer to the appliance rating label for the gas supply
requirements.
A manual gas shut-off valve must be remotely installed and easily accessible in the adjacent cabinet. The regulator inlet is for a 1/2"
gas line.
0 Use at least a 1/2" inside diameter commercial ex hose to connect range to the gas supply (service line).
0A manual gas shut-off valve must be installed, in easy access in front of the gas supply (service line) and ahead of the range for
safety and ease of maintenance.
0All valves must be in the OFF position before connecting to the gas supply line.
INSTALLATION INSTRUCTIONS
0
0
0
0
0

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
8
INSTALLATION INSTRUCTIONS
PRESSURE REGULATOR
0 The regulator installed in the range is adjusted at the factory for 5" WC (natural gas) or 10" WC (L.P.) depending on the
customer’s request. Regulators must not be removed.
0 The regulator can withstand a maximum pressure of 1/2 PSIG (14" WC). If the line pressure is beyond this limit, a step-down
regulator will be required.
0 Any adjustment to regulators must be made ONLY BY QUALIFIED service personnel with proper test equipment.
GAS REQUIREMENTS
0 Ensure supplied gas matches the range’s gas type.
0 Natural gas connection is 1/2" N.P.T. minimum 1/2" inside dimension diameter ex line.
0 Natural gas inlet pressure to measure 7" to 10" W.C.
0 Propane gas connection is 1/2" N.P.T. minimum 1/2" inside dimension diameter ex line.
0 LP gas inlet pressure to measure 11" to 14" W.C.
0 A step-down regulator is required at the LP (Propane) source to limit pressure to a maximum of 14" W.C. operating with the
appliance regulator provided with the LP range.
Check that all gas connections are properly sealed with a suitable gas joint compound.
TEST FOR GAS LEAKS WITH A SOAPY WATER SOLUTION BEFORE LIGHTING THE BURNERS.
1. Turn ON the manual gas valve at the inlet side of the gas supply line.
2. Check for gas leaks at the exible coupling or gas connector tting using a solution of one part soap and three parts water.
3. Sparingly spray or brush the soapy solution at the gas ttings; active bubbling indicates location of gas leak.
4. If a gas leak is detected turn off the manual gas valve at the inlet side of the gas line. Call your certied service technician.
FLEXIBLE COUPLINGS, CONNECTORS AND CASTERS
0 Flexible couplings and/or quick-disconnect ttings must be heavy duty, CSA/UL design certied of at least 1/2" NPT with
suitable strain reliefs.
0 The exible connector must comply with the standard for Connectors for Movable Gas Appliances, ANSI Z21.69-CSA 6.16
and any Quick-Disconnect Devices For Use With Gas Fuel Appliances should comply with ANSI Z21.41CSA 6.9.
0 All connections must be sealed with joint compound specied for LP or Natural gas; and all connections must be tested with a
soapy water solution before using.
0When disconnection of the restraint is necessary, make sure to reconnect restraint after the range has been returned to its
original position.
BTU INPUT/HR/SECTION
3013256
MODEL NO. ARR-304IS
XXXXXX-XXX
XXX
GAS TYPE
MAN. PRESS.
IN W.C. X.X
ANSI Z21. 1b - 2003 HOUSEHOLD COOKING APPLIANCES
VOLTS 120 OVEN BK 18 BROIL 18AMPS
CYCLES BK 24,30,36 30,000 BR 24,30,36PHASE
SERIAL NO.
GRILL
GRIDDLE
60
9
1 15,500
AMERICAN
American Range (www.americanrange.com)
13592 DESMOND ST., PACOIMA, CA 91331
COOK TOP Large
17,000
Medium
13,500
Small
9,000
Rating Plate
RATING PLATE - The information on the rating plate denes the model,
serial number, gas type (natural or liquid propane), operating pressures and
burner BTU ratings. Keep this information for future reference. It is essential
for proper identication of the unit when requesting additional information
or factory support.

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
9
• Do not remove protective packaging until you are ready to perform the installation.
• Do not remove the protective wrapping from the product control panel until the product is installed.
• Caution - the appliance is heavy. Use extreme care when handling!
• Use proper equipment to move products.
• Any openings in the wall and in the oor behind or under the oven must be sealed.
• Do not use an extension cord with this appliance. Such use may result in re, electrical shock or other personal injury.
• Installation of this appliance should be performed by qualied, licensed contractors.
• To remove the packaging, rst remove the staples located at the bottom perimeter of the corrugated cardboard cover.
• Remove the corrugated cardboard carton by lifting it off the product and remove the inner packing.
• Detach the product from the metal anchor strip by removing the attachment screw.
• Conrm available access to adequate power and gas. See Specications & Electrical Requirements table.
• Fill out the inside cover of this installation manual with the requested data. Model Number and Serial Number can be found
on the plate located underneath the control panel on the front of the appliance.
INSTALLATION INSTRUCTIONS
Do not use the handle or oven door to lift the oven. Remove range door before installation to ensure that it is not used to lift
the unit. Make sure the hinge catch is fully open or closed before removing door to prevent injury to hands and/or ngers.
WARNING
!
For optimal performance, the range should be installed away from drafts that may be caused by doors, windows, and heating
and air conditioning outlets.
IMPORTANT
WARNING
!

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
10
OVERALL DIMENSIONS
HERITAGE GAS RANGES
24" Range
30" Range
37"
23-7/8"
30 -1/2"
30
-1/2"
29-7/8"
37"
46 -1/2"

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
11
OVERALL DIMENSIONS
HERITAGE GAS RANGES
48" Range
36" Range
60" Range
30 -1/2"
35-7/8"
37
"
37
"
30-1/2"
47-7/8"
37
"
59-7/8"
30 -1/2"

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
12
OVERALL DIMENSIONS
HERITAGE GAS RANGES
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MATERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
B
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 14"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG
RANGE
WIDTH
"A"
DIMENSION
"B"
DIMENSION
23-7/8" 24" 30"
29-7/8" 30" 36"
35-7/8" 36" 42"
47-7/8" 48" 54"
59- 7/8" 60" 66"

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
13
OVERALL DIMENSIONS
TITAN GAS RANGES
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MATERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
B
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 14"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG
RANGE
WIDTH
"A"
DIMENSION
"B"
DIMENSION
23-7/8" 24" 30"
29-7/8" 30" 36"
35-7/8" 36" 42"

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
14
HERITAGE - VENT HOOD CLEARANCE DIMENSIONS
UNIT STANDARD COUNTER ISLAND INSTALLATION
24" Deep 30" Deep
48" Range 800-1200 CFM 800-1200 CFM
36" Range 600-800 CFM 600-1200 CFM
30" Range 500 CFM 500 CFM
VENT HOOD REQUIREMENTS & RECOMMENDATIONS
6"
30"
66" min.
TO
72" max.
30" min.
TO
36" max.
66" min.
TO
72" max.
30" min.
TO
36" max.
24"

Heritage & Titan Gas Ranges
Installation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
15
TITAN - VENT HOOD CLEARANCE DIMENSIONS
6"
30"
66" min.
TO
72" max.
30" min.
TO
36" max.
66" min.
TO
72" max.
30" min.
TO
36" max.
24"
VENT HOOD REQUIREMENTS & RECOMMENDATIONS
UNIT STANDARD COUNTER ISLAND INSTALLATION
24" Deep 30" Deep
48" Range 800-1200 CFM 800-1200 CFM
36" Range 600-800 CFM 600-1200 CFM
30" Range 500 CFM 500 CFM

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
16
Heritage & Titan Gas Ranges
Installation Manual
OVERALL DIMENSIONS HERITAGE GAS RANGES
UNIT "A" IN. "B" IN. "C" IN.
24" 23.875 18 11
30" 29.875 20-1/2 11
36" 35.875 24 11
48" 47.875 20-1/2 11
60" 59.875 20-1/2 11

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
17
Heritage & Titan Gas Ranges
Installation Manual
OVERALL DIMENSIONS TITAN GAS RANGES
UNIT "A" IN. "B" IN. "C" IN.
24" 23.875 18 11
30" 29.875 20-1/2 11
36" 35.875 24 11
48" 47.875 20-1/2 11
60" 59.875 20-1/2 11

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
18
Heritage & Titan Gas Ranges
Installation Manual
LEFT
REAR FRONT
LEFT CENTER
REAR
INDICATOR LIGHT
INDICATOR LIGHT
FRONT
CENTER RIGHT
REAR FRONT
RIGHT
SELECTOR
OVEN
THERMOSTAT
LIGHT SWITCH
OVEN INTERIOR
LIGHT
WITH INDICATO
R
INDICATOR LIGHT
BURNER BURNER
INDICATOR LIGHT
TYPICAL MODEL & PARTS IDENTIFICATION
ARR-244 ARR-304 ARR-364GD ARR-366 ARR-364GR
ARR-486GD ARR-4842GR ARR-484GDGR ARR-4842GD ARR-486GRARR-486GR
ARR-606GDGR ARR-6062GD ARR-6062GR
ARR-244IS
HERITAGE
TITAN
ARR-304IS ARR-366IS
Large Medium
Small Large
Large Medium
Small Large Small Large
Large Medium Large Medium
Small Large
Medium
Large
Large Medium
Small Large
Large Large Medium
Small Medium Large
Large Medium
Small Large
Large Medium
Small Large
Large Medium
Small Large
Large Medium
Small Large
Large
Medium
Large Large Medium
Large Large Medium
3 SIZES OF BURNERS:
Large Burner 17,000 BTU
Medium Burner 13,000 BTU
Small Burner 9,000 BTU
Large Large Medium
Large Large Medium
Large Large Medium
Large Large Medium
Small Medium
Large Large
Small Medium
Large Large
Medium Small
Large Large Large
Medium
