American Standard Bath/Shower Trim Kits T385.507 User manual
Certified to comply with ANSI A112.18.1
3
2
INSTALL TRIM ADJUST HOT LIMIT STOP
BATH AND SHOWER TRIM KITS
1
4
5
13
12
3
2
1
97
8
10
11
6
When finished tiling the wall, remove PLASTER GUARD (3).
Push on CAP (1).
Mount ESCUTCHEON (2) and with SCREWS (7).
Install HANDLE (8) by pushing it onto CARTRIDGE STEM (9)
and tightening SET SCREW (10) from below with 2.5mm
Hex Wrench supplied. Insert INDEX BUTTON (11).
Remove cap from tub supply and plug from shower pipe.
Install SHOWER ARM (4) and FLANGE (13). Install
SHOWER HEAD (5). See Step 2.
Tighten SET SCREW (12) onto FLANGE (13)
using 5/64” hex wrench.
Install DIVERTER SPOUT (6).
Reliant 3
Reliant 3
By restricting handle rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP
reduces risk of accidental scalding. To set the maximum hot water temperature of your faucets, all you need to do is adjust
the setting on the HOT LIMIT SAFETY STOP.
Use a flat blade screwdriver or your fingers to pull up and rotate red HOT LIMIT SAFETY STOP (1). Follow Step "A" or "B" to
adjust min./max. discharge temperature. "0" being the hottest to "7" the coldest temperature setting. Factory set at "0".
HOT LIMIT SAFETY STOP ADJUSTMENT
PRY RED RING FORWARD AND ROTATE
COUNTER-CLOCKWISE ONE CLICK
PRY RED RING FORWARD AND ROTATE CLOCKWISE
"A"
ADJUSTMENT WHEN WATER IS TOO HOT
"A"
"B"
"B"
ADJUSTMENT WHEN WATER IS TOO COLD
"RED RING"- HOT LIMIT SAFETY STOP
TEMPERATURE SETTING NUMBERS
0
1
2
3
4
5
6
1
SERVICE
4
Remove HANDLE (1), CAP (2) and CARTRIDGE (4). Clean inlets
and MANIFOLD (5).
Reassemble CARTRIDGE (4), alternately tightening SCREWS (3).
Replace CAP (2) and HANDLE (1). Check flow.
If faucet drips, operate handle several times from "off" to "on". Do not apply excessive force.
Clogged CARTRIDGE (4) inlets may cause reduced flow in "full on" hot or cold. To clean inlets, first turn off
water supply, then:
Installation
Instructions
T385.508
T385.507
BATH/SHOWER
TRIM KITS
MODEL NUMBER
CHROME 002
SATIN NICKEL 295
Replace the "YYY" with
appropriate finish code
5
4
3
2
1
060351-YYY0A
SHOWER ARM
AND FLANGE
M953016-YYY0A
SHOWER HEAD
M962490-YYY0A
ESCUTCHEON AND SCREWS
M907050-YYY0A
ESCUTCHEON CAP SET
M950231-YYY0A
DIVERTER SPOUT (SLIP-ON)
M962497-YYY0A
LEVER HANDLE KIT
THREADED INLETS (STOPS)
INLETS
1/2" NPT
5-7/8"
OUTLETS
1/2" NPT
3-3/8"
INLETS 1/2" NPT
OUTLETS
1/2" NPT
3-3/8"
3-3/8"
THREADED INLETS
INLETS
4-1/16"
4-1/16"
INLETS
1/2" NOM.
COPPER
SWEAT
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
2"
SWEAT
INLETS
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
4-1/16"
5-7/8"
SWEAT
INLETS (STOPS)
INLETS
1/2" NOM.
COPPER
SWEAT
M968690
M968690 M968690 M968690
Teflon Tape
Flat Blade Screwdriver
Plumbers' Putty or Caulking
Phillips Screwdriver
To assure proper positioning in relation to wall, note
roughing-in dimensions.

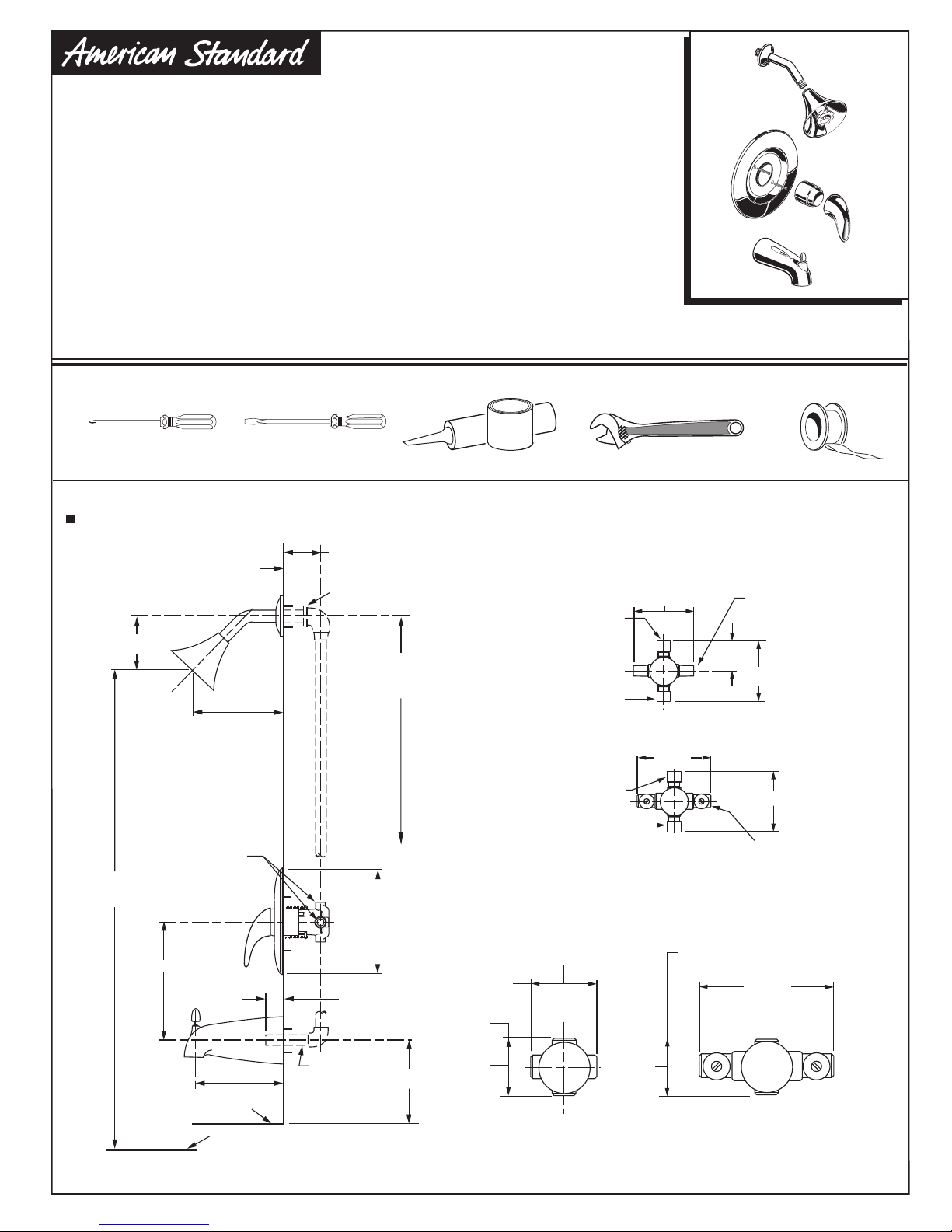

ROUGHING-IN DIMENSIONS
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
1 (800) 442-1902
Weekdays 8:00 a.m. to 6:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
Product names listed herein are trademarks of American Standard Inc.
© AS America, Inc. 2007
IN MEXICO 01-800-839-12-00
FINISHED WALL
4"
TOP OF TUB RIM
BOTTOM OF TUB
74" FOR HEAD
CLEARANCE
4-1/4" REF.
18" OPTIONAL
5-1/2" REF.
1/2" NPT
1/2" COPPER
7-5/8”
1-1/2" REF.
6" REF.
"SEE ILLUSTRATION "
3/4"" TO 2-3/8"
SHR
TUB
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
1-1/2" REF.
T385.508
T385.507
078016-YYY0A
ESCUTCHEON SCREWS
Adjustable Wrench
RECOMMENDED TOOLS
REMOVE SHOWER HEAD FROM HOUSING
1
1
2
Hold SHOWERHEAD (1) with one hand and HOUSING (2)
with the other as illustrated.
Rotate SHOWERHEAD (1) clockwise while holding HOUSING (2)
stationary. NOTE: The thread connection is a left hand
thread. Keep turning SHOWERHEAD (1) until it can be
removed from the HOUSING (2).
2a INSTALL HOUSING
INSTALL SHOWER HEAD ASSEMBLY
2c
Slide HOUSING (2) onto
SHOWER ARM (3).
2b INSTALL SHOWER HEAD
TEFLON TAPE
Rap SHOWER ARM (3) threads with Teflon tape.
Tighten SHOWERHEAD (1)
with an adjustable wrench.
Do not over tighten.
INSTALL HOUSING TO SHOWER HEAD
Install HOUSING (2) onto SHOWER HEAD (1). Thread
HOUSING (2) counter-clockwise to install onto SHOWER
HEAD (1). Hand tighten only.
1
3
3
2
2
